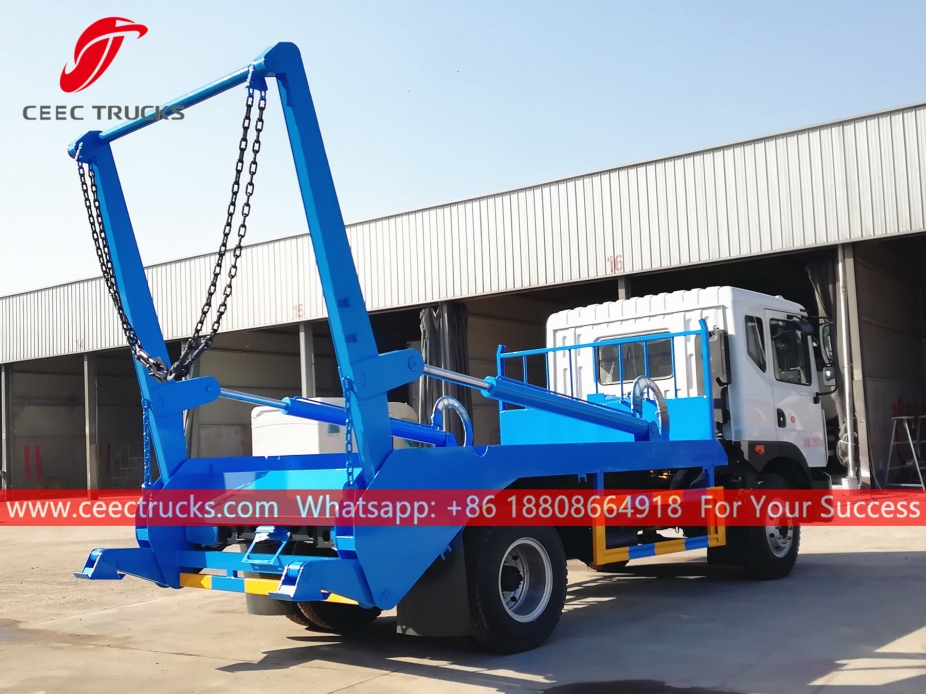

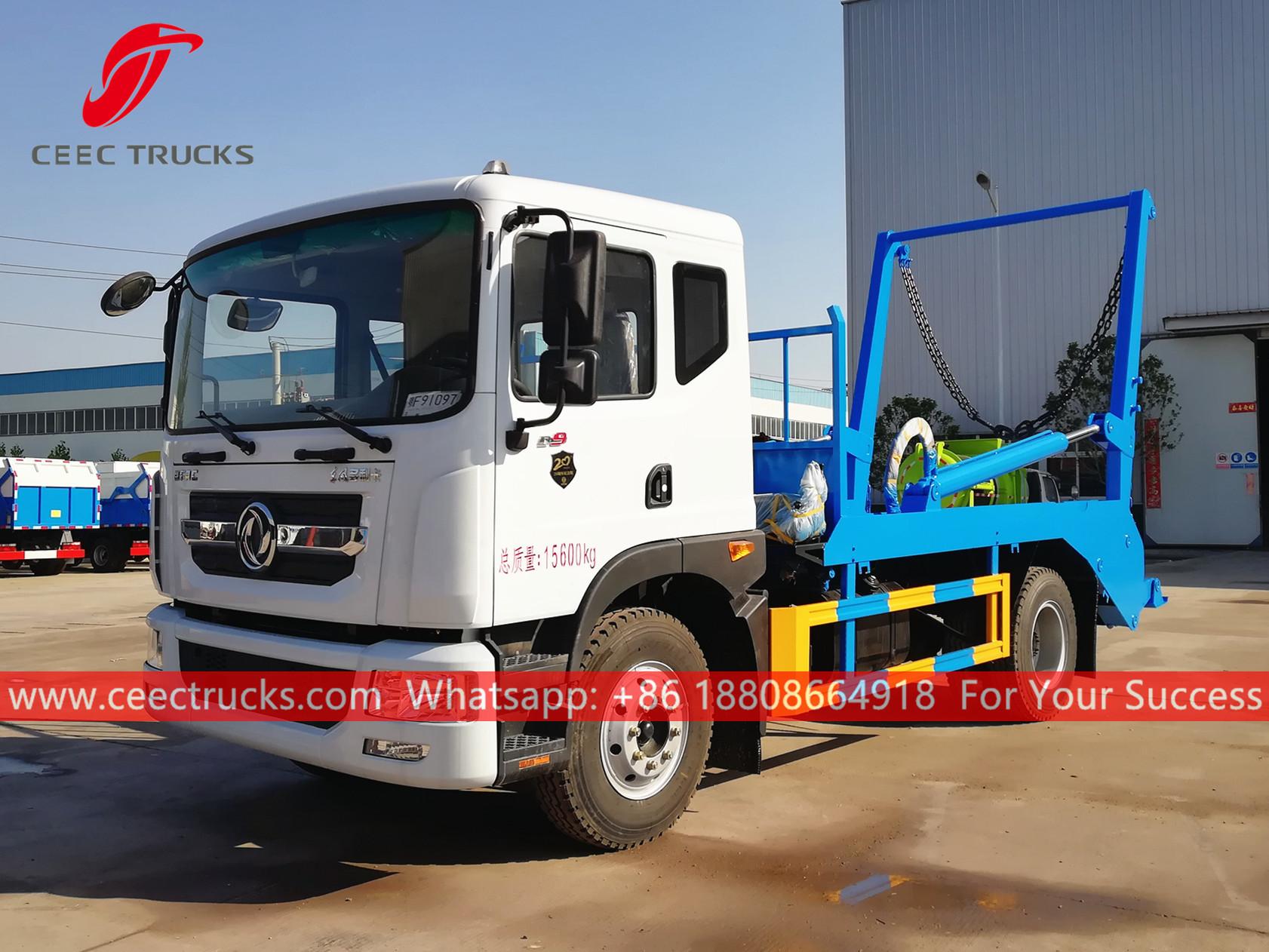

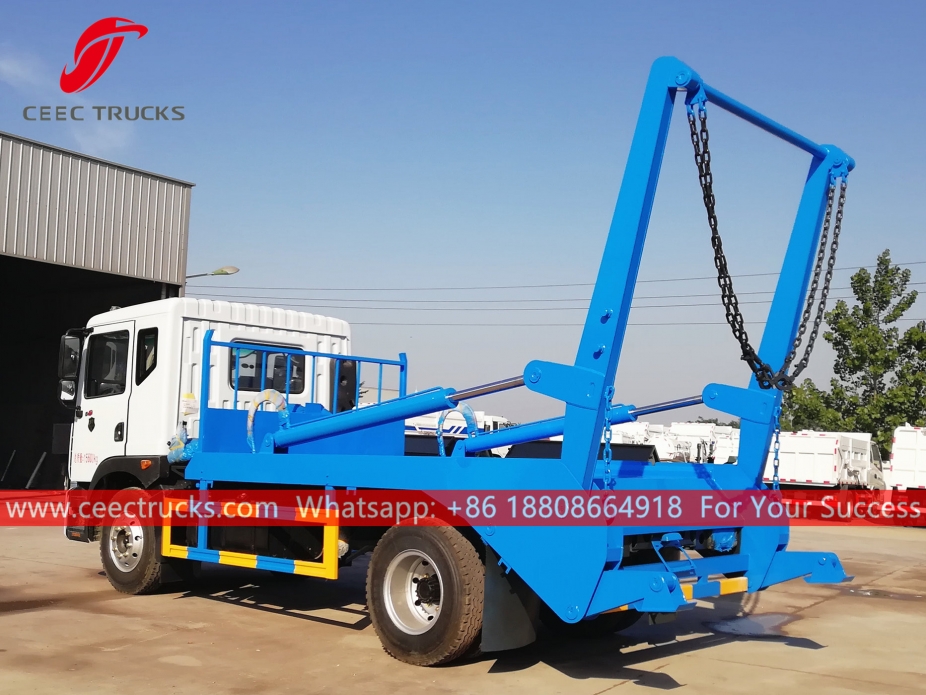

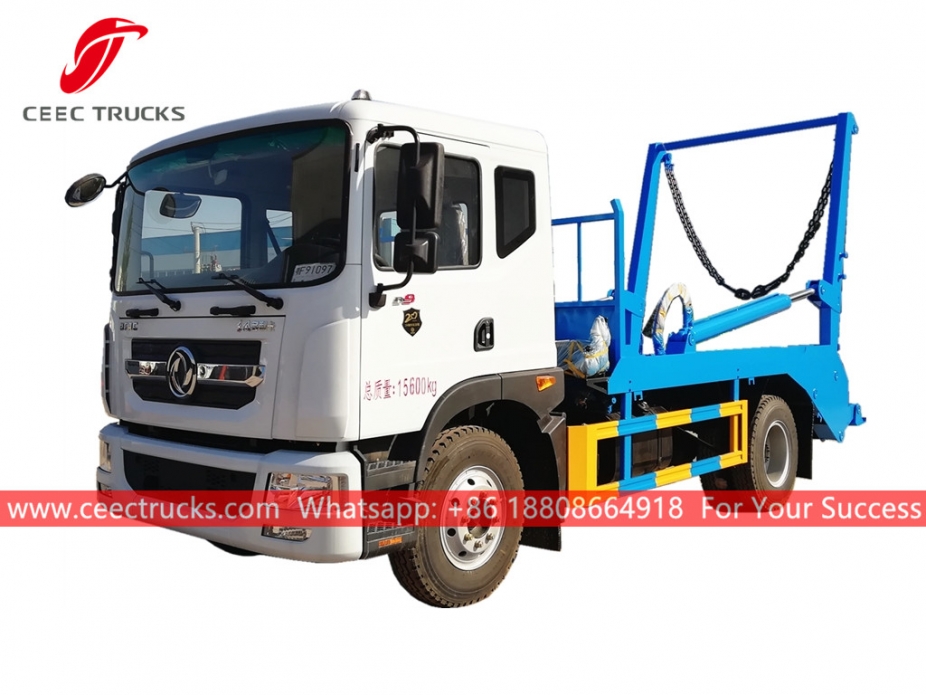

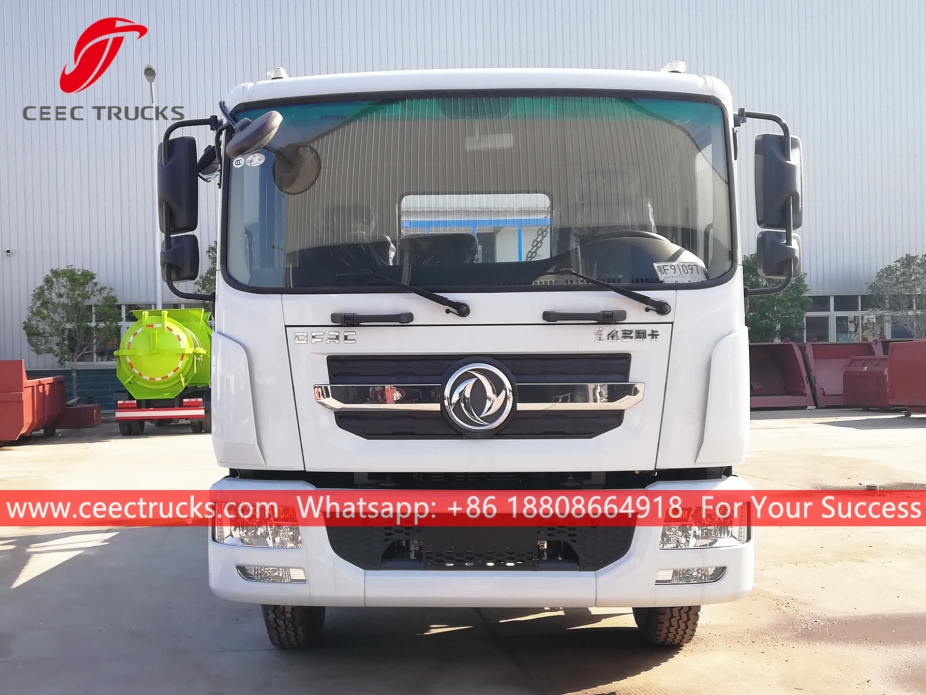

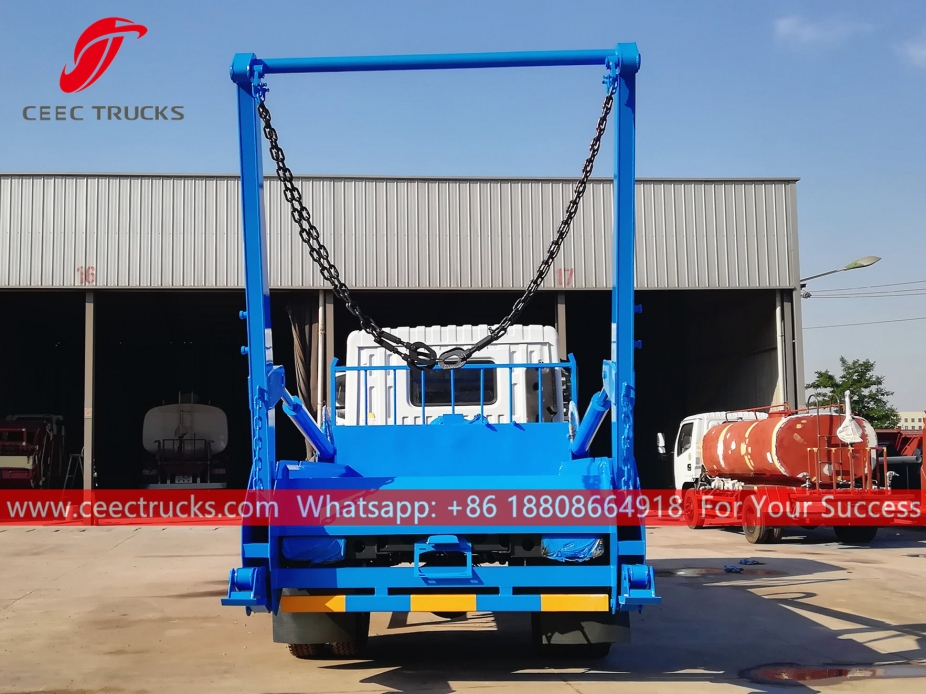

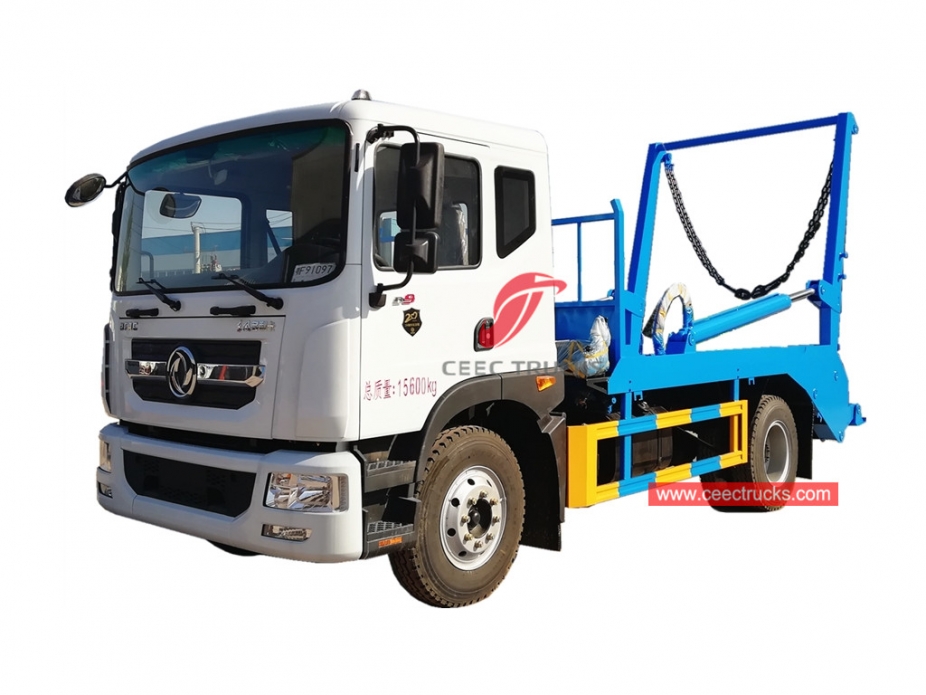

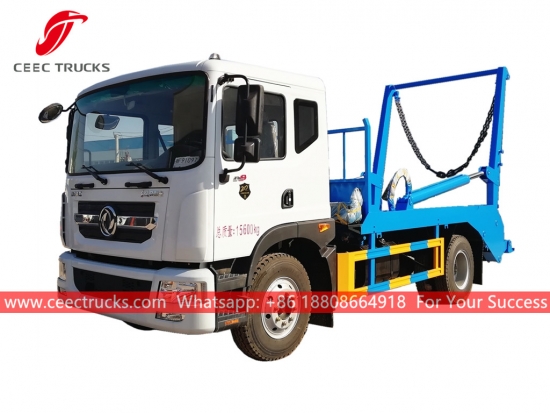

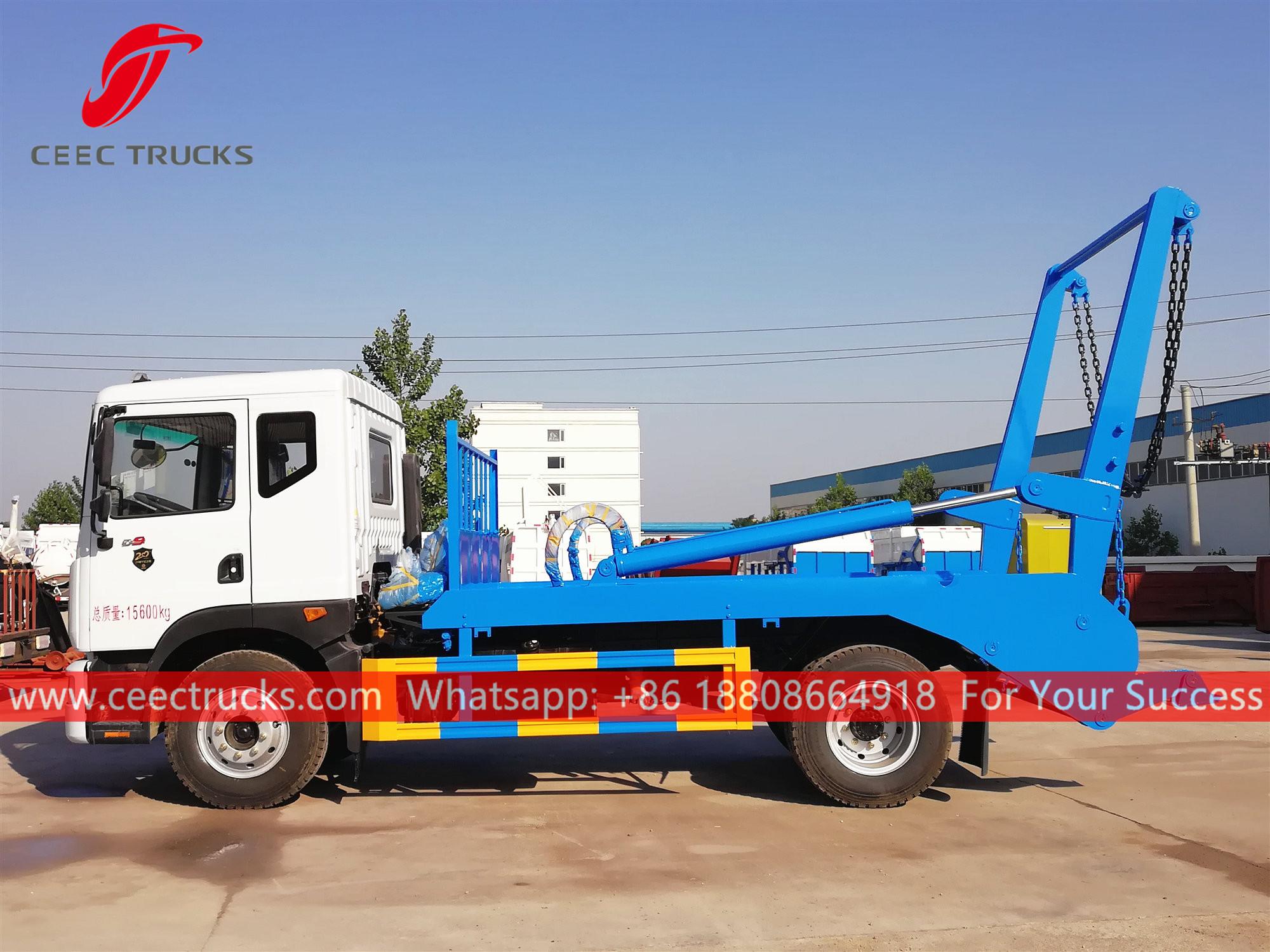

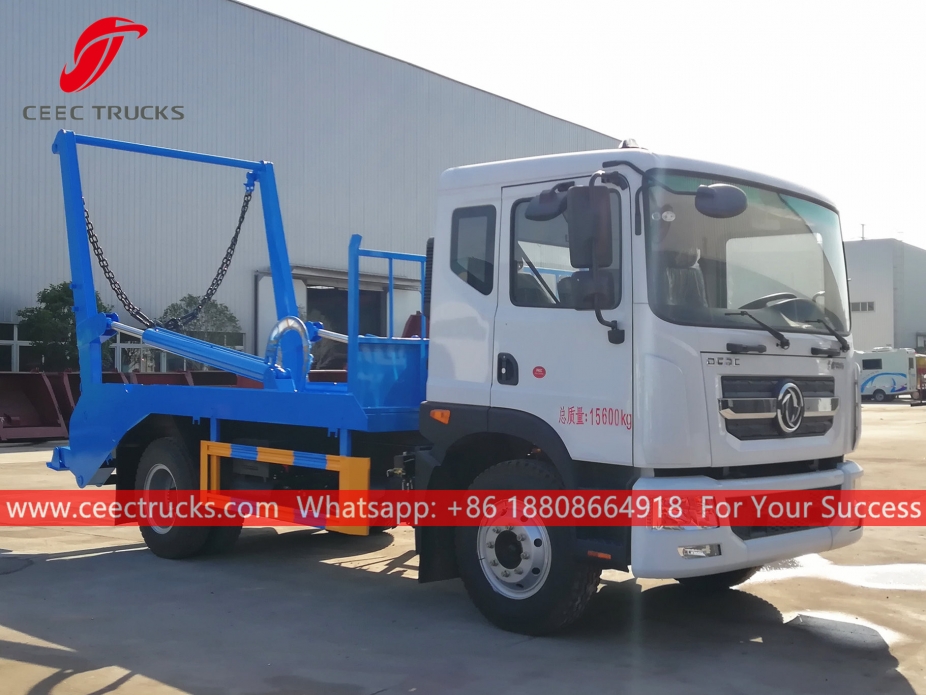

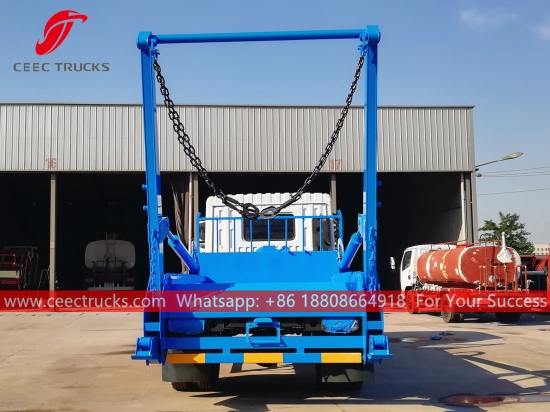

10CBM Skip Loader Truck Dongfeng

10cbm skip loader vehicle, Dongfeng 4x2 chassis, Manual 6-shift manual gearbox, CUMMINS 180HP diesel engine, high strength steel swing arm system, Hydraulic control device and Electric control box optional. All painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $32,000-49,000
contact now



 Applications:



Swing arm refuse truck (also called skip loader truck, skip loader garbage vehicle, swing arm refuse truck, 6 wheels skip loader, hydraulic arm garbage loader, arm rolling garbage truck) is widely used in sanitation & municipal, industrial enterprises and residential area. The truck has several garbage tanks to avoid pollution during transporting process. The modified part can be separated from chassis, so it is easy to maintain and the mobility & readability of the truck are kept. If you have special demand of garbage truck, please contact with us. We may design and modify it for you. We also can add power steering and A/C for you



CEEC TRUCKS Swing arm garbage truck is a garbage truck with detachable body container, which could enable one truck with several garbage containers for recycle use.



 Key Features:



---- Dongfeng chassis, perfect performance

---- CUMMINS engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Garbage container capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Various types of refuse container lifter are available.



 Specifications:



Dongfeng Skip loader truck (10 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Dongfeng

Overall Dimension

7700 * 2500 * 3360 mm

GVW / Kerb Weight

15,600kg / 6500kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

CUMMINS

Power

180 HP (132 KW)

Displacement

4500 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

4X2, (left hand drive)

Transmission

Manual 6 speed levers with 1 reverse

Wheelbase/No. of axle

4200 mm / 2

Tire Specification

10.00-20

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

10 cbm

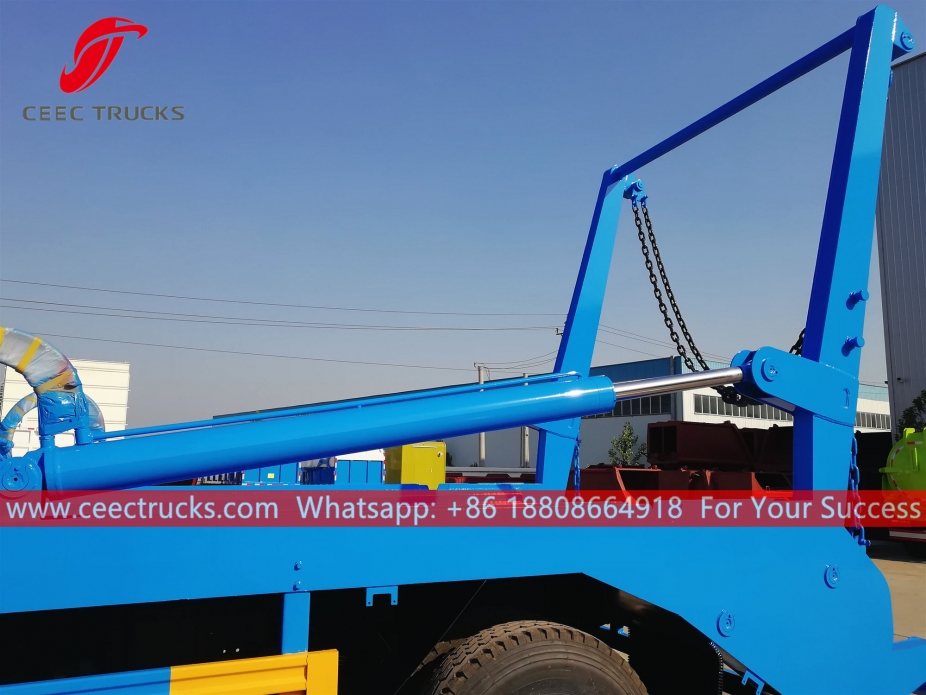

Lifting device

Two swing arm lifting system

Rear legs

Two hydraulic rear legs for support

Lifting cycle time

 20~25 s

Match model

One truck match with several containers

Control system

Electrically Hydraulic control

Manual hydraulic control

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual……

Optional

** Container material could be stainless steel.

** A sealed cover for the container.

** A truck with several containers.

Dongfeng chassis, perfect performance

Euro 3 or 4 type, CUMMINS engine, super powerful

Garbage container capacity from 3 to 20 Cublic Meter.

12 months fast moving spare parts for FREE

Authorized Dongfeng skip loader trucks exporter

Training service for swing arm garbage trucks



CEEC TRUCKS is a leading exporter of skip loader trucks in China. We possess over 10-year export experience of swing arm garbage trucks. We can ensure the fast delivery time and 12 months guarantee for our tipper trucks. Our skip bin refuse trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.


---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



CEEC garbage compactor truck factory review


---- Service more than 60 countries.

----  Professional guidance on your importing documents.

----  CO, FORM E, FORM P, Pre-shipping Inspection...



 export documents
Successful Cases
inquiry now

    Please feel free to inquiry trucks from us; our experience sale manager will give the quotation within 12 hours
