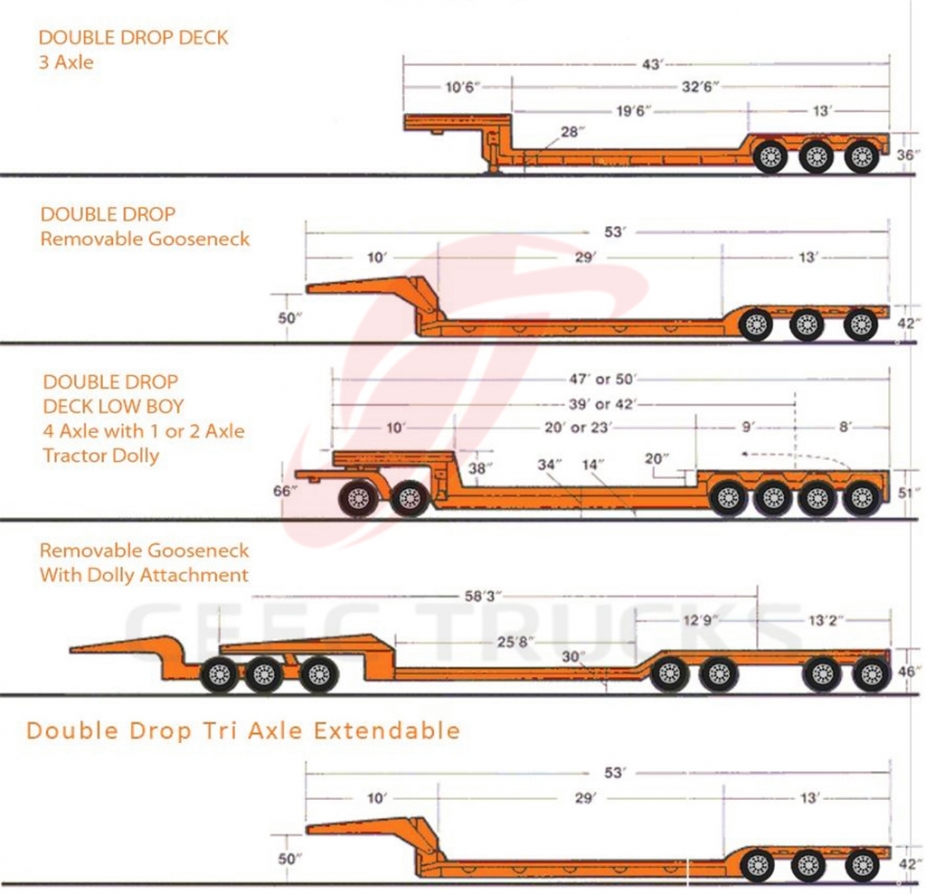

CEEC lowboy trailers 30T low bed semitrailer for sale

2-axle 30 T Low bed semitrailer

china 2 axles 30ton heavy duty low bed trailers/lowbed semi trailer for sale In Africa countries. Low bed dimension can be maximum 10 meters, BPW axle, JOST 13 T landing legs, JOST50# kingpin for top quality

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    7 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $11,200-17,600
  • Market Price:

    $14600
contact now
Low bed semi trailers are widely used for heavy duty goods transportation as its low working platform. So that, there's enough upper loading space. Its low gravity makes the vehicle running safety. We CEEC TRUCKS can design low bed trailer model according to your special goods transportation demands .



30T Low bed semi trailer manufacturer

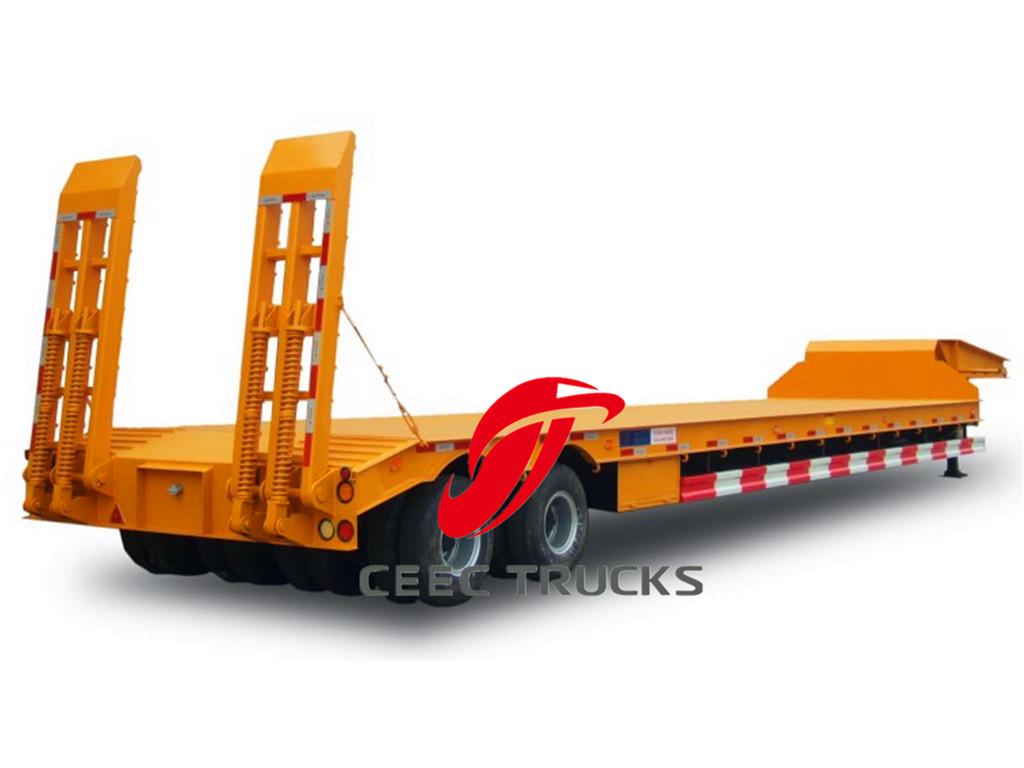

2-axle 30T lowbed semitrailer



All the CEEC Low bed semi-trailer adopts famous brand as:

Axle: Famous brand axle support trailer durable and high attendance rate.

FUWA brand, BPW brand optional

Chassis: select the best material support stronger beam and trailer chassis.

China best carton steel material Q234, Q345B, T700.

Tire: Famous brand tire and good quality support trailer running safety and smoothly for a variety of road conditions.

Tire Tubeless tire12R22.5 / Steel radial tire11.00R20 or 315/80r22.5 optional

King pin: Detachable type support fast and easy replace, JOST brand optional.

Suspension: Mechanical suspension / Air suspension optional

Emergency valve: Fast response, low failure support safety and protect tire durable. WABCO brand.



– Main beam material: Q345b

CEEC TRAILER 2-axle low bed semi trailer main beam is used in carbon steel Q345B.

Q345– good mechanical properties, high mild, good ductility and weldability, is mainly used as the low-pressure containers, tanks, vehicles, cranes, mining machinery, power plants, bridges, etc. under dynamic load configuration



-Shot blasting and Painting

 CEEC TRAILER trailer frame all shot blasting, shot peening.

Shot blasting and peening can improve use life, Improve the fatigue strength, Remove surface intensity and painting adhesion.



-Assembly

The entire frame is positioned in a dedicated carriage assembly, welded, reasonable structure, high strength, beautiful appearance

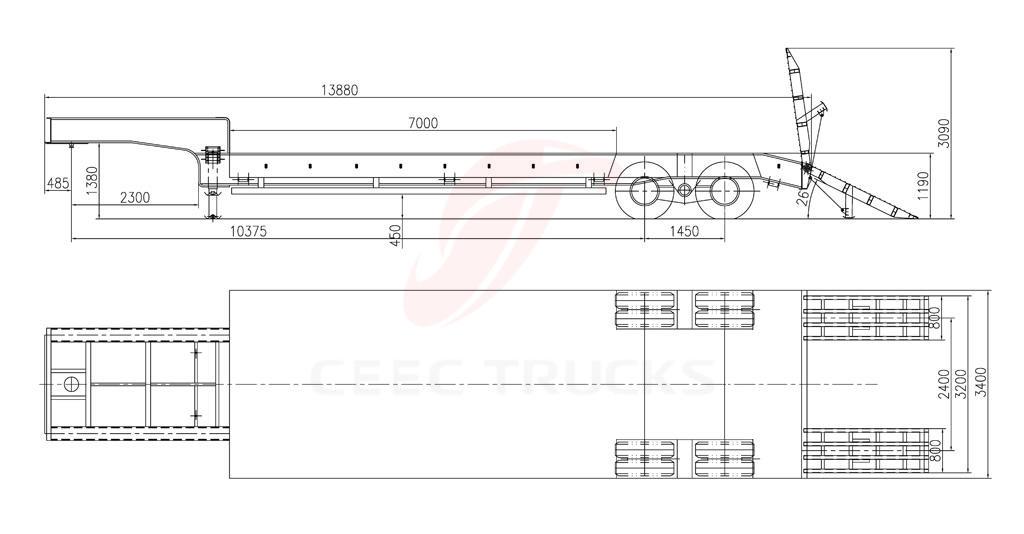

2 axle low bed semitrailer drawing

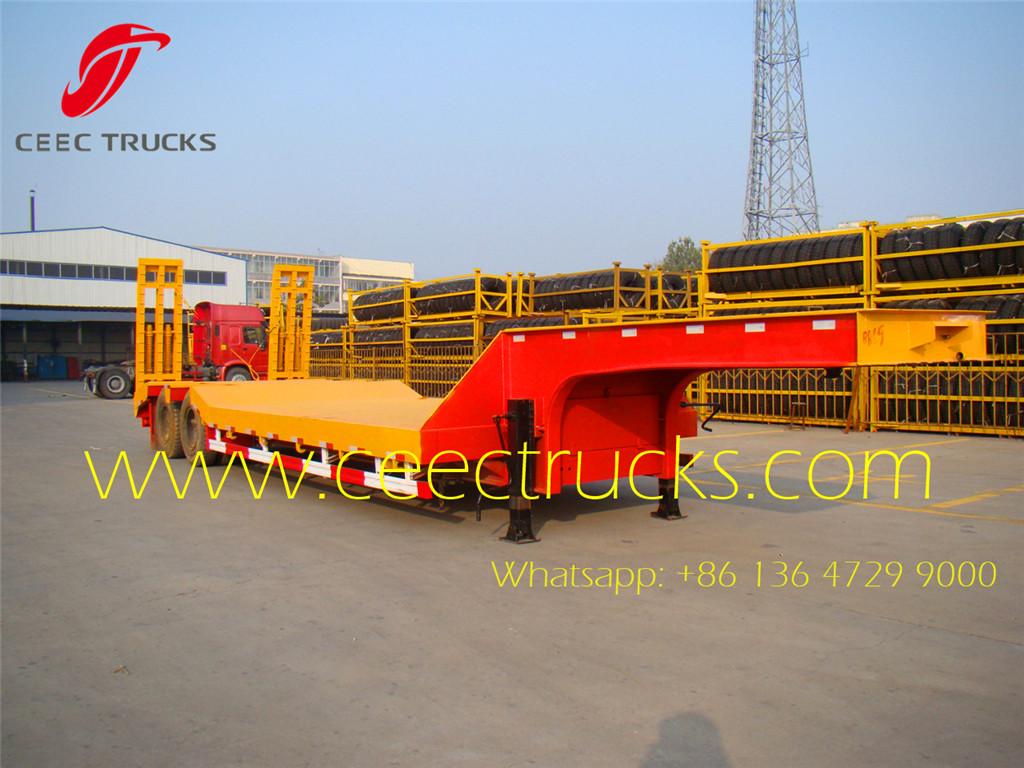

2-axle 30T lowbed semitrailers manufacturer supply

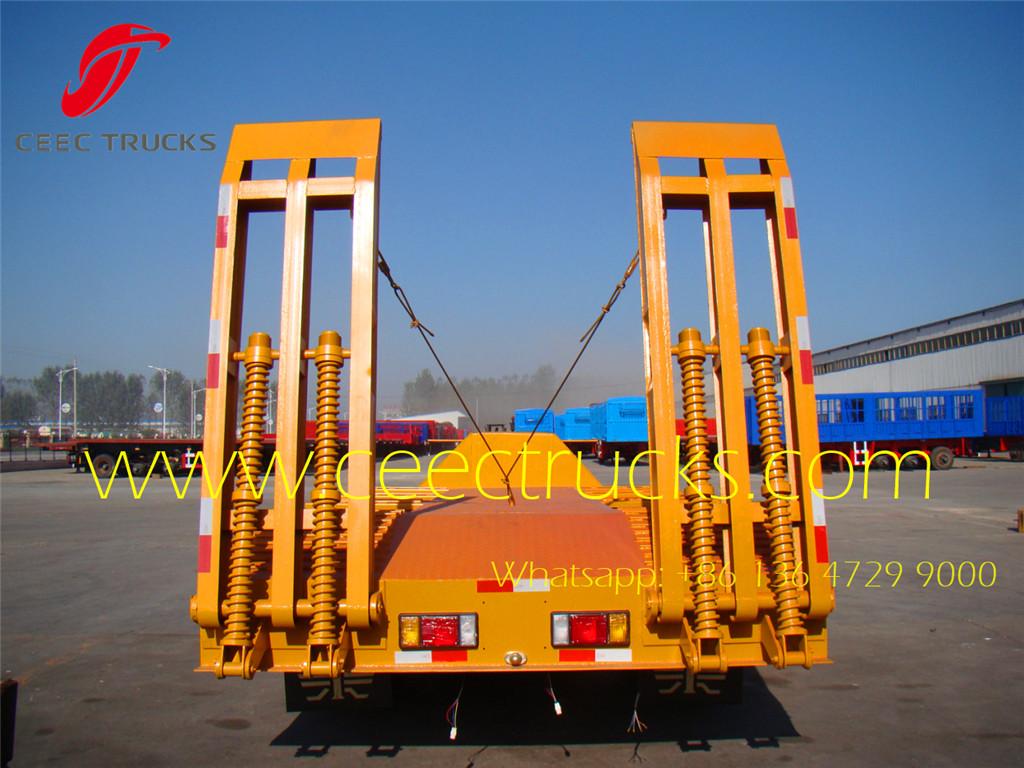

2-axle 30T lowbed semitrailers manufacturer supply



Similar Key Words: 40ton Platform lowboy trailer,50ton Extendable lowbed trailer, 60ton container low loader truck trailer,70-90ton Detachable goose neck trailer, 80ton hydraulic goose neck lowboy trailer, 100ton 2 lines 4 axles low bed trailer, 120ton 3 lines 6 axles low loader trailer,etc.



2 axle 30T low bed semitrailer DIMENSIONS

Tare  Weight

8500kg

Payload

40000kg

Total  Weight

48500kg

Overall  Length

12000mm

Overall  Width

3000mm

Overall  Height

3100mm

Wheel track

2160mm

Wheelbase

7400mm+1300mm

SPECIFICATION

Main  Frame

Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
500mmHeight, Top Flange 14mm,width 140mm; Middle Flange 8mm ;Bottom Flange 20mm,width 140mm

Axle

2 Units of FUWA(brand) 13Ton axle.

Suspension

A couple of FUWA (brand) mechanical 3-axle suspension

Leaf Spring

4 sets of reliable local brand, 8-piece leaf spring,16x90mm

King Pin

One unit of SAE 2`` standard kingpin

Landing Gear

Two-speed ,manual operation,heavy duty landing gear

Wheel Rim

9 units 8.25-22.5 rim.

Tyre

9 units 11R22.5 tubeless tyre.

Spare Wheel Carrier

One set of spare wheel carrier including a riser.

Pneumatic Braking System

Two units of WABCO RE 4 relay valve; six units of T30/30 chamber; two units of reliable local brand 40L air tank; two units of reliable local brand standard coppery air-connector.

Electrical  System

One unit of JAEGER POWAY,24V 7-pin ISO 1185 socket;two sets of reliable,local brand standard rear light,turn light,rear reflector,side light,side reflector etc.
One set of  DAFA(brand ) 6-core standard Cable.

Painting

Sand blasting before painting
Two coats of primer, anti corrosion
One coat of finish painting
Colour advised by client

Accessary

One box with a set of standard trailer tool

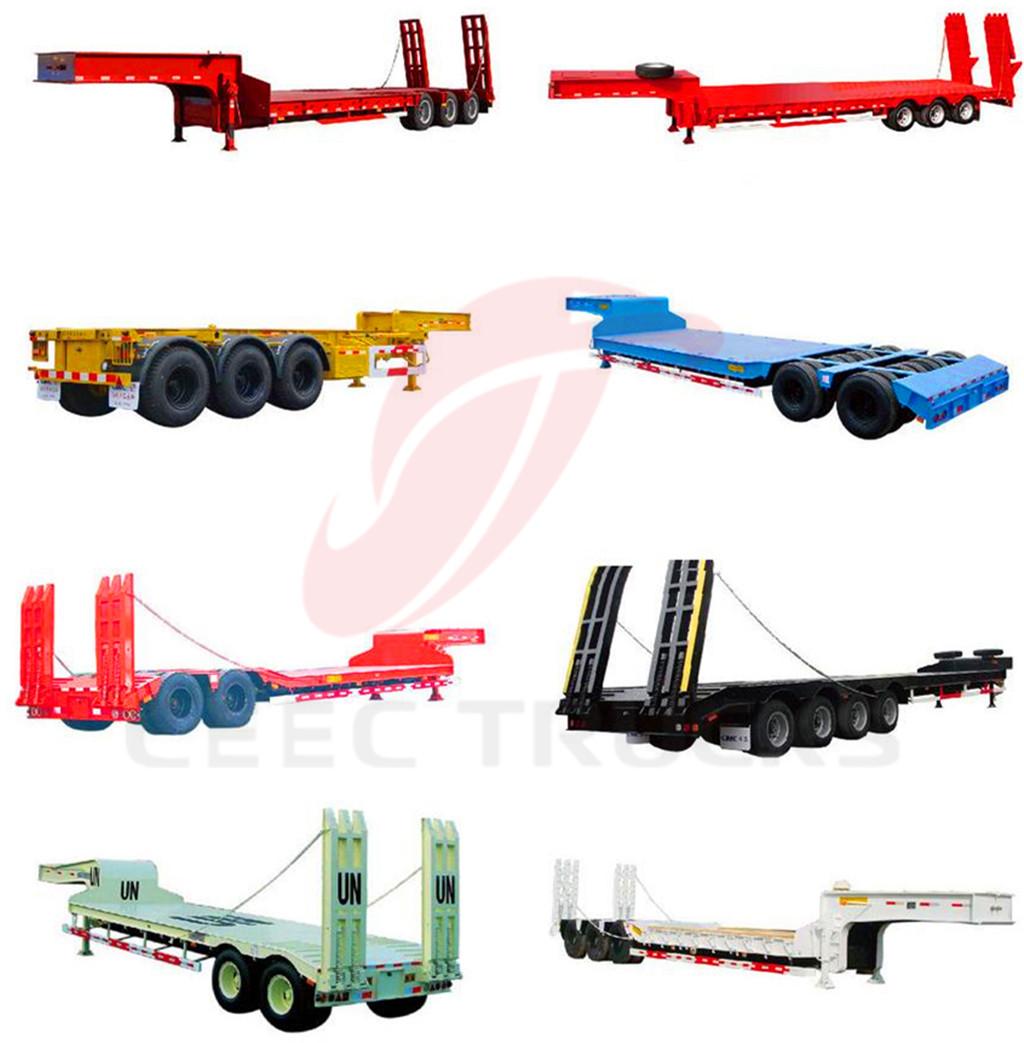

2-axle 30T lowbed semitrailers manufacturer



China Best Semitrailer on sale





Other beiben trucks display





SaveSaveSaveSaveSaveSaveSaveSaveSave
We have well experienced in reseaching and developing different low bed trailers:2 axle low bed trailer, 3 axle low bed semitrailer, 20 T gooseneck semitraile, 30 T low bed semitrailer, etc.
High quality strength steel Q345B for I-beam
Axle: German BPW or American style from 12 tons to 20 tons
Suspension: Mechanical suspension, air suspension or bogie suspension.
Tyre: 10.00R20, 10R22.5, 11.00R20, 11R22.5, 12.00R20 or 12R22.5 (Other size is optional)
King pin: Optional for 2" or 3.5" Kingpin
Side wall height: Optional for 600mm, 800mm or 1000mm
Twist locks: Standard 4 sets and others for Optional



CEEC best 2-axle / 3-axle low bed semitrailer supplier in China

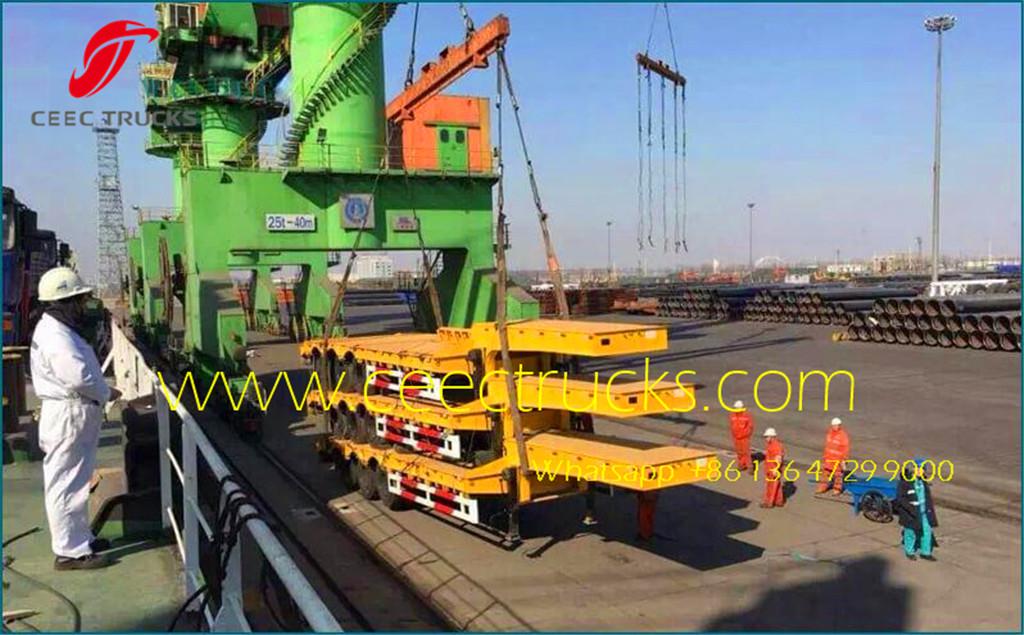

low bed semitrailer shipment

(CEEC shipping low bed semi trailers to Africa Congo for construction project)
