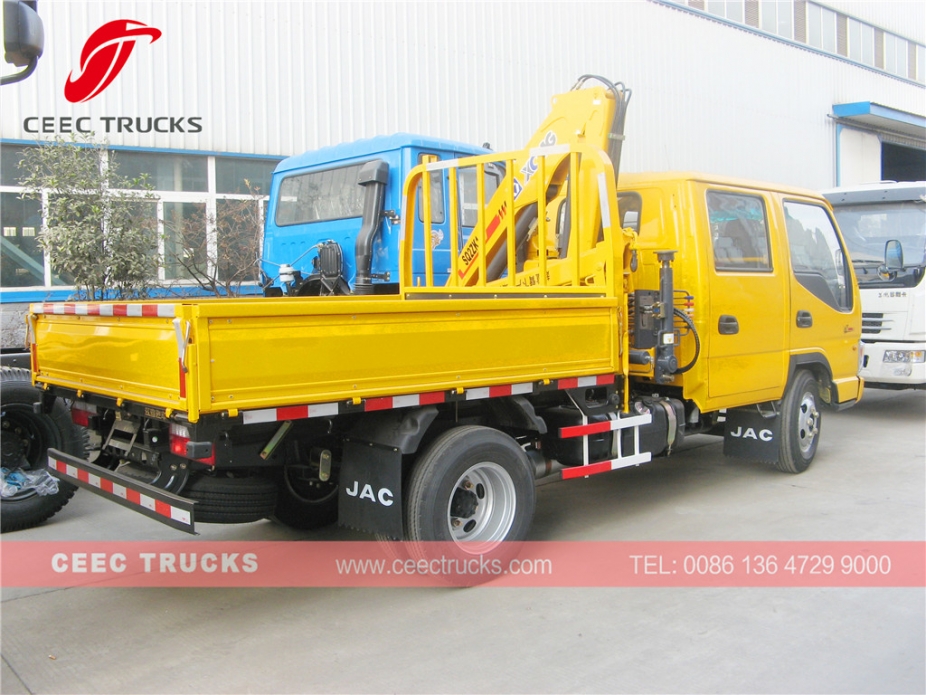

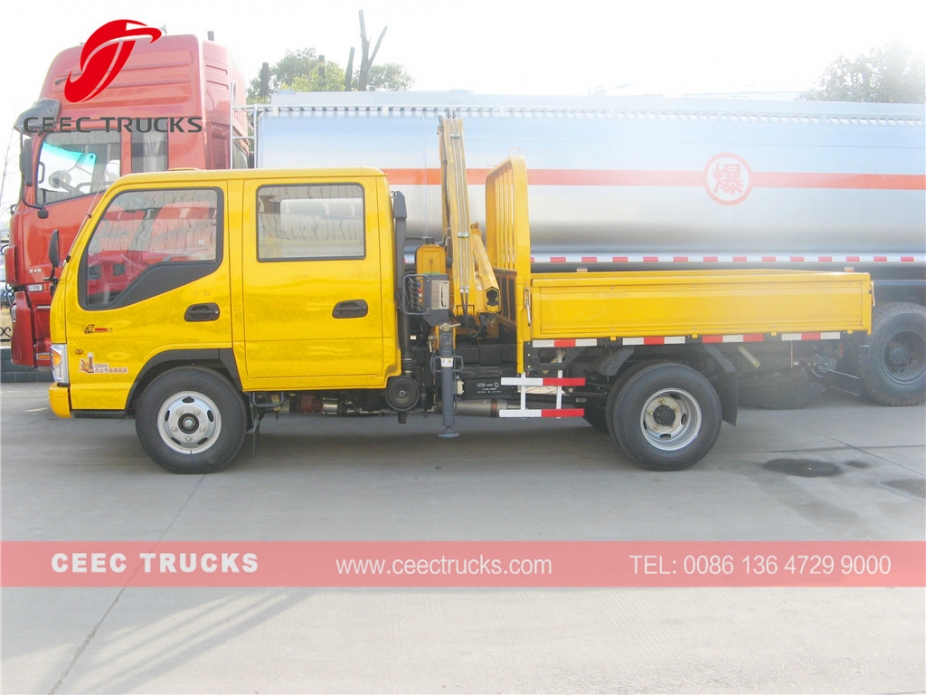

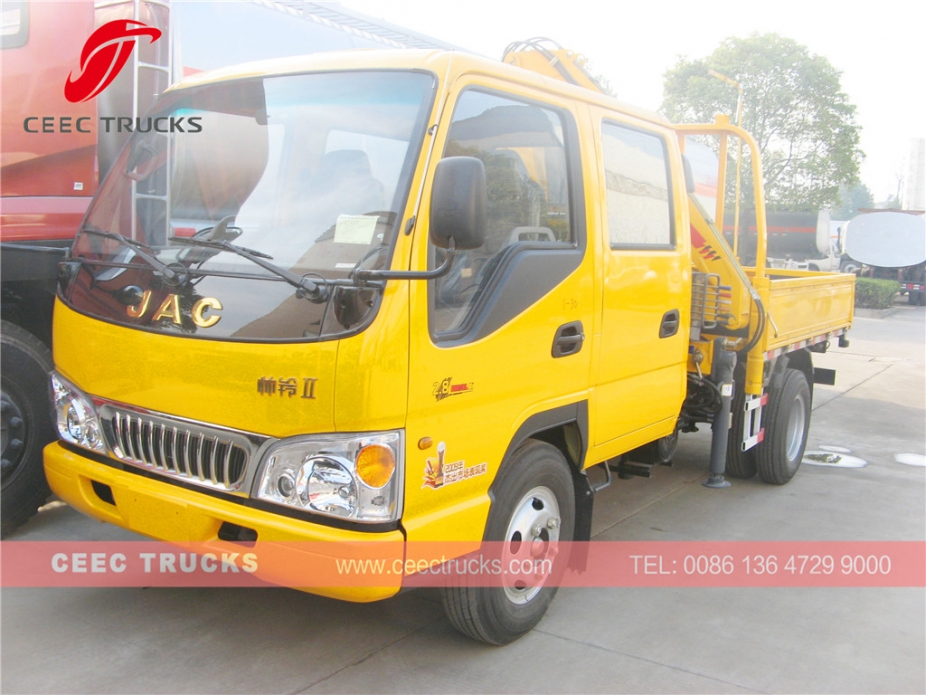

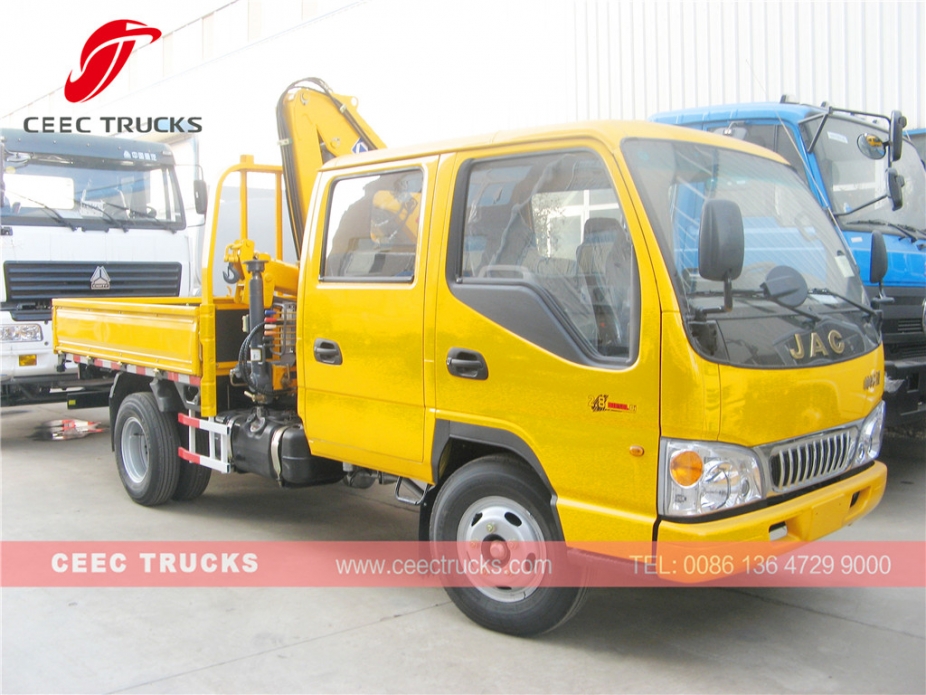

JAC brand 2 Tons knuckle crane trucks

2 Tons knuckle crane trucks

JAC brand 2 Tons knuckle boom crane trucks for sale, JAC diesel engine 92HP, Manual 5-shift gearbox for hot sale, with Left hand drive and Right hand drive model for optional. Equipped with 2Tons knuckle boom crane, maximum lifting height can be 2000kg. With Remote Control for customer choose

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai seaport
  • Lead Time:

    15 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $13,000-9,000
  • Market Price:

    $17500
contact now

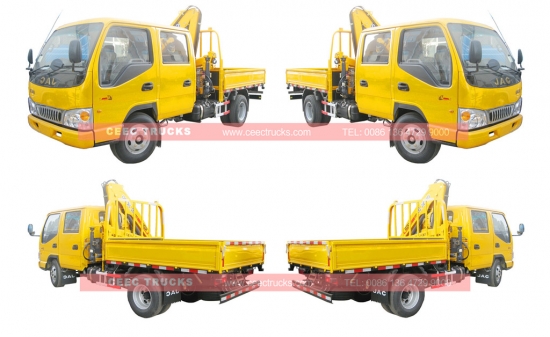

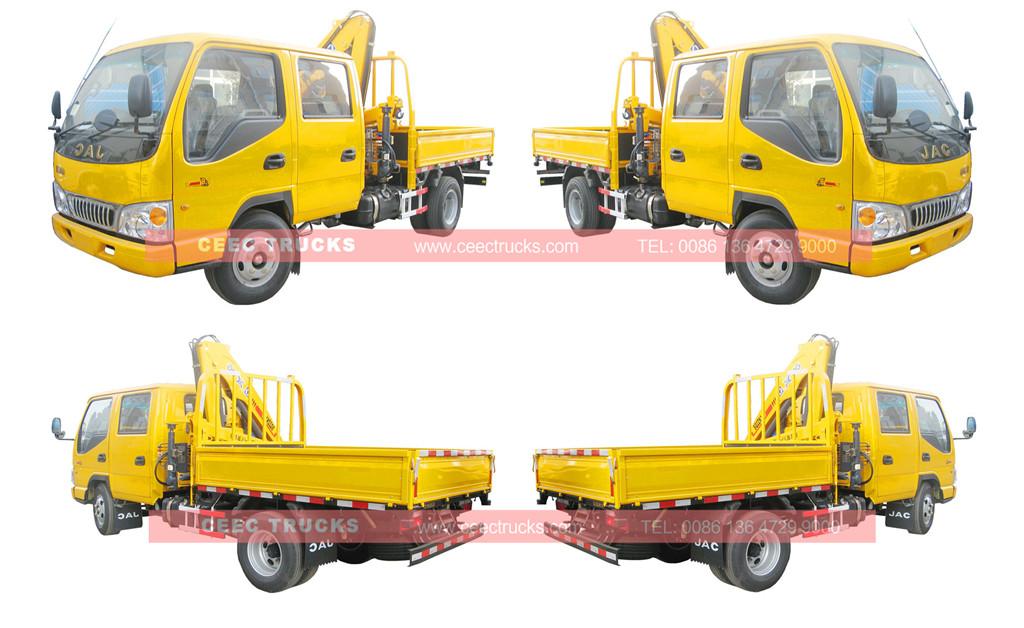

2 tons knuckle boom crane trucks view



 Applications:



Truck Mounted Crane (also called XCMG crane, UNIC crane, crane truck, lorry mounted truck, truck cargo with loader, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.



There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T



The Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.



 Key Features:



---- JAC chassis ensures perfect performance on driving

---- JAC technology engine, super powerful, no overhaul within 100,000 km.

---- High strength cargo body, nice shape and rational structure.

---- Easy operation and easy maintenance.

---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.


Crane Features:

---- Advanced development & analysis means make sure that the design is very reliable.

---- Higher lifting capacity with four connected bar mechanism.

---- Flange telescopic boom coupling technology.

---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.

---- The more symmetrical center design of hexagon boom make it has bigger anti-bending capacity.

---- Float three-point bridge structure design can lower the accessional stress on the chassis frame when traveling.



 Specifications:



JAC Knuckle boom Crane truck (2Tons boom crane)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

JAC

Overall Dimension

5995 * 2000 * 2765 mm

GVW / Kerb Weight

6,995kg / 3,350kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

JAC

Power

92 HP (68 KW)

Displacement

2771 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

4X2, (Left hand drive or Right hand drive)

Transmission

Manual 5 speed levers with 1 reverse

Wheelbase/No. of axle

3200 mm / 2

Tire Specification

7.00-16

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Cargo Box Dimension

3400*1790*400 mm

Crane Type

Knuckle boom crane

Max Lifting Capacity

2000 kg

Slewing Angle

360° All rotation

Crane Weight

608 kg

Installation Space

680 mm

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual……

Optional

** Knuckle boom crane.

** Hydraulic tipper box.

** Box thickness according to requirement.

** Box height could be nominated
** Remote Control Box optional

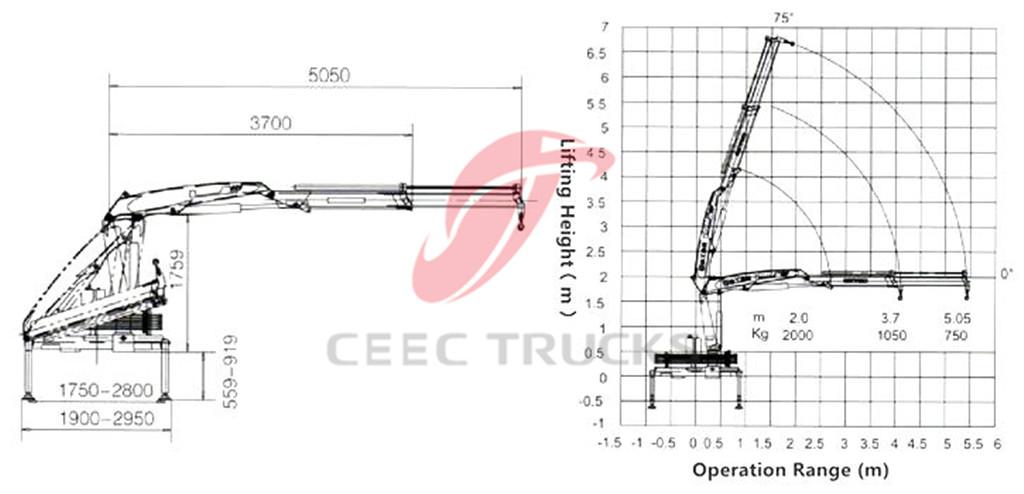

2 tons knuckle boom crane CAD drawing



---- SGS, BV, CONTECNA, CE Qualified.

---- Local engineer training support.



CEEC Engineers testing boom crane trucks before delivery





---- 12 months FREE parts.

---- Factory genuine parts supply.

---- 7 days to worldwide by DHL.



CEEC boom crane trucks spare parts

CEEC boom crane trucks spare parts



---- Service more than 60 countries.

----  Professional guidance on your importing documents.

----  CO, FORM E, FORM P, Pre-shipping Inspection...



CEEC boom crane trucks export documents






---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



CEEC boom crane trucks Manufacturer supply





---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



CEEC boom crane trucks previous export cases





---- Shanghai seaport shipping within 7 days.

---- Painting & Logos change for free

---- 100% quality guarantee.



CEEC boom crane trucks in factory stock
