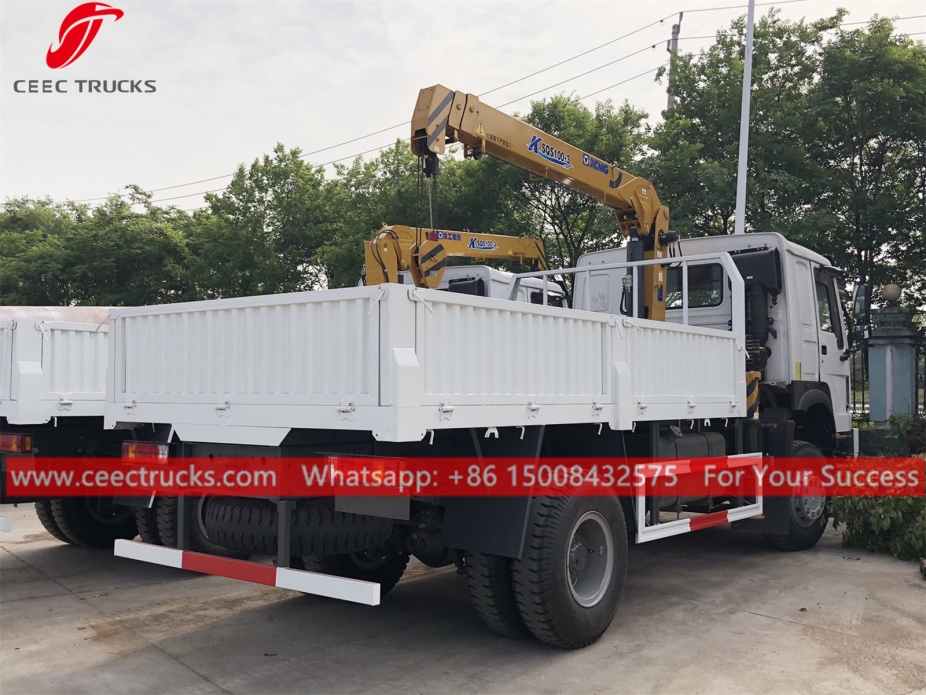

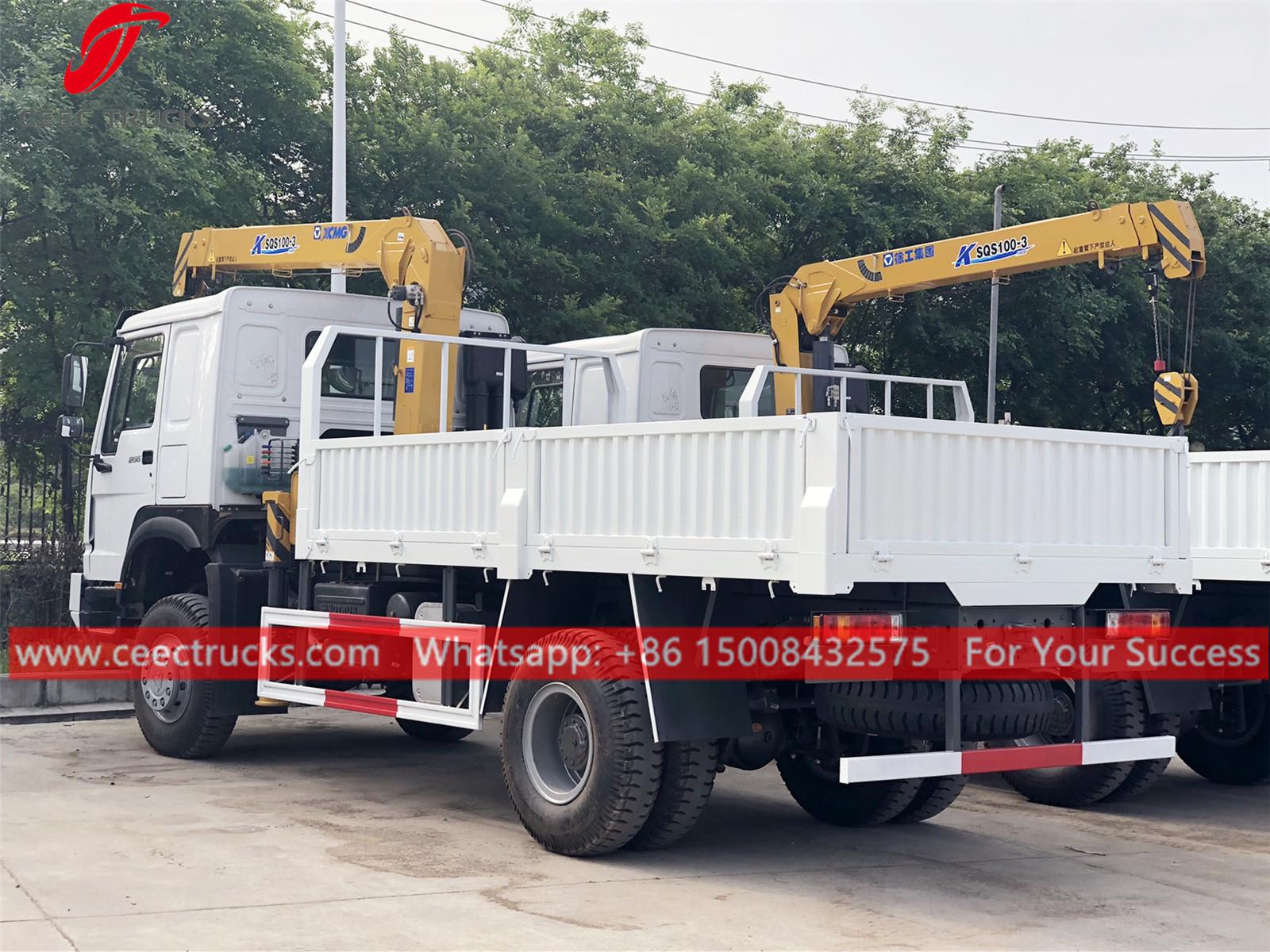

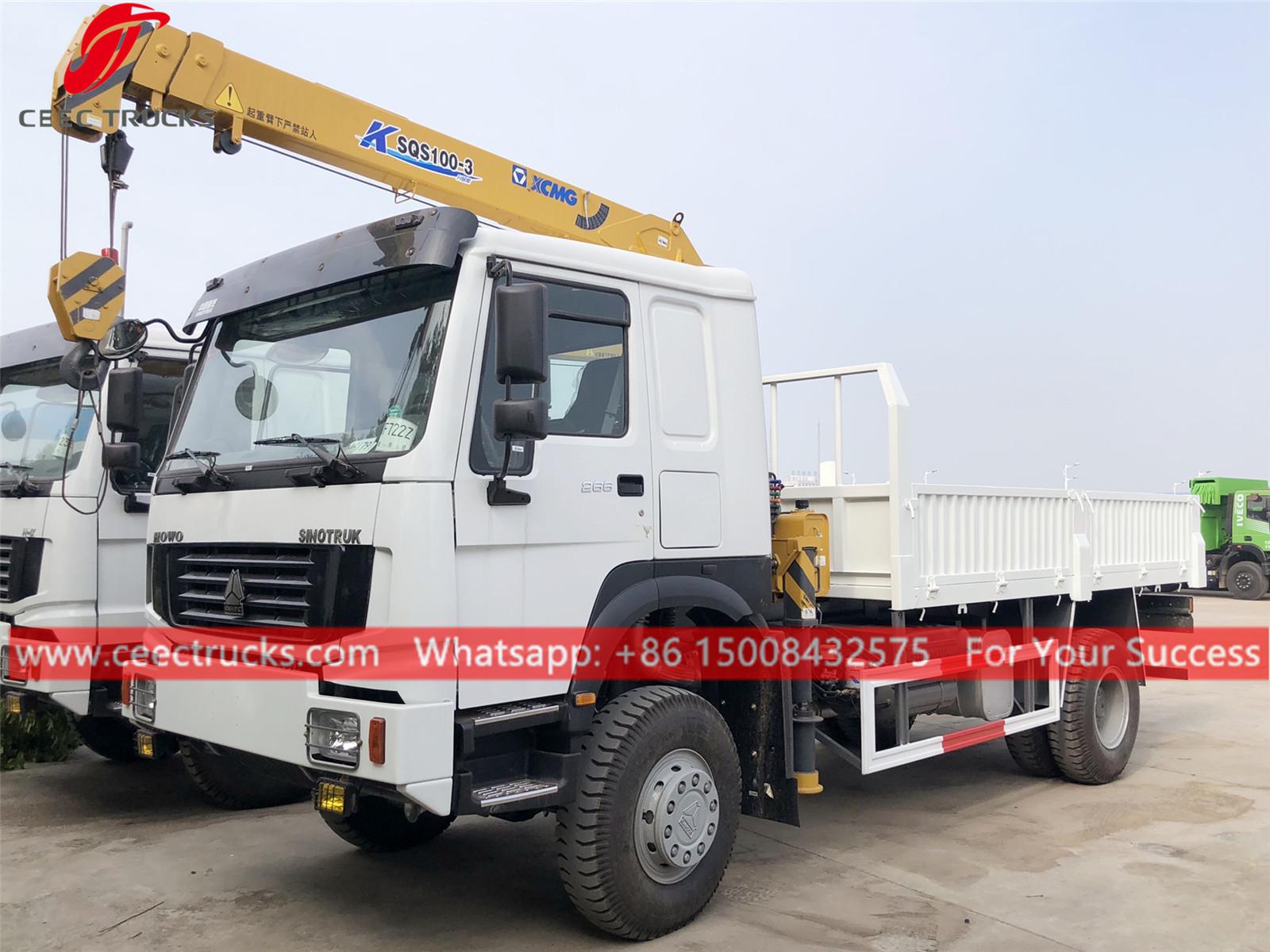

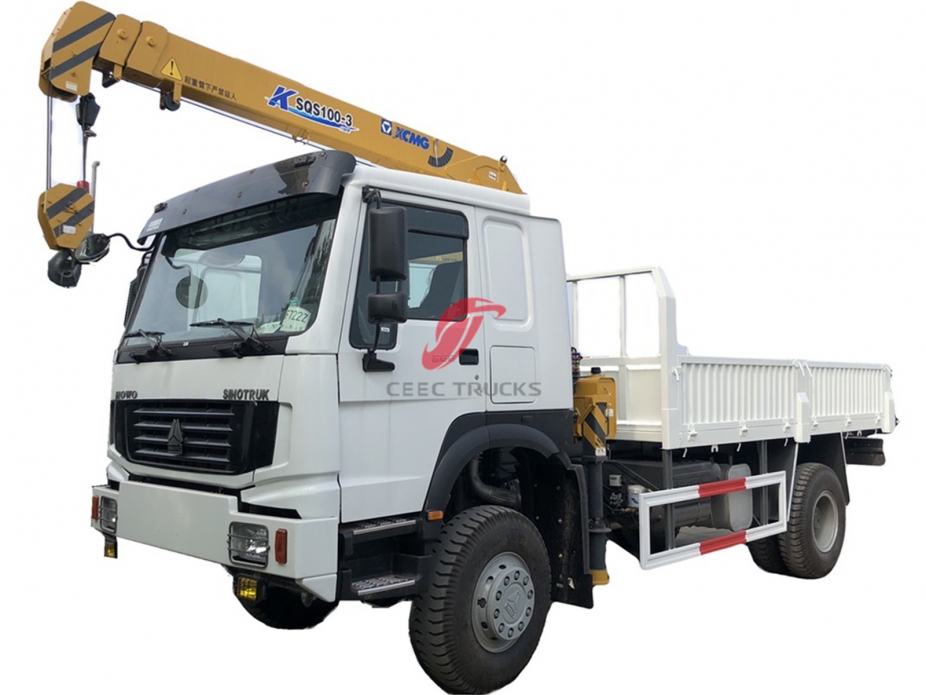

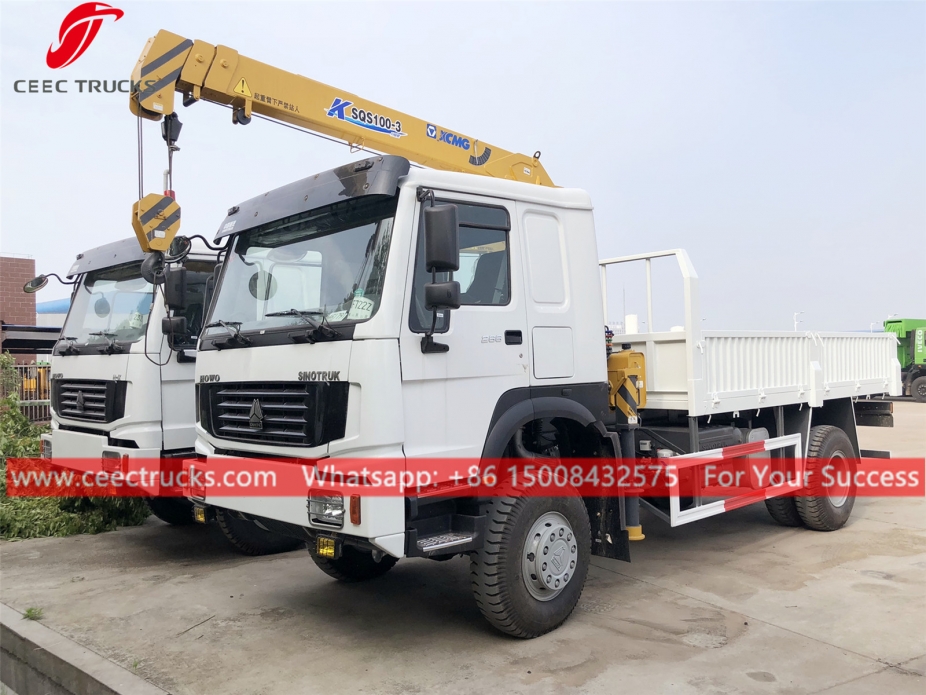

4Tons Telescopic Crane Truck HOWO

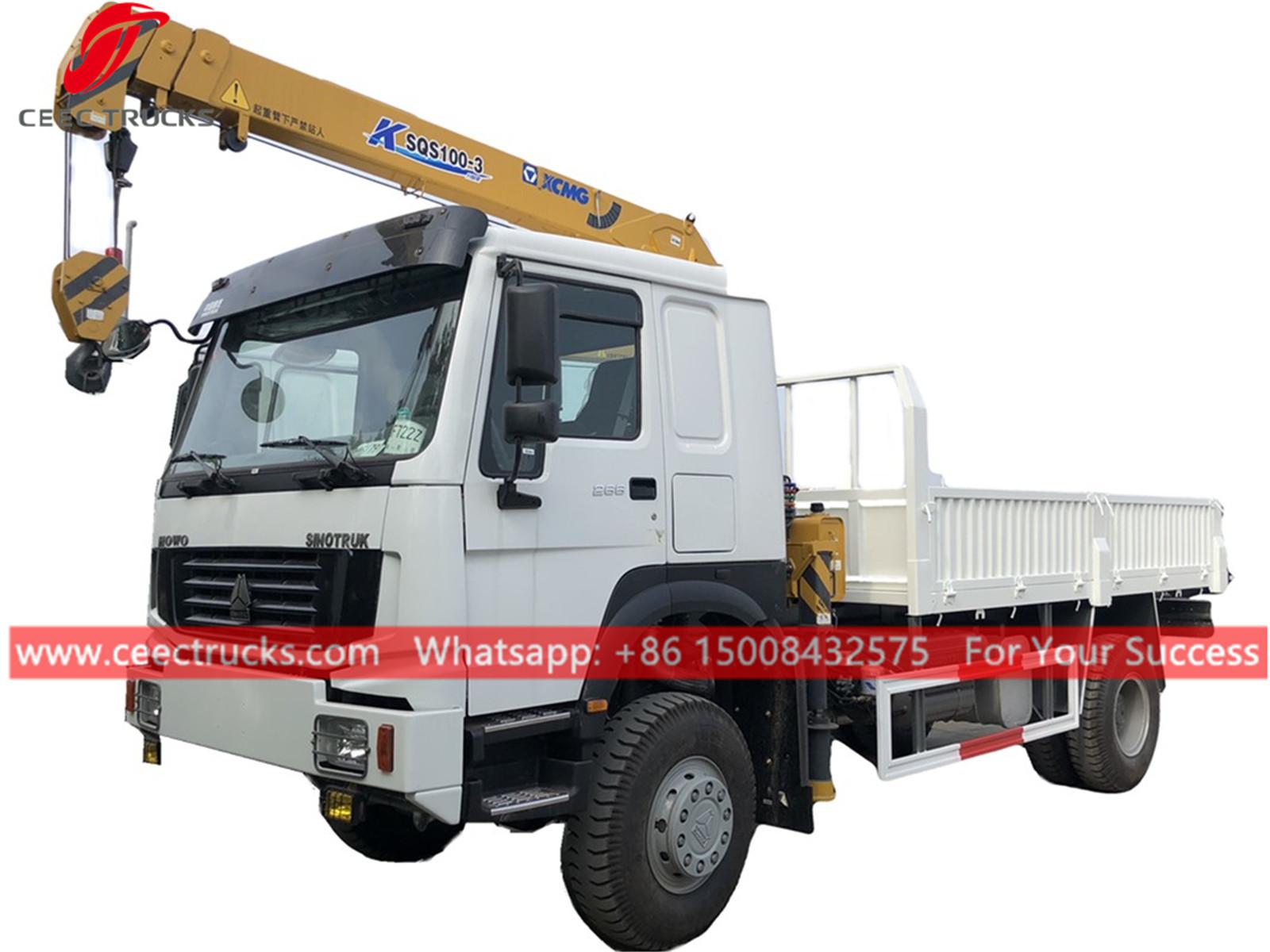

Mauritania 4tons Boom crane cargo truck, HOWO 4x4 All-Wheel-Drive chassis, FAST 9-shift manual gearbox, WEICHAI 266HP diesel engine, cargo body dimension as optional, painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $36,000-49,000
contact now



 Applications:



Boom Crane truck HOWO (also called XCMG crane, UNIC crane, crane truck, lorry mounted truck, truck cargo with loader, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.



There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T



CEEC TRUCKS Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.



 Key Features:

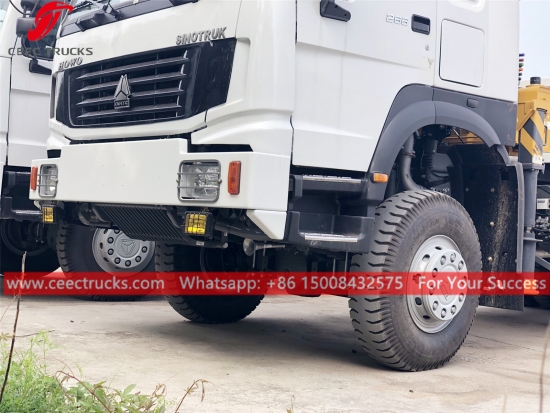

---- HOWO chassis ensures perfect performance on driving

---- WEICHAI technology engine, super powerful, no overhaul within 100,000 km.

---- High strength cargo body, nice shape and rational structure.

---- Easy operation and easy maintenance.

---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.



Crane Features:

---- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.

---- Advanced development means make sure that the design is very reliable.

---- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.

---- Compact hinge point design take up smaller space

---- The work is more safety after fitted over-winds alarm equipment.

---- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.

---- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.

---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.

---- Anti-slewing impulse equipment that make vehicle running safely



 Specifications:



HOWO boom crane truck (4Ton boom crane SQ4SK2Q)

General

Vehicle Brand

CEEC

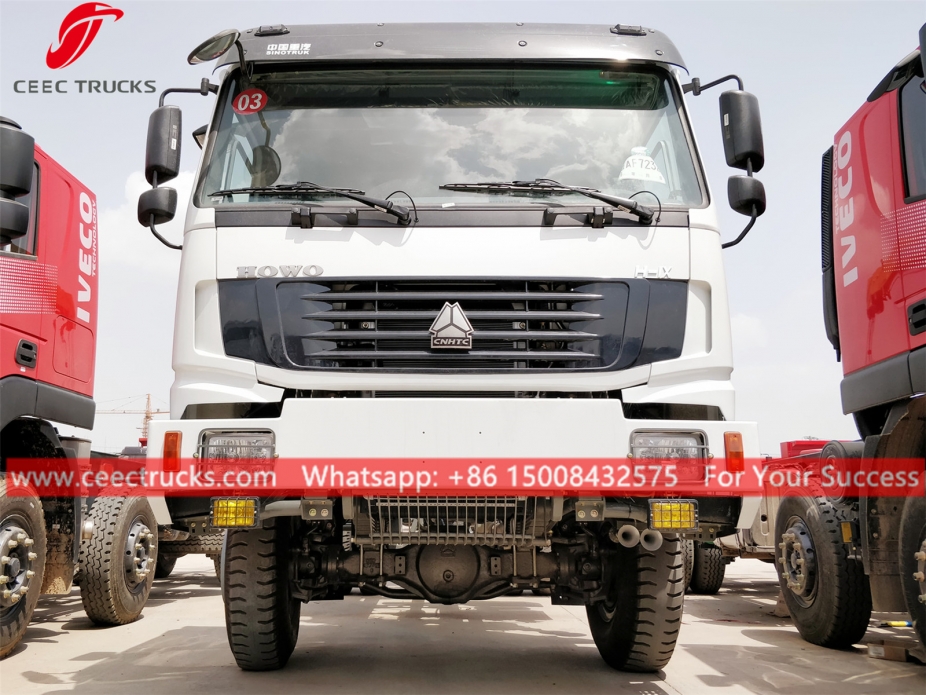

Chassis Brand

HOWO

Overall Dimension

7280 * 2500 * 3680 mm

GVW / Kerb Weight

16,000kg / 9,700kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

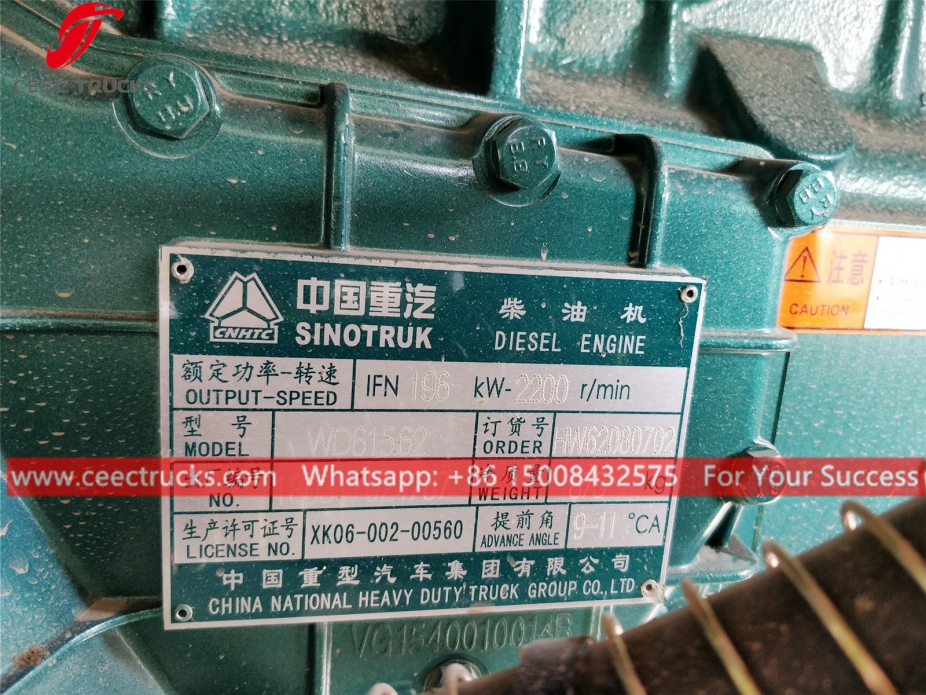

Engine Brand

WEICHAI

Power

270 HP (198 KW)

Displacement

9726 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

4X4

Transmission

FAST 9 speed levers with 1 reverse

Wheelbase/No. of axle

4500 mm / 2

Tire Specification

11.00-20

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Cargo Box Dimension

4000*2400*600 mm

Crane Type

Telescpoic boom crane

Max Lifting Capacity

4000 kg

Slewing Angle

360° All rotation

Crane Weight

2120 kg

Installation Space

900 mm

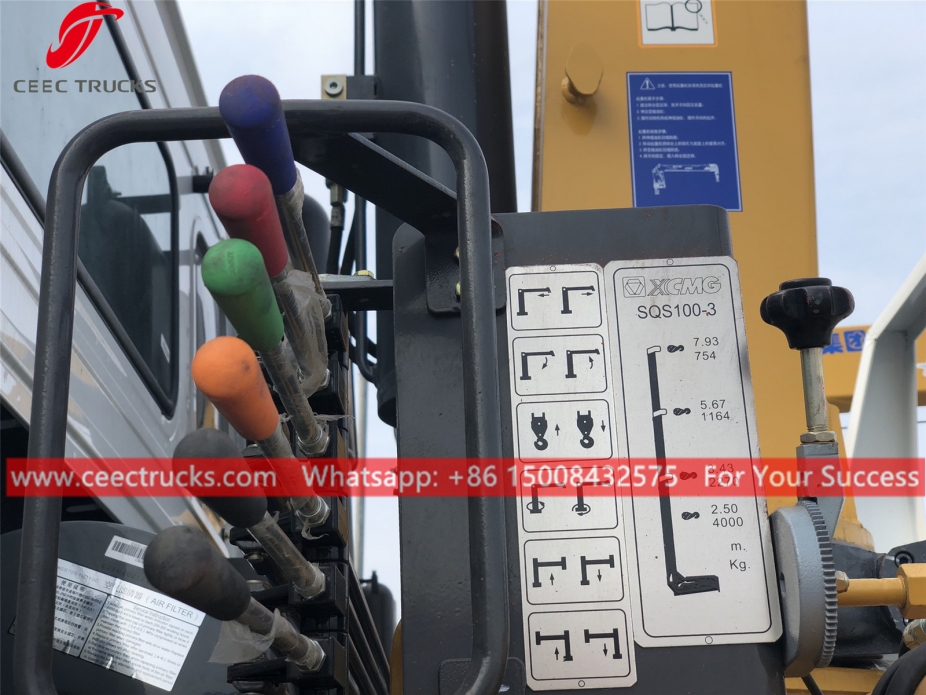

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual……

Optional

** Knuckle boom crane.

** Hydraulic tipper box.

** Box thickness according to requirement.

** Box height could be nominated
** Remote Control Box optional



crane mounted truck Drawing

Euro 3 or 4 type, WEICHAI engine, fuel consumption save 20%

FAST 9-shift manual mechanical transmission gearbox

12 months fast moving spare parts for FREE

Authorized HOWO crane trucks exporter

Training service for HOWO truck mounted crane.





China best truck mounted crane supplier and exporter, we supply the best quality HOWO boom crane trucks. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO boom crane trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.


---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely
