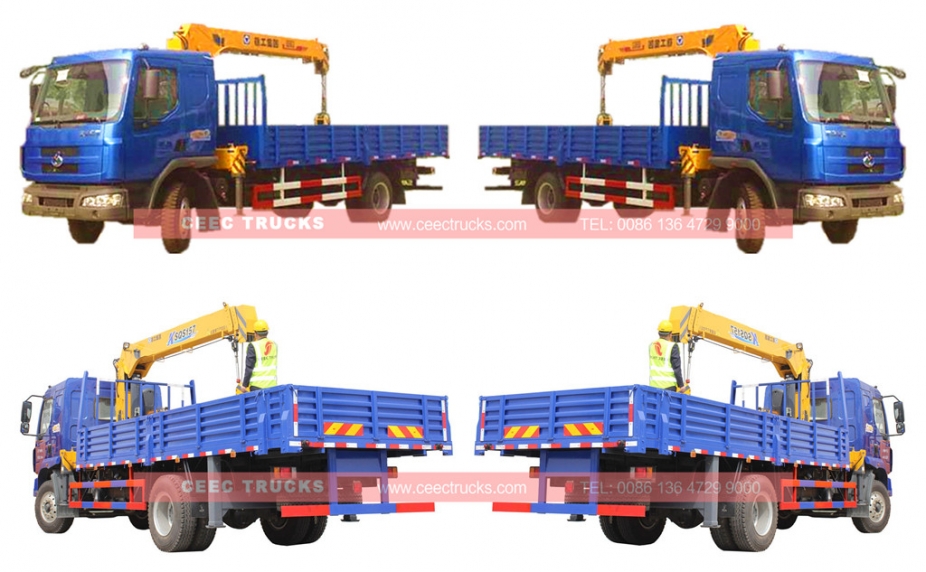

DONGFENG 6.3T boom crane trucks for sale

6.3 T truck mounted crane

Telescopic model 6.3T boom crane trucks for sale, YUCHAI diesel engine 180 HP, Manual 6-shift gearbox for hot salel. Equipped with SK6.3SQ2Q telescopic boom crane, maximum lifting height can be 6300kg. Cargo box can be long as 5500mm, With Remote Control for customer choose

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai seaport
  • Lead Time:

    15 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $32,000-37,000
  • Market Price:

    $35000
contact now

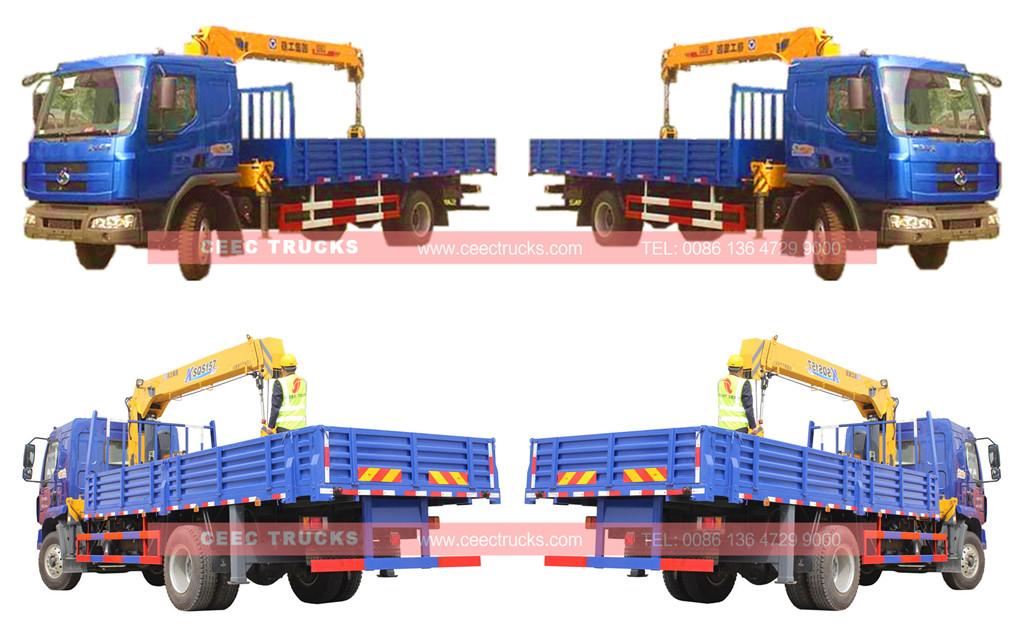

6.3T telescopic boom crane wholesale



 Applications:



Truck Mounted Crane (also called XCMG crane, UNIC crane, crane truck, lorry mounted truck, truck cargo with loader, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.



There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T



The Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.



 Key Features:



---- DONGFENG chassis ensures perfect performance on driving

---- CHAOCHAI / YUCHAI technology engine, super powerful, no overhaul within 100,000 km.

---- High strength cargo body, nice shape and rational structure.

---- Easy operation and easy maintenance.

---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.


Crane Features:

---- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.

---- Advanced development means make sure that the design is very reliable.

---- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.

---- Compact hinge point design take up smaller space

---- The work is more safety after fitted over-winds alarm equipment.

---- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.

---- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.

---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.

---- Anti-slewing impulse equipment that make vehicle running safely



 Specifications:



Telescopic boom Crane truck (6.3Ton boom crane SQ6.3SK2Q)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

DONGFENG

Overall Dimension

9000 * 2500 * 3550 mm

GVW / Kerb Weight

16,000kg / 8,900kg

Cab

Cab Capacity

2+1 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

YUCHAI

Power

180 HP (132 KW)

Displacement

6494 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

4X2, (Left hand drive or Right hand drive)

Transmission

Manual 6 speed levers with 1 reverse

Wheelbase/No. of axle

4500 mm / 2

Tire Specification

10.00-20

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Cargo Box Dimension

5500*2300*600 mm

Crane Type

Telescpoic boom crane

Max Lifting Capacity

6300 kg

Slewing Angle

360° All rotation

Crane Weight

2160 kg

Installation Space

900 mm

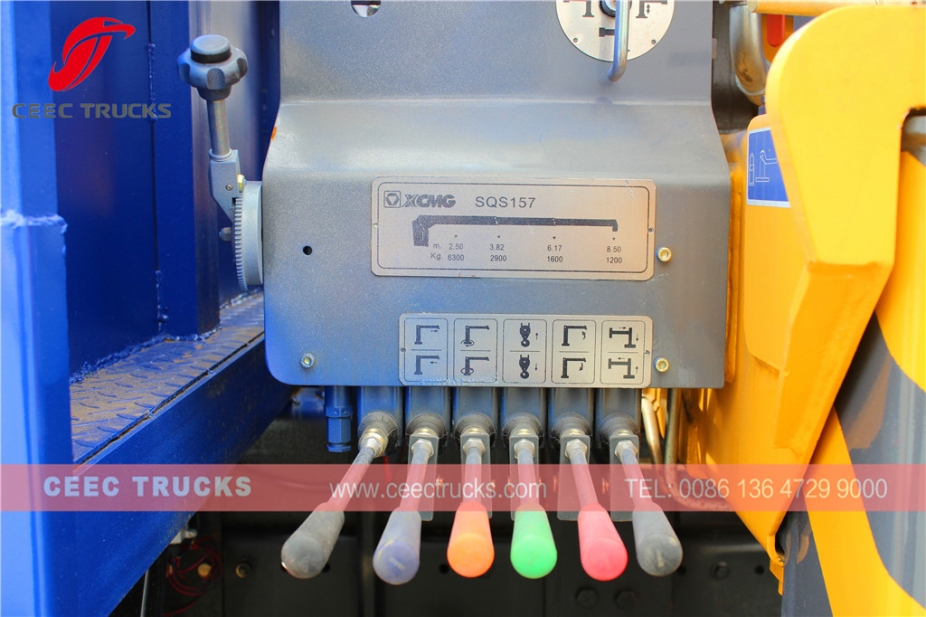

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual……

Optional

** Knuckle boom crane.

** Hydraulic tipper box.

** Box thickness according to requirement.

** Box height could be nominated
** Remote Control Box optional

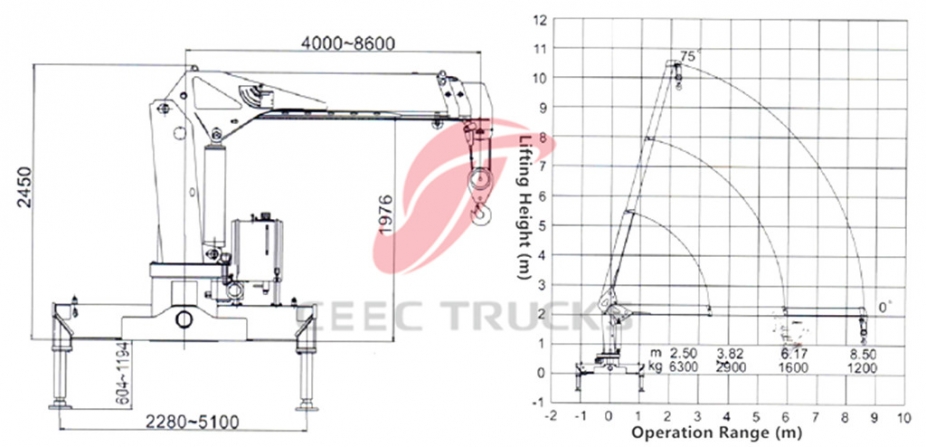

6.3T telescopic boom crane CAD drawing



---- SGS, BV, CONTECNA, CE Qualified.

---- Local engineer training support.



CEEC Engineers testing boom crane trucks before delivery





---- 12 months FREE parts.

---- Factory genuine parts supply.

---- 7 days to worldwide by DHL.



CEEC boom crane trucks spare parts

CEEC boom crane trucks spare parts



---- Service more than 60 countries.

----  Professional guidance on your importing documents.

----  CO, FORM E, FORM P, Pre-shipping Inspection...



CEEC boom crane trucks export documents






---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



CEEC boom crane trucks Manufacturer supply





---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



CEEC boom crane trucks previous export cases





---- Shanghai seaport shipping within 7 days.

---- Painting & Logos change for free

---- 100% quality guarantee.



CEEC boom crane trucks in factory stock
