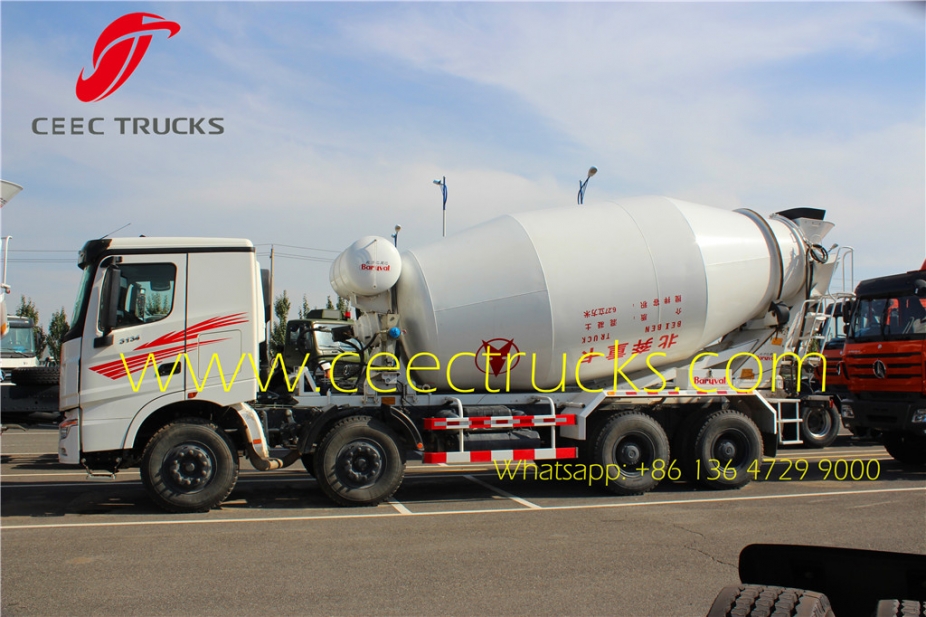

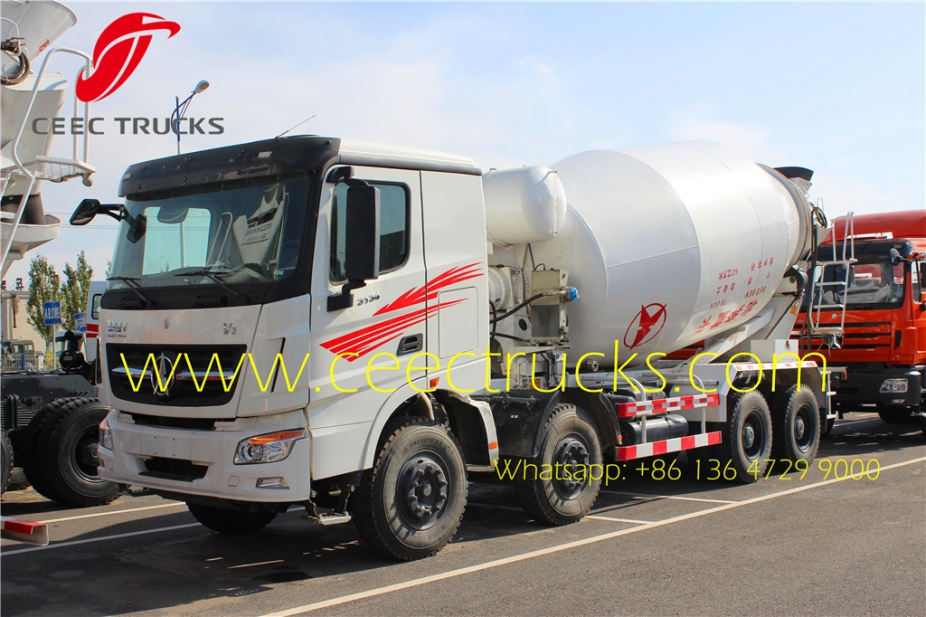

Best price beiben 3134 V3 concrete mixer truck 14 CBM capacity

Beiben 14 CBM V3 mixer truck price

North benz 8*4 concrete mixer truck supplier in china, import American Eaton hydraulic oil pump and Motor, Rexroth reducer, supplying the best quality north benz 320 hp concrete mixer truck, beiben 340 hp transit mixer truck, beiben 380 hp concrete mixer truck

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    30 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $58,000-70,000
  • Market Price:

    $62000
contact now

Best price Beiben 14 CBM V3 cement mixer trucks



beiben 14 CBM V3 concrete mixer trucks

Best beiben 14 CBM concrete mxier trucks als can be named as beiben 8*4 transit mixer truck, beiben 14 CBM mixer tanker truck, beiben 12 wheeler cement mixer truck, which mainly used for cement mixing and being widely used in Factory, Construction Plant, etc. Our LHD & RHD beiben 10 CBM, 14 CBM mixer trucks widely export to Congo, Tanzania, Ethiopia, Zambia, Togo, Algeria, Kenya, Dubai, Myanmar, etc.



beiben 3134 mixer truck drawing



CEEC TRUCKS produced Beiben 14 CBM concrete mixer truck features:

Beiben 3134, 3138 transit mixer trucks equipped with new V3 cabin, which has attractive appearance

WEICHAI engine WP10.340E32, Euro 2 / 3 emission, strongly 340ps, and 9shift manual mechinical gearbox

Curb weight approx 13650kg and rated mixing capacity can be up to 10CBM, very good performance

Specific heavy truck metallic framework and stressed-skin construction, processing security of same level of European automobiles

Beiben 2534 Tractor truck use European ECER29 safety and regulatory requirements, stamping molding of frame only once ensures girder strength

High strength carbon steel Q345 material, with thickness over 6mm

Americal brand Eaton Hydraulic Pump, Hydraulic Motor, and best performed Germany Rexroth Reducer.

beiben LHD and RHD concrete mixer truck

beiben 14 CBM V3 concrete mixer truck



beiben 14 CBM V3 concrete mixer truck



beiben 14 CBM V3 concrete mixer truck



Similar Key Words: beiben 14 CBM concrete mixer truck, north benz 3134,3138 transit mixer truck, beiben 3138 mixer trucks, beiben 12 wheeler mixer truck, beiben 14 CBM mixer truck, Kenya RHD beiben mixer truck, Cameroon 2534 beiben mixer truck, Africa 14 CBM cement mixer trucks, Beiben 14 CBM concrete mixing trucks price

Beiben mixer truck hydraulic system

Beiben 3134 transit mixer truck  /8×4/3450+1450/Short Cab/LHD

Dimension

11080*2500*3980mm

Approaching angle/Departure angle

26/20°

Overhang(front/rear)

1410/2640mm

Wheel base

1500+3550+1450

Max speed

80km/h

Curb weight

13650kg

Loading capacity

11220kg

Slope climbing capability

Max.40%

Engine

Model

WP10.380E32water-cooledfour strokes6 cylinders in lineturbocharged, directly injection

Displacement

9.726L/Diesel

Stroke

126/130mm

Max. power

250/2200 (kw/rpm)

Max.torque

1350/1200-1600Nm/rpm

Emission stantard

Euro

Fuel tanker capacity

300L

Clutch

430, Single dry frictional discHydraulic boosting

Gearbox

ZF160, mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer

Gear ratio of gear box

12.60/8.39/6.31/4.64/3.43/2.45/1.84/1.35/1.00 R: 11.02

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs

Rear

Non-free standing stablization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

TAS85,whole circulation in ball, hydraulic booster

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

12.00R20 Radial

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cabin

NG80B Long cabin with single sleeper;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C

Main technical parameters of concrete mixer

Drum performance parameter

Geometric Volume m3

15.5 m3

Effective Volume m3

10 m3

Filling Ratio %

64.5%

Gradient of the Drum °

15°

Filling speed m3/min

≥3

Discharging Speed m3/min

≥2

Surplus Ration %

<1%

Range of Slump mm

20300

Hydraulic System

Pump

Eaton 54 (ACA542337R)

Motor

Eaton 54 (HHD542337R)

Gear Box

PMB6sp

Water supply system

Volume of water tank

400L

Water supply type

Air pressure Type

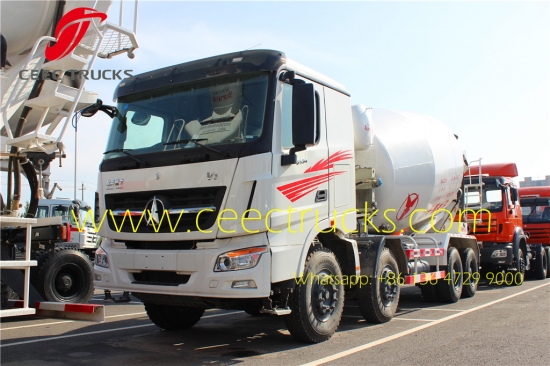

beiben 14 CBM V3 concrete mixer truck

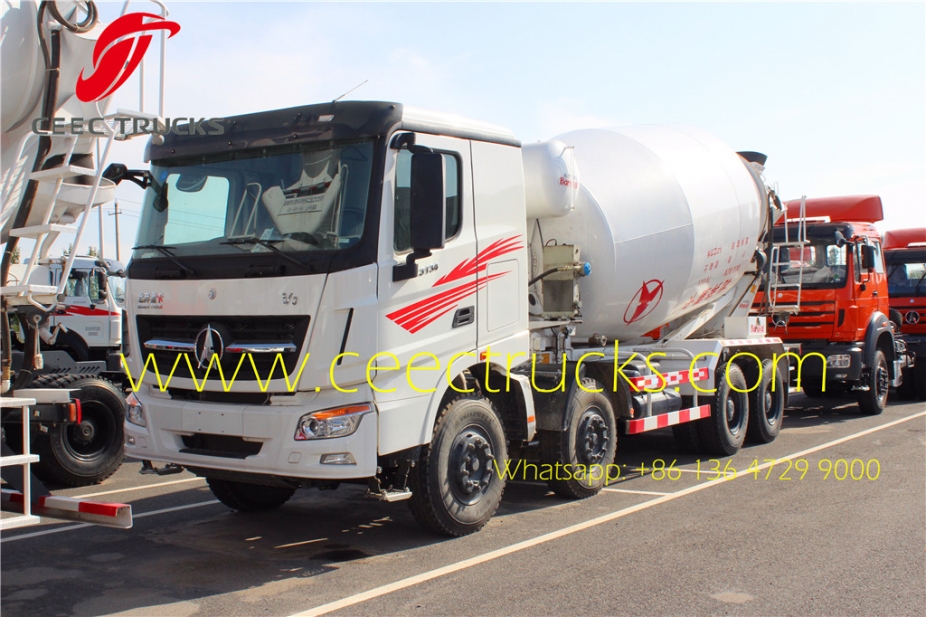

beiben 14 CBM V3 concrete mixer truck    beiben 14 CBM V3 concrete mixer truck

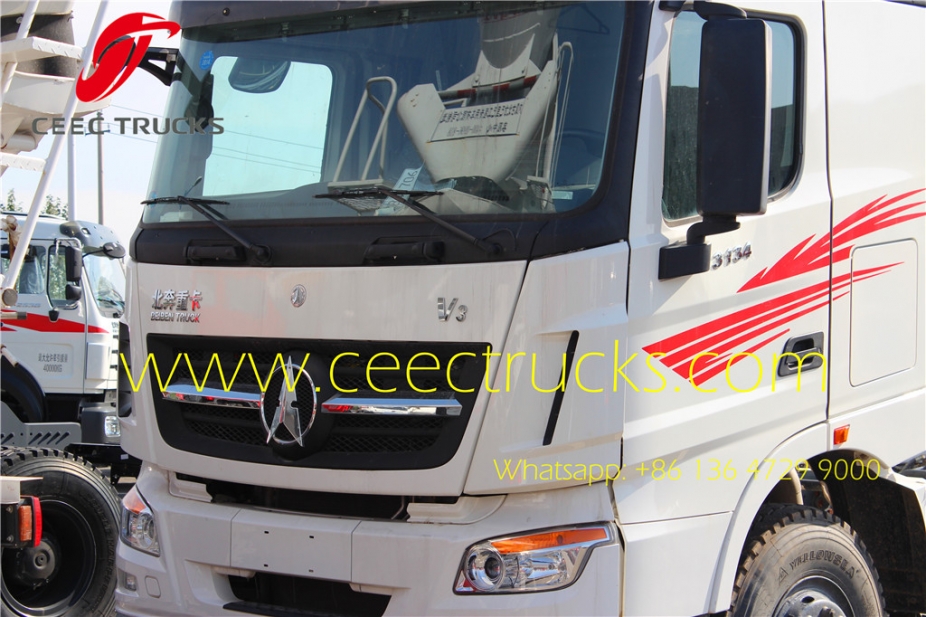

Beiben 14 CBM cement mixer truck    Beiben 14 CBM cement mixer truck

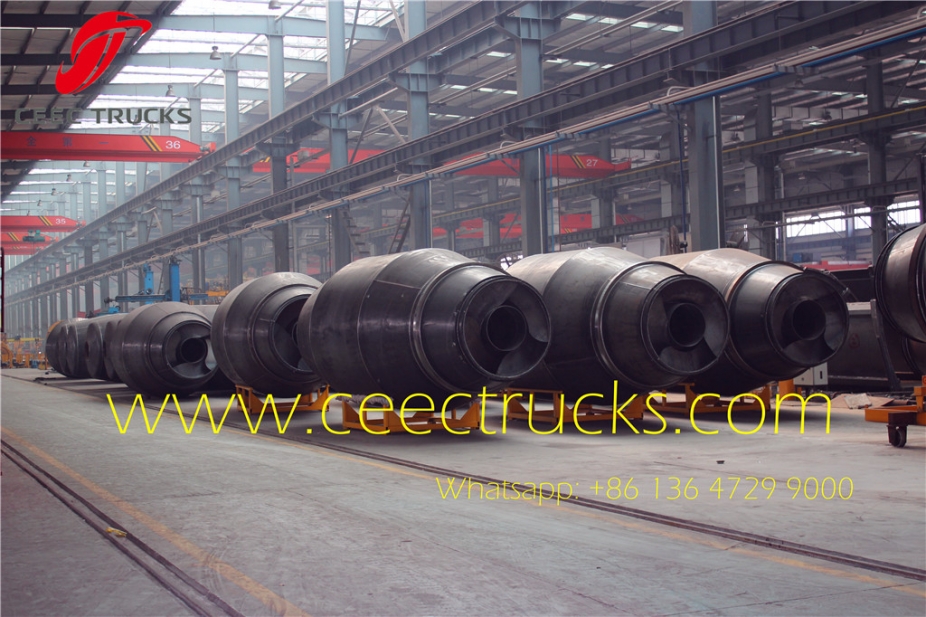

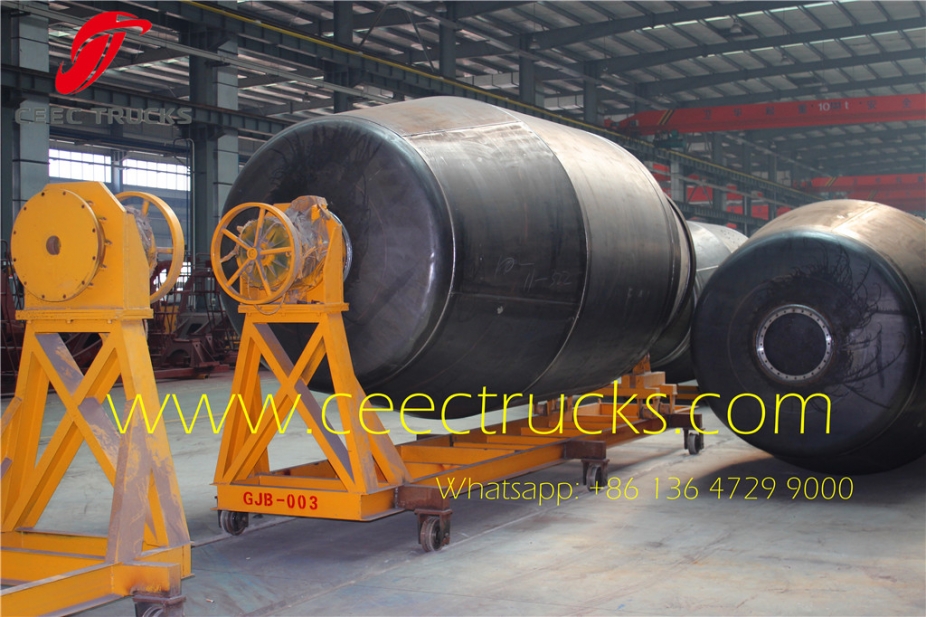

Beiben 14 CBM cement mixer truck workshop    Beiben 14 CBM cement mixer truck workshop



Beiben Transit mixer trucks on sale





Other beiben trucks display



      SaveSave

SaveSaveSave

Beiben 14 CBM Cement mixer trucks equipped with new NG80B cabin, which has attractive appearanc, and best sell in Africa

WEICHAI engine WP10.340E32, Euro 2 / 3 emission, strongly 380ps, and 9shift manual mechinical gearbox

Curb weight approx 13650kg and Beiben 3138 mixer trucks has mixing capacity up to 14CBM, very good performance

Specific heavy truck metallic framework and stressed-skin construction, processing security of same level of European automobiles

Cement mixer tanker material can be High strength carbon steel Q345 material, with thickness over 6mm

Hydraulic system can be original import brand:

      Hydraulic oil pump: Rexroth, EATON, , ARK
      Hydraulic motor: Rexroth, EATON, , ARK
      Reducer: AF, SAUER, PMP, TOPUNION
      Radiator: AKG, ASA and domestic famous brands



Cote d'Ivoire customer buying beiben 8*4 concrete mixer trucks

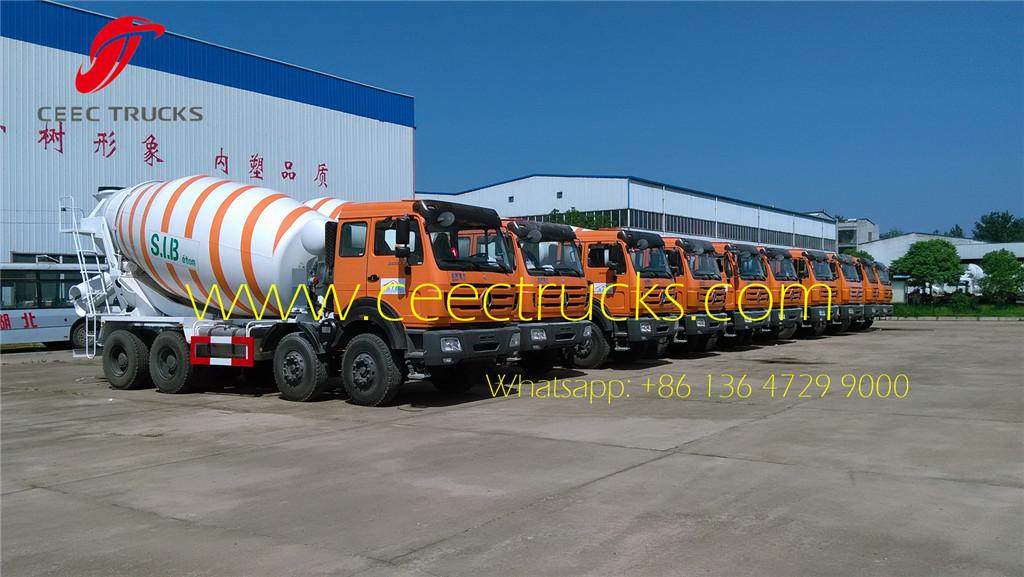

beiben 3138 mixer truck

(Previous export 10 units beiben 8*4 mixer trucks to Africa Cote d'Ivoire)

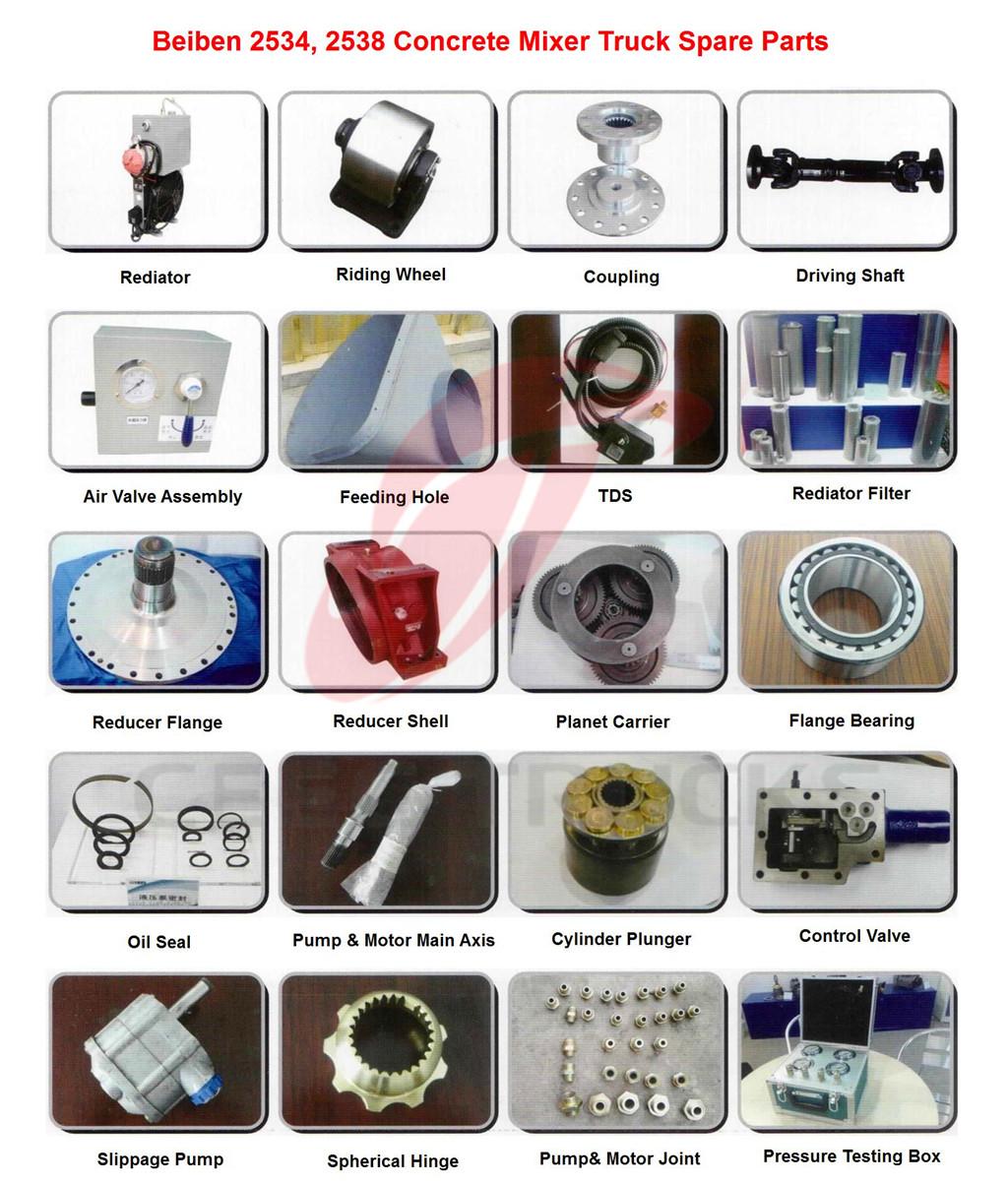

beiben 3134 mixer truck Spare Parts

(Genuine spare parts supplier in China CEEC TRUCKS)
