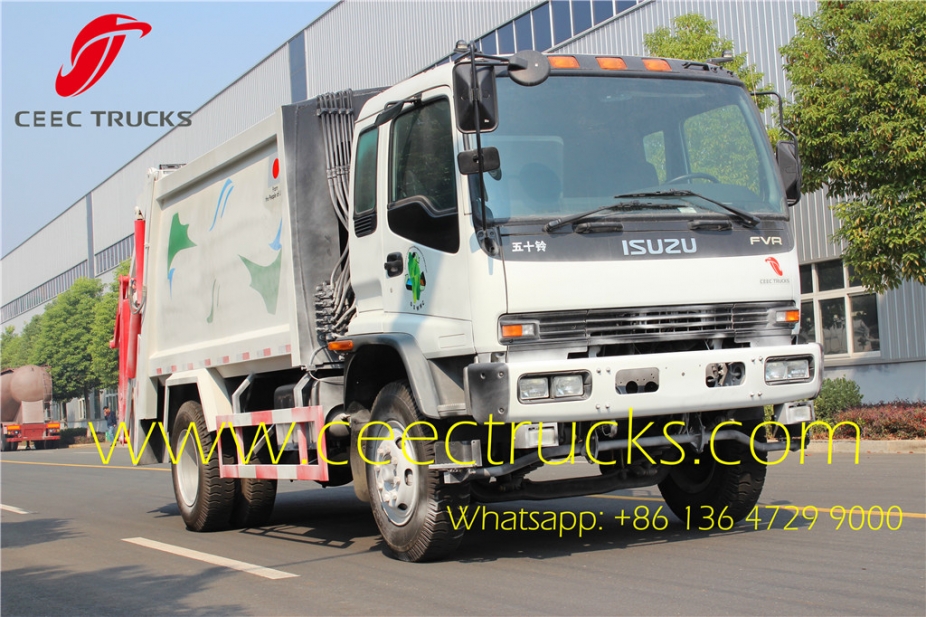

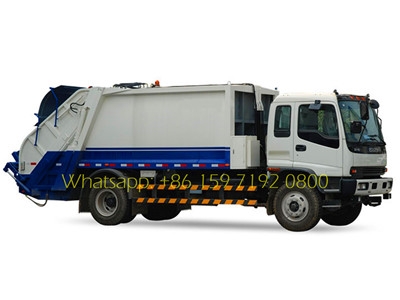

ISUZU 10000 liters refuse compression trucks low price

ISUZU 10 CBM Compressed Garbage Trucks

TOP quality ISUZU 10 CBM refuse compactor trucks on sale, ISUZU FTR/FVR chassis, 4200mm wheelbase, MLD 6-shift manual gearbox, 4HK1-TC engine or 6HK1-TC engine wholesale, easy operation

  • Product Origin:

    China Beiben
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    30 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $55,900-65,900
  • Market Price:

    $61000
contact now

How to find best ISUZU garbage compactor trucks from China. professional compression garbage truck manufacturer CEEC TRUCKS can supply Isuzu refuse compressor truck, beiben heavy duty compactor truck, dongfeng waste management trucks, etc. and our 4 CBM trash compactor truck, 8 CBM refuse compressed vehicle and 16CBM compressor garbage trucks are widely export Phillippines, Myanmar, Malaysia, Kenya, Tanzania, South Africa, Fiji, Ecuador, etc.

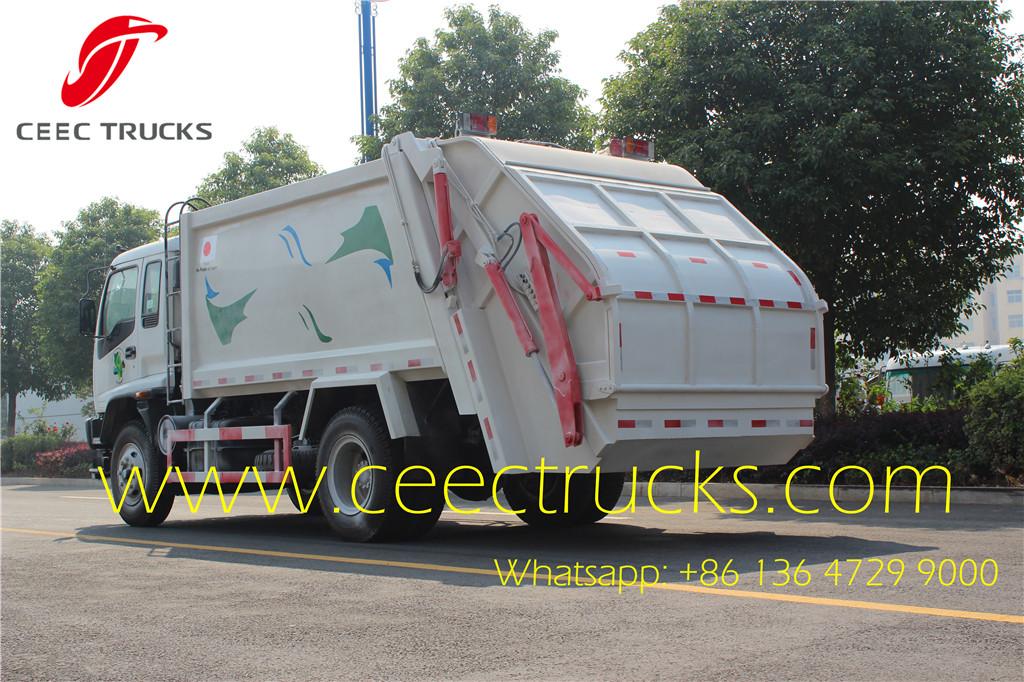

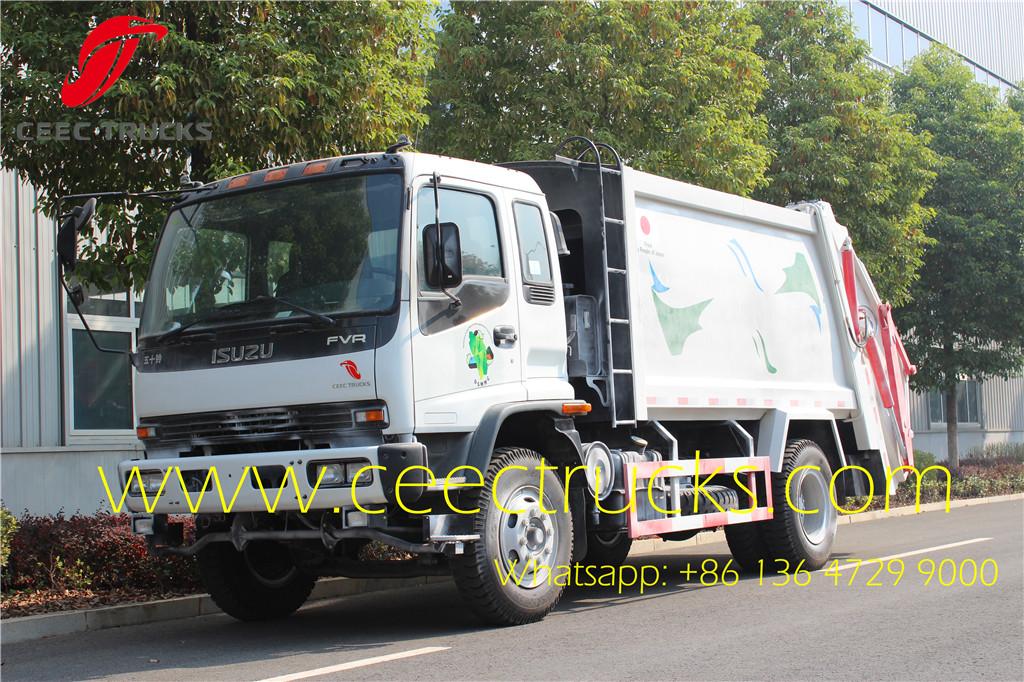

ISUZU FVR FTR 12CBM garbage compactor truck supplier



Why Dominica customer purchase ISUZU refuse compactor trucks from China CEEC TRUCKS?

----Garbage compactor truck is composed of hermitical garbage box, hydraulic system and operating system.

----The garbage truck could apply pressure to the waste to breakdown bulky items, to load and transport more garbage by one time.

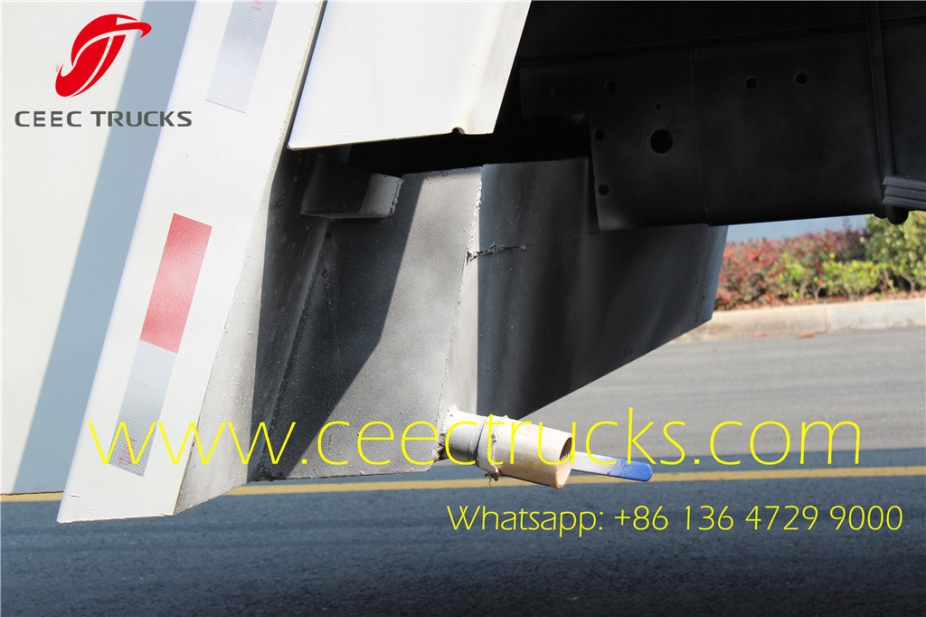

----Dirty liquid flows into waste water collection tank,perfectly preventing re-pollution.

----When arriving at destination, thegarbage can be discharged completely.

----The operation system could be manual or electrical control

----It is ideal solution for all kinds of solid wastecollection.

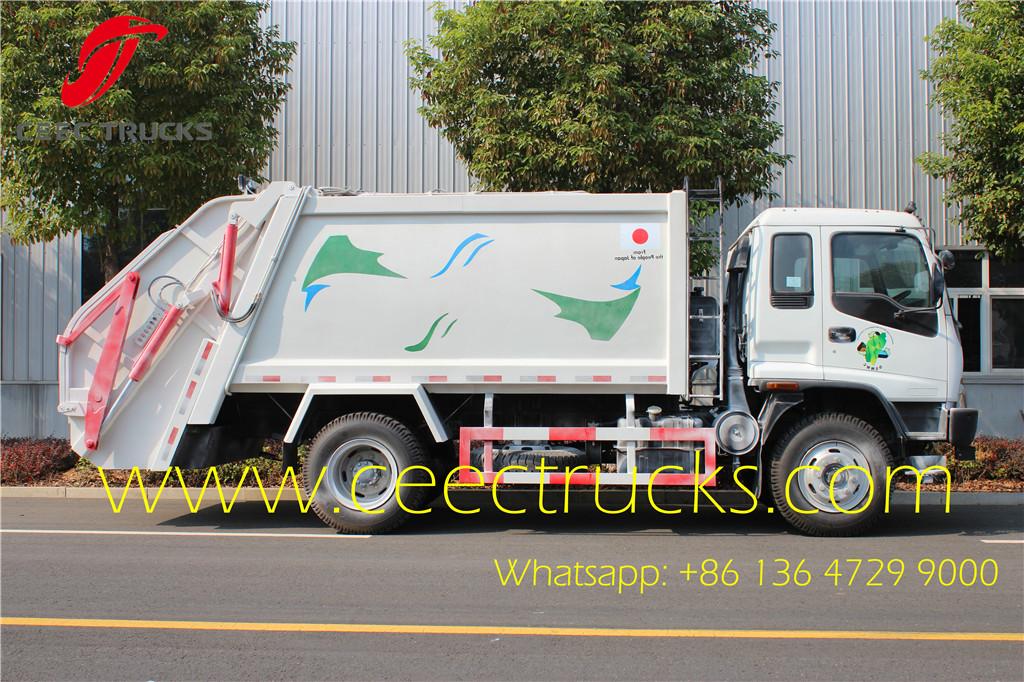

ISUZU 12 CBM compactor trucks



Above show CEEC produced ISUZU 8 CBM trash compressor truck Compact System, which mainly consist of Tilting Device (optional for 240L & 360L, 660L & 1100L rubbish bins); Slide Plate; Scraper; Push Plate & Rear Tail Gate. All parts are well-designed, strong structure and light self-weight.



ISUZU 12 CBM compactor trucks



Lowest price best selling models mainly as below: 5 CBM garbage compactor trucks, 8 CBM compressed garbage truck, 12 CBM refuse compression truck, 20 CBM trash compactor trucks. with ISUZU, Dongfeng, Foton, BEIBEN, Dongfeng, FAW chassis LHD / RHD for optional.

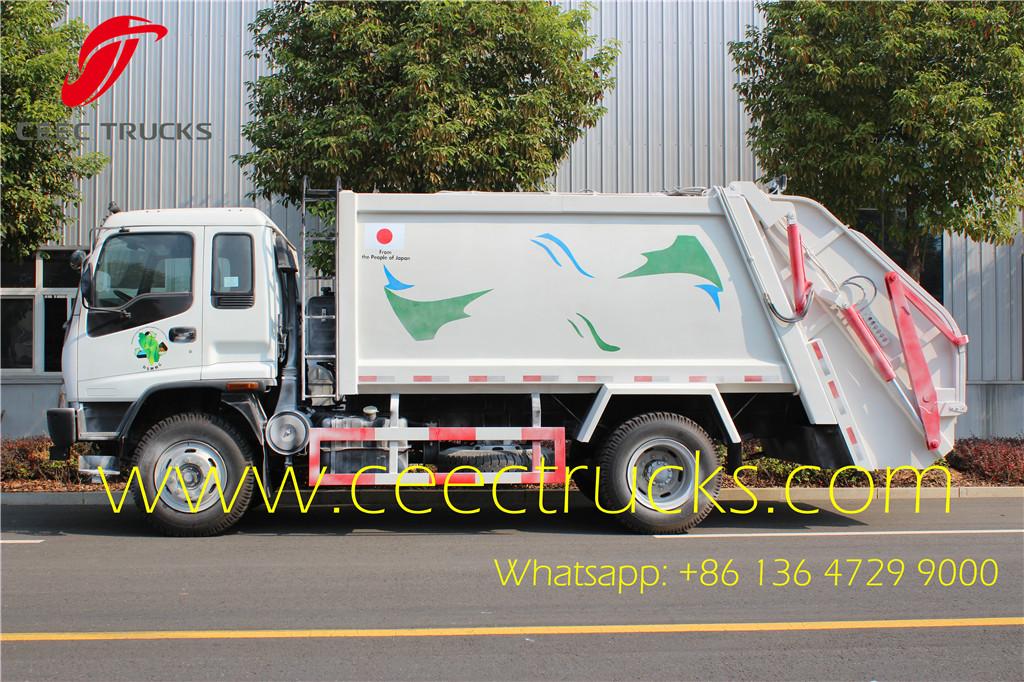

ISUZU FVR FTR 12CBM garbage compactor truck manufacturer



ISUZU FVR FTR 12CBM garbage compactor truck manufacturer



ISUZU FVR FTR 12CBM garbage compactor truck manufacturer



ISUZU FVR FTR 12CBM garbage compactor truck manufacturer



Similar Key Words: dongfeng garbage compactor trucks, DFAC 9 CBM trash compressor trucks, rubbish collection compactor, waste management trucks, dongfeng 9000 liters compactor trucks, Africa garbage compactor, bin lorry supplier



Chassis

ISUZU FVR / FTR

Model

PT5160ZYS

Driving Type

4x2    (Left hand drive)

Wheelbase

3900 mm

Overall Dimension

8050x2350x2800 mm

Garbage Container capacity

10 cbm

Loading type

Rear loading

Compression ratio

1: 3.2

Operation control system

Electrically hydraulic control + Manual hydraulic control

Discharging system

Horizontal ejection

Loading cycle time:   (sec)

10~15

Rubbish discharging time: (sec)

20

Max hydraulic pressure (Mpa)

16.2

Feeding equipment lift angle

90

Multi-way shuttle valve

Imported

Body material

Weather resisting steel

Cab

Forward control over engine, all-steel-welded construction

Engine

Model:

6HK1-TCNG40

Type:

Diesel, turbo charged inter-cooled, 6cylinder

Max. Power:

178 KW (240HP)

Gearbox

MLD 6-shift, mechanical type, 6 forward and 1 reverse with

Tire

10.00-20

Color

Red    (Any color & logos up to wish)

Max Speed

90 km/h



ISUZU FVR FTR 12CBM garbage compactor truck manufacturer



ISUZU FVR FTR 12CBM garbage compactor truck manufacturer



ISUZU FVR FTR 12CBM garbage compactor truck manufacturer    ISUZU FVR FTR 12CBM garbage compactor truck manufacturer

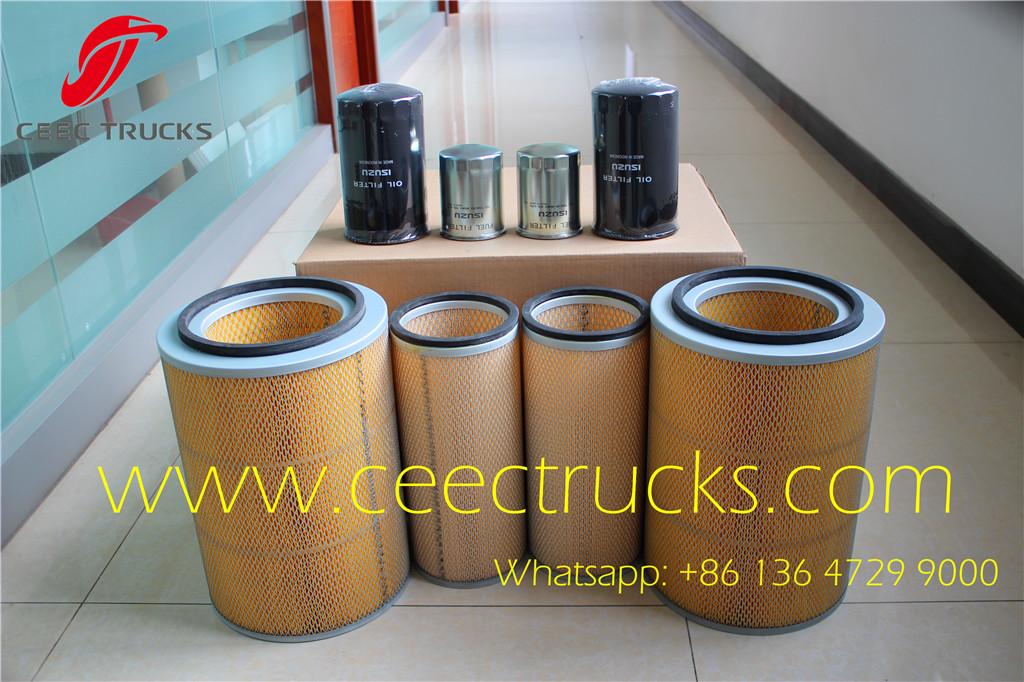

Genuine spare parts supplier in China CEEC TRUCKS to provide best quality low price ISUZU parts:



ISUZU FVR FTR 12CBM garbage compactor truck manufacturer    ISUZU FVR FTR 12CBM garbage compactor truck manufacturer



2016 newly model Garbage compactor trucks on sale





CEEC Recommend environmental protection truck series



                  SaveSaveSave

All garbage compactor trucks with Easy operation and easy maintenance!
With imported PLC (programmable logic controller) for integrated control
Collecting refuse in sealed condition, equipping with waste water tank, preventing re-pollution.
Substantial truss structure, payload distributed appropriately in hopper lip, no deformation.
Automatic controlled throttle and hydraulic safety valves, avoiding power wastage, lower oil consumption.
Automatic and manual operating control, improving operation reliability
The engine power output control, namely the throttle control, can realize fully automatic control through the electronic throttle controller, so the engine will automatically change to a higher speed or idle speed under different operating modes, thus avoiding power loss and system heat to reduce fuel consumption and realize good economical efficiency.

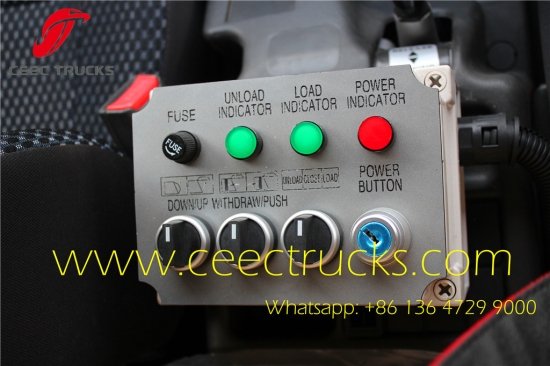

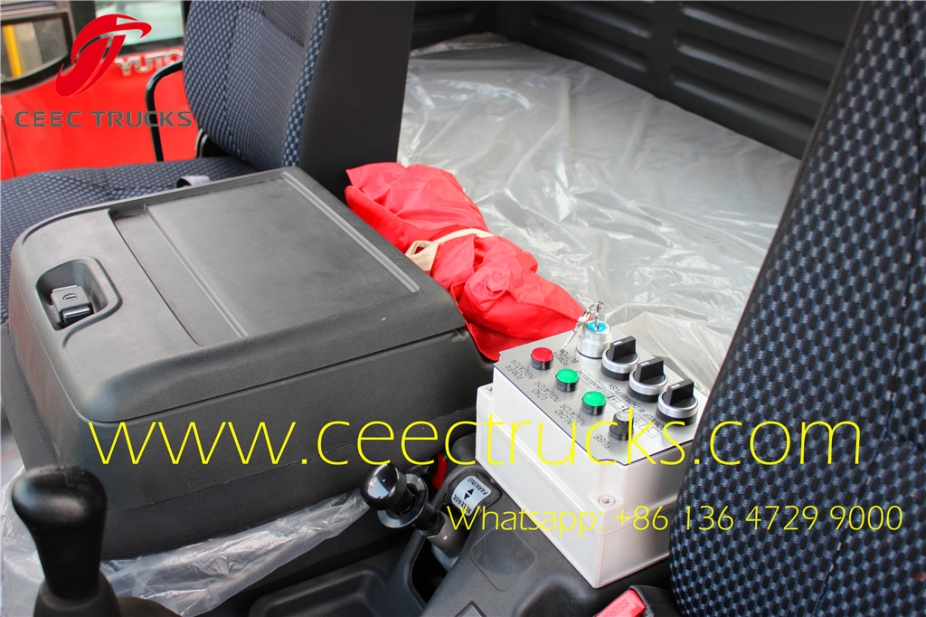

Both automatic and manual control modes are available. Two operation boxes mounted in the cab and at the rear side of the vehicle respectively can facilitate the operation.
◆  Different bin (hopper) tipping mechanisms are provided for different users to select in accordance with different garbage collecting

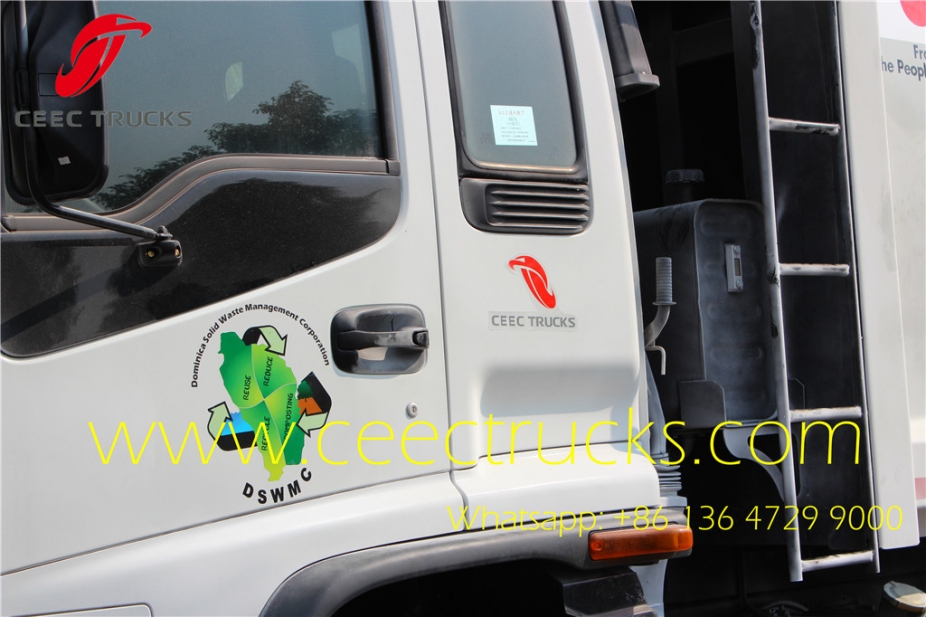

Dominica customer buy ISUZU 12 CBM compactor garbage trucks CEEC TRUCKS
