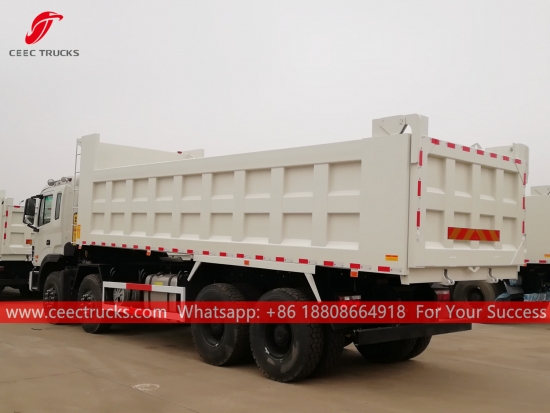

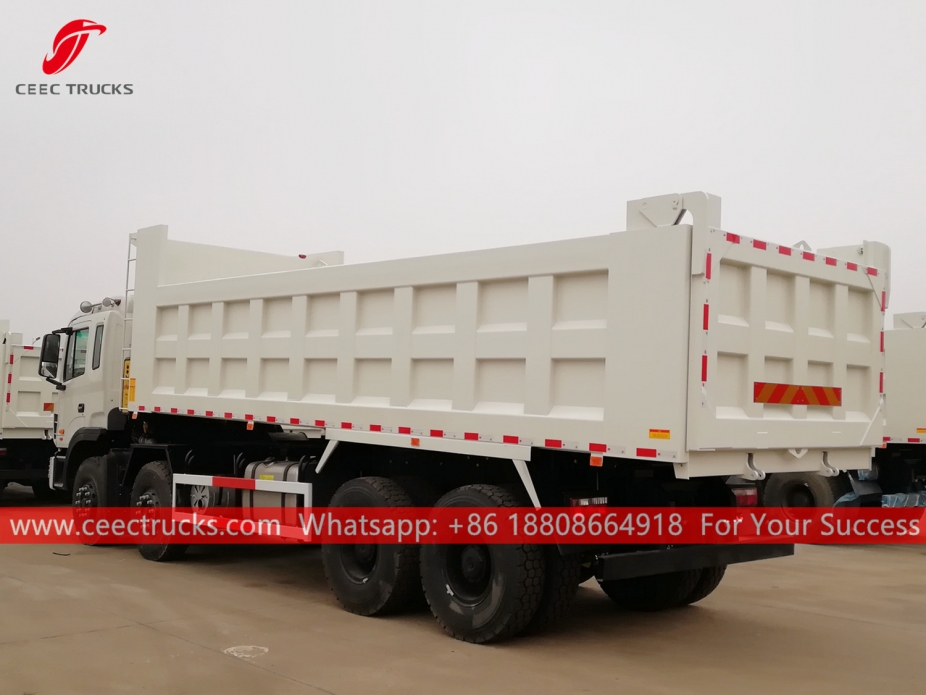

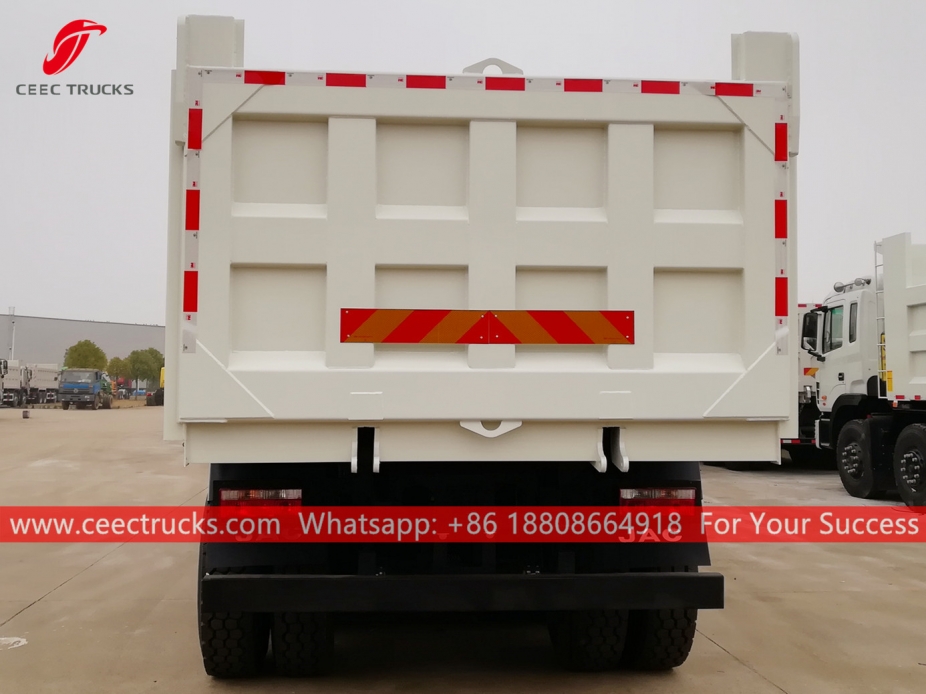

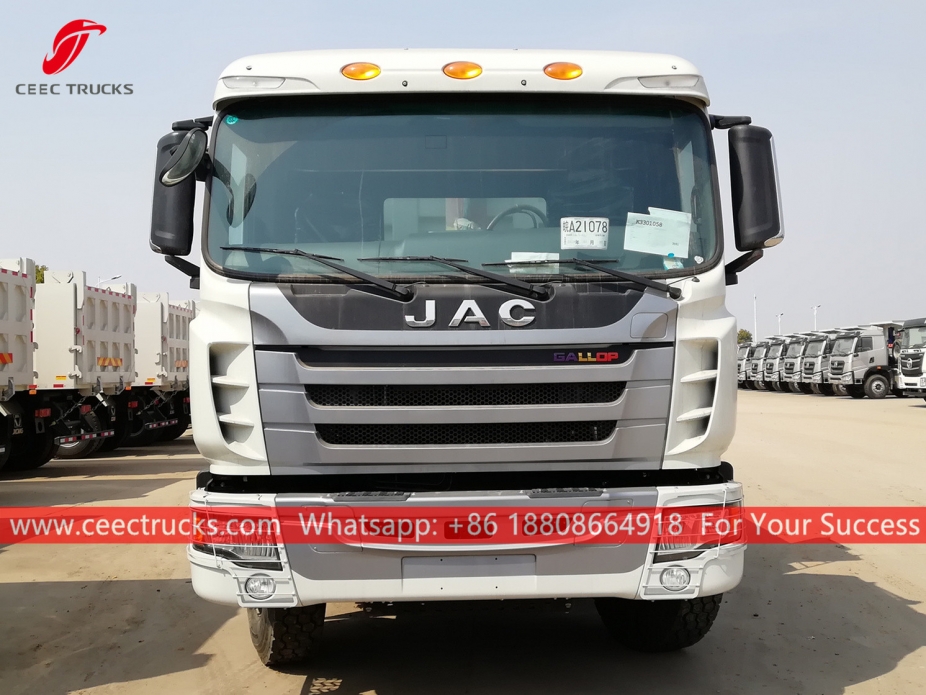

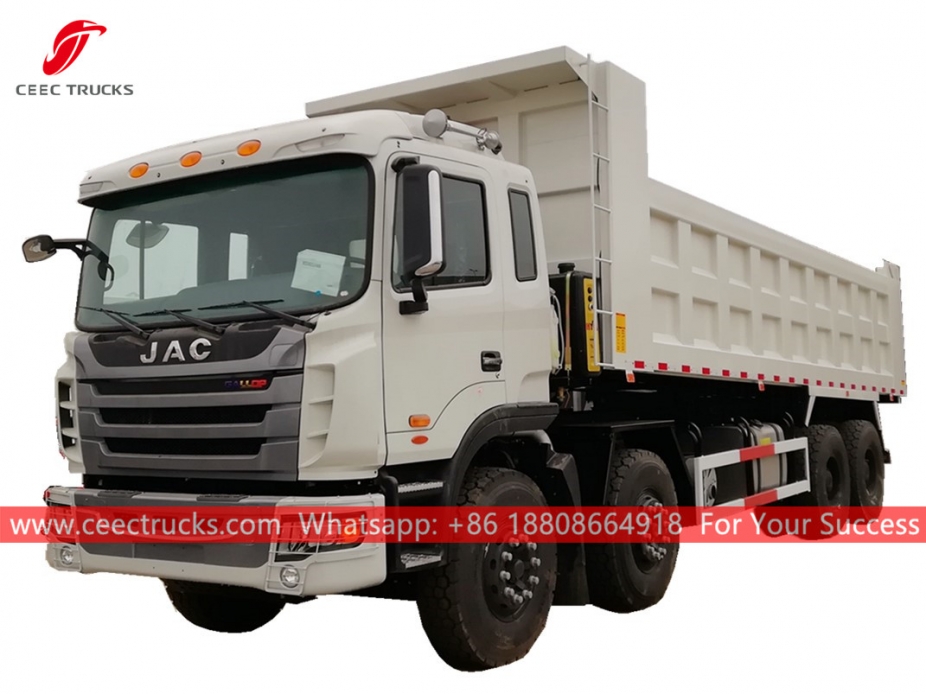

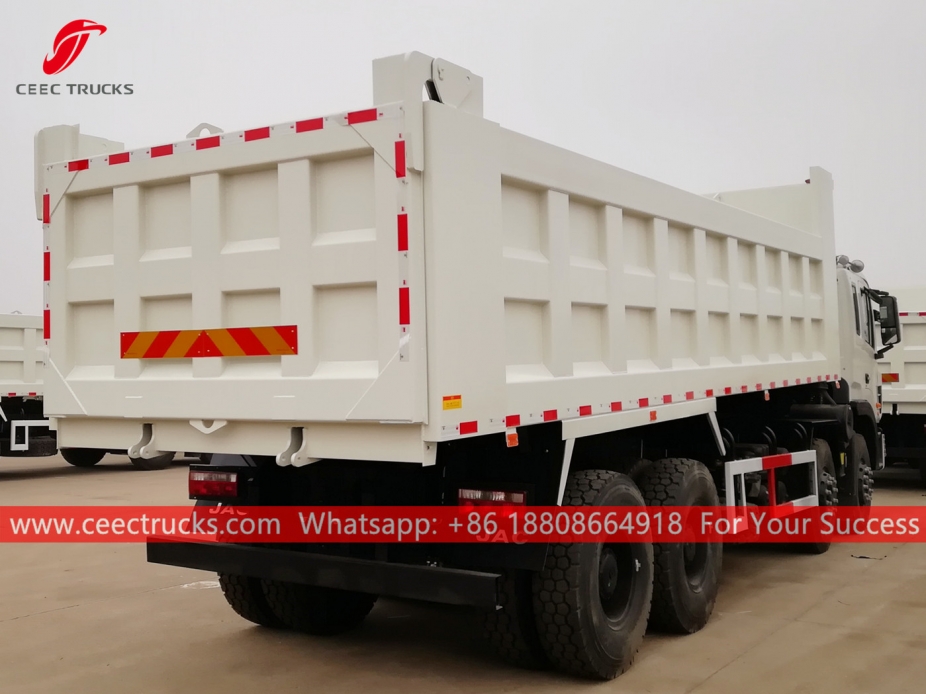

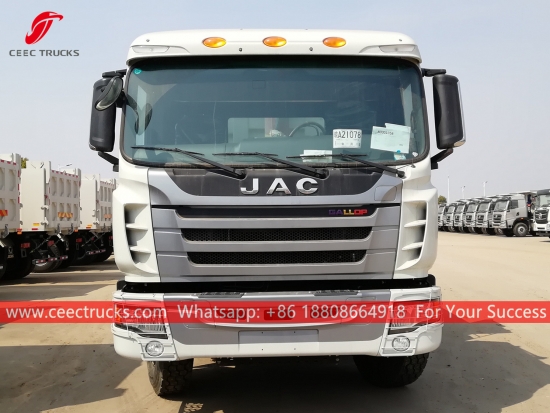

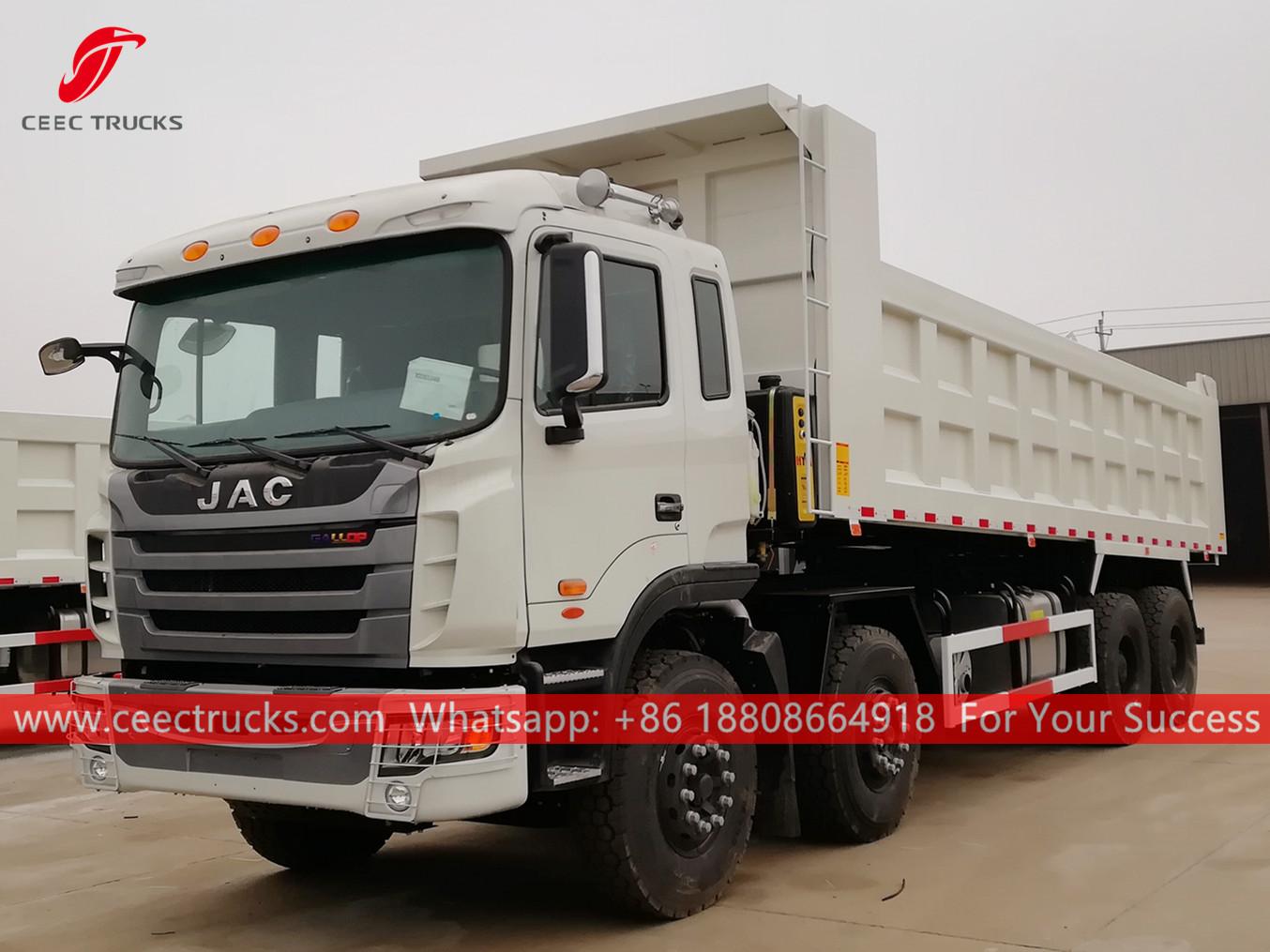

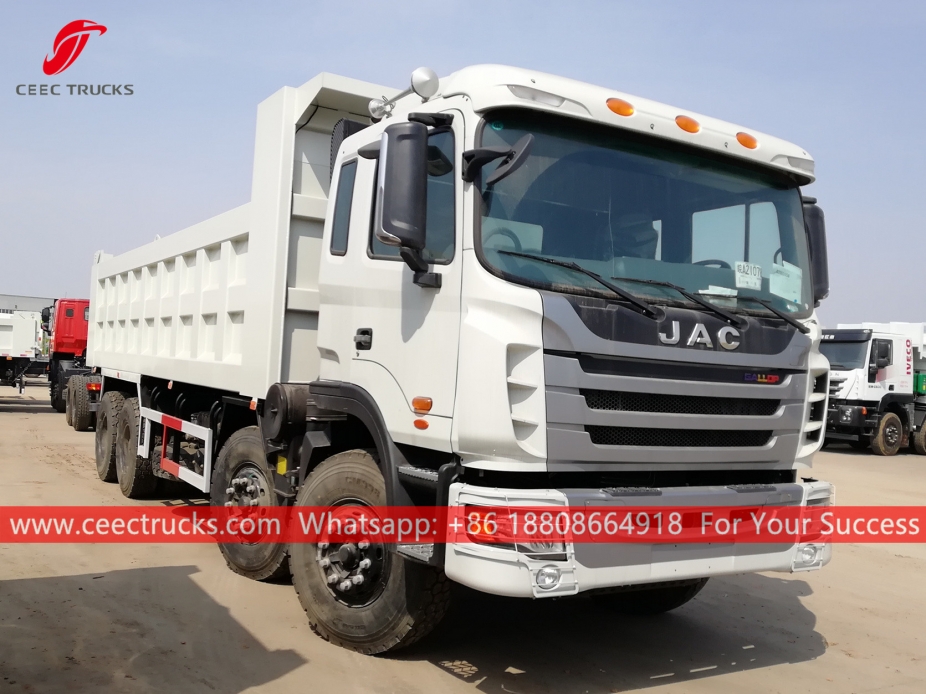

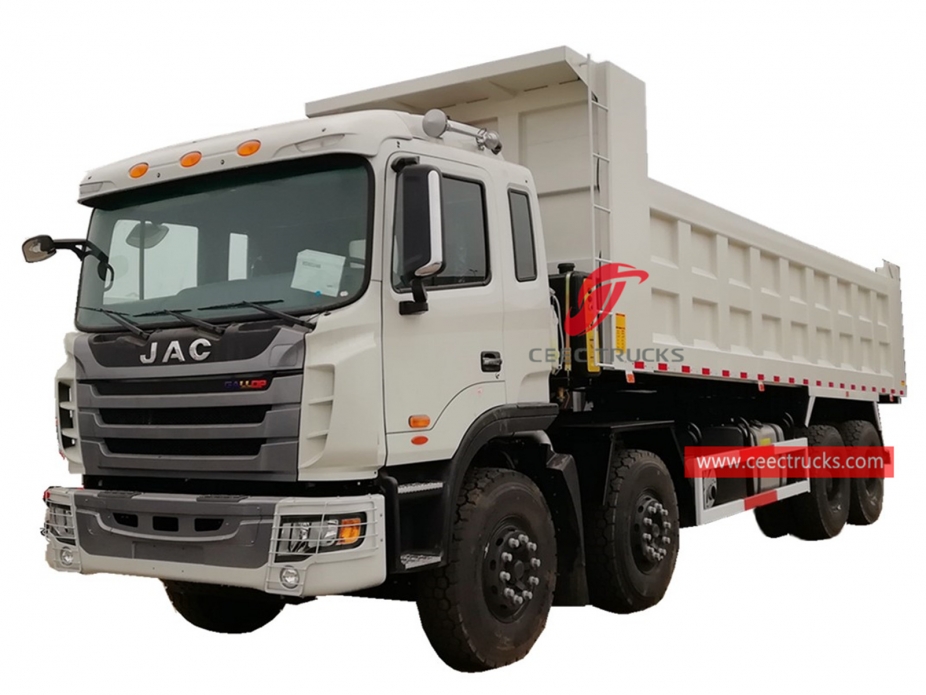

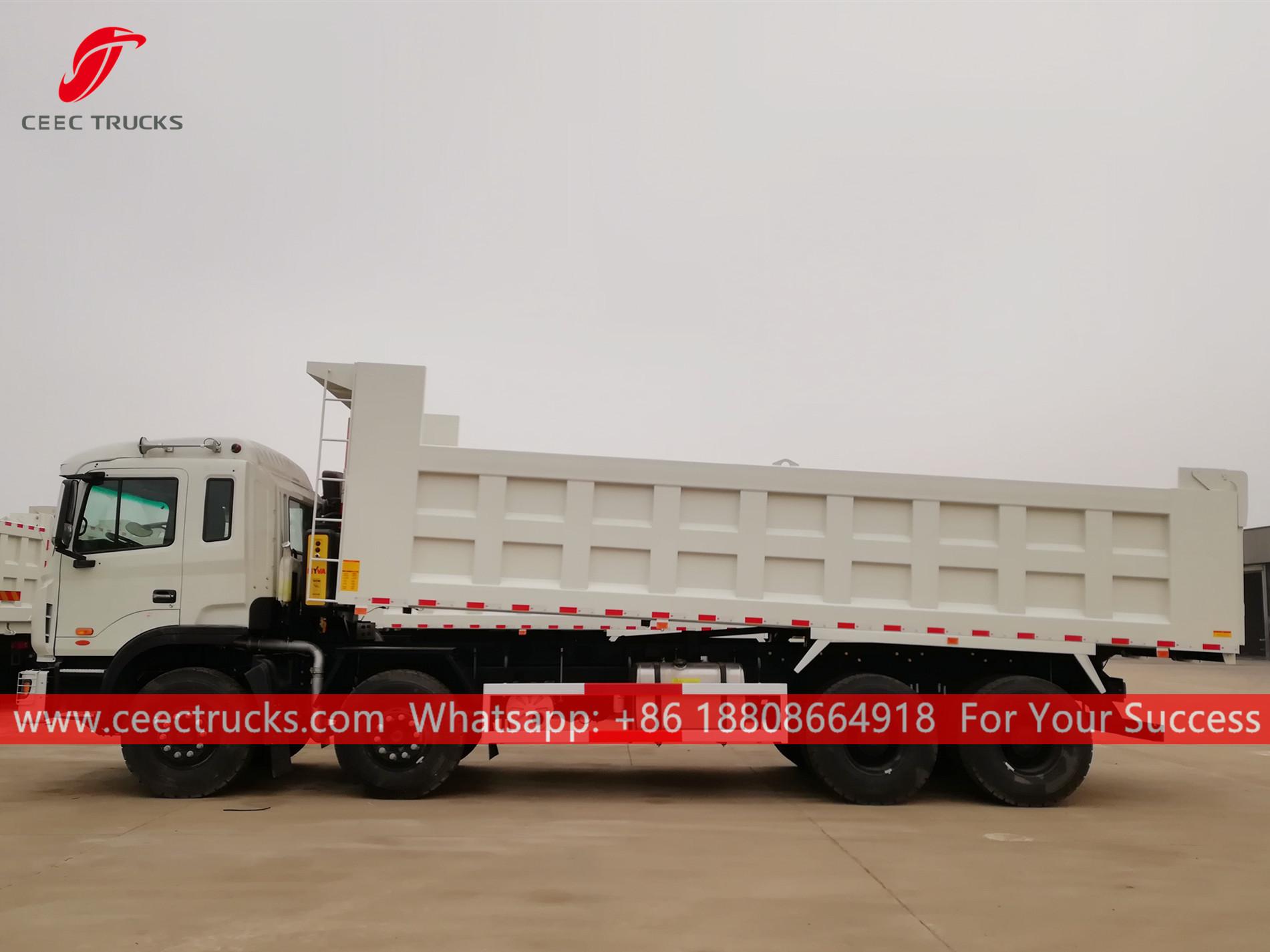

JAC GALLOP Dumper truck

JAC 8x4 dump tipper truck, JAC 8x4 LHD chassis, FAST 10-shift manual gearbox, famous Chinese brand YUCHAI 290HP diesel engine, high strength steel tipper body, with HYVA or domestic hydraulic lifter optional. All painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now



 Applications:

JAC 60Tons Dumper truck (also called JAC heavy-duty tipper truck, JAC 12-wheel dumper truck, heavy-duty tipping trucks JAC, JAC Hyva lifting dump truck, heavy hot sale duty dump truck JAC, 8x4 Sand tipping truck, JAC tipper lorry, JAC tipper) is a truck used for transporting oose material, such as sand, gravel, coal, dirt, etc.



CEEC Trucks dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.



 Key Features:

---- JAC heavy duty chassis, perfect performance
---- YUCHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.

---- Various types of tipper body are available.



 Specifications:



JAC 60Tons Dumper truck

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

JAC

Overall Dimension

9695 * 2550 * 3500 mm

GVW / Kerb Weight

31,000kg / 15,905kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

YUCHAI diesel engine

Power

290 HP (213 KW)

Displacement

7520 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

8X4 (LHD or RHD)

Transmission

FAST 10 speed levers with 2 reverse

Wheelbase/No. of axle

1800+3200+1350 mm / 4

Tire Specification

11.00R20

Tire Number

12 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Pay loading capacity

60 Tons

Cargo body

6500*2300*1200

Thickness of cargo body

Option 1: Bottom 8mm, Side 6mm

Option 2: Bottom 10mm, Side 8mm

Cylinder type

T Type or Domestic 220 or HYVA 200

Lifting system

Middle or Front

Control

in the cabin

Color & LOGO

According to wish

All standard accessories: All steel body with drop sides. Auto release removable tailgate.

Ladder, warning lights, PTO

 fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Other tipper body can be choose.

** Other material and plate thickness can be choose.

Euro 4 or 5 type, YUCHAI engine, fuel consumption save 20%

FAST 10-shift manual mechanical transmission gearbox

Dumper truck body material can be High strength carbon steel Q345 material, with thickness over 6mm

12 months fast moving spare parts for FREE

Authorized JAC tipper trucks exporter

Training service for JAC dumper trucks



China best dump truck supplier and exporter, we supply the best quality JAC 4*2, 6*4, 6*6, 8*4, 8*8, etc. We can ensure the fast delivery time and 12 months guarantee for our tipper trucks. Our JAC heavy trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
