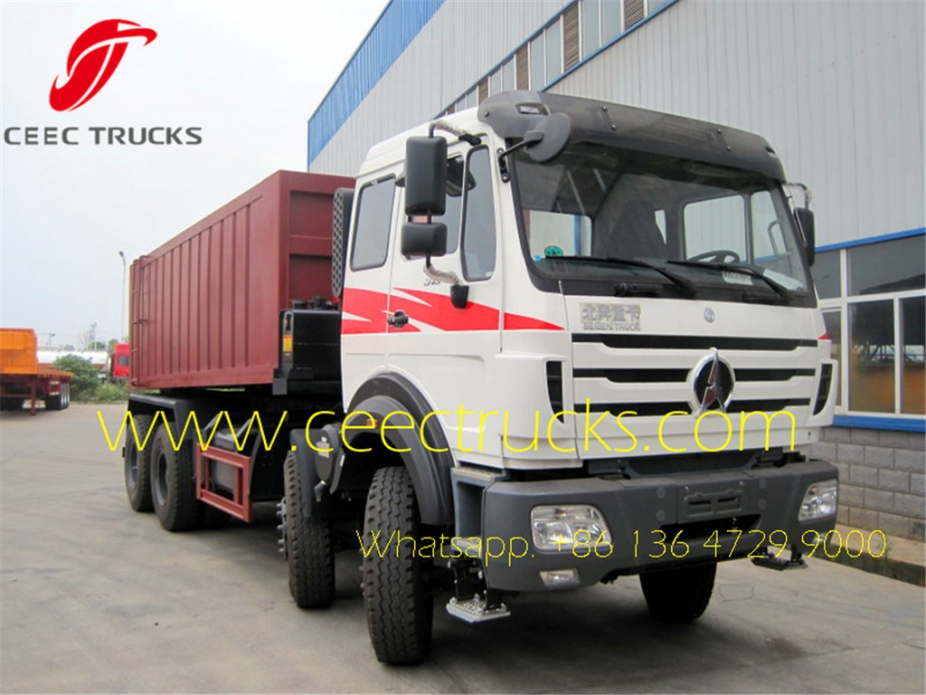

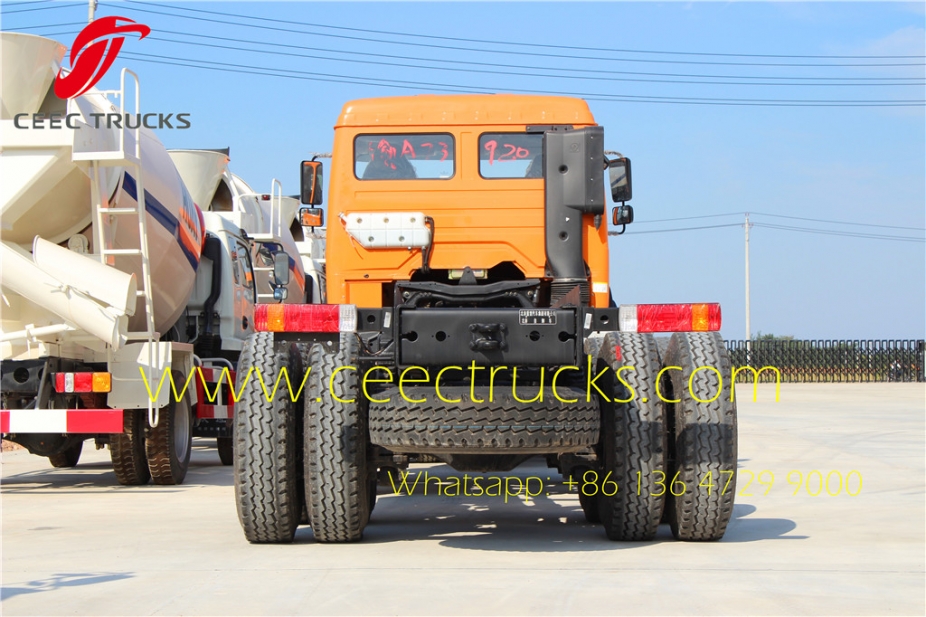

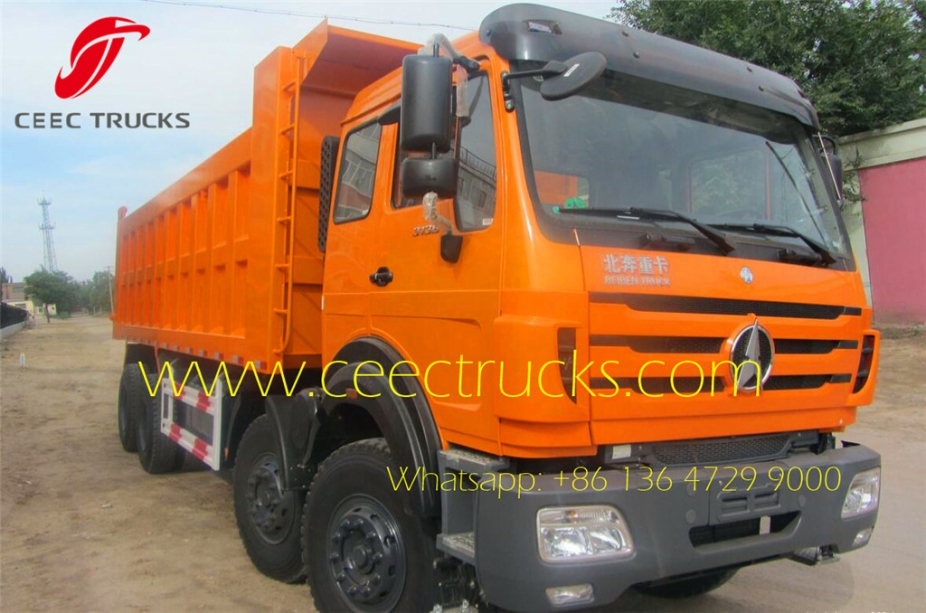

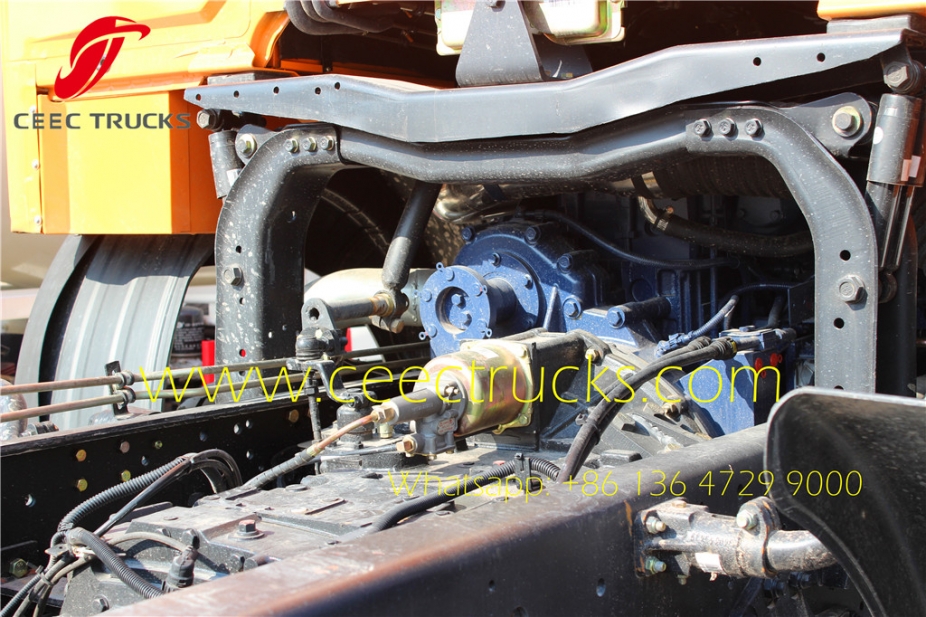

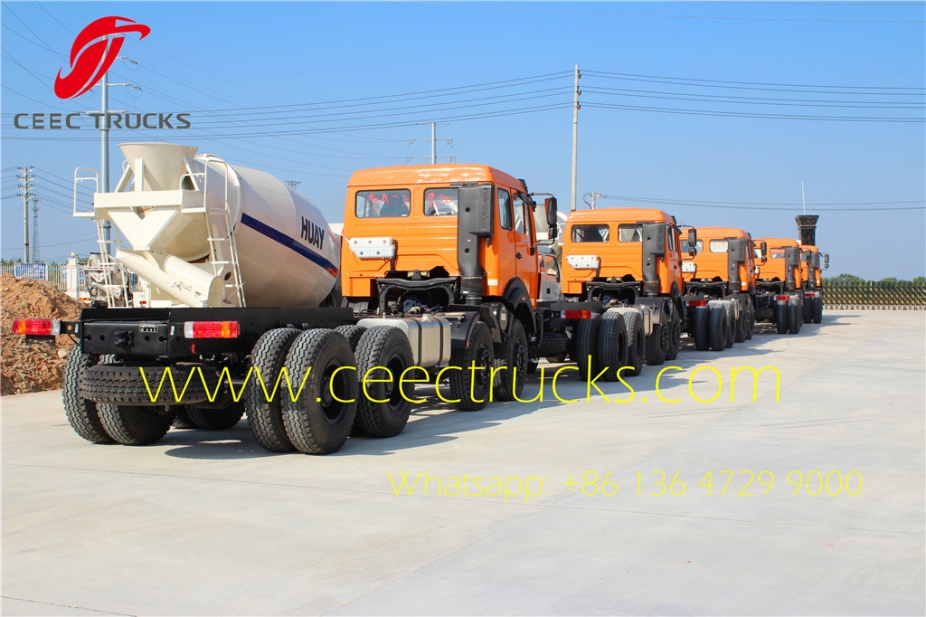

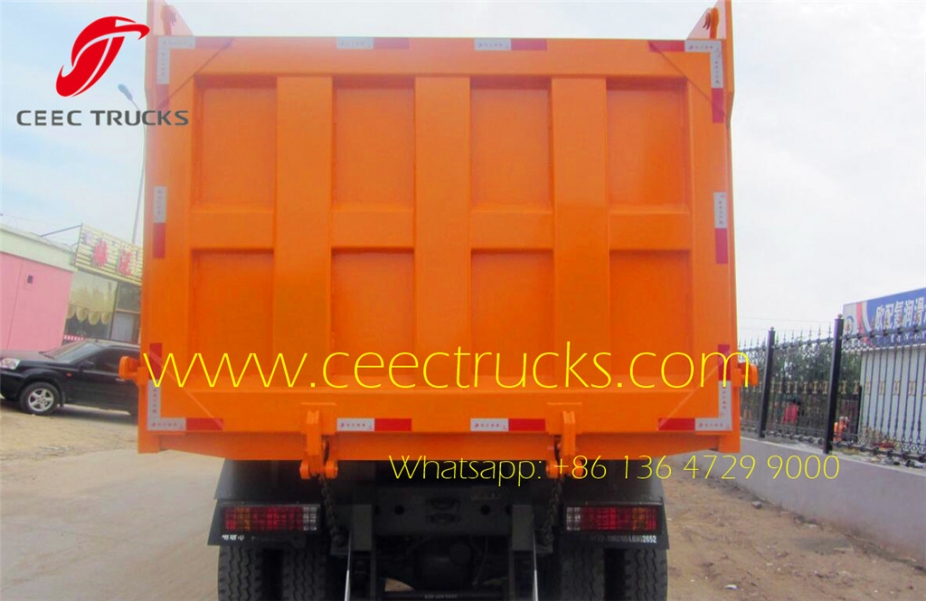

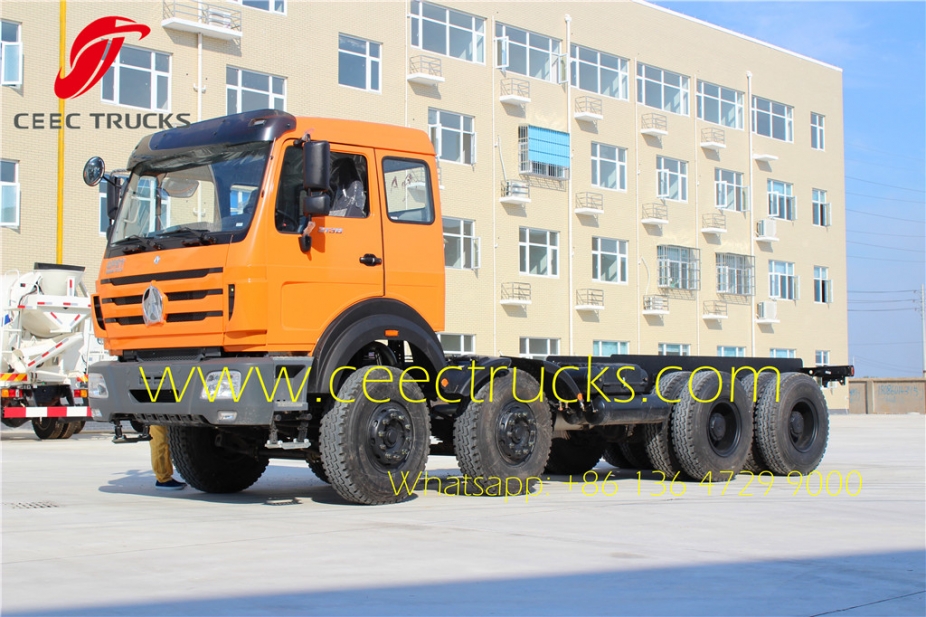

best beiben 12 wheeler dumper trucks

12 wheeler tipper truck

Best Chinese beiben 8x4 Dump Truck, benz NG80 Tipper Truck with Mercedes Benz Technology, weichai 380 HP engine, FAST 12-shift manual geabox, 100T loading capacity, HYVA lifting device, Left handed drive and right handed drive available

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    30 Days
  • FOB Price:

    USD $52,000-66,000
contact now

beiben 8*4 drive dump truck supplier CEEC TRUCKS have more than 15 years experience in manufacturing beiben 3134, 3138, 3142 dumpers trucks. Genuine beiben dump truck spare parts are avaiable in 24 hours. we provide beiben 12 wheeler earth moving tipping trucks for congo, kenya, tanzania, etc.



Professional Beiben 8*4 tipper truck manufacturer in China

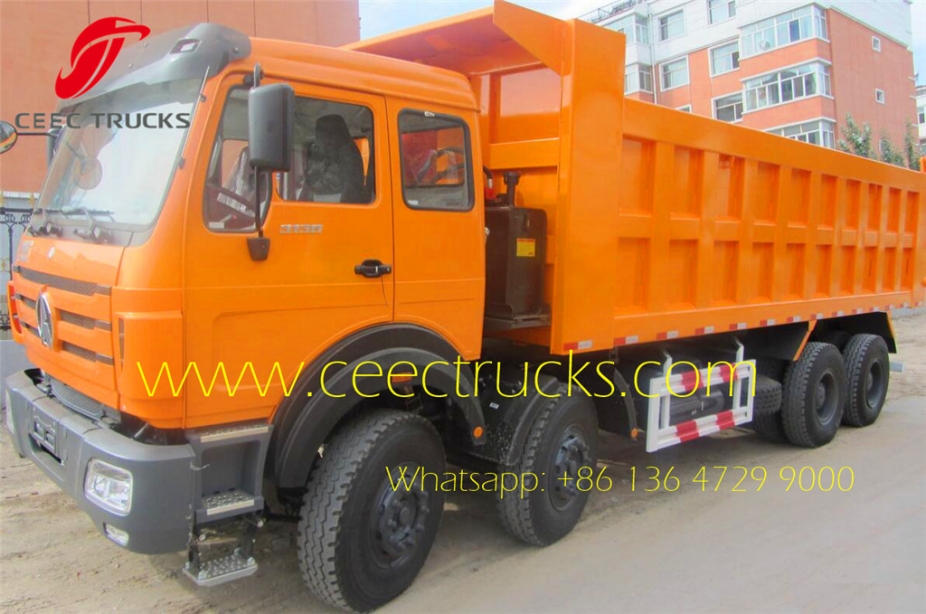

beiben 12 wheeler dumper truck



Front Lift north benz 8*4 Dump Truck advantages:

★  Widened and thickened pillars and ribs of the beiben 3134, 3138, 3142  dump body are densely distributed to ensure powerful anti-expansion performance of the beiben dump trucks dump body

★  The thickened channel steel of rear body + full welds guarantee high strength and impact / wear resistance

★  Ultra-large cast steel lock hook + manual hook feature good sealing performance and high reliability.

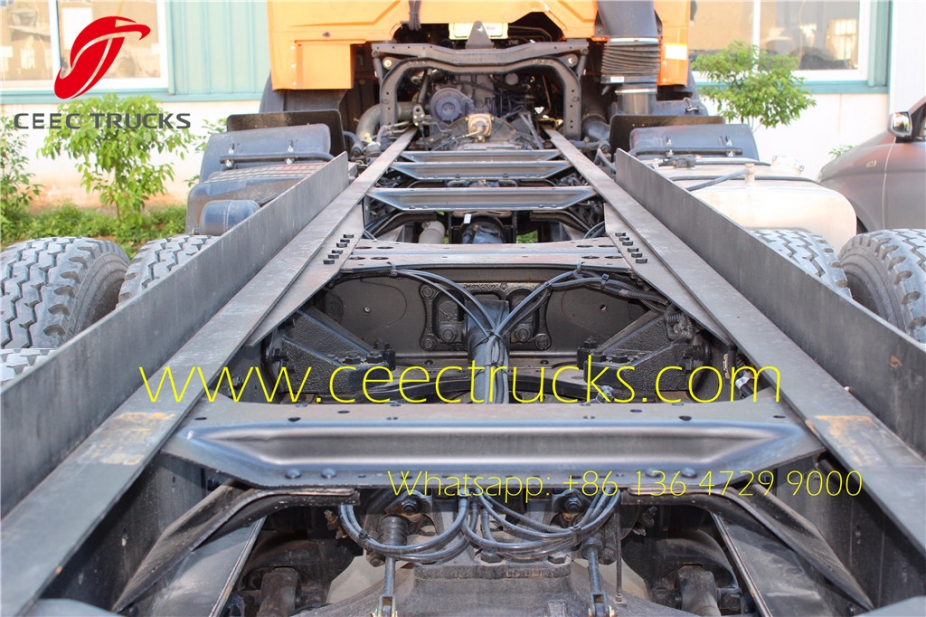

★  Four longitudinal beams of frame are in matts structure and the heighted and thickened cross beams are densely distributed to achieve a strong and impactresistance frame.

★  The subframe adopts rectangular tube longitudinal beams and the integral structure features high strength.

★  Beiben 380 Hp engine 12 wheeler dump truck Powerful pump and large pipes of the hydraulic system realize fast lifting speed, high dumping efficiency, and durability.



 beiben 12 wheeler dumper truck

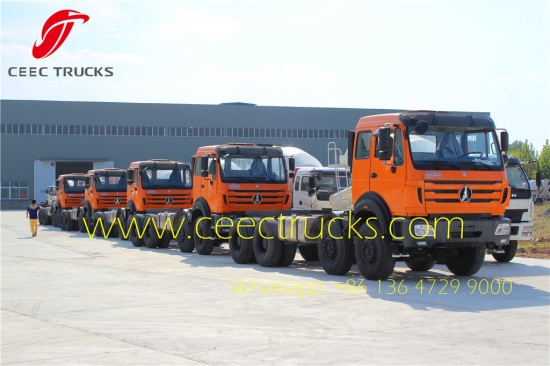

Totally 8 units beiben 8*4 Dump Truck export to Algeria:



beiben 3138 tipper truck



beiben 3138 tipper truck



beiben 3138 tipper truck



beiben 3138 tipper truck    beiben 3138 tipper truck

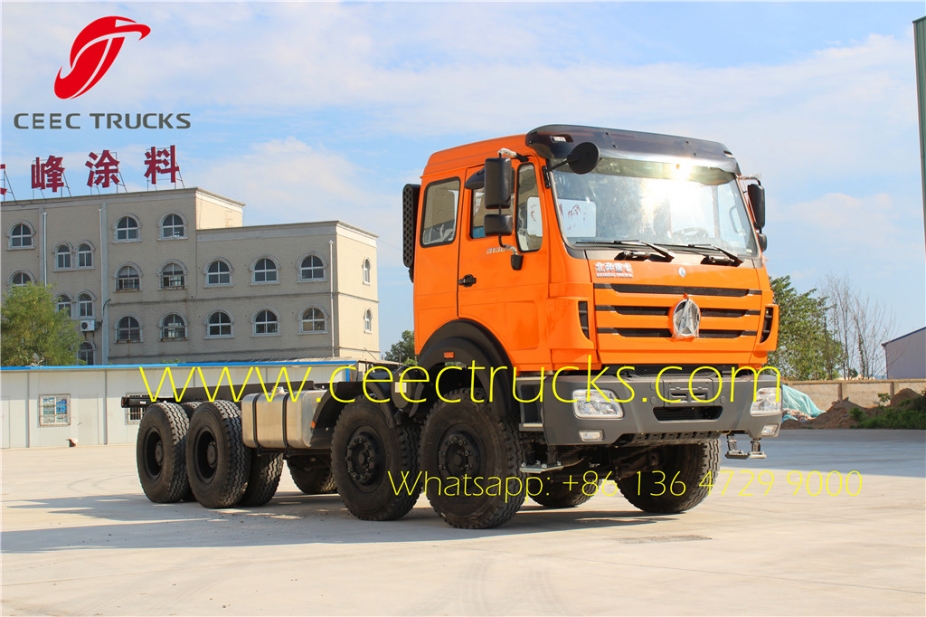

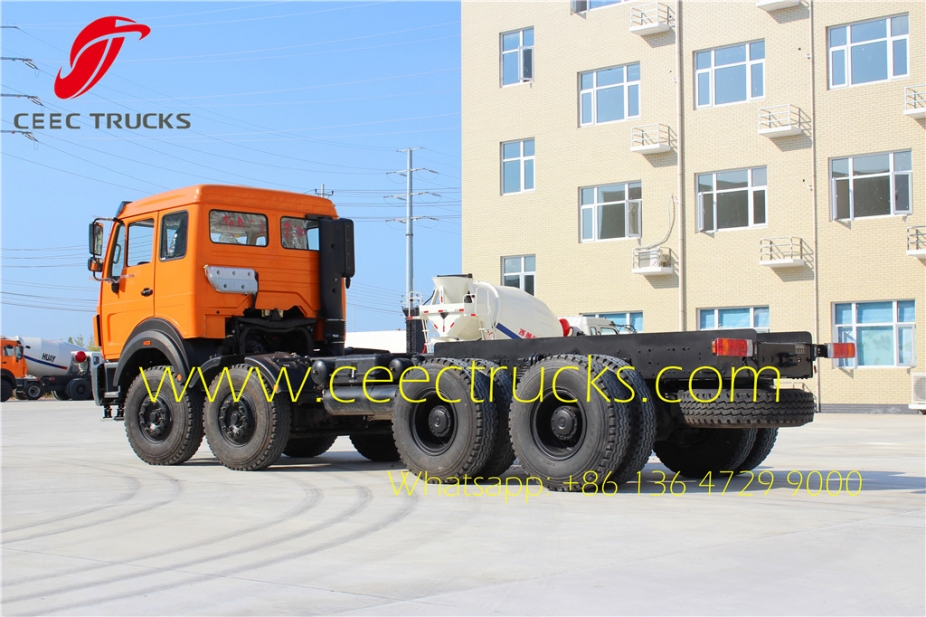

beiben 3138 tipper truck chassis    beiben 3138 tipper truck chassis



Similar key words: beiben 8*4 dumper truck, beiben 3138 tipper truck, north benz 12 wheeler dump truck, international best beiben 8*4 tipper trucks, beiben dump truck supplier

Beiben 10 wheeler dumper truck advantage

Overall dimension(mm)

9950x2500x3180

Wheel base  (mm)

1500+4450+1450

Curb weight kg

11200

Engine

Model

WP10.336(Wei Chai engine.Euro II,Based on Styre technology, made in China)

Power, max   kw/rpm

247/2200

Max torque(Nm/rpm)

1250/1200-1600

Emission standard

EUROII

Fuel tanker capacity   L

300

Clutch

Model

GFX420, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

ZF5S-112GP(ZF technical, mechanism,9gears,1 reverse gear, manual,made in China,produed by Bei Ben Transmission)

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098

Frame of vehicle

Fish belly shape, variable width, variable section side beam structure

Front axle (Mercedes Benz  Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

12.00R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Long cab, made by full steel material, anticrash performance can be ensured by double hollow chamber structure. Inner A/C



beiben 3138 tipper truck chassis



beiben dump trucks on sale





Other beiben trucks display





SaveSaveSave SaveSaveSaveSaveSaveSaveSaveSaveSave



China Beiben 8*4 LHD / RHD 12 wheeler dump truck supplier

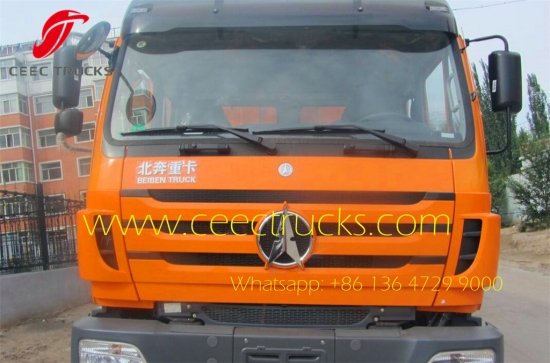

Beiben 3138 dumper truck equipped with new NG80B cabin, which has attractive appearanc, and export to congo, kenya and tanzania

WEICHAI engine WP10.380E32 with 340ps, and FAST 12shift manual mechinical gearbox for easy operation

Beiben 12 wheeler tipper trucks loading capacity can be up to 70 T

Specific heavy truck metallic framework and stressed-skin construction, processing security of same level of European automobiles

Dumper truck body material can be High strength carbon steel Q345 material, with thickness over 6mm

Hydraulic system can be original import brand HYVA hydraulic system

Optional dumper body can be normal shape, square shape, U-shape, etc

CEEC tipper truck workshop as below:



CEEC tipper truck workshop

(CEEC skilled workers is welding the beiben 3138 tipper truck)


CEEC tipper truck workshop    CEEC tipper truck workshop

(Beiben 6*4, 8*4 dumper truck workshop)
