TOP quality 3 axle Refrigerated Semitrailer export Africa

3 axle Refrigerated Semitrailer

3 Axle refrigerated semitrailer equipped with SB-210+(30) refrigerating machine, BPW axle system, JOST brand 13T or 16T landing gear.  Approx dimension can be 13800*2550*4000mm, and volume can be up to 60CBM

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    30 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $45,000-65,000
  • Market Price:

    $55000
contact now
Top quality refriegerated semitrailer, also can be called Refrigerator container semitrailer, refrigerator tanker semitrailer, etc. which mainly used to storage all kinds of perishable goods, such as meat and vegetable. The 60 CBM refrigerated semitrailer mainly for long distance transportation. and widely export Africa countries.



60CBM Refrigerator Semitrailer supplier



Refrigerated Semitrailer



Africa customer prefer refrigerated contrainer semitrailer from China CEEC TRUCKS:

The refrigerator semitrailer mainly special heat insulation material, which has good performance

The container is completely sealed, special designed for perishable thing long distance transportation

In addition, the refrigerated container semitrailer can be equipped with various kinds of refrigerating device based on requirement.

Axles device can be BPW / FUWA; Landing Gear JOST / FUWA; King Pin is JOST brand as standard equipment



Refrigerated Semitrailer

CEEC TRUCKS produced 2 axle / 3 axle refrigerated semitrailers are widely export to Africa countries including kenya, Algeria, Nigeria, Tanzania, Cameroon, etc. Mainly used for long distance transportation in Africa.



60 CBM Refrigerated Semitrailer



Similar Key Words: 60 CBM refrigerated tanker trucks suppliler, top refrigerator container semitrailer, best refrigerator truck trailers

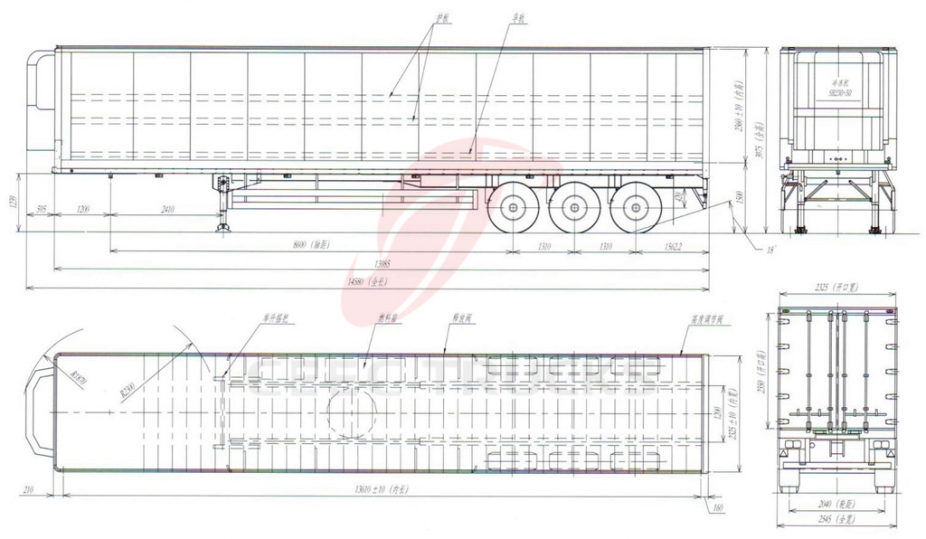

DIMENSIONS & WEIGHT

Vehicle Dimensions

13800*2550*4000mm

Box Dimensions

13000*2330*2200mm

Tare Weight

Approx.8500kg

Load capacity

Approx 45000kg

BOX DESCRIPTION

Volume

Approx 60m3

Material & Thickness

GRP inside & outside of the van, polyurethane as the insulation.& 80mm

Door

One Side Door and Rear door

Main Manufacture
Technology

Freon-free polyurethane and GRP material
All-close panel, adhesive structure with the type of building block,
Freon-free polyurethane vesicant material is our innovation,
which are very different from traditional open sandwich panel with connect by metals,
injected polyurethane at site with Freon.
At last, finish the production by heating,
vacuum and pressure using special equipment.

Other

Stainless steel of The main characters,high strength,light in weight,anti-corrosion,
non-pollution,easy repair long life,excellent,insulation

SPECIFICATION

Chassis

Stringer height of 500mm, up / down flap14mm/16mm web 6mm;
back plane; border 16 #channel steel, square tube runs through the beam;

Axle

3 axles


FUWA 13 T Optional BPW

Suspension

Mechanic suspension with 10-piece leaf spring.

King Pin

JOST brand 2'' or 3.5''

Landing Gear

JOST brand Two Speed, Manually operated

Wheel Rim

ZHENGXING 8.5*20,13 pieces

Tyre

11.00R20 Radial tire , 13 pieces

Spare Tire Rack

one

Braking System

T30/30 Spring brake chamber; 40L air tanks with WABCO air controlled system.

Light & wire

LED Combination Rear Lights, and LED Side lights. wire and 7-pin socket

REFRIGERATING UNIT DESCRIPTION

Brand

Thermo King

Model

SB-210+(30)

Temperature Range

-20ºC Temperature can be controlled



60 CBM Refrigerated Semitrailer



60 CBM Refrigerated Semitrailer    60 CBM Refrigerated Semitrailer



China Best Semitrailer on sale





TOP quality beiben trucks display




SaveSaveSaveSaveSaveSaveSave

1,  This refrigerator semi-trailer comes with a 60m3 heat insluation container. The volume can be tailer-made based on specific requirements.

2,  For the refrigerated semi-trailer, we have designed a special high-temperature resistant fluidized structure. Due to the special design, all perishable goods can be storaged in the semitrailer for long-distance delivery with no worry about anything.

3,  This refrigerated semi-traileris featured by light weight, low gravity center, fast unloading speed with lessresidue, easy maintenance, etc.

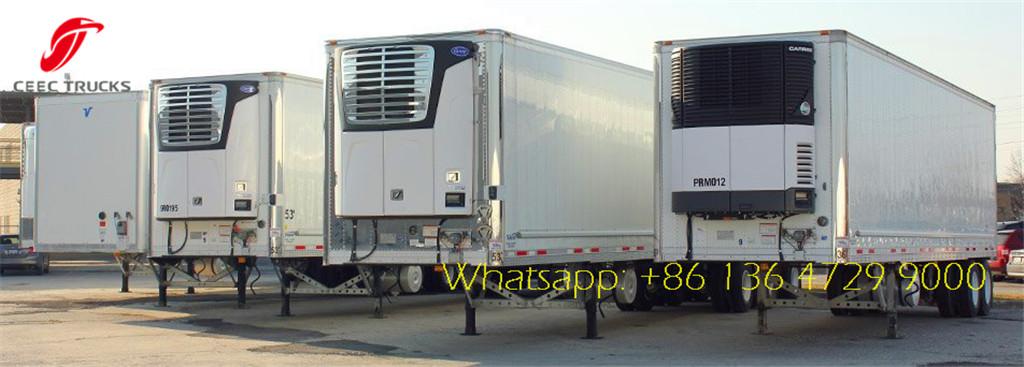

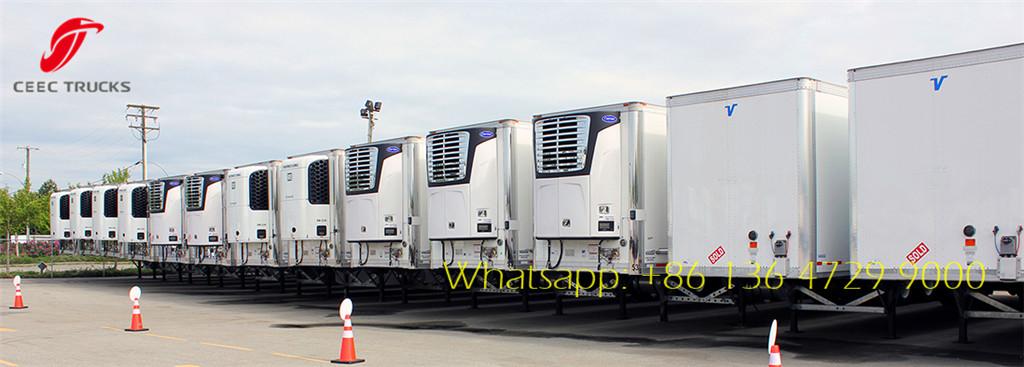

CEEC TRUCKS Refrigerated Semitrailer In Factory Stock



refrigerated semitrailer wholesale



refrigerated semitrailer wholesale

(Tens of refrigerated semitrailer in factory stock for quick delivery)
