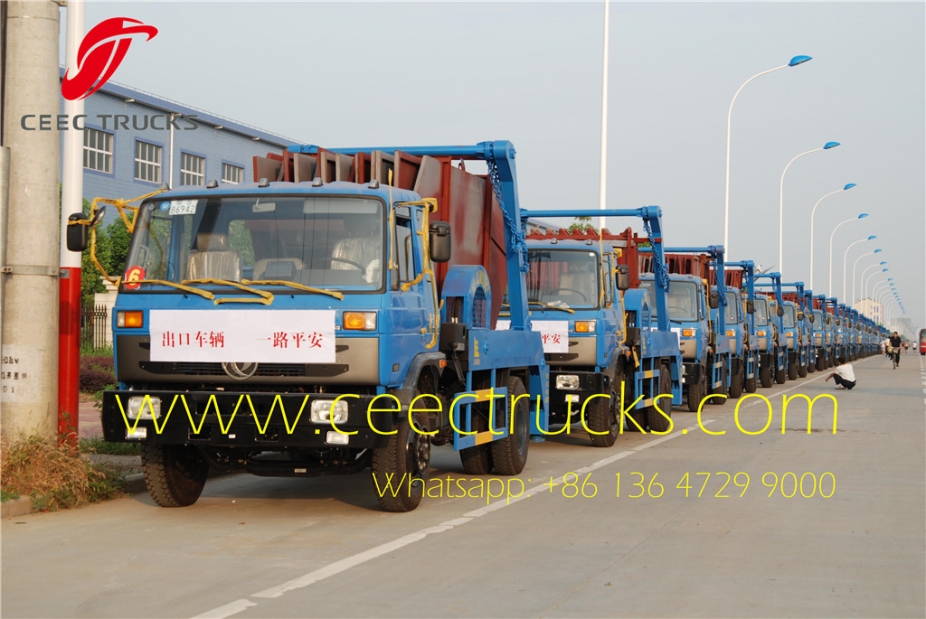

8cbm Skip Bin Truck Right hand Drive Truck Skip Bin Loader

4*4 Skip Loader Truck

Best Beiben 4*2 swing arm garbage trucks use Beiben 6 wheel chassis, WEICHAI 240HP engine, FAST 9-shift manual gearbox, top design high strength steel swing arm for loading 10-12 CBM garbage container, widely export Africa countries

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    30 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $38,000-50,000
  • Market Price:

    $44000
contact now
The 10 CBM swing arm garbage truck is widely used in sanitation & municipal, industrial enterprises and residential area. This truck be used together with several garbage tanks to improve work efficiency, also the 2016 newly design of the cover for all garbage tanks avoid pollution during transporting process. All modified part can be separated from chassis, so it is easy to maintain and the mobility & readability of the truck are kept. Beiben 10 CBM skip loader trucks widely export Kenya, Congo DRC, Tanzania.

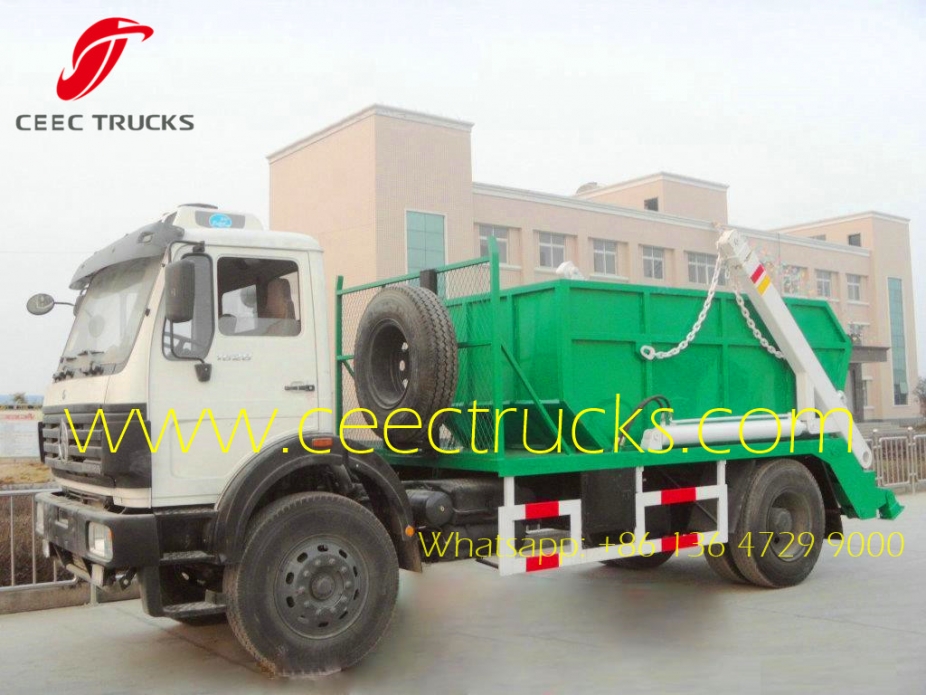

Beiben 4*4 offroad 10CBM skip loader trucks supplier

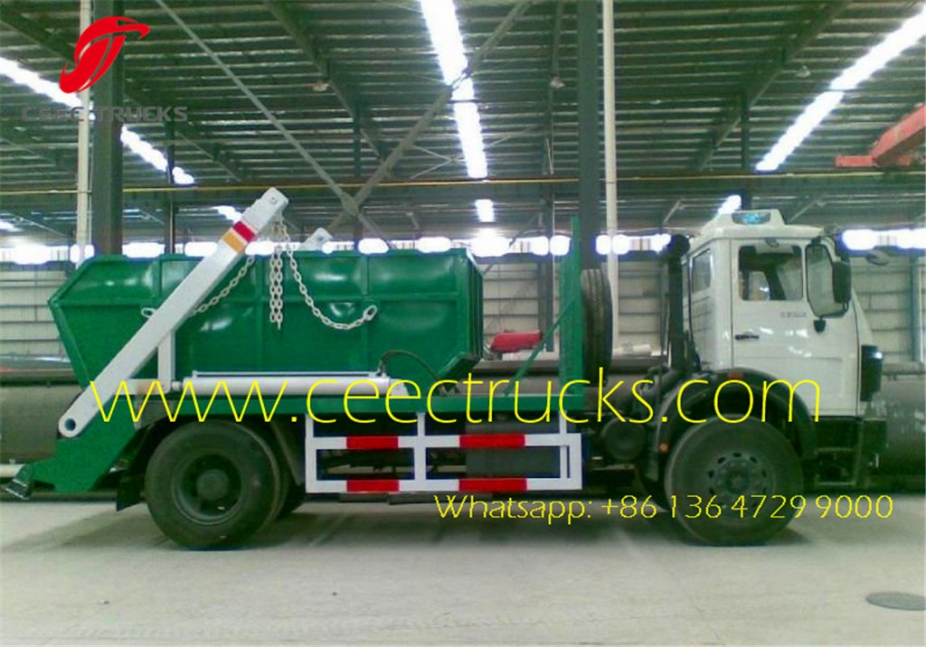

Beiben 10-12 CBM skip load truck



Advanced features for CEEC produced beiben 10-12 CBM skip loader garbage trucks:

1 The Garbage bucket is divided into different forms. It is respectively swing arm and the pit floor garbage bucket. And can be installed closures to prevent the disclosure of flying pollution. In order to adapt to different environments use requirements. It uses leading technology and military enterprises accessories .reliable quality,By the manufacturer to provide users with the garbage bucket drawings,to help users design garbage Truck.

2 Swing arm garbage trucks are widely applicable to the waste disposal and the city streets, schools, the application of national garbage bucket, can be a vehicle with more than one garbage bucket, each spam point to place more than one garbage bucket with the dump functions, hydraulically operated.

3 It can be increased a unified matching with hydraulic lifting assembly. Through the left and right arms shipment to a unified national arm garbage bucket. A car with more than one bucket, additional dump functions, to achieve security and stability, reliable performance.



Skip Loader TRUCKS



Beiben 10-12 CBM skip load trucks wholesale



Beiben 10-12 CBM skip load trucks wholesale



Similar Key Words: Beiben swing arm garbage trucks, north benz 10-12 CBM roll off garbage trucks, Beiben 10000 liters skip loader truck, beiben 8 T skip load garbage trucks supplier, north benz 6 wheel garbage trucks price

Beiben 10-12 CBM skip load trucks wholesale


Truck Name

Beiben 4*4 offroad skip loader garbage truck

Cubage( CBM )

10-12

Parameters

Overall dimension length/width/height (mm)

 8800×2470×3250

Total Mass(kg)

 14800

Payload(kg)

 7000

Kerb Mass(kg)

 7450

Approach angle/ Departure angle(mm)

 34/20

Front suspension/rear suspension(mm)

 1245/1405

Fuel Type

 diesel

Fuel Consumption/100 km

 22

Max Speed

 85

Engine

Type

 WD615.58 supercharged six-cylinder inner-coolingdiesel engine

Displacement/Power(kw)

 9726/175(240hp)

Manufacturer

 Weichai Diesel Engine Co., Ltd

Type

 6-in-line supercharged inner-cooling diesel engine

Chassis

Drive type

 4×2

Wheelbase(mm)

 4500

Tread(front/rear)

 1940/1860

Front axle

 5T

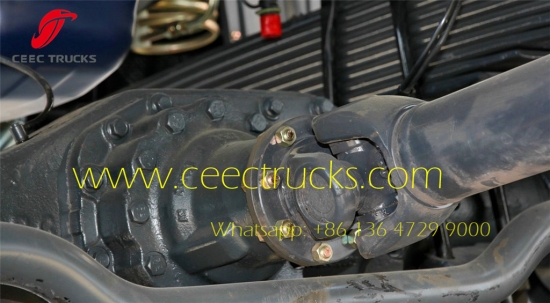

Rear axle

 10T

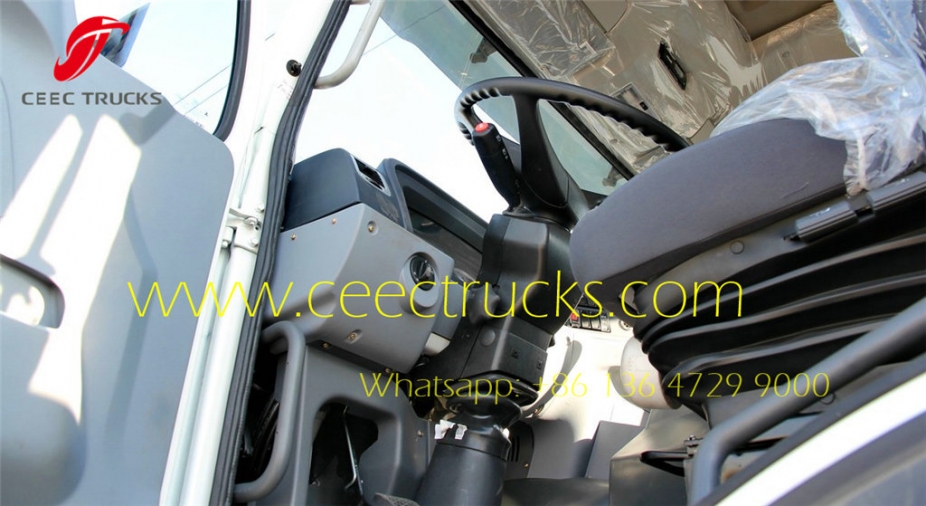

Steering gear

 Dual-armed steering wheel,power steering

Transmission

 6 gear mechanical drive transmission

Clutch

 Diaphragm clutch, hydraulic remote control,pneumatic serveo

Braking system

 Split air braking system,spring breaking,exhaust braking

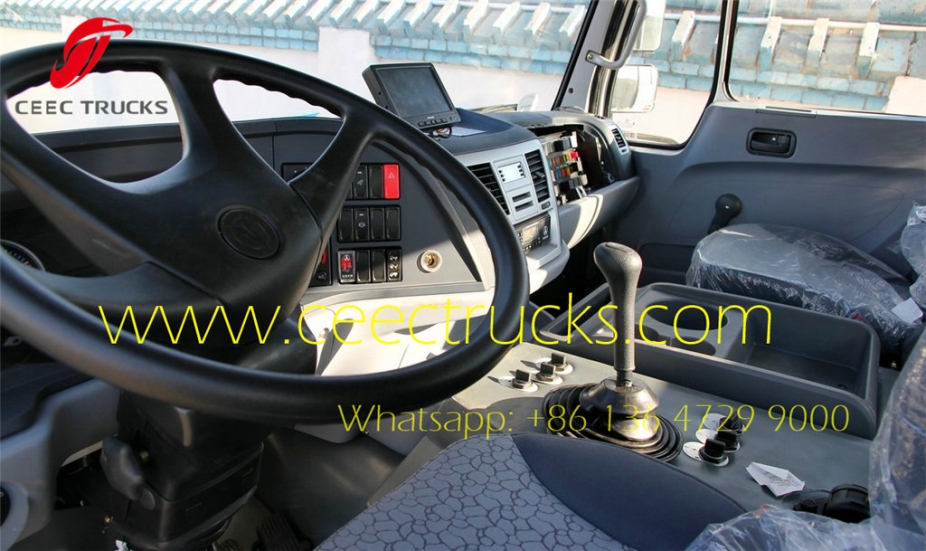

Cab

 Non-longheaded one and a half row cab,whole metal-enclosed

Number of spring axle(front/rear)

  9/11+8

Tire Type

 10.00-20 16PR

Air-condition

Choose to fix

Special performance parameters

Hydraulic system pressure

16MPa

Crane arm turn radius

2400mm

Hydraulic systemFlow capacity

50L/min

Crane arm maximum pivot angle

145

Hoisting time

30s

Unloading time

50s

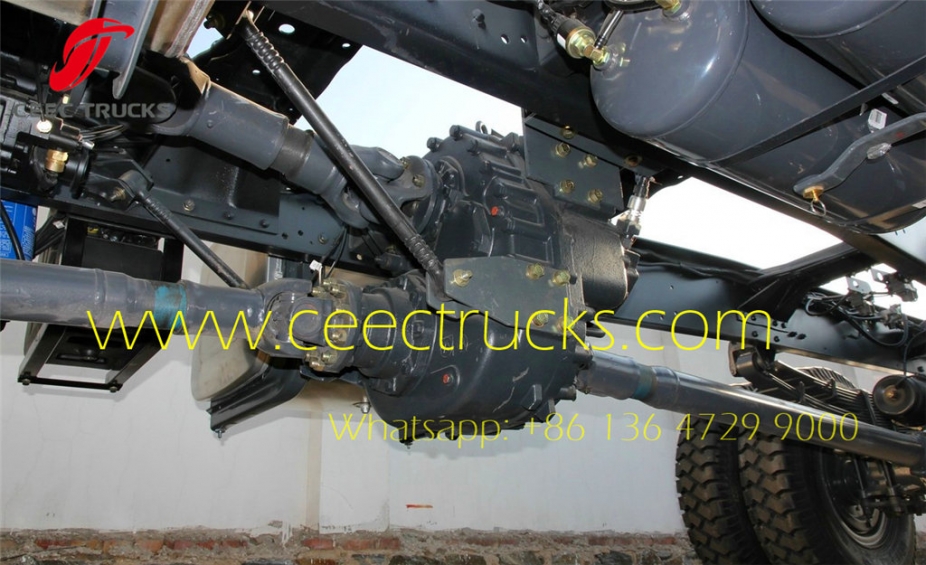

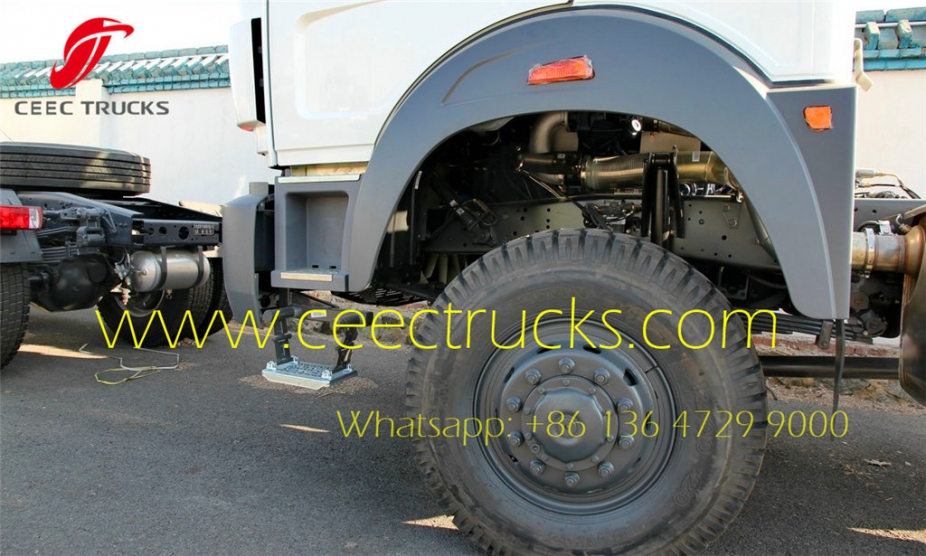

Beiben 1628 1630 truck chassis

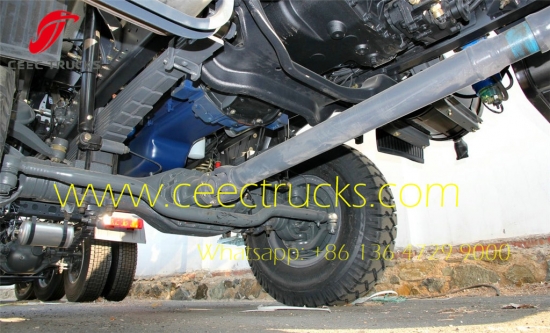

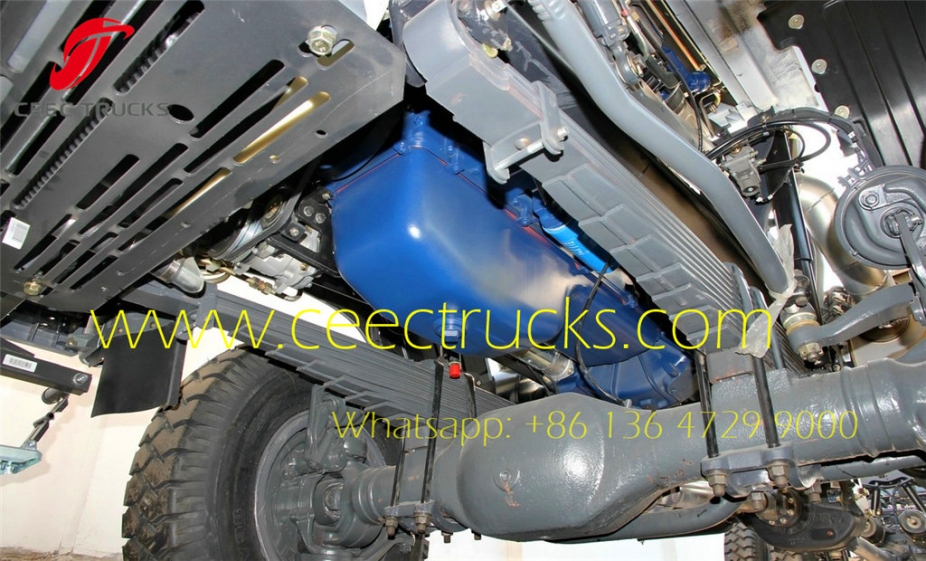

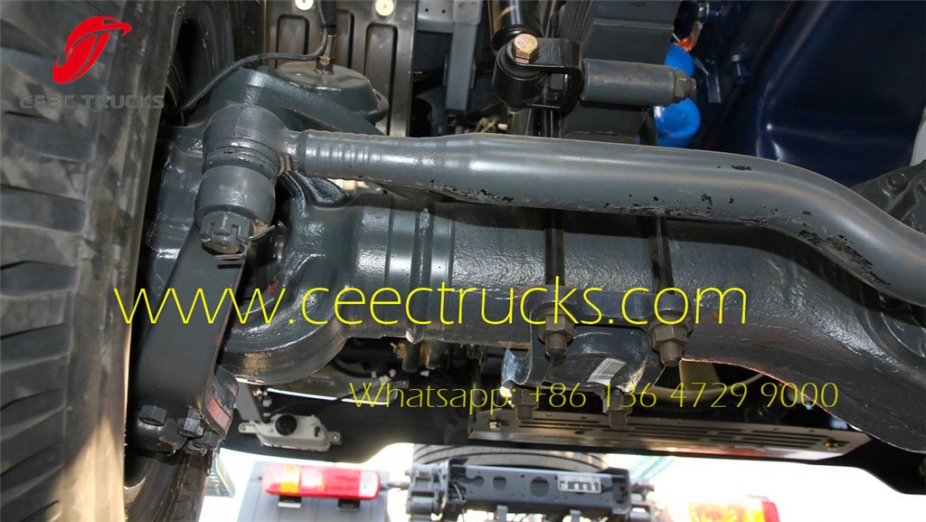

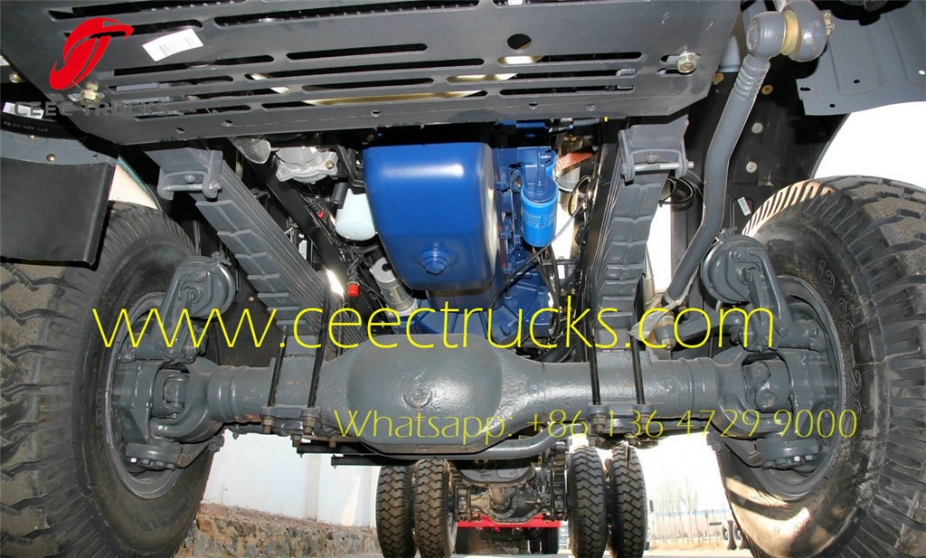

Beiben 1630 offroad truck chassis    Beiben 1628 1630 truck chassis



Beiben 1628 1630 truck chassis    Beiben 1628 1630 truck chassis



CEEC Recommend environmental protection truck series





SaveSaveSaveSaveSaveSave

2016 best selling model Beiben 10-12 CBM skip refuse garbage truck

Famous WEICHAI engine, 240 HP engine model, EURO 2,3 emission, 20% saved fuel consumption

FAST 9-shift manual gearbox, 9 forward & 1 reverse, easy operation

Profession hook loading system manufacturer experience over 15 years

High strength material swing arm, loading container volume can be up to 12 CBM

12 months free fast moving spare parts

Training service in CEEC working plant



Best selling model beiben 10-12 m³ swing arm garbage trucks

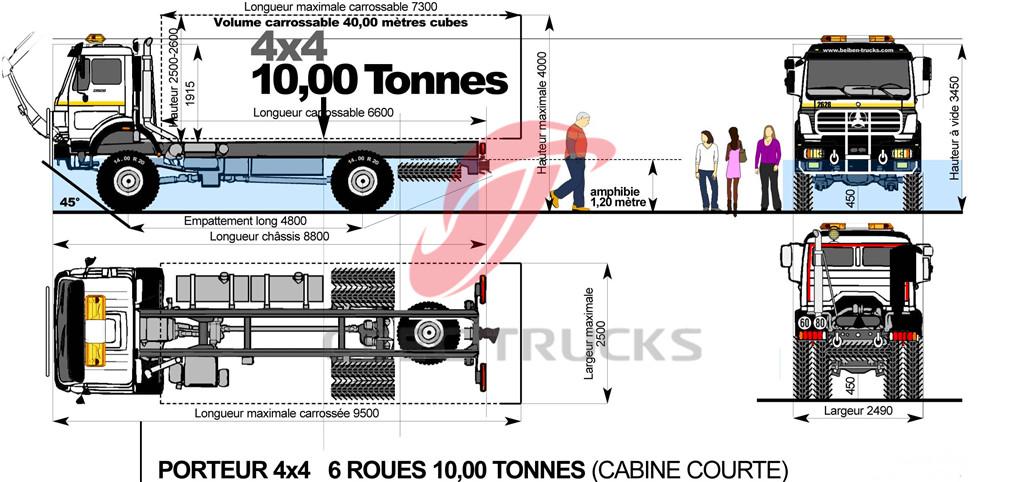

Beiben 6 wheelers truck chassis

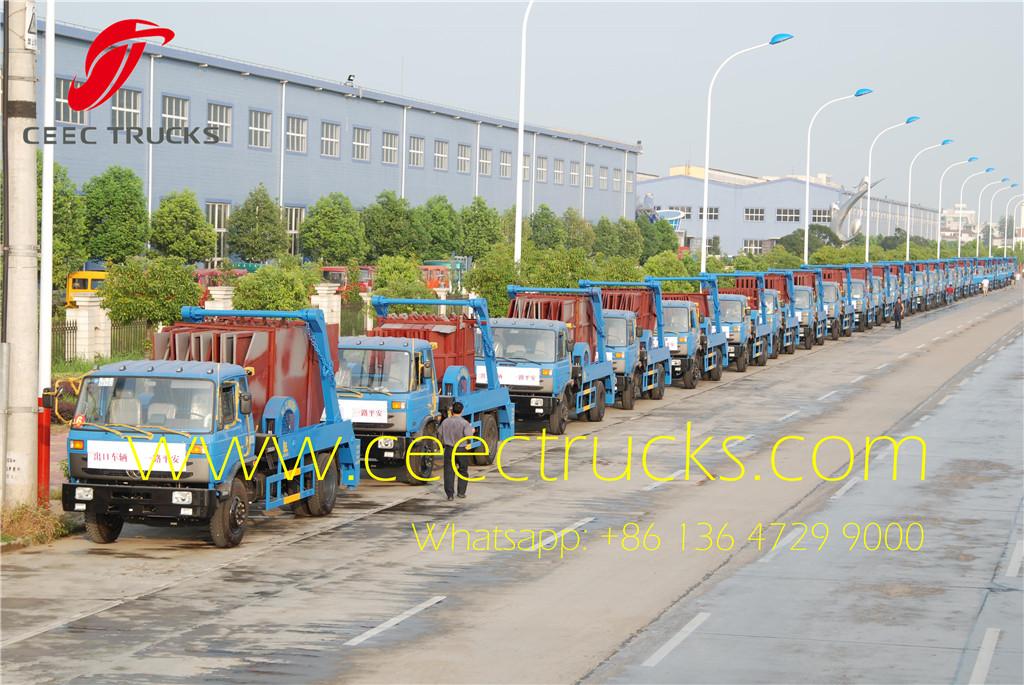

beiben 10-12 CBM skip loader truck

(Skiller drivers in position and ready for shanghai seaport to shipping to Ghana for government project)
