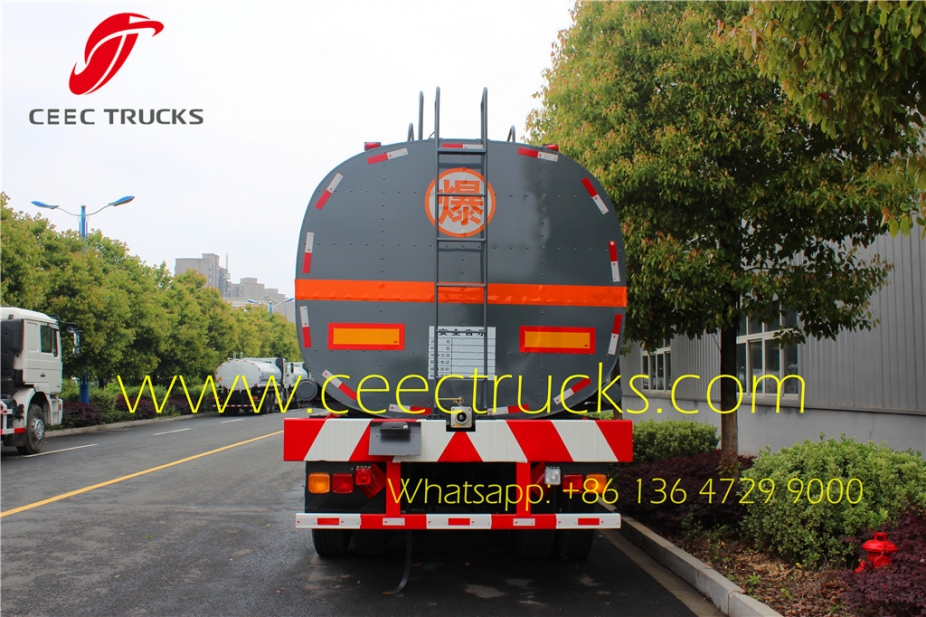

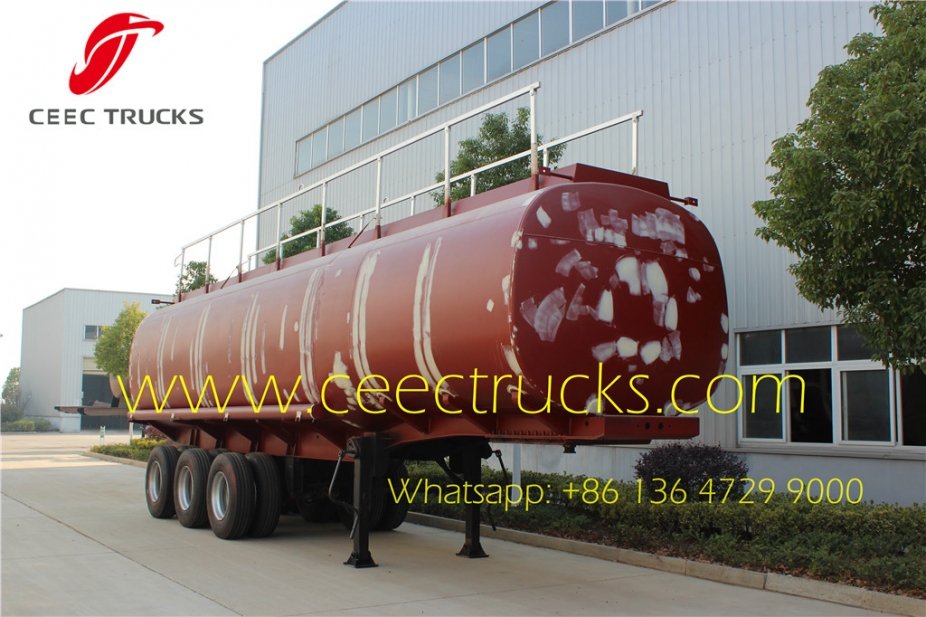

Best carbon steel 48CBM oil tank trailers

48 CBM fuel tanker semitrailer supplier

Manufacturer supply 3 axle fuel tanker trailer, carbon steel tank 48CBM volume for oil, diesel, gasoline and other flammable liquid transportation. Out best quality 3 axle oil tank semitrailers widely export East Asia countries.

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    7 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $15,500-21,900
  • Market Price:

    $17600
contact now

The fuel tank semi trailer is commonly used to transfer diesel fuel, petrol, crude oil, edible oil, palm oil, and liquid asphalt.

As a specialist in the manufacture of fuel tank semi trailer, we have pioneered the application of plate bender and welder in the manufacture of fuel tanks trailer. Our industry leading design capability allows us to supply your desired oil tanker trailers in the shortest possible time. With a loading capacity in the range between 30 and 60m³, our fuel tank semi trailer often comes in various types, the most common being the 2-axle and 3-axle configurations.



48 CBM fuel tanker semitrailer manufacturer supply



fuel tanker trailer supplier



Function:

Oil tanker trailer (also called oil tanksemi-trailer, fuel tanker semitrailer, fuel semi-trailer, oil semitrailer, fueltrailer tanker, fuel tankers, fuel tank trailer, oil trailer, semi tankertrailer, stainless steel oil tanker trailer, carbon steel trailer tank fuel) is used to transport oil, diesel, gasoline, kerosene,etc.

2016 produced 48 CBM Oil tank semitrailers can be divided into many compartments to load and transport differenttypes of fuels, lubricant, crude oil, alcohol……



Features:

---- High quality tank material has options of carbonsteel, stainless steel, aluminum alloy.

---- JOST kingpin, JOST / FUWA landing gears

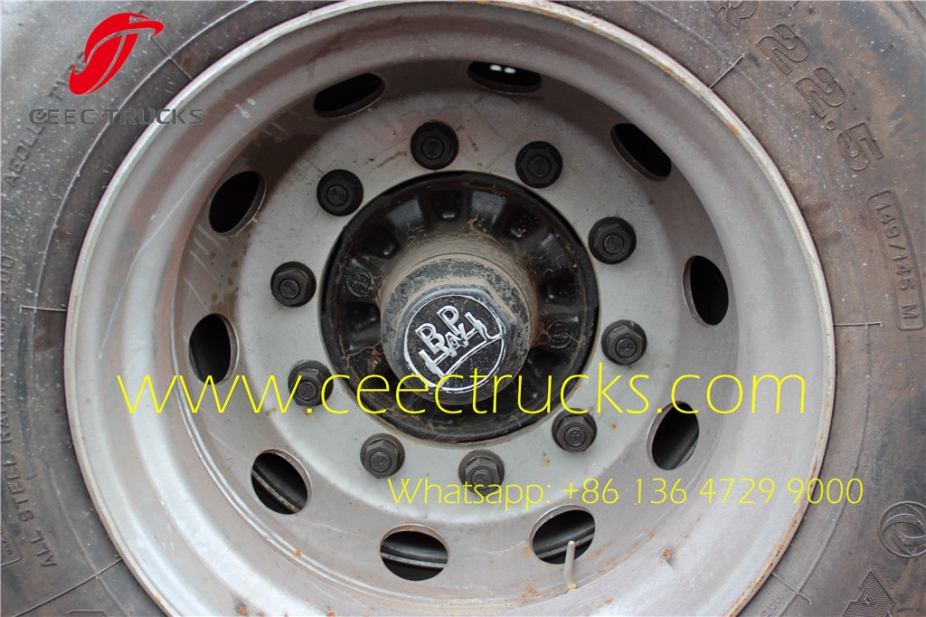

---- Axles are of top Chinese brand FUWA or German brand BPW

---- Main fuel components available of international brands (ADR standard) -Civacon of OPW (America), EMCO Wheaton (America), DIXON (Europe)....

---- Bottom loading system including vapor recovery and overfill detectionsystem can be equipped.

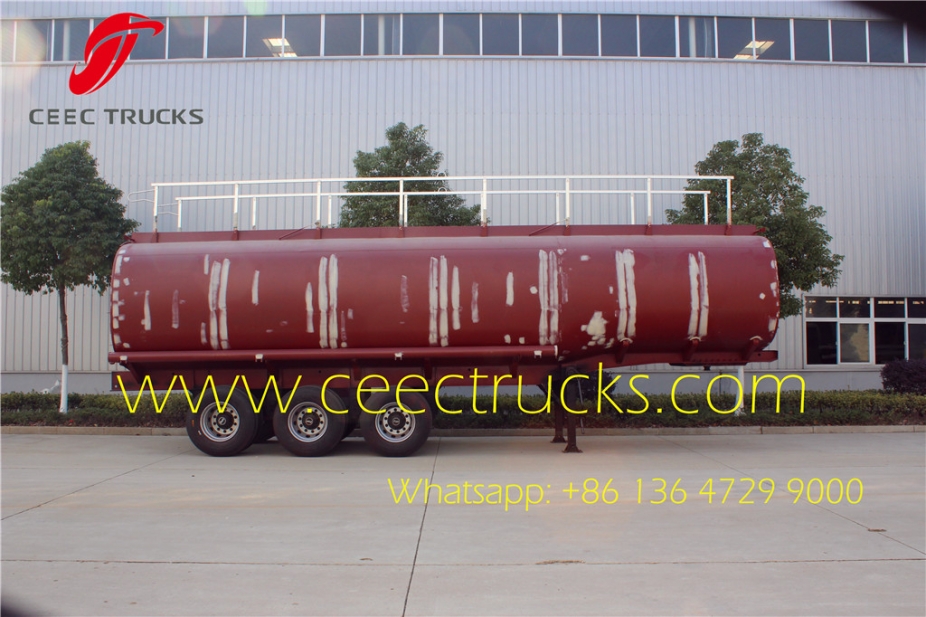

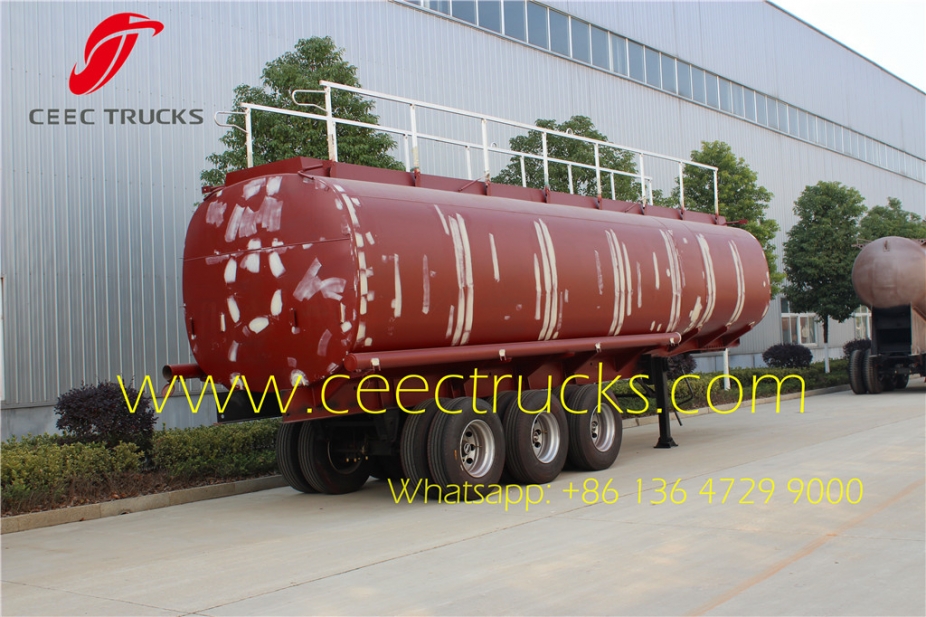

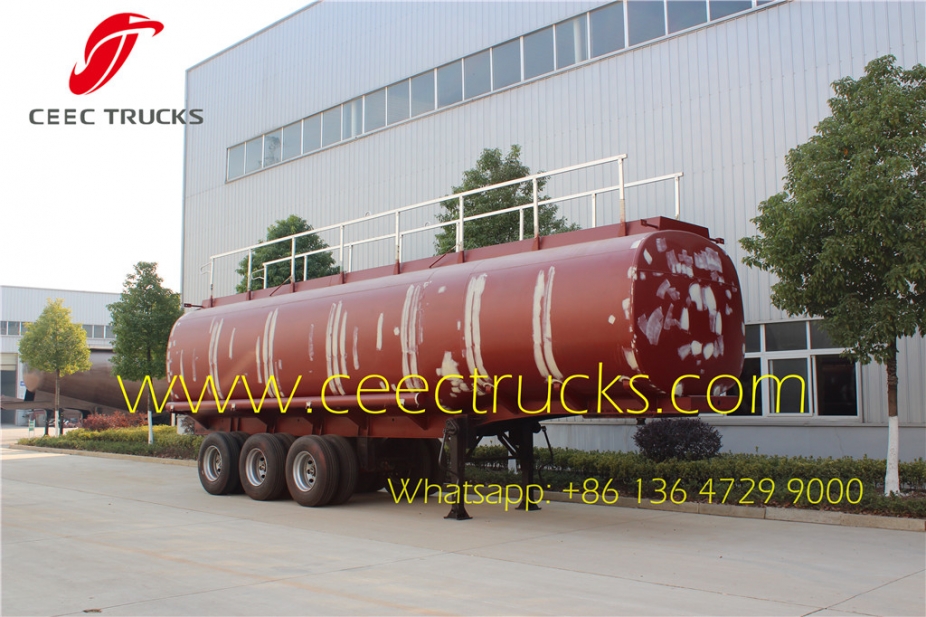

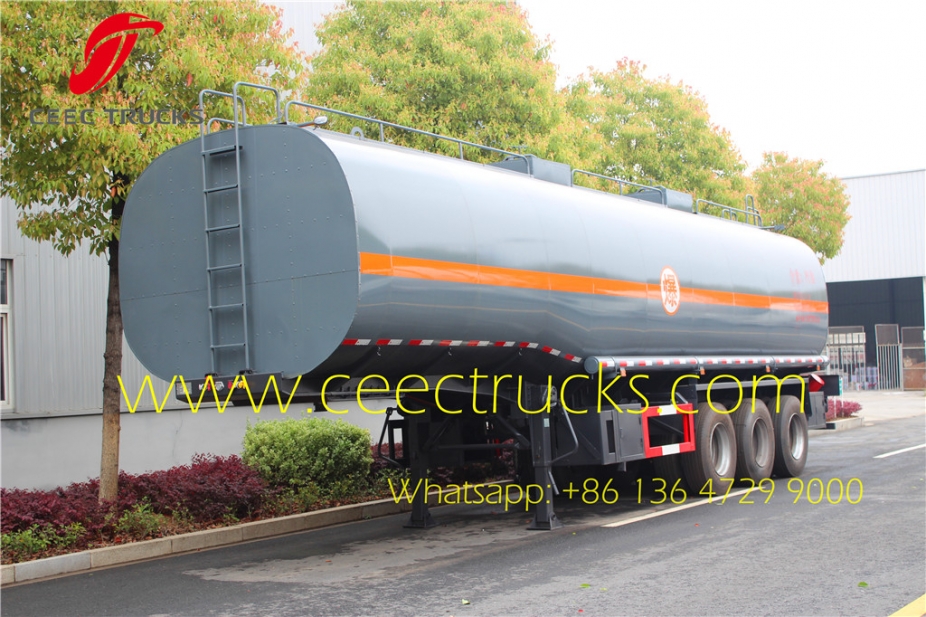

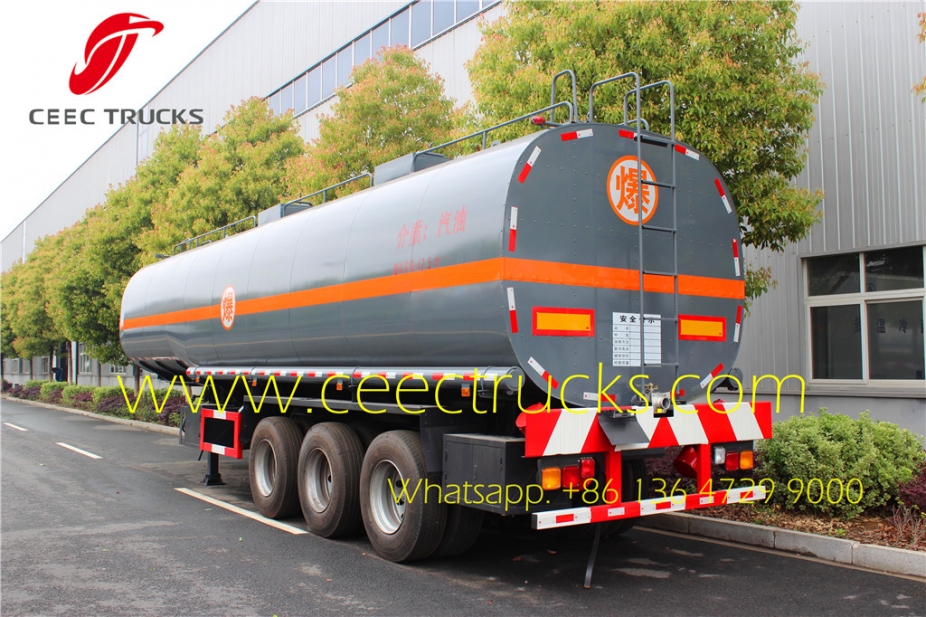

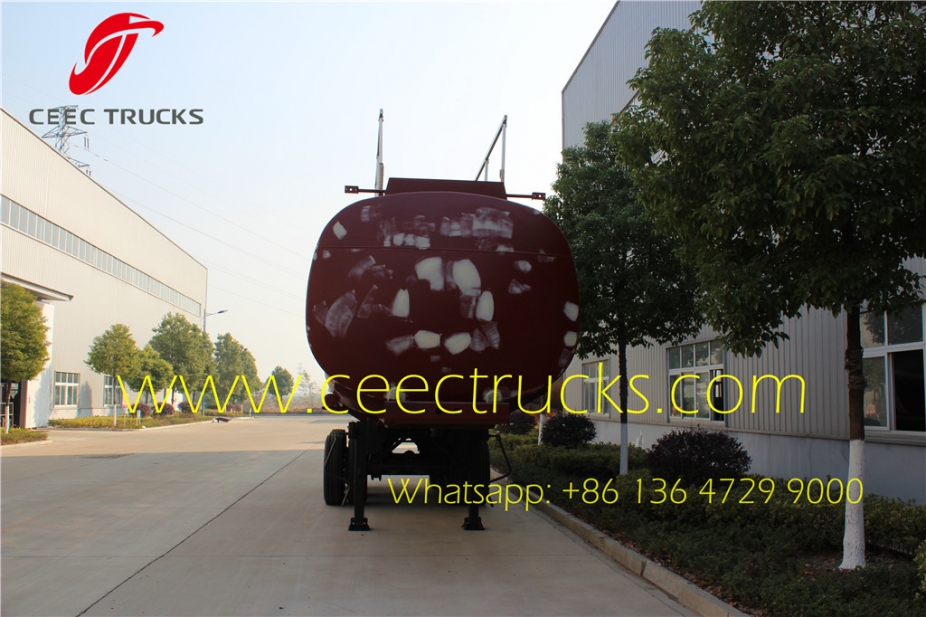

48CBM 3 Axle diesel tank semi trailer



48CBM 3 Axle diesel tank semi trailer



48CBM 3 Axle diesel tank semi trailer



Specification:

Similar Key Words: 48,000litres tanker semitrailer, 48,000litres tank semi-trailer, fuel semi-trailer, Carbon steel diesel semitrailer, fuel trailer tanker, fuel tanker trailer, fuel tankers, fueltank trailer, oil trailer, semi tanker trailer



48 CBM  Fuel tanker Semitrailer Tank Body

Shape

Round or Square

Dimension

12000mm×2490mm×3990mm ( The exact size depends on the final design.)

Tare weight

About 8000kg-12800kg

Total Volume ( m3 )

40  m³

Tanker Body Material

5mm or 6mm/ Q235 carbon steel

End Plate

5mm or 6mm /Q235 carbon steel

Manhole Cover

Carbon steel or aluminum alloy API manhole cover, 500mm(diameter)

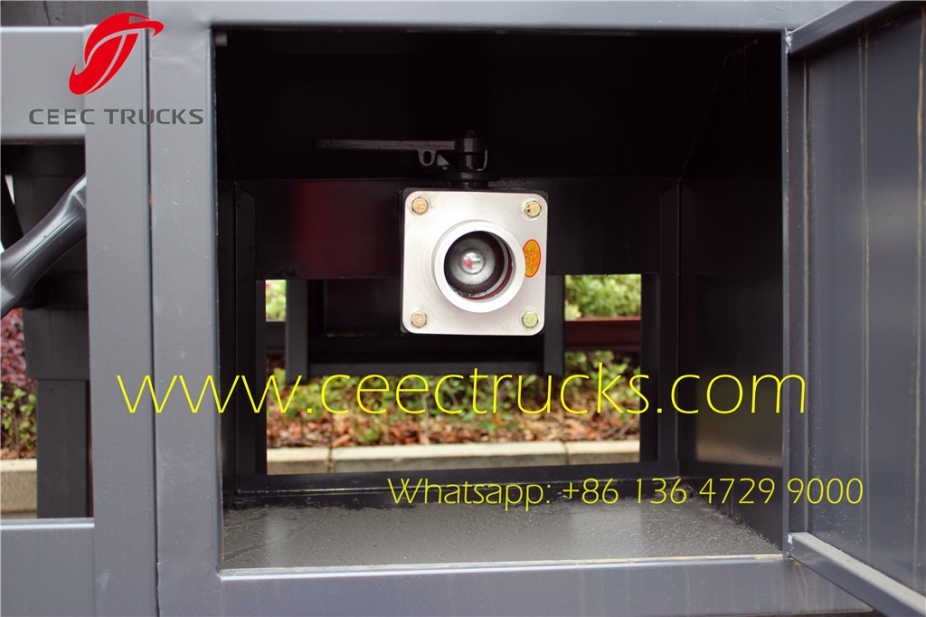

Bottom Valve

Aluminum API Pneumatic Bottom Valve

Discharging Valve

Diameter is 3 or 4 inch

Compartments

Optional

Discharging Pipe

4” rubber hose, 2 pcs , 6m/each

Cat Walk

With (Common model or special design)

Chassis

Main Beams

Welded design or Special design I beam, connected by bolts and nutsQ345 carbon steel material

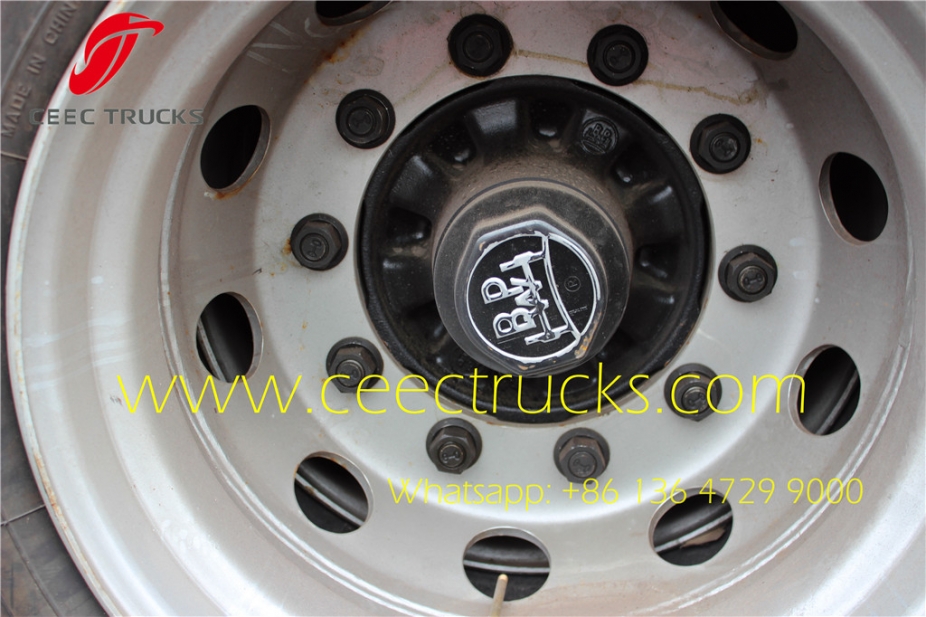

Axle

2 or 3 axles, BPW/FUWA/HUAJING brand

Landing Gear

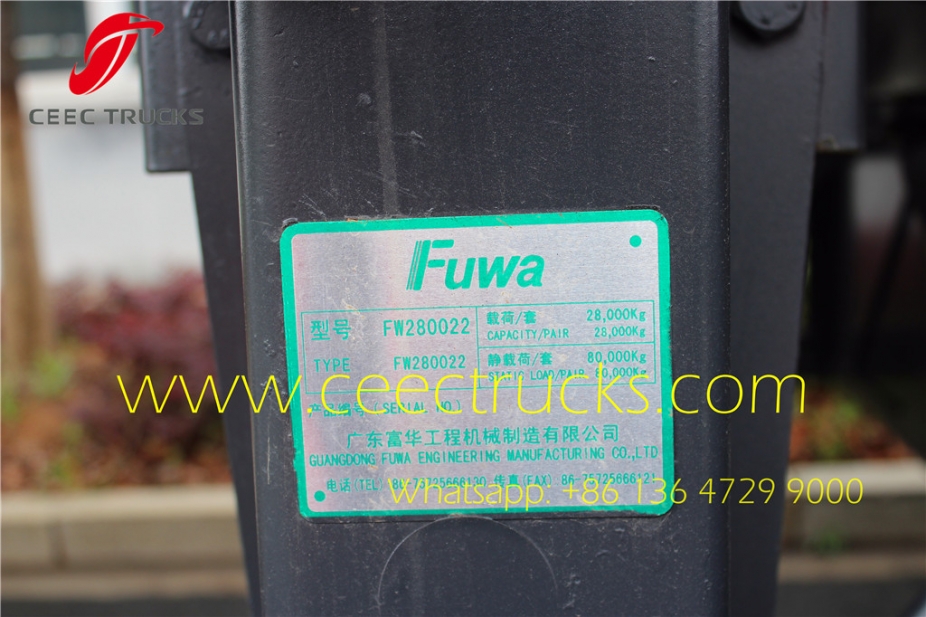

JOST (D200T ) or CHINA BRAND 28T

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension/Germany or America type /air suspension

Leaf Spring

90(W)mm×13(Thickness)mm×10layers or 10mm×12mm×12 /without

Pneumatic Braking System

WABCO RE 6 relay valve; Spring brake chamber (TKL brand ); one piece of 45L air tank

Rim

9.00-22.5/8.00-20/8.5-20 China Brand

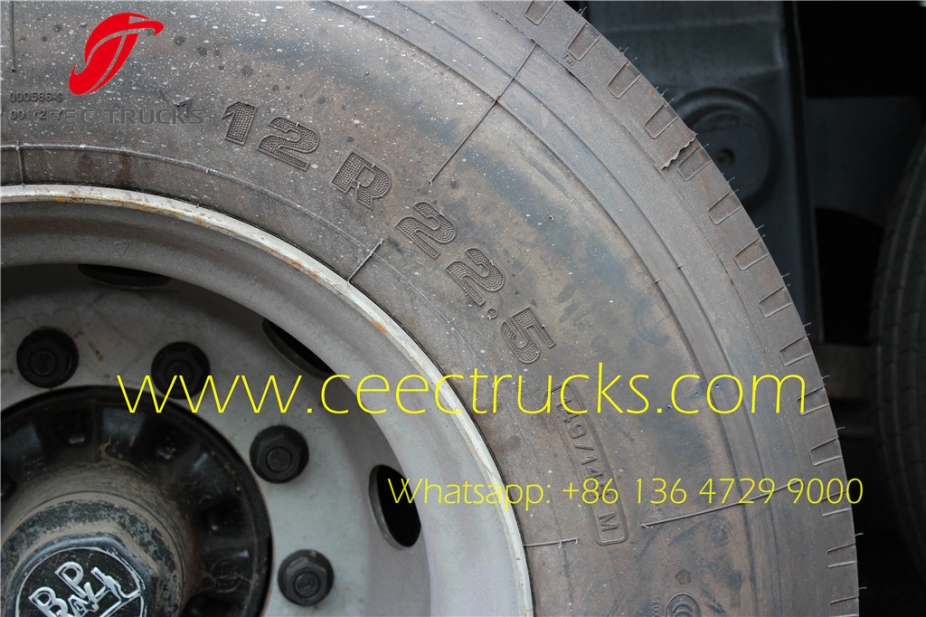

Tire

/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional

ABS

Optional

Painting

Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

Accessories

One standard tool box

Shipping Terms

By bulk cargo ,RORO or 40HQ Containers

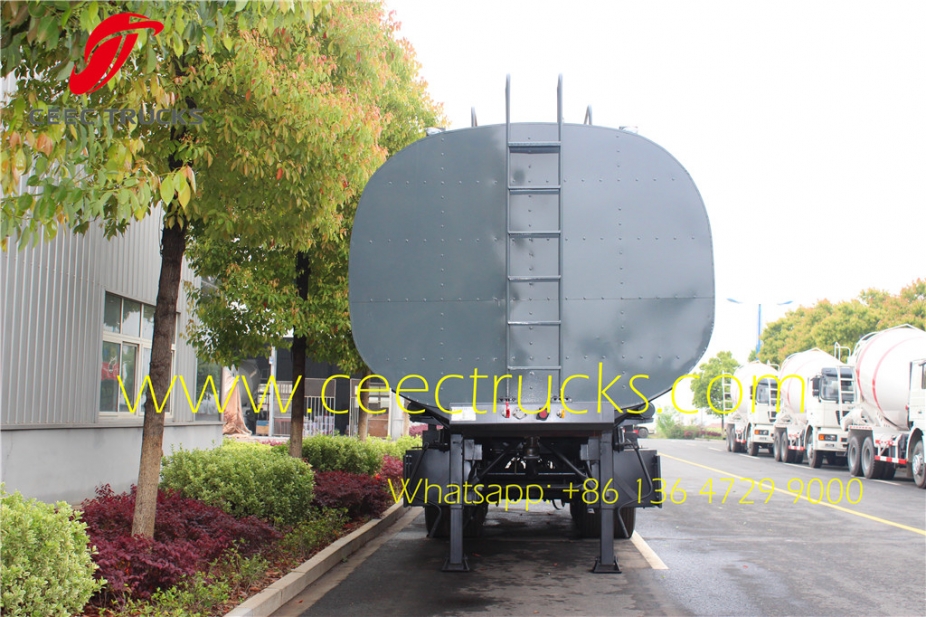

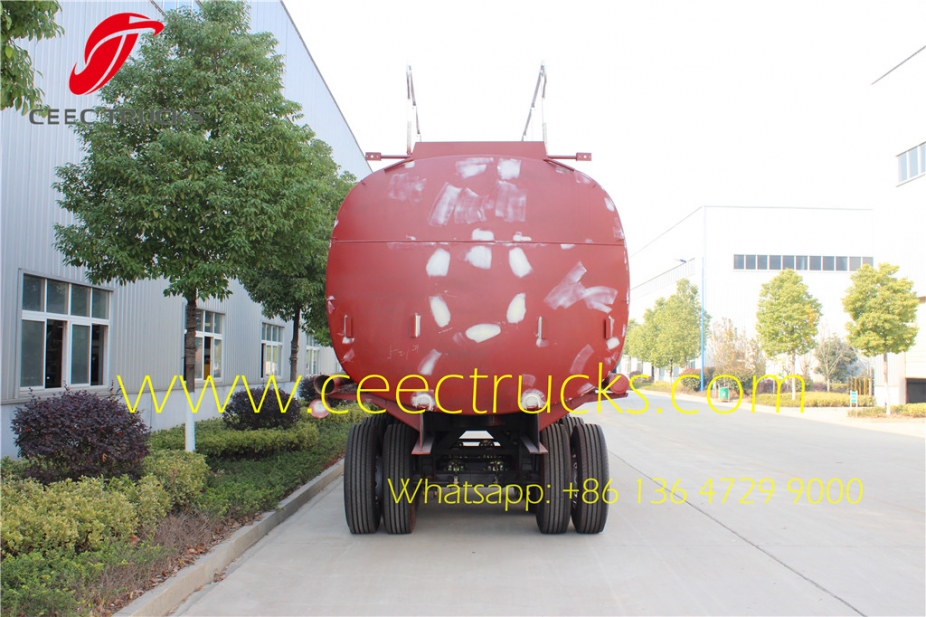

48CBM fuel tanker semitrailer    48CBM fuel tanker semitrailer



48CBM fuel tanker semitrailer    48CBM fuel tanker semitrailer



China Best Semitrailer on sale





Other beiben trucks display




Save

CEEC TRUCKS as best semitrailers manufactures, Africa countries including kenya, Congo, Algeria, Nigeria, Tanzania, Cameroon, etc. also Asia countries Afganistan, Dubai, etc. choose 2 axle / 3 axle fuel tank semi trailers are widely used for fuel / diesel / gasoline transportation.

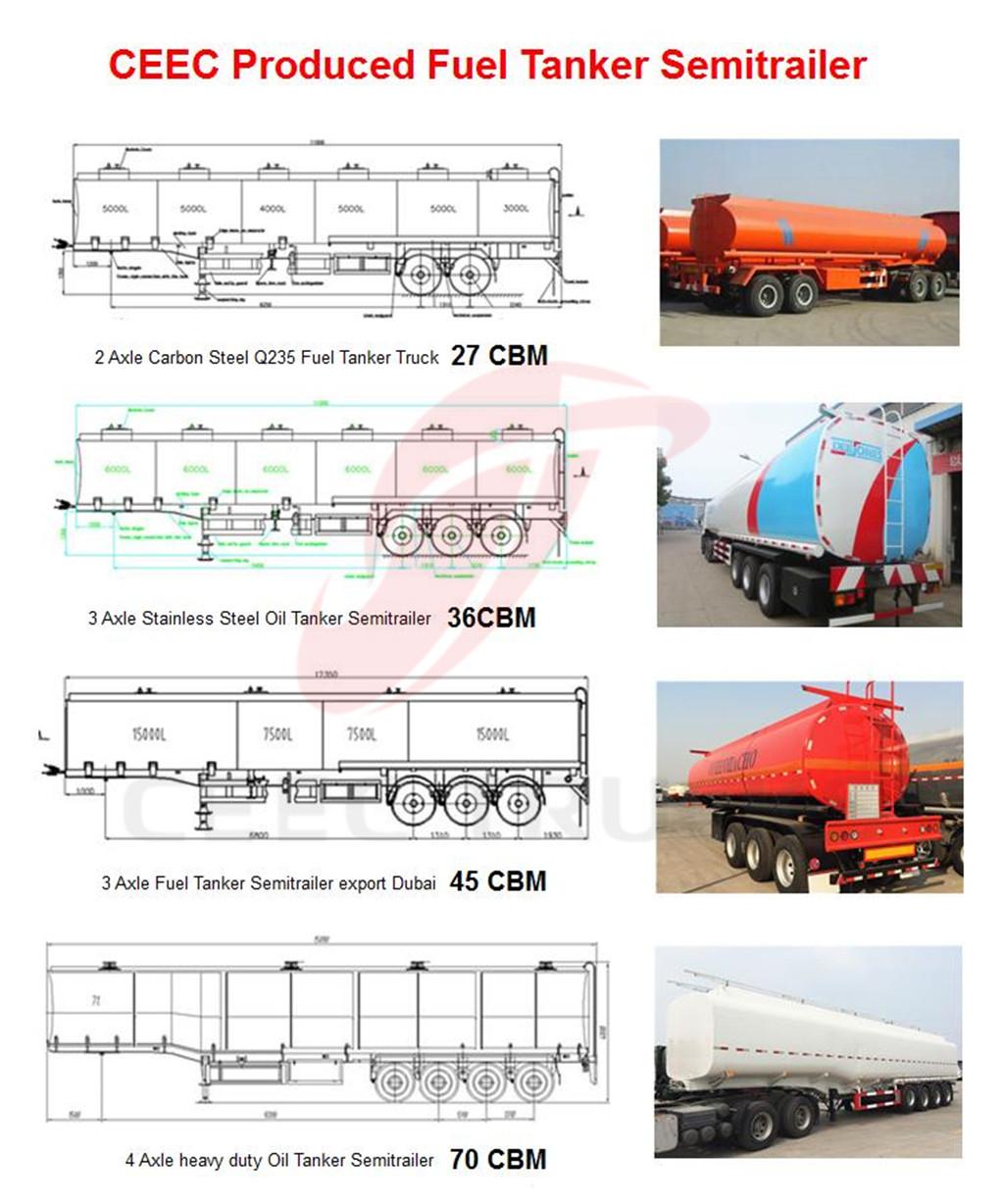

Stainless steel fuel tanker semitrail for optional
