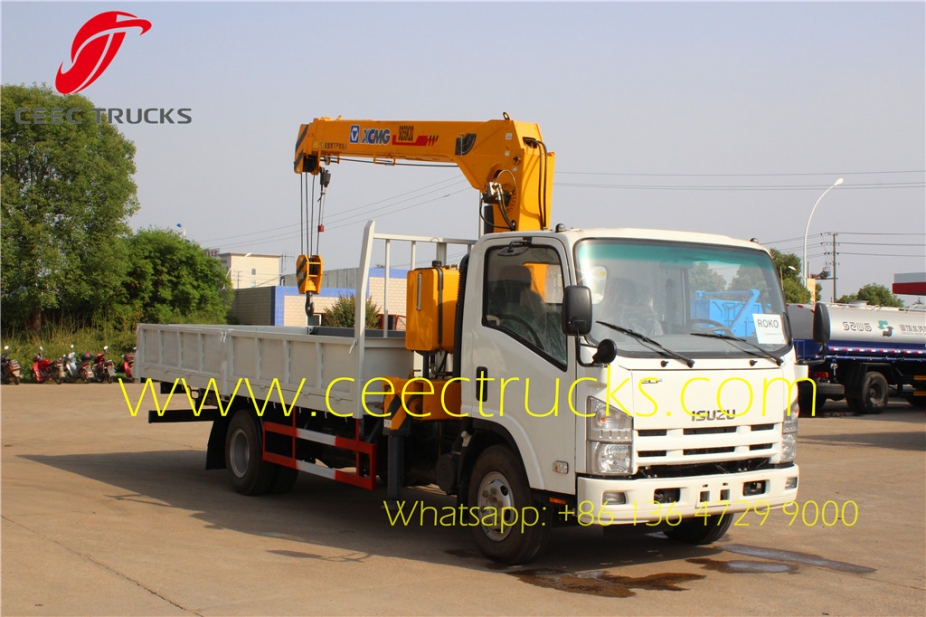

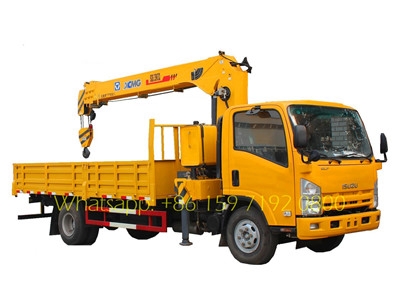

ISUZU 6.3 T truck mounted crane, Japanese technology ISUZU 4*2 chassis, 190HP super powerful, MLD 6-shift manual gearbox, XCMG 6.3T straight boom crane, exportt myanmar,yangon
Product Origin:
China CEECShipping Port:
Shanghai SeaportLead Time:
15 DaysPayment:
T/T, West UnionFOB Price:
USD $45,000-59,000ISUZU 6.3 T Boom Crane Mounted Cargo Truck export to Dubai
ISUZU 6300kg truck mounted crane usually used for heavy goods lifting and transportation. Our 2016 newly produced ISUZU 6 wheelers mounted crane cargo truck, ISUZU 10 wheeler boom crane mounted truck and Beiben 12 wheeler heavy duty truck cranes, all widely export in Asia Myanmar, Phillippine, Laos, Cambodia, etc; and Africa countries Kenya, Ivory Coast, Tanzania, Zambia, Algeria, Cameroon, etc.
Best ISUZU 6.3 T telescopic mounted truck crane advantage features:
1. CEEC TRUCKS is the manufacturer of ISUZU 6.3 ton truck mounted crane many years with good reputation. And thecrane including XCMG, UNIC, PALFINGER, SANY, etc.
2. Advanced development & analysis meansmake sure design is very reliable.
3. Higher lifting capacity with four connectedbar mechanism.
4. Flange telescopic boom coupling technology.
5. Self-design & developed slewing machinewith greater drive force can meet varied requirements of working situation.
6. The more symmetrical center design of hexagonboom make it has bigger anti-bending capacity.
7. Float three-point bridge structure design canlower the accessional stress on the chassis frame when traveling.
Similar Key Words: ISUZU 6.3 T truck mounted crane, ISUZU 6.3t mounted crane cargo truck, ISUZU 6 wheeler truck crane, best ISUZU 6300kg mounted truck crane, 6.3 T truck mounted crane for sale
ISUZU 6.3 T boom crane truck supplier |
|||
Items |
Parameter |
||
Crane Parameter |
Max Lifting Capacity |
6300 kg |
|
Max Lifting Moment |
15.7 T.M |
||
Recommend Power |
20 kw |
||
Max Oil Flow of Hydraulic System |
40 L/min |
||
Max Pressure of Hydraulic System |
20 Mpa |
||
Oil Tank Weight |
90 L |
||
Crane Weight |
2160 kg |
||
Installation Space |
900 mm |
||
Rotation Angle |
360° All Rotation |
||
Tank Body |
Cargo Thickness |
Side |
3mm |
Floor |
4mm |
||
Chassis |
Recommend Chassis Brand |
ISUZU |
|
Drive Mode |
4x2 |
||
Tire type |
8.25-16 tire |
||
Tire No. |
6+1 units |
||
Max speed |
105 km/h |
||
Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
Engine |
Power |
4HK1-TCG40 engine 190hp |
|
Fuel type |
diesel |
||
Emission Standard |
Euro 3 & Euro 4 |
||
Gearbox |
Control type |
Manual |
|
Gear |
MLD 6-shift manual gearbox |
Previous exort Dubai isuzu trucks sucessful case:

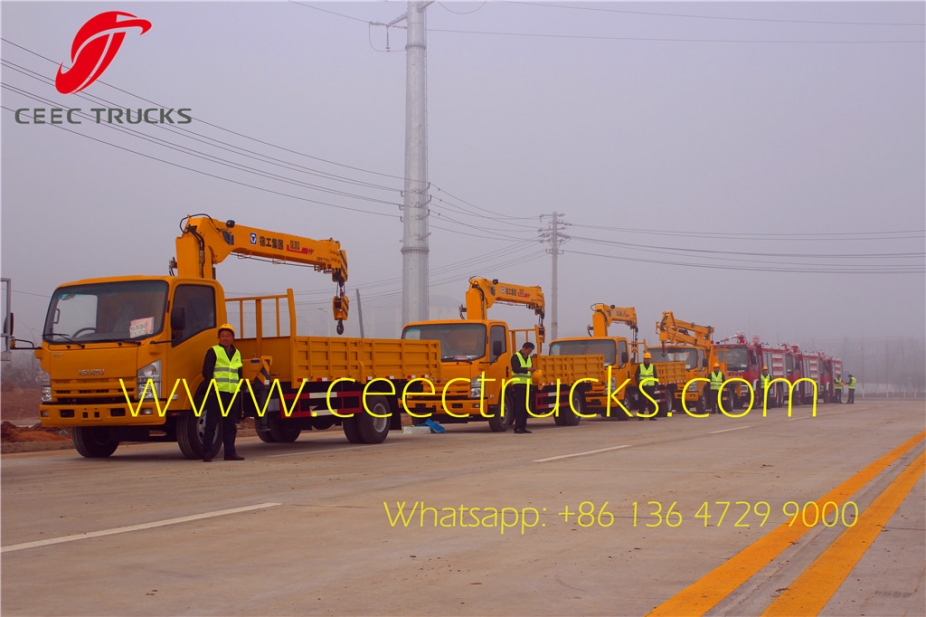

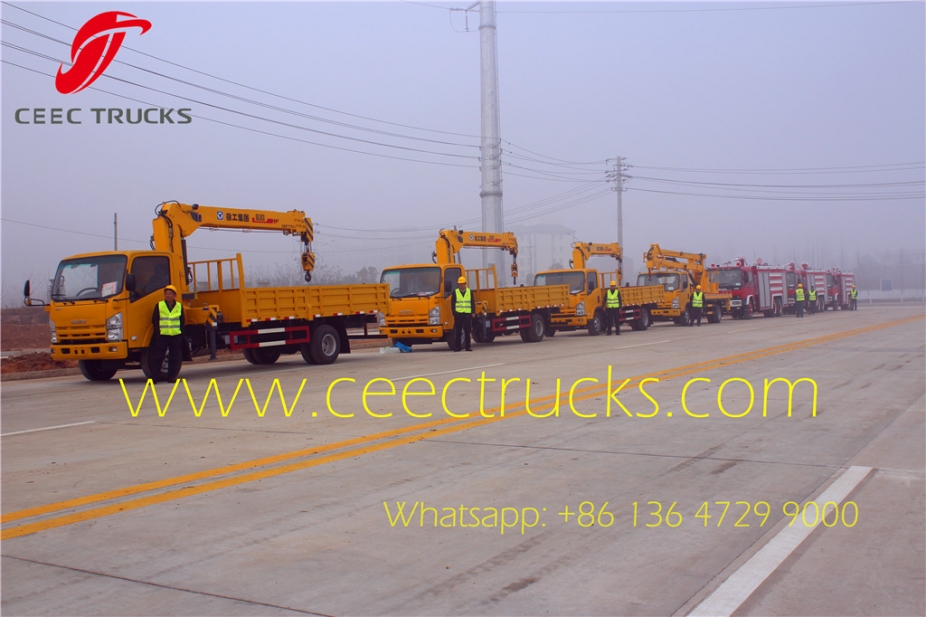

4 units ISUZU 6.3 T truck mounted crane: 4HK1-TCG40 enngine 190HP, MLD 6-shift manual gearbox, XCMG 6.3 T telescopic truck crane.
1 unit ISUZU 18m Aerial Work Platform truck: 4HK1-TCG40 enngine 190HP, MLD 6-shift manual gearbox, 18 m aerial platform.
3 units ISUZU 8CBM Fire fighting truck: 6HK1-TCSG40 enngine 280HP, FAST 9-shift manual gearbox, Stainless steel tanker material.

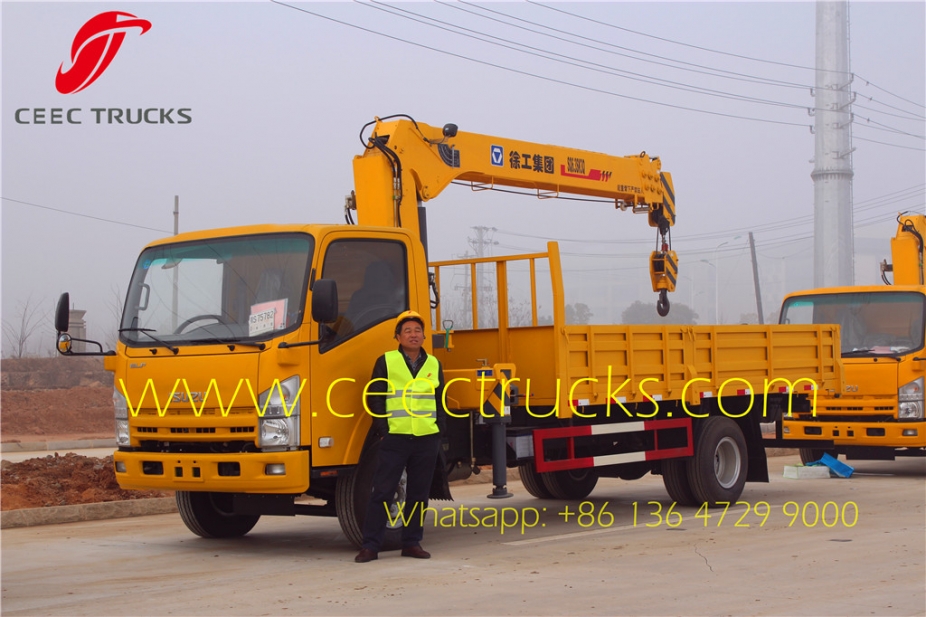

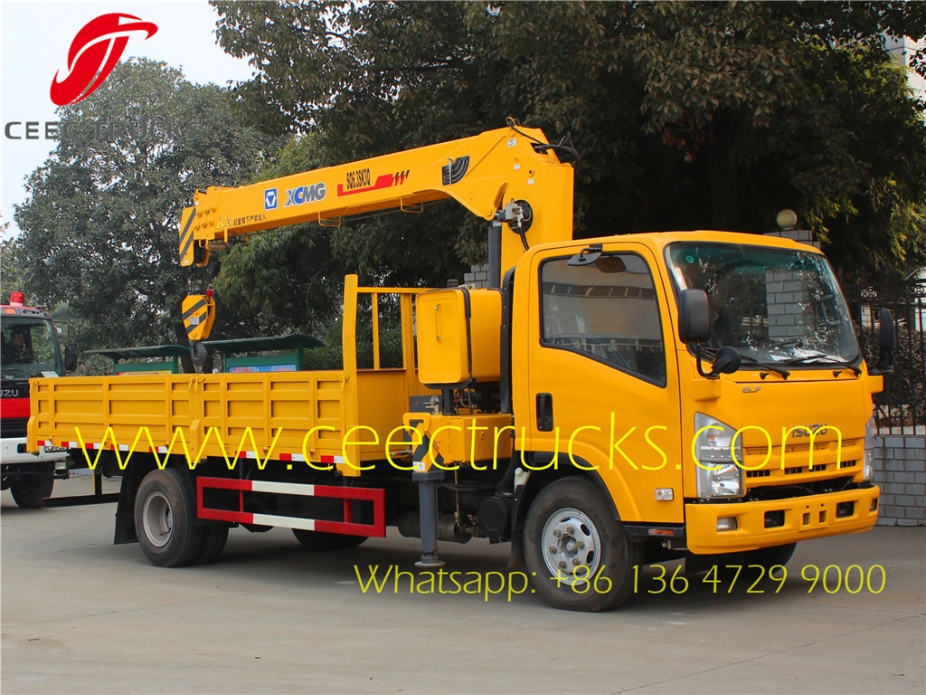

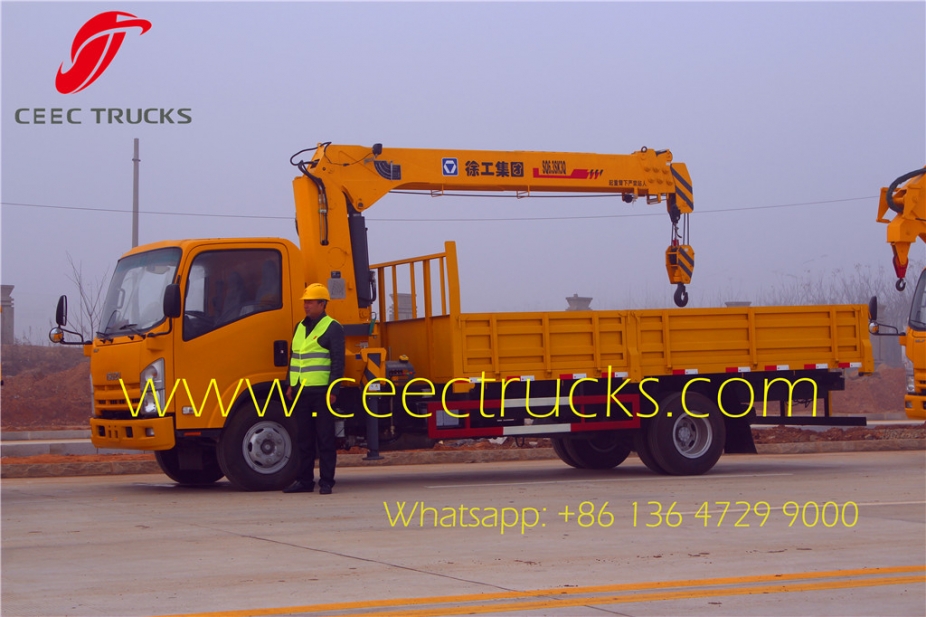

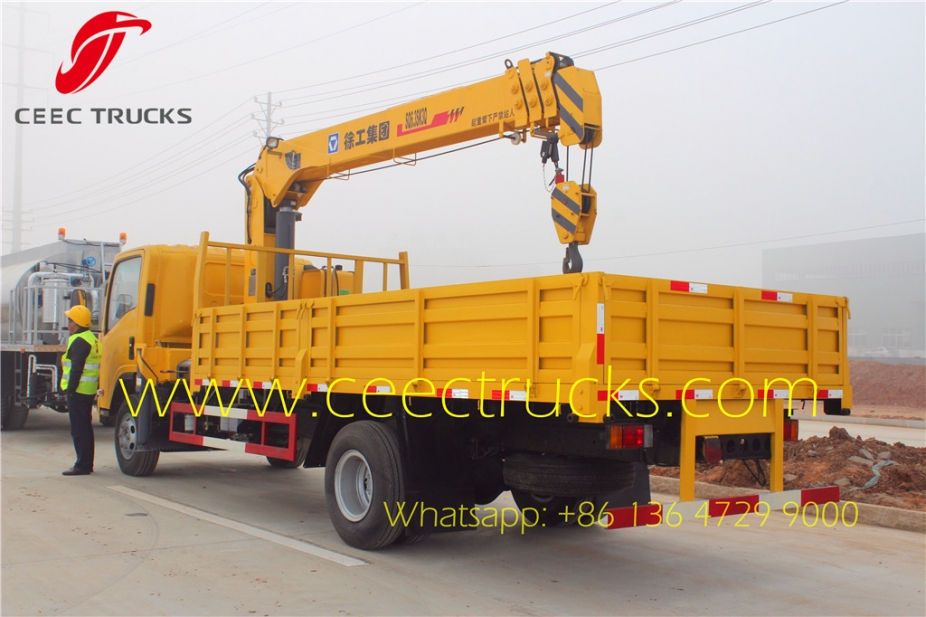

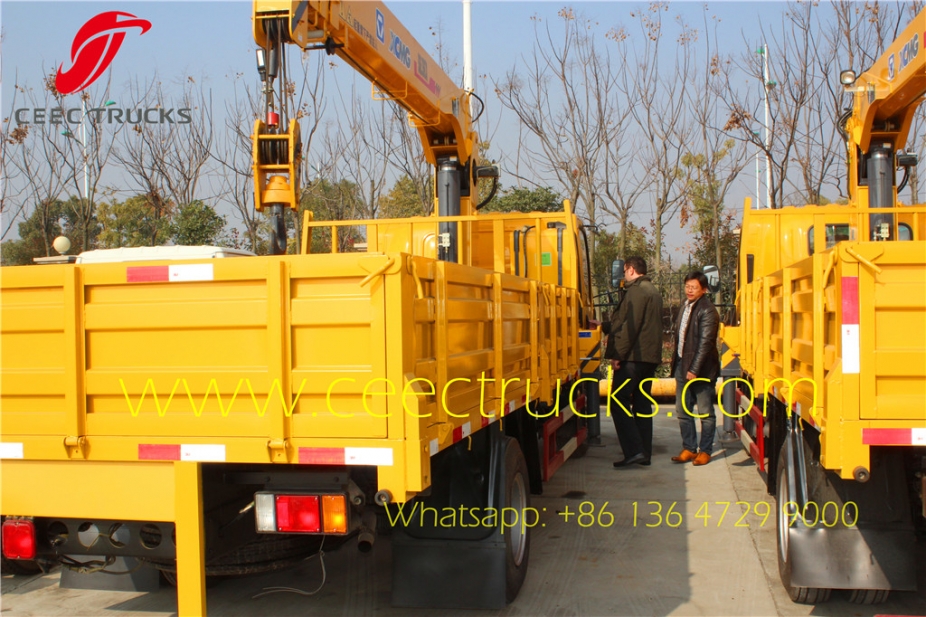

ISUZU 6.3 T Truck Mounted Crane SQ6.3SK2Q / SQ6.3SK3Q under production:

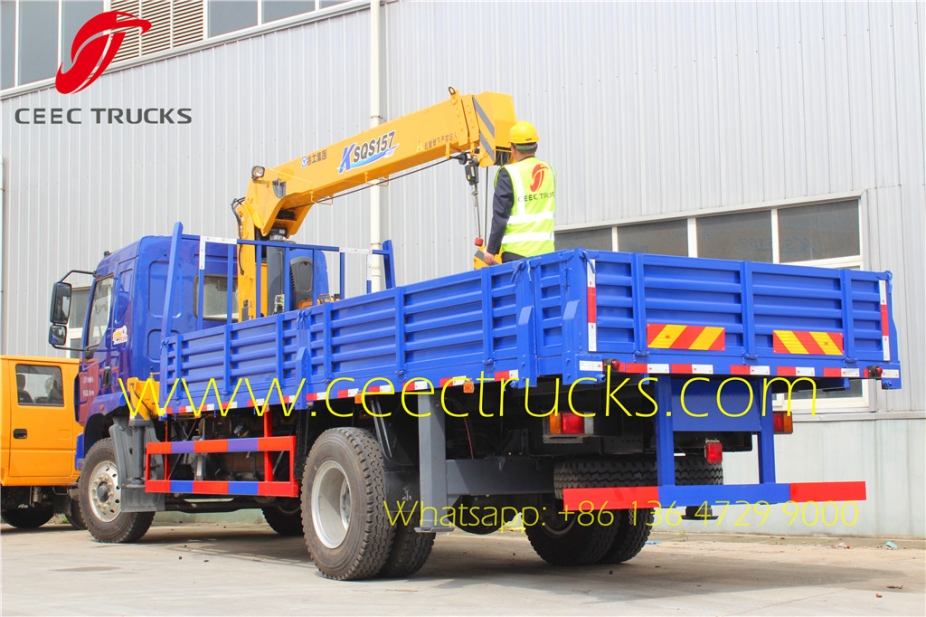

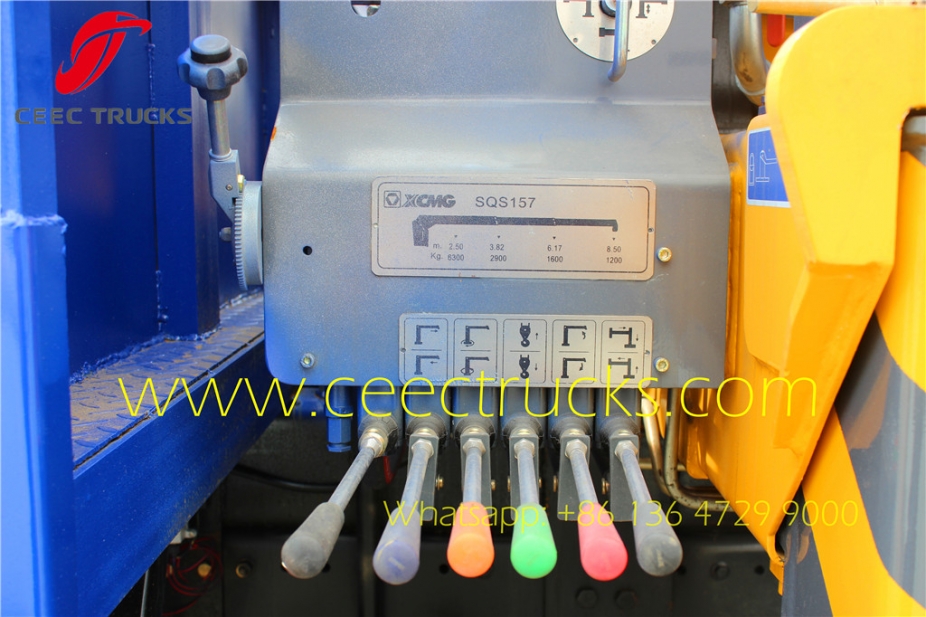

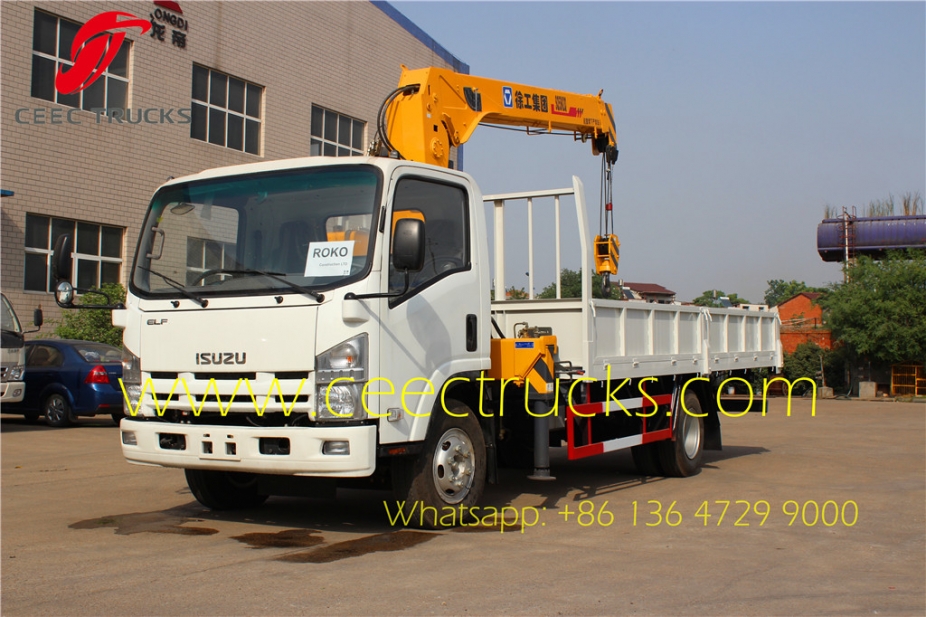

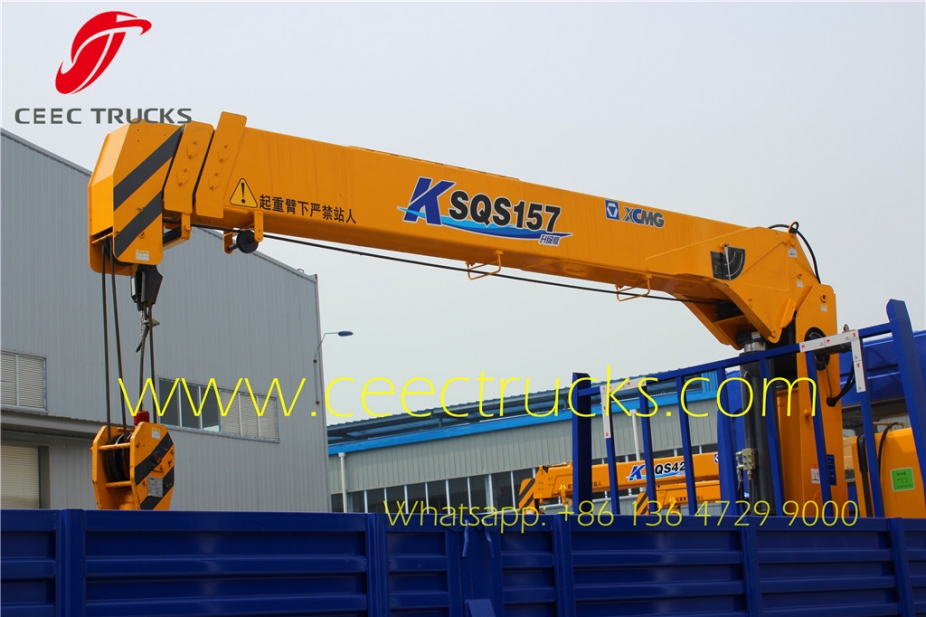

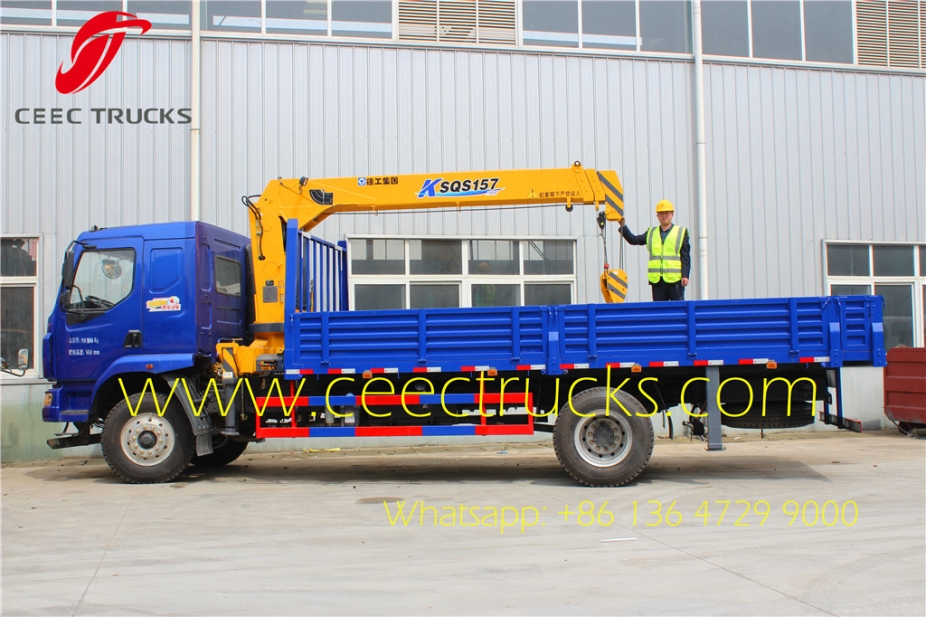

2016 new model ISUZU 6.3 T Boom crane cargo truck SQS157 XCMG truck mounted crane:
CEEC Recommend environmental protection truck series
ISUZU diesel tank truck |
Beiben fuel tanker truck |
ISUZU garbage compactor |
Dongfeng 20 CBM refuse compactor |
|
|
|
|
ISUZU 4 CBM road sweeper | ISUZU 8 CBM sweeper truck |
ISUZU truck mounted crane |
High pressure jetting truck |
|
|
|
|
Dongfeng vacuum suction truck |
Beiben Cesspit Emptier |
Dongfeng skip loader truck |
Beiben swing arm truck |
|
|
|
|
Beiben 20 CBM water truck |
Dongfeng 20 CBM water tanker |
Beiben Roll on Roll off Truck |
ISUZU fire fighting truck |
|
|
|
★ Japanese technology ISUZU chassis, equipped original ISUZU 4HK1-TCG40 engine super powerful 190 ps
★ ISUZU 6300kg mounted crane cargo trucks use MLD 6-shift manual gearbox, 6 forward & 1 reverse
★ Profession telescopic truck mounted crane and knuckle boom crane truck supplier over 10 years
★ Standard truck mounted crane brand: XCMG, PALFINGER, UNIC, HIAB
★ 12 months free fast moving spare parts
★ Authorized isuzu trucks exporter.
★ Training service for isuzu garbage compactor trucks
(ISUZU 6300Kg telescopic trruck mounted crane arrived at shanghai seaport)

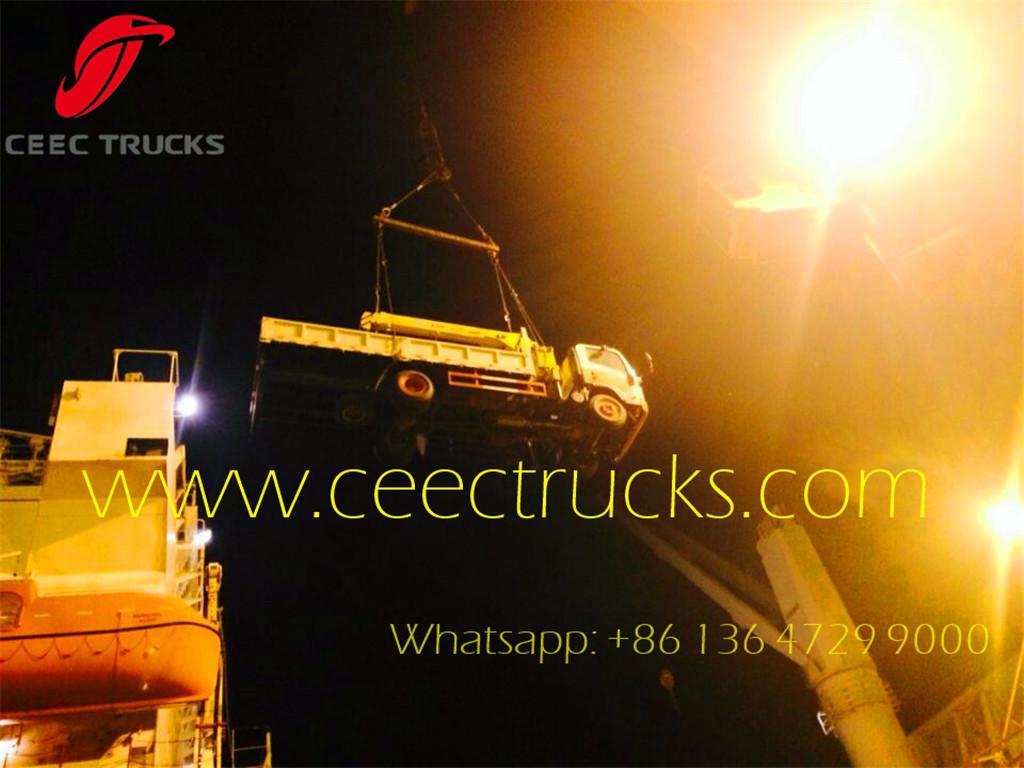

(ISUZU boom crane cargo truck with XCMG 6.3 T telescopic crane lifting on bulk ship and deliver to Sudan)
