China best 2536 prime mover supplier

Beiben 2536 tractor head

New Beiben NG80B 6*4 tractor truck for towing at least 40T semitrailer, the beiben 2536 prime mover use WP10.360E32 engine, FAST 12JS200T shift manual gearbox, JOST ∮90 single direction towing system, 12.00R20 tire

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai seaport
  • Lead Time:

    30 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $39700-45200
contact now
Beiben 2536 Towing Truck

China Best beiben 2536 tractor head

Best Beiben 2536 tractor truck supplier in China is CEEC TRUCKS, who can supply beiben 4*2 tractor truck, beiben 4*4 prime mover, north benz 6*4 tractors, beiben 6*6 towing truck for Africa and Asia countries. In particular, our beiben 2536, 2636 towing trucks are widely export to D.R Congo, Ghana, Zimbabwe, Guinea, Kenya, Tanzania, etc. Our Euro2 beiben 6*4 prime mover use 80% Mecedes Benz technology, the standard weichai engine and ZF steering system make the north benz 2536 tractors like benz drive feeling, but price is 30% lower.



Beiben 2536 tractor trucks dimension

CEEC TRUCKS aims at supplying best quality beiben EURO 2 engine, beiben 6*4 model 2534, 2538, 2536, 2642, 2648 tractor trucks for all Africa customers, including Congo beiben 2534 tractor trucks, tanzania beiben 2638 prime mover, kenya north benz 2642 tractors, algeria beiben 2536 towing trucks.



beiben 2536 tractor trucks technical drawing



Similar Key Works: Beiben 2536 towing trucks, Benz 4*6 prime mover, Beiben 2636 tractor truck, Benz 1834 tractors, beiben 6*6 all-wheel-drive tractors, beiben 2534 towing trucks, beiben 6*4 trailer tower.


Beiben 2536SZ tractor truck /6×4/3450+1450/Long Cab/LHD
Dimension 7136*2495*3180mm
Approaching angle/Departure angle 26/64°
Overhang(front/rear) 1410/825mm
Wheel base 3450+1450mm
Max speed 90km/h
Curb weight 9200kg
Max towing weight 36900kg

Max loading on fifth wheel, Permitted(kg)

15670kg

Slope climbing capability Max.40%
Engine Model WP10.360E32,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Displacement 9.726L/Diesel
Stroke 126/130mm
Max. power 60/2200 (kw/rpm)
Max.torque 1460/1200-1600(Nm/rpm)
Emission stantard EuroⅢ
Fuel tanker capacity 400L
Clutch ∮430, Single dry frictional disc,Hydraulic boosting
Gearbox

12JS200T, mechanism,12forward gears,2 reverse gear, manual operated

Gear ratio of gear box 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs
Rear Non-free standing stablization spring, balance suspension system, 13pcs
Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system TAS85,whole circulation in ball, hydraulic booster
Frame Fish belly shape, variable width, variable sections

Model

JOST ∮90 single direction

Height of fifth wheel(mm) (unload)

1410

Radius of front gap (mm)

2300

Radius of rear slew (mm)

2600

Front axle (Mercedes Technology) Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre 12.00-R20
Electrical system Battery 2X12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cabin NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C

beiben 2536 prime mover

beiben 2536 prime mover

beiben 2536 prime mover


Beiben 30T, 40T, 50T, 60T, 70T, 100T tractor truck on sale

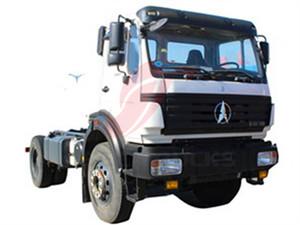

Beiben 1927 Tractor Trucks

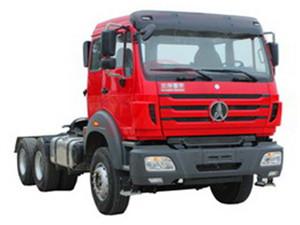

Beiben 2534 tractor truck

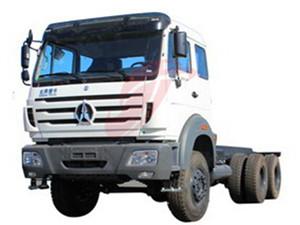

Benz 2534 towing truck

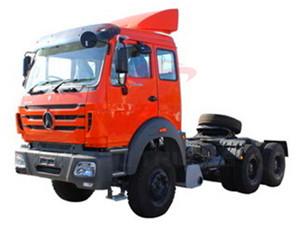

Beiben 2538 Prime mover

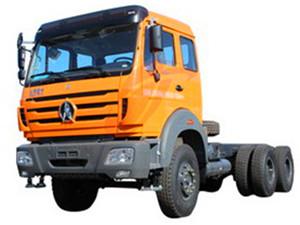

Beiben 2536 Prime mover

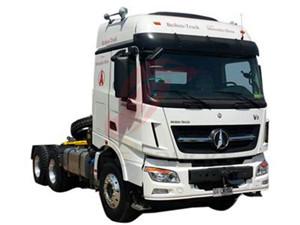

Beiben V3 2534 tractor trucks

North Benz 2546 prime mover

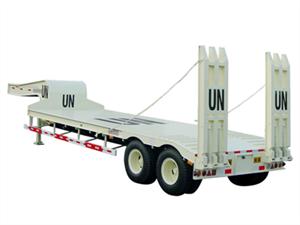

Lowbed semitrailer




SaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSave



WEICHAI model WP10.360E32 EURO 3 engine, fuel consumption save 20%

FAST 12JS200T mechanical 12-shift manual transmission gearbox

Mercedes Benz technology but comparatively 30% price lower

12 months fast moving spare parts for FREE

High respectively Authorized beiben trucks exporter

Professional Training service for north benz 2536 tractor trucks


China TOP quality Beiben 2536 tractor truck



Beiben 2536 tractor head



Beiben 2536 tractor head







SaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSave
