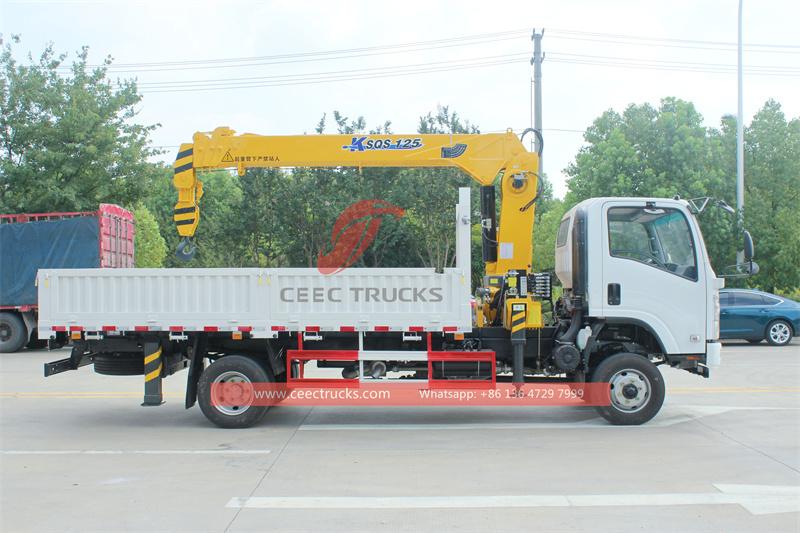

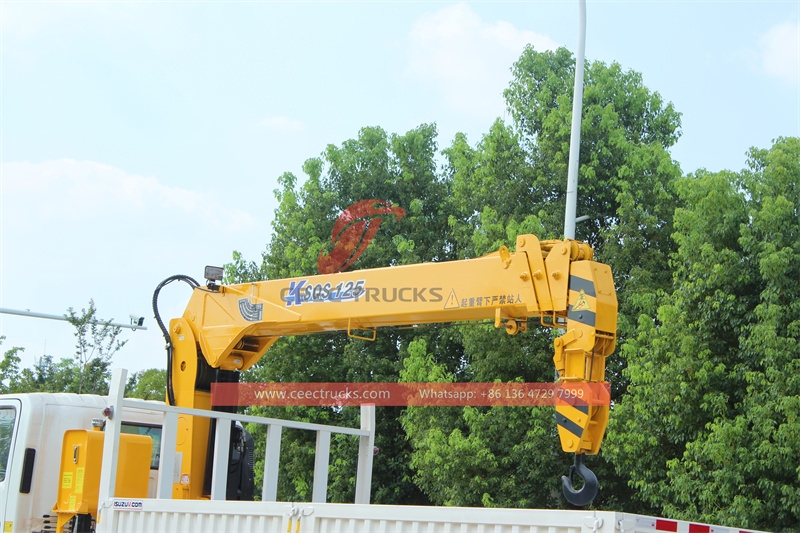

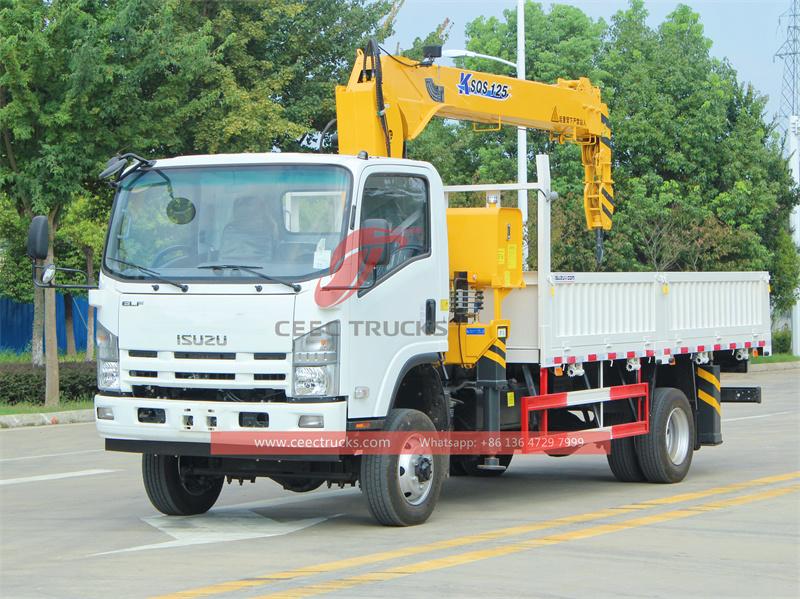

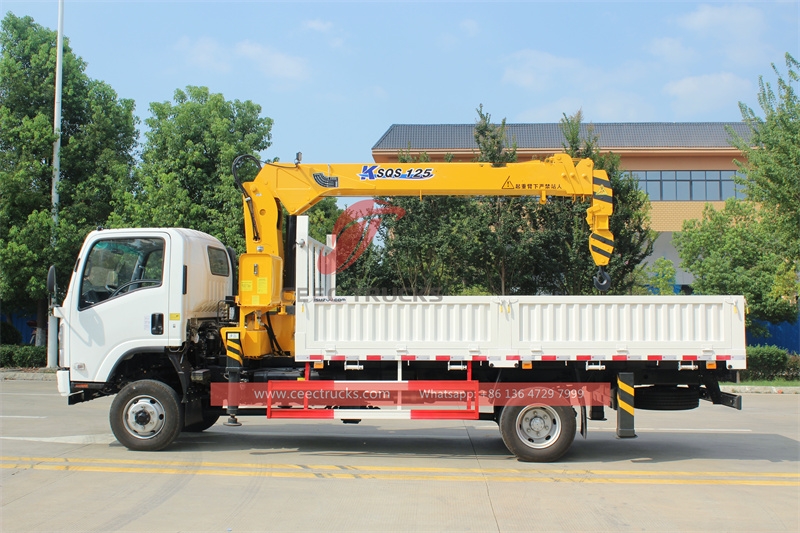

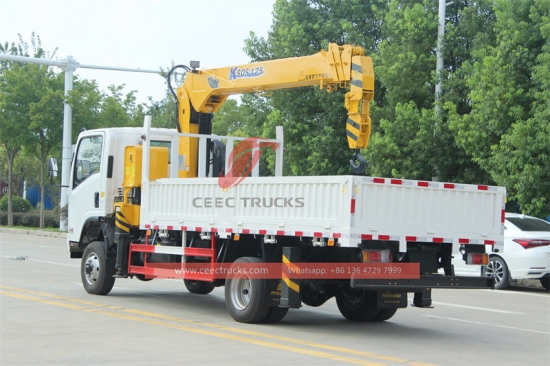

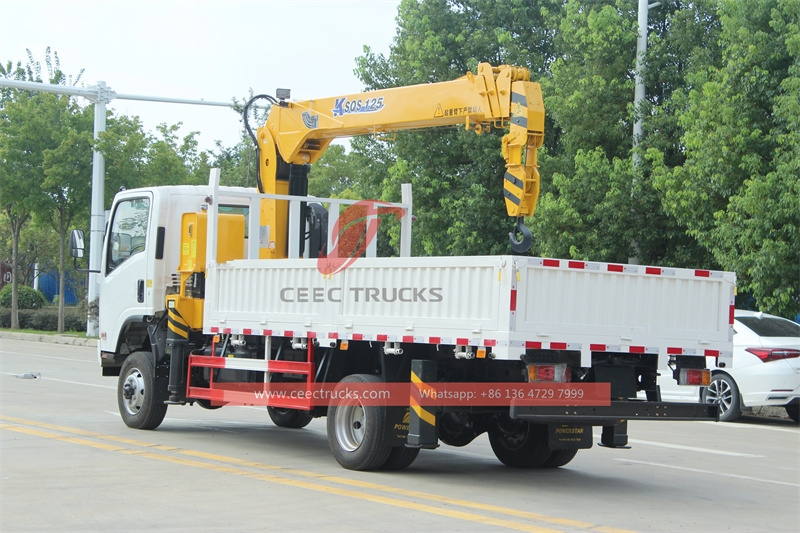

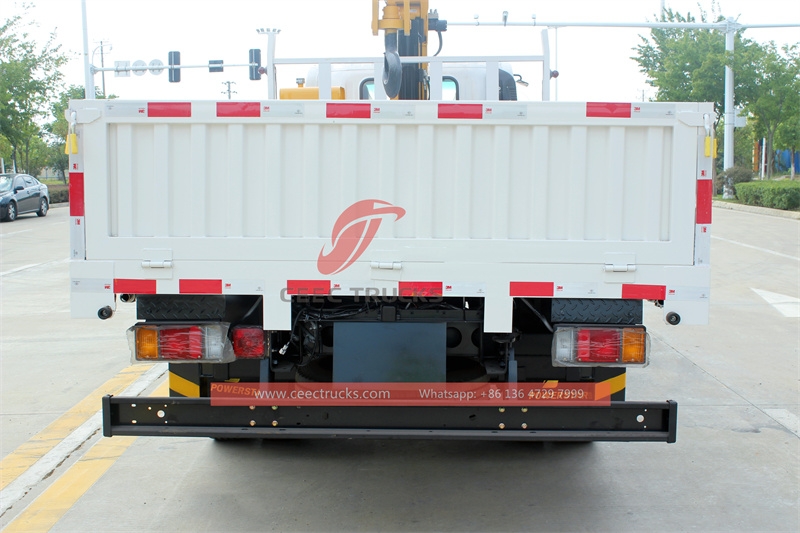

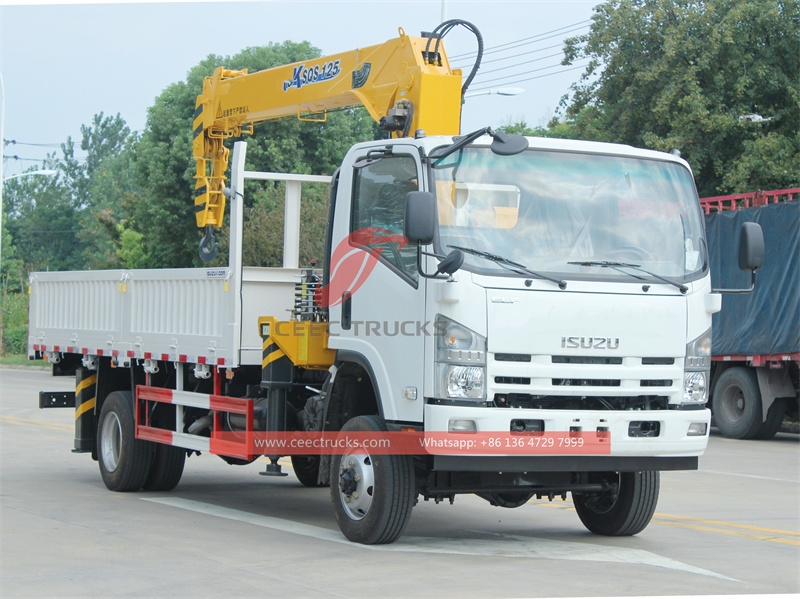

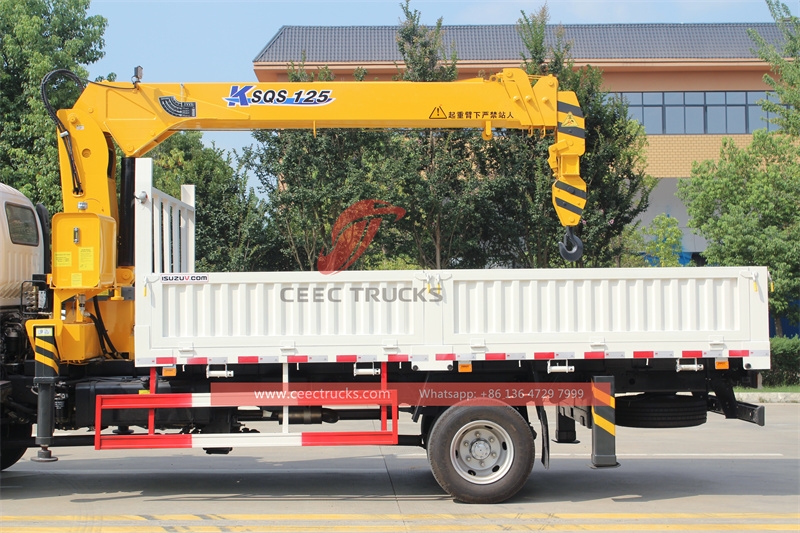

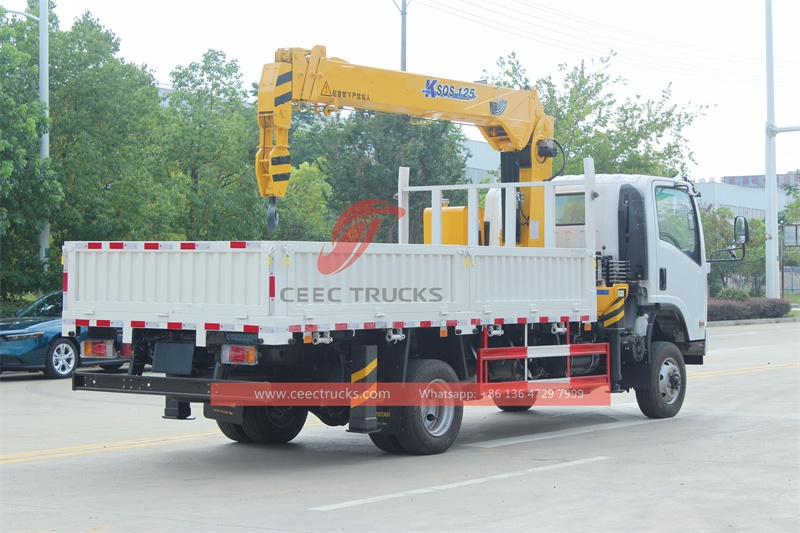

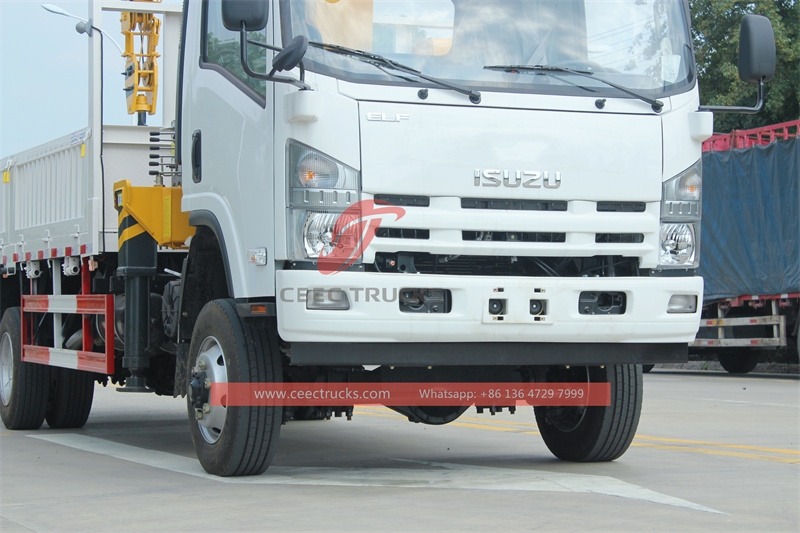

ISUZU 4x4 700P 5tons crane truck, ISUZU left hand drive chassis, MLD 6-shift manual gearbox, ISUZU 190HP diesel engine, China famous brand 5 ton telescopic boom crane, cargo body dimension as required, painting and logos depend on requirement.
Product Origin:
China CEECShipping Port:
China Main PortLead Time:
20 DaysPayment:
T/T, West Union
Applications:
ISUZU 700P 4x4 crane truck (also called ISUZU off-road boom crane truck, ISUZU off-road crane truck, ISUZU off-road truck mounted crane, ISUZU off-road boom truck, crane mounted on truck off-road chassis, crane truck manufacturer) is combined ISUZU truck chassis with XCMG crane mounted on it. It is designed to transport and lift heavy loads, making it useful in various industries such as construction, logistics, and utilities. The crane on a crane truck can be operated hydraulically or mechanically, allowing it to lift and lower objects with precision.
There are XCMG telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T
CEEC TRUCKS Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.
Key Features:
---- ISUZU chassis ensures perfect performance on driving
---- ISUZU engine, super powerful, no overhaul within 100,000 km.
---- High strength cargo body, nice shape and rational structure.
---- Easy operation and easy maintenance.
---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.
Crane Features:
--- High lifting capacity for efficient handling of heavy loads.
--- Advanced hydraulic systems and innovative design for superior lifting performance.
--- Safety features like load moment indicators, emergency stop systems, and limit switches for operator safety.
--- User-friendly controls and ergonomic cabins for easy operation.
--- Easy maintenance with readily available spare parts and comprehensive service support.--- Diverse range of models including all-terrain, truck, crawler, and rough-terrain cranes to meet specific industry
needs.
--- Superior quality construction for durability and reliability.
Specifications:
|
ISUZU 700P 4x4 truck mounted crane (5 Tons boom crane) |
||
|
General |
Vehicle Brand |
CEEC |
|
Chassis Brand |
ISUZU |
|
|
Overall Dimension |
7900 * 2500 * 3150 mm |
|
|
GVW / Kerb Weight |
10,500kg / 5,800kg |
|
|
Cab |
Cab Capacity |
3 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
ISUZU |
|
|
Power |
190 HP |
|
|
Displacement |
5193 ml |
|
|
Emission Standard |
Euro 5 |
|
|
Chassis |
Drive Type |
Left hand drive |
|
Transmission |
6 speed levers with 1 reverse |
|
|
Wheelbase/No. of axle |
4175 mm / 2 |
|
|

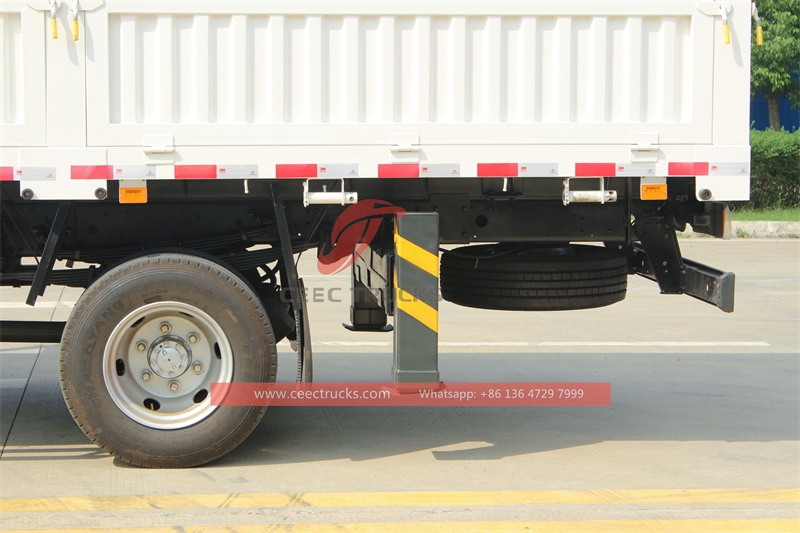

Tire Specification |
235/75R17.5 |
|
|
Tire Number |
6 tires and 1 spare tire |
|
|
Max Speed |
90 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |

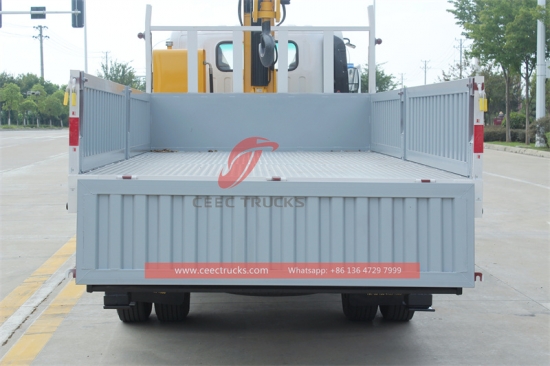

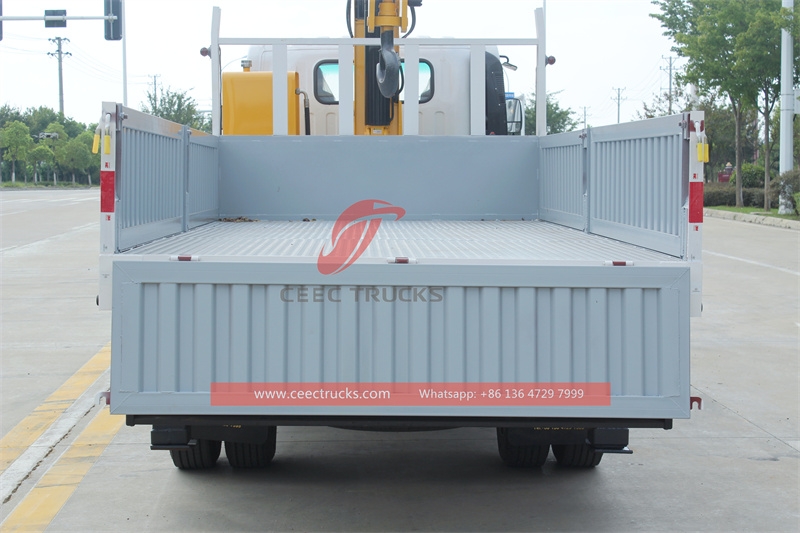

Cargo Box Dimension |
4500*2200*500 mm |
|
Crane Type |
Telescpoic boom crane |
|
|
Max Lifting Capacity |
5000 kg |
|
|
Slewing Angle |
360° All rotation |
|
|
Crane Weight |
950 kg |
|
|
Installation Space |
850 mm |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Basic tool kit, English manual…… |
||
|
Optional |
** Knuckle boom crane. ** Hydraulic tipper box. ** Box thickness according to requirement.
** Box height could be nominated |
|
Key words: Truck mounted crane, ISUZU 4x4 Crane truck, hydraulic boom crane vehicle
★ Euro 5 type, ISUZU engine, fuel consumption save 20%
★ Manual 6-shift mechanical transmission gearbox
★ 12 months fast moving spare parts for FREE★ Authorized ISUZU boom crane trucks exporter
★ Training service for ISUZU 4x4 truck mounted crane.
