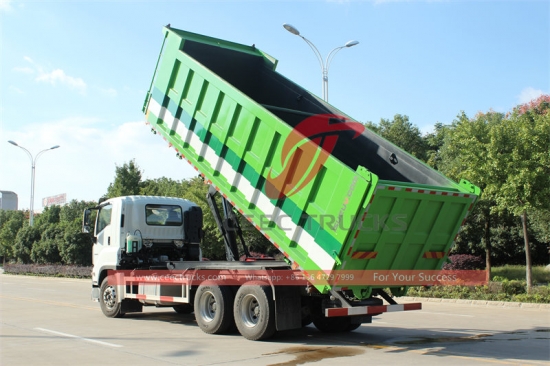

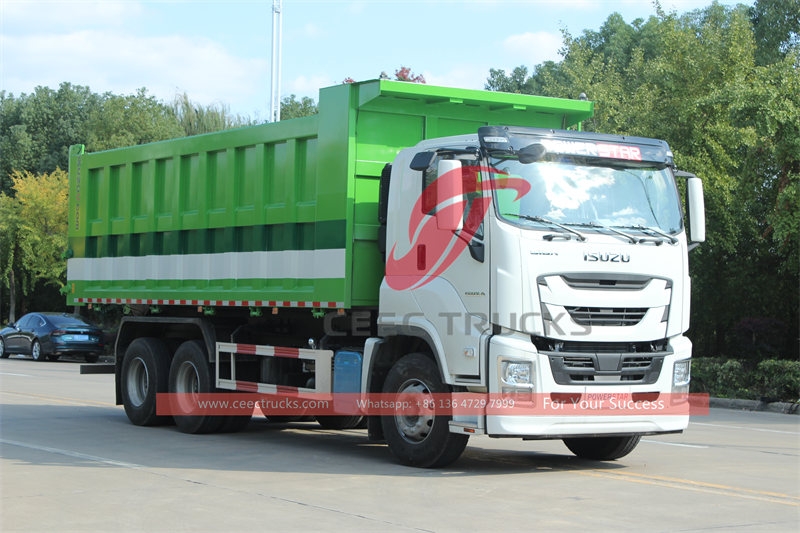

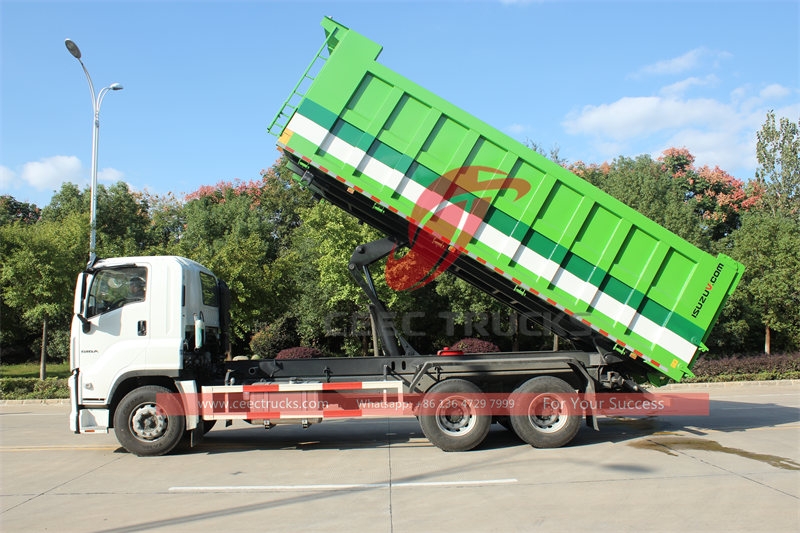

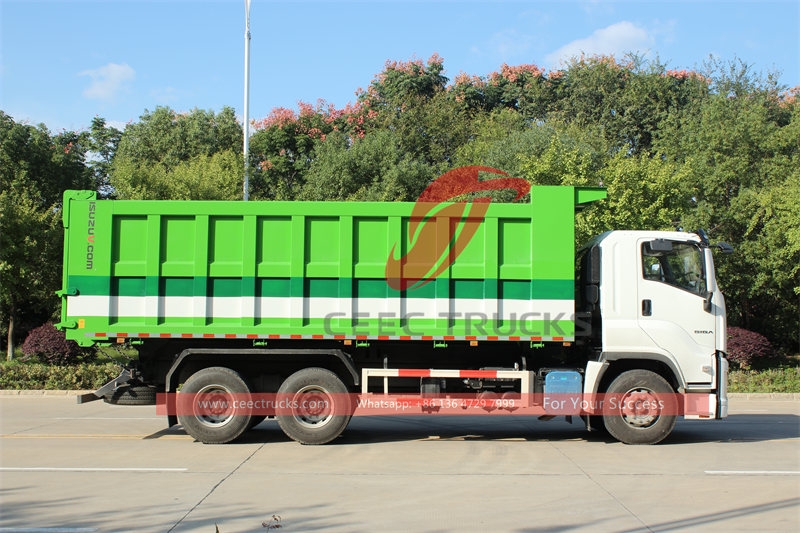

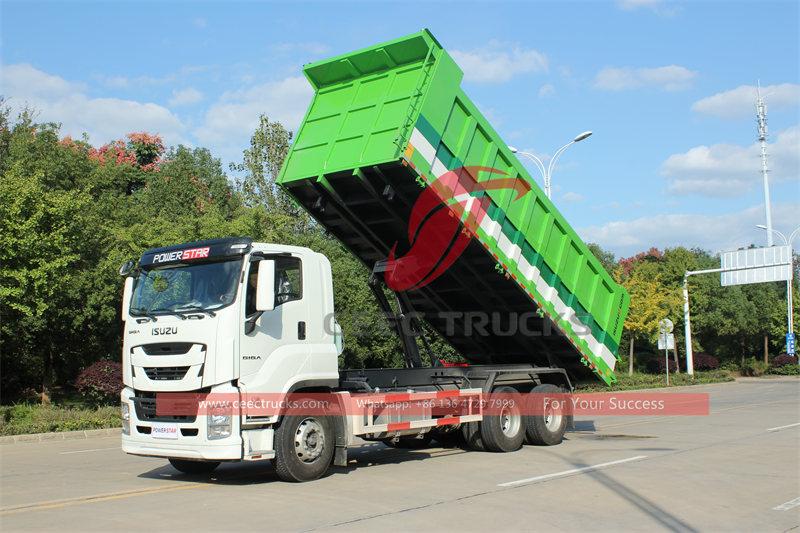

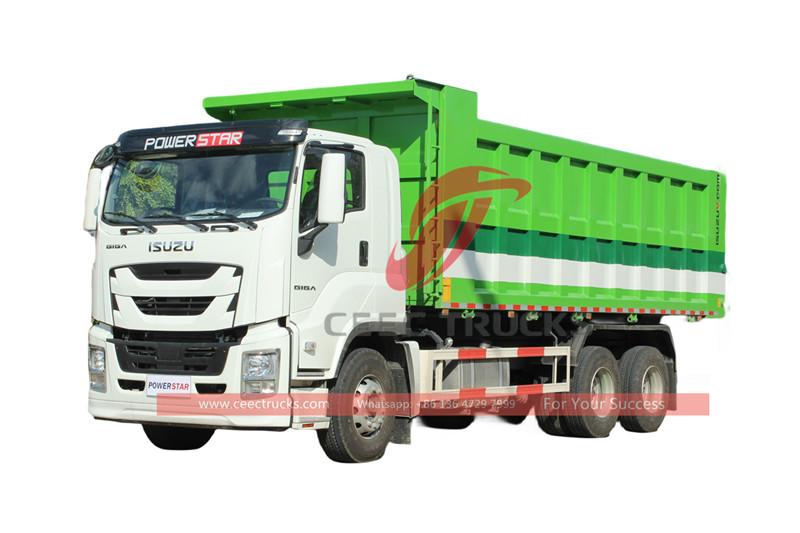

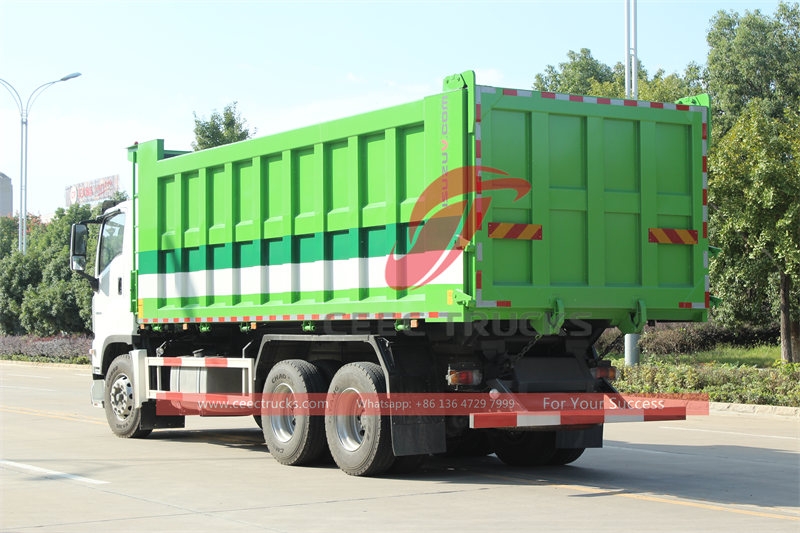

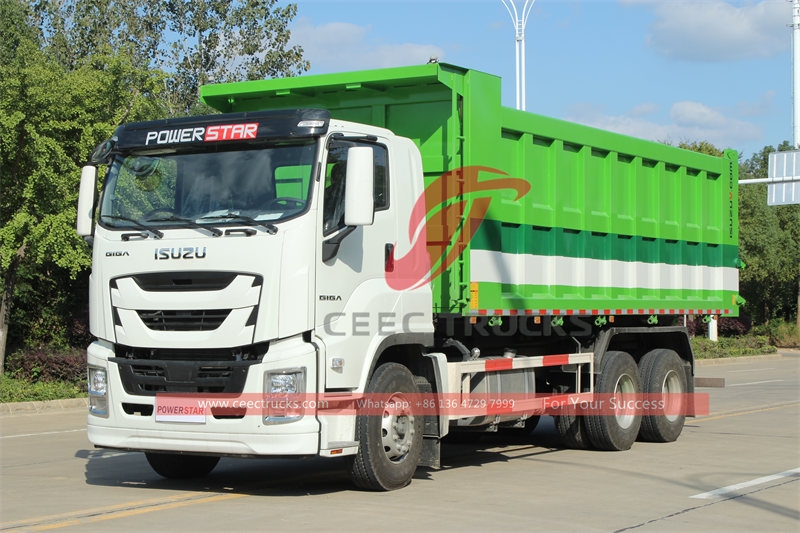

New designed ISUZU GIGA tipper, new model ISUZU GIGA cabin, original ISUZU 420HP diesel engine with 15680ml displacement, FAST 12-speed manual transmission. The cargo body is made of high strength carbon steel, with HYVA or China famous hydraulic lifting cylinders. The lifting mode can be T-type and F-type.
Product Origin:
China CEECShipping Port:
China Main PortLead Time:
20 DaysPayment:
T/T, West Union
Description:
A hydraulic dump truck is a type of construction machinery and highway truck that uses hydraulic system to lift and tilt its cargo box. The cargo box is mounted on the chassis by hinges and raised and lowered by hydraulic cylinders.
As a professional dump truck manufacturer, CEEC TRUCKS provides you with the most suitable dump trucks for use in extreme conditions, from 10-ton rated load capacity 4×2 dump trucks to 40-ton 8×4 dump trucks. With its excellent driving capabilities, unique comfort, extremely high safety and durability, the Isuzu GIGA heavy-duty dump truck produced by CEEC delivers materials on time every time. This dump truck is equipped with an Isuzu 420 horsepower engine to meet your engine requirements. Our dump trucks are equipped as standard with an enhanced T-shaped lifting system, which saves you dumping time, has a longer service life, and has the lowest cost per ton. In addition, we can also customize the mid-mounted lift system according to the special needs of customers.
Key Features:
---- Mounted on ISUZU GIGA heavy duty chassis
---- Original ISUZU diesel engine with 420HP
---- Max. payload is 30 tons
---- Customized middle lifting type
---- The volume of the cargo box is up to 30CBM
Specifications:
General |
Model |
CEEC5330ZX |
Brand |
CEEC |
|
Drive mode |
6*4 |
|
GVW (KG) |
33000 |
|
Rated payload (KG) |
25000~30000 |
|
Kerb weight (KG) |
15000 |
|
Dimensions (mm) |
9600×2550×3500 |
|
Wheelbase (mm) |
4565+1375 |
|
Wheel track (mm) |
2680/2500 |
|
Maximum climbing degree (%) |
≥32 |
|
Maximum speed (km/h) |
90 |
|
Number of seats |
3 + one sleeper |
|
Engine |
Model |
6WG1-TCG52 |
Manufacturer |
ISUZU |
|
Power |
420HP/308KW |
|
Max. torque (N·m) |
2060 N.m @ 900-1300 rpm |
|
Rated Speed |
1400 rpm |
|
Displacement |
15680 ml |
|
Emission Standard |
Euro V |
|
Transmission |
Model |
FAST 12JS |
Manufacturer / Country |
Fast/China |
|
Input torque (N·m) |
1800 |
|
Axle |
Manufacturer |
ISUZU |
Load (KG) |
7000/13000×2 |
|
Tires / Rims |
Tire model |
315/80R22.5 |
Rim size |
22.5 |
|
Cargo box |
Bottom plate material/thickness (mm) |
Carbon steel/8 |
Rear plate material/thickness (mm) |
Carbon steel/6 |
|
Front plate material/thickness (mm) |
Carbon steel/6 |
|
Side plate material/thickness (mm) |
Carbon steel/6 |
|
Cargo box volume (m³) |
30 |
|
Hydraulic system |
Model |
HJ220 |
Manufacturer / Country |
Jiaheng/China |
|

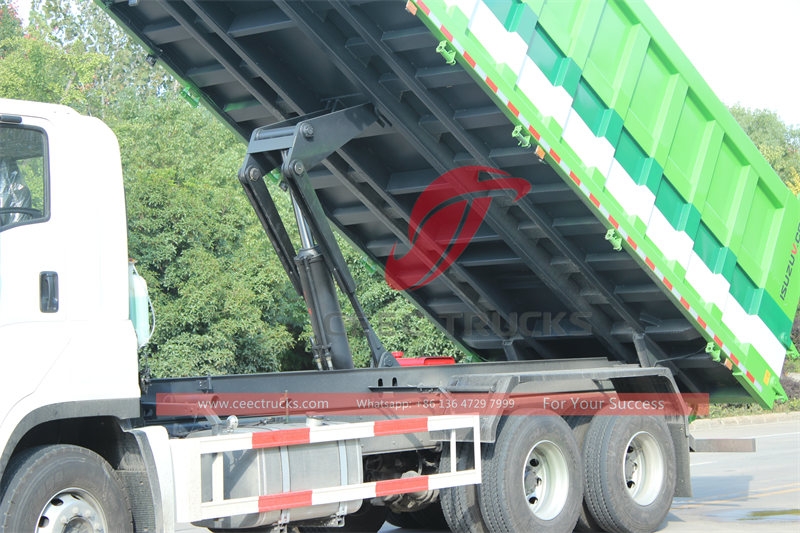

Lifting mode |
Middle lifting |
|
Lifting time (s) |
25 |
|
Descent time (s) |
25 |
Cargo box type of dump trucks
Cargo box can be divided into two types according to different uses: ordinary rectangular box and mining box (as shown in the figure below).

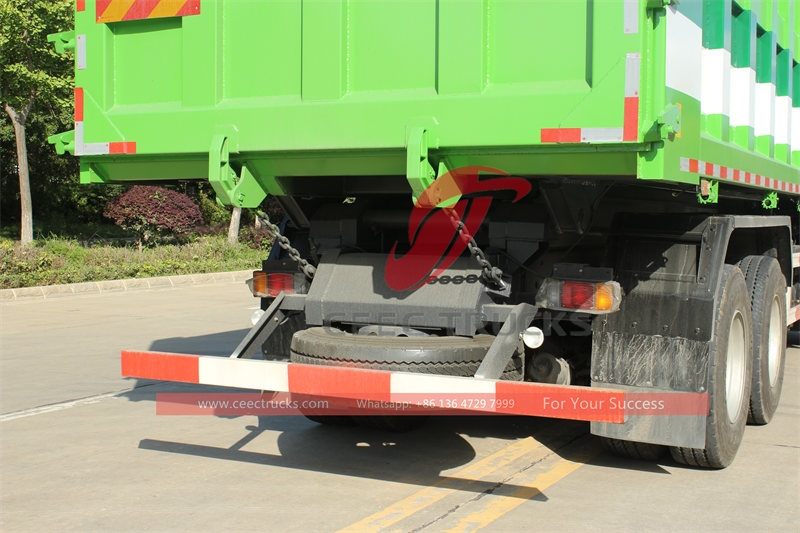

Ordinary rectangular boxes are used for bulk cargo transportation. The rear panel is equipped with an automatic opening and closing mechanism to ensure smooth unloading of goods. The thickness of an ordinary rectangular box is: front panel 4~6mm, side panel 4~8mm, rear panel 5~8mm, and bottom panel 6~12mm.
Mining boxes are suitable for transporting large goods such as large rocks. Taking into account the impact of cargo and the collision of buildings, the design of mining box is more complex and the materials used are thicker. Some models mining dump trucks are welded some angle steel to the bottom plate to increase the rigidity and impact resistance of the box.
