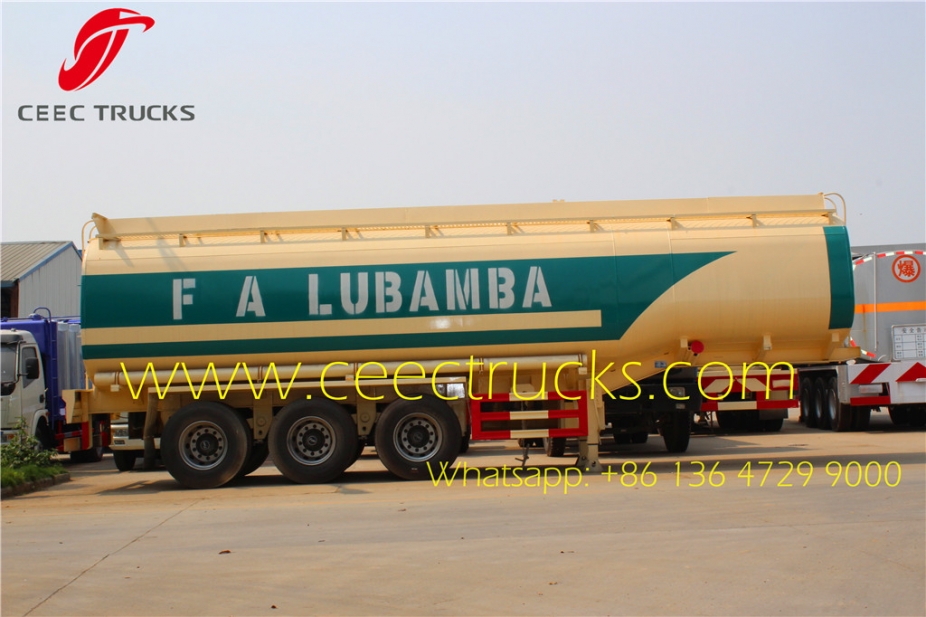

best 45 CBM fuel tanker semitrailer manufacturer supply

45 CBM Oil Bowser semitrailer

Top quality 45 CBM fuel tanker trucks export Angola, with 45 CBM carbon steel tanker, BPW axle system, FUWA landing gear, Euro standard manhole and stainless steel valves, lowest price for Angola customer

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    15 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $15,000-21,500
contact now

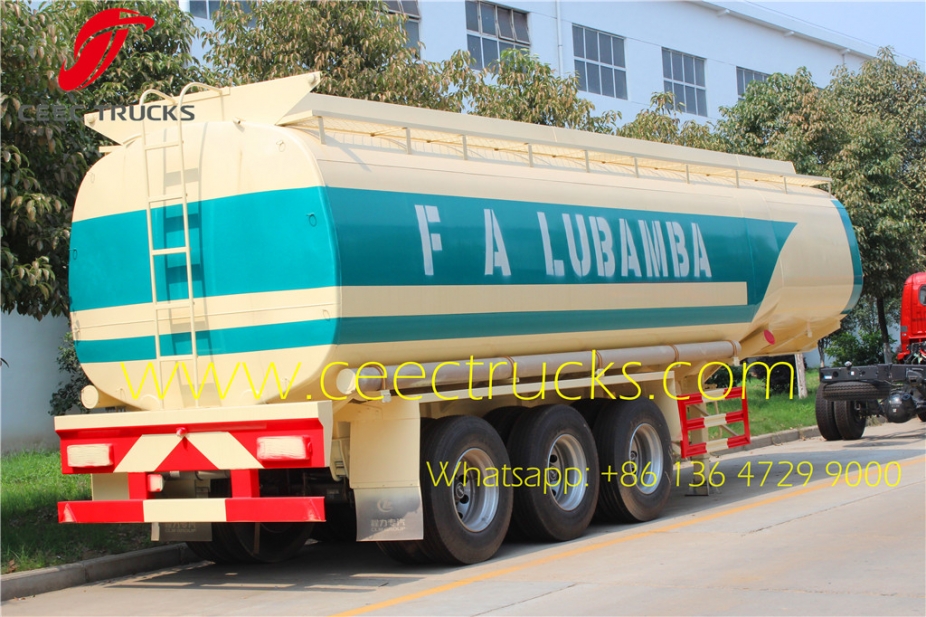

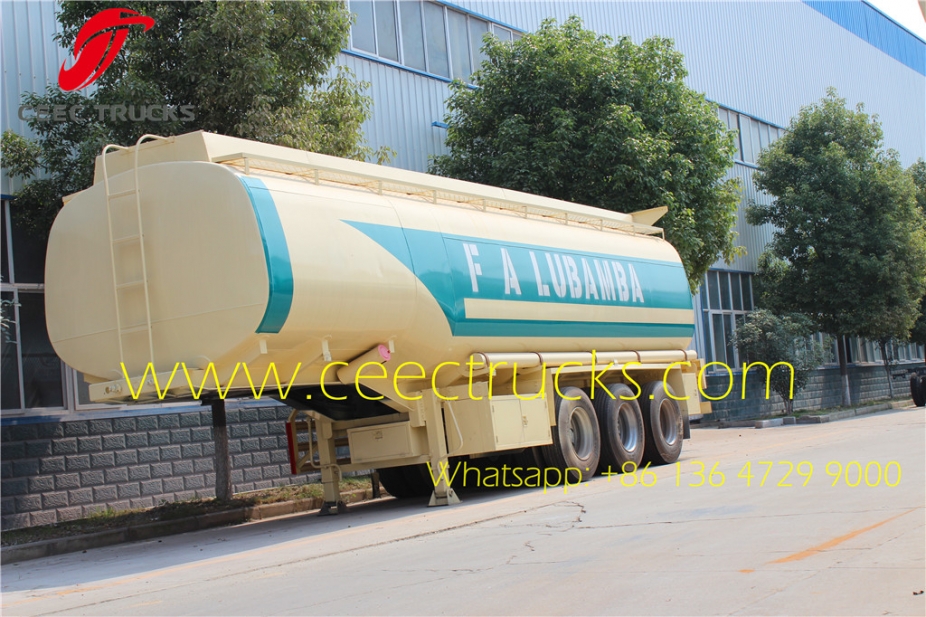

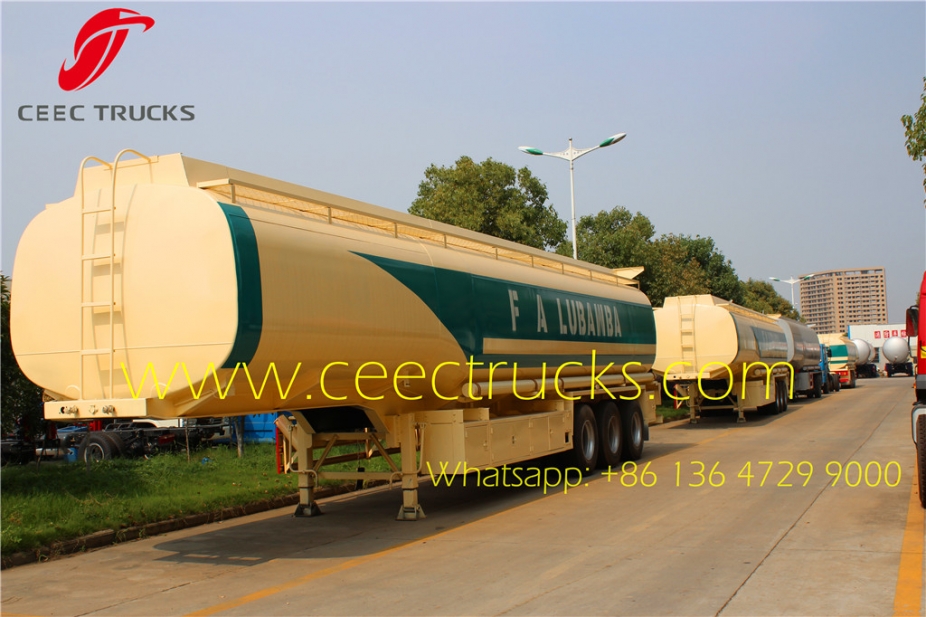

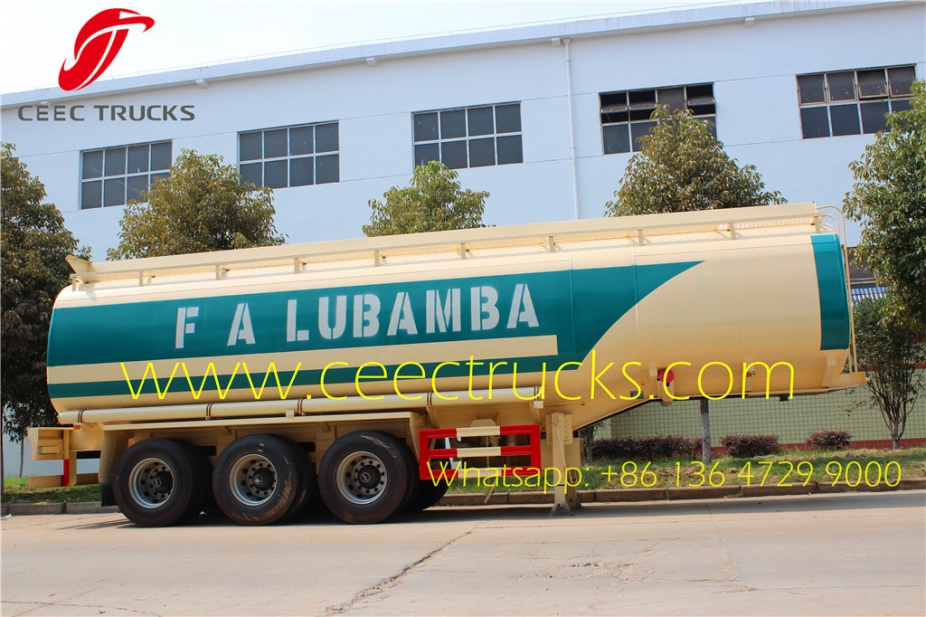

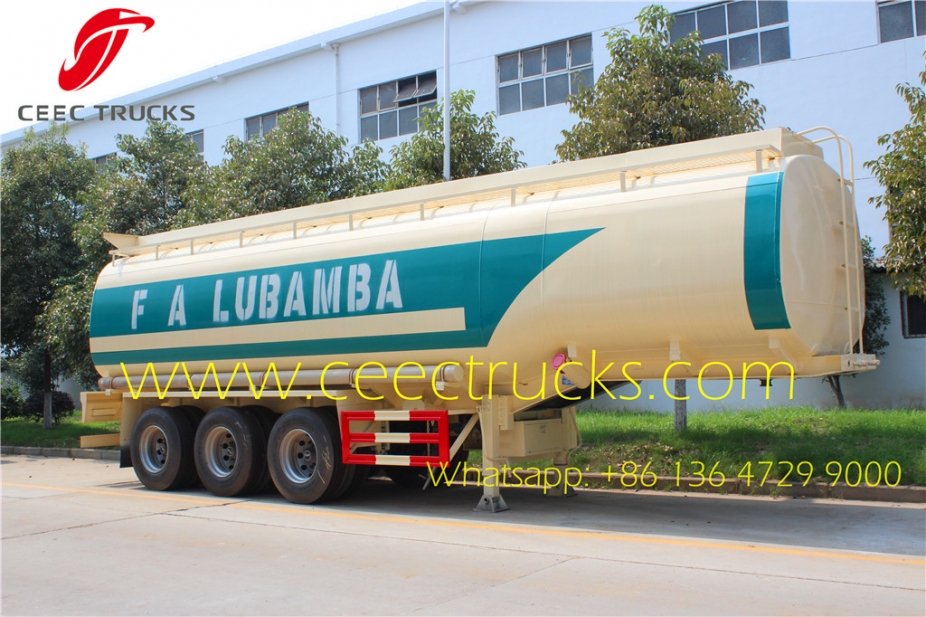

China best fuel tanker semitrailer, also can be called diesel tanker semitrailer, oil tanker semitrailer, gasoline tanker semitrailer, stainless steel tanker trailer, aluminum tanker trailer, etc. which are mainly used to transport all kinds of inflammable liquids, such as diesel, oil, gasoline. The 45 CBM fuel tanker trailer export to Angola F A LUBAMBA, and will be used for crude oil transportation in Oil Field.



Professional 45 CBM Fuel Tank Trailer manufacturer CEEC



45 CBM fuel tanker trucks export Angola



As a specialist in the manufacture of fuel tank semi trailer with capacity range from 25CBM to 65CBM, we have pioneered the application of plate bender and welder in the manufacture of fuel tanks. Our industry leading design capability allows us to supply your desired tank trailers in the shortest possible time. We are an ISO9001 certified company. Our specially constructed tank transporters have taken up great market share of the African and Russian markets. We can sell Complete Knock-Down kits or Semi Knock-Down kits to our valued oversea clients. Contact us now for more information.



45 CBM fuel tanker trucks export Angola


With a loading capacity in the range between 40 and 60m³, our fuel tank semi trailer often comes in various types, the most common being the 2-axle and 3-axle configurations.

45 CBM oil tanker trucks tanker are constructed with Q235 carbon steel, stainless steel, or aluminum. The tank chamber is separated into several sections by upright walls, or partition walls. These walls prevent the formation of petrol wave when the tank trailer is driving on a bumpy road. At the lower end of the wall, through holes are drilled to reduce the impact and enhance the tank strength.

Combination lids are set on the top of the tank. They comprise of two lids, with the self-locking smaller one sits on the larger one. A breather valve is installed on the larger lid to prevent pressure or vacuum build up.

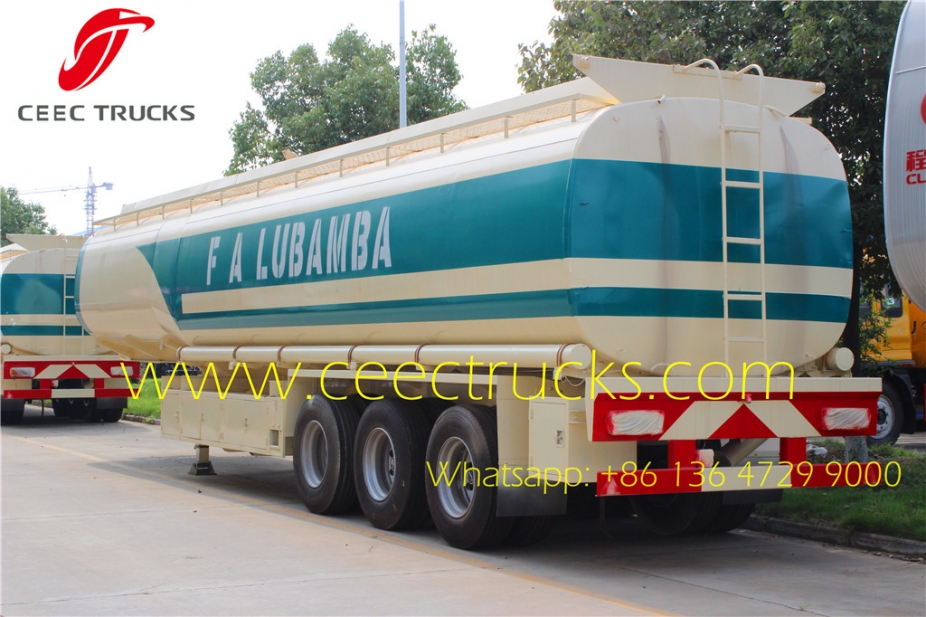

45 CBM Oil Tanker Semitrailer to Angola

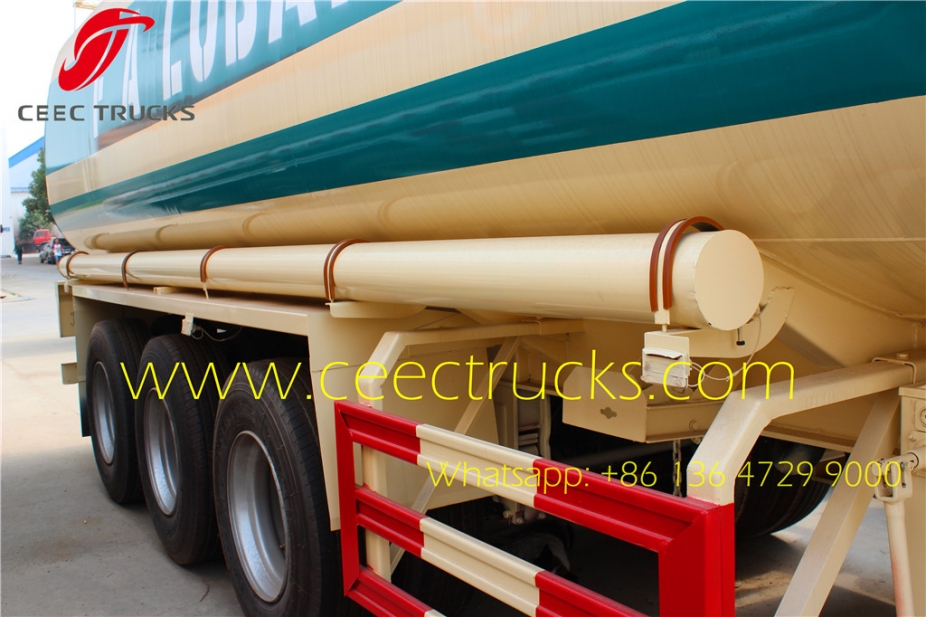

Spare tire device



Best fuel tanker semi trailer manufacturer in China



Best fuel tanker semi trailer manufacturer in China    Best fuel tanker semi trailer manufacturer in China



Best fuel tanker semi trailer manufacturer in China    Best fuel tanker semi trailer manufacturer in China



Similar Key Words: 45 CBM fuel tanker trucks suppliler, oil tank semi-trailer, fuel tanker semitrailer, fuel semi-trailer, oil semitrailer, fuel trailer tanker, fuel tankers, fuel tank trailer, oil trailer, semi tanker trailer, stainless steel oil tanker trailer, carbon steel trailer tank fuel

45 CBM Fuel Tank Semitrailer Tank Body

Shape

Round or Square

Dimension

12000mm×2490mm×3990mm ( The exact size depends on the final design.)

Tare weight

About 8000kg-12800kg

Total Volume ( m3 )

25m³ -60 m³

Tanker Body Material

5mm or 6mm/ Q235 carbon steel

End Plate

5mm or 6mm /Q235 carbon steel

Manhole Cover

Carbon steel or aluminum alloy API manhole cover, 500mm(diameter)

Bottom Valve

Aluminum API Pneumatic Bottom Valve

Discharging Valve

Diameter is 3 or 4 inch

Compartments

Optional

Discharging Pipe

4” rubber hose, 2 pcs , 6m/each

Cat Walk

With (Common model or special design)

Chassis

Main Beams

Welded design or Special design I beam, connected by bolts and nuts Q345 carbon steel material

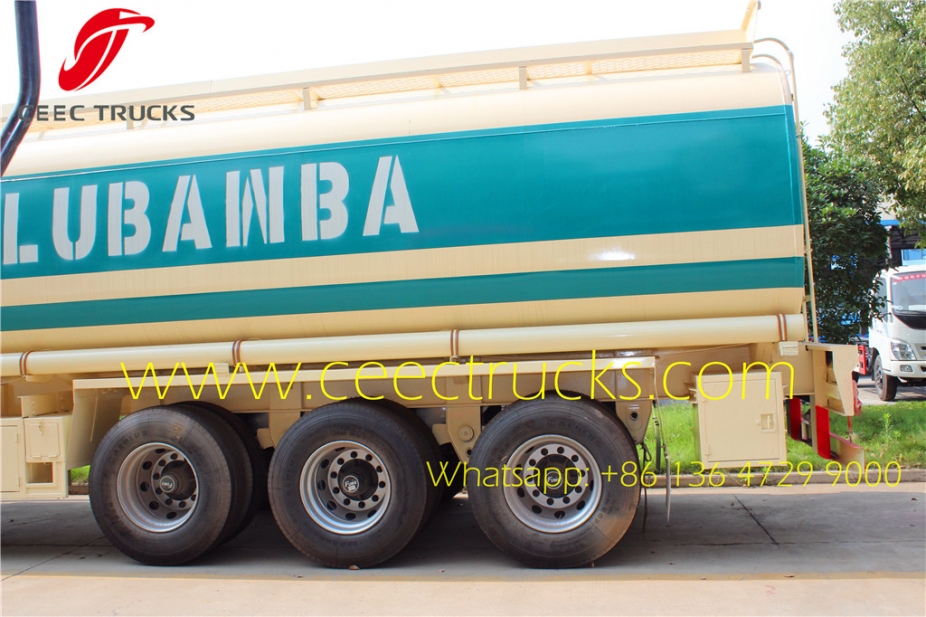

Axle

2 or 3 axles, BPW/FUWA/HUAJING brand

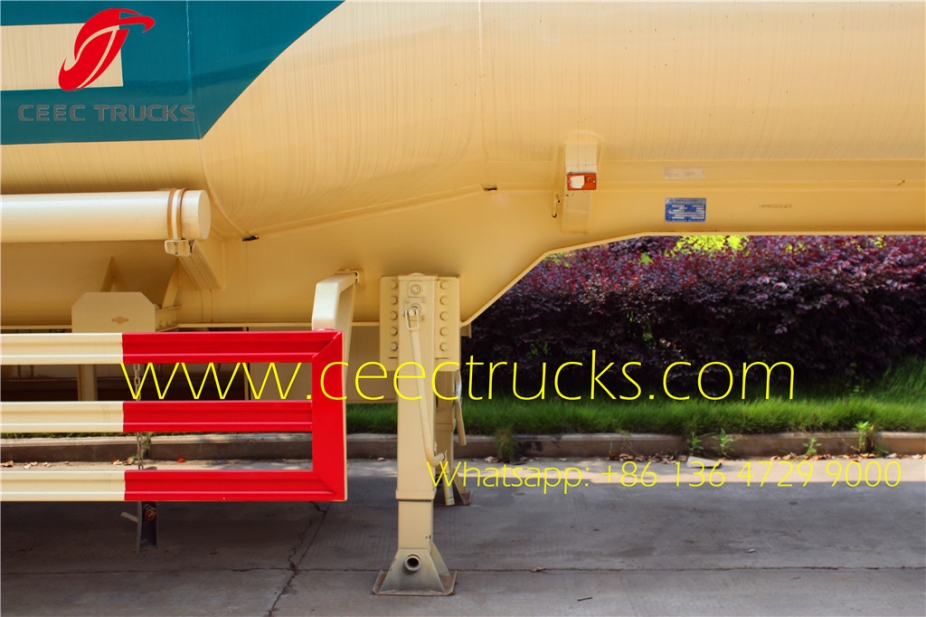

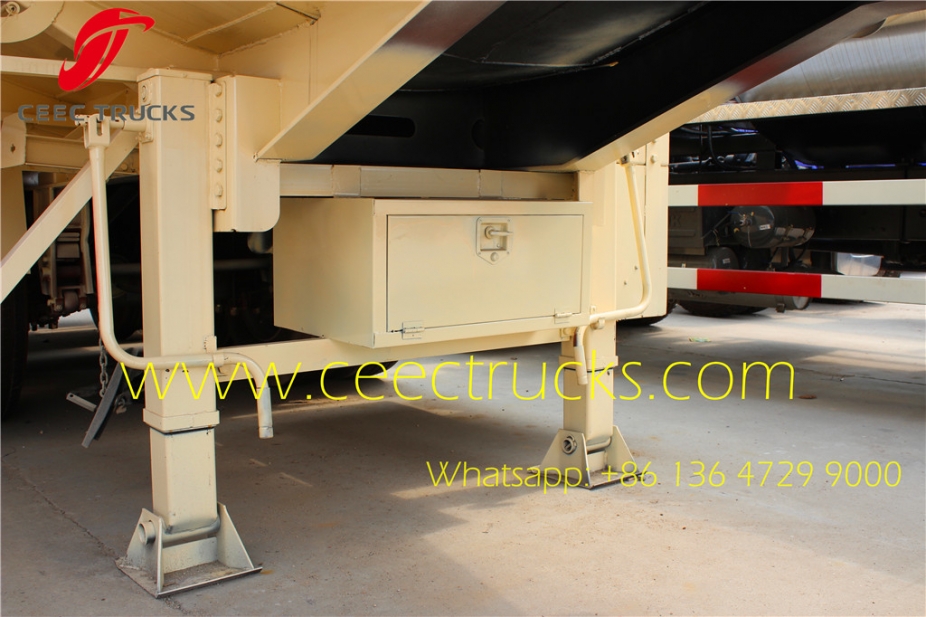

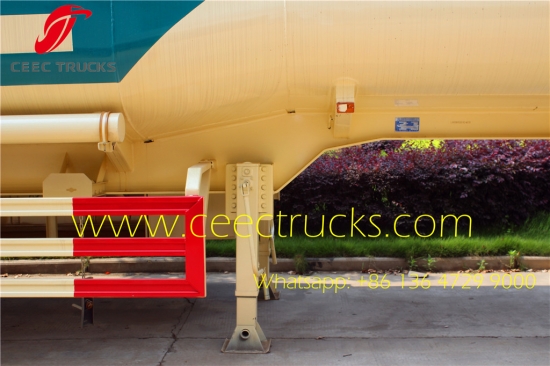

Landing Gear

JOST (D200T ) or CHINA BRAND 28T

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension/Germany or America type /air suspension

Leaf Spring

90(W)mm×13(Thickness)mm×10layers or 10mm×12mm×12 /without

Pneumatic Braking System

WABCO RE 6 relay valve; Spring brake chamber (TKL brand ); one piece of 45L air tank

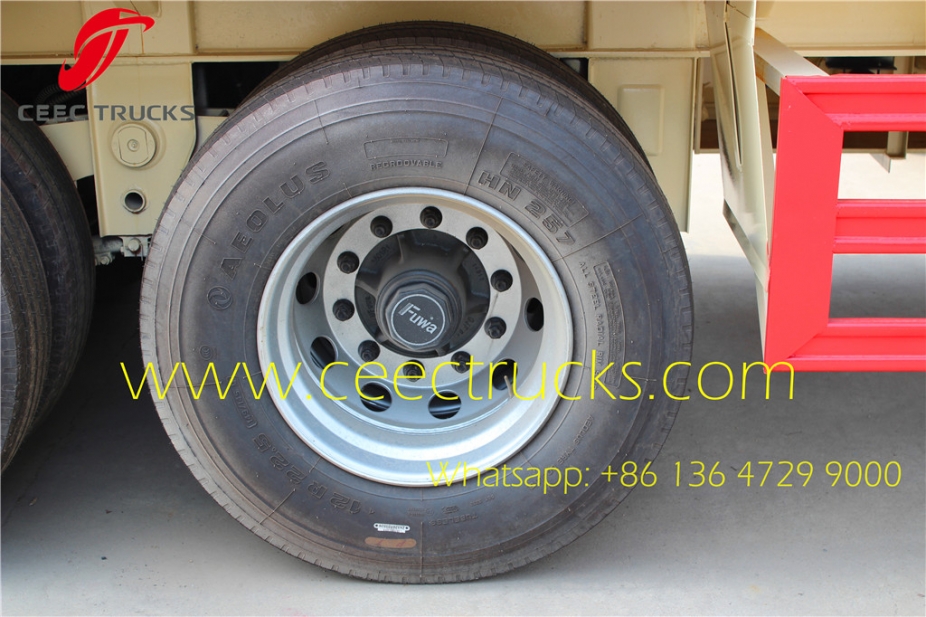

Rim

9.00-22.5/8.00-20/8.5-20 China Brand

Tire

/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional

ABS

Optional

Painting

Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

Accessories

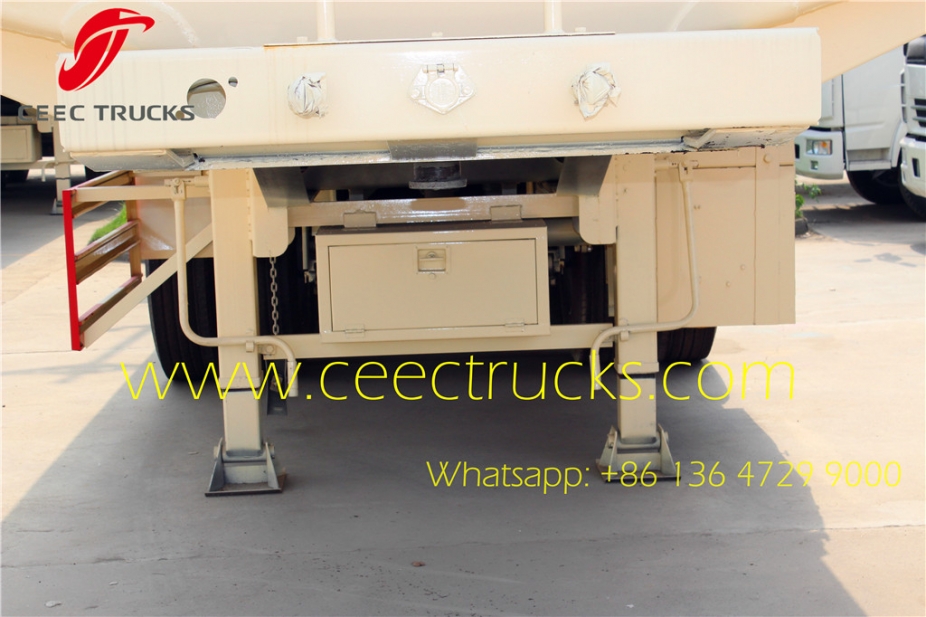

One standard tool box

Shipping Terms

By bulk cargo ,RORO or 40HQ Containers

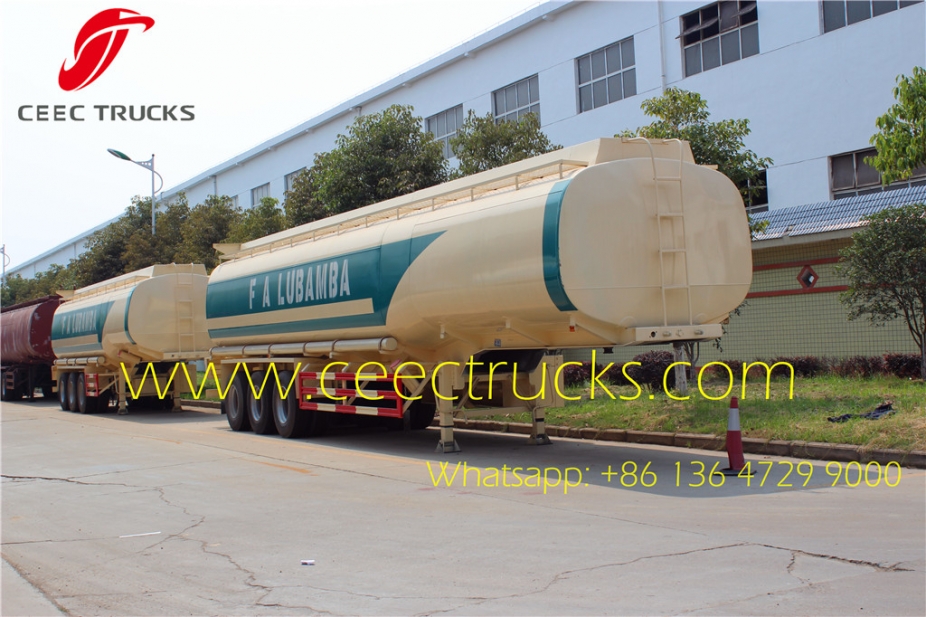

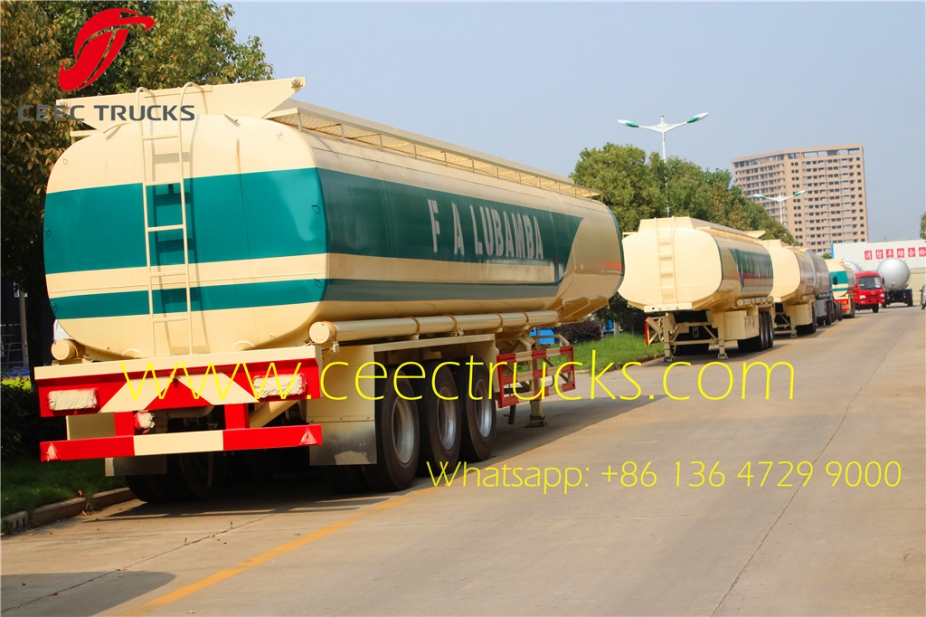

45 CBM Oil Tanker Semitrailer to Angola



China Best Semitrailer on sale





Other beiben trucks display







SaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSave

The tank is grounded to discharge static electricity produced by the rubber tire, which might cause fire during fuel transfer operation. Upon your request, we can add a power take-off system to the tank that is powered by gearbox, which controls the tank to either sucks in or discharge fuel.

The tank of our semi trailer also comes with two hoses and quick couplers. Its suction head is 6 meters. Two fire extinguishers and other specialized tools are also sure to come in handy during emergency. The whole tank semi trailer is comprised of two parts, the tank assembly and tank support.

In addition, the tank semi trailer can be equipped with various kinds of valves, discharge ports, and tank lids, such as in square or round shapes. Choices of these parts can be made all according to your likings.

Simply tell us the variety of materials to be transported, particle size, density, and desired tank capacity and weight, and we will design accordingly a suitable semi trailer model available with various chassis, tanks, and fuel feeders.



fuel tanker semitrail for optional
