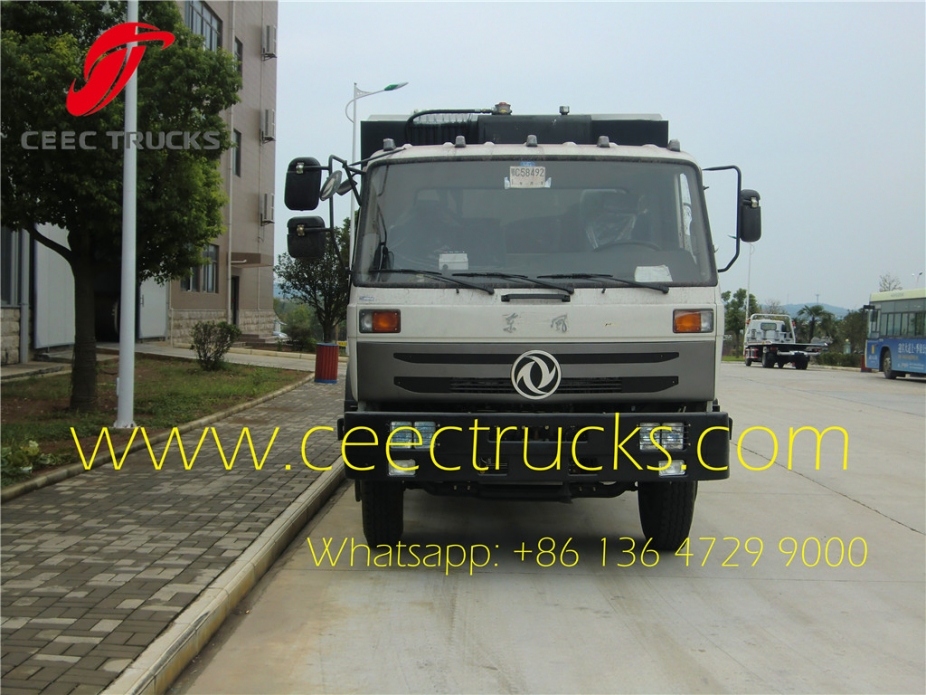

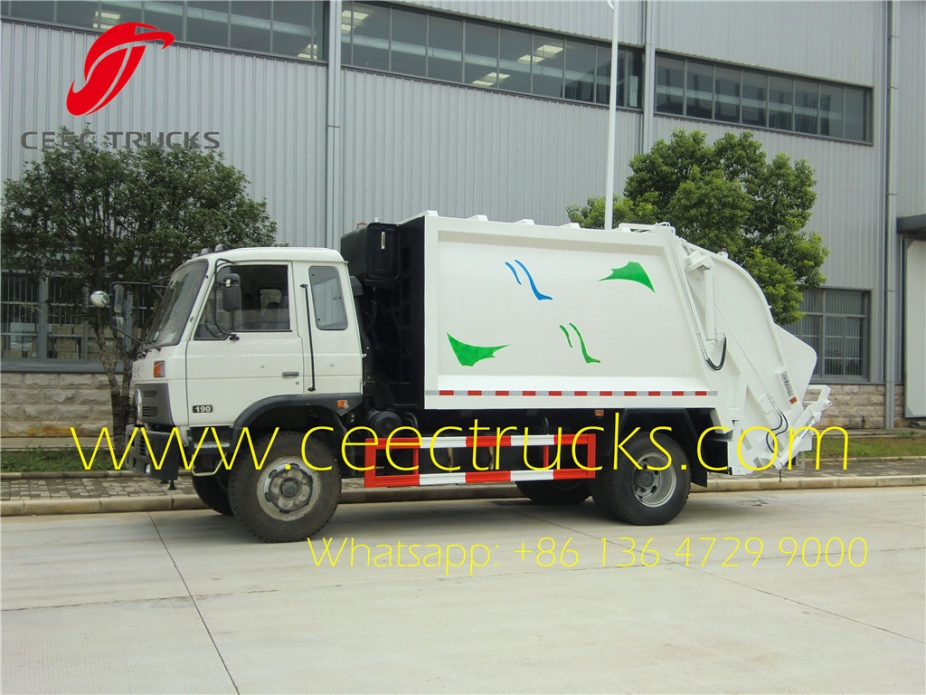

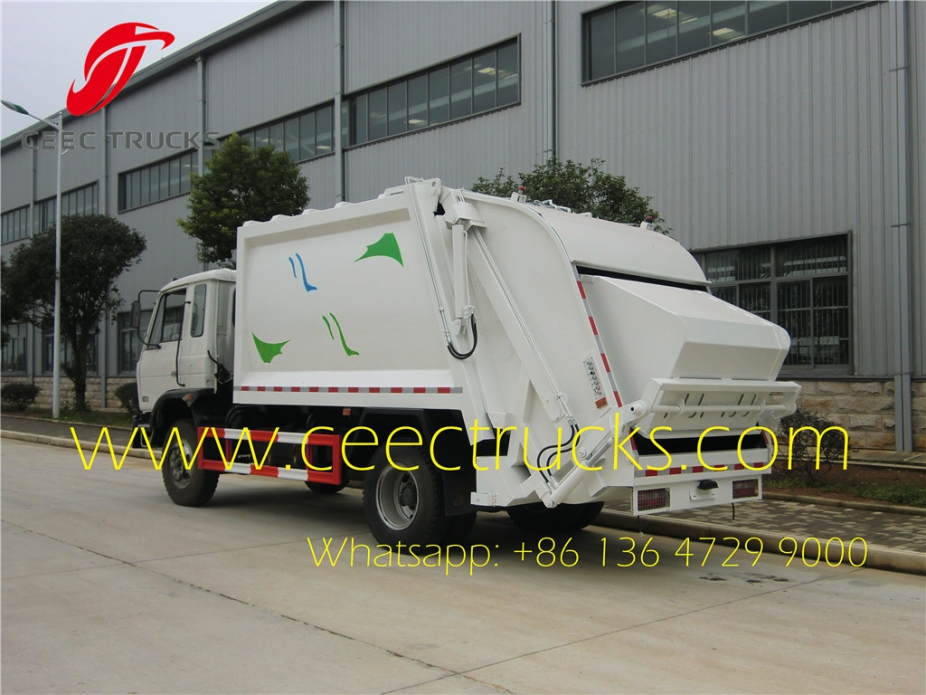

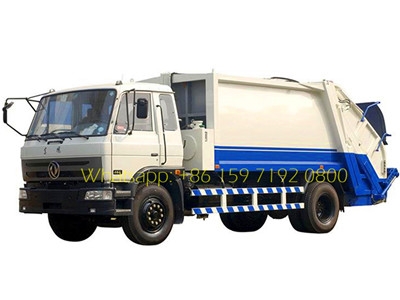

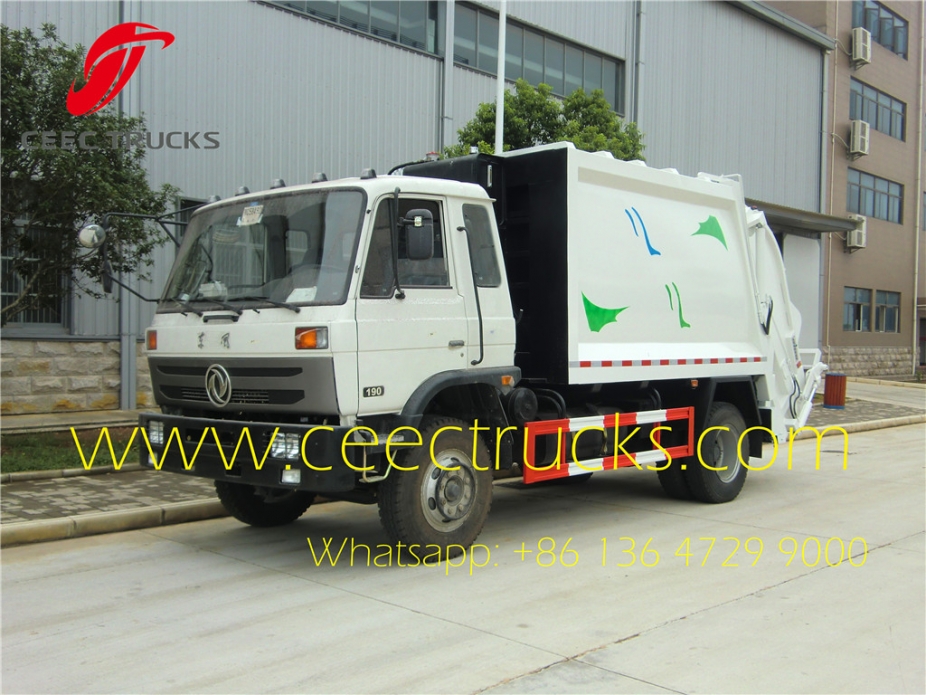

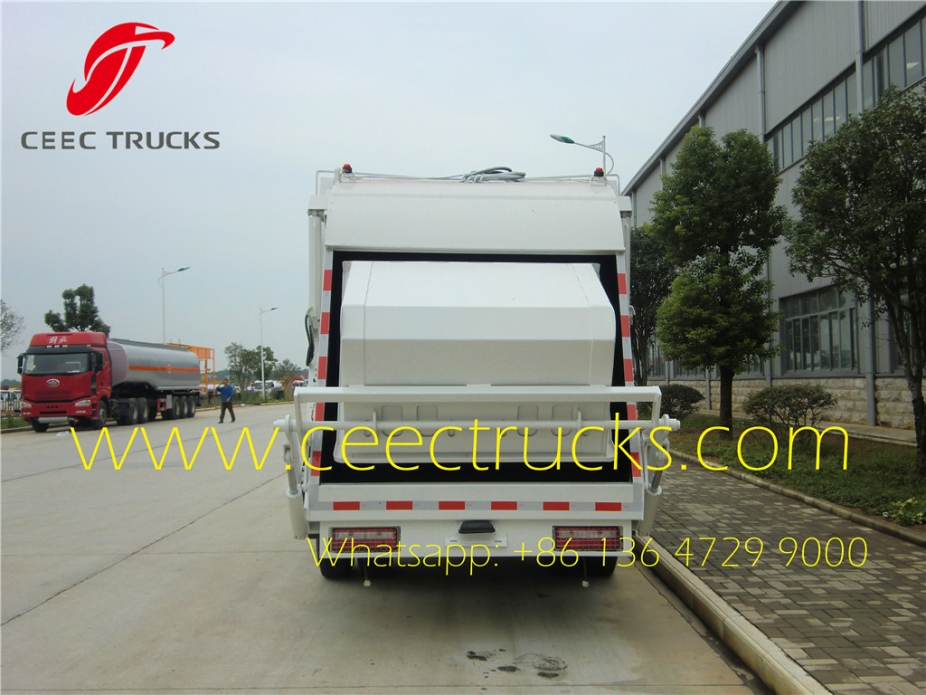

2016 new dongfeng 10000 liters garbage compactor trucks lowest price

Best 10 CBM refuse compressed truck

2016 produced Dongfeng 10 cbm compactor trucks use dongfeng 6 wheel chassis, engine power can be 140HP to 210HP, 6-shift manual gearbox, top design carbon steel compactor tank, all painting and logos as required

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    15 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $23,000-35,000
  • Market Price:

    $27500
contact now

Garbage Compactor Truck also can be called garbage compactor truck,Trash Compressor Truck, Refuse Compression Truck, Refuse Collection Truck, Rubbish Compactor Truck, Bin Lorry Truck etc. China best price Dongfeng / DFAC refuse compressor trucks are mainly designed and produced to collect, compress and transport municiple solid waste.



Dongfeng 10 CBM refuse compression trucks price



dongfeng 10000 liters garbage compactor trucks



Best Dongfeng 10 CBM trash compactor trucks functions and features:

1. We CEEC TRUCKS are manufacturer, specializing in producing garbage compactor truck many years with good reputation.

2. The Sudan 9CBM garbage compactor truck control system PLC (programmable logic controller) originally imported from Italy.

3. Collecting tank is well sealed, which can prevent second pollution.

4. Standard steel (Carbon steel Q235 & Q345, also the Stainless steel can be choose) for garbage tank, against corrosion resistant, rust protection and well-resisting.

5. Relatively smaller space between scraper and loading device can let garbage more sufficiently into the body.

6. The garbage compression truck adopt double direction compression techniques, which can make the whole compression work smoothly and efficiently. All the garbage compactor trucks are easy to operate and maintenance!

7. Different hopper can be provided to satisfy our customers. And the Hopper is hydraulically and automatically locked when closed.



CEEC produced garbage compactor truck introduction



CEEC TRUCKS produced and export garbage compactor trucks mainly export Africa countries, including Kenya, Algeria, Ethiopia, Angola, Botswana, Togo, Gambia, Congo, Guinea, Ghana, Zimbabwe, Cameroon, Cote d'Ivoire, Rwanda, Mali, Mozambique, Sudan, Tanzania, etc. Our best selling models mainly as below: 5 CBM garbage compactor trucks, 8 CBM compressed garbage truck, 12 CBM refuse compression truck, 20 CBM trash compactor trucks. with ISUZU, Dongfeng, Foton, Beiben chassis LHD / RHD for optional.

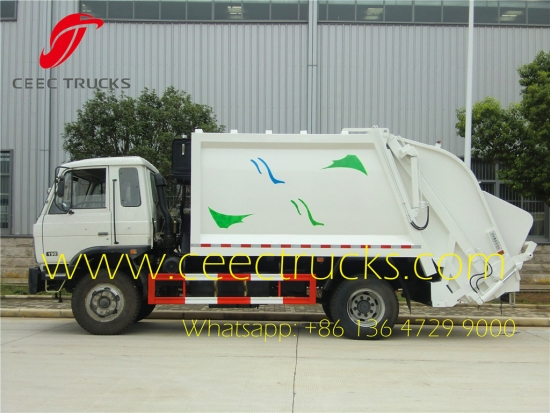

10 CBM compression garbage truck



10 CBM compression garbage truck



10 CBM compression garbage truck



Similar Key Words: dongfeng garbage compactor trucks, DFAC 9 CBM trash compressor trucks, rubbish collection compactor, waste management trucks, dongfeng 9000 liters compactor trucks, Africa garbage compactor, bin lorry supplier

Dongfeng 9000 liters compactor garbage trucks

Main specification

Product model and name

CEEC5160ZYS     12 CBM Garbage Compactor Truck Manufacturer

Gross weight(Kg)

16000

Drive type

4X2, LHD

Curb weight(Kg)

9005

Overall dimension(mm)

8600X2490X3100

Approach/departure angle(°)

20/12

Cab seats

3

Axle No.

2

Front/rear hang(mm)

1430/2670

Axle load(Kg)

5000/10000

Wheelbase(mm)

4500

Max speed(Km/h)

90





Chassis specification

Chassis model

DFL1160

Manufacturer

Dongfeng Motor Co., Ltd

Brand name

Dongfeng

Dimension(mm)

7790×2460×2840

Tyre specification

10.00-20

Tire No.

6+1(one spare tire)

Steel spring number

8/10+8

Front track base(mm)

1880

Fuel type

Diesel

Rear track base(mm)

1860

Emission standard

Euro III

Transmission

6 forward gear & 1reverse gear

Cab

Single row, Luxurious interior trim with power steering and A/C

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

B190-33

Dongfeng Cummins Engine Co.,Ltd

5900

140(190HP)

Performance

Box volume

12-14cbm

Box material

Q235

Box dimension

Side 4mm,buttom 4mm

Operation control system

Manual + Automatic

Main Characteristic

1,Can choose 240L(single bin, double bins)or 360L,660L,1100L standard lifting and turnover device(plastic or steel garbage bin), can also choose ground hopper ,swing arm device or other kinds of loading device.
2,With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. With working device of emergency braking stop button.
3,Garbage body use frame design, elegant, strong structure, large effective capacity.
4,Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks.
5,Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600~800kg/m3 after compression.



10 CBM compression garbage truck



2016 newly model Garbage compactor trucks on sale





CEEC Recommend environmental protection truck series




Save

Best selling model dongfeng 10 CBM refuse compactor truck with DFAC

American CUMMINS engine, B170 33 model, EURO 2,3 emission, 20% saved fuel consumption

6-shift manual gearbox, 6 forward & 1 reverse, easy operation

Profession garbage compactor system manufacturer experience over 10 years

Standard tilting device for international bins 120L, 240L, 360L, 660L, 1100L

12 months free fast moving spare parts

Training service for dongfeng 12CBM garbage compactor trucks 2~3 days in CEEC working plant



What advantages for customer choose CEEC compactor trucks?

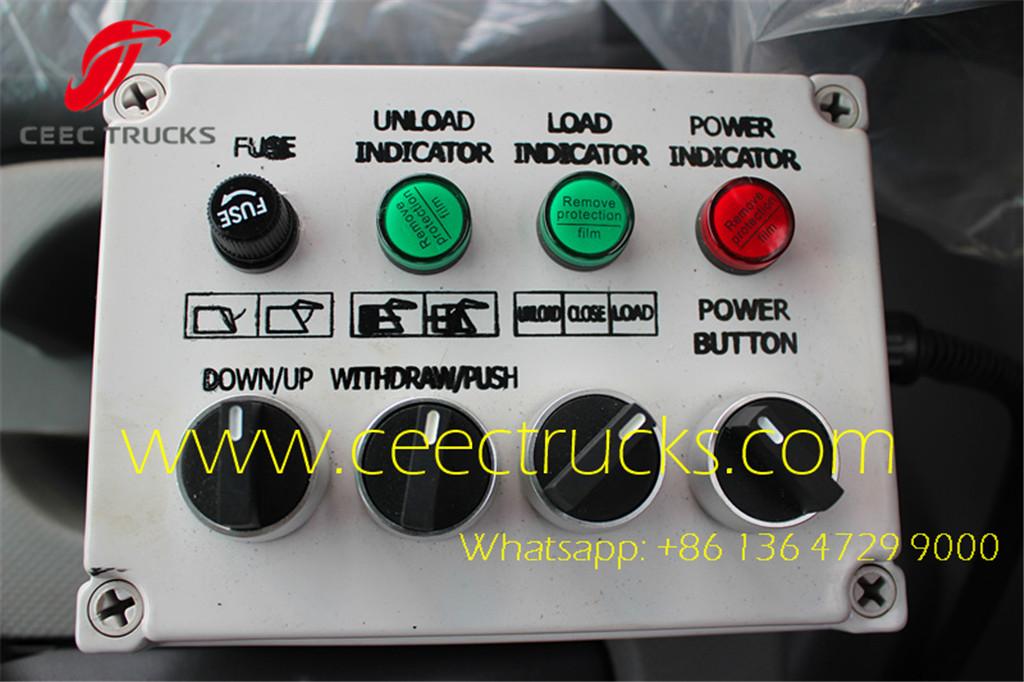

compactor garbage truck English panel    compactor garbage truck English panel

(ENGLISH VERSION Major control box in cabin & Minor control box at two side of rear gate for easy operation)

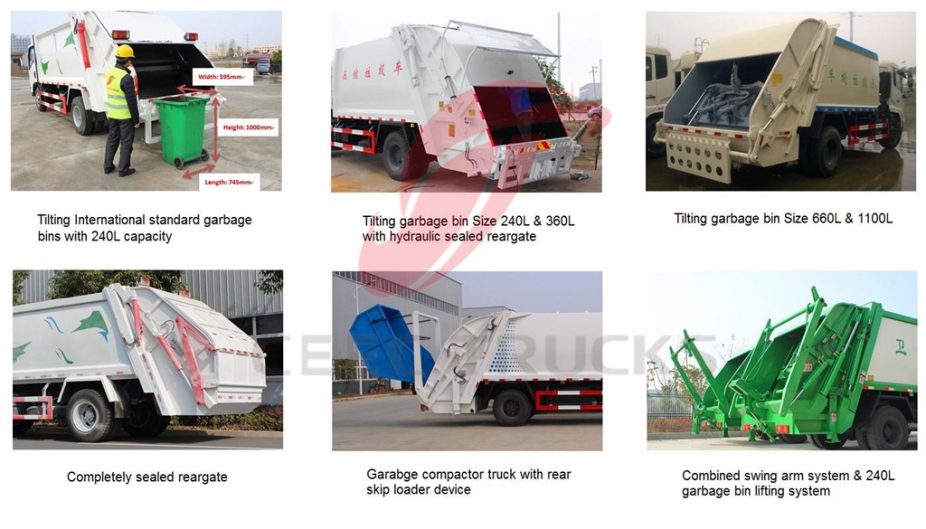

ceec produced compactor trucks rear loading system optional

(Different rear loading device for CEEC produced garbage compactor trucks)



Save
Successful Cases
inquiry now

    Please feel free to inquiry trucks from us; our experience sale manager will give the quotation within 12 hours
