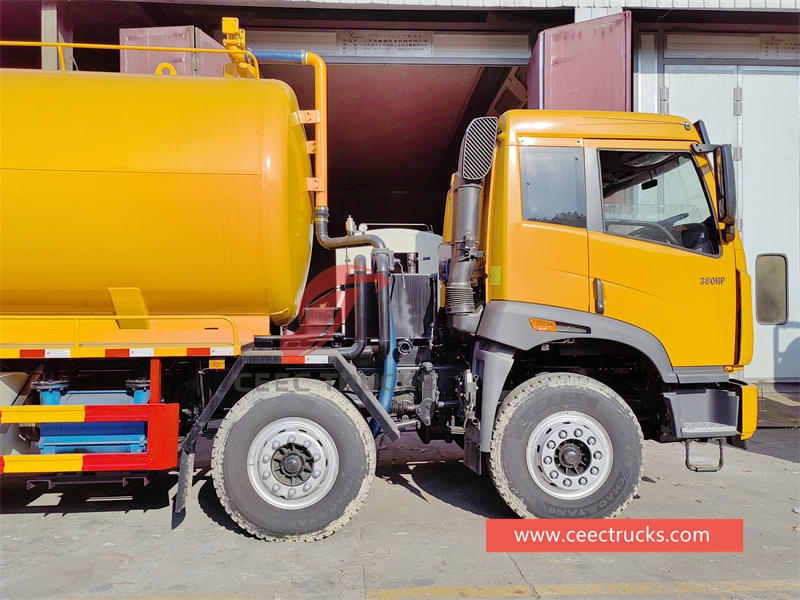

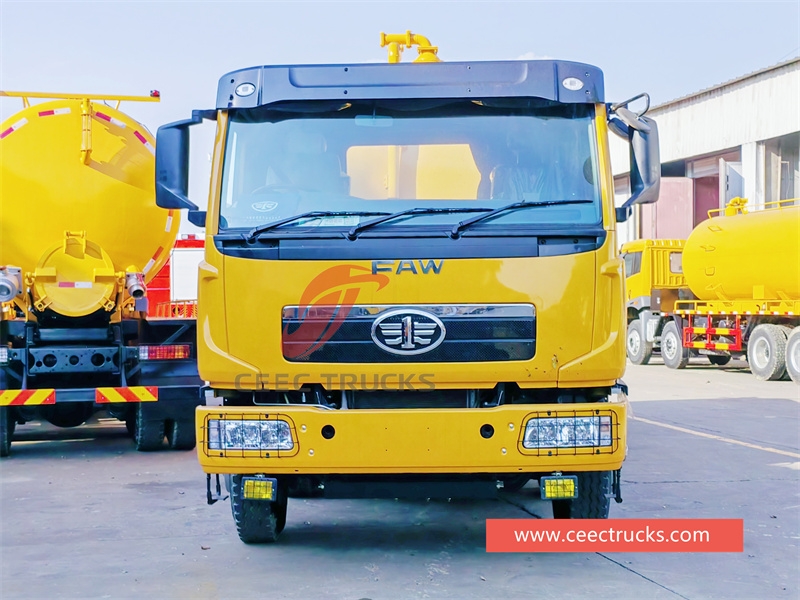

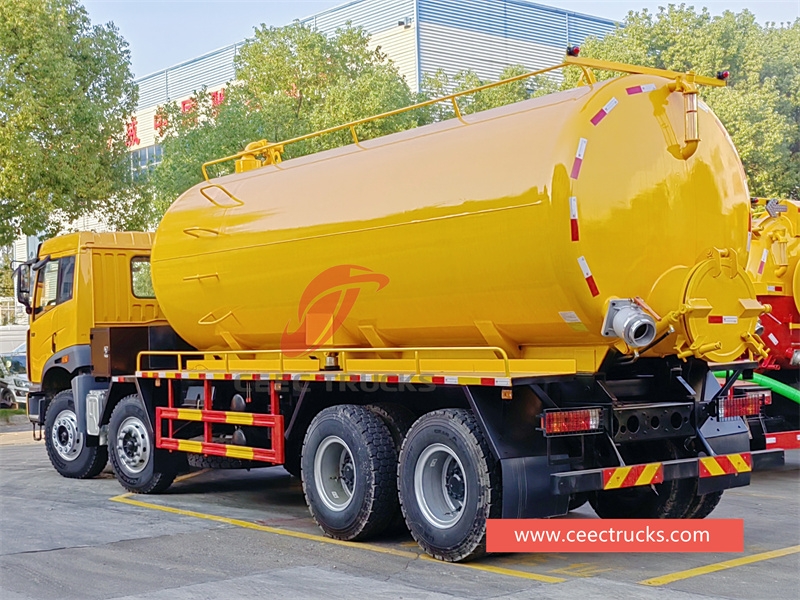

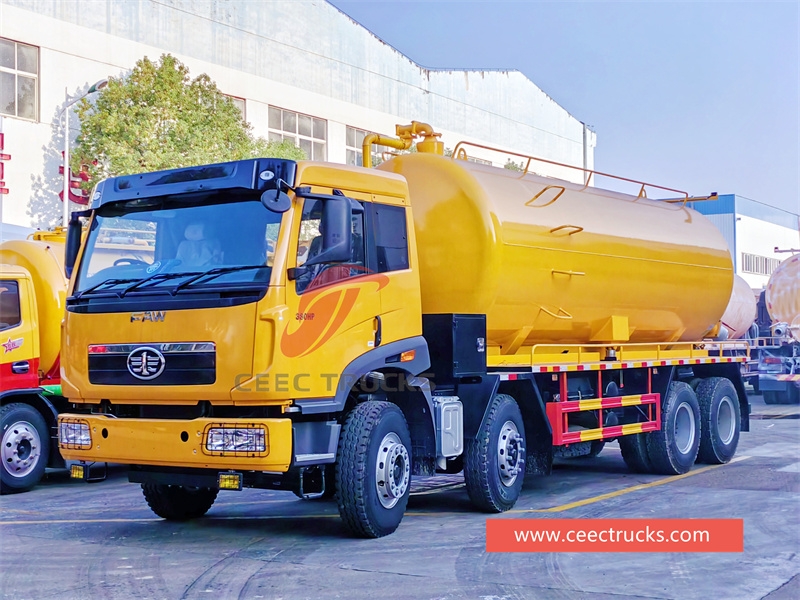

FAW RHD 8x4 Vacuum Sewage Suction Tanker Truck For sale

FAW RHD 25,000L vacuum cleaning truck

Hot sale model 25m³ Vacuum Sewage Suction Tanker, which use FAW 8*4 RHD chassis, 380HP super powerful engine, 12-shift manual gearbox on sale, high strength carbon steel material tanker with thickness over 6mm. painting and logos as required

  • Product Origin:

    China CEEC

  • Shipping Port:

    Shanghai Seaport

  • Lead Time:

    25 Days

  • Payment:

    T/T, West Union
contact now

FAW RHD 25,000liters vacuum sucker truck

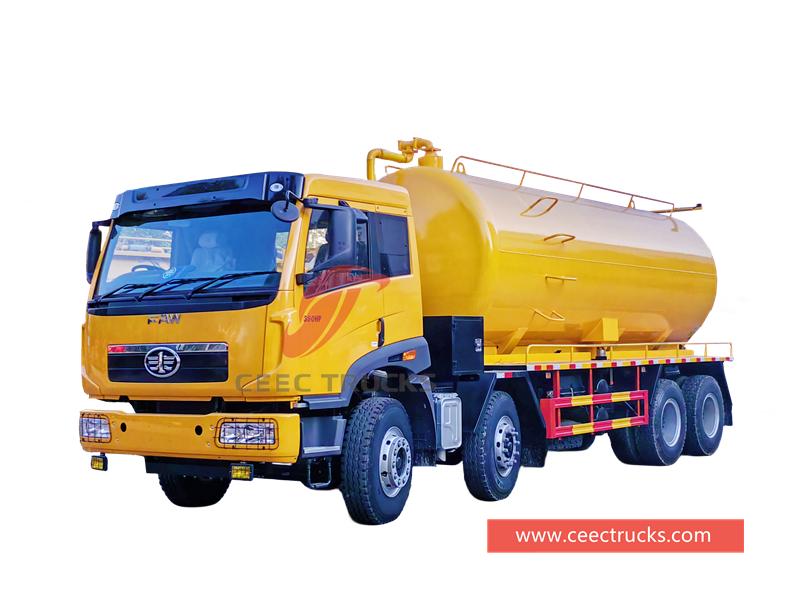

FAW RHD 25,000L Vacuum Suction Tanker Trcuk

 Applications:



FAW RHD 8×4 Vacuum Tank Truck  (also called FAW RHD 8x4 vacuum sewage truck, sewer sucker, FAW RHD sewage truck, gully emptier,FAW 8X4 septic tank truck, septic emptier) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.



CEEC TRUCKS  FAW 8x4 vacuum tanker truck is equipped with WEILONG or Italy MORO / BP vacuum pump, for 10CBM or more recommend Double Pump for efficiently working.



The sewage tanker truck can be equipped with cabin Pneumatic Control for easy operation.



China best quality vacuum sewage suction truck optional chassis:

1. Model: we have sewage suction truck and sewage suction cleaning truck;

2. Drive model: 4*2, 4*4, 6*4, 8*4;

3.Equipments: round tank with material of carbon steel, vane vacuum pump imported from Italy, with lifting system, rear cover can be opened by hydraulic device, equipped with self-flowing hole and special valve, suction depth can reach 5-8 meter, equipped with special sewage suction pipe;

4. Tank capacity:3-20CBM;

5. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper;

6. Detail parts introduction for CEEC TRUCKS produced cesspit emptier as follow:


(1)Remarks:
1.Vacuum sewage suction truck also called sewage suction truck,vacuum truck ,sewage tank truck,vacuum suction truck ,vacuum suction tanker ,vacuum waste collection truck ,sewage suction truck,sewage vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier ,gully emptier,etc.
2.Sewage suction truck is a sanitation vehicle, that collects and transfers sludge, septic and sewage with liquid substances such as feces, mud, crude oil, especially the sewage slurry, silt, stones, brick, blocks and other bulk objects, to avoids secondary pollution. It's functioning self-suction and discharge, faster working speed and larger vacuum, that widely used in sewer, cesspit and gully.
3.Vacuum tank capacity ranges from 3,000 Liters to 20,000 liters .

(2)Features:

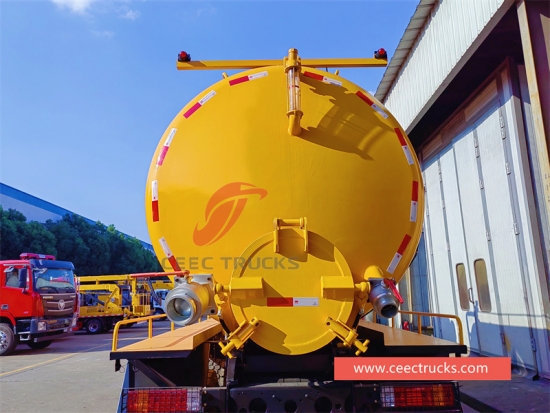

a.Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.
b.Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.
c.Pump can be operated by a hydraulic motor or by an auxiliary engine.
d.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
e.Nice shape ,rational structure,durable and long service life.

Product Parameters:

Main Technical Parameters

Product Name

FAW 8x4 380hp 25000L Sewage Suction Truck

Loading Weight(kg)

25000

Curb Weight (kg)

12500

Overall Dimensions L*W*H(mm)

10435×2500×3450 mm

Engine

Engine Brand

FAW CA6DM2-37E3

Fuel Type

Diesel

Power

380 HP

Emission Standard

Euro 4

Displacement(ml)

11400 ml

Engine Type

6 cylinders in line,water cooling, charge inter-cooling diesel engine,electric control

Chassis

Chassis Brand

FAW

Drive Type

8*4 Right hand drive

Tire No.

10

Tire Specification

12.00R20

Wheelbase (mm)

2100+3200+1350

Axle No.

4

Sucking System

Tank Volume(L)

20000, 25000L

Tank shape

Cylindrical

Tank Material

6mm thick carbon steel

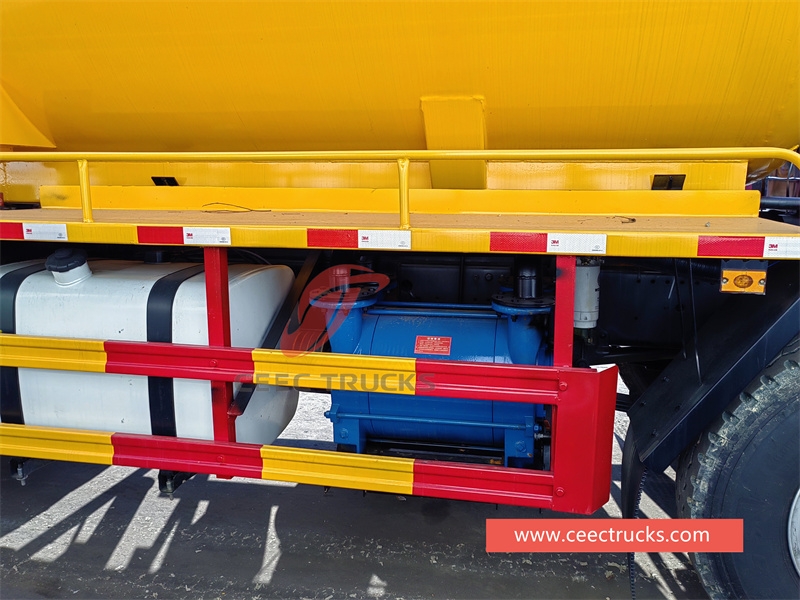

Vacuum Pumps

Double 5ton Weilong pumps

Suction Depth(m)

More than 6 meters

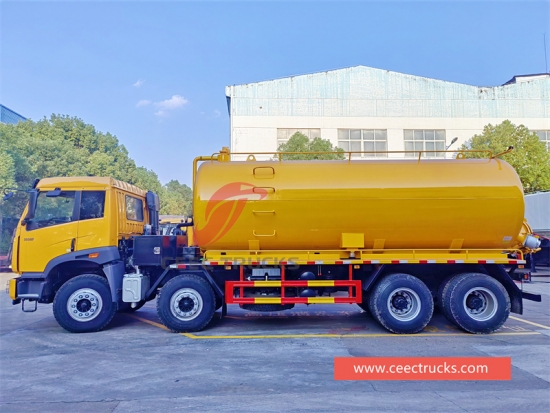

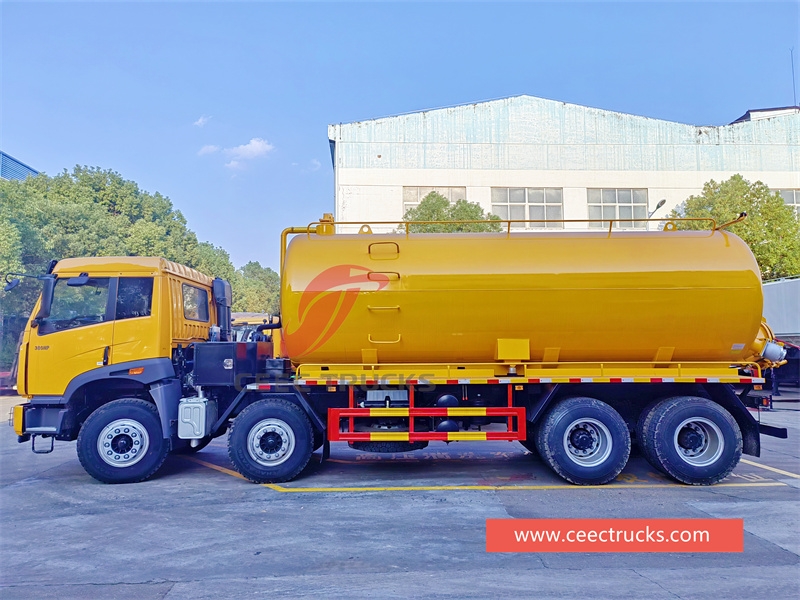

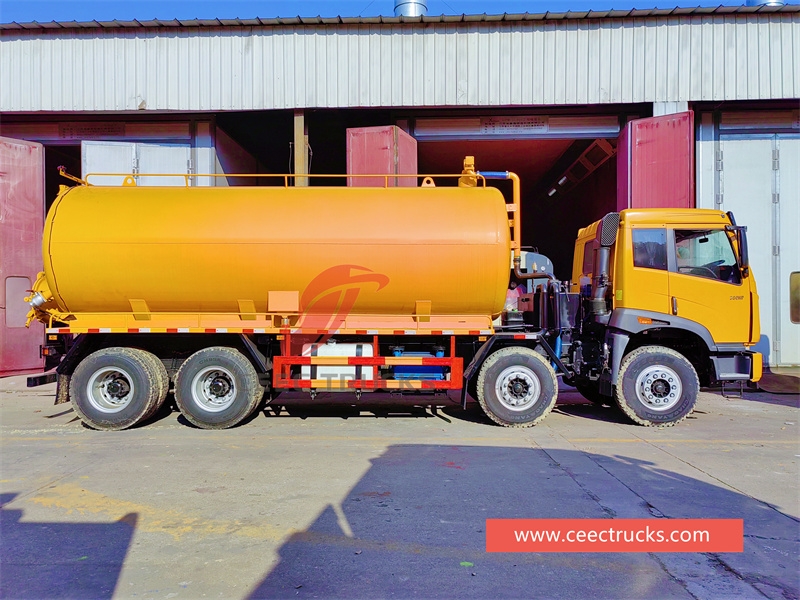

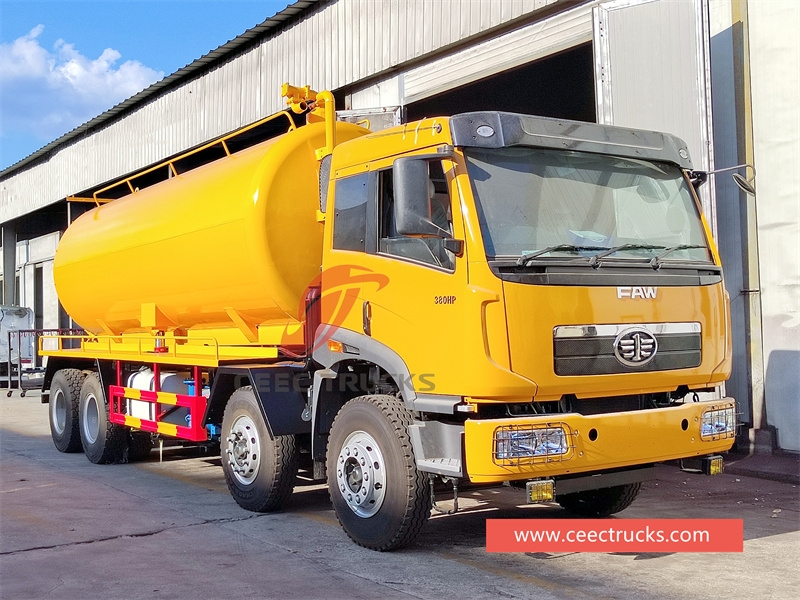

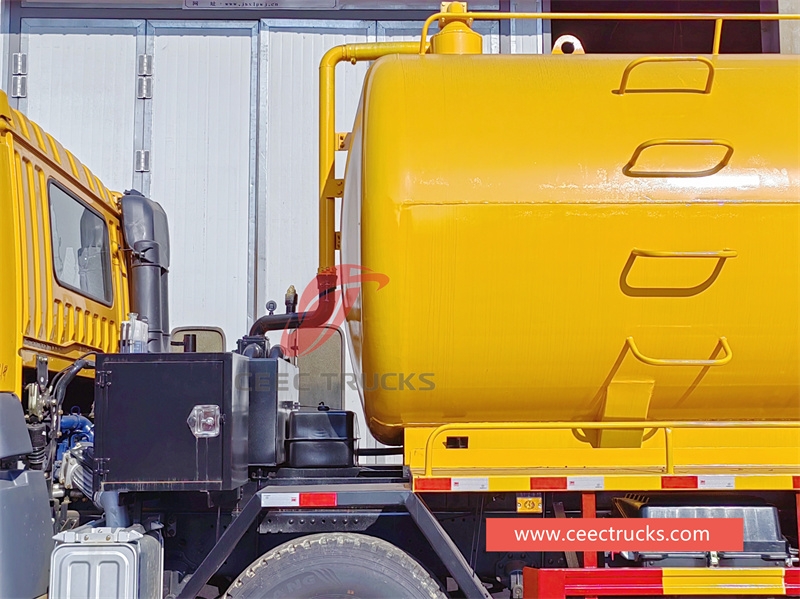

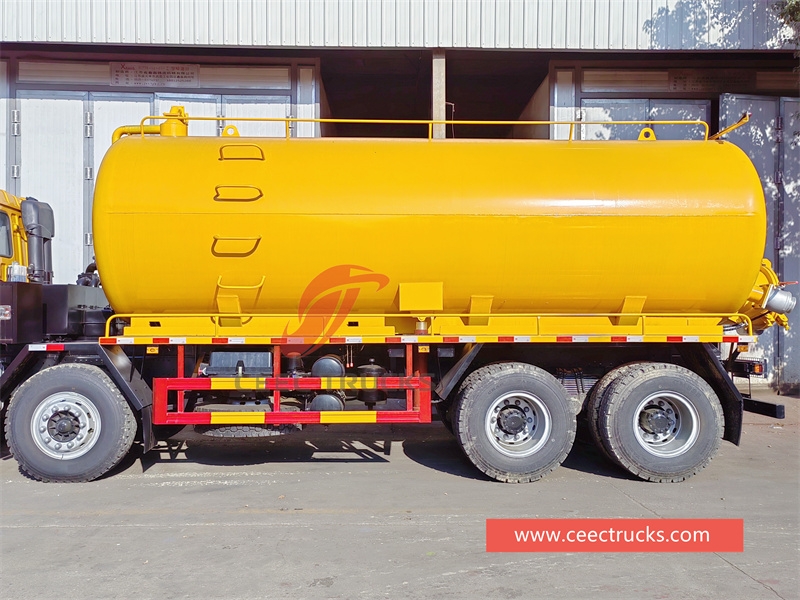

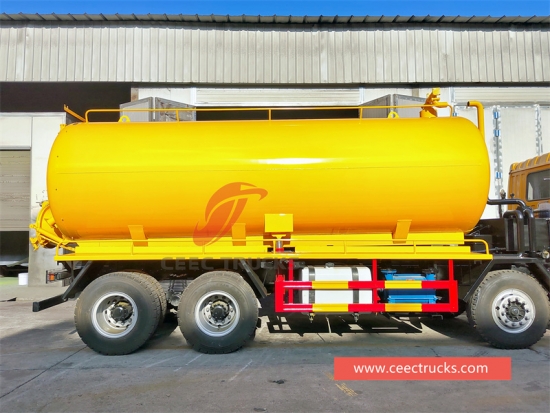

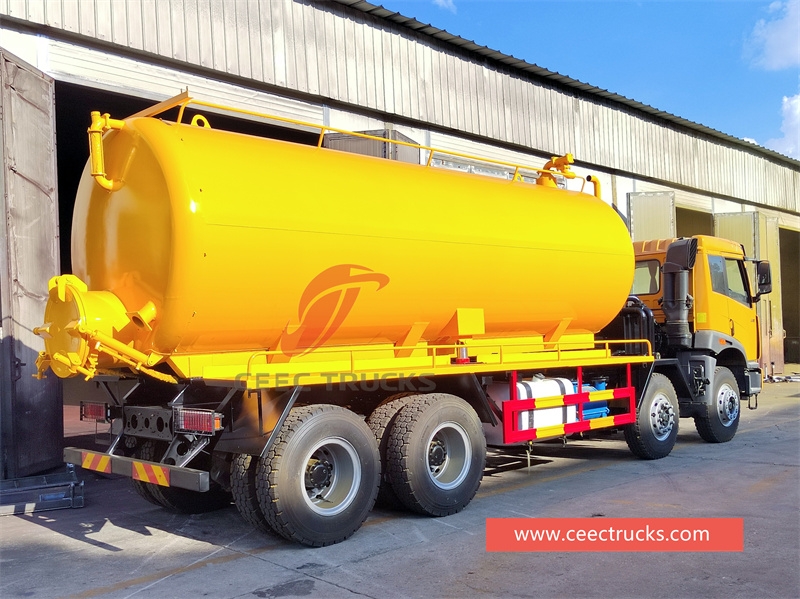

Detailed Photos:

FAW RHD 25,000L Vacuum Suction Tanker Trcuk



FAW RHD 25,000L Vacuum Suction Tanker Trcuk



Q：Why do heavy duty sewage suction trucks need water circulation pumps?


A：1.Improve sewage suction efficiency: The water circulation pump can help sewage suction trucks improve sewage suction efficiency by circulating water flow. The water molecules extracted by the pump circulate together with the inhaled dirt molecules, which increases the contact area between the sewage suction truck and the dirt and speeds up the sewage suction speed.

2.Enhance the cleaning effect: The water circulation pump can spray the cleaning liquid cyclically on the working parts of the sewage suction truck. Through the impact and scouring effect of the water flow, the dirt surface can be better cleaned and the thoroughness of cleaning can be improved.

3.Reduce environmental pollution: The water circulation pump can effectively control the splash and diffusion of pollutants that may be generated during the parking process. Through the action of circulating water flow, the dust, sludge and other pollutants that may be splashed can be re-concentrated, reducing the impact on the environment. pollute.

4.Save the consumption of cleaning fluid: The water circulation pump can reduce the consumption of cleaning fluid by recycling the cleaning fluid. During the cleaning process, the cleaning fluid will be used repeatedly, reducing the waste of cleaning fluid and saving cleaning costs.

5.Increase the service life of the sewage suction truck: The water circulation pump can help the sewage suction truck reduce the frequency and time of sewage suction, and reduce the working intensity of the sewage suction truck. At the same time, by reducing the number of repeated starts and stops of the pump, the service life of the pump is extended.


FAW RHD 25,000L Vacuum Suction Tanker Trcuk



CEEC TRUCKS is a leading vacuum tank trucks manufacturer in China. We supply Faw sewer sucker truck, ISUZU vacuum pump truck, Dongfeng septic pump truck, FOTON gully emptier, Howo vacuum suction truck, etc. We also customize vacuum tank trailers and vacuum tanker bodies to fit on customers truck chassis. The capacity of vacuum tankers can be 3,000-30,000 liters. Our vacuum sewage trucks are very popular in Southeast Asia, Middle East, Africa and South America because of the high quality and low price.

Drive Type

 8×4
Engine WEICHAI, 380HP
Cabin FAW lengthened cab(with one sleeper, air-conditioner and two new-style seat
Transmission MANUAL,10 forwards & 2 reverses
Front Axle 7Tons
Driving Axle 2X16Tons
Clutch hydraulically operating with air assistance
Rim/ Tire 295/80R22.5
Wheel base 1800+4600+1350(mm)
Capacity of tank body 25CBM
Diameter of suction tube Φ100mm
Suction depth ≥ 8 m
Vacuum pump type: Vane pump
Pumping speed: 318 m3/h
Rated speed: 1300rpm
Overall dimension 9400×2500×3850mm
The curb weight 12050(Kg)
Gross weight 25000 kg
Max. speed 95km/h
Color White, red, green, golden and so on.

CEEC TRUCKS is a leading exporter of  fuel tanker semitrailer in China. We possess over 10-year export experience of  oil tanker semitrailer. We can ensure the fast delivery time and 12 months guarantee for our hook lift garbage trucks. Our  fuel tanker semitrailer truck are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
