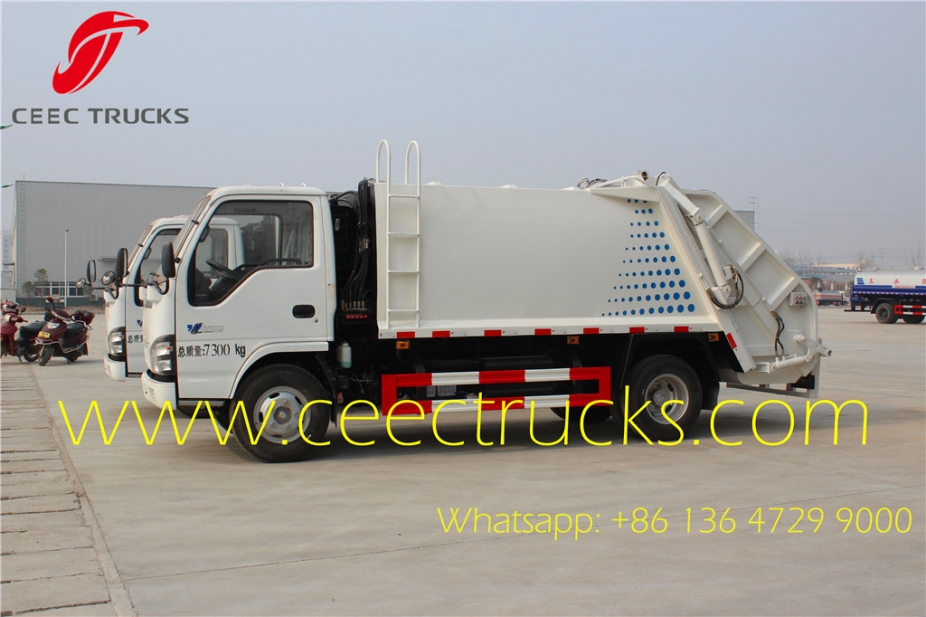

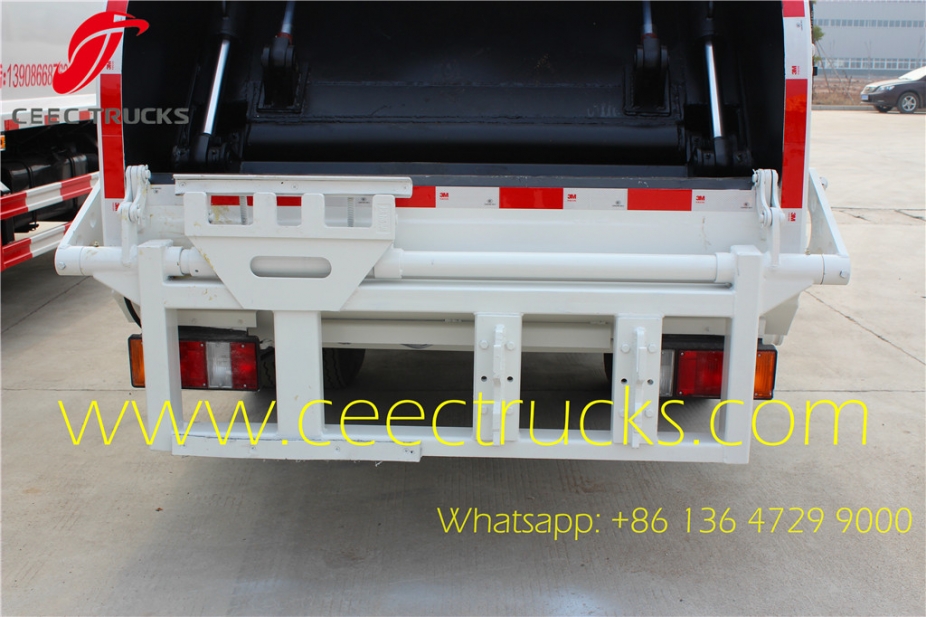

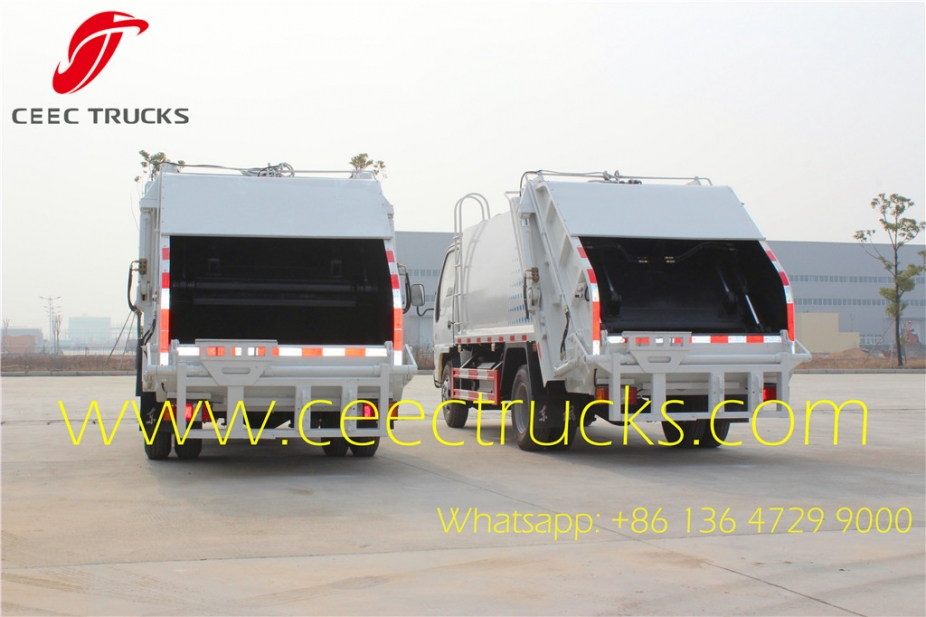

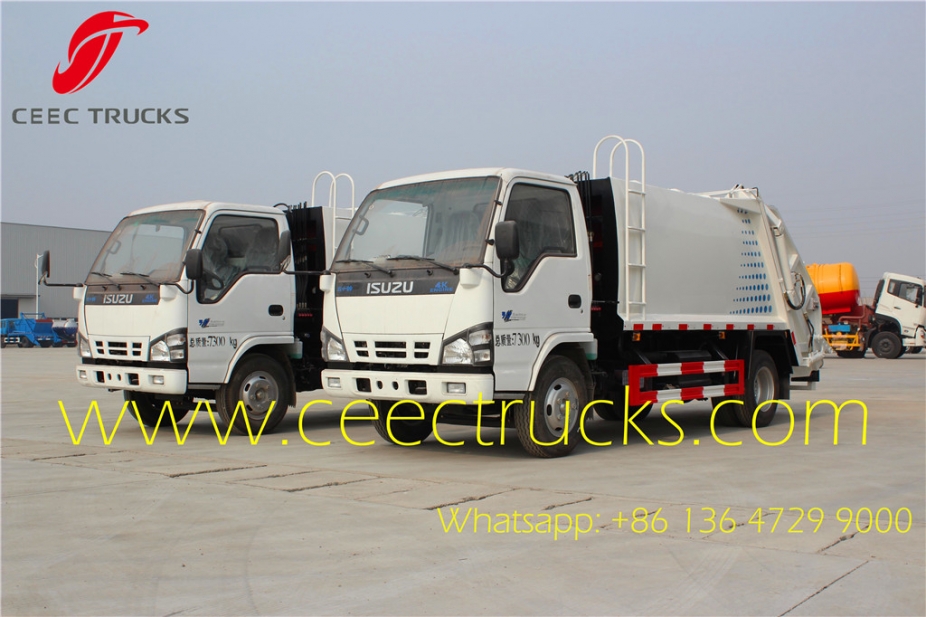

ISUZU 4 CBM refuse compactor truck supplier

4 CBM Garbage Compactor ISUZU

ISUZU 4 CBM compressed refuse trucks export Myanmar Yangon, ISUZU 4*2 chassis, 4KH1-TCG40 engine with 120HP, MSB 5-shift manual gearbox, carbon steel material tanker body, with thickness for side and floor 4mm. our LHD ISUZU 4000 liters trash compressors widely export Africa countries

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    15 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $25,000-35,000
  • Market Price:

    $29000
contact now

ISUZU 4 CBM Garbage Compactor Truck also can be called Trash Compressor Truck, Refuse Compression Truck, Refuse Collection Truck, Rubbish Compactor Truck, Bin Lorry Truck etc. China NO.1 isuzu refuse compressor trucks are mainly designed and produced to collect, compress and transport municiple solid waste.



Myanmar 4 CBM trash compactor trucks ISUZU



ISUZU 4 CBM compactor truck



Garbage compactor trucks is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection. The operation system could be manual or electrical control.

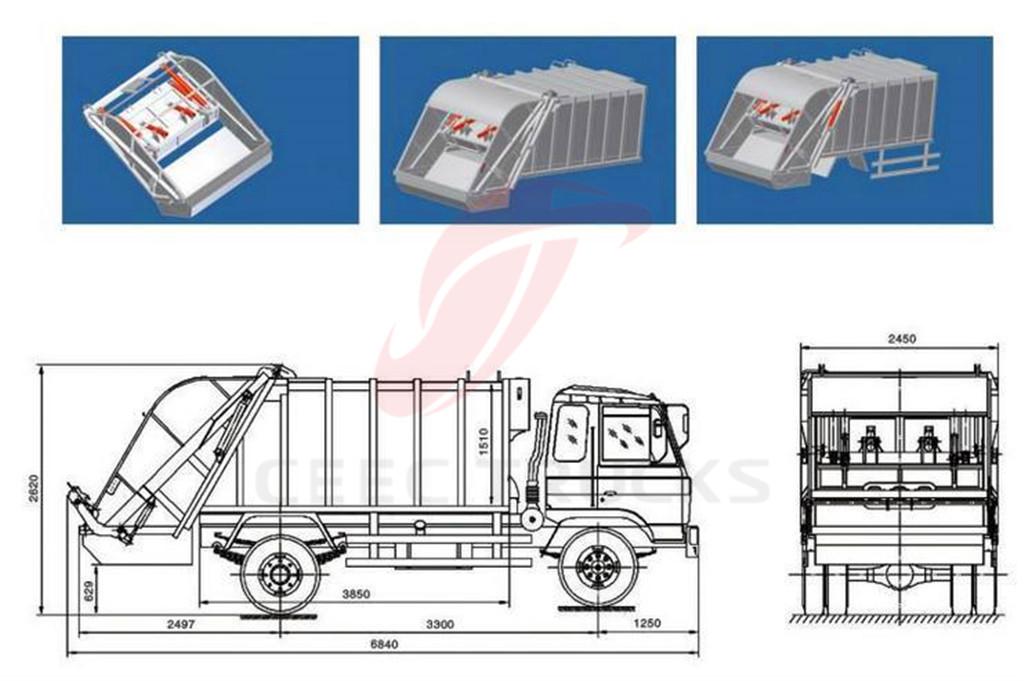

ISUZU 4 CBM compactor garbage truck drawing dimension



Below details will help know what is ISUZU 4-5 CBM Garbage Compactor Truck:

----Garbage compactor truck is composed of hermitical garbage box, hydraulic system and operating system.

----The garbage truck could apply pressure to the waste to breakdown bulky items, to load and transport more garbage by one time.

----Dirty liquid flows into waste water collection tank,perfectly preventing re-pollution. ----When arriving at destination, thegarbage can be discharged completely.

----The operation system could be manual or electrical control

----It is ideal solution for all kinds of solid wastecollection.

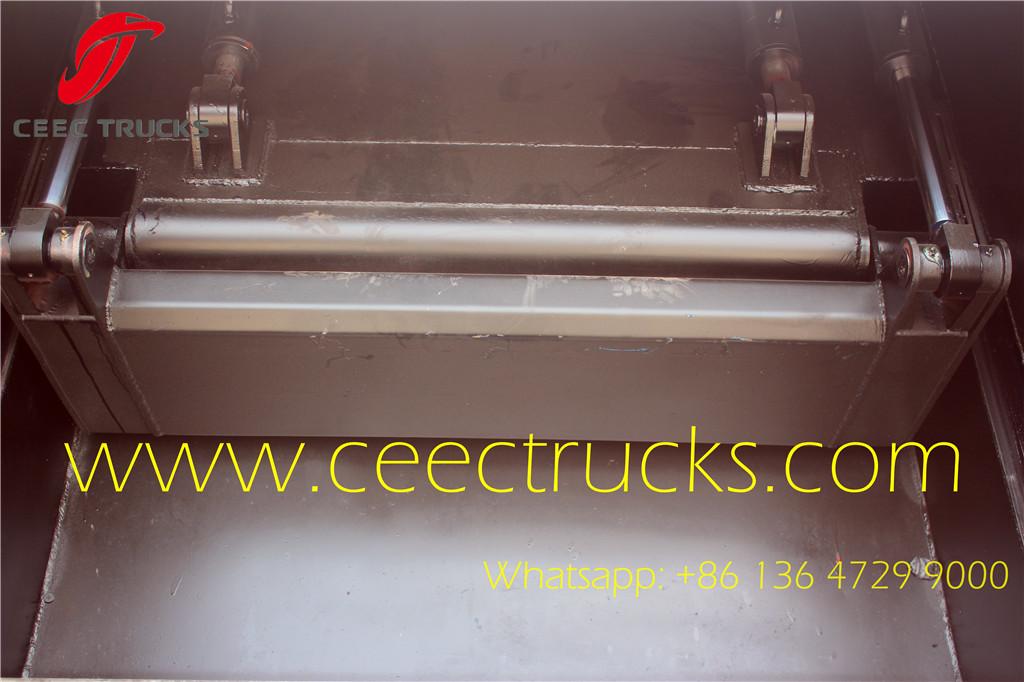

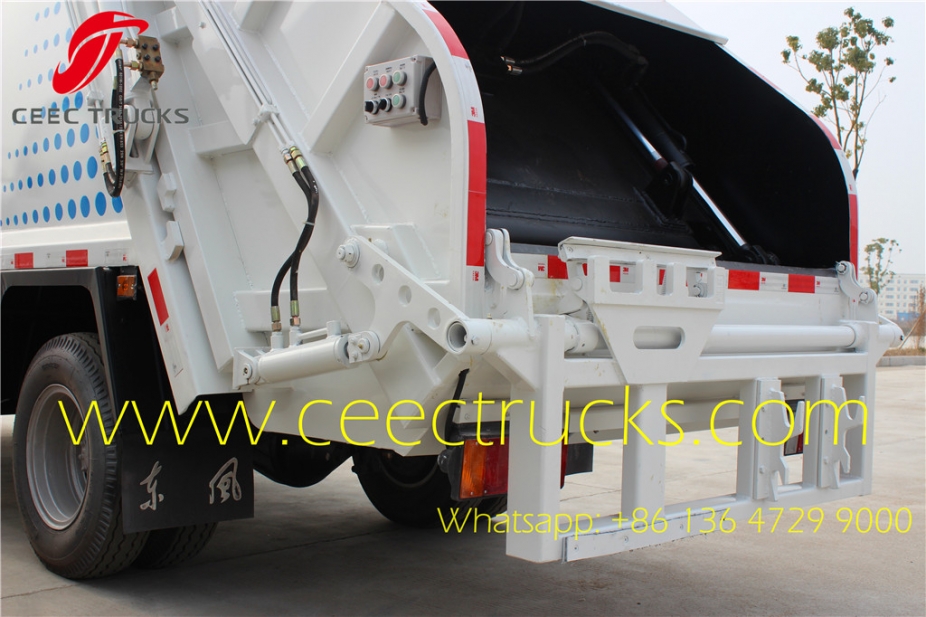

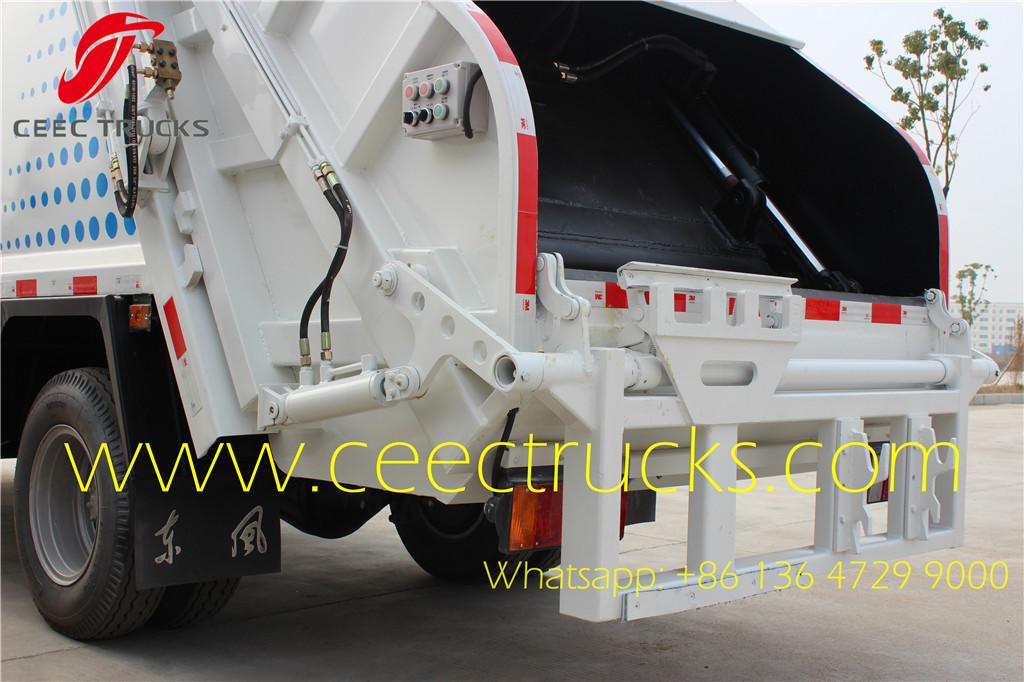

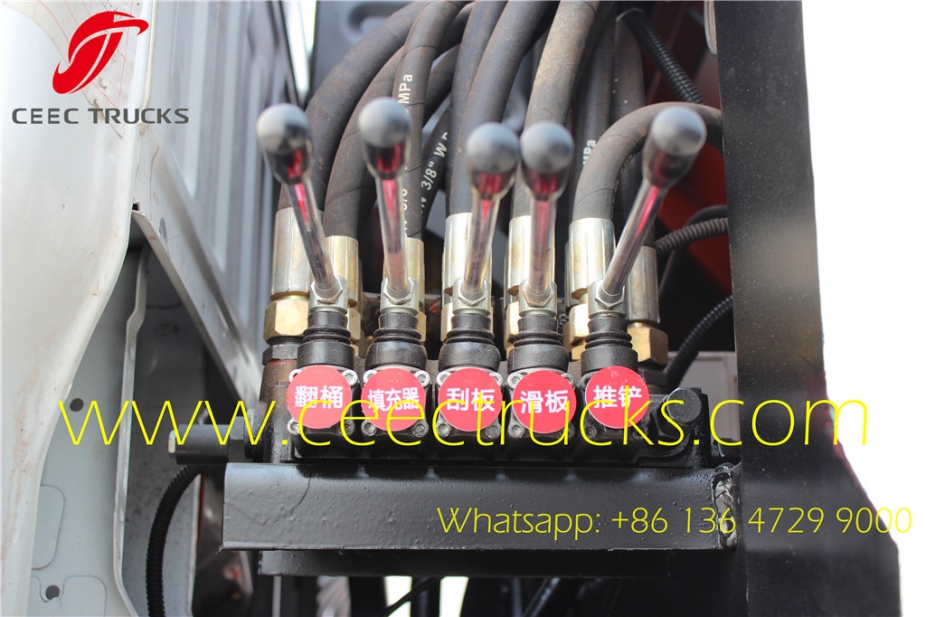

CEEC garbage compactor truck loading system

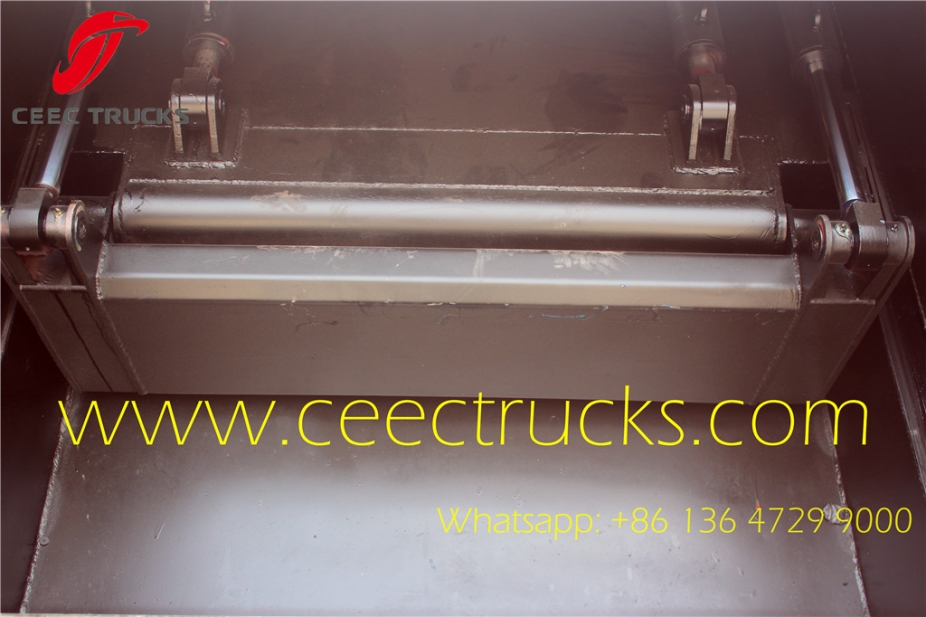

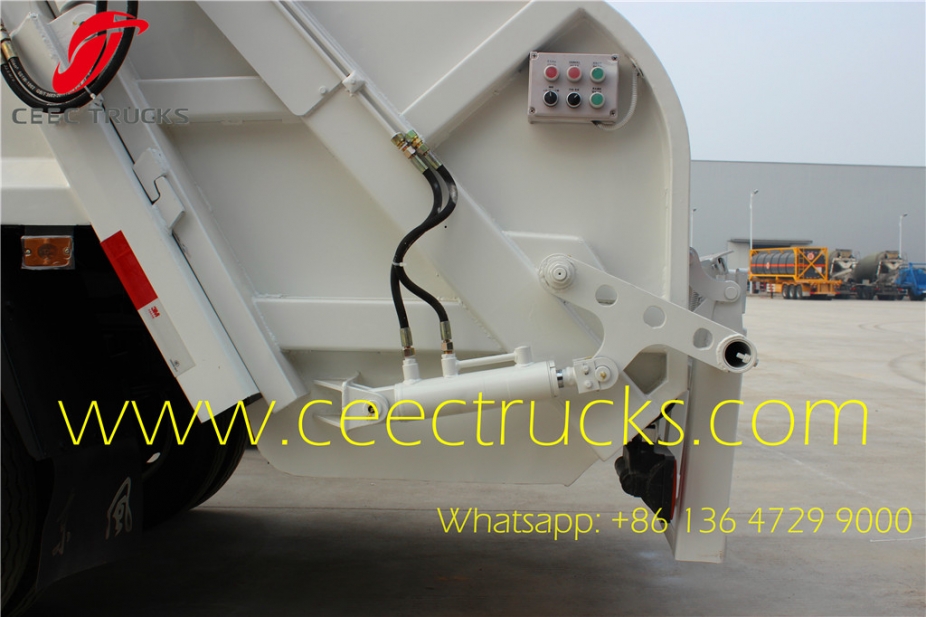

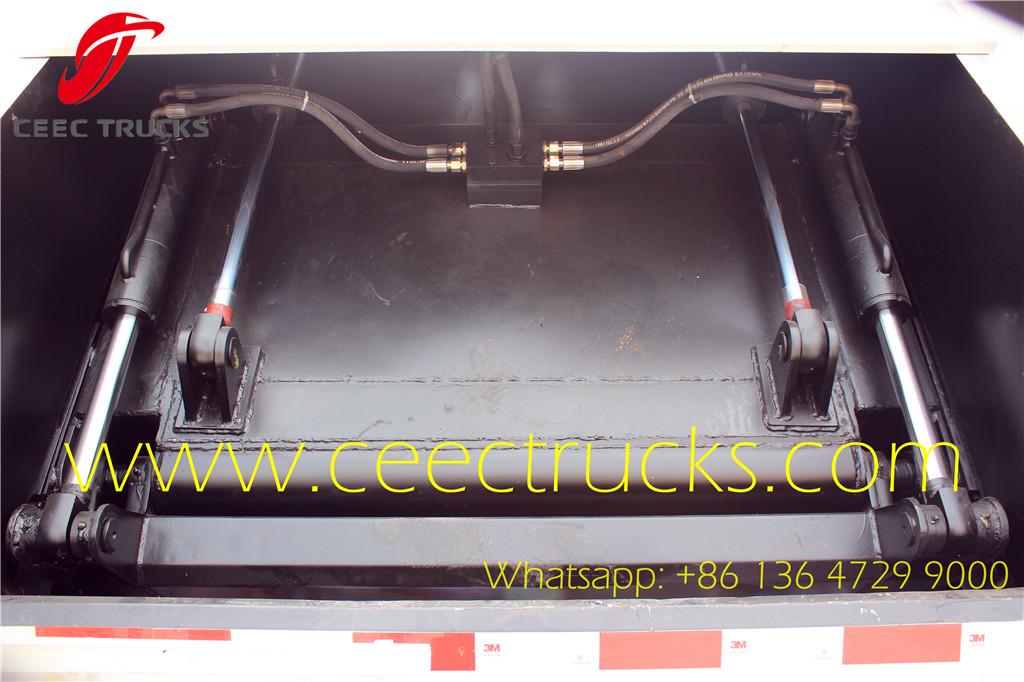

Above show CEEC produced ISUZU 4 CBM trash compressor truck Compact System, which mainly consist of Tilting Device (optional for 240L & 360L, 660L & 1100L rubbish bins); Slide Plate; Scraper; Push Plate & Rear Tail Gate. All parts are well-designed, strong structure and light self-weight.

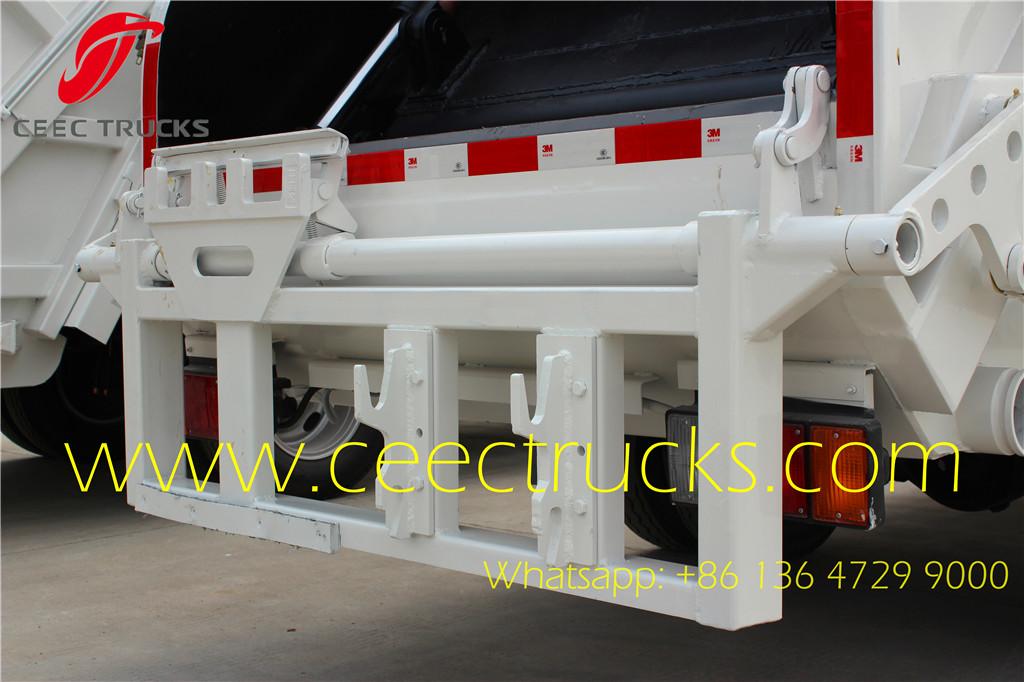

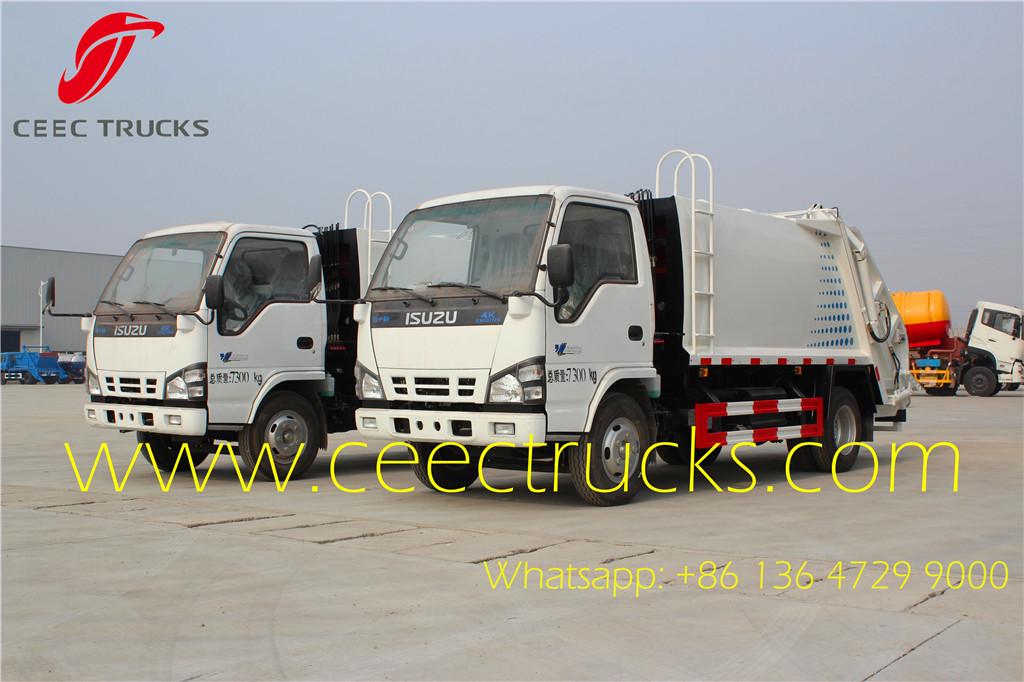

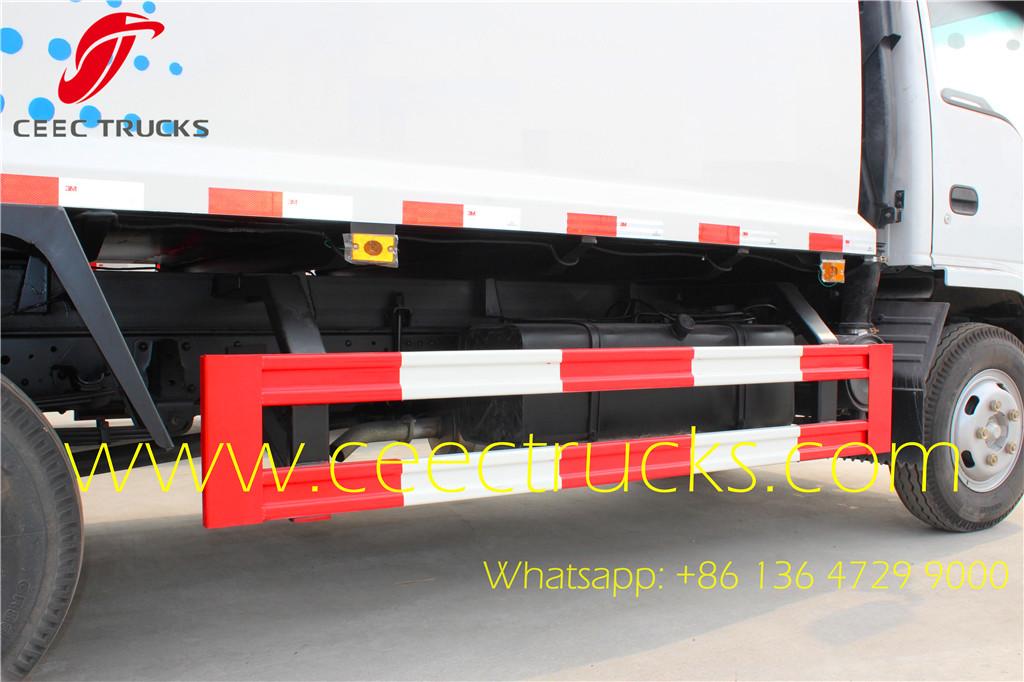

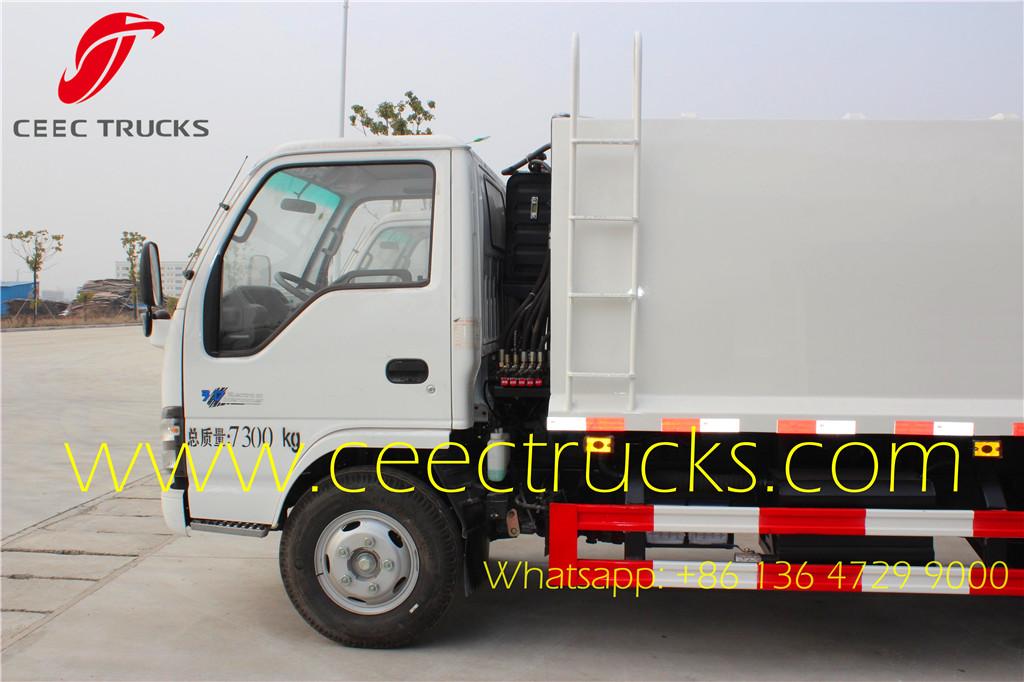

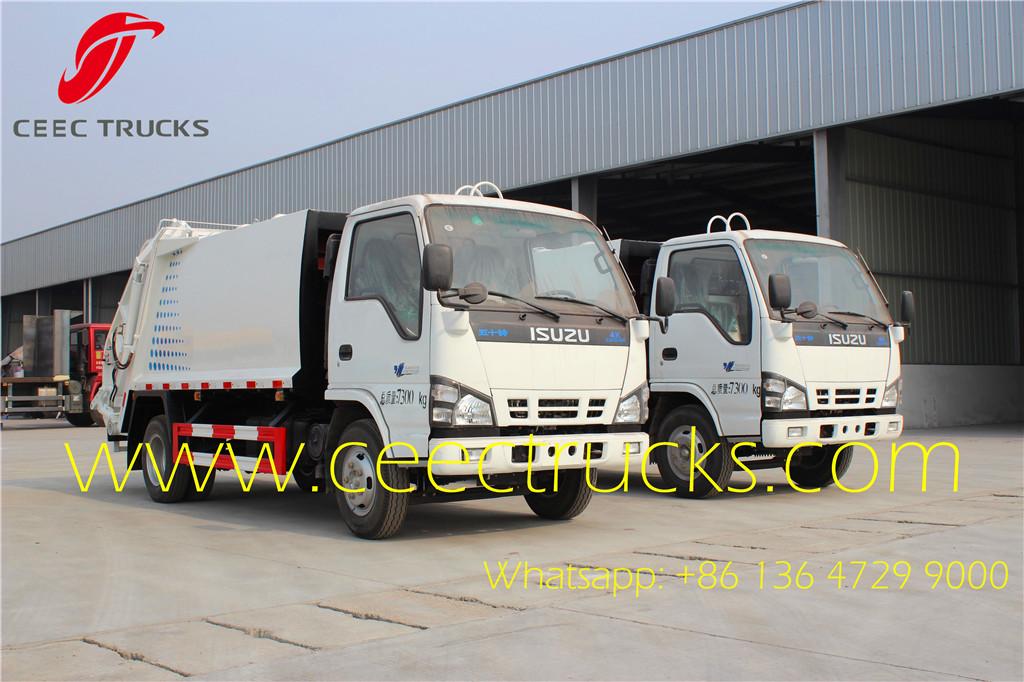

ISUZU 4 CBM trash compactor trucks

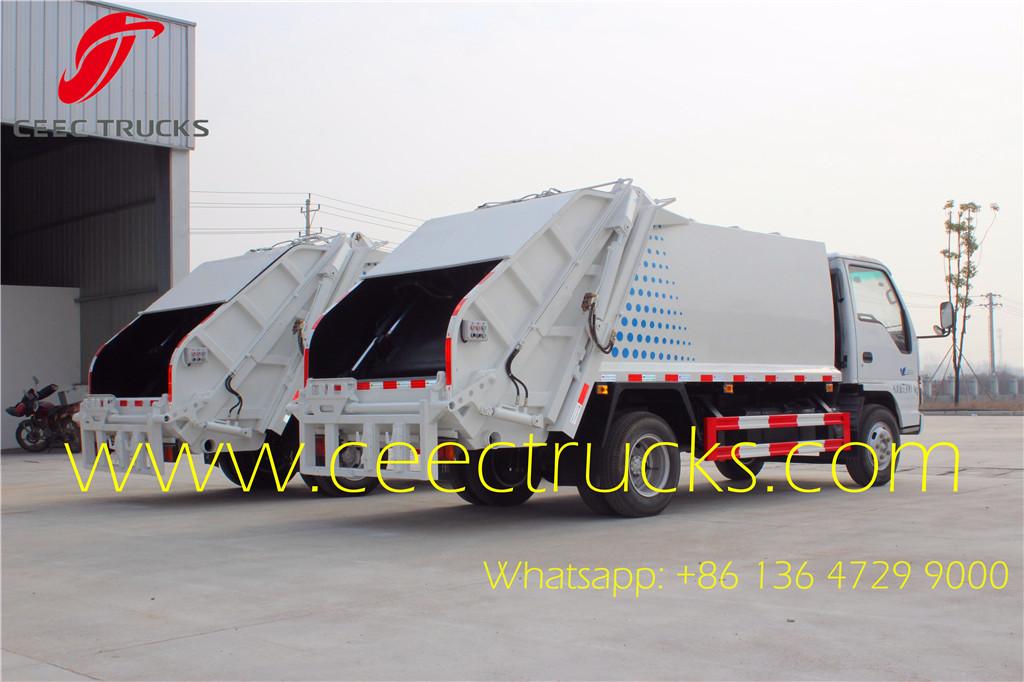

ISUZU 4 CBM trash compactor trucks

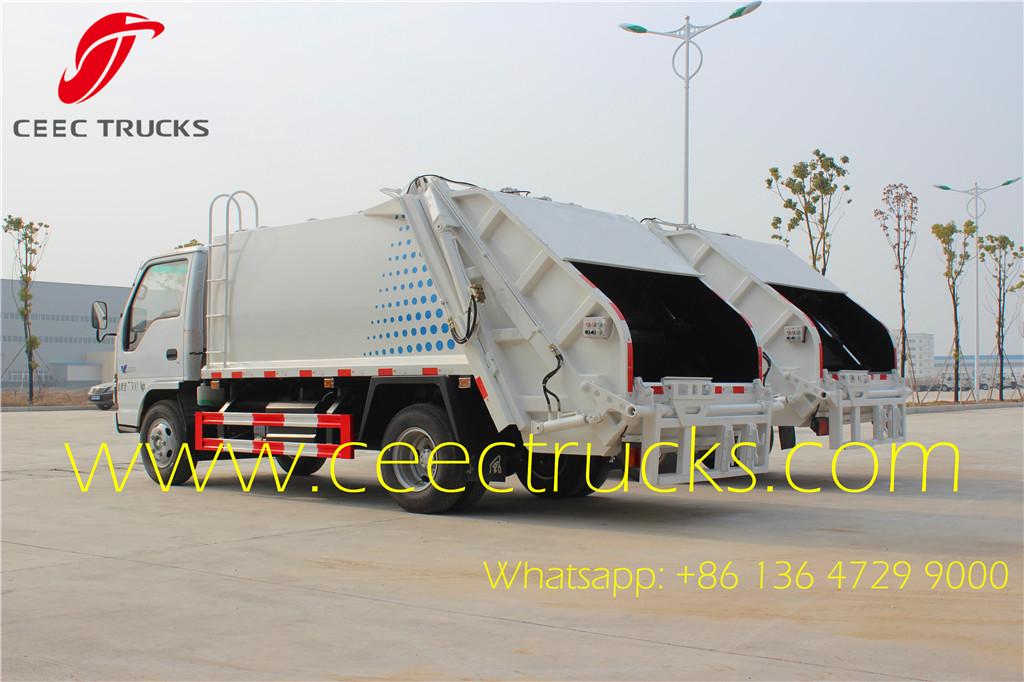

ISUZU 4 CBM trash compactor trucks



ISUZU 4 CBM trash compactor trucks



Similar KeyWords:  ISUZU garbage compactor, trash compactor,waste compactor, refuse compactor, compactor truck, rear loader, dustbin lorry,garbage compactor vehicles, garbage compacting truck, refuse collector, waste compactor, waste compactor truck, garbage compactor truck, refuse collectiontruck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry,waste collection vehicle

Myanmar ISUZU Garbage Compactor ISUZU ( 4-5 m³)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

ISUZU

Overall Dimension

6950 * 2000 * 2600 mm

GVW / Kerb Weight

7,300 kg / 4,900 kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

W/ air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU engine, 4HK1

Power

120 Hp (88 KW)

Displacement

2999 ml

Emission Standard

Euro IV

Chassis

Drive Type

4X2, left hand drive

Transmission

ISUZU gear box, no overhaul within 500,000km

Wheelbase/No. of axle

3360 mm / 2

Tyre Specification

7.00-16

Tyre Number

6 tyres and 1 spare tyre

Max Speed

105 km/h

Paint

Metallic paint

Superstructure

Waste Box Capacity

4m³

Waste Box Material

Carbon steel

All other standard accessories: Tool kit, English manual……

Optional

**Various rear loading mechanism: container lifting; hopper flip; skip loader…
 **Electronic operating system

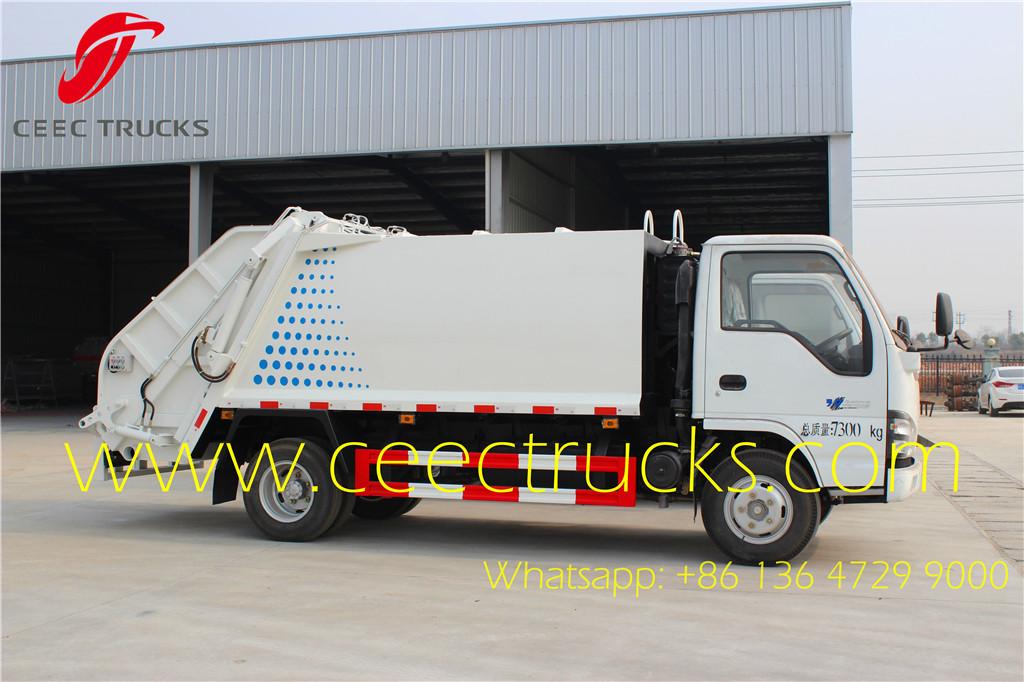

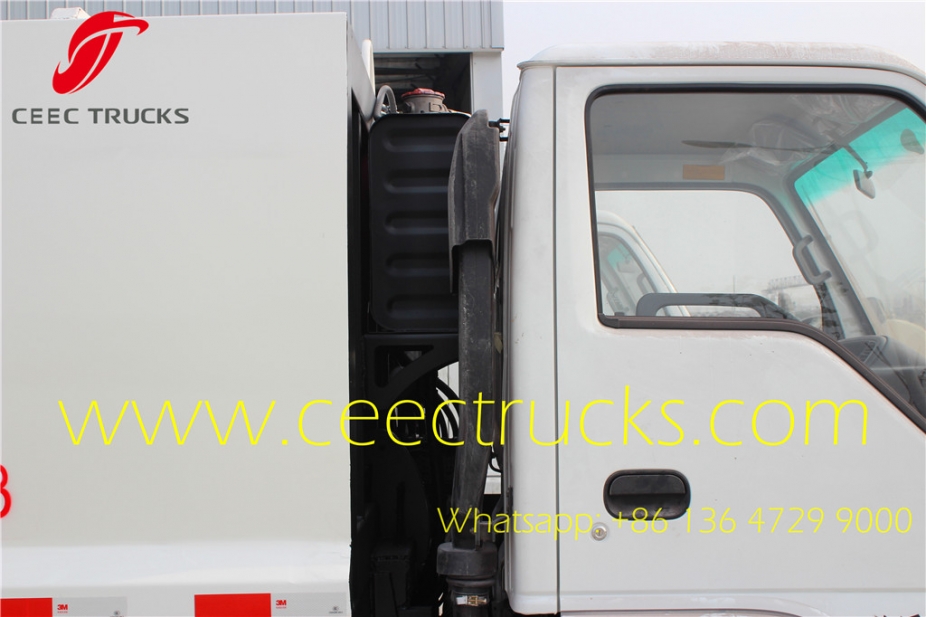

ISUZU 4 CBM trash compactor trucks



ISUZU 4 CBM trash compactor trucks     ISUZU 4 CBM trash compactor trucks



ISUZU 4 CBM trash compactor trucks     ISUZU 4 CBM trash compactor trucks



ISUZU 4 CBM trash compactor trucks     ISUZU 4 CBM trash compactor trucks



Garbage compactor trucks on sale





Other beiben trucks display





Save

Japanese technology ISUZU chassis, equipped original ISUZU 4KH1-TCG40 engine, with 120 ps

ISUZU MSB 5-shift manual gearbox, 5 forward & 1 reverse

Profession garbage compactor system manufacturer over 10 years

Standard tilting device for international bins 120L, 240L, 660L, 1100L

12 months free fast moving spare parts

Authorized isuzu trucks exporter.

Training service for isuzu garbage compactor trucks



Year 2015 export Myanmar Yangon 10 Units ISUZU garbage compactor trucks

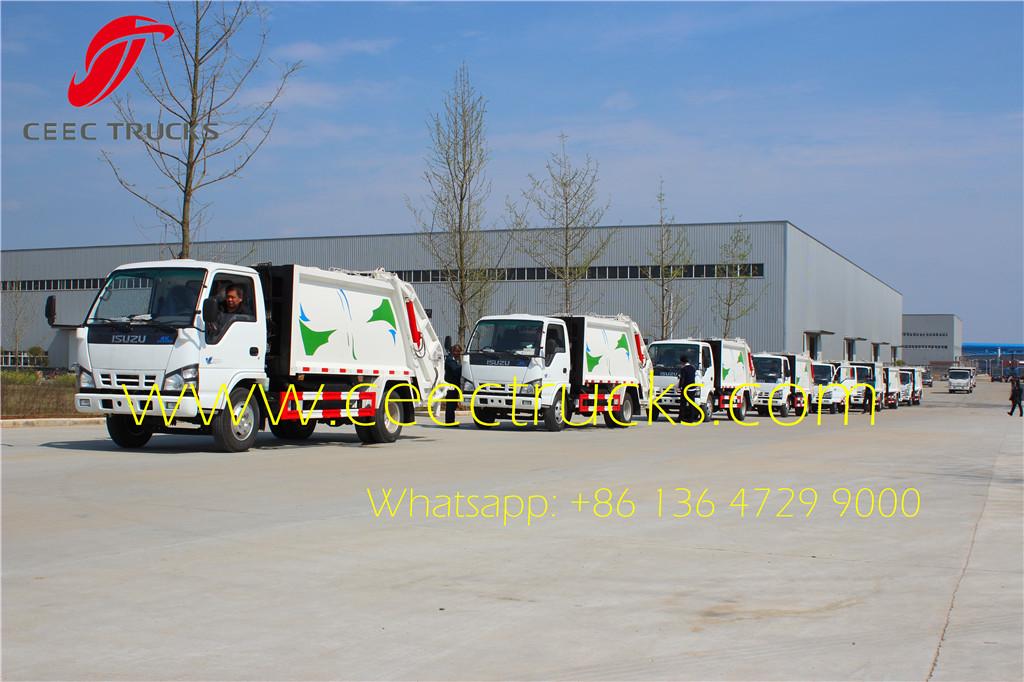

Myanmar Yangon ISUZU 4cbm garbage compactor truck

        (Our Engineers doing last examination and testing for 10 units ISUZU garbage compactor trucks)



Myanmar Yangon ISUZU 4cbm garbage compactor truck

(10 units ISUZU garbage compression trucks ready delivery to Shanghai seaport for Myanmar Yangon)
