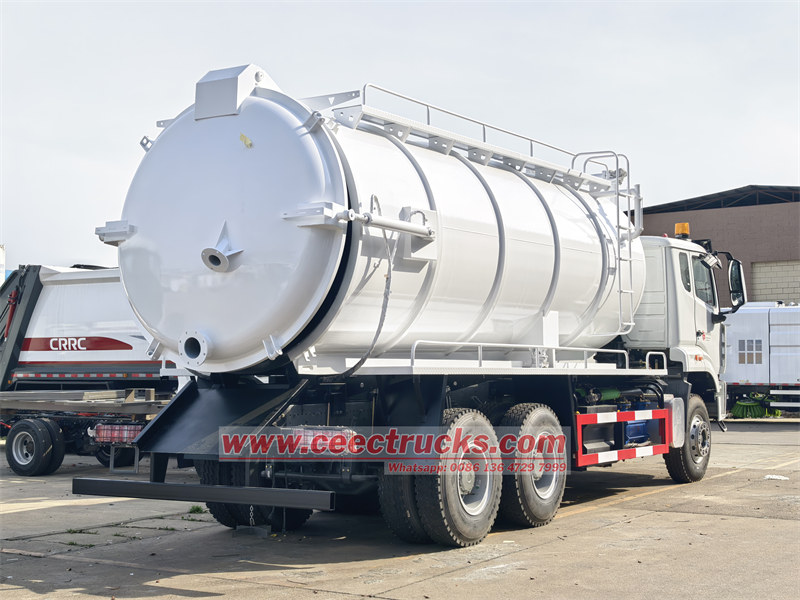

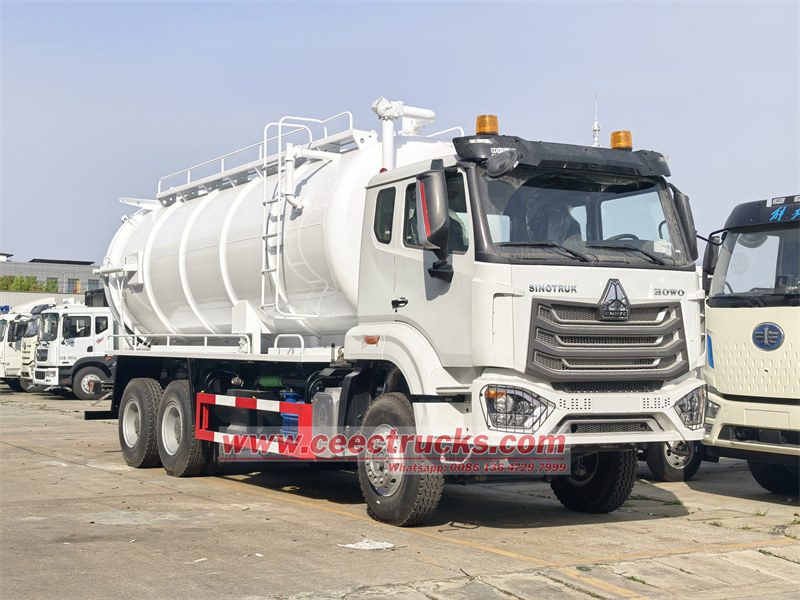

West Africa customer from Cote Divoire purchased Sinotruk HOWO 22cbm cesspool vacuum suction truck, which used for vacuum sewage suction, transportation and discharge in city, community, factory and hospital, etc. Howo 22000L septic pumper truck full relay on the advanced features of HOWO NX new cabin truck chassis, equipped with top 1 Chinese brand WEICHAI model WD615.47 diesel engine, with efficiently horse power can be 371HP, turbocharge and intercooling model, six cylinder and four stroke, matched working with howo HW19710 model 10 shift manual gearbox, very lower fuel consumption. Customized 22000Liters round shape tanker body kit is designed based on Q355 material, thickness for tanker 6mm and cover 8mm, matched with water cycle model 2BE-204 model vacuum pump and efficiently suction flow rate can be up to 21m3/min, equal to 350L/s. Matched working with multiple safety device, including first overflow level gauge and second overflow level gauge, also rear dome type view window for safety. Full hydraulic control system for vacuum tanker body lifting up and falling down, also rear door hydraulic open and close.

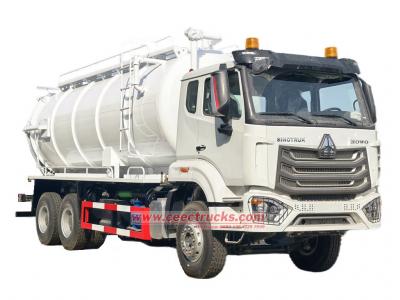

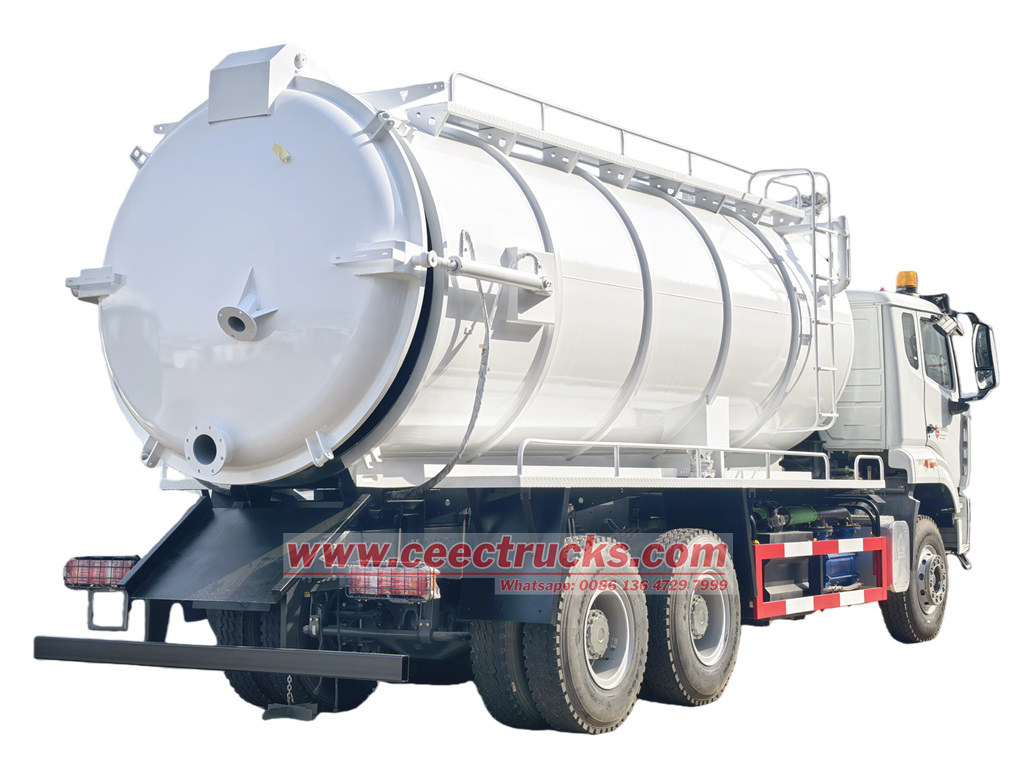

*Sinotruk HOWO NX 22000L Vacuum Suction Truck

    HOWO 317HP Septic Pumper Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦ Product Introduction of HOWO NX Vacuum Truck « « «

Manufacturer: CEEC Trucks Group

Features:

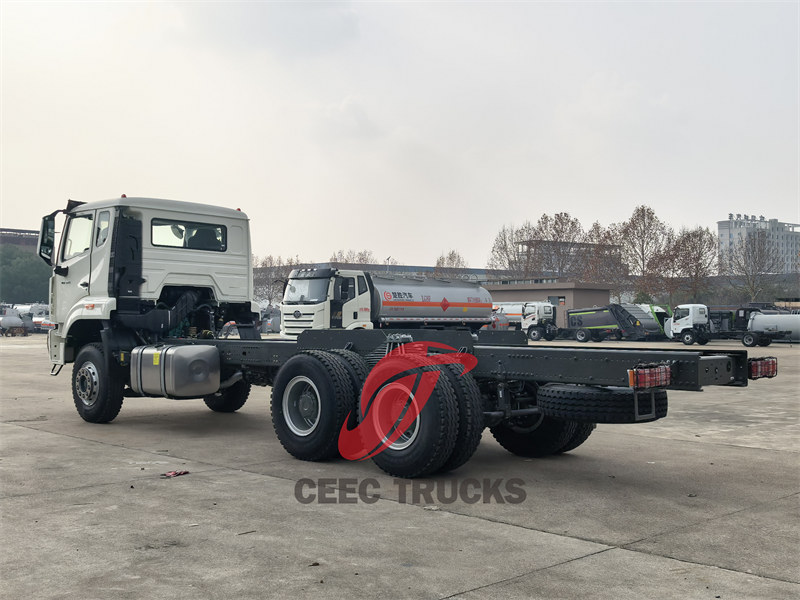

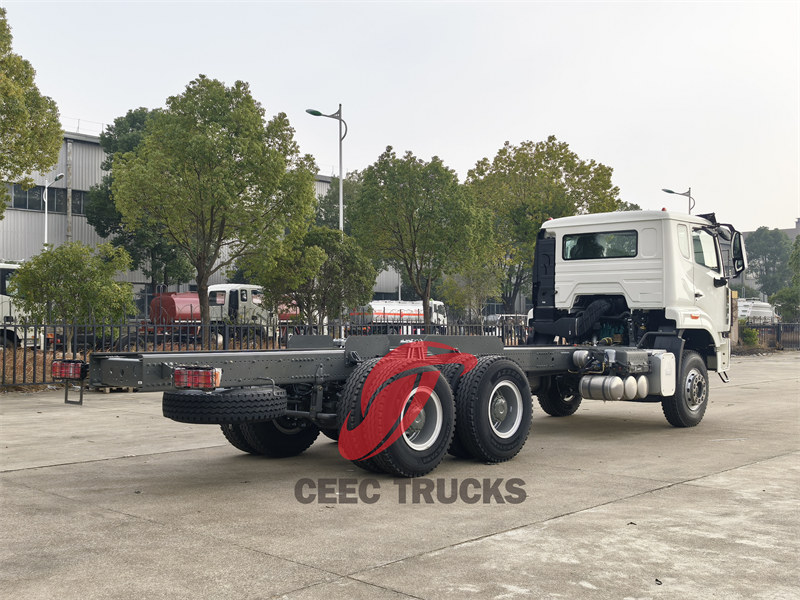

1. Truck Chassis: SINOTRUK HOWO NX truck chassis, LHD / RHD model optional

                              WEICHAI WD615.47 diesel engine 371HP and emission 9726cc.

2. Tanker Body Kit: Full welding round shape, Q355 steel, thickness for body 6mm and cover 8mm

3. Vacuum Pump:Top 1 Chinese brand 2BE-204 model, efficiently flowrate 21m3/min, equal to 350L/s

                              Optional MORO, BP, WEILONG, CEEC, etc.

4. Specialized Equipment: Top mmounted wonder hose, hydraulic control type, 7-10m hose reel.



✦ Product Parameter of ISUZU 520HP sewer Jetter « « «



Vehicle Dimensions, Weights & Capacities	Chassis brand	Sinotruk HOWO NX 371 model
	Overall dimension (L*W*H)	9800*2550*3650mm
	Wheelbase	4600+1350mm
	Curb weight	14,000 Kgs
	Gross weight	25,000 Kgs
	Axle loads	9000/13000+13000Kgs (Two-Axis Group)
Chassis	Drive mode	6x4
	Cabin type	Standard roof one bed
	Seats	2 seats + 1 berth
	Steering	LHD / RHD optional
	Tyres	10+1 spare tyre, 12.00R20
	A/C	Air conditioning
Engine	Enging model	WEICHAI WD615.47
	Fuel and engine Type	Diesel, 6 cylinders in-line
	Horse power	371HP
	Displacement	9.726L
Other Standard Configurations	1	Power Steering System
	2	Air Conditioning
	3	ABS, Automatically Air-cut Brake
	4	Tubeless tyres
	5	Retro-Reflective Marking
	6	Free Maintenance Battery
	7	Central Lock
	8	Power Window
	9	USB, Radio
	10	Widened Bumper
	11	Aluminum Alloy Gas Tank
	12	Front Chrome Kit for option
Tops Parameters	Loading Capacity Volume	22,000 Liters ( Other capacity can be customized )
	Tank Material	Strengthen high performance wear-resisting carbon steel Q355 with anti-corrosion treatment paint, thickness for tanker 6mm and cover 8mm
	Colour	As demands
	Logo Paint	As demands
	Others	Standard, customized top mounted wonder hose for suction











✦ Why choose HOWO NX 6x4 Sewage Pump Truck« « «

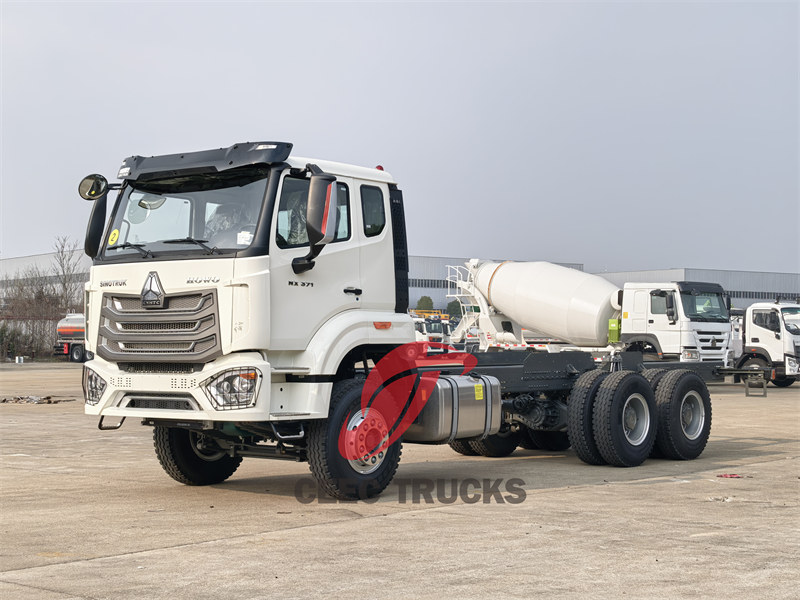

Howo 22000L vacuum sewage truck is designed based on Sinotruk HOWO truck chassis, NX new cabin model with air suspension seat, matched with AC for convenient driving, also all necessary lighting device for safety notice, equipped with top 1 Chinese brand WEICHAI model WD615.47 diesel engine, with efficiently horse power can be 371HP, turbocharge and intercooling model, six cylinder and four stroke, matched working with howo HW19710 model 10 shift manual gearbox, very lower fuel consumption. Standard 12.00R20 tires with front single tyre and rear double tires for safety driving. Below are detailed pictures for checking:





HOWO NX model 6x4 sewer dredging vacuum truck is designed and used for suck sewage, sewage slurry, debries, small bricks, gravel, etc. With efficiently self suction and self discharge function. Widely used in Caribbean, Middle American and South American countries, including Honduras, Belize, Salvador, Nicaragua, Guyana, Surinam, Peru, Haiti, Dominica, St Martin, Trinidad and Tobago, etc.



Name	Sinotruk HOWO 6x4 Sewage Suction Truck
Cabin	HOWO NX, optional color and painting
Driving	LHD / RHD
Engine	WEICHAI WD615.47 diesel engine, 371HP and emission can be 9726cc
Tranmission	HW19710 10 shift manual type, 10F & 2R
Wheelbase	4600+1350 mm
Tire	12.00R20 model with 10+1 untis



Capacity	22000Liters / 22CBM
Tanker Material	Q355 material, thickness 6mm / 8mm
Vacuum Pump	Top Chinese brand 2BE-204 model Flow rate: 21m3/min, equal 350L/s Power: 37 Kw Speed: 980rpm
Hose Reel	Standard 10m hose reel DN100 model, matched with reducer for rear DN150 discharge valve working
Pipe Storage Platform	Two sides mounted with platform
Painting	100% customized painting and logos



✦ HOWO 22cbm Sewer Truck Configuration« « «

•

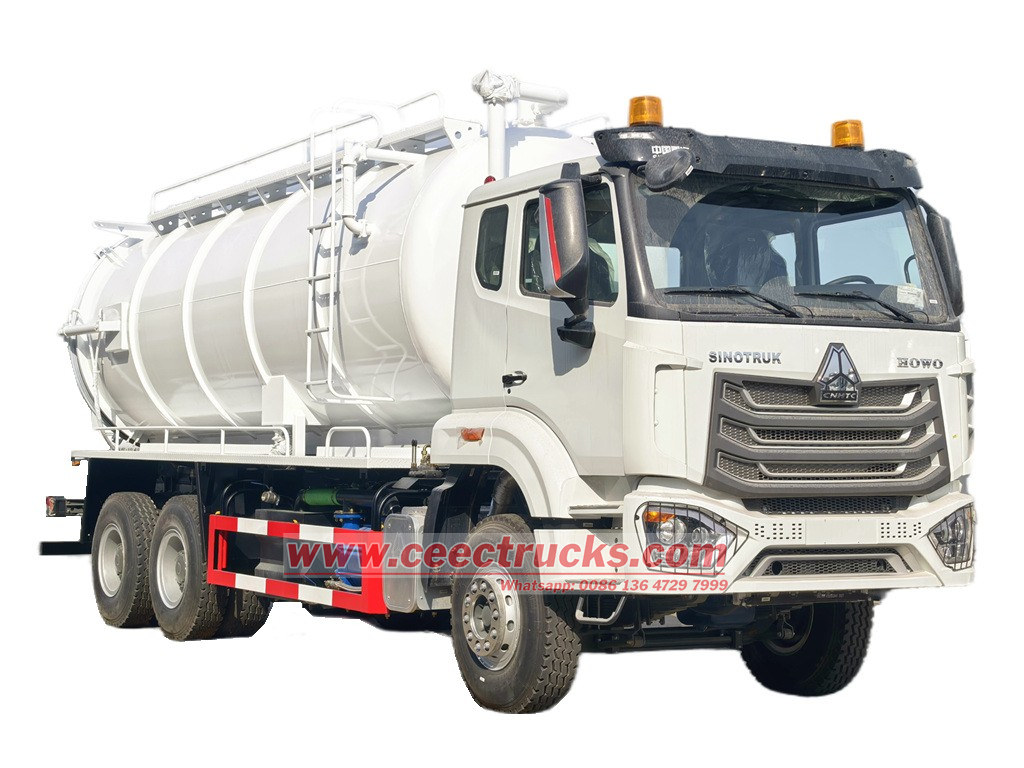

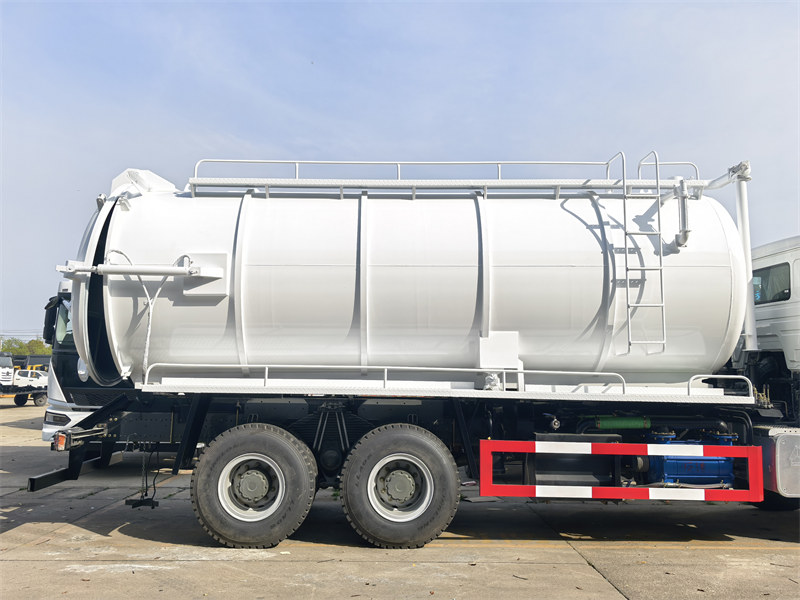

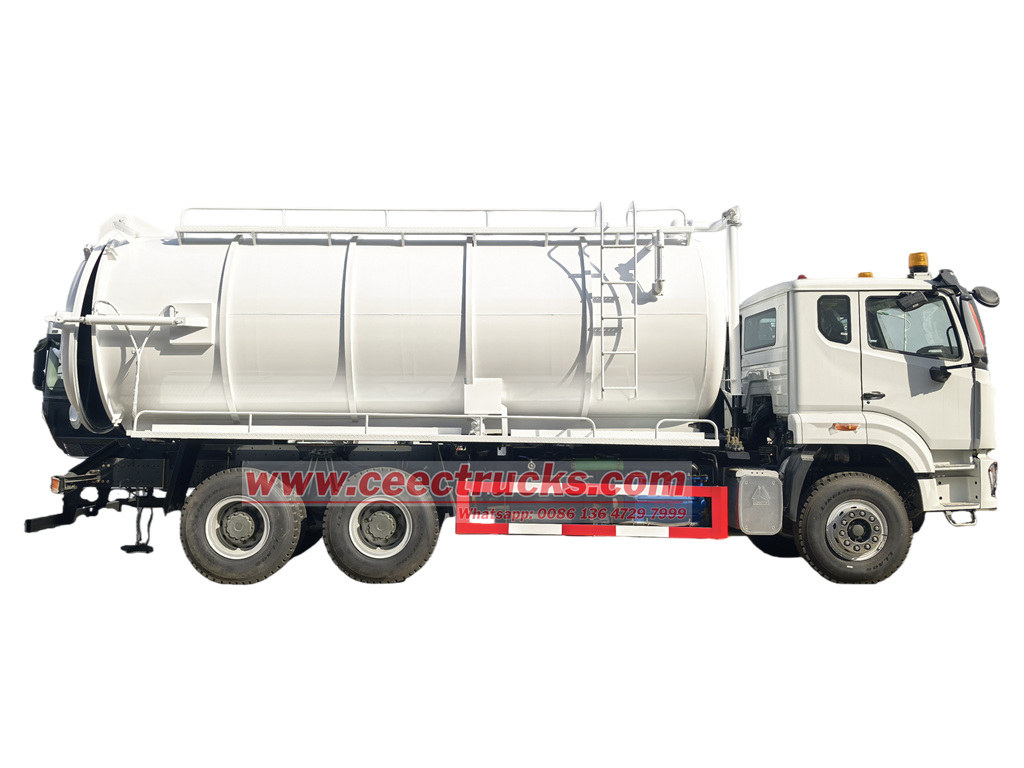

  HOWO vacuum truck side view
•

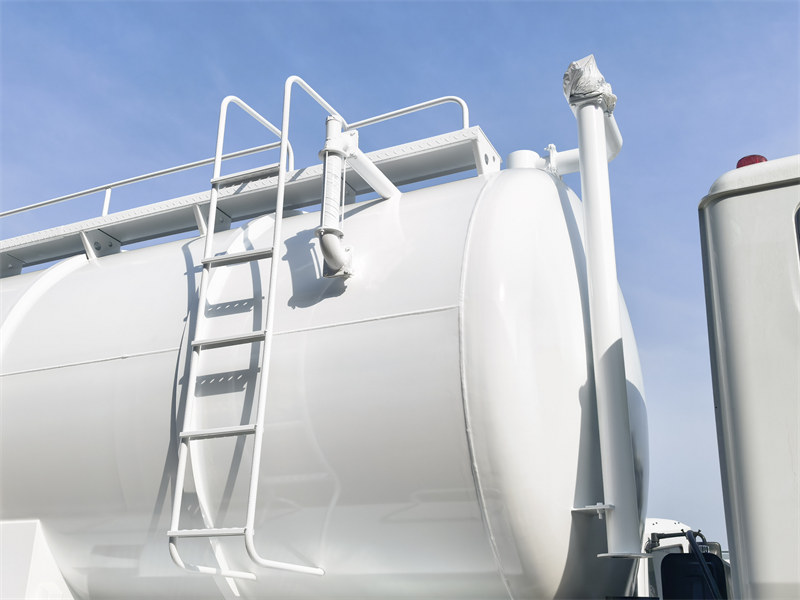

  Vacuum truck with side ladder and view window
•

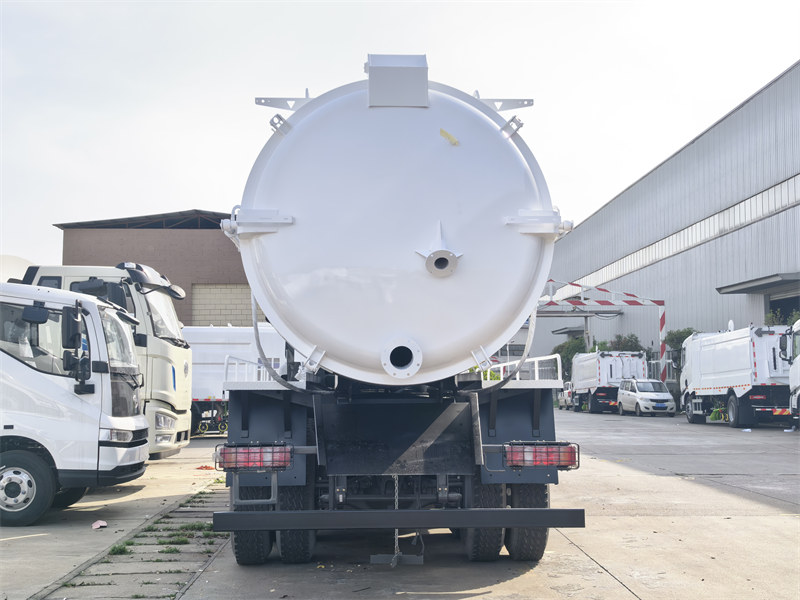

  Inlet and Outlet valve all on rear door

•

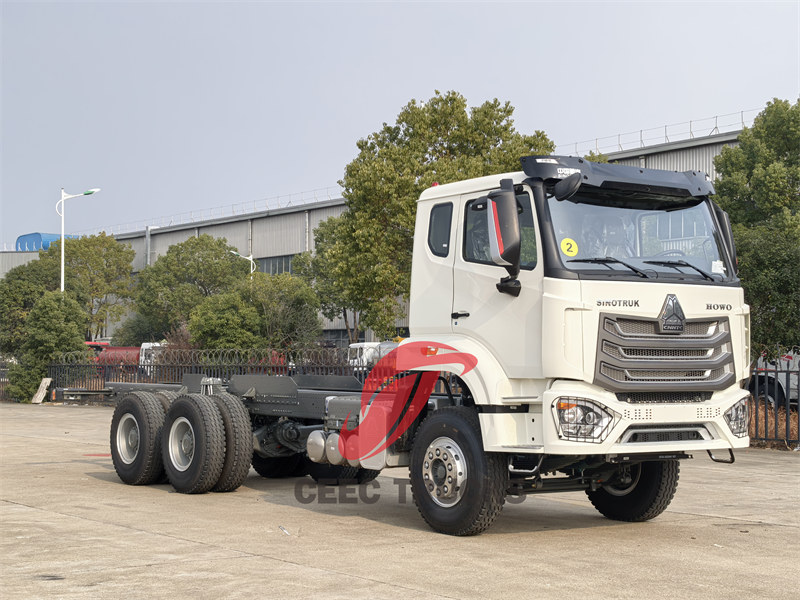

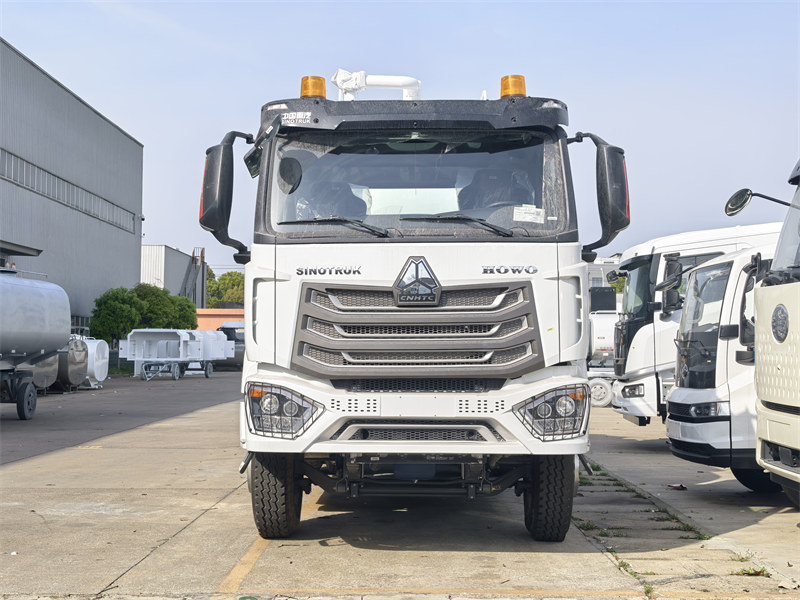

  HOWO NX truck cabin
•

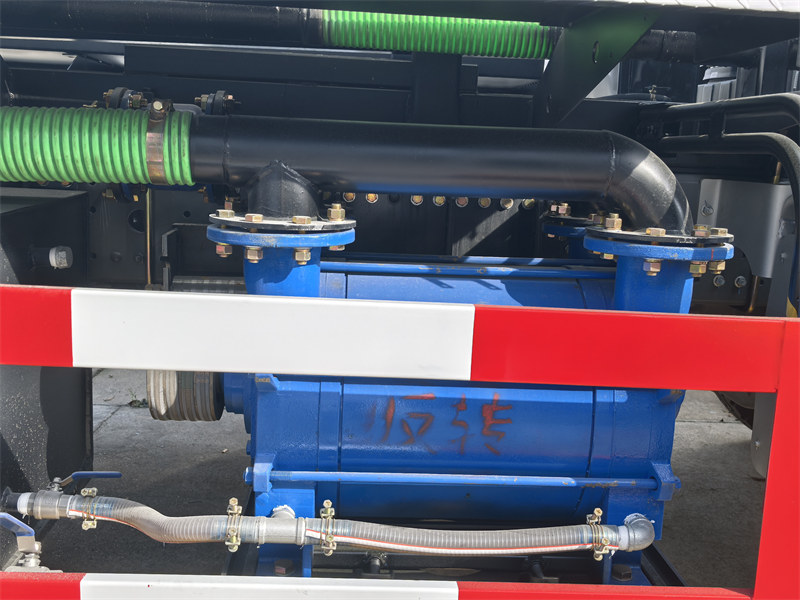

  HOWO vacuum truck mounted 2BE-204 pump
•

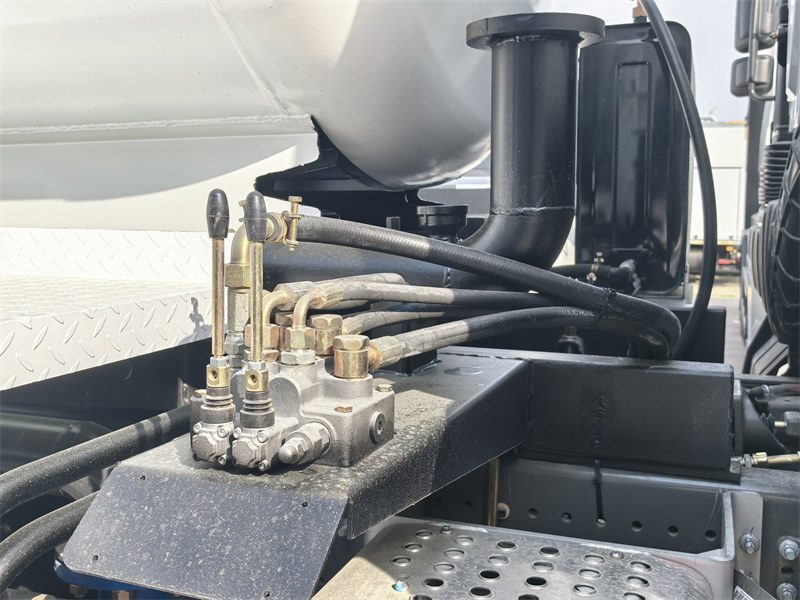

  Howo vacuum truck with hydraulic control valve



✦ HOWO Cesspit Emptier Truck Advanced Features « « «

Sinotruk HOWO NX model 371HP heavy duty cesspool septic pump truck is equipped with famous brand water cycle 2BE-204 model vacuum pump, with efficiently flow rate 21m3 per minutes, matched working with efficiently transfer, available for multiple function and sewage suction. Also build with super stronger vacuum tanker body kit for durable service.

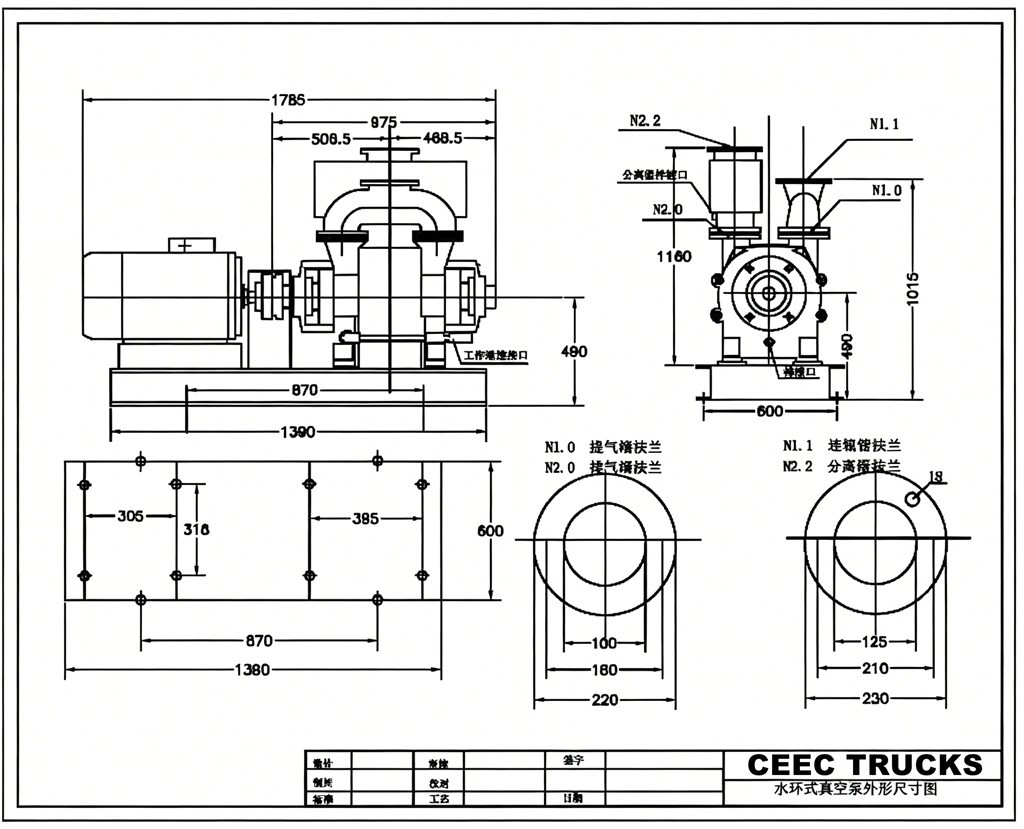

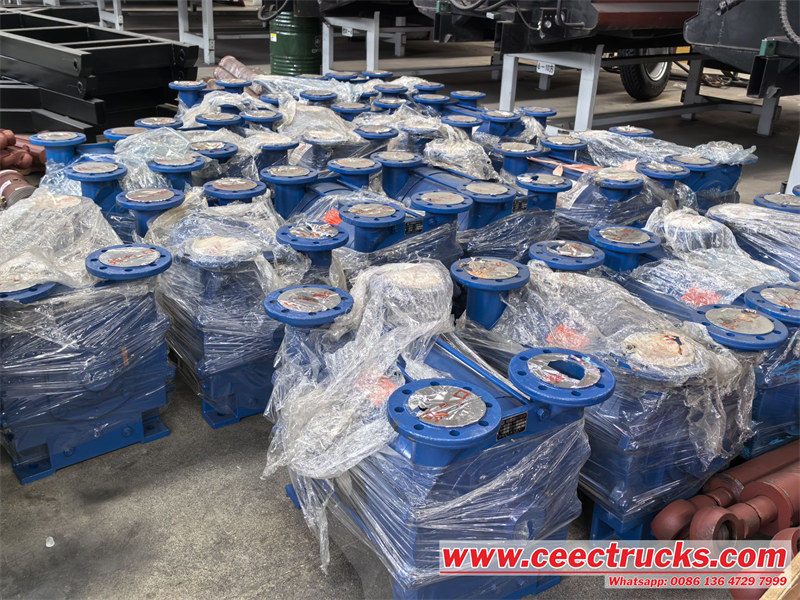

Water cycle 2BE-204 vacuum pump



Type	Water Cycle (MADE IN CHINA)
Model	2BE-204
Series NO.	YF0704
Year	2025
Power	37 KW
Max. Speed	970 r.p.m

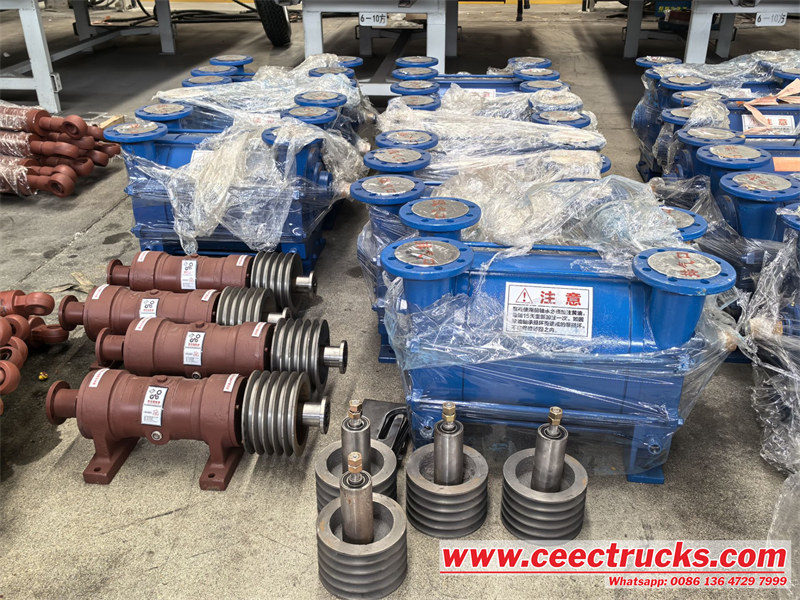

Vacuum pump matched transfer axle



Type	Transfer Case (MADE IN CHINA)
Model	Belt working type
Year	2025
Efficiently	Suitable and matched working with 2BE-204 model vacuum pump

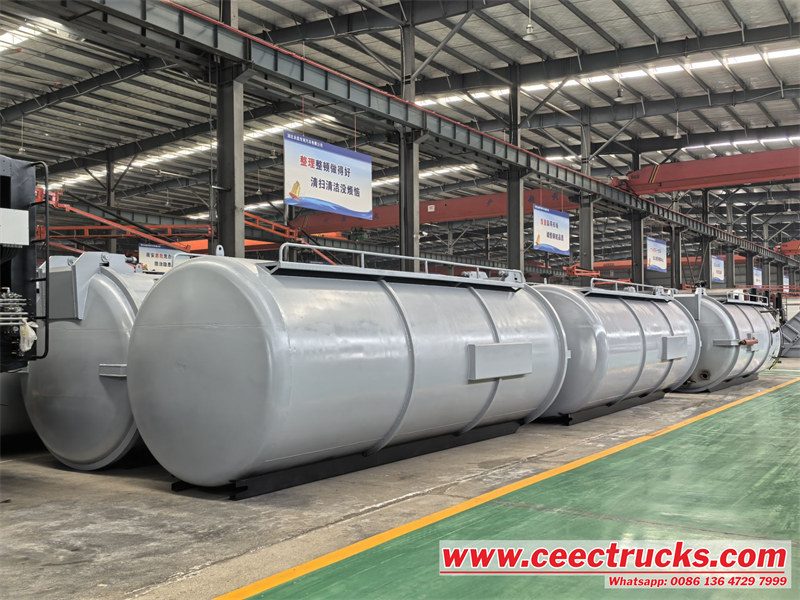

Vacuum tanker body kit in stock



Type	Tanker Body (MADE IN CHINA)
Model	22CBM / 22000L
Shape	Round design and Reinforced ring
Year	2025
Material	Q355 material
Thickness	Tanker body 6mm and Shell cover 8mm

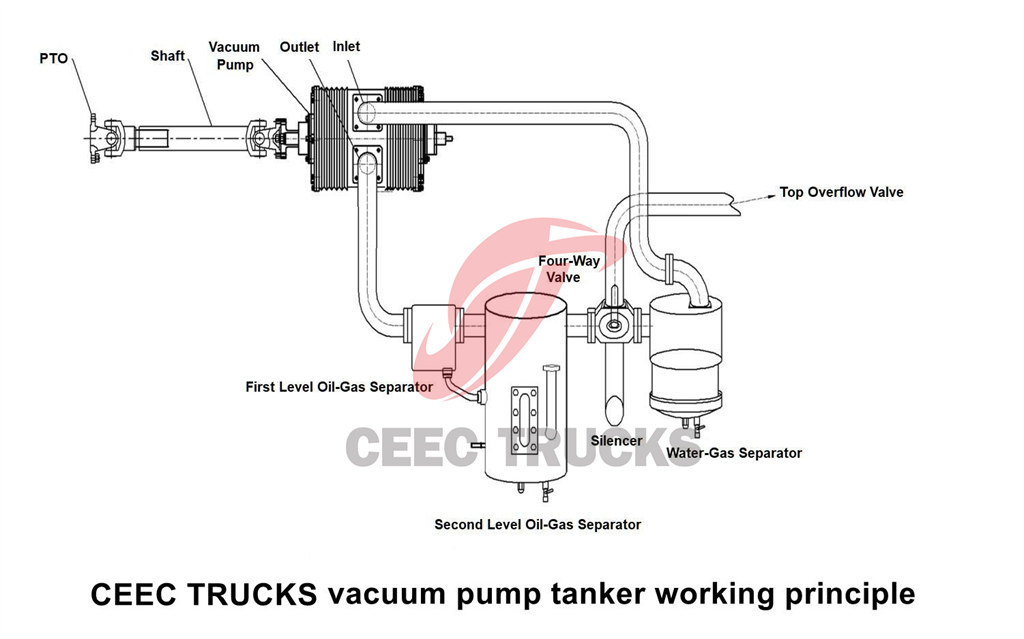

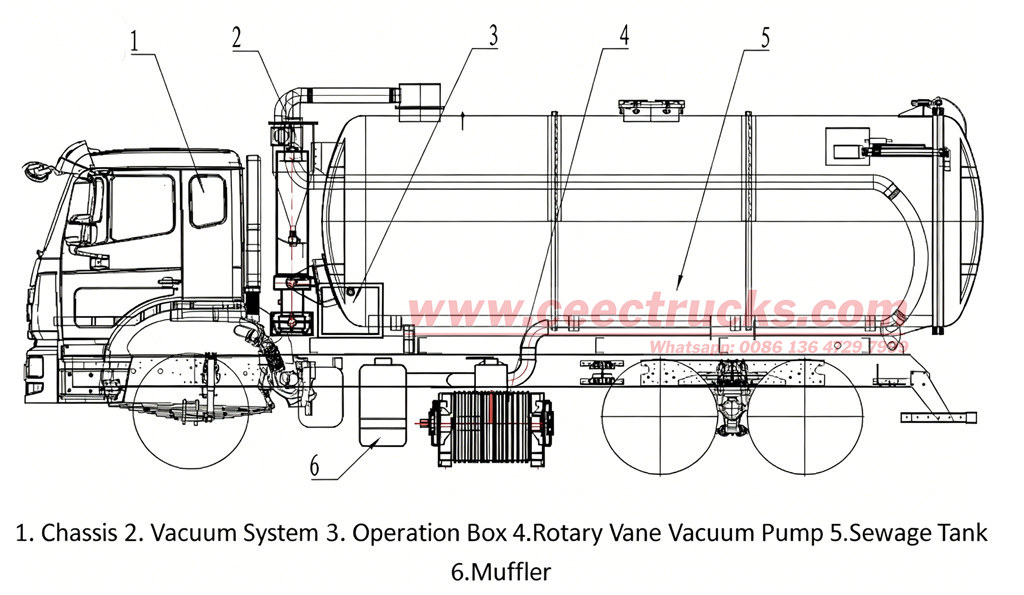

✦ HOWO NX 10 wheeler vacuum truck Working Principle « « «



Sinotruk HOWO NX LHD 22000Liters sewer pumper trucks widely used for debris suction, which have detailed working principle as below showing.
