ISUZU 10,000 Litres Water Bowser

 Applications:

ISUZU FTR Water bowser truck (also called ISUZU FTR Water Tank Truck, ISUZU Water spray truck for sale, ISUZU Water Sprinkler Truck, 2 axles water transportion truck ISUZU, 6-wheel Water delivery truck ISUZU, hot sale water spraying truck ISUZU) is used for the road flushing, tree and lawn greening, high building cleaning, construction of road and factories. It has the functions of flushing, watering, transporting water and fire fighting.

CEEC TRUCKS water truck is mainly composed of chassis, tanks, pumps, valves, and the water pipe, sprinkler and other parts. Water truck is made of high quality carbon steel sheet.

 Key Features:

---- ISUZU chassis, perfect performance

---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Nice shape, rational structure

---- Water pump super powerful, efficient pump in and out

---- Strong, durable, perfect performance

 Specifications:

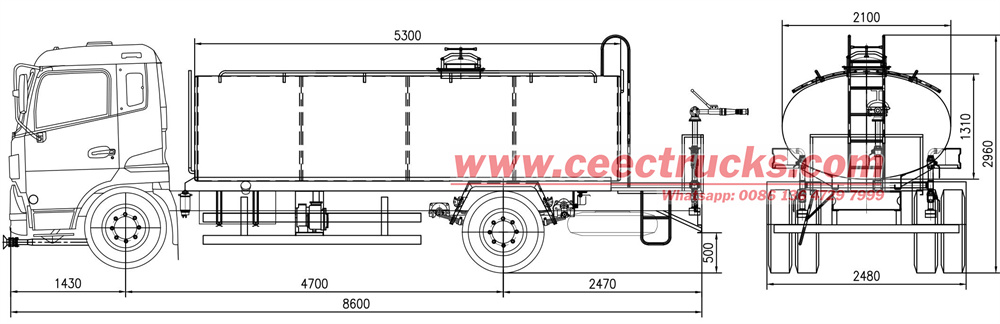

>> Technical drawing for ISUZU 10000L water tanker bowser truck

To 100% meet customer requirement, CEEC TRUCKS Engineer Department can design and prepare technical drawing of the required ISUZU FTR 10000L water tank truck, with full dimension and component for checking. So customer can know what is the Isuzu water bowser.

>> Advanced features for ISUZU 10000L water bowser

Isuzu heavy type 10000Liters water sprinkler tanker truck is a robust vehicle designed and produceds for efficient transportation of fresh water. Equipped with Japanese ISUZU 4HK1-TCG60 diesel engine with 151KW/205HP and emission 5193cc, available for EURO 4/5/6 standard. Matched working with ISUZU MLD 6 shift manual transmission, suitable for daily driving and enjoy lower fuel consumption. Mounted with oval shape fresh water tanker with capacity 10000Liters, equipped with 80QZB-60/90 water pump with efficiently flow rate 60m3/h, availabow for pump in and pump out function. Installed with front jetting nozzles, side spraying nozzles and rear side spraying nozzles, also rear working platform matched with water cannon, all these design to make the ISUZU 10cbm water truck an ideal vehicle for water distribution across diverse terrains and environments, ensuring optimal coverage and minimal waste.

And the ISUZU FRR FSR water tanker trucks application multiple area, including construction, agriculture, urban maintenance and emergency response. When water jetting and spraying, the Isuzu water bowser also serviices as a mobile solution for tasks like dust suppresion, irrigation, road preparation and fire fighting support.

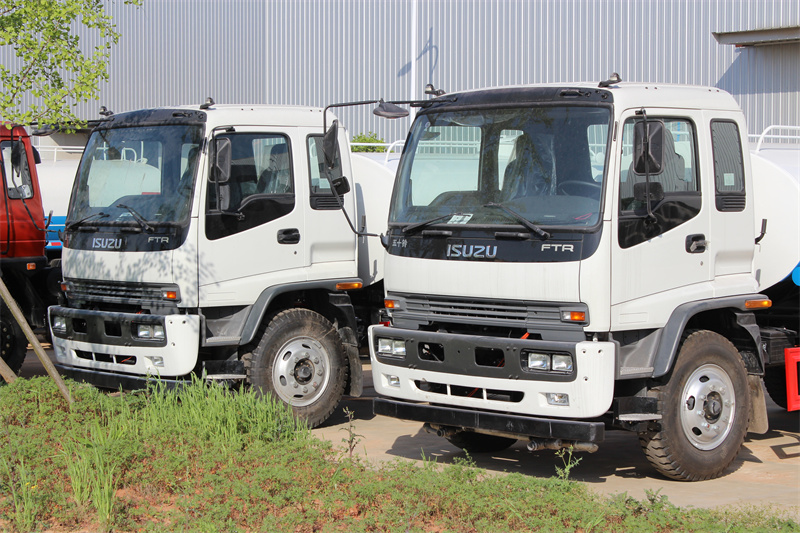

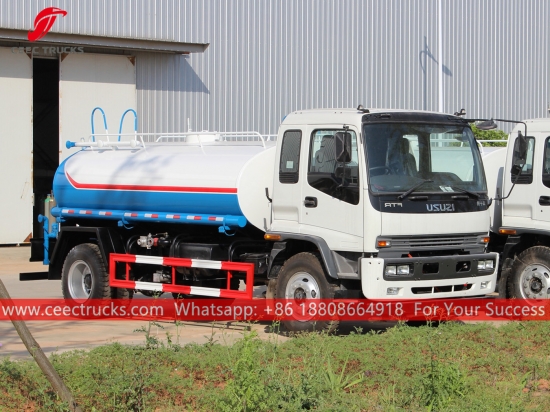

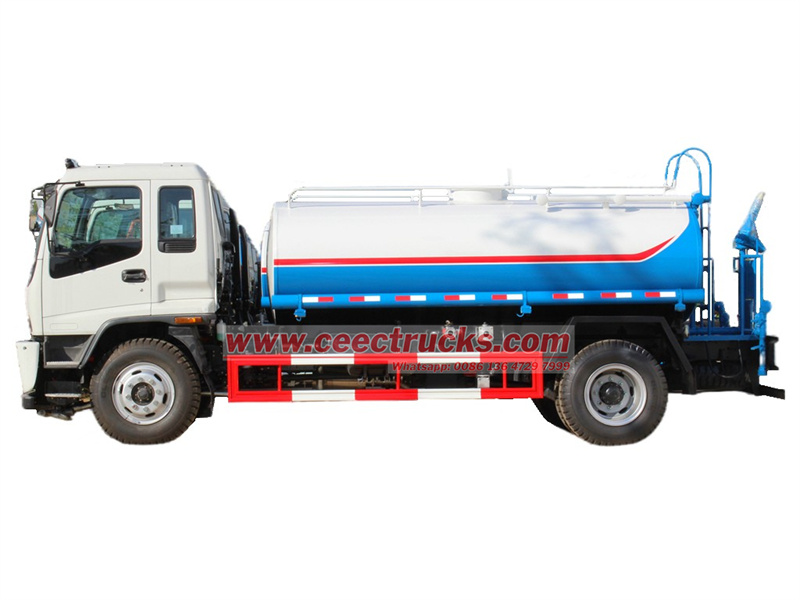

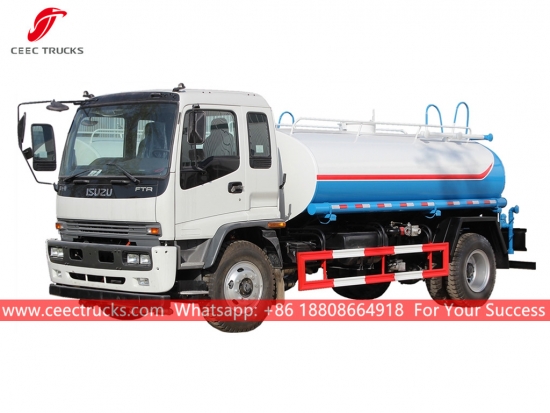

10CBM water tanker mounted on ISUZU FTR truck

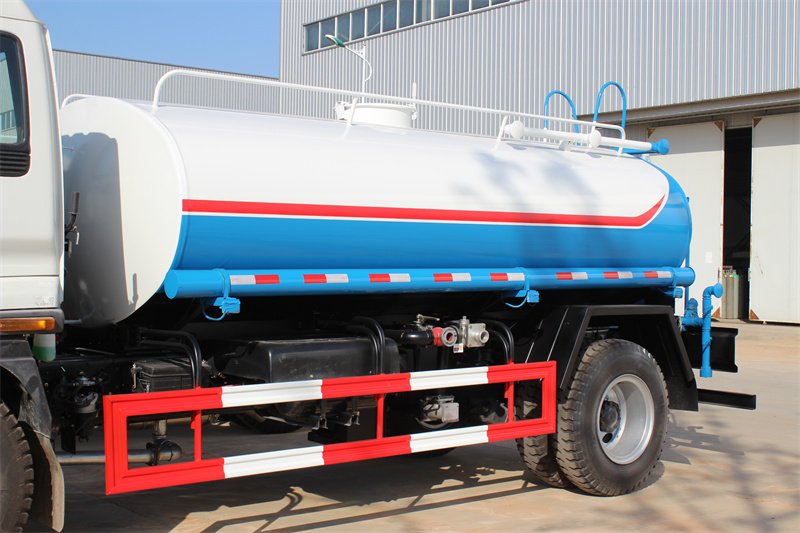

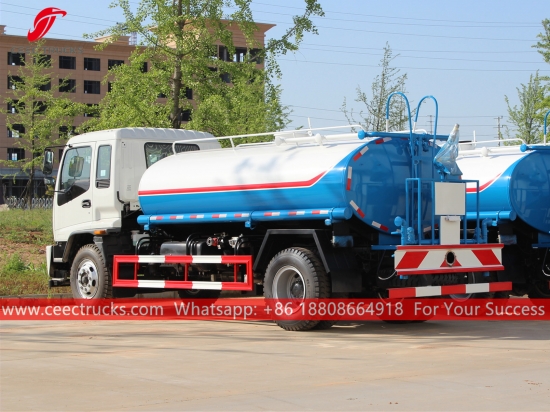

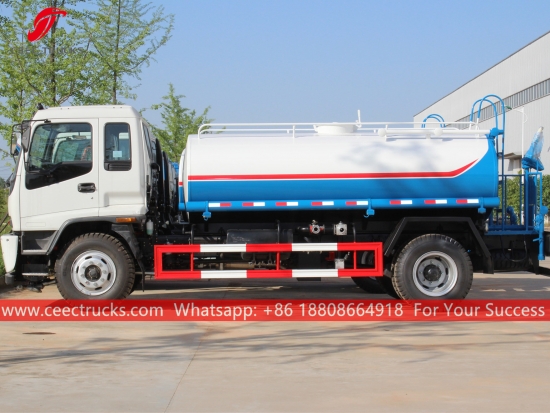

Isuzu water truck mounted 10000L tanker body

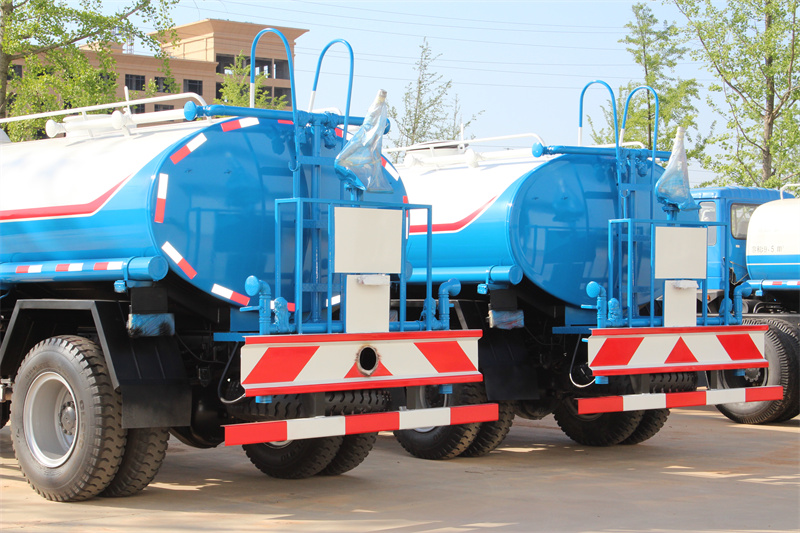

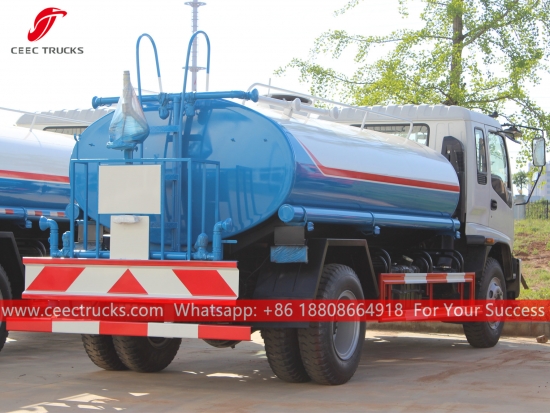

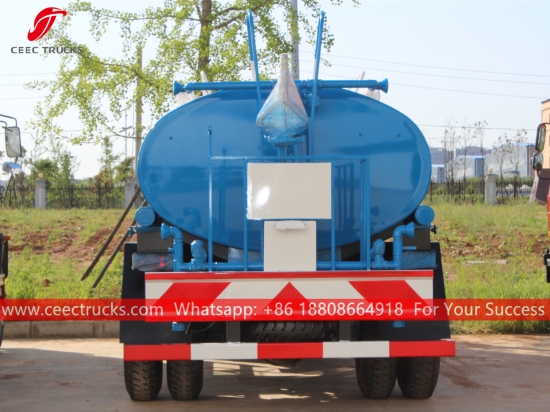

Isuzu 10CBM water tanker truck with rear platform and water cannon

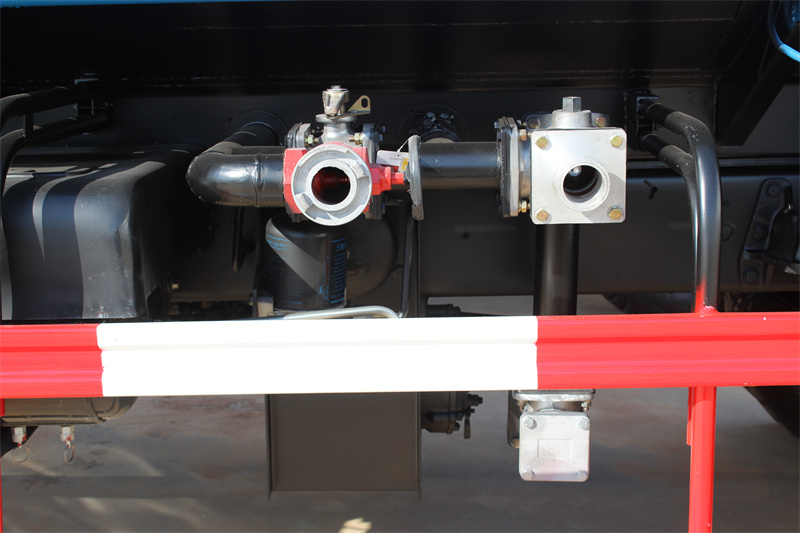

Isuzu water bowser with pump in and pump out function

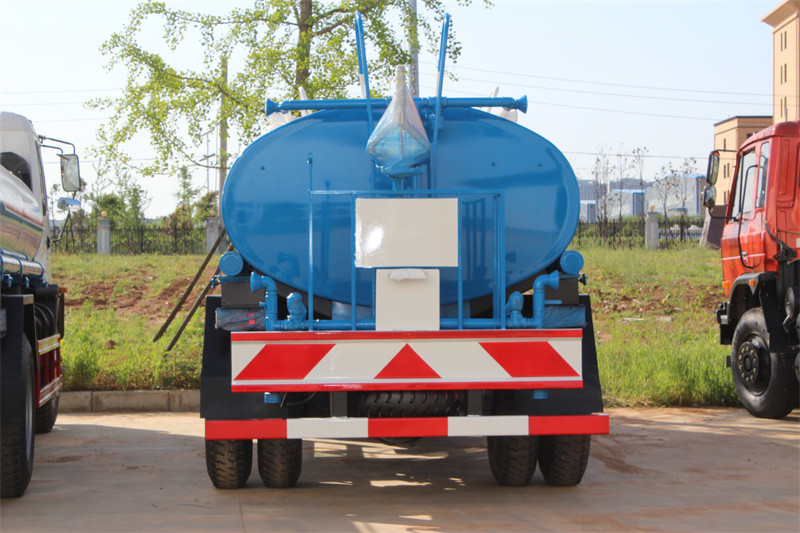

Isuzu 10000L water wagon tanker rear spraying nozzles

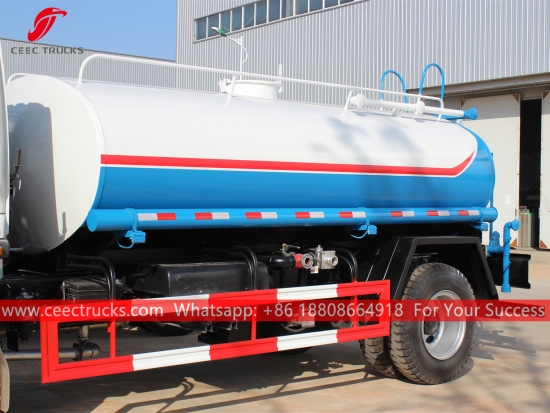

ISUZU classical water hauler truck top mounted side spraying nozzles for plant watering



>> ISUZU 10000L water tanker vehicle mounted WEILONG 80QZB-60/90 water pump

Isuzu 10000Liters water tanker vehicle equipped with 80QZB-60/90 water pump and watering pipeline system, which make the truck high-performance feature designed for enhanced water distribution and specialized applications. Below showing details of the weilong pump component and features.

Model: 80QZB-60/90

Flow Rate: 60m3/h, equal to 1000L/min

Range Distance: 90m

Rotation Speed: 1180r/min

Power: 22.5kW

Self-Suction Height: 6.5m

Self-Suction Time: 1.5min/4m

Efficience: 65%

Direction: LHD and RHD both available



•

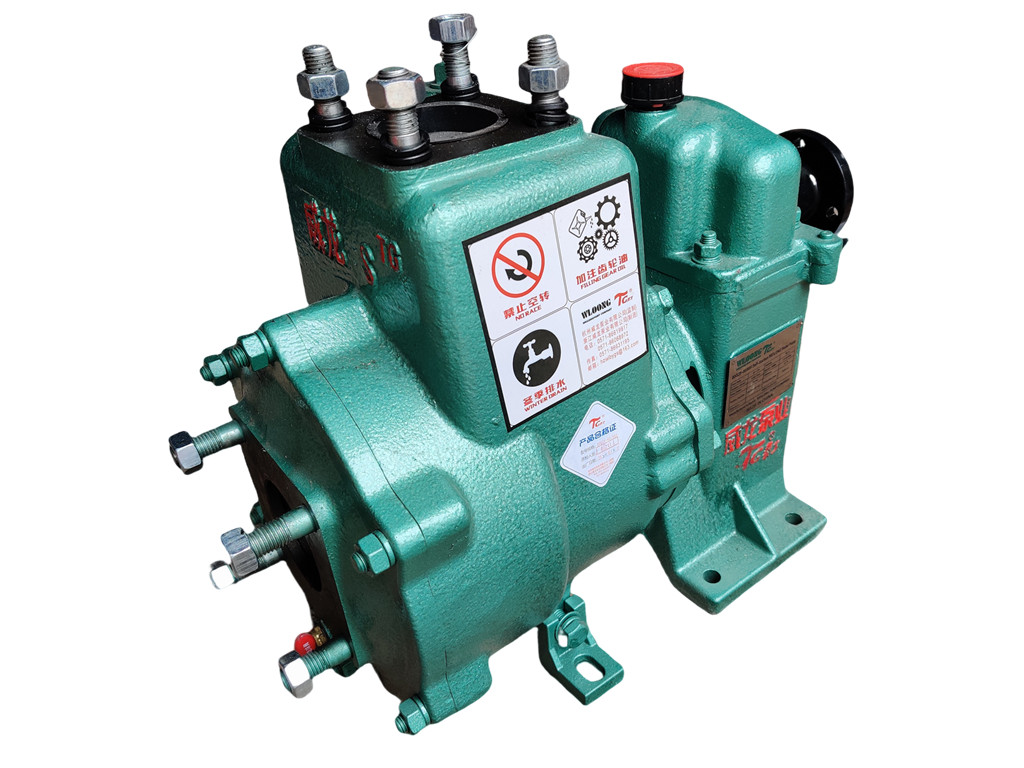

  Weilong water pump
•

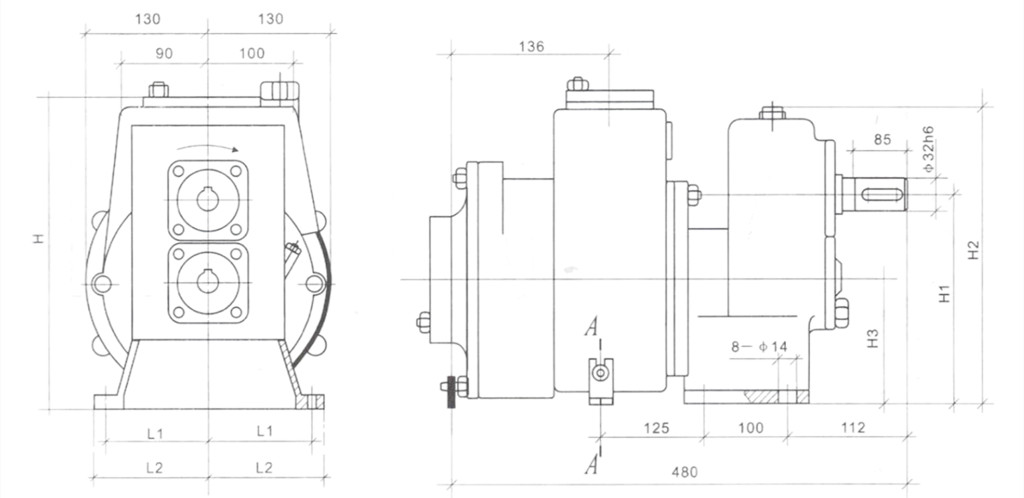

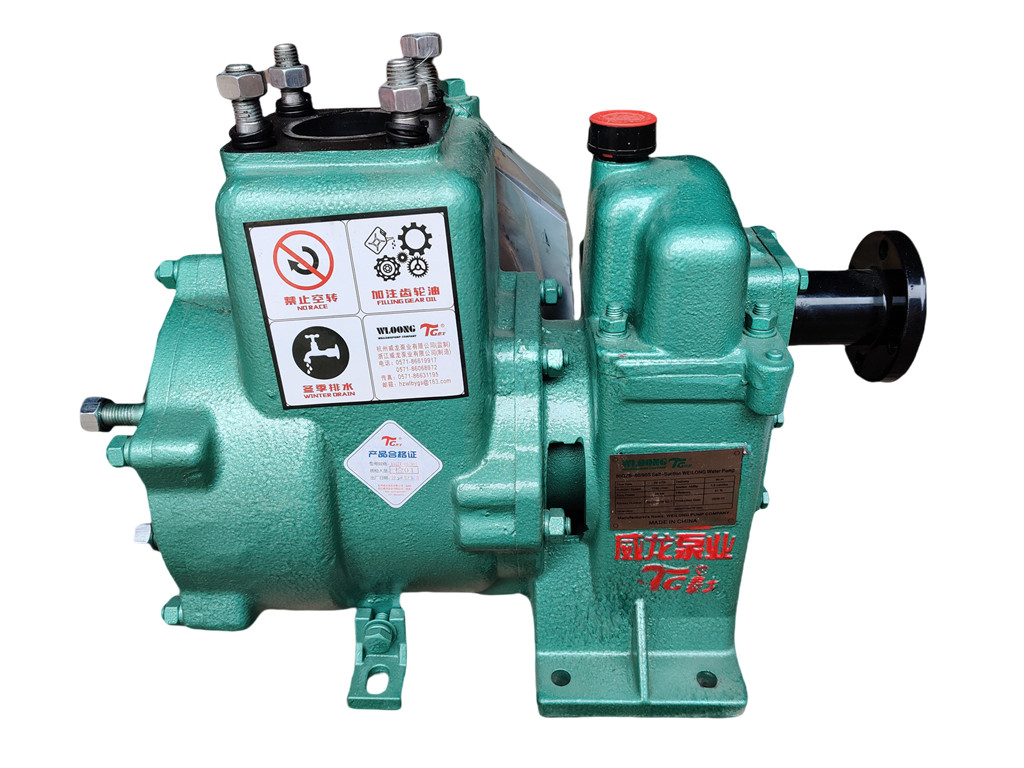

  WEILONG 80QZB-6090 water pump
•

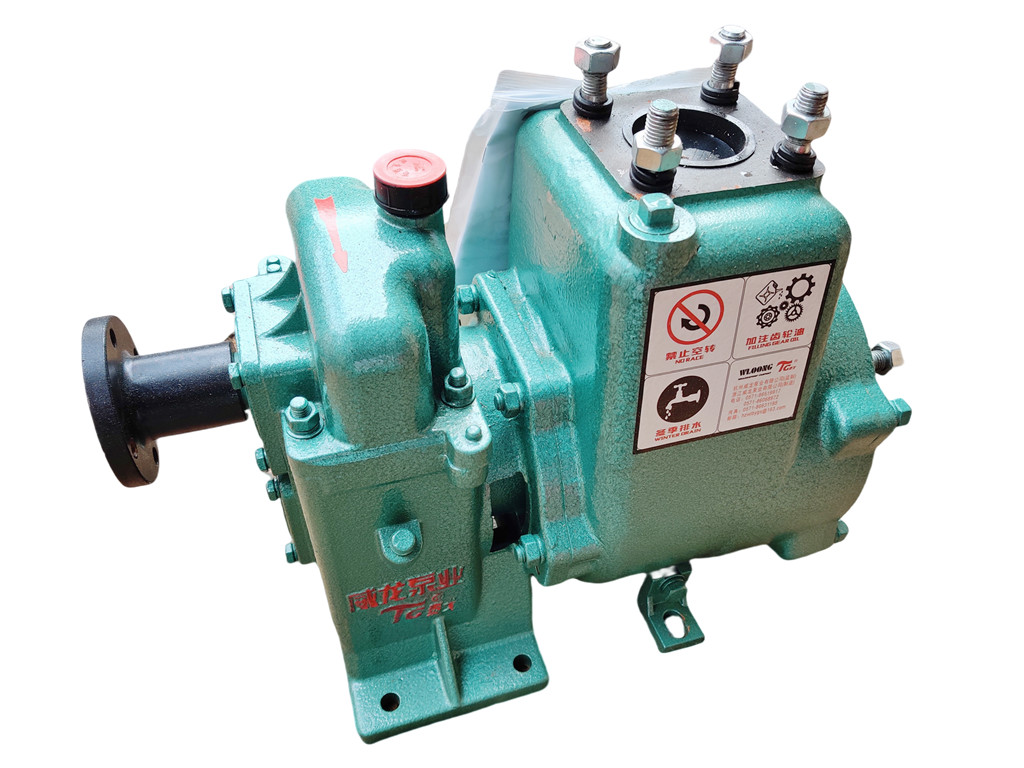

  Isuzu water truck pump
