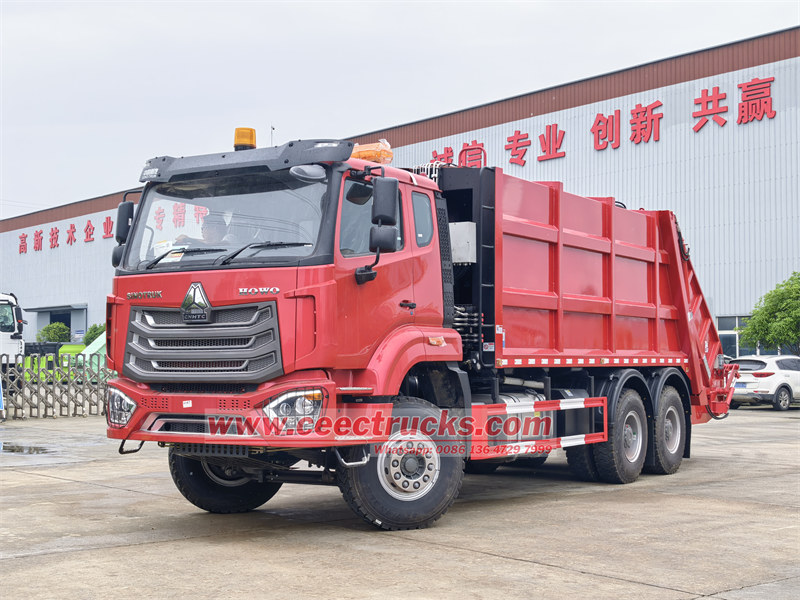

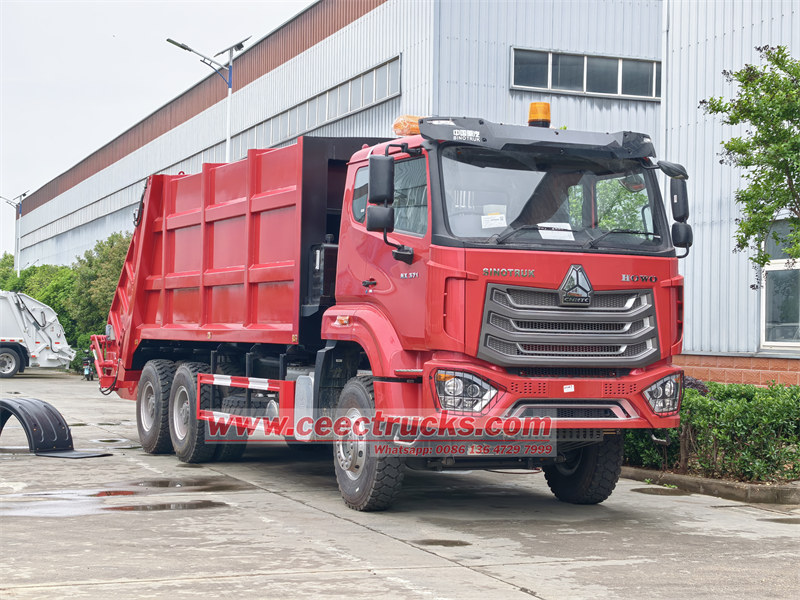

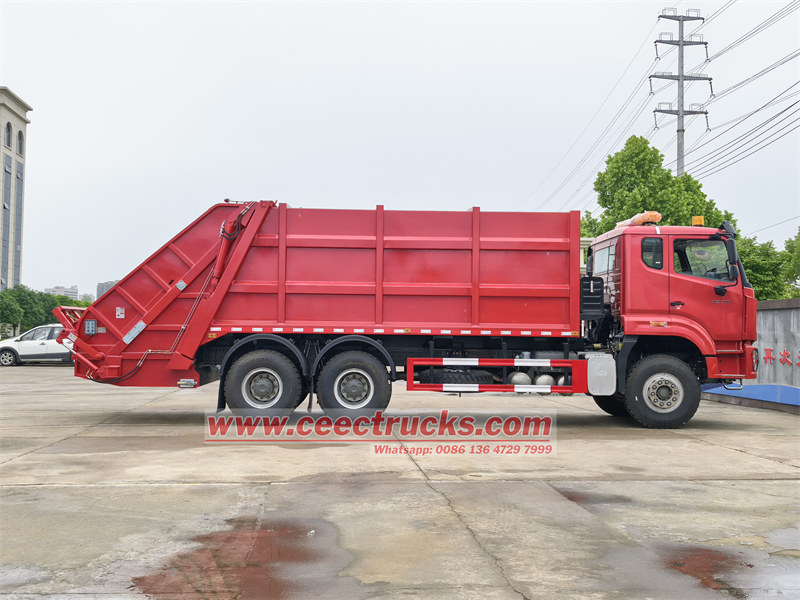

Africa Kenya client purchased SINOTRUK HOWO 6x4 trash compactor truck from we CEEC TRUCKS. Which build based on HOWO 6x4 heavy duty 10 wheeler truck chassis, HOWO NX truck cabin with RHD steering wheel for comfortable driving, equipped with AC and AM/FM radio, equipped with WD615.47 diesel engine with 371HP and emission 9726cc, dual-ram system compresses waste horizontally and vertically simultaneously, achieving 3:1 density ratios for household refuse and 5:1 for commercial waste. Efficiently loading capacity can be up to 20cbm, equal to 26 cubic yard, and suitable for continuous compaction cycles.
Work capacity:
20CBM / 26 Cubic YardDimension ( mm ):
10200×2500×3500 mmWheelbase ( mm ):
4500+1350 mmEngine power:
371HPEngine type:
WD615.47Axle drive:
6x4, RHDGear box:
HW19710 10-shift manual transmissionRemarks:

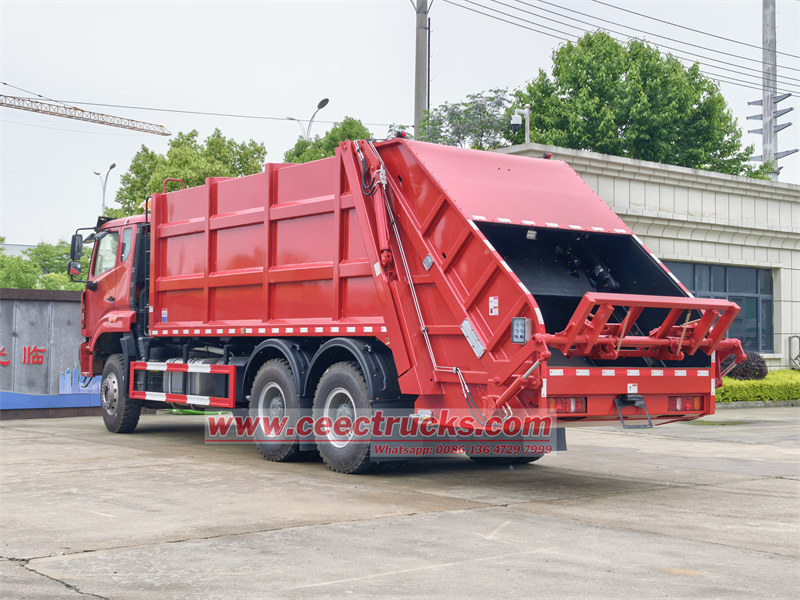

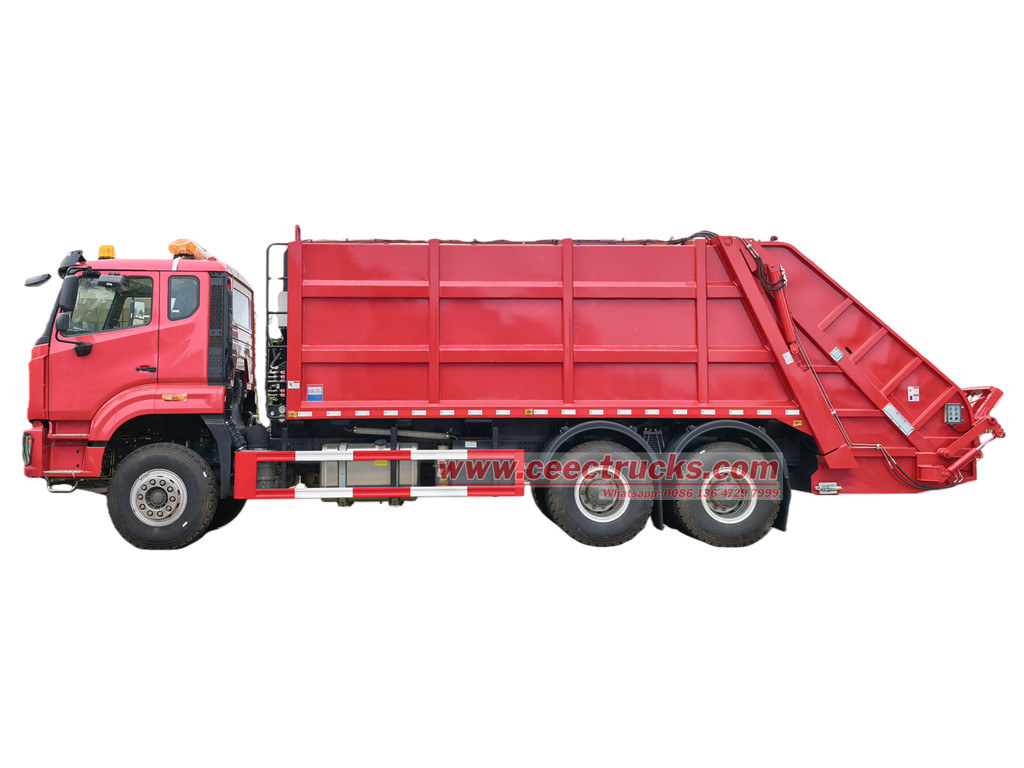

Electric CAN-BUS smart control systemAfrica Kenya client purchased Sinotruk HOWO NX 371HP refuse compactor truck full relay on the advanced Sinotruk HOWO NX RHD truck chassis, equipped with Germany MAN technology 6 cylinder WD615.47 diesel engine, with efficiently horse power can be 371HP and emission 9726cc, matched working with HOWO HW19710 model 10 shift manual gearbox, convenient and safety for driving, and very lower fuel consumption. Truck equipped with 12.00R20 tires with 10+1 spare tire, durable for long driving.

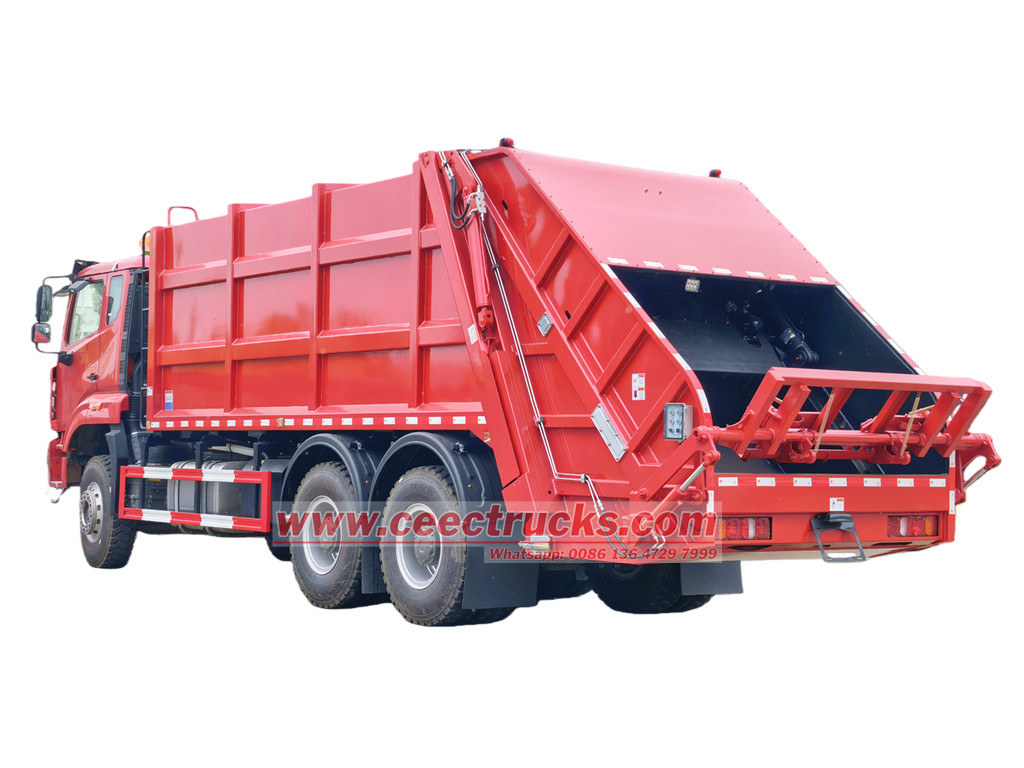

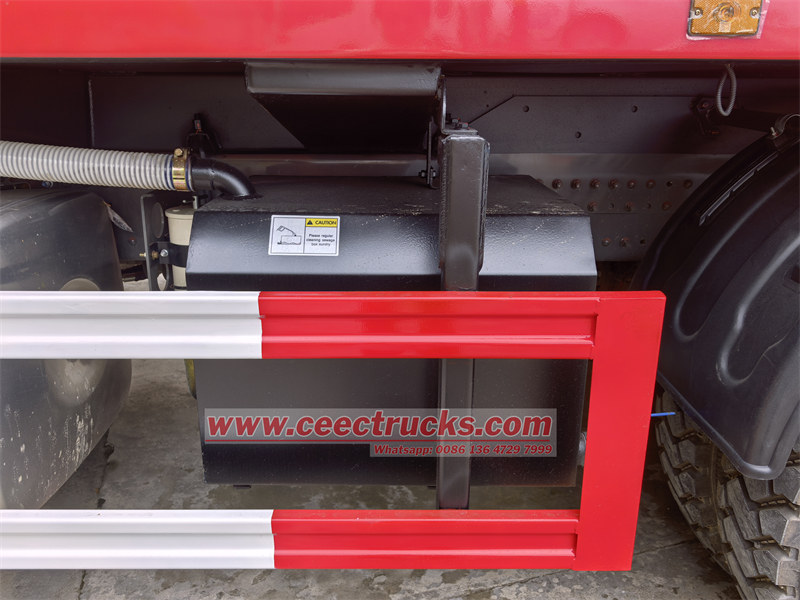

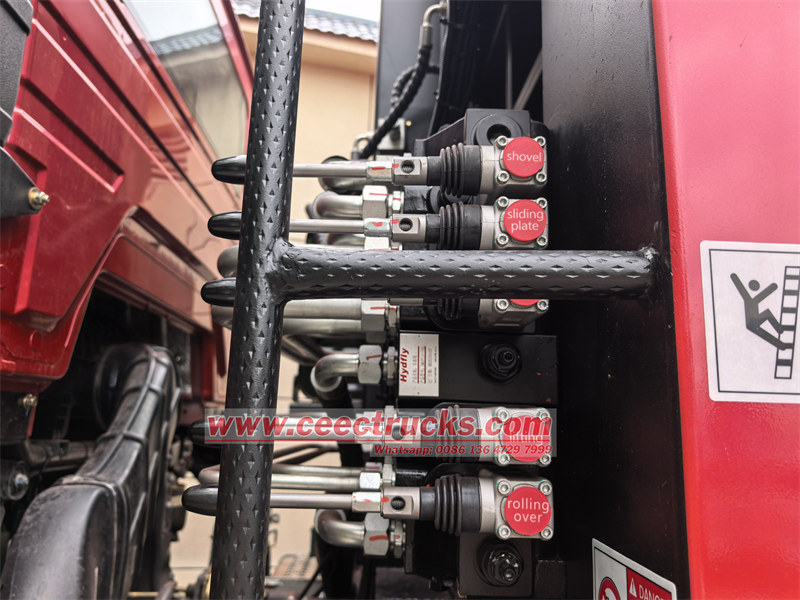

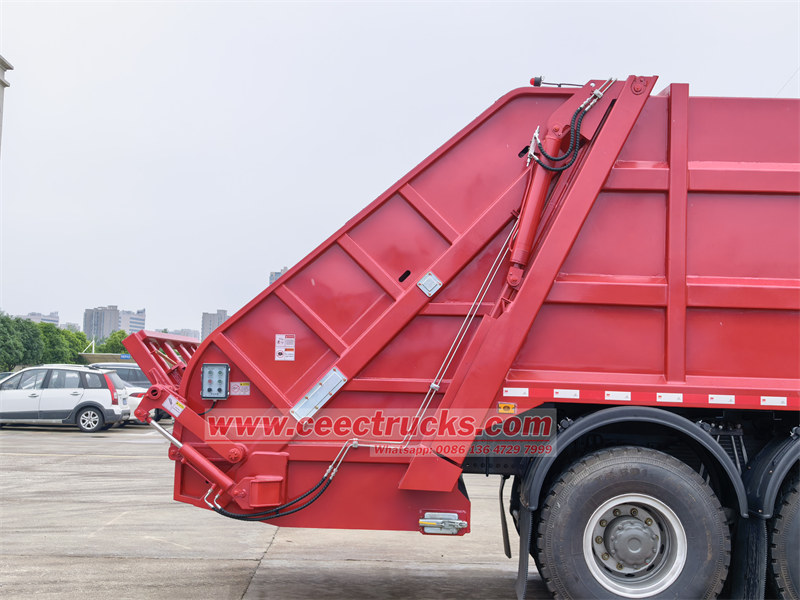

HOWO NX waste compaction trucks equipped with 20000Liters square shape compactor superstructure body kit, which is designed based on T420 material, thickness for compactor body side and floor 5mm, outside with channel steel for reinforcement, equipped with top quality CAN-BUS electric control system and hydraulic control valves, automatic acceleration system for fast and safety working. Rear hopper mounted with multiple type hydraulic tilting device for 240L, 360L, 660L, 770L, 1100L international standard bins, which is customized to collect multiple type life waste and industry garbage from different area, increased the working efficiency. HOWO solid waste compactor trucks equipped with sewage water box for waste water collection, and can efficiently avoid second pollution during compaction and transportation.
CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CEEC Trucks Group
Features:
1. Truck Chassis: Sinotruk HOWO NX truck chassis, RHD / LHD, 6x4 model optional
WEICHAI WD615.47 diesel engine 371HP, emission 9726cc standard.
2. Compactor Body Kit: Full welding square shape, T420 steel with reinfroced channel

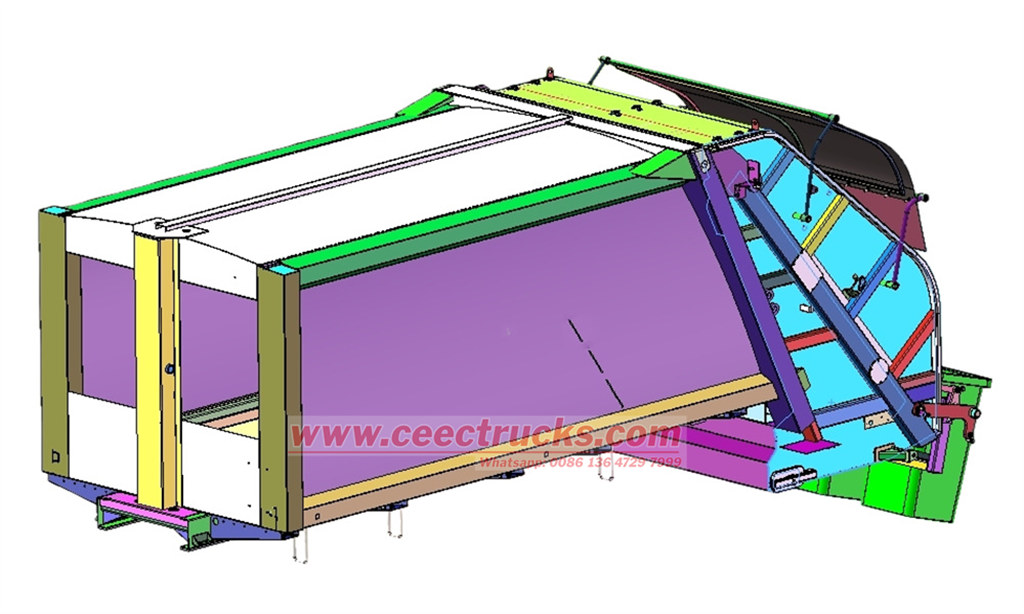

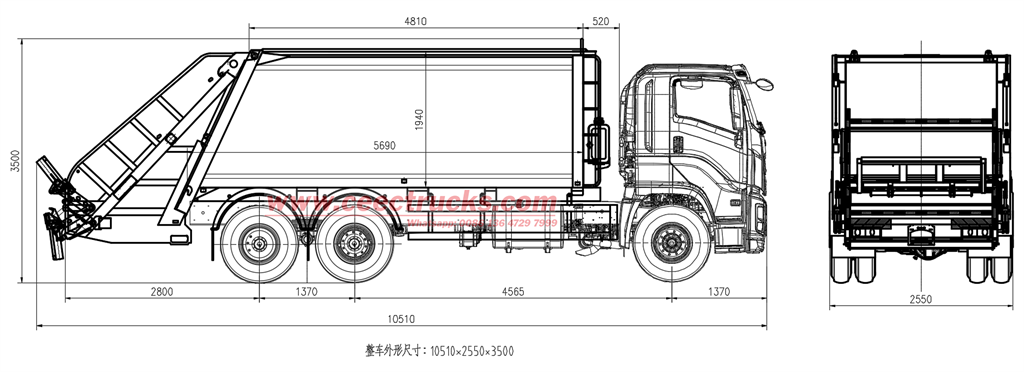

thickness for side and floor 5mm, for push plate 8mm. Technical drawing as below

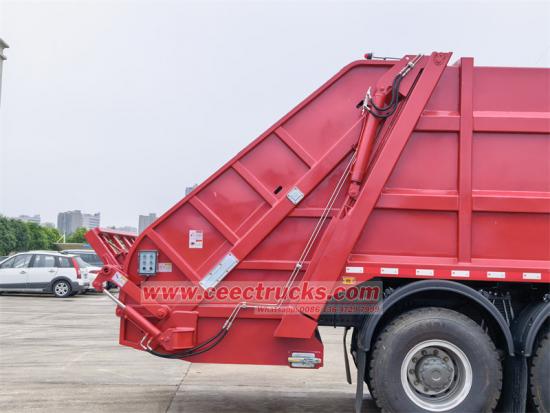

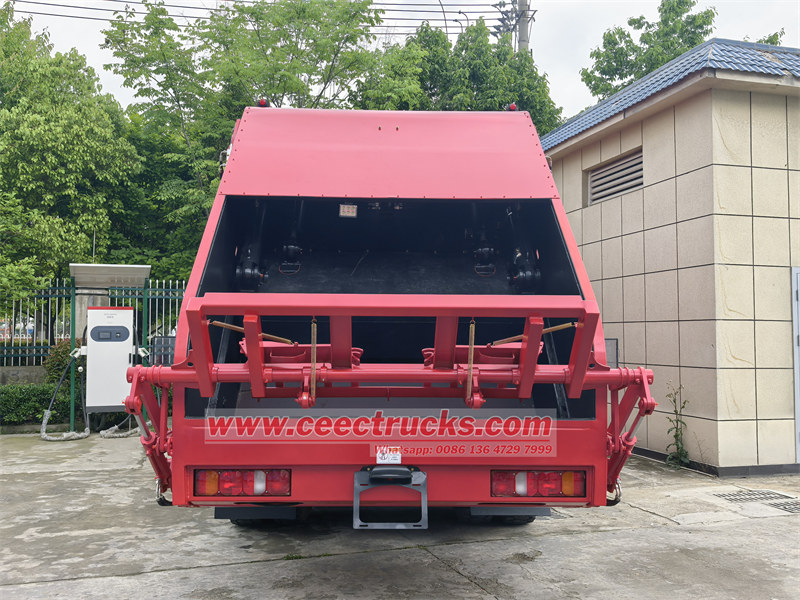

3. Rear Tilting Device: Top designed rear tilting device can be available for 240L, 360L, 660L, 770L and 1100L
Also available for swing arm device for 1cbm to 2.5cbm bins
4. Specialized Equipment: Customized to be mounted with different type rear hopper.
| Name | SINOTRUK HOWO Rear Loader Truck |
| Cabin | NX cabin, optional color and painting |
| Driving | RHD, 6x4 driving |
| Engine | WD615.47 diesel engine, 371HP and emission an be 9726cc |
| Tranmission | HOWO HW19710 model 10 shift manual type, 10F & 2R |
| Wheelbase | 4500+1350 mm |
| Tire |
12.00R20, 10+1 units |
| Capacity | 20 cubic meters / 26 cubic yards |
| Body Material | T420 material, thickness for side and floor 5mm |
| Control |
(Cabin and rear hopper mounted) CAN BUS electric control Hydraulic valve control |
| Component |

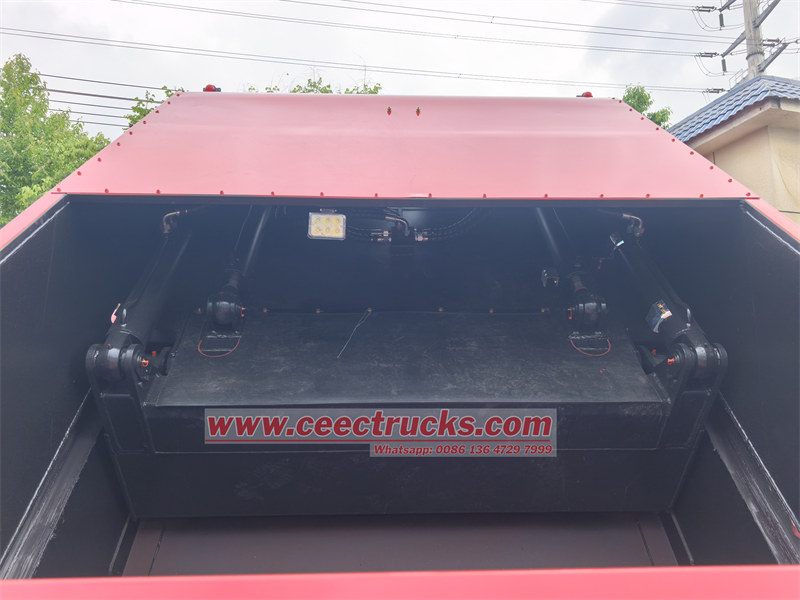

Push Plate with 1 cylinder Scraper with 2 cylinders Slide Plate with 2 cylinders Rear Hopper with 2 cylinders Tilting Device with 2 cylinders |
| Painting | 100% customized painting and logos |
| HOWO NX WD615 truck mounted rear loader compactor description | ||
| Overall dimension | 10500*2500*3500mm | |
| GVW | 25000kg | |
| Curb weight | 15310kg | |
| Chassis brand | SINOTRUK HOWO | |
| Traction type | 6x4, right hand drive | |
| Chassis description | ||
| Chassis model | ZZ1257N | |
| Cab | HOWO NX truck cabin, flat roof with 1 sleeper, A/C, ABS | |
| Wheelbase | 4500+1350mm | |
| Tire specification | 12.00R20 | |
| Tire quantity | 10+1 units | |
| Engine | Engine model | WD615.47 |
| Emission level | Euro 3 (EGR) | |
| Displacement/output | 9726ml/247kw | |
| Horse power | 371hp | |
| Gear box | Model | HW19710 |
| Number of gears | 10 forward gears& 2 reverse | |
| Brake system | Type | Drum |
| Service brake | Dual-circuit compressed air brake | |
| Park brake | Power spring brake acting on rear wheel | |
| Auxiliary brake | WEVB | |
| Axle | Front | HF-7T |
| Rear | ST-16T | |
| Suspension | Front | Semi-elliptic leaf spring |
| Rear | Trapezoidal leaf spring | |
| Fuel tanker | Type | Steel fuel tanker |
| Capacity | 400L | |
| Up-parts description | ||
| Fact cubage | 20cbm / 26 cubic yard | |
| Control system | Electrically Controlled Hydraulic + Hand Hydraulic | |
| Compactor type | Two-way, push in the front, compressor in the back | |
| Standard equipment | Equipped with garbage tanker, precompressor, push shovel, hydraulic transmission system, electrical controlling system. | |
| Rear Tilting device | 120L, 240L, 360L, 660L, 770L, 1100L, etc | |

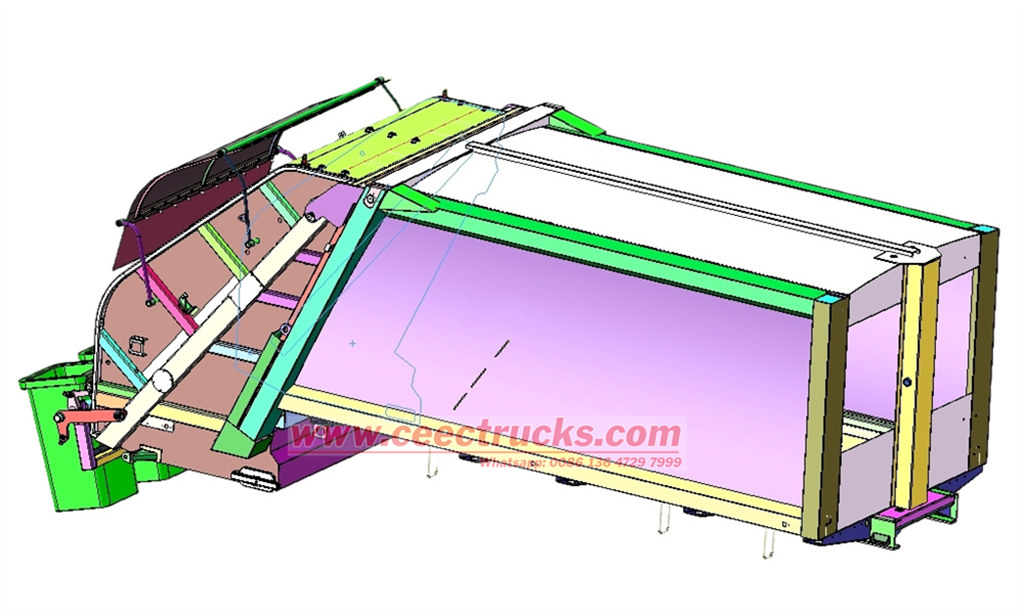

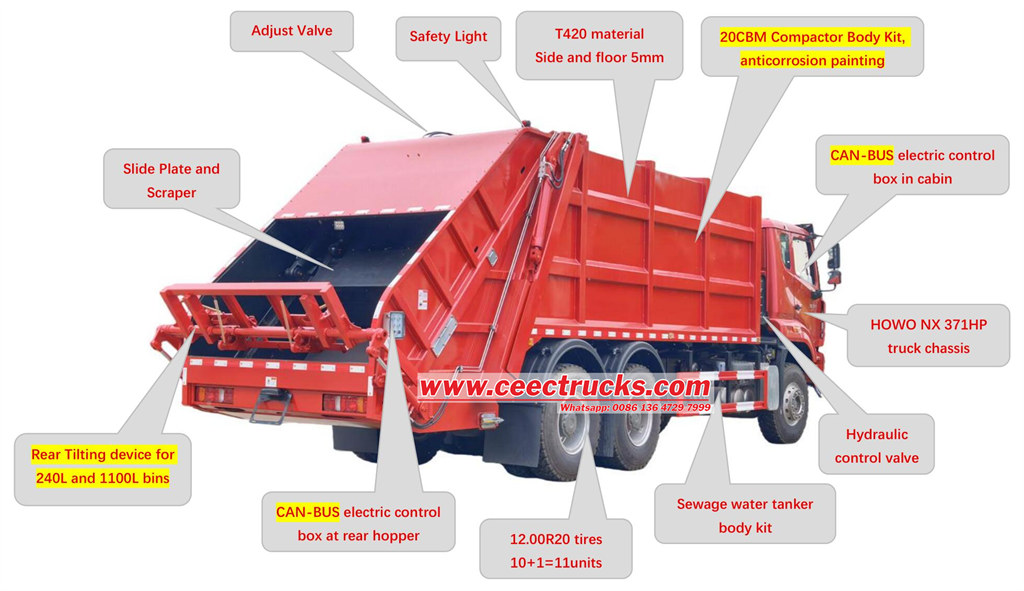

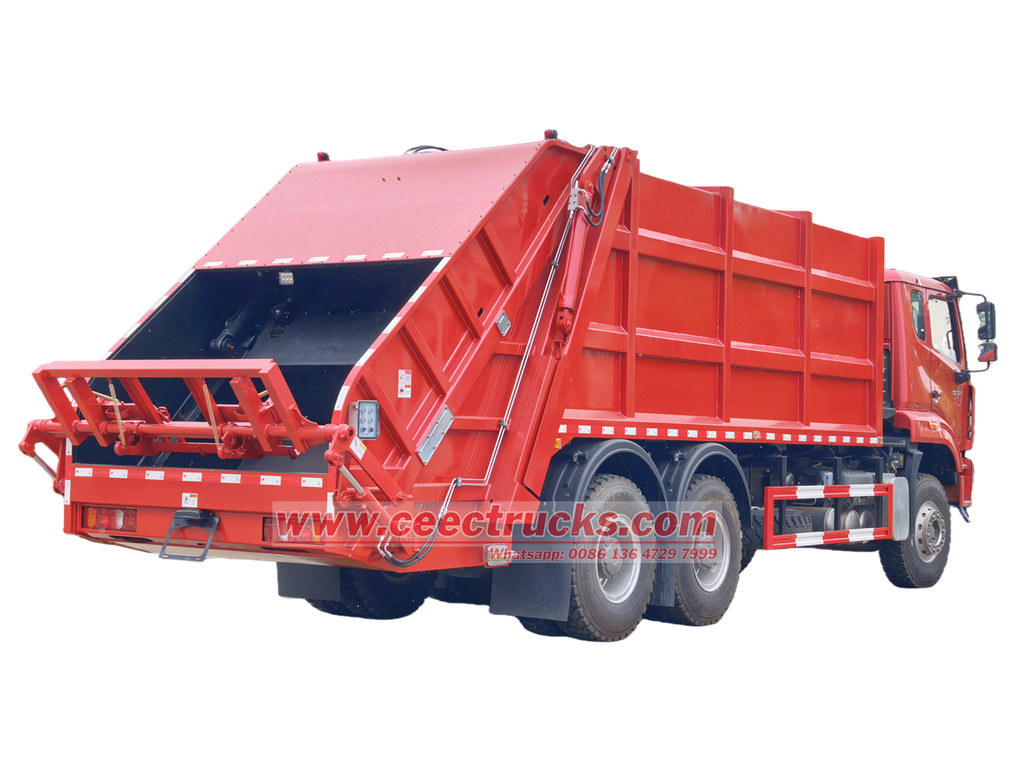

Sinotruk HOWO NX refuse compactor truck with 3D designed body kit, which is a new generation of products independently developed and designed by CEEC TRUCKS R&D department, based on the similar products features and advantaegs in domestic and aboard market, beautiful in appearance, excellent in performance and advanced in operation and control.

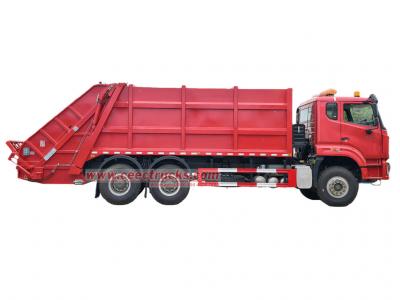

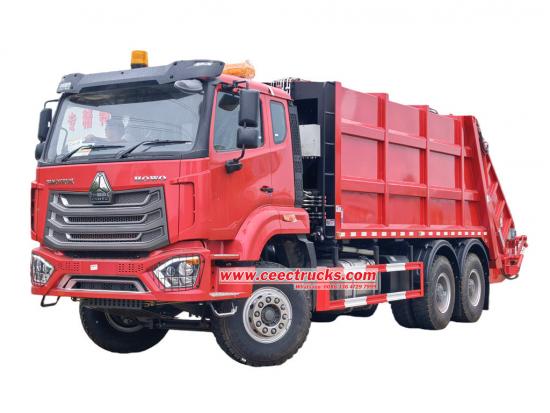

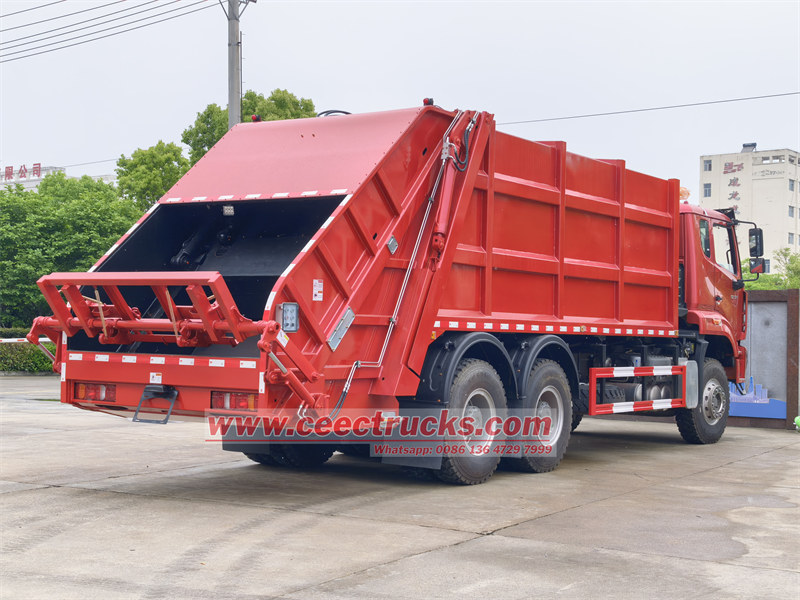

Designed and manufactured based on HOWO NX 6x4 heavy duty 10 wheeler truck chassis, build with 20cbm compactor body kit, T420 material with thickness for side and floor 5mm, and rear hopper with reinforced steel plate, available for multiple garbage bins.
 |
 |

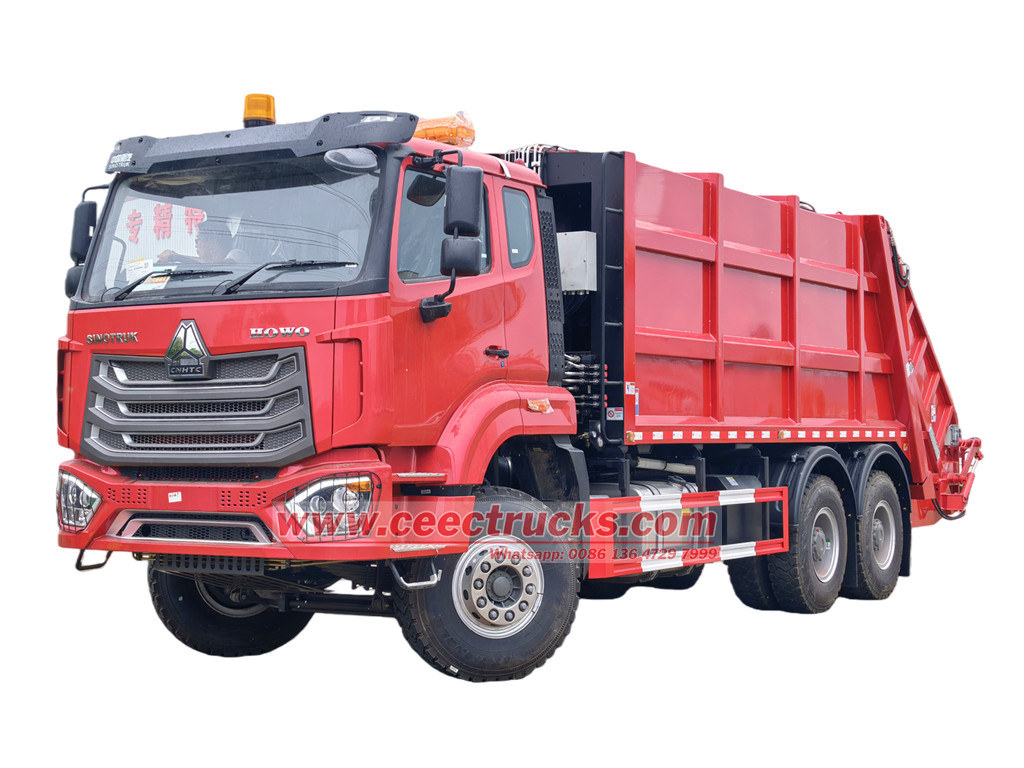

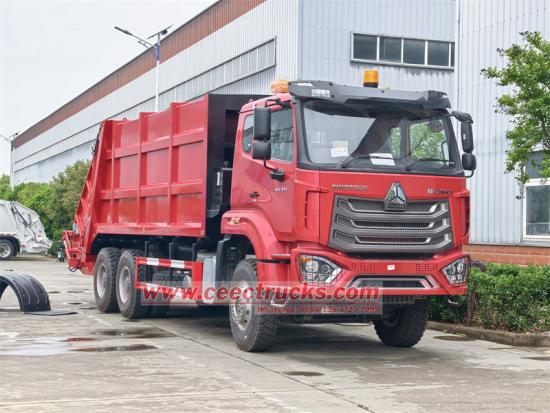

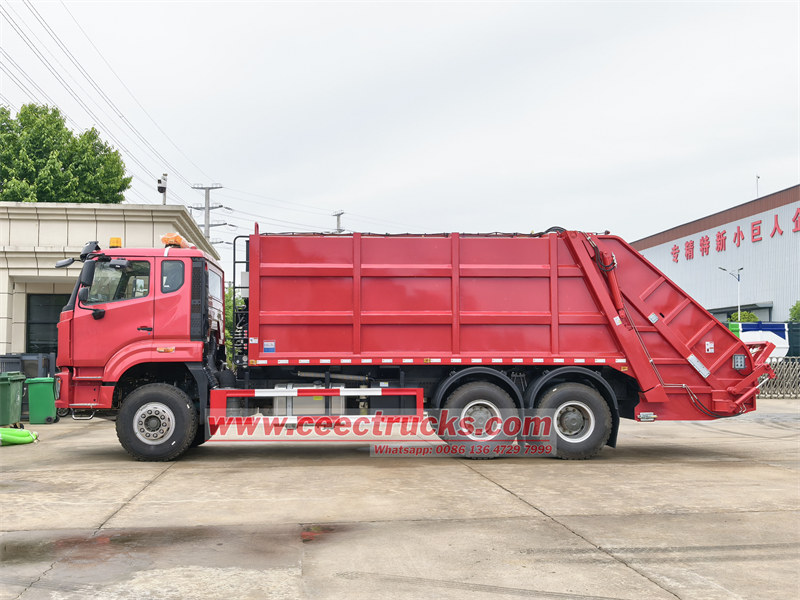

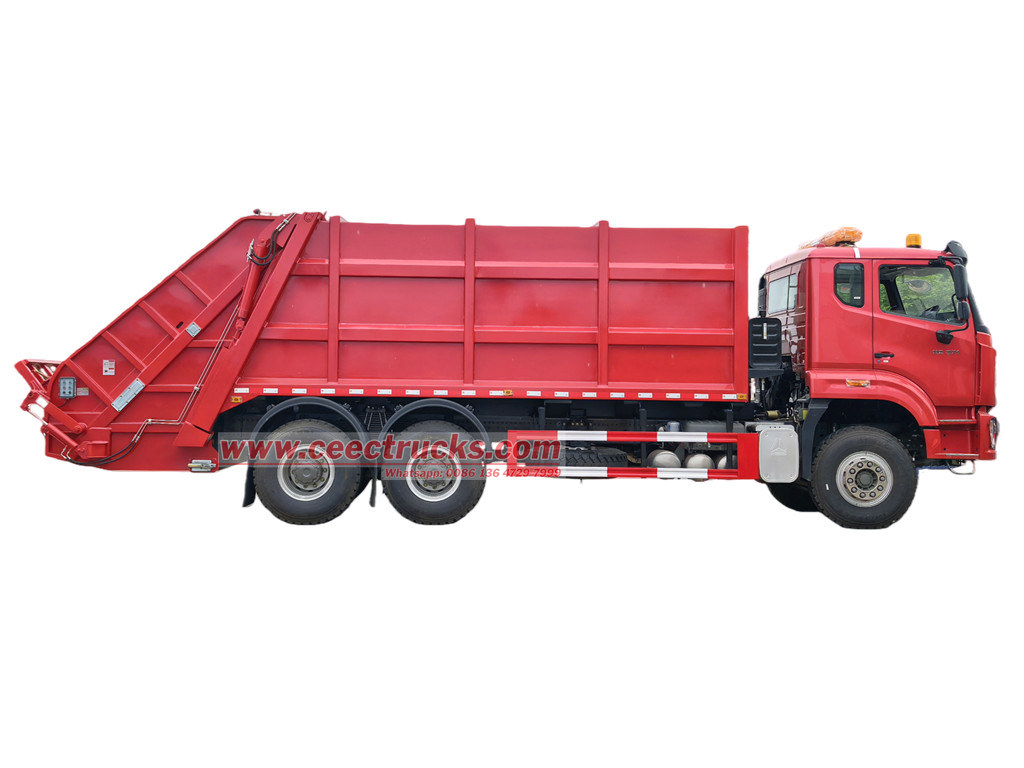

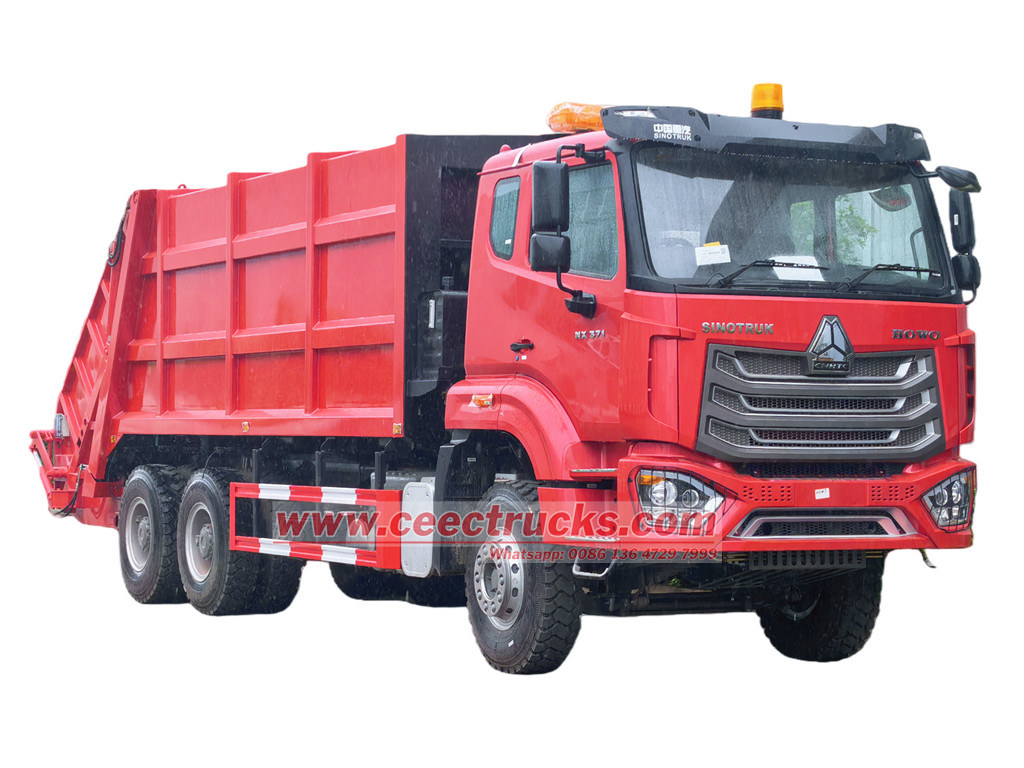

| Sinotruk HOWO RHD 371HP rear loader compactor | HOWO NX 10 wheeler solid waste compactor truck |

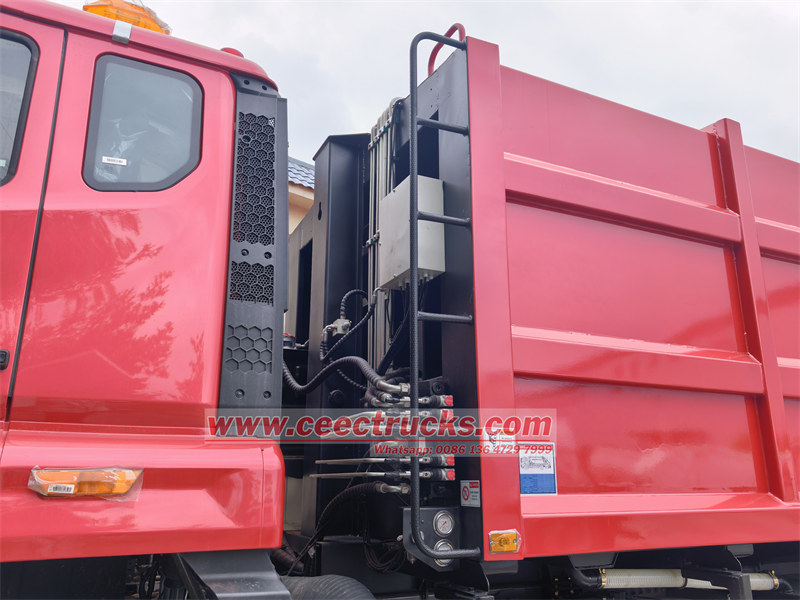

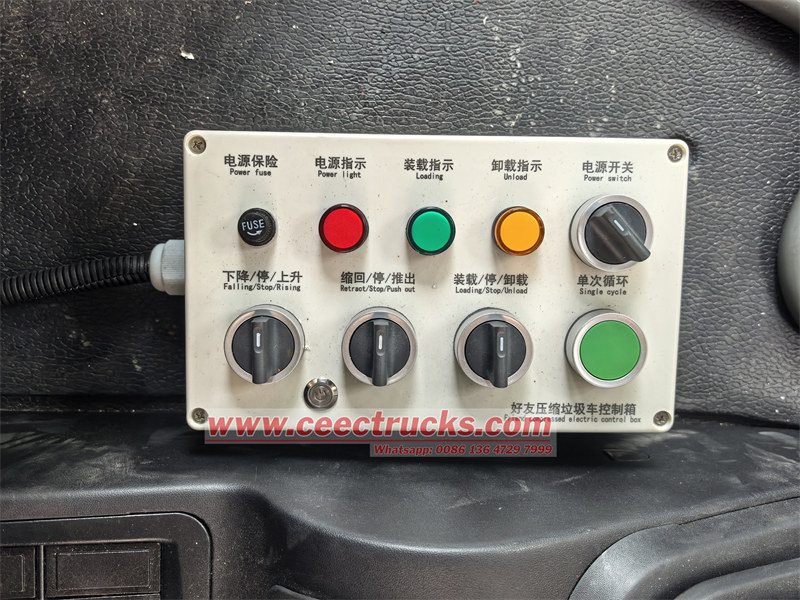

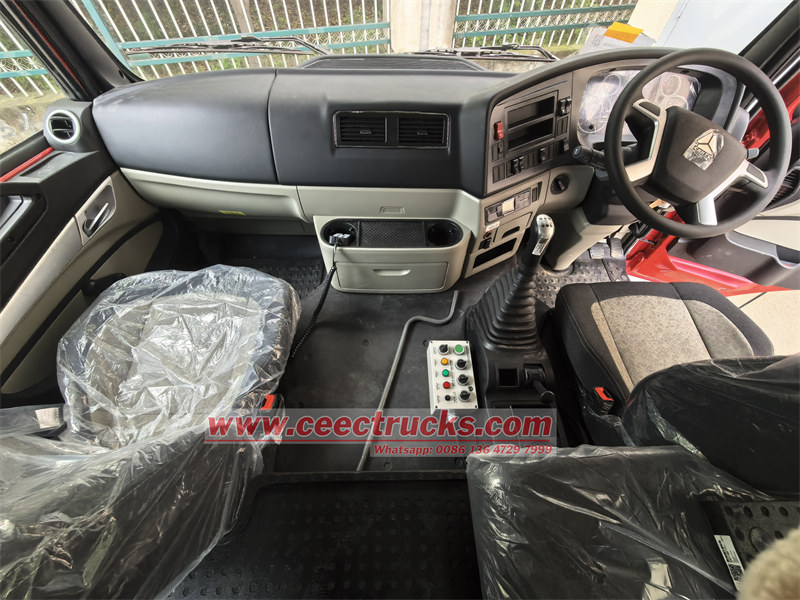

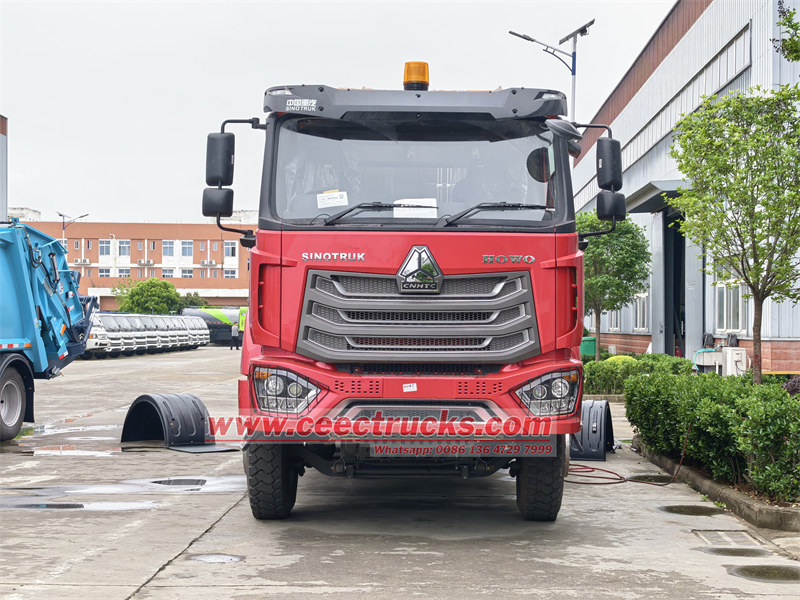

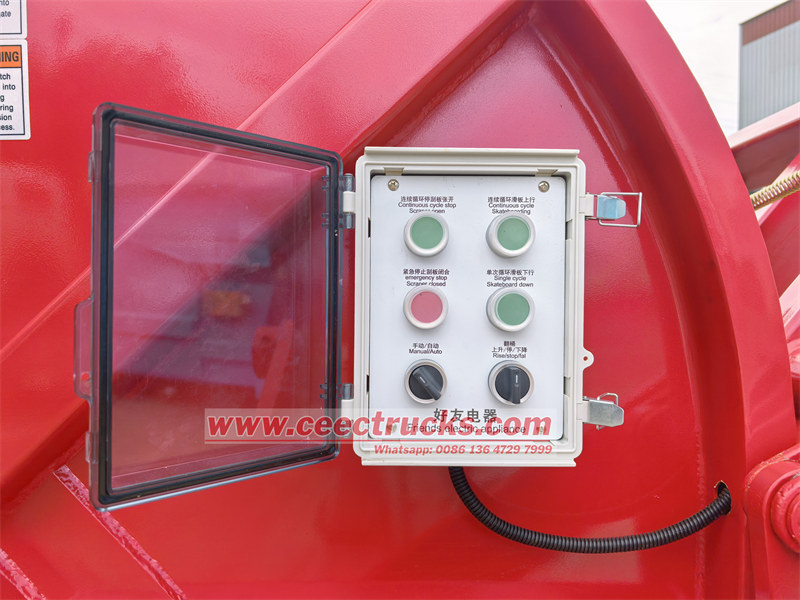

Designed based on HOWO NX new model truck cabin, right hand driving model suitable for Africa Kenya market, with Air Conditional for comfortable driving. Also equipped with electric control box for convenient and safety usage.

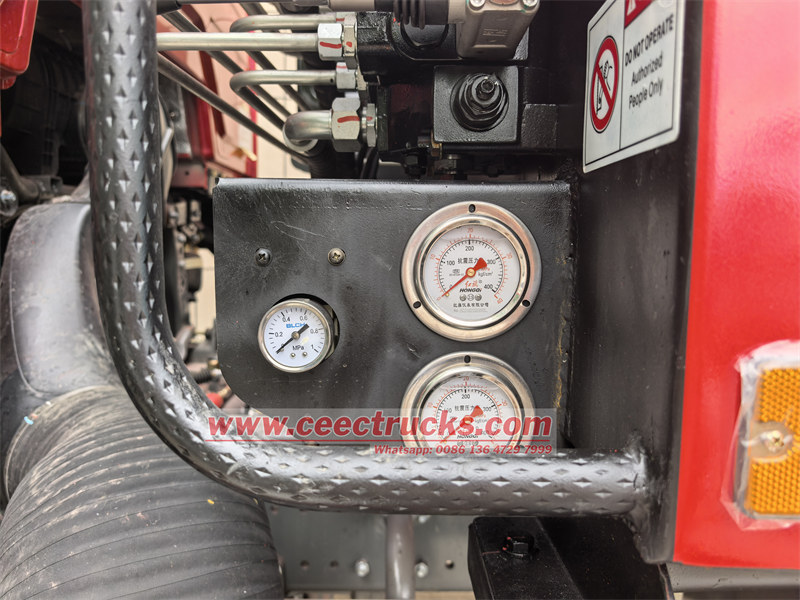

CE certify pressure gauge and airway valve
★ WEICHAI model WD615.47 super diesel engine 371HP, fuel consumption save 20%
★ HOWO HW19710 model Manual 10 shift mechanical transmission gearbox
★ 12 months fast moving spare parts for FREE
★ Authorized SINOTRUK HOWO NX rear loader truck exporter
★ Training service for HOWO 371HP waste compaction truck.
China professional vacuum truck supplier and exporter, we supply high quality rear loader garbage truck and combined sewer jetter truck. We can ensure the fast delivery time and 12 months guarantee for our trash compactor trucks. Our waste compaction trucks are customized with different type vacuum pump JUROP, MORO, BP brand, and sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
