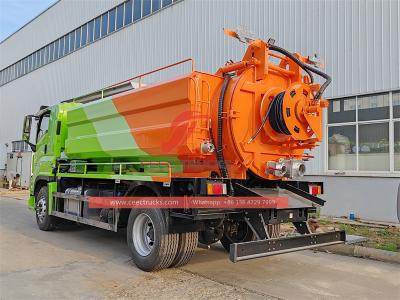

Africa Isuzu FVR 10000L vactor jet truck

Tanzania ISUZU FVR combination jetting pump tanker

Lead Time:
60 Days
Work capacity:
10000L
Dimension ( mm ):
8300×2480×2860 mm
Wheelbase ( mm ):
4600 mm
Engine power:
240HP
Engine type:
6HK1-TCG61
Axle drive:
4x2，LHD
Gear box:
Fast 8-speed, manual operated
Remarks:
Isuzu GIGA chassis,large tank capacity

Inquiry now

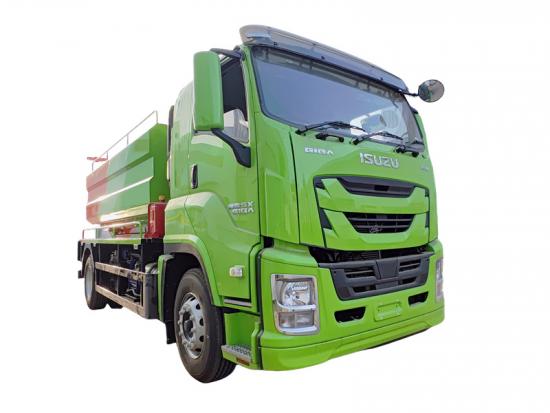

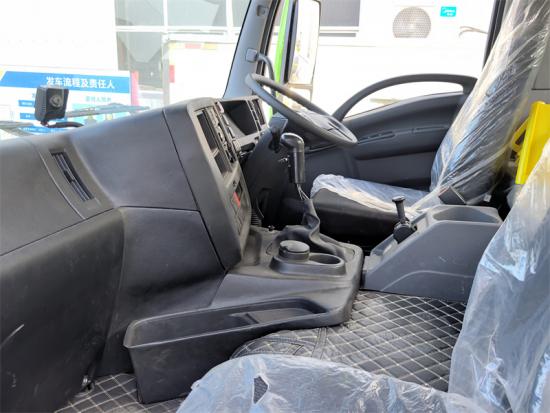

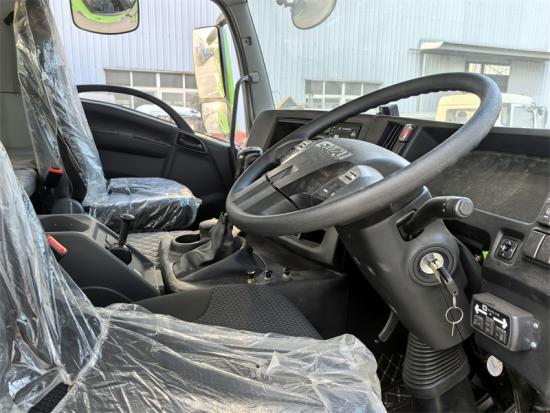

The 10000L combination jetting pump tanker is based on ISUZU FVR 240HP chassis and adopts a 4×2 right -hand drive configuration. It’s specially designed for efficient and reliable sewage treatment tasks. The curb weight is 9,650 kg, ensuring strong load-bearing capacity and stability. The cab uses hydraulic power steering to provide the driver with a comfortable driving experience and can accommodate 1 driver and 2 passengers at the same time. Equipped with ISUZU 6HK1-TCG61 engine, 6-cylinder in-line, 4-stroke direct injection, water-cooling, and intercooling supercharging technology, providing a strong power of 240HP. The Isuzu FVR vactor jet truck is matched with the ISUZU Fast 8-speed manual transmission to ensure strong power output and efficient fuel economy.Equipped with a cleaning and suction body, including a tailgate (rear hopper), a discharge/unloading plate, a compaction plate, a sliding plate, and a special high-pressure flushing and unblocking jet. It achieves efficient and convenient sludge treatment. Its 6,000-liter sewage capacity and 4,000-liter high-pressure cleaning water tank are sufficient to meet most operational needs.

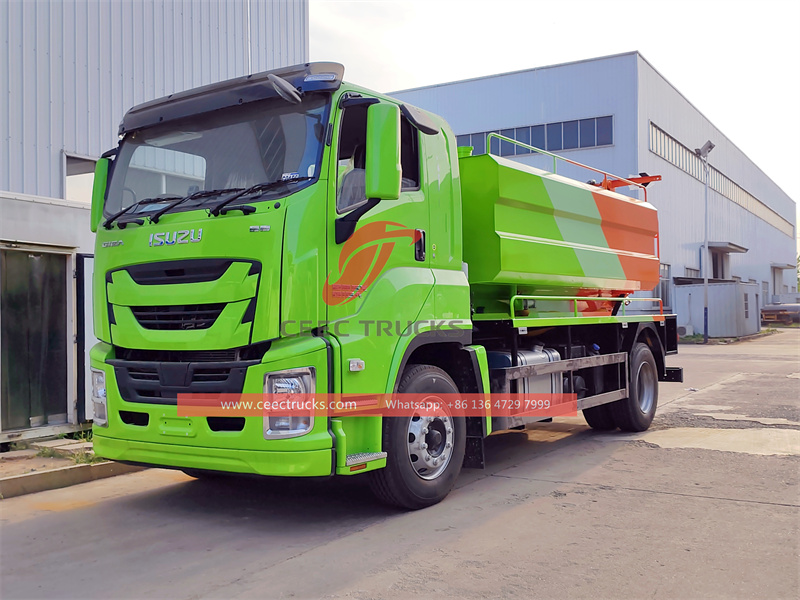

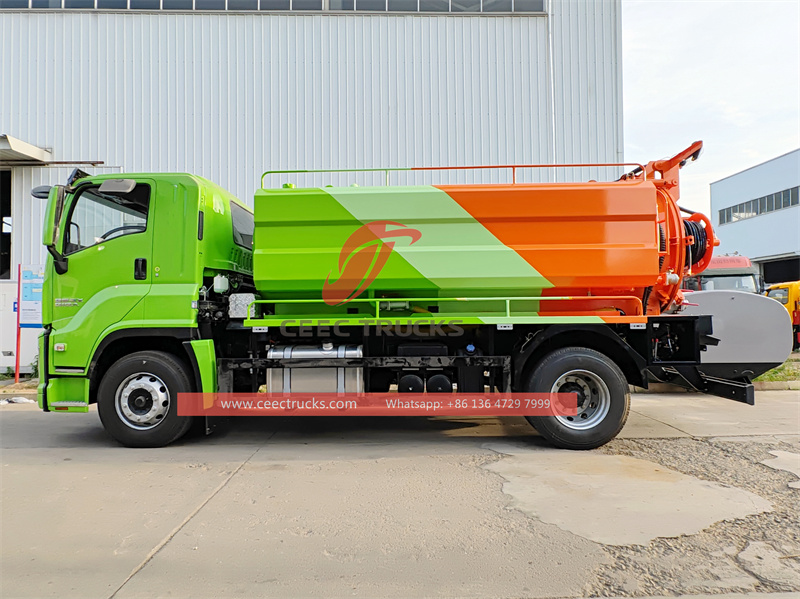

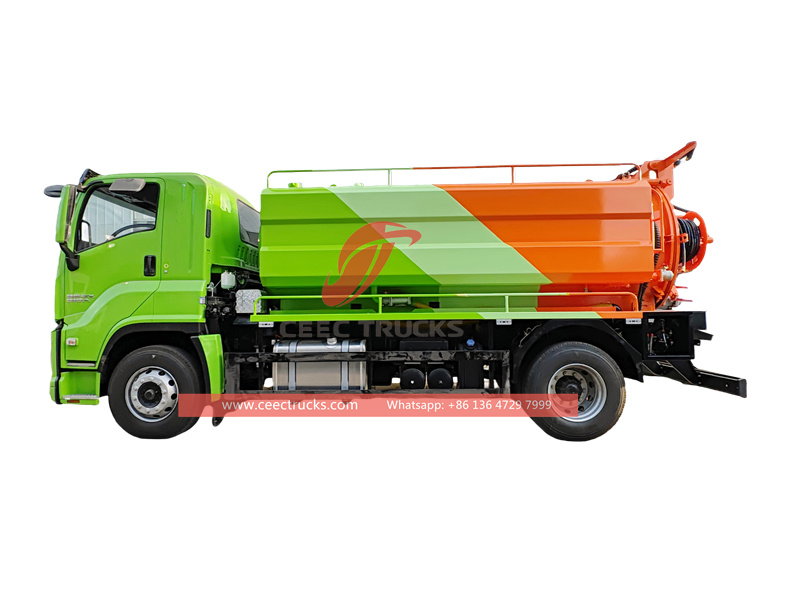

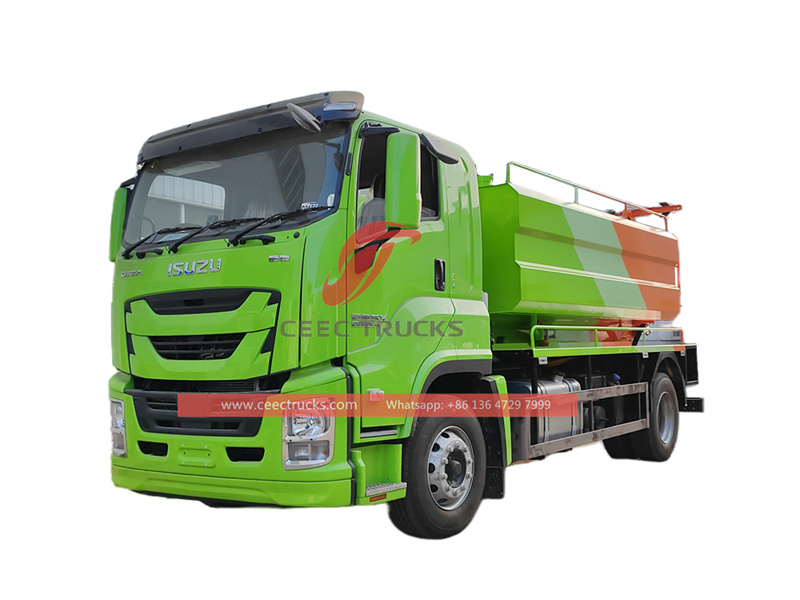

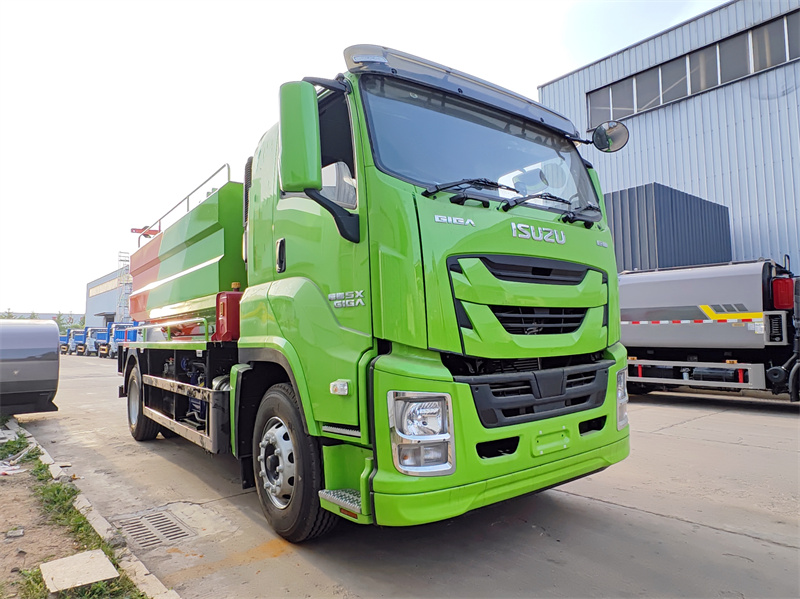

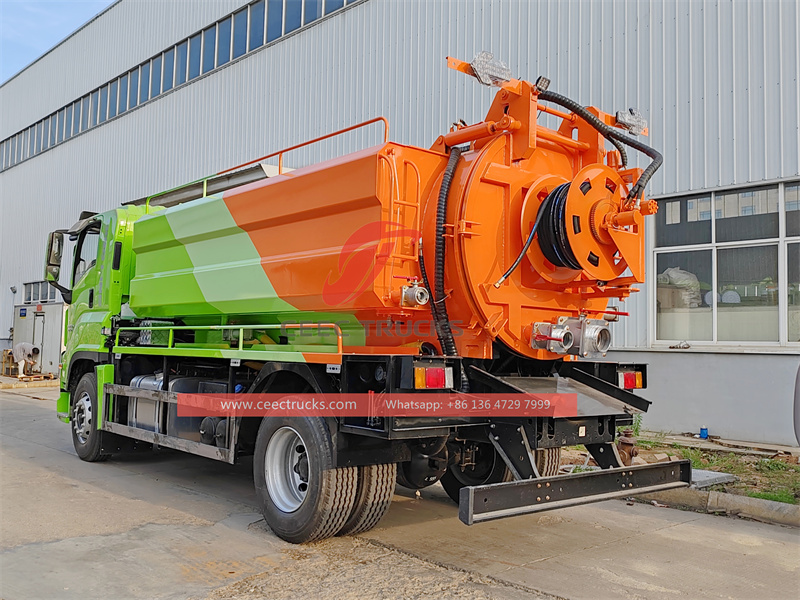

ISUZU FVR 10000L Vactor Jetter Truck

● China best vacuum pump tank truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Build strict QC team to guarantee the quality

● We can offer your a good after-sell service

Specification:

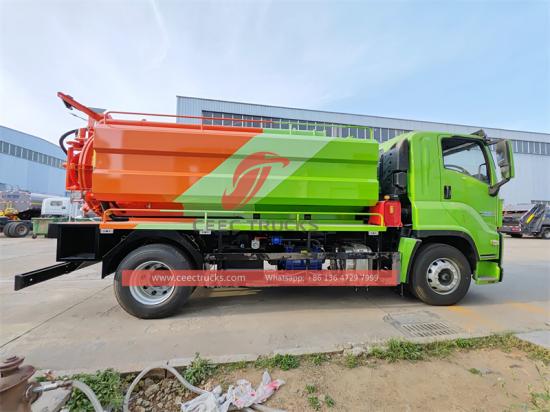

ISUZU FVR 10000L Sewer Pump Truck
Vehicle model	CEEC51836QXWC
Overall dimensions	8,300×2,480×2,860 (mm)
Mass in working order	18000 kg
Wheel base	4600 mm
Engine	Model	ISUZU 6HK1-TCG61
	Displacment/horsepower	7289ml /240HP
	Type	6cylinder ,direct Inject , line , turbcharege
Tire specification	295/80R22.5	Drive system		4X2
Drive wheel(Tires )	6+1 spares	transmission		Fast 8-speed
Equipment	Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment Time for full suction<5min,tank rear cover can be opened by air and dump.
Tipping	The tank is mounted with an arrangement for the rear tipping
Thickness	6mm
Tank material	Q235
Tank thickness	Tank 6mm , head cover 6mm
Fullfilling time	<5min
Discharge time	<4min
Vertical suction	8M
Dump angle	45 degree

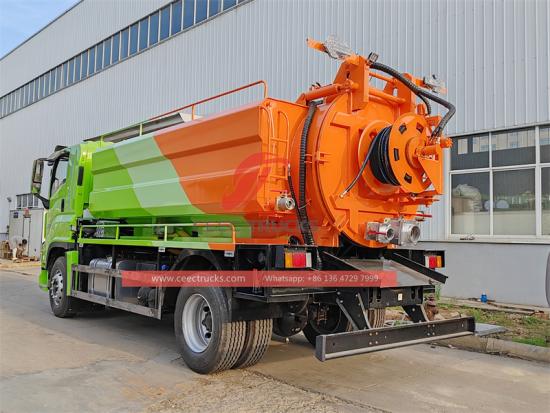

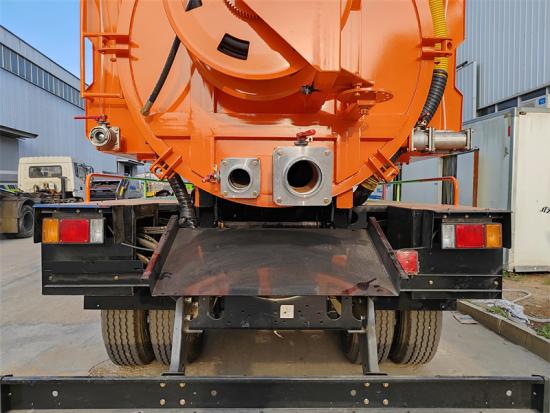

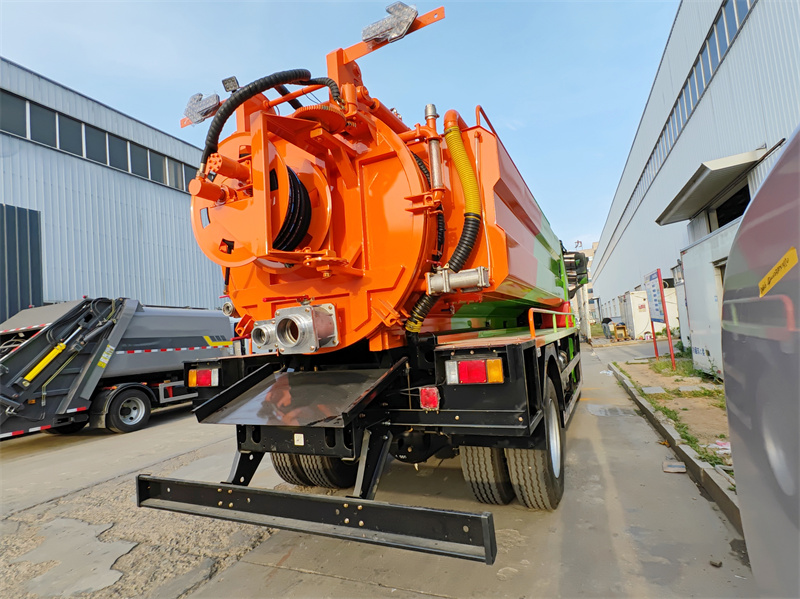

Rear Door	Fully open-able type It is reinforced for structural integrity. Raised to the angle of 80°to the vertical. Locking and sealing (no leakage) are done by hand wheel-operated bolts, which are a robust design located circumferentially on the tank’s rear end of the shell. The liquid is tight by means of a self-compensating seal and is locked by means of manual latches.

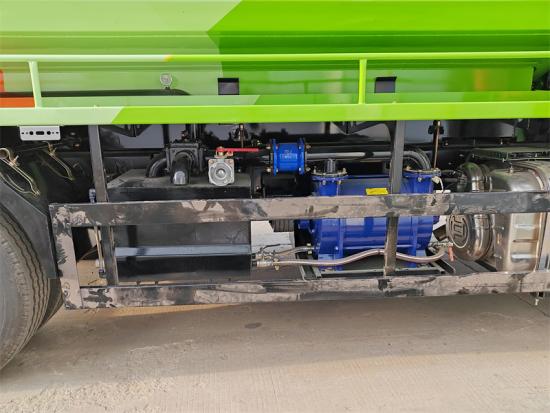

vacuum pump data	Model		PM80A
	Brand		MORO
	No		1
	Rating rotate speed		500r/mm
	Suction speed		45L/S
Cleaning system	Pump Brand		Pinfu
	Water Pressure		24 MPa
	Flow rate		170 liters/minute

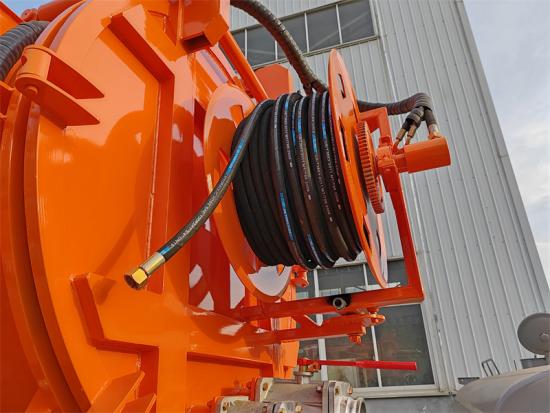

	Length of cleaning pipe		50m
Main accessory	Hydraulic cylinder		2pcs
	oil and gas separator		1pcs
	Hydraulic oil tank		18L
	High pressure oil pipe		1pcs
	hydraulic directional control valve		1pcs
	Three way valve		1pcs
	moisture separator		1pcs
Heavy Duty Spiral Suction Hoses	Provided with five heavy Duty spiral suction hoses, 4″ diameter. The hose is 3 meters in length with aluminum or galvanized steel light and easy-to-handle PVC hose along with quick-connect fittings on each end and provided with male-female couplings for the suction application
All standard accessories: Inlet pipeline, discharge nozzle, cabin pneumatic control box, basic tool kit, English manual……
Optional	Back alarm and Camera can be equipped. Standard carbon steel, stainless steel optional. ** Standard WEILONG vacuum pump, Italy vacuum pump optional

Application:

1. Efficient sewage treatment capacity: The combined design of the 6000-liter sewage tank and the 4000-liter clean water tank is the core advantage of the Isuzu FVR vacuum tank truck. In urban sewage management, there are often situations where a large amount of sewage needs to be treated quickly, such as water accumulation after heavy rain or serious pipe blockage. With such a large-capacity tank, operators can treat more sewage in one dispatch, greatly improving work efficiency. At the same time, the 4000-liter clean water tank ensures that there is enough water for pipe flushing and cleaning operations, without the need for frequent round trips to add water. This not only saves time and fuel, but also reduces the number of round trips of vehicles on the road, indirectly reducing traffic pressure and carbon emissions.

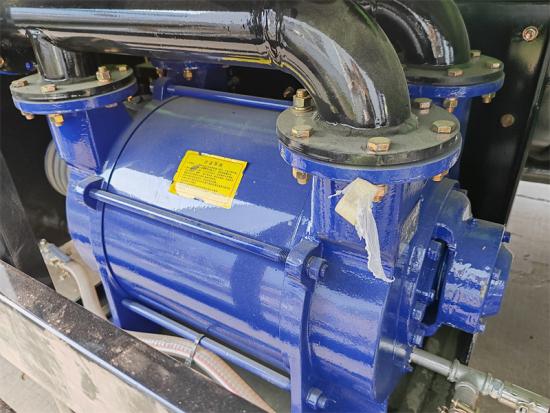

2. Advanced vacuum pump system: The MORO PM80A vacuum pump is another highlight of the Isuzu ELF septic tank cleaning truck. Its flow rate of 78 liters per second means that it can extract a large amount of sewage in a very short time. The maximum vacuum degree does not exceed 15 KPa, which is quite excellent and can effectively handle sewage and sludge with high viscosity. The low-speed operation (800-1000 r/min) feature not only reduces energy consumption, but also significantly reduces noise pollution, which is particularly important in urban environments. High efficiency means that the work can be completed in a shorter time, reducing the impact on the surrounding environment and traffic. The moro pump also has a long service life, reducing the frequency of maintenance and replacement, which is more environmentally friendly and economical in the long run.

3. Flexible operation capacity: The effective suction range of more than 8 meters is a very practical feature. In urban environments, sewage problems often occur in places that are difficult to access directly, such as underground pipes, manholes, or areas blocked by obstacles. With this range, operators can handle various complex situations more flexibly without having to frequently move the Isuzu vacuum tank truck position. The 40-45 degree hydraulic lifting capacity greatly improves the sewage discharge efficiency. This angle ensures that the sewage in the tank can be completely emptied under the action of gravity, avoiding the accumulation of residues, and facilitating subsequent cleaning and maintenance work. This design not only improves work efficiency, but also reduces the risk of secondary pollution.

4. Environmental considerations for materials and structures: The 6 mm thick high-quality carbon steel tank body is a well-considered choice. When handling sewage, the tank body is often exposed to erosion by corrosive substances. Carbon steel has good strength and certain corrosion resistance, and is more economical than stainless steel. The 6 mm thickness provides additional durability and extends the service life of the equipment. At the same time, as a special truck source manufacturer, the optional stainless steel tank body provides a solution for those scenarios that handle highly corrosive sewage. Although the initial cost is higher, it may be more economical and environmentally friendly in the long run.

★ Euro 6 type, ISUZU engine, super powerful

★ Vacuum pump super powerful, efficient pump in and out

★ 12 months fast moving spare parts for FREE

★ Authorized ISUZU sewage suction trucks exporter

★ Training service for ISUZU sewer cleaner trucks
