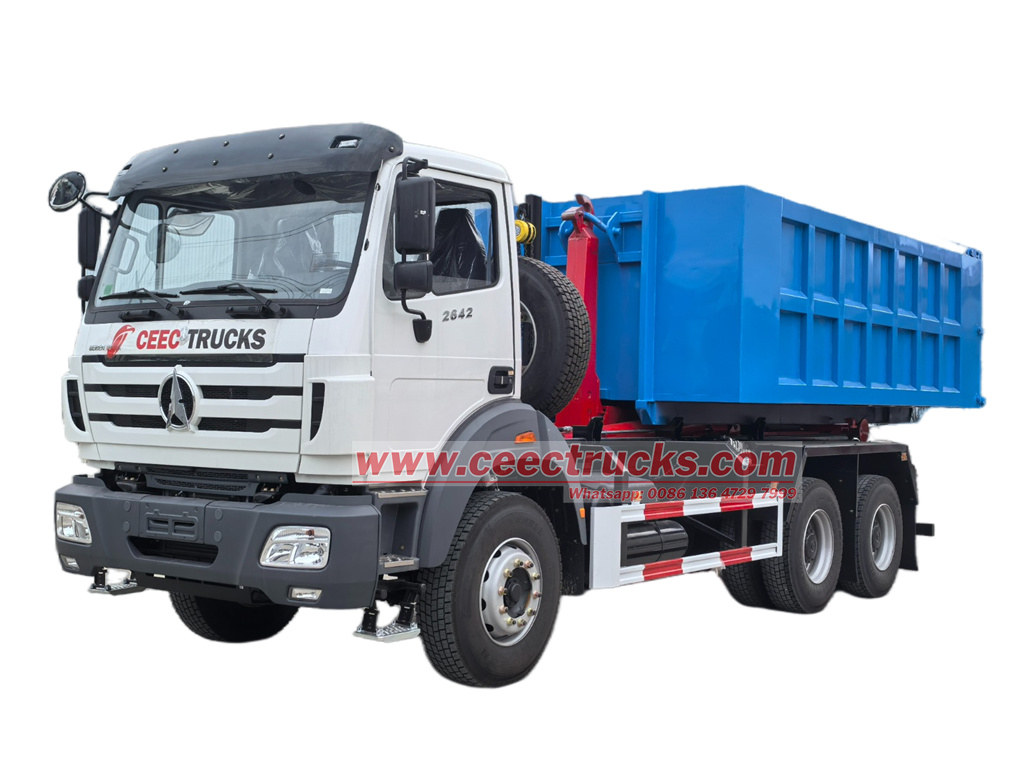

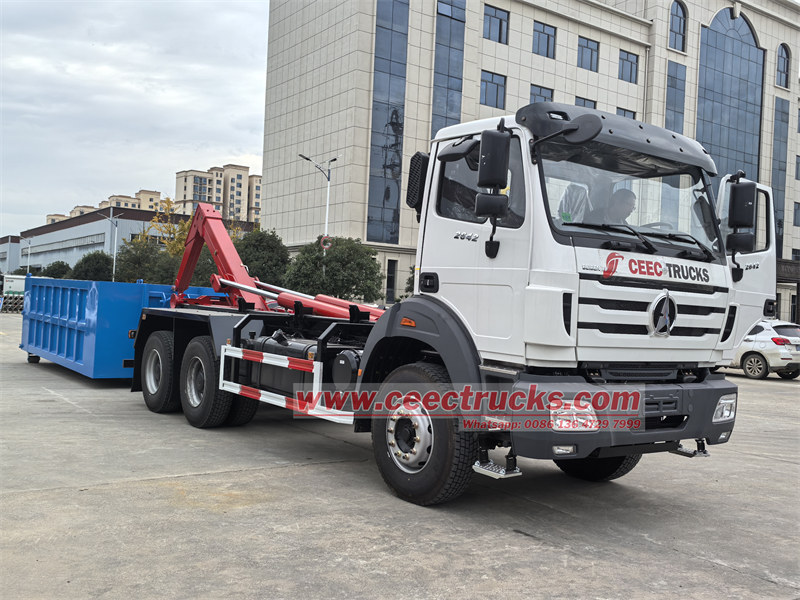

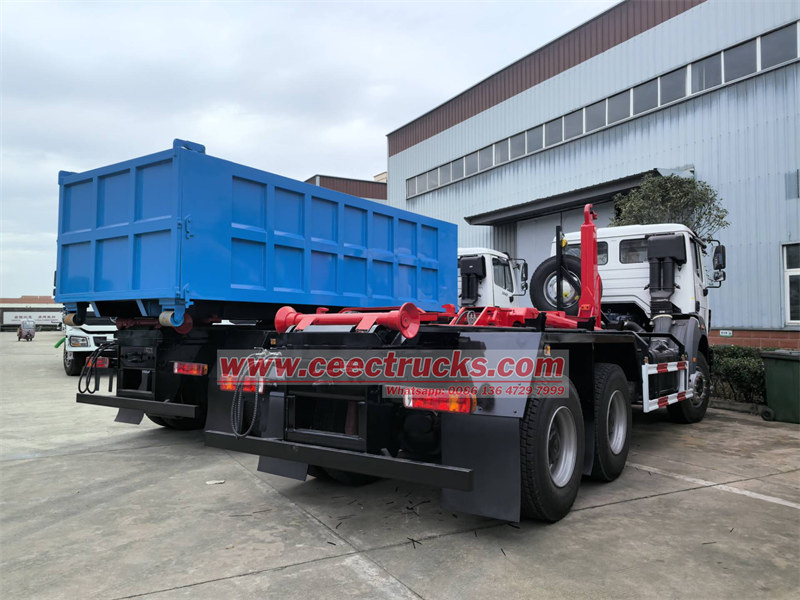

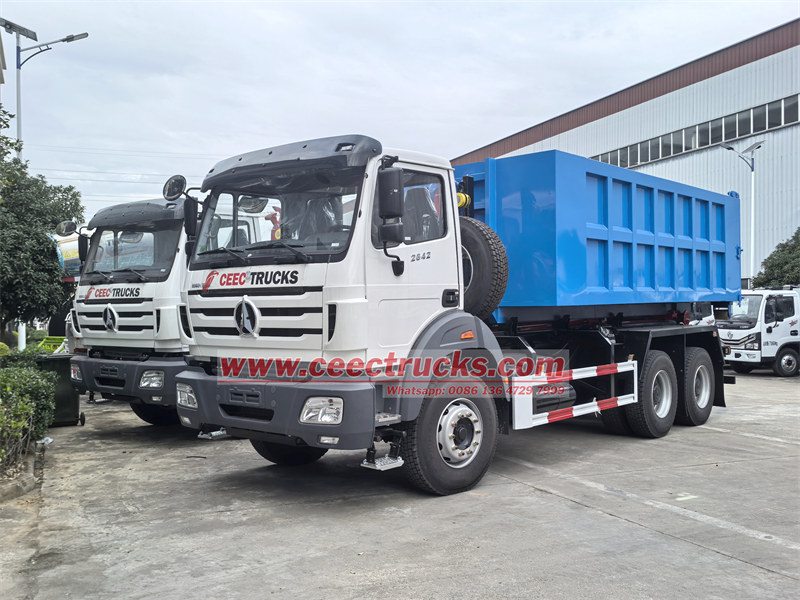

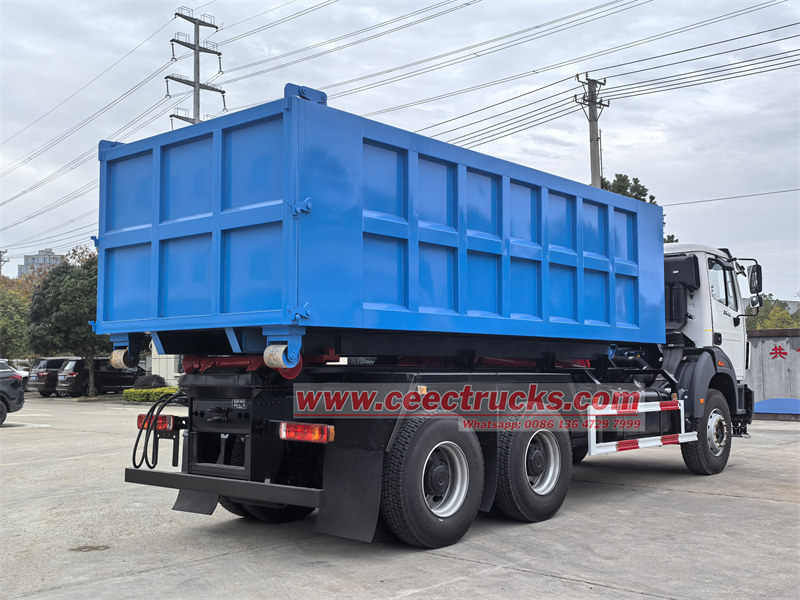

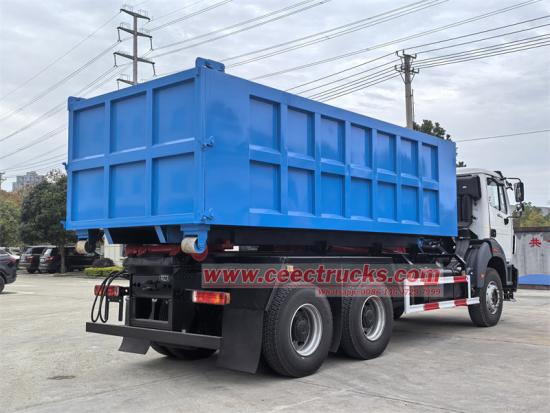

Africa customer purchased Beiben 2642 hook lift garbage truck is a vehicle specially designed to collect and transport municipal solid waste, widely used in city, residence community, factory, hospital, municipal environmental section, garabge transportation station, etc. Beiben 20tons hookloaders is produced based on North Benz 2642 LHD 6x4 truck chassis and equipped with Top 1 Chinese brand WEICHAI diesel engine WP12.420E32 model, 308KW and 420HP, efficiently emission 11596ml, which provides powerful power and stable performance, ensuring excellent performance under various operating conditions, matched working with FAST 12 shift manual transmission gearbox, which are golden partner and can offer much lower fuel consumption. The North Benz 2642 roll off container truck is equipped with 20tons hook loader superstructure, based on Q355 high strength steel material, telescopic hook arm and rear stabilizers for safety loading support. Marched working with multiple garbage containers with size 5600x2300x1500mm, with efficiently loading capacity 19.32CBM, which can quickly and effectively used for garbage collection and long distance transportation.

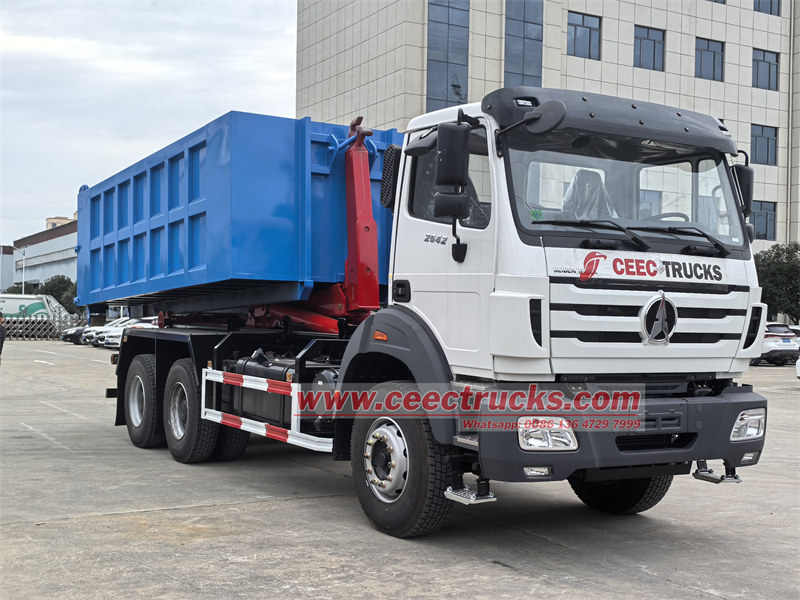

*BEIBEN 2642 heavy duty Hook Loader Garbage Truck

Beiben 420HP Roll on Roll off garbage truck

North Benz 20tons hooklifts*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

▶ Advanced Features:

★ 308KW / 420HP powerful WP12.420E32 diesel engine, 100,000 Km without prblem.

★ BEIBEN NG80B newly cabin, Mercedes Benz design

★ 20tons telescopic hook loader kit, super powerful

★ Customized uncover bins 5600x2300x1500mm

★ Integrated control system: Hydraulic valve, In cabin Electric box, Wireless remote control box





▶ Product Parameters:

What is a Beiben Hooklift?

A mechanical device called a hook lift, sometimes referred to as a hydraulic hook lift hoist, enables the BEIBEN hook loader truck or hooklift trailer to load, move, and unload heavy containers. The customized container can be multiple type, open top model, uncovered model, sealed model and flatbed model, whih is raised and lowered onto the ground using hydraulic cylinders and hook arm. Beiben 2642 Hooklifts are commonly used in waste management, construction, recycling, and other industries that require the transportation of heavy equipment or materials.

▶  Beiben hooklift truck working principle:

To meet international customer requirement, Beiben 2642 heavy duty hook lift garbage truck is designed to collect and transport multiple solid waste. Matched working with multiple type garbage containers, and when container filled with waste and rubbish, the hook lift system allows for quick and efficient loading and unloading containers, which is essential in the fast-paced environment of waste management.

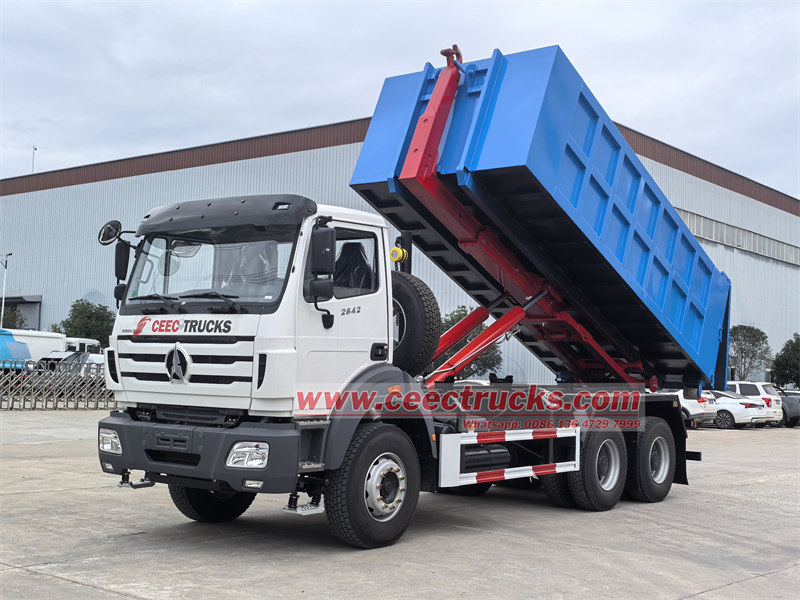

Beiben 2642 Hook Loader Truck working model one:

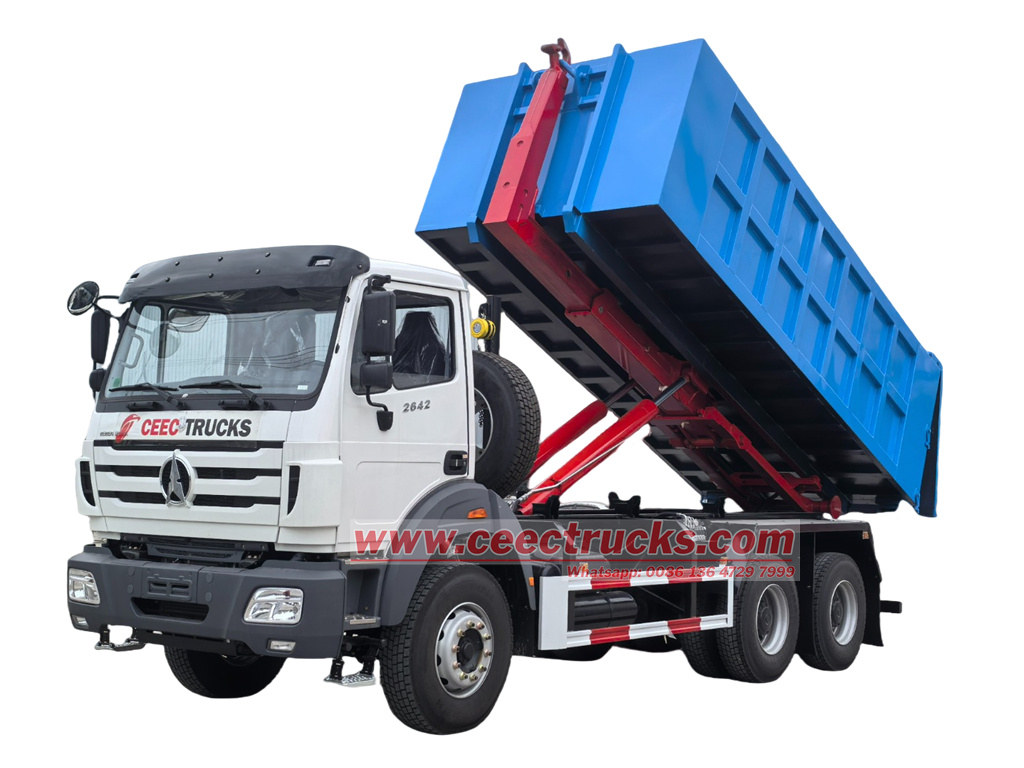

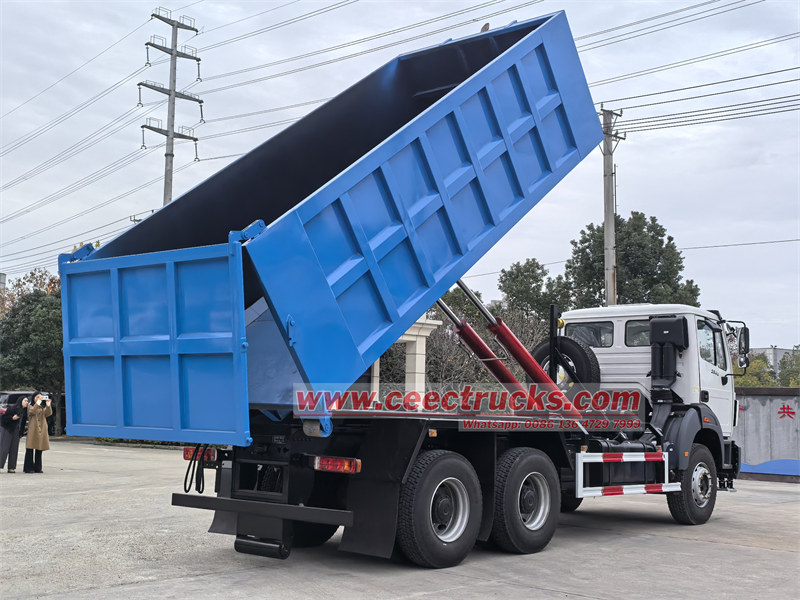

Beiben NG80B roll off container truck can be lifting up and working as a dump truck, after open rear door then can full discharge all waste. Operation steps as below showing:

→ Extend out the rear stabilizer

→ Unlock the Container rear door hook

→ Control to make the bin horizontal locked

→ Operate to lifting up the hook arm directly

→ Then container can be lifting up and waste discharged

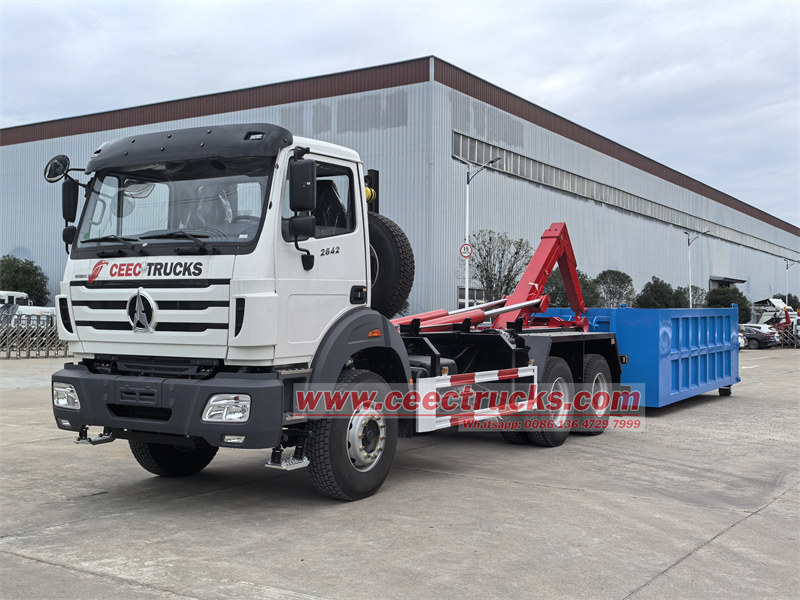

Beiben NG80B Hook Lift Garbage Truck working model two:

Beiben 2642 hooklifts truck can have the garbage container detchable, so one unit Beiben 20tons hooklift truck can be matched with more than 10 units garbage bins. Operation steps as below showing:

→ Extend out the rear stabilizer

→ Lock the Container rear door hook

→ Control to make the bin unlocked

→ Operate to make Container move backward

→ Operate to lifting up the hook arm and Container

→ Then container can be detchable on the ground

→ After separated, Beiben hookloader can be used for transporting another garbage container. And the remain Container can be used for garbage collection.







▶  Control System for Beiben Roll On Roll Off Truck:

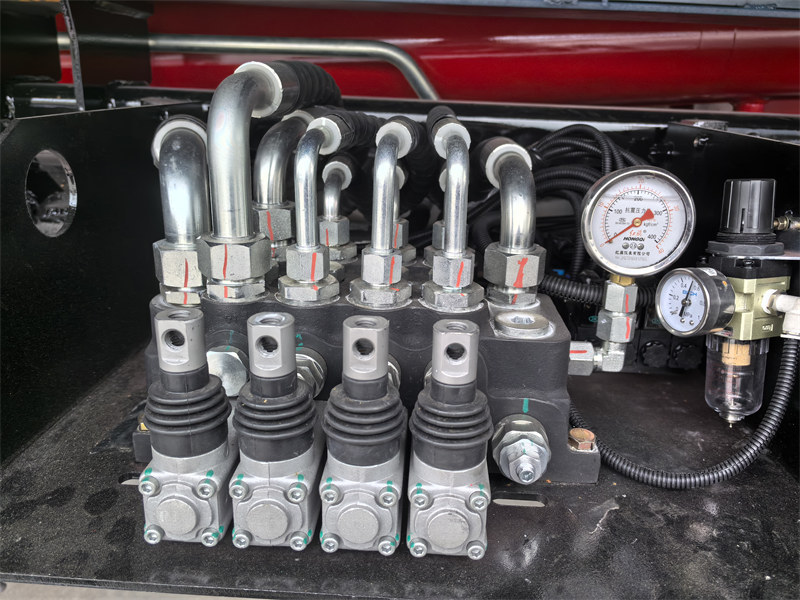

Beiben 20tons hook loader truck hydraulic control valve



International CE standard hydraulic control valve, which is designed with multiple way valve, and used to control rear stablizer extend out and retract back. Also can make hook arm superstructure lifting up and falling down for usage. Equipped with hydraulic pressure gauge for safety working.

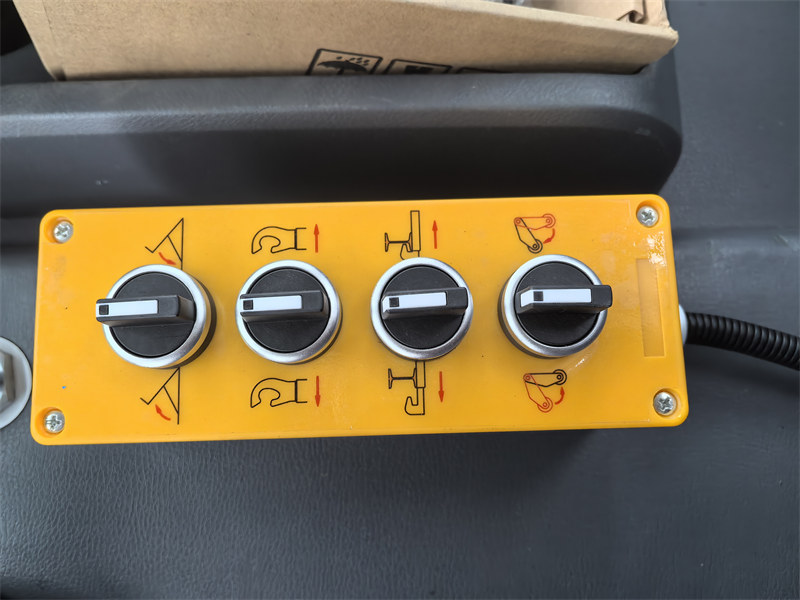

Beiben 2642 Roll Off Container truck Electric Control box



Nearby hydraulic control valve equipped with Magnetic valve and air pressure adjust gauge, which can make the electric control box inside cabine useful, then can guarantee working more convenient and safety.



▶  Advantages for Beiben 420HP hook loaders:

To guarantee end user have good quality beiben hook loader trucks and enjoy more reliable and efficiently working performance. We CEEC TRUCKS have Beiben 2642 hooklifts manufactured more reliable and meet international working standard. Below are advanced features for reference. Moreover, we can also customized any truck as request.

•

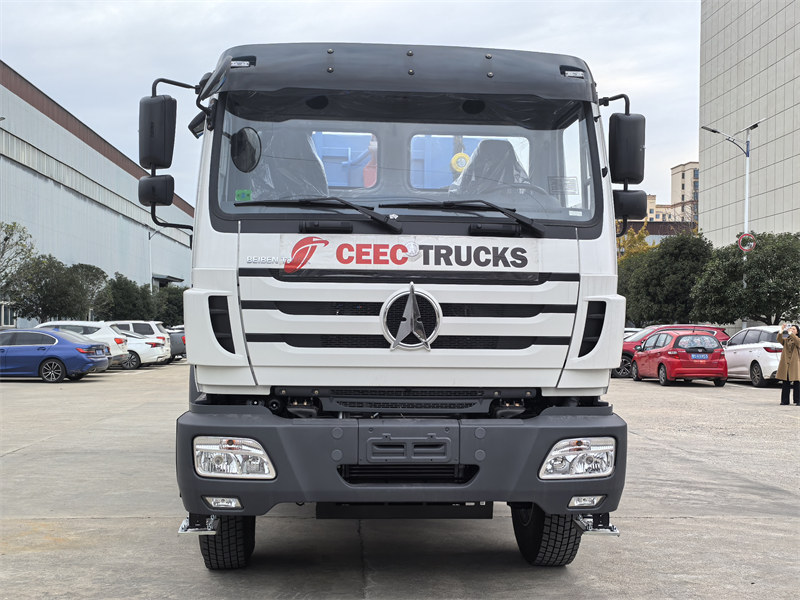

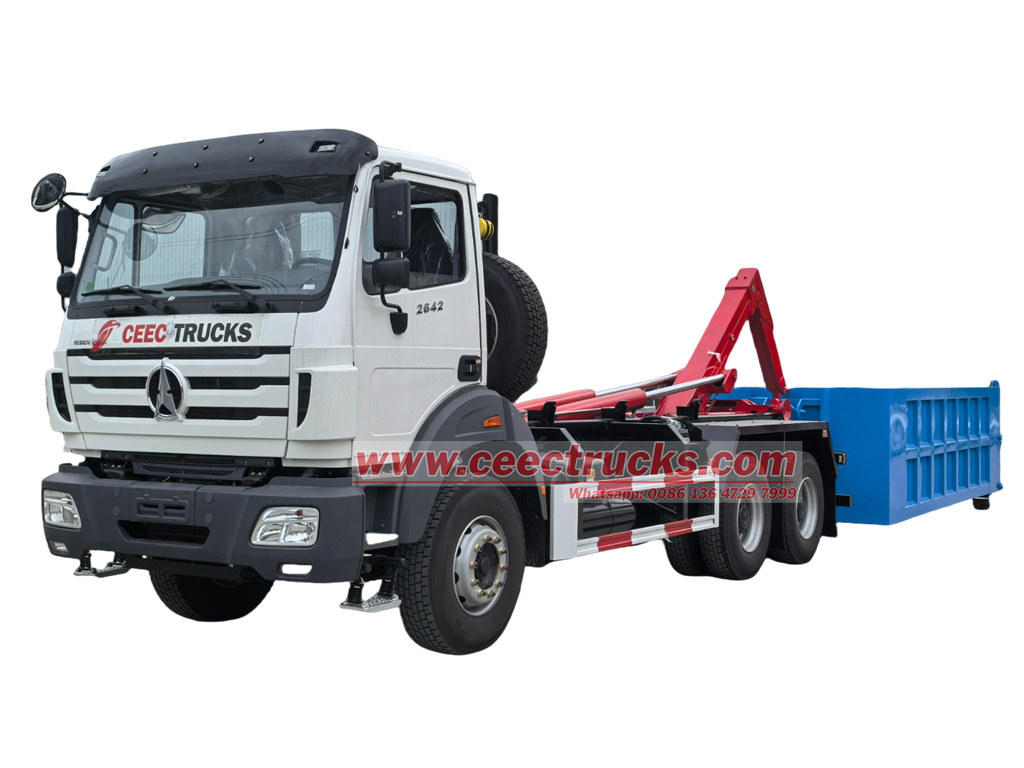

  BEIBEN 2642 truck with NG80B cabin
•

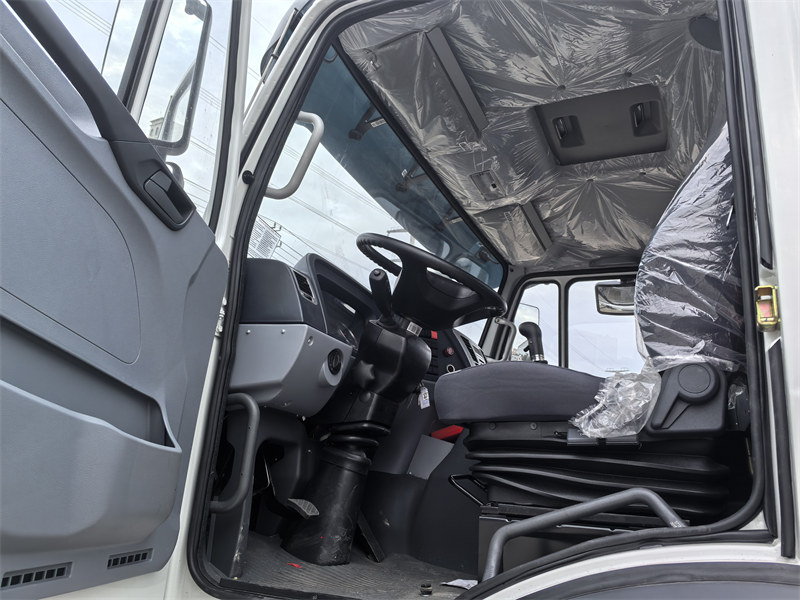

  Comfortable driving cabin with air suppression seat
•

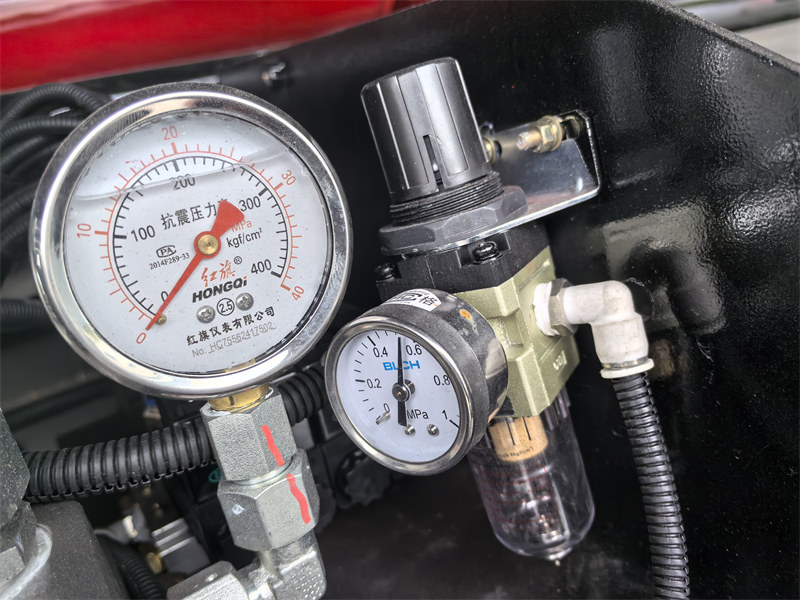

  Pressure gauge and air valve

•

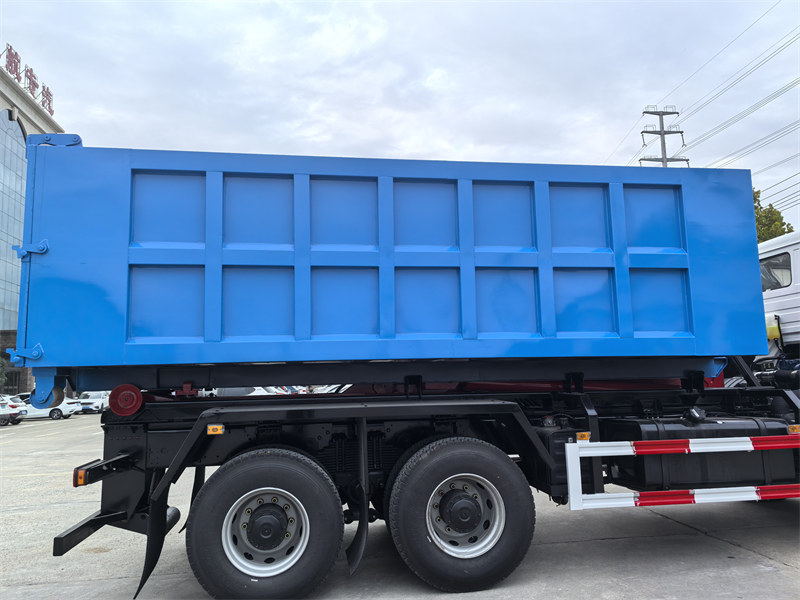

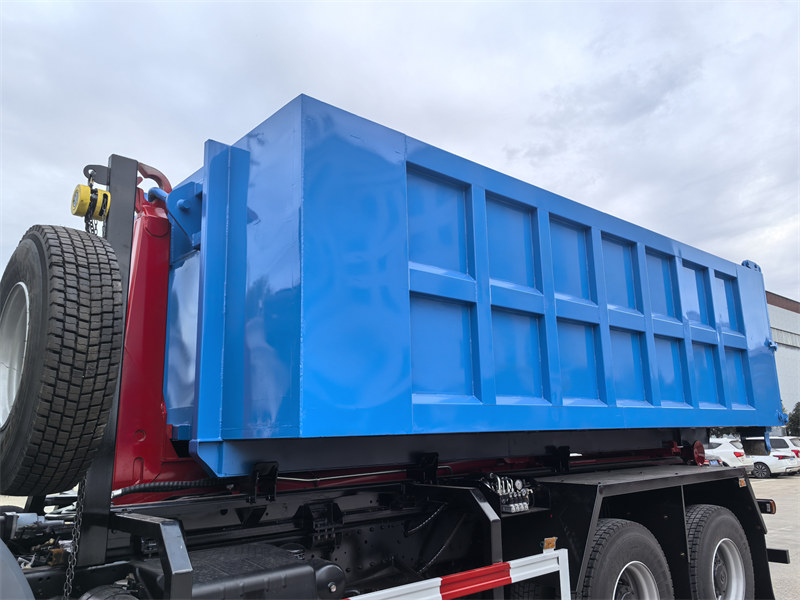

  Side view of garbage container
•

  Hydraulic hook loader arm device
•

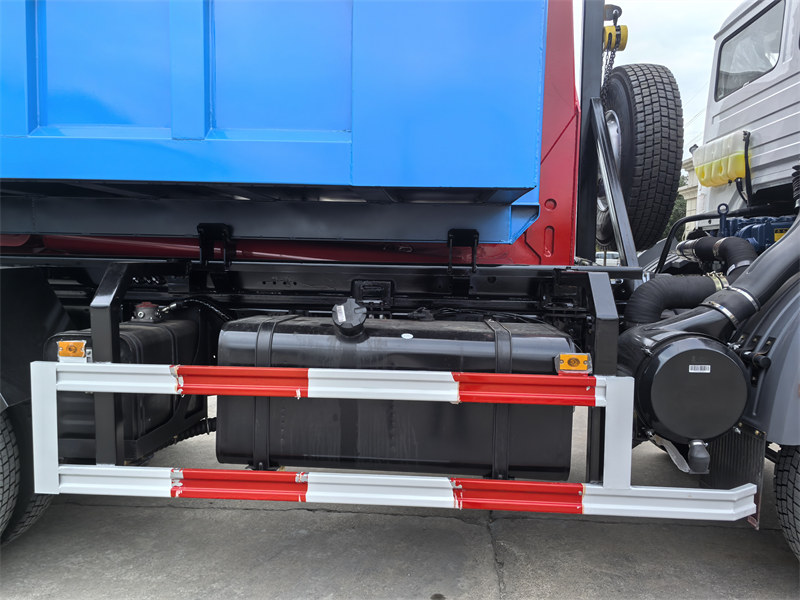

  Front mounted Spare tire

•

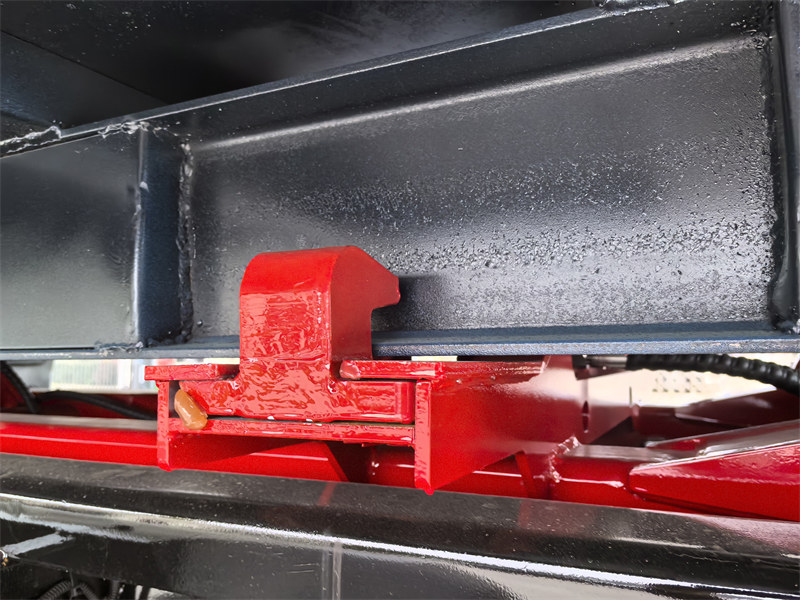

  Garbage container horizontal lock
•

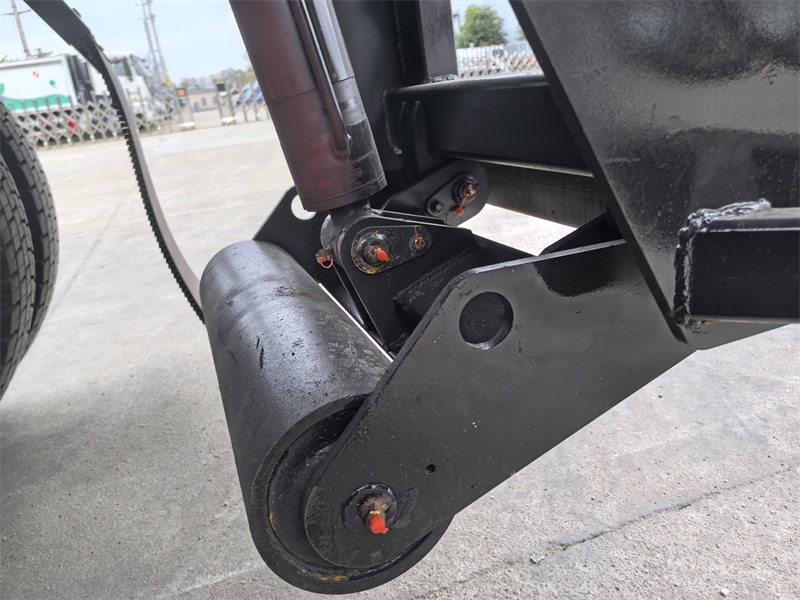

  Rear stabilizer for safety support
•

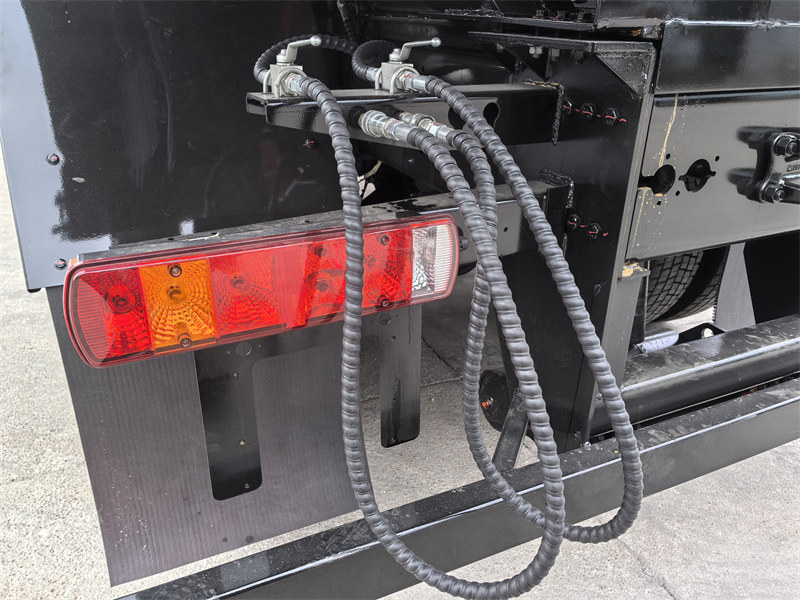

  Hydraulic pipeline connector for garbage station
