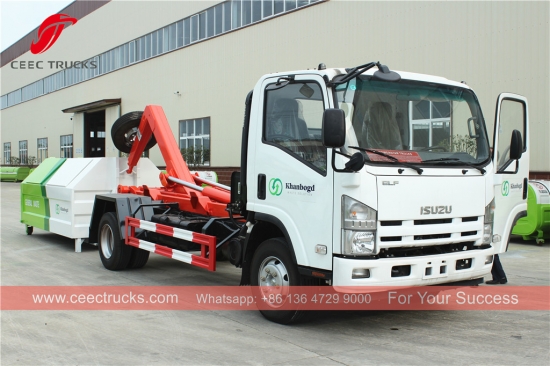

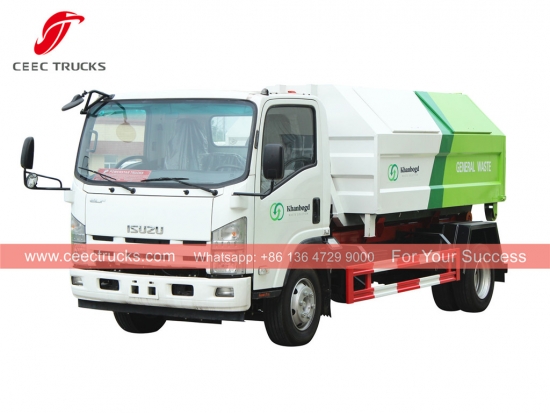

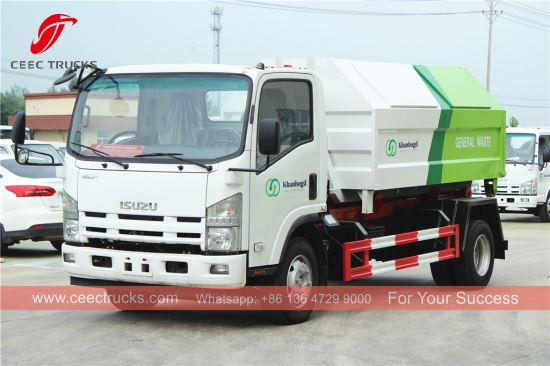

ISUZU 8cbm hook loader truck

8CBM Hook Loader ISUZU

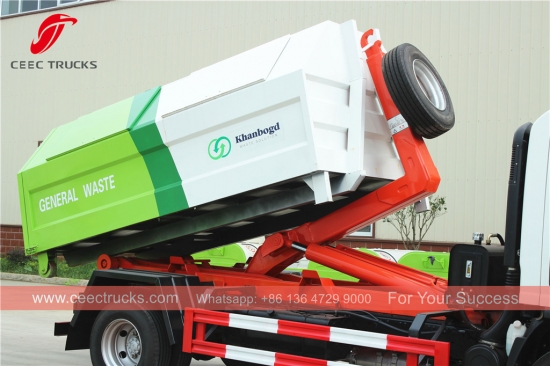

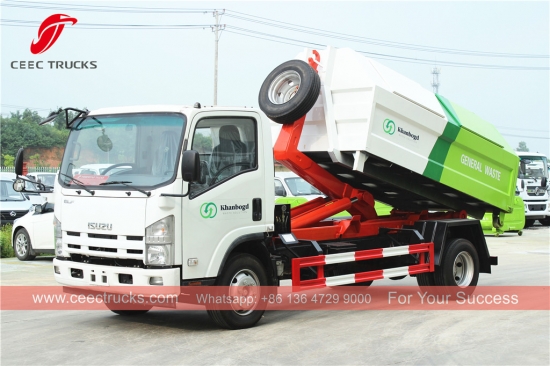

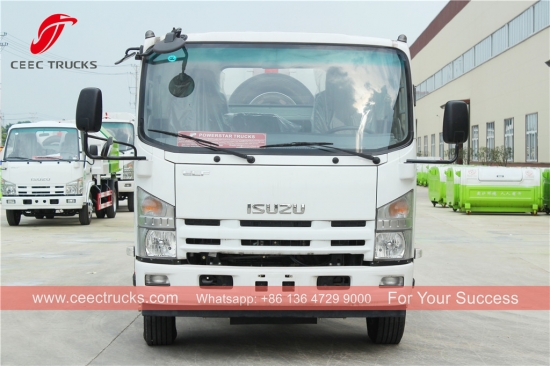

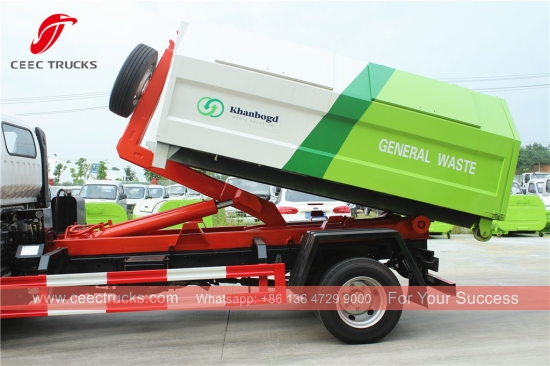

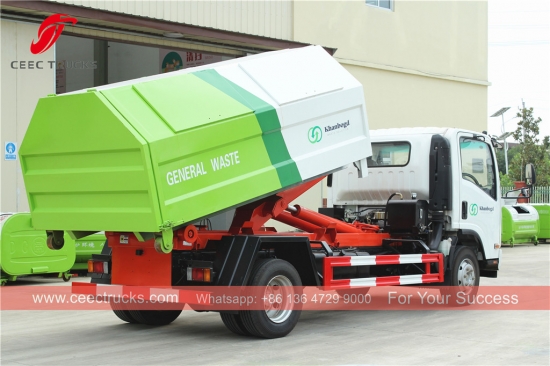

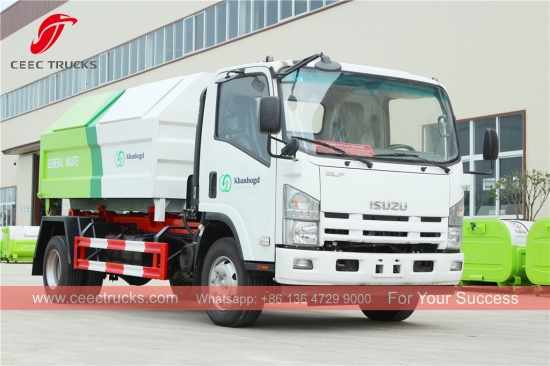

Mongolia 8 cbm roll on roll off garbage truck, ISUZU 4x2 chassis with ISUZU 190HP diesel engine, MLD 6-shift manual gearbox, high strength hook loader system, with all kinds of garbage container

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $22,000-37,000
contact now

 Applications:



Hook Loader Garbage Truck ISUZU (also called roll on roll off garbage truck, hook loader container truck, hook lift truck, hook lift garbage truck, hook loader, detachable garbage container truck, garbage collection truck, carriage removable garbage truck, hook lifting garbage truck ) is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage collection and transportation station, etc.



CEEC TRUCKS roll on roll off trucks loading capacity can ranges from 1tons, 2tons, 3tons, 4tons, 5tons, 8tons, 10tons, 14tons, 18tons, 20tons, 22tons, etc.



The hook loader with shot peening painting, with all painting color and logos depend on requirement.

 Key Features:



---- ISUZU chassis, perfect performance

---- ISUZU diesel engine (Japanese brand), super powerful, no overhaul within 100,000 km.

---- Hook loader garbage container body capacity from 1 to 22 Cublic Meter.

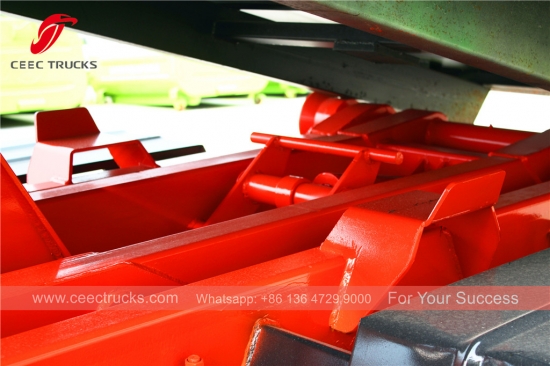

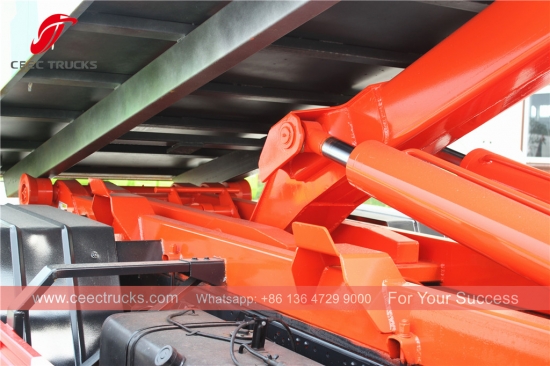

---- Rational design of hook and locking structure, and truck more reliable.

---- Optional Electrical Control in cabin, easy operation and easy maintenance.

---- Various types of refuse container lifter are available.

Why choose CHUSHENG certified hook loader truck



 Specifications:



ISUZU Hook lift garbage truck (8 cbm)

General

Vehicle Brand

CEEC

Chassis Brand

ISUZU

Overall Dimension

7500 * 2300 * 2750 mm

GVW / Kerb Weight

11,000kg / 5,800kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

190 HP (140 KW)

Displacement

5193 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

4X2, (left hand drive)

Transmission

MLD 6 speed levers with 1 reverse

Wheelbase/No. of axle

3815 mm / 2

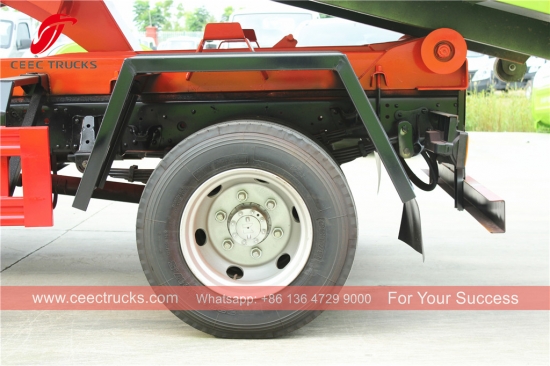

Tire Specification

7.50-16

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body capacity

8CBM capacity detachable container

Container material

Anti-corrosive steel

Hydraulic system

Chinese top brand cylinders and matched valves

Control Box

1. Electric Control Box in Cabin

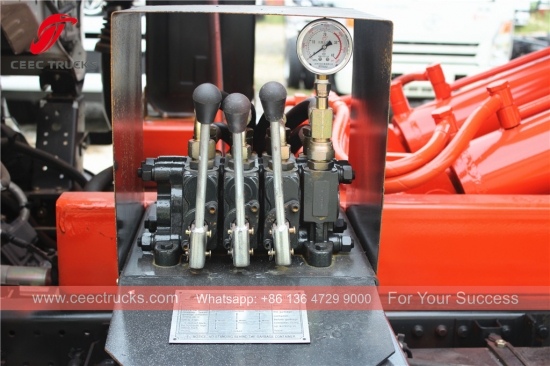

2. Hydraulic control valve at rear

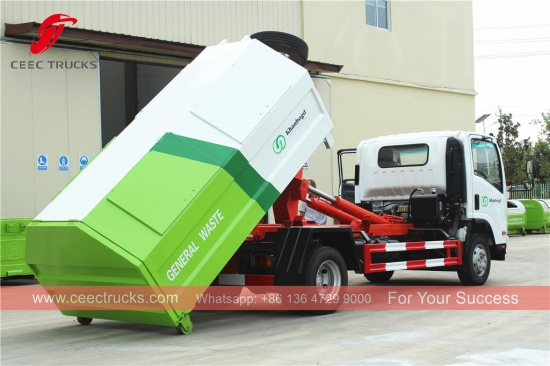

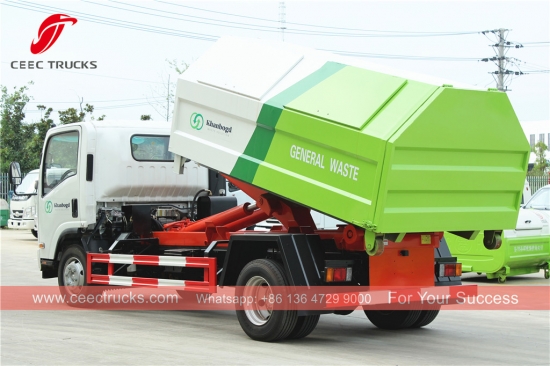

Self-discharge angle

≥45 °

Discharging time

≤45 s

Lifting time

≤45 s

All standard accessories: Warning lights, music alarm, basic tool kit, English manual...

Optional

** Back alarm and Camera can be equipped.

** Remote Control Box can be optional.

** Garbage container can be of stainless steel


Hook lift garbage trucks

(15 units hook lifting garbage trucks are ready for delivery)


Key words: hook arm waste collection truck, refuse collection truck, container detachable rubbish truck
