Tanzania Isuzu NKR vacuum truck with Jet Cleaner

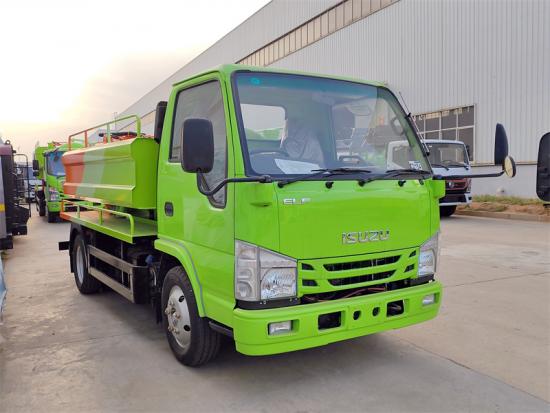

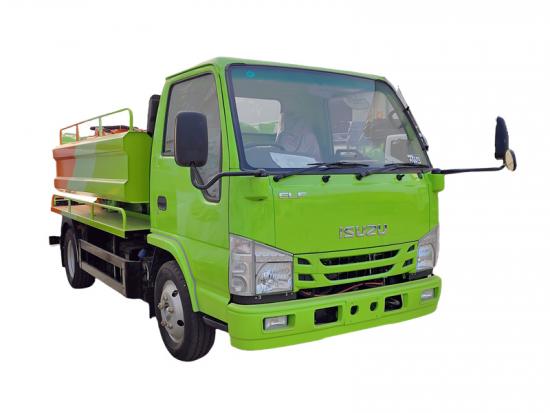

Isuzu NKR RHD combined sewage jetting truck

Lead Time:
60 Days
Work capacity:
5000L
Dimension ( mm ):
5900×1950×2400 mm
Wheelbase ( mm ):
3360mm
Engine power:
120HP
Engine type:
4KH1CN6LB
Axle drive:
4x2，LHD
Gear box:
MSB 5-speed, manual operated
Remarks:
Isuzu NKR chassis,large tank capacity

Inquiry now

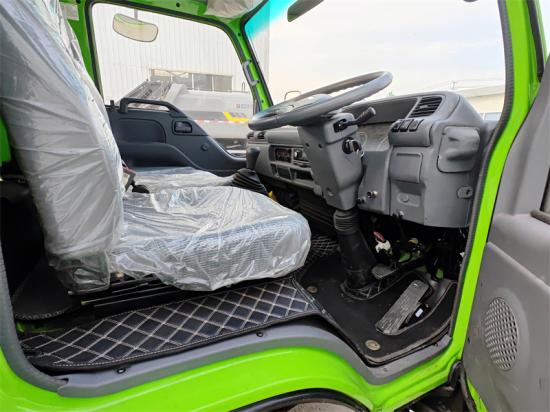

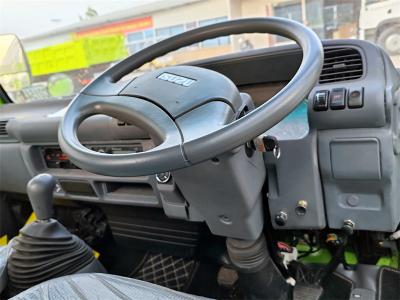

The 4000L hydro excavation truck is based on ISUZU NKR chassis and adopts a 4×2 right -hand drive configuration. It is specially designed for efficient and reliable sewage treatment tasks. The curb weight is 3,010 kg, ensuring strong load-bearing capacity and stability. The cab uses hydraulic power steering to provide the driver with a comfortable driving experience and can accommodate 1 driver and 2 passengers at the same time. Equipped with ISUZU 4KH1CN6LB engine, 4-cylinder in-line, 4-stroke direct injection, water-cooling, and intercooling supercharging technology, providing a strong power of 120 horsepower. The Isuzu NKR vactor jet truck is matched with the ISUZU/MSB 5-speed manual transmission to ensure strong power output and efficient fuel economy.Equipped with a cleaning and suction body, including a tailgate (rear hopper), a discharge/unloading plate, a compaction plate, a sliding plate, and a special high-pressure flushing and unblocking jet. It achieves efficient and convenient sludge treatment. Its 3,000-liter sewage capacity and 1,500-liter high-pressure cleaning water tank are sufficient to meet most operational needs.

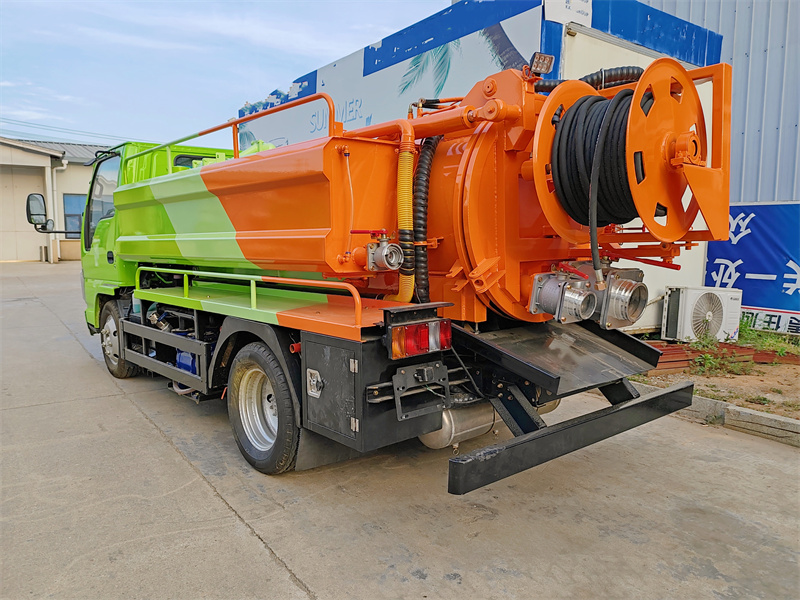

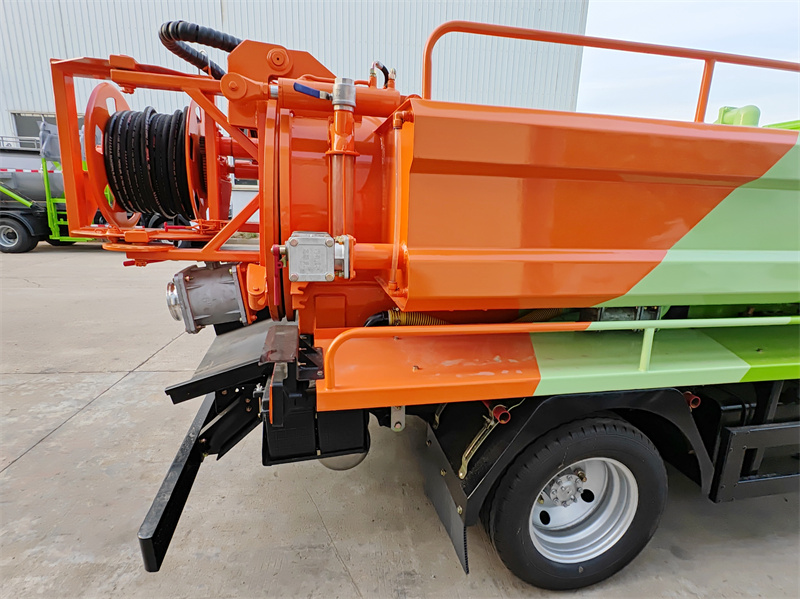

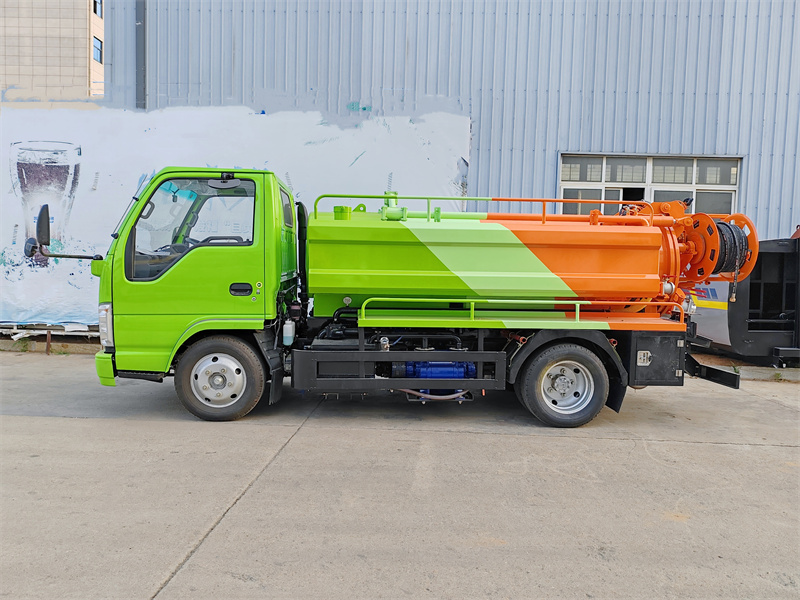

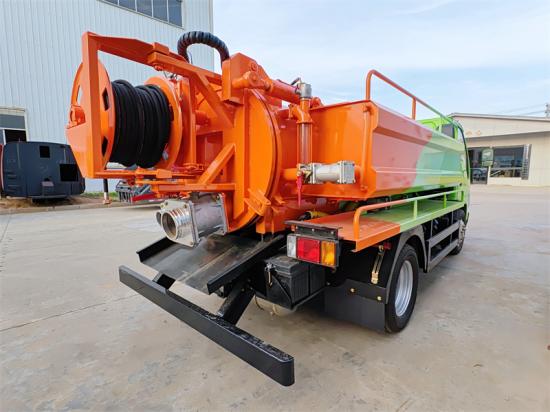

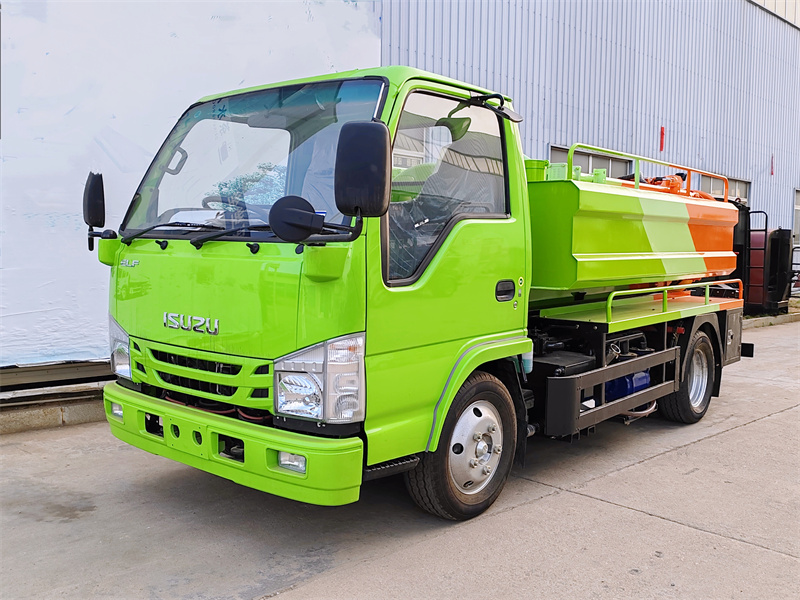

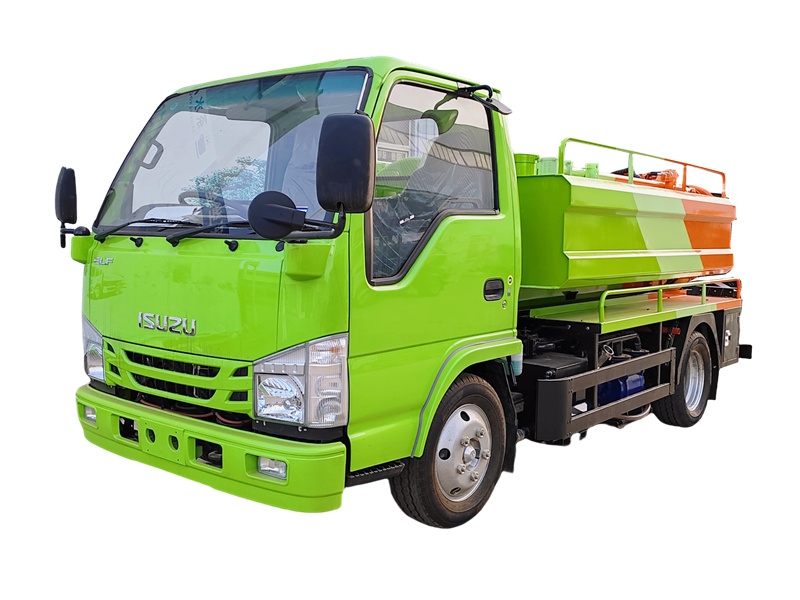

ISUZU NKR 5000L Vactor Jetter Truck

● China best vacuum pump tank truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Build strict QC team to guarantee the quality

● We can offer your a good after-sell service

Specification:

ISUZU NKR 5000L Vactor Jetter Truck
Vehicle model	CEEC50432QXWC
Overall dimensions	5,900×1,950×2,400 (mm)
Fact cubage	4500 L
Mass in working order	11870 kg
Wheel base	3360 mm
Engine	Model	ISUZU / 4KH1CN6LB
	Displacment/horsepower	2999ml /120HP
	Type	4cylinder ,direct Inject , line , turbcharege
Tire specification	7.00R16	Traction system		4X2 (RHD/LHD)
Drive wheel(Tires )	4+2 and one spares (total of 7 wheels)	transmission		MSB 5-speed
Equipment	Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment Time for full suction<5min,tank rear cover can be opened by air and dump.
Tipping	The tank is mounted with an arrangement for the rear tipping
Thickness	6mm
Tank material	Q235
Tank thickness	Tank 6mm , head cover 6mm
Fullfilling time	<5min
Discharge time	<4min
Vertical suction	8M
Dump angle	45 degree

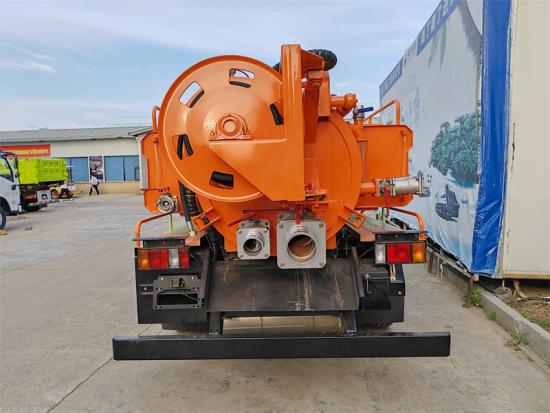

Rear Door	Fully open-able type It is reinforced for structural integrity. Raised to the angle of 80°to the vertical. Locking and sealing (no leakage) are done by hand wheel-operated bolts, which are a robust design located circumferentially on the tank’s rear end of the shell. The liquid is tight by means of a self-compensating seal and is locked by means of manual latches.

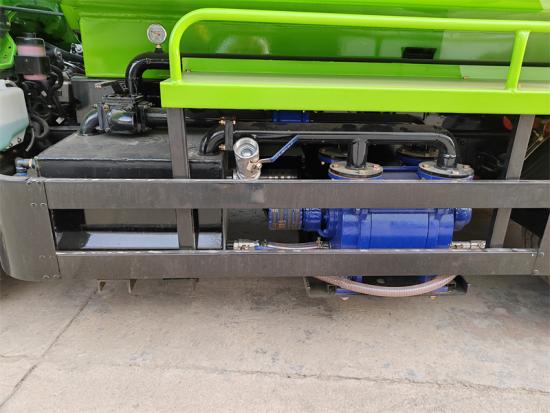

vacuum pump data	Model		VERYONG/68-7000
	Brand		Weilong
	No		1
	Rating rotate speed		500r/mm
	Suction speed		45L/S
Cleaning system	Pump Brand		Pinfu
	Water Pressure		24 MPa
	Flow rate		170 liters/minute
	Length of cleaning pipe		50m
Main accessory	Hydraulic cylinder		2pcs
	oil and gas separator		1pcs
	Hydraulic oil tank		18L
	High pressure oil pipe		1pcs

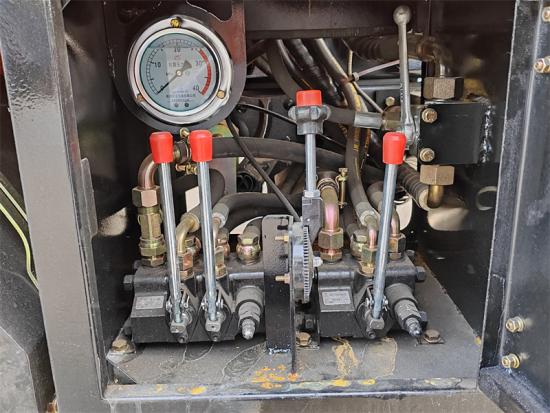

	hydraulic directional control valve		1pcs
	Three way valve		1pcs
	moisture separator		1pcs
Heavy Duty Spiral Suction Hoses	Provided with five heavy Duty spiral suction hoses, 4″ diameter. The hose is 3 meters in length with aluminum or galvanized steel light and easy-to-handle PVC hose along with quick-connect fittings on each end and provided with male-female couplings for the suction application
All standard accessories: Inlet pipeline, discharge nozzle, cabin pneumatic control box, basic tool kit, English manual……
Optional	Back alarm and Camera can be equipped. Standard carbon steel, stainless steel optional. ** Standard WEILONG vacuum pump, Italy vacuum pump optional

Application:

1. Daily cleaning and maintenance: Isuzu NKR cleaning sewer pump truck can easily shuttle through every corner of the city, whether it is streets, parks, squares or other public areas, they can effectively dredge garbage, fallen leaves and stagnant water in the ditch, and keep the city road tidy and clean.

2. Prevent sewage blockage: Isuzu NKR septic tank lorry truck can not only clean up the surface garbage, but also deep clean the sewage pipes and septic tanks. This helps prevent the blockage of sewage pipes and ensure the smooth operation of urban drainage systems, thereby preventing the damage to the environment caused by sewage flooding.

3. Industrial cleaning: In the industrial production process, a large amount of liquid waste and sludge are generated. Isuzu NKR cleaning vacuum tank truck can efficiently clean up these wastes, maintain the environmental sanitation of factories and enterprises, and also help protect the surrounding environment from pollution.

4. Disaster emergency response: In natural disasters or emergencies, such as floods and earthquakes, the urban environment is often severely damaged, generating large amounts of sewage, sludge and other waste. Isuzu NKR vacuum tank truck can respond quickly to help clean up and process these wastes, reducing the impact of disasters on the environment.

★ Euro 6 type, ISUZU engine, super powerful

★ Vacuum pump super powerful, efficient pump in and out

★ 12 months fast moving spare parts for FREE

★ Authorized ISUZU sewage suction trucks exporter

★ Training service for ISUZU sewer cleaner trucks

ISUZU NKR 5000L Vactor Jetter Truck

CEEC TRUCKS is a leading exporter of ISUZU vacuum suction trucks in China. We possess over 10-year export experience of vacuum trucks. We can ensure the fast delivery time and 12 months guarantee for our sewer cleaner trucks. Our vacuum tank trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

---- Professional guidance on your importing documents.

---- Maximize save your sea freight.

---- Safety, Quickly, Timely
