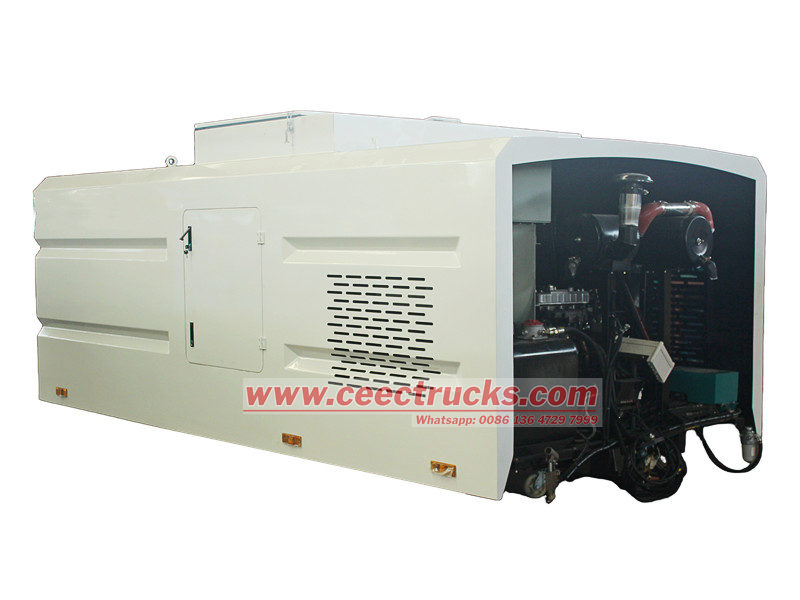

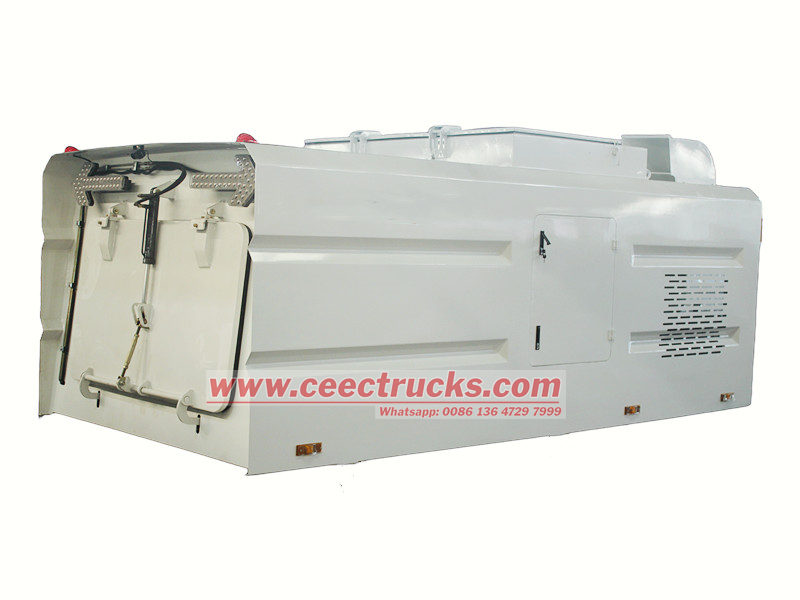

The 10 CBM road sweeping truck upper body kits feature efficient cleaning, energy conservation, environmental protection, and easy maintenance. Their combined suction and sweeping design provides a more thorough removal of dust, fallen leaves, and debris. The spray system effectively suppresses dust and improves the working environment, the sweeping brush and suction nozzle are made of wear-resistant materials.

The road sweeping truck upper body kits feature a large trash bin capacity and hydraulic lift and dump functions for easy dumping. The entire upper body kit offers high efficiency, easy maintenance, and a long service life.

● China best road sweeping truck upper body kits factory

● More than 30 years professional manufacturer experience.

● Be designed according to your requirements.

● Professional sales team which will help you to choose suitable truck.

● We can offer your a good after-sale service.

*10 cbm road sweeping truck upper body kits

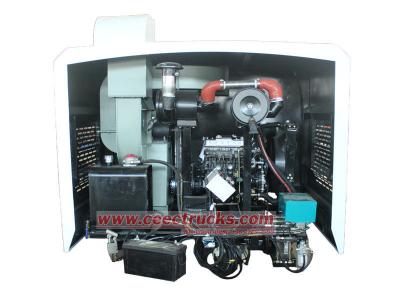

street sweeper truck superstructure*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Product Features

●Efficient Cleaning: Combined suction and sweeping thoroughly remove dust and debris.

●Environmentally Friendly: Spray dust suppression prevents secondary dusting.

●Durable and Reliable: Large dustbin capacity and durable brushes for a long lifespan.

●Easy Operation: Centralized hydraulic and electronic control systems ensure simple operation and easy maintenance.

10 cbm road sweeping truck upper body kits (also called street sweeper truck superstructure, sweeping vehicle upper body kits, street cleaning vehice upper body, road cleaning truck upper body, street sweeping vehicle superstructure, broom sweeper truck upper body kits) is kind of vacuumed type truck mounted road sweeping machine , it is specially used in roadcleaning and collecting rubbish and transporting them to garbage collection spot.

Cleaning System Configuration

●Brush Design: The vehicle is equipped with high-strength, wear-resistant brushes with an adjustable angle design, covering a width of up to 3.5 meters. Combined with a high-efficiency suction port, it quickly removes road debris such as dust, gravel, and fallen leaves.

●Blower System: A high-efficiency centrifugal fan with strong airflow ensures stable negative pressure in the trash bin and prevents secondary dust contamination.

Waste Collection and Storage

●Trash Bin Capacity: Equipped with a large 10cm capacity trash bin, inner stainless steel, outer carbon steel, and a 3-cubic-meter carbon steel water tank. The sealed design prevents wastewater leakage and supports automatic garbage compression, extending single-cycle operation time.

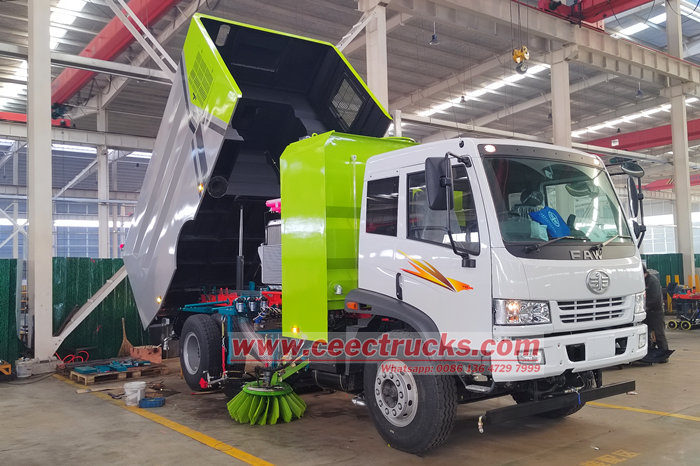

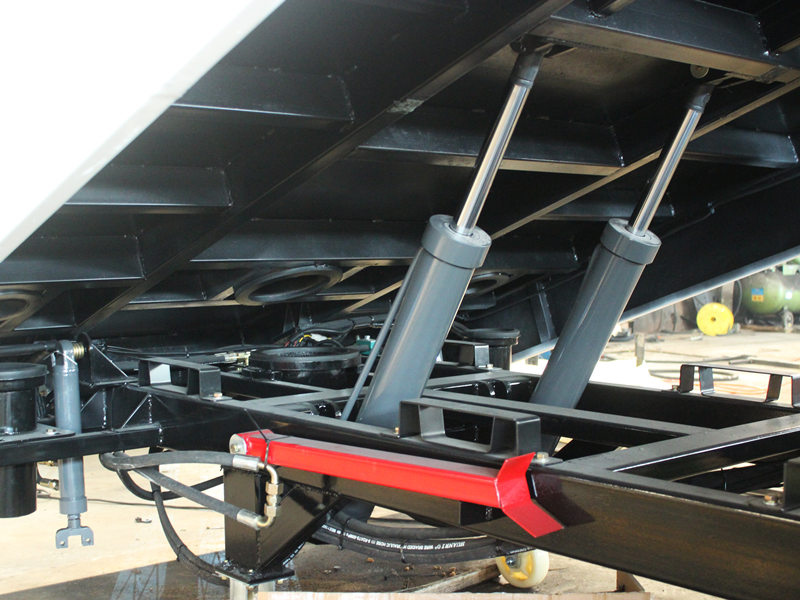

●Unloading System: The hydraulically driven rear-flip unloading door is labor-saving and efficient, allowing for quick dumping of waste.

» Ⅱ.Product Parameter for 10 cbm road sweeping truck upper body kits：





10 cbm road sweeping truck upper body kits
Volume of water tank		3000L
Volume of Dustbin		7000L
Material of the water tank and garbage tank		Stainless steel

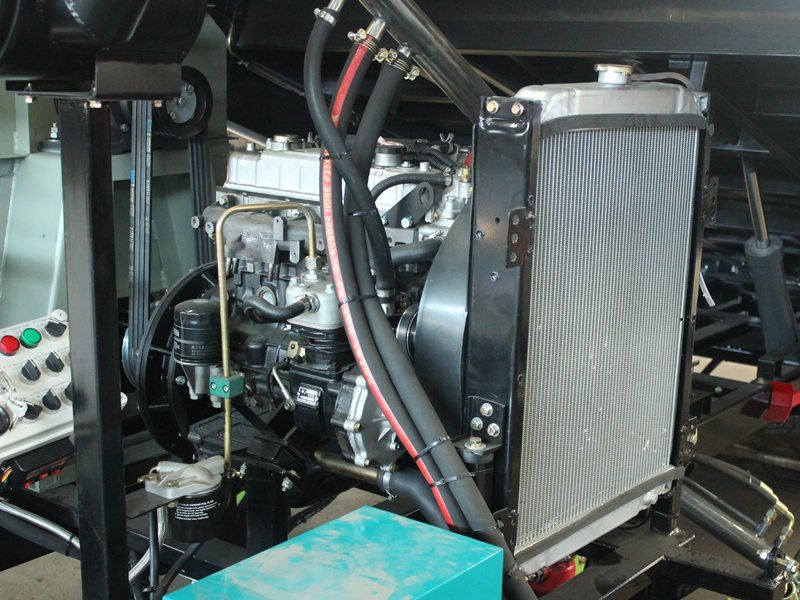

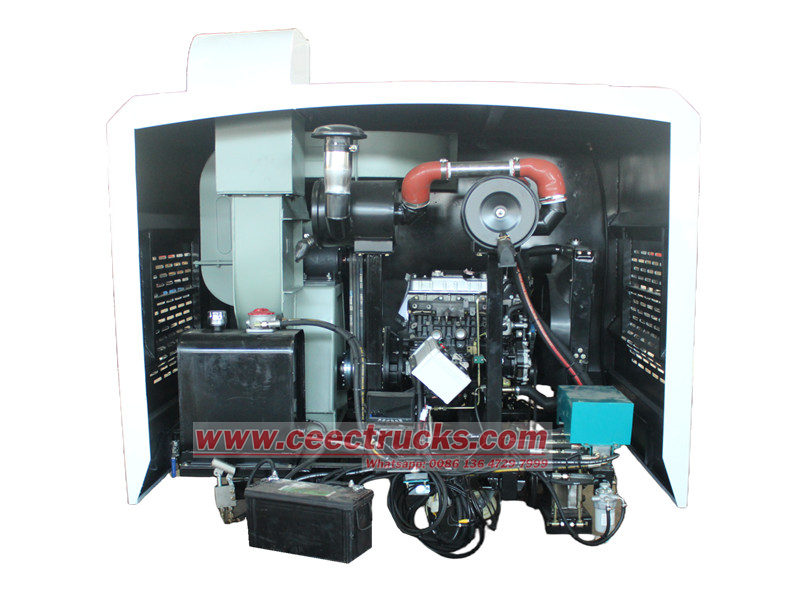

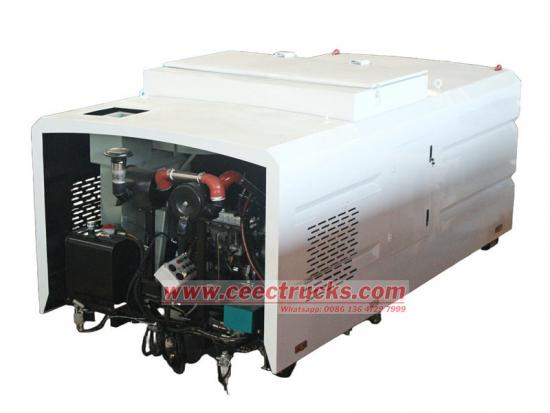

Auxiliary Motor	Brand	Cummins
	Horsepower	77 HP

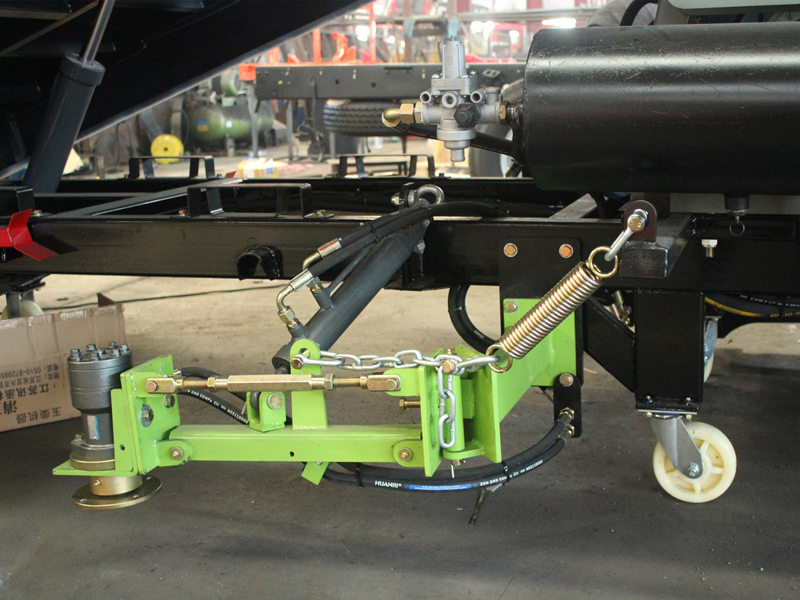

Sweeping system	Type	Total 2 pcs brushes and 1 sucking disc mounted in the medium, it is driven by the hydraulic motor, speed is adjustable, can be independently controlled, has automatic avoidance function
Hydraulic system	Type	Open type, electrical control
	Main components	Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve
	Pressure	16Mpa
	Hydraulic oil volume	60L
	Oil temperature	60°C
High pressure water system	Type	High pressure plunger pump
	Model	Germany PINFL PF36
	System Pressure	10Mpa
	Rotation speed	1150r/min
	Water valve type	hydraulic high pressure ball valve
	Water valve pressure	7MPa
	Nozzle type	High pressure washing type
	Water filter	Strainer mesh



» Ⅲ.Product Details & Advantages:

1. Efficient Cleaning

●Road sweeping truck upper body kits utilize a combined suction and sweeping operation. Equipped with a high-efficiency suction nozzle and wear-resistant sweeping brushes, they quickly remove debris such as dust, fallen leaves, and stones.

●A spray dust suppression system effectively suppresses secondary dust, ensuring road cleanliness while improving air quality and meeting environmentally friendly operation requirements.

2. Reliable Structure and Durability

●The trash bin is constructed of high-quality steel, boasting a large capacity and sufficient for long-term continuous operation. The sweeping brushes and nozzles are made of wear-resistant materials, extending their service life and reducing replacement frequency.

●The street sweeper truck's superstructure features a compact design and a streamlined layout, ensuring stable operation and extending the vehicle's service life.



3. Intelligent Control and Convenient Operation

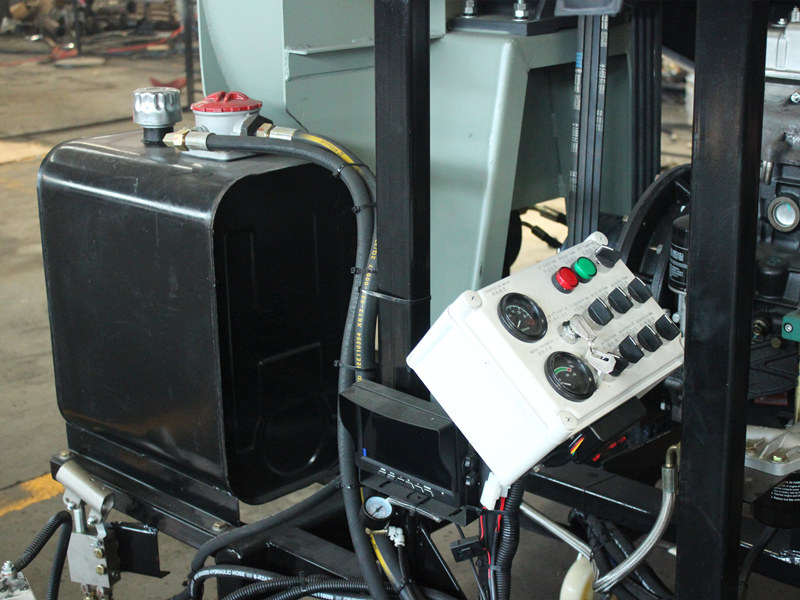

♦The centralized layout of the hydraulic and electronic control systems allows for simple and intuitive operation, allowing the operator to easily master various sweeping modes.

♦The road sweeping truck upper body kit features multiple operating modes, adapting to diverse environments such as roads, public squares, and airports.

♦The user-friendly maintenance design facilitates inspection and daily management, significantly improving operational efficiency and cost-effectiveness.



•

•

•
