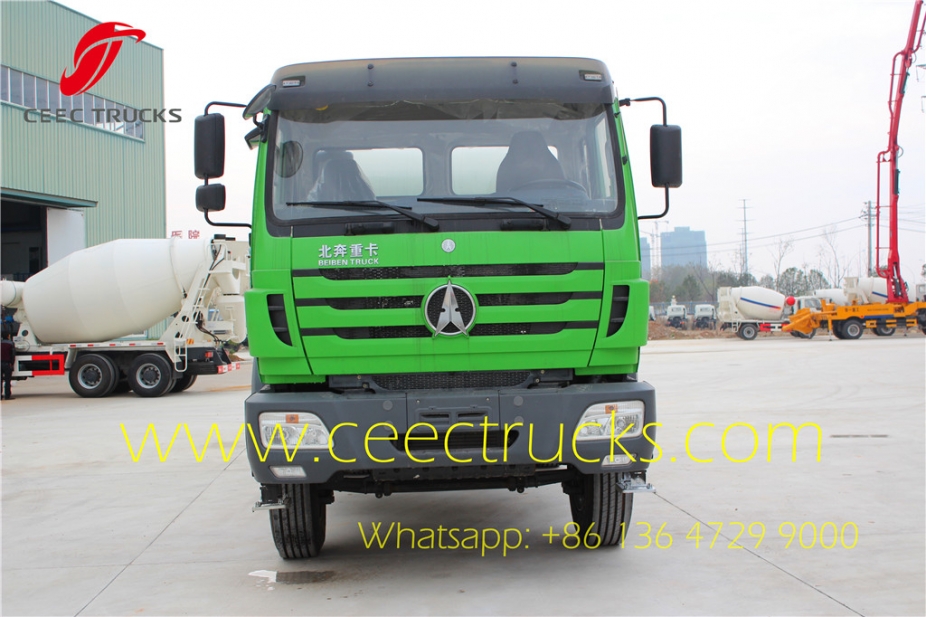

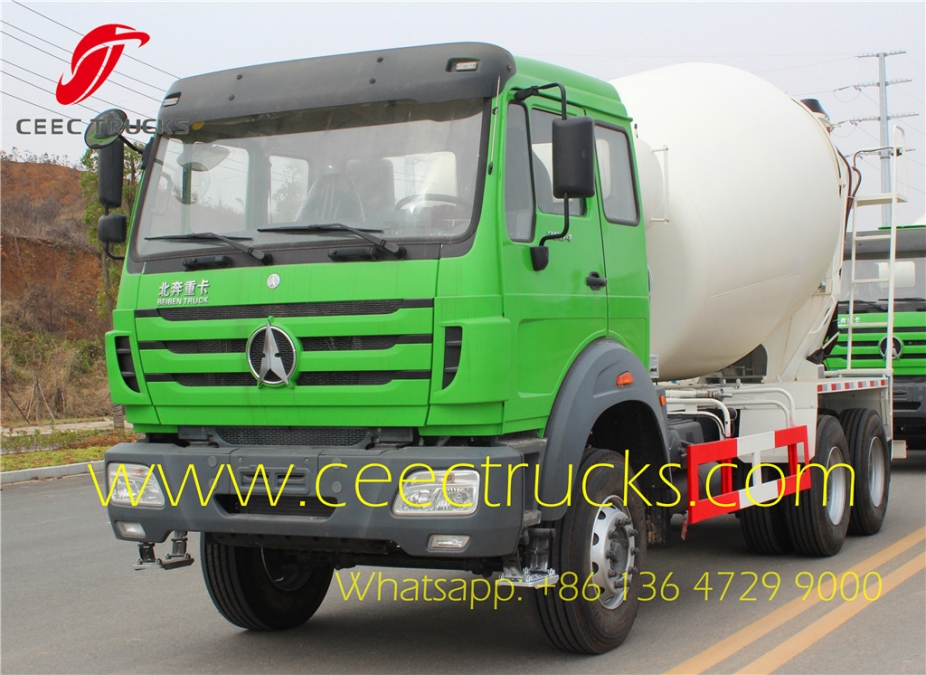

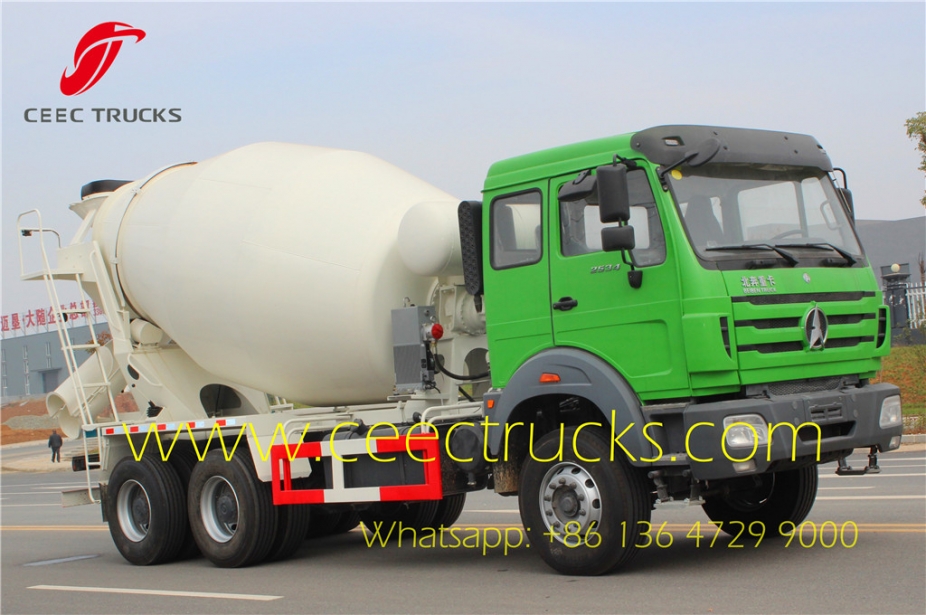

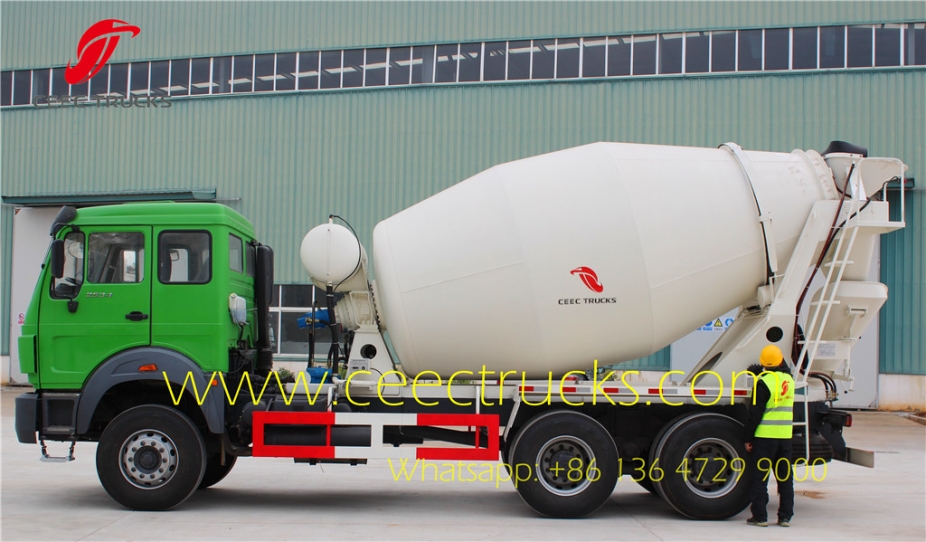

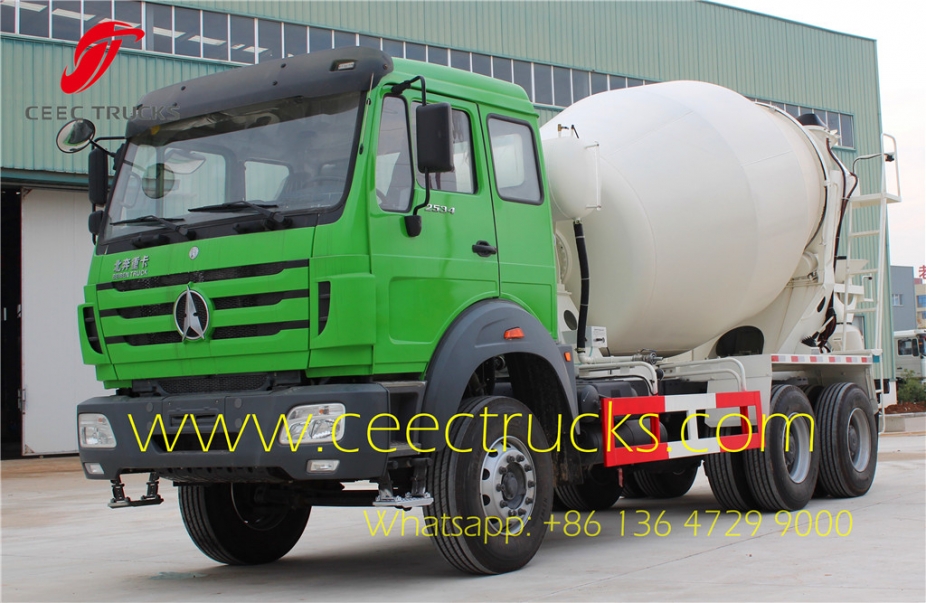

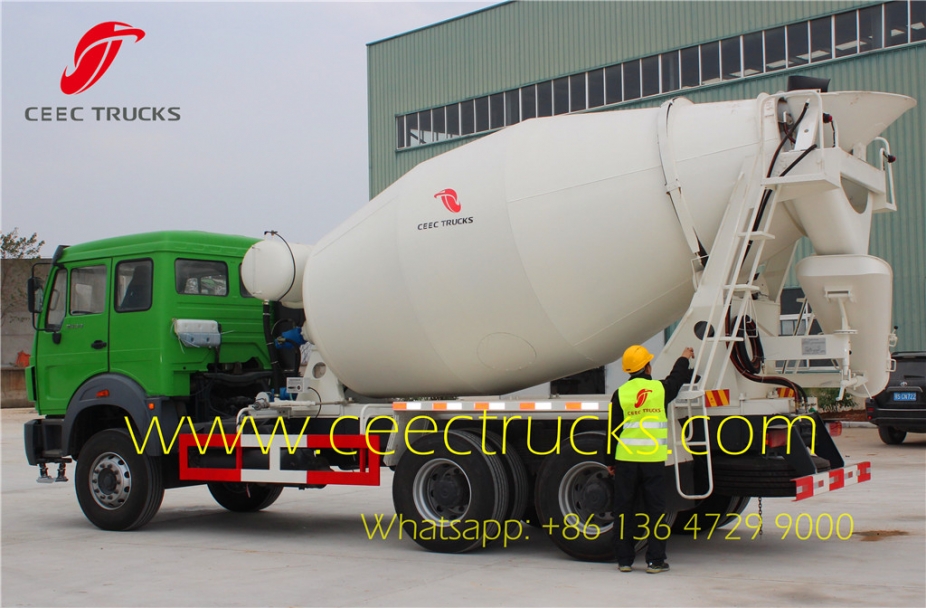

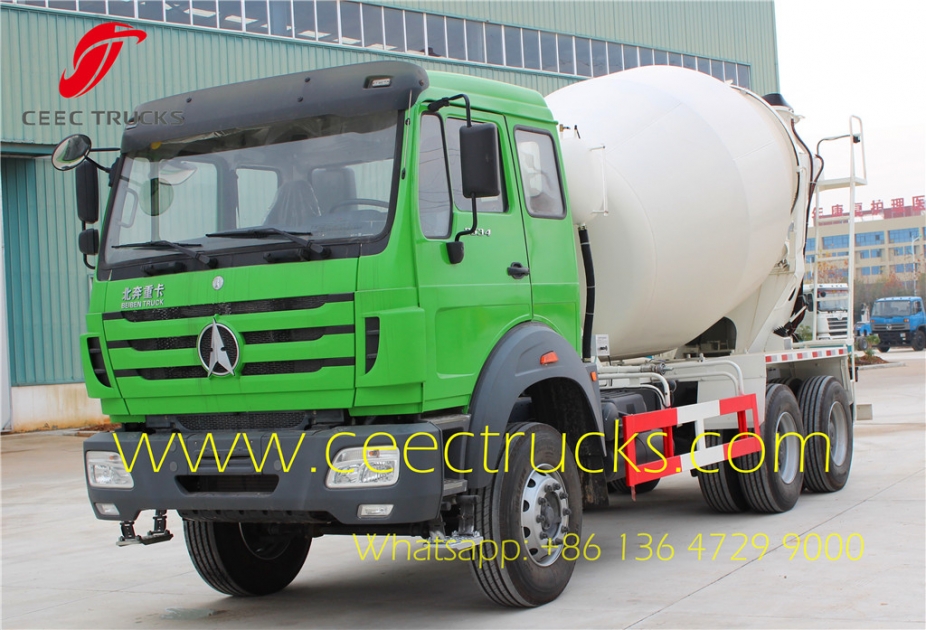

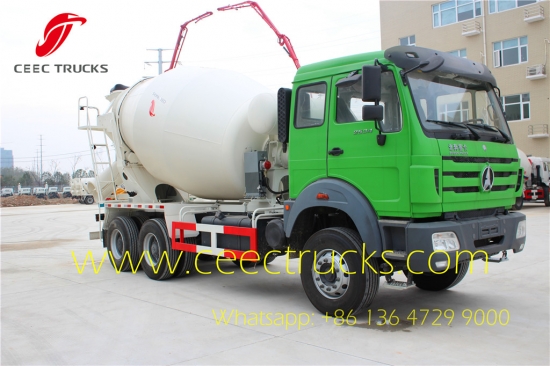

Beiben NG80B cabin, 2534 concrete
mixer truck chassis, world famous weichai diesel 340 hp engine, fuller 9
shift transmission, 3800+1450 mm wheelbase, beiben 10 CBM mixer truck
upper structure adopts Germany Rexroth, America EATON, Italy ARK,
America
Sauer brand motor, pump and reducer
Product Origin:
China CEECShipping Port:
Shanghai SeaportLead Time:
30 DaysPayment:
T/T, West UnionFOB Price:
USD $50,000-60,000Beiben 2534, 2538 cement mixer truck
China best beiben 2534, 2538 cement mixer truck manufacturer can supply beiben 10CBM transit mixer truck, beiben 14 CBM cement mixer.
CEEC export Dubai beiben 10CBM concrete mixer truck use Beiben NG80B cabin, 2534 concrete mixer truck chassis, world famous weichai diesel 340 hp engine, fuller 9 shift transmission, 3800+1450 mm wheelbase, beiben 10 CBM mixer truck upper structure adopts Germany Rexroth, America EATON, Italy ARK, America Sauer brand Hydrulic Motor, Hydraulic Pump and Reducer.
Why customer prefer to choose CEEC produced beiben 2534 mixer trucks?
We produced 2016 newly beiben 10 CBM concrete mixer truck
◆ Benz technology World-class Beiben mixer truck Chassis, super power and Fuel efficiency, Reliability, Uptime
◆ Beiben 10 CBM transit mixer's hydraulic system adopts Germany Rexroth,America EATON, Italy ARK, America Sauer for good beiben concrete mixer truck performance
◆ Comfortable, spacious cabinwith heating and air conditioning, high-grade stereo and sleep area.
◆ The mixing drum is made from the special close grain high-hardness steel plate B520JJ which is producedby Shanghai Baosteel and its service life can last 8-10 years;
◆ Equipped with the large diameter hopper, it can realize the quickly feeding, not plugging and spilling, and it is easy to clean;
◆ North benz 6*4 cement mixer truck use optimized design of mixing drum ensure the concrete residueratio is less than 1%;
◆ Rated mixing volume can be 8cbm, 10cbm, 12cbm, 14cbm, 16cbm for customer specific requirement.
top beiben 10 CBM transit mixing truck spare parts
Similar Key Words: beiben 10 CBM cement mixer truck, north benz 2534 transit mixer, beiben 2538 mixer trucks, beiben 10 CBM concrete mixer truck
The best beiben 10CBM mixer truck supplier from china baotou beiben heavy duty trucks. The most professional beiben 6*4 concrete mixer truck work experience on beiben 2527,2628,2632,3630,2629,2634,2638 mixer trucks. Currently, we supply beiben LHD transit mixer truck with 2534 cabin, beiben RHD mixer truck with 2534 cabin.
Beiben 2534 Concrete Mixer Truck BY /6×4/3450+1450/Short Cab/LHD |
||
Dimension |
9300*2500*3900mm |
|
Approaching angle/Departure angle |
26/20° |
|
Overhang(front/rear) |
1410/2640mm |
|
Wheel base |
3800+1450mm |
|
Max speed |
80km/h |
|
Curb weight |
13650kg |
|
Loading capacity |
11220kg |
|
Slope climbing capability |
Max.40% |
|
Engine |
Model |
WP10.340E32,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
Displacement |
9.726L/Diesel |
|
Stroke |
126/130mm |
|
Max. power |
250/2200 (kw/rpm) |
|
Max.torque |
1350/1200-1600(Nm/rpm) |
|
Emission stantard |
EuroⅢ |
|
Fuel tanker capacity |
300L |
|
Clutch |
∮430, Single dry frictional disc,Hydraulic boosting |
|
Gearbox |
9T-160, mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer |
|
Gear ratio of gear box |
12.60/8.39/6.31/4.64/3.43/2.45/1.84/1.35/1.00 R: 11.02 |
|
Suspension system |
Front |
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs |
Rear |
Non-free standing stablization spring, balance suspension system, 13pcs |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake |
Engine exhaust brake |
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
Steering system |
TAS85,whole circulation in ball, hydraulic booster |
|
Frame |
Fish belly shape, variable width, variable sections |
|
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
|
Tyre |
12.00R20 Radial |
|
Electrical system |
Battery |
2X12V/135Ah |
Generator |
28V-35A |
|
Starter |
5.4Kw/24V |
|
Cabin |
NG80B Long cabin with single
sleeper; |
|
Main technical parameters of Beiben concrete mixer |
||
Drum performance parameter |
Geometric Volume m3 |
15.5 m3 |
Effective Volume m3 |
10 m3 |
|
Filling Ratio % |
64.5% |
|
Gradient of the Drum ° |
15° |
|
Filling speed m3/min |
≥3 |
|
Discharging Speed m3/min |
≥2 |
|
Surplus Ration % |
<1% |
|
Range of Slump mm |
20~300 |
|
Hydraulic System |
Pump |
Eaton 54 (ACA542337R) |
Motor |
Eaton 54 (HHD542337R) |
|
Gear Box |
PMB6sp |
|
Water supply system |
Volume of water tank |
400L |
Water supply type |
Air pressure Type |
Beiben Transit mixer trucks on sale
Engine |
WP10.270 |
||||
Model |
|||||
Rated Power |
|||||
Payload |
|||||
Drive Type |
Other beiben trucks display

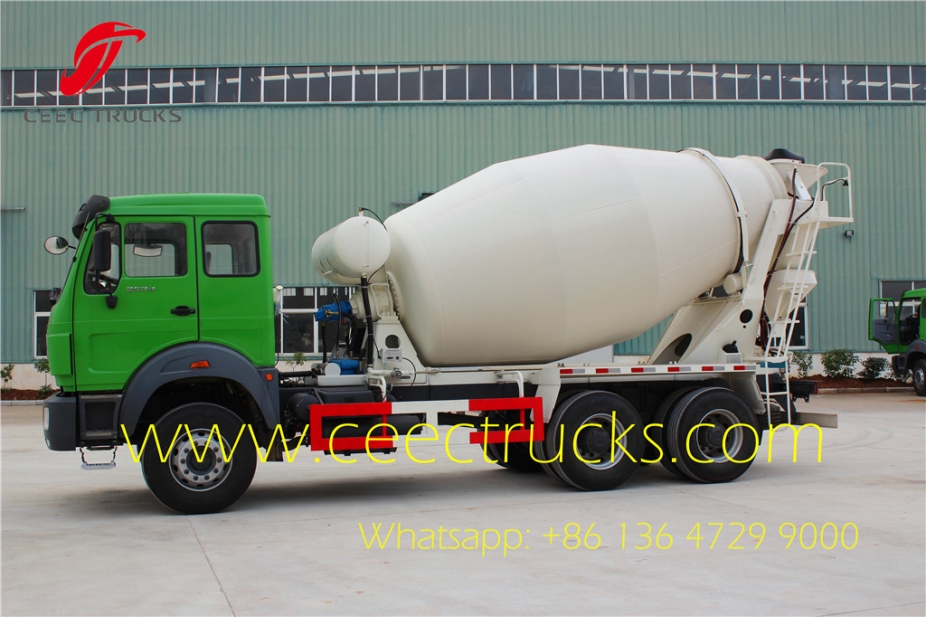

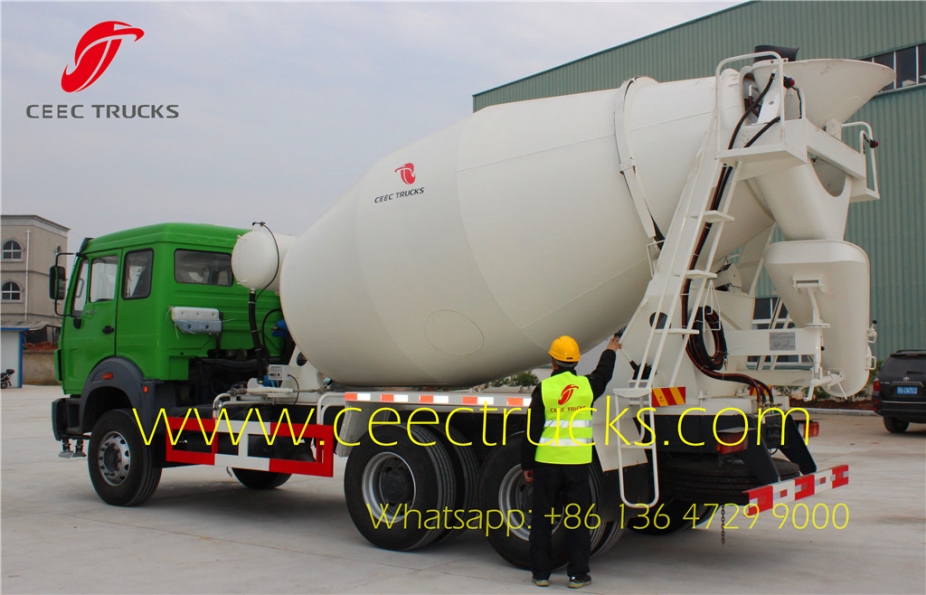

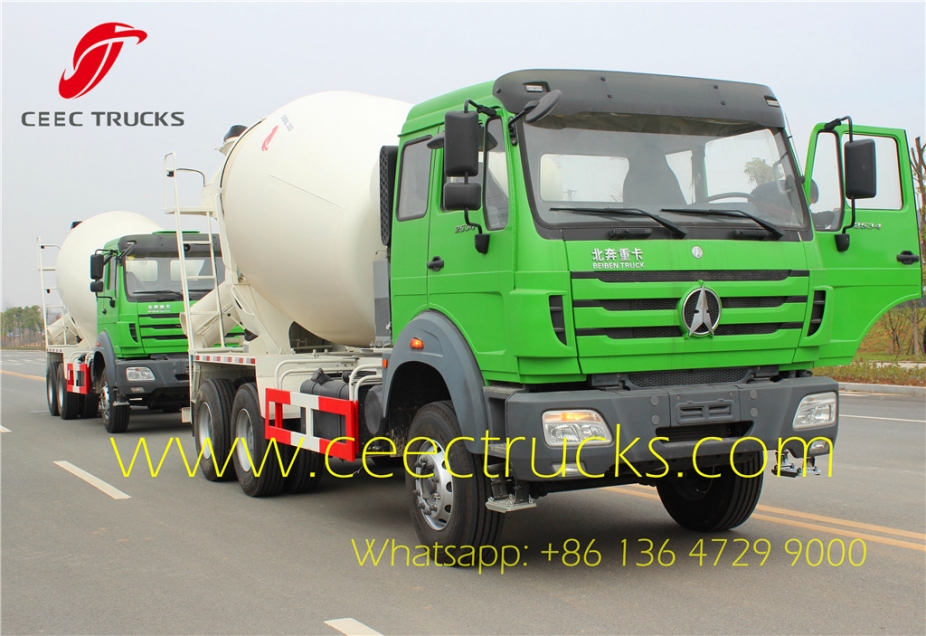

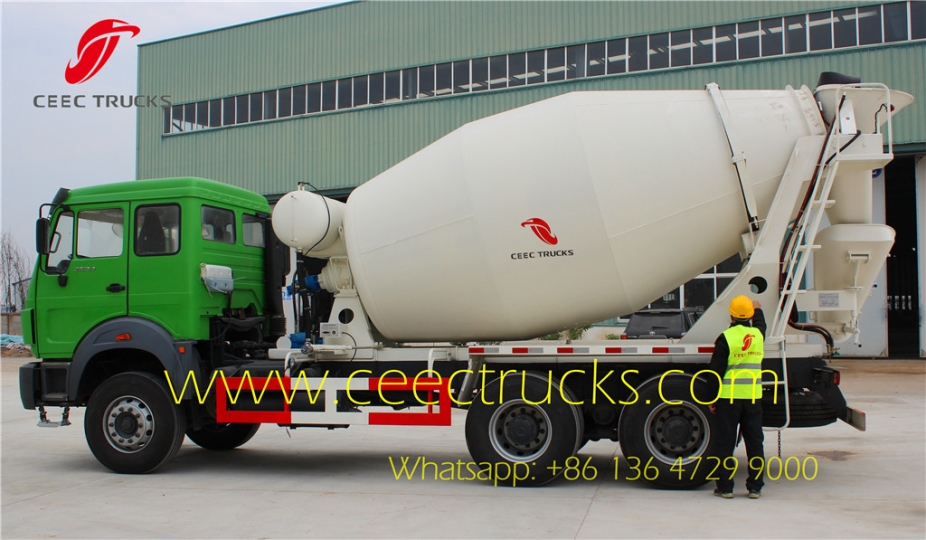

★ Beiben 2534 transit mixer trucks equipped with new NG80B cabin, which has attractive appearance
★ WEICHAI engine WP10.340E32, Euro 2 / 3 emission, strongly 380ps, and 9shift manual mechinical gearbox
★ Curb weight approx 13650kg and rated mixing capacity can be up to 10CBM, very good performance
★ Specific heavy truck metallic framework and stressed-skin construction, processing security of same level of European automobiles
★ Beiben 2534 Tractor truck use European ECER29 safety and regulatory requirements, stamping molding of frame only once ensures girder strength
★ High strength carbon steel Q345 material, with thickness over 6mm
★ Americal brand Eaton Hydraulic Pump, Hydraulic Motor, and best performed Germany Rexroth Reducer.

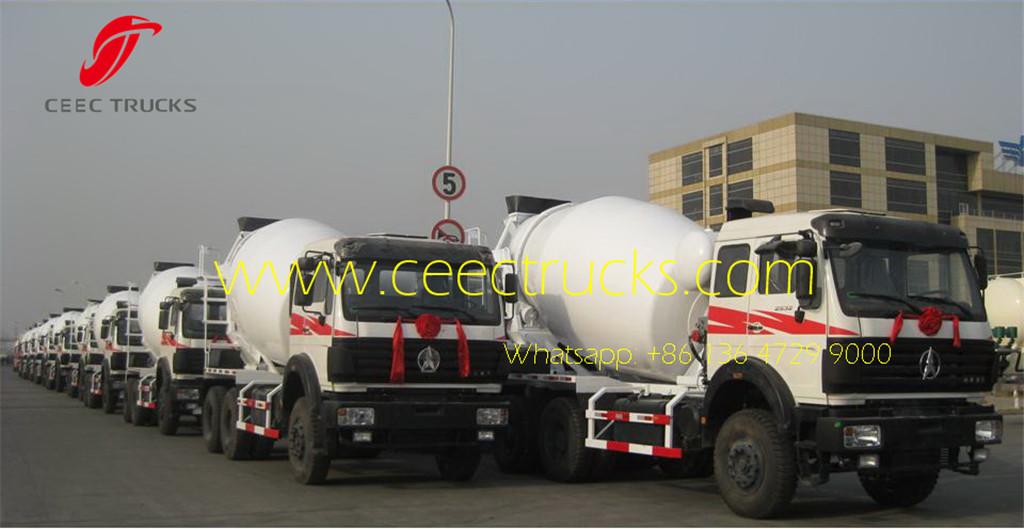

Dubai export Beiben 2534 concrete mixer truck 10m³
Dubai customer purchase 2 unit beiben 2534 transit mixer trucks from us CEEC TRUCKS. which use original baotou produced Beiben 2534 heavy duty truck chassis, with weichai WP10.340E32 engine, Euro 3 emission, super powerful. The export Beiben 10 CBM cement mixer truck use Original import hydraulic system: Italy PMP brand, American Eaton brand, Germany Rexroth brand hydraulic pum, hydraulic motor and reducer.
CEEC 2016 newly designed beiben 2534, 2538 concrete mixing trucks use carbon steel Q345 material, and be widely export Congo, Kenya, Tanzania, Ethiopia, Cameroon countries.

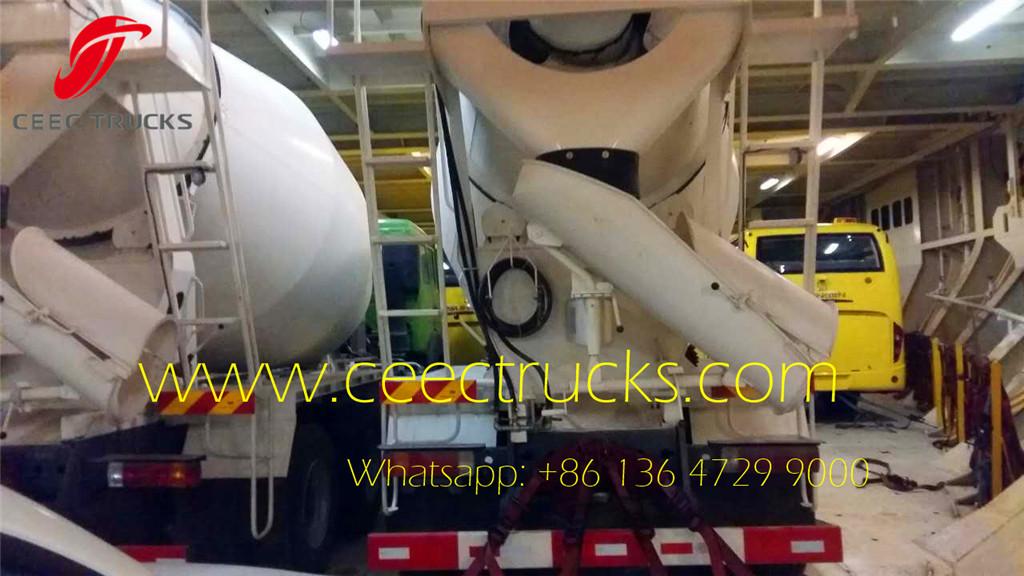

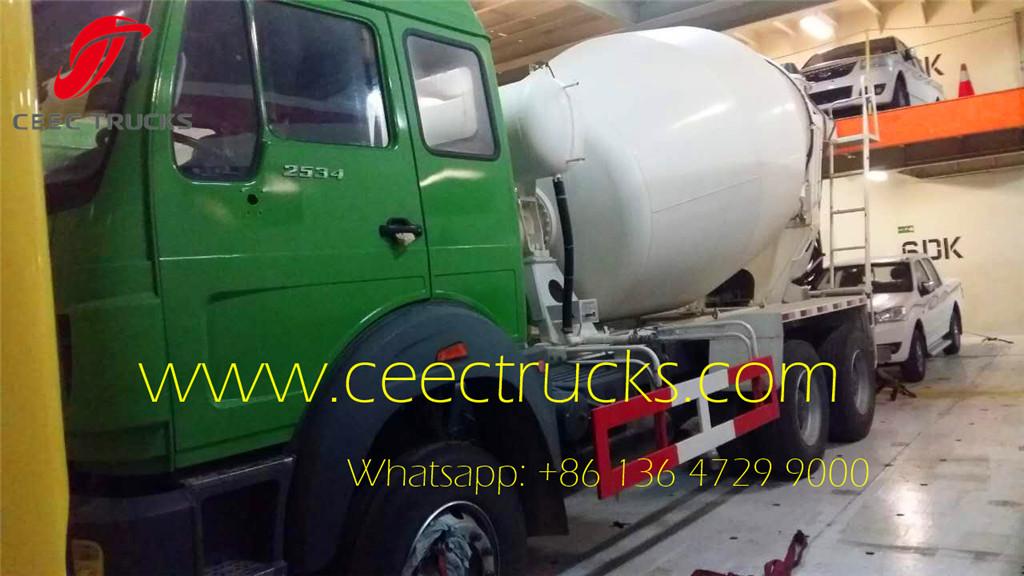

(2 units beiben 2534 cement mixer truck delivery to Dubai by Ro-Ro shipment)

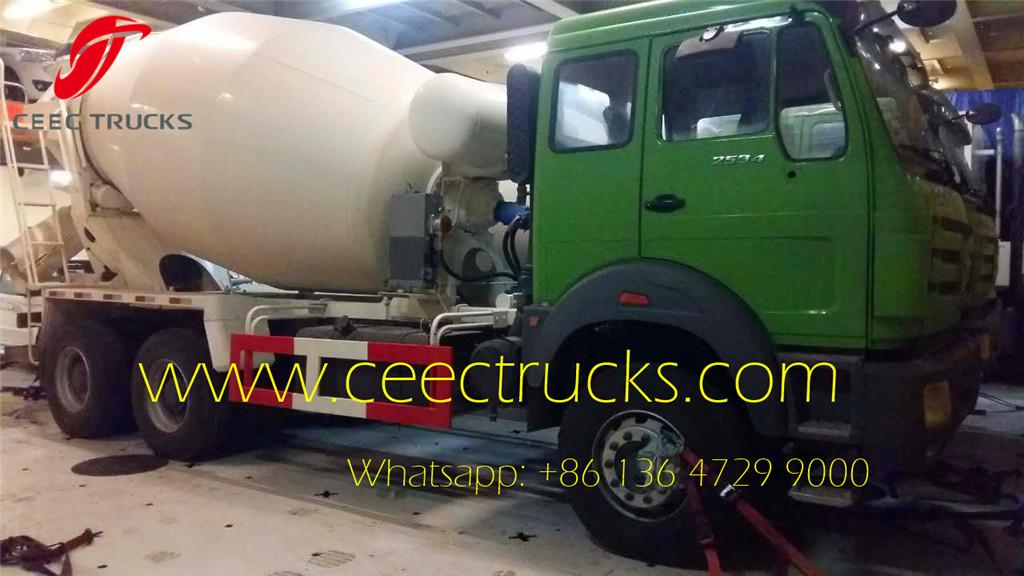

(2 units beiben 10CBM transit mixer trucks fastened and ready for delivery to Dubai)
(beiben 10 wheeler 10 CBM cement mixer truck export to Kenya)
