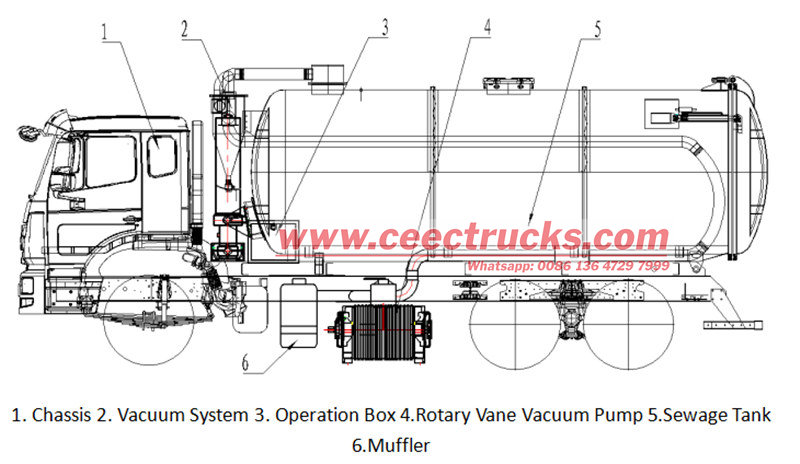

The 12,000L truck mounted vacuum tanker unit is the core device for wastewater treatment and consists of five major components.

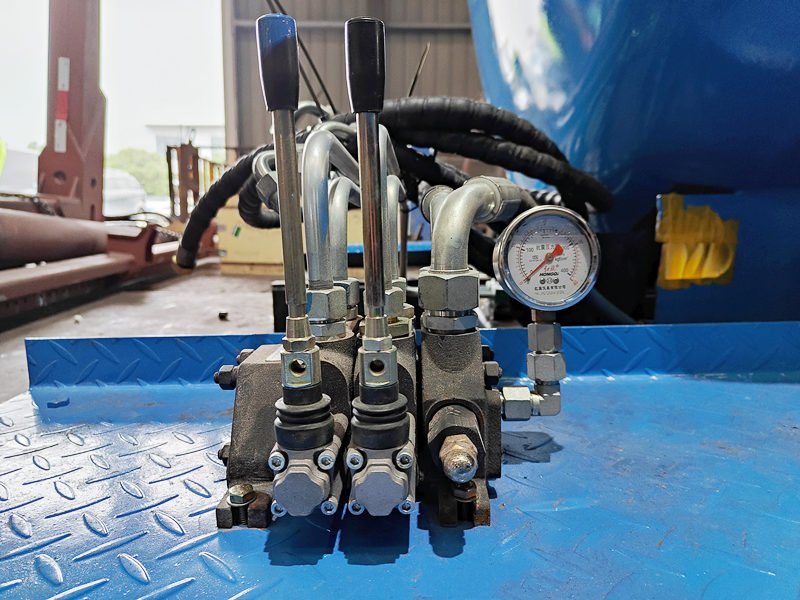

The vacuum system, which includes a vacuum pump and an oil-gas separator, uses negative pressure to extract waste. The tank assembly is constructed of high-strength, corrosion-resistant steel and features an inspection window and feed port for wastewater storage. The piping system, including suction and discharge pipes and a control valve, is responsible for media transfer. The truck mounted vacuum tanker unit hydraulic system lifts the tank and opens the rear cover, facilitating wastewater discharge. The operating platform is equipped with control buttons and a pressure gauge for real-time monitoring.

● China best truck mounted vacuum tanker unit factory

● More than 30 years professional manufacturer experience.

● Be designed according to your requirements.

● Professional sales team which will help you to choose suitable truck.

● We can offer your a good after-sale service.

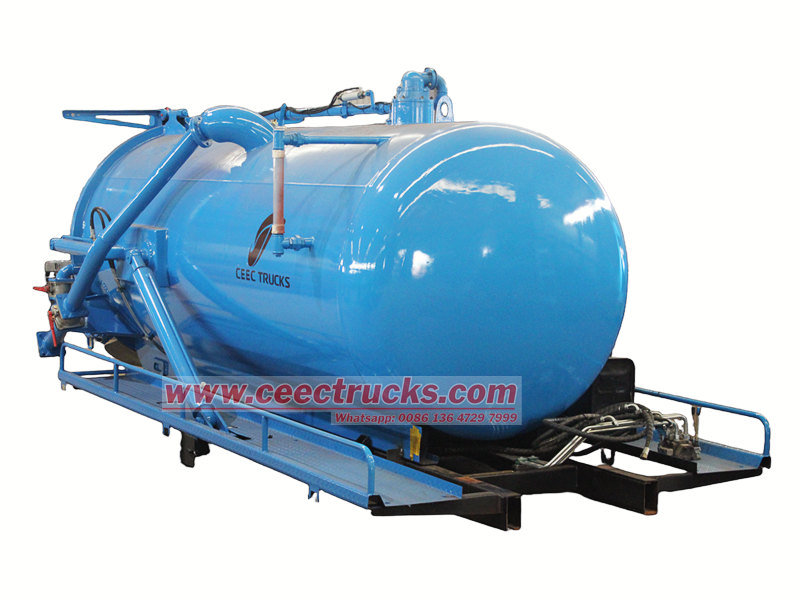

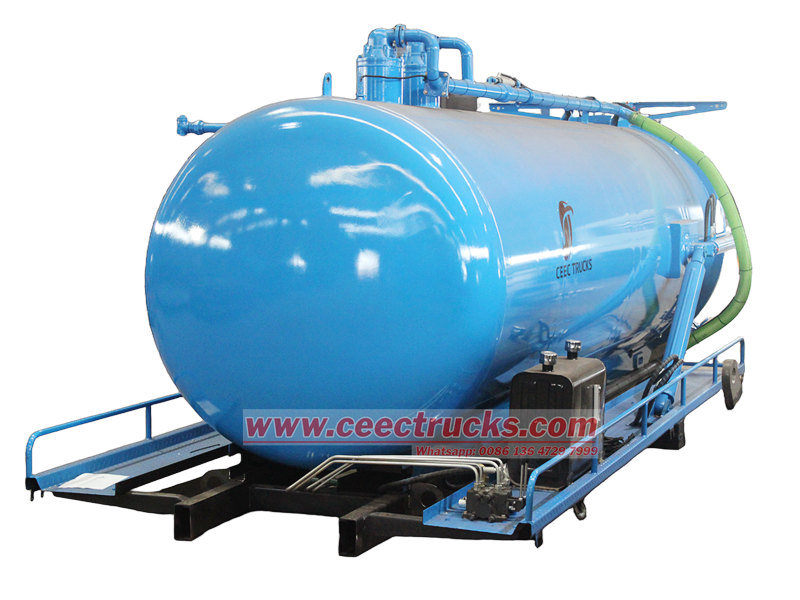

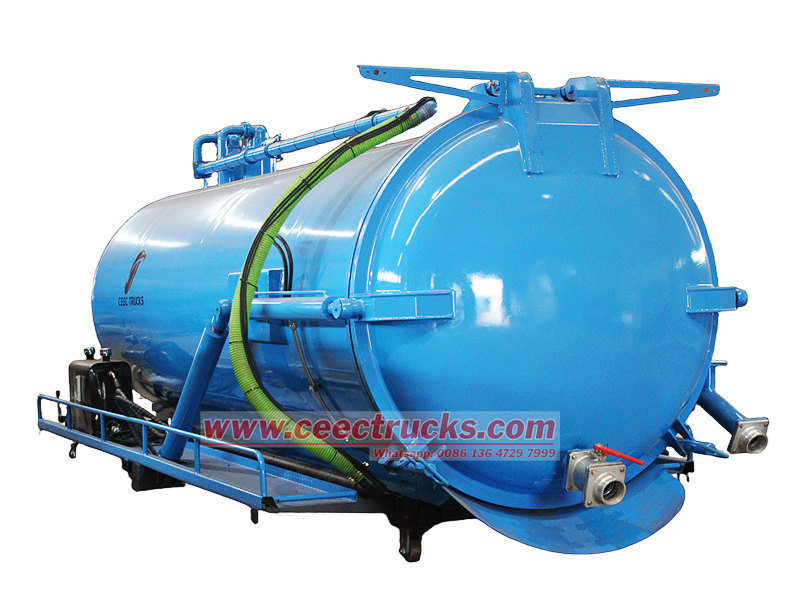

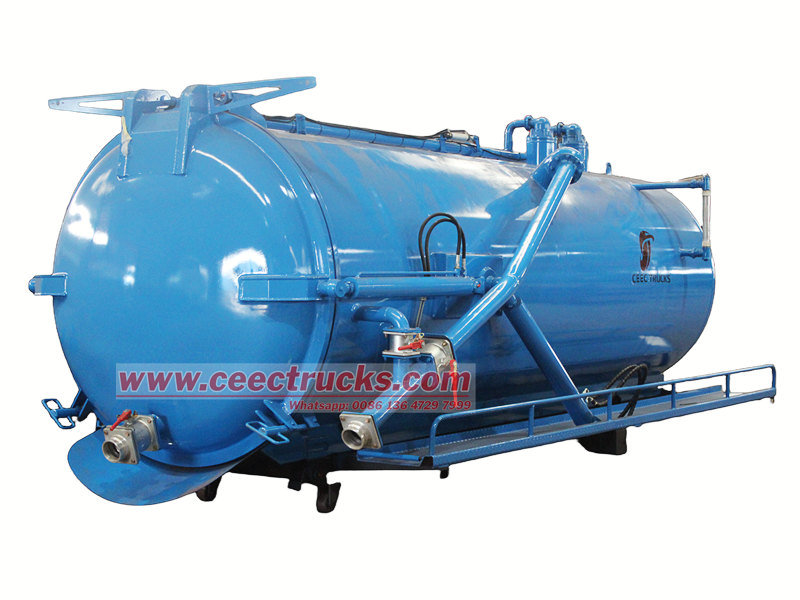

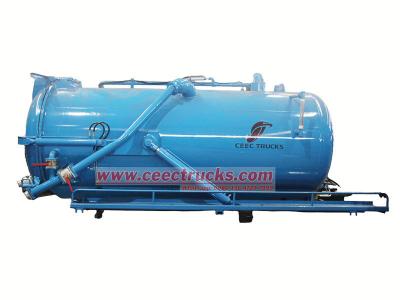

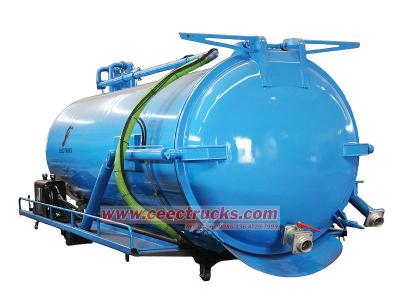

*12,000L truck mounted vacuum tanker unit

vacuum suction pump truck upper body*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Product Features

●Powerful Suction: Equipped with a high-performance vacuum pump, it quickly extracts sewage and slurry.

●Reliable Seal: The tank is welded from high-quality steel, ensuring excellent leak and spill resistance.

●Easy Operation: Equipped with an automatic start/stop system and a liquid level display, it is safe and efficient.

●Easy Maintenance: The rational structure allows for easy cleaning, a long service life, and low maintenance costs.

12,000L Truck mounted vacuum tanker unit (also called 12 cbm vacuum suction pump truck upper body, 12,000 liters vacuum tanker truck superstructure, septic tank pump truck upper body kit, vacuum suction truck upper body, 12cbm vacuum sewage suction truck kit) mounted on a vehicle chassis, it absorbs and collects liquids such as sewage, sludge, septic tank sediment, crude oil, and small solid debris, such as small stones. It can be widely used in cleaning sewers, septic tanks, and ditches, playing a vital role in municipal sanitation and environmental governance.

Vacuum Suction Principle

●The upper body of the vacuum suction pump truck primarily relies on a vacuum pump, which creates a negative pressure environment within the tank, creating a pressure differential between the inside and outside of the tank.

●When the suction pipe contacts sewage or sludge, the external atmospheric pressure pushes the waste into the tank, enabling rapid suction and collection. The vacuum pump utilizes a high-efficiency water-ring structure, offering strong suction, fast pumping speed, and low noise.

●To prevent impurities from entering the vacuum pump system, the piping is equipped with an overflow valve, an oil-gas separator, and a filter device to ensure safe and stable operation.

Discharge and Cleaning Principle

●When the tank is full, the operator can switch a valve to redirect the vacuum pump's airflow, creating a positive pressure state and pressurizing the waste inside the tank.

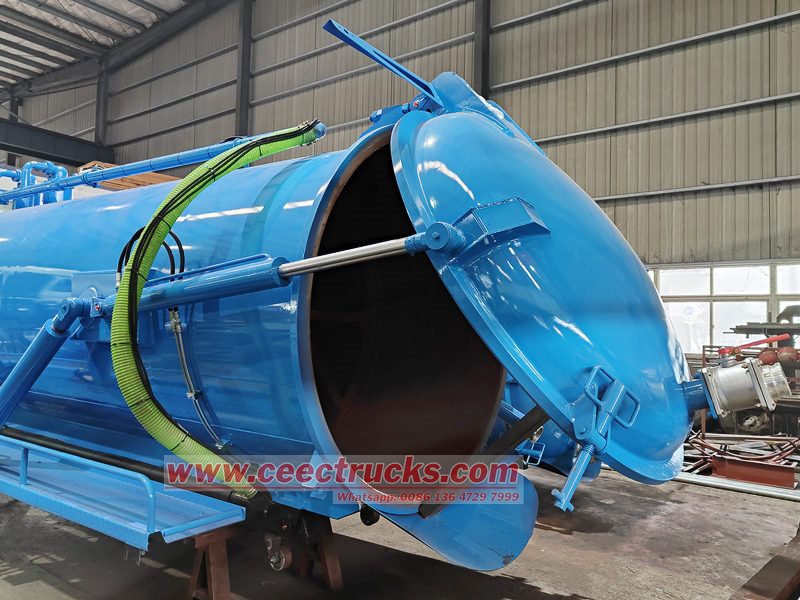

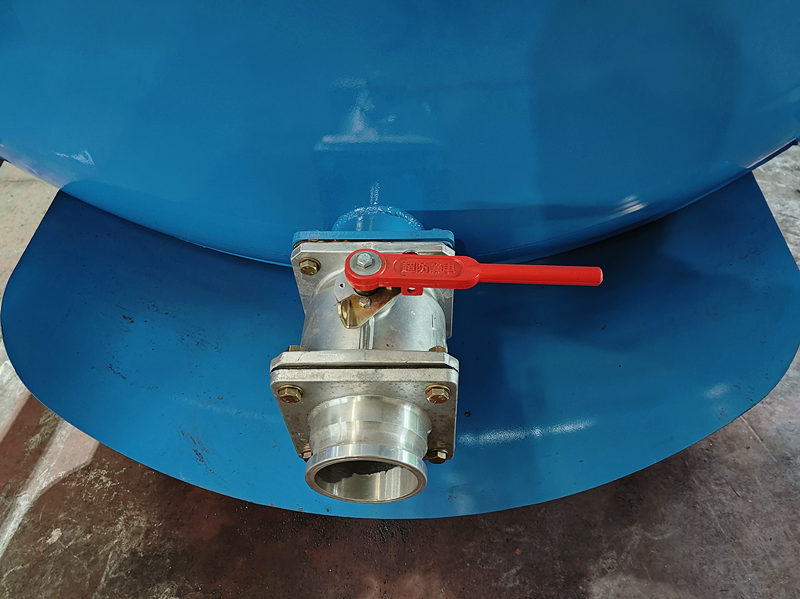

●The discharge port features a large-diameter quick-opening structure, enabling rapid discharge and preventing residual blockage. A hydraulic lift system allows the tank to be tilted for gravity discharge, further improving discharge efficiency.

●A cleaning port and exhaust valve are located at the bottom of the tank, facilitating post-operation flushing and maintenance, keeping the system clean and extending the equipment's service life. The entire loading system is easy to operate, safe, and reliable, making it suitable for continuous, high-intensity operations.

» Ⅱ.Product Parameter for 12,000L truck mounted vacuum tanker unit：

1. Structure and Configuration

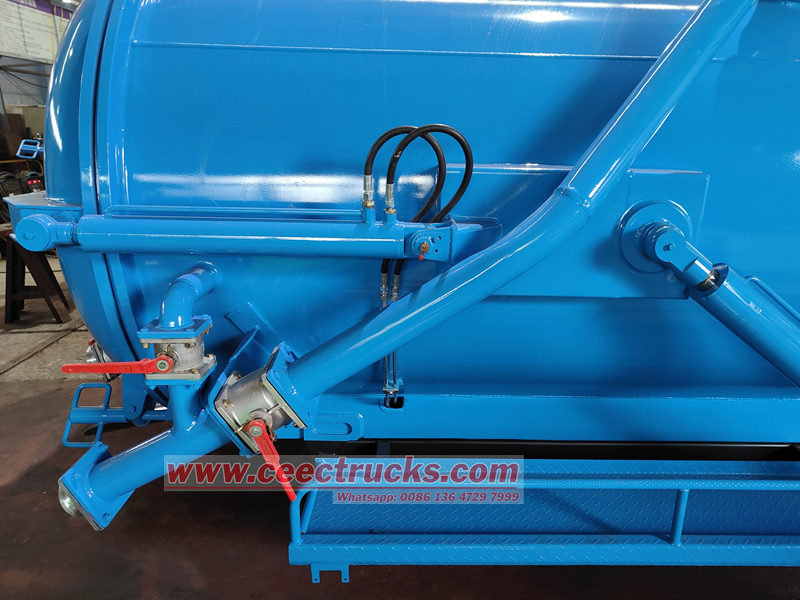

●The upper body of a vacuum suction pump truck primarily consists of a vacuum tank, vacuum pump, suction piping system, overflow prevention valve, liquid level indicator, and hydraulic control system.

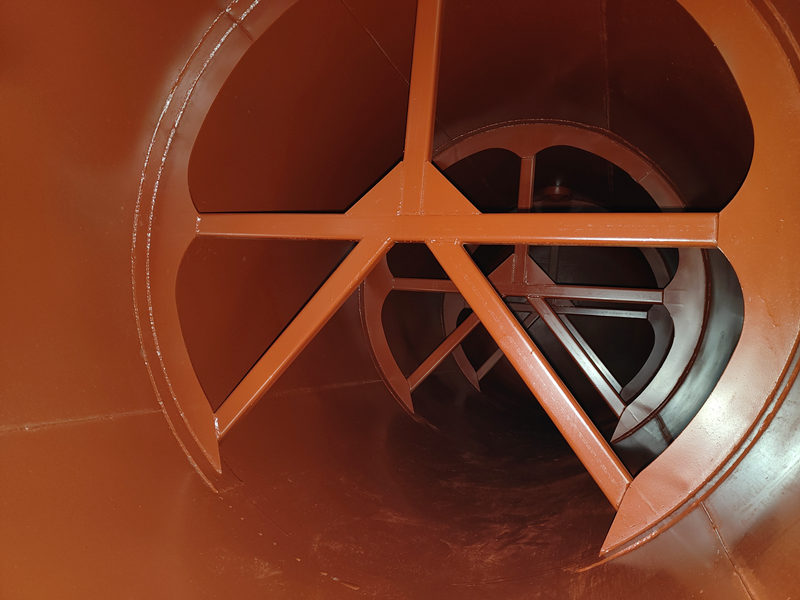

●The tank body is primarily constructed of high-quality carbon steel and features an internal anti-corrosion and rust-resistant coating, ensuring pressure resistance, wear resistance, and corrosion resistance.

●As a core component, the vacuum pump delivers high vacuum and strong suction force, enabling rapid suction and efficient discharge. The vehicle is also equipped with a safety valve, filter, and oil-gas separation device to ensure stable system operation.

2. Performance and Operating Features

♦The vacuum tanker truck superstructure uses a vacuum pump to create negative pressure within the tank, sucking media such as sewage, slurry, and feces into the tank for collection.

♦When the tank is full, the operator switches a valve to positive pressure, allowing the waste to be discharged under pressure. Equipped with a hydraulic lift system, the tank can be tilted for gravity unloading.

♦The equipment is simple to operate, safe, and reliable, supporting both manual and automatic control modes for high efficiency. It is suitable for municipal sanitation, industrial and mining enterprises, and rural sewage treatment.



3. Product Advantages and Applications

➤The 12,000L truck-mounted vacuum tanker unit offers strong suction, excellent sealing, thorough unloading, compact structure, and easy maintenance.

➤The advanced vacuum system design effectively prevents secondary contamination and extends the equipment's service life.

➤It is widely used for cleaning and transporting wastewater in sewers, septic tanks, ditches, sedimentation tanks, and other areas, making it a vital piece of equipment for urban sanitation and environmental management.



•

•

•




Products--100% Customized Level One!

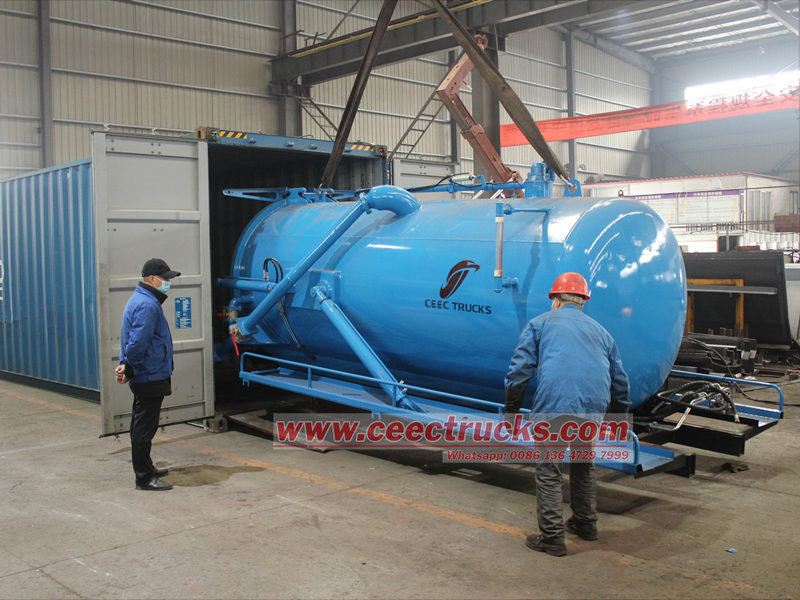

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.



CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
