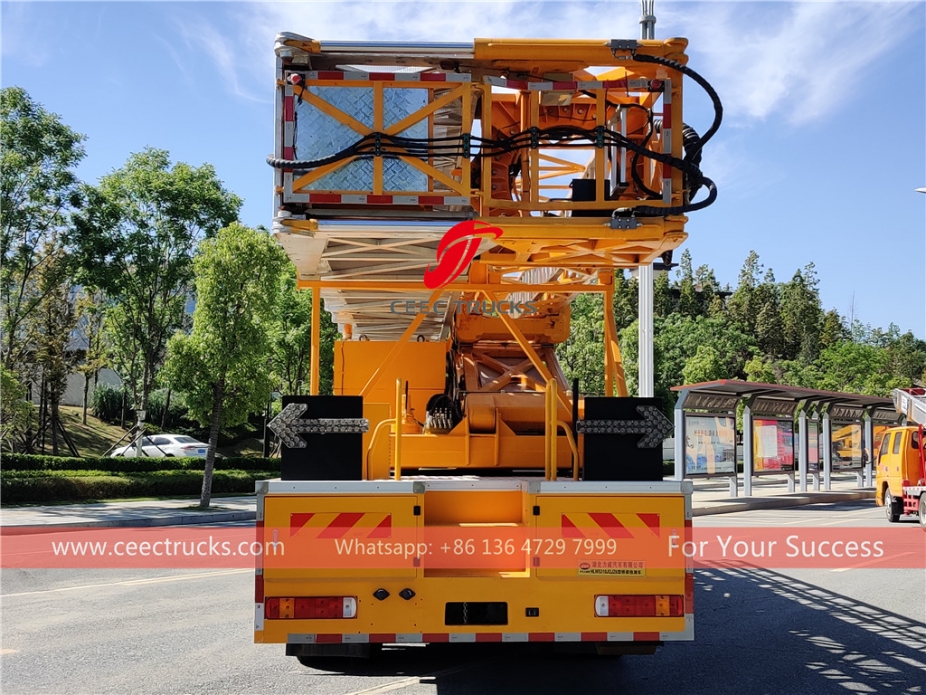

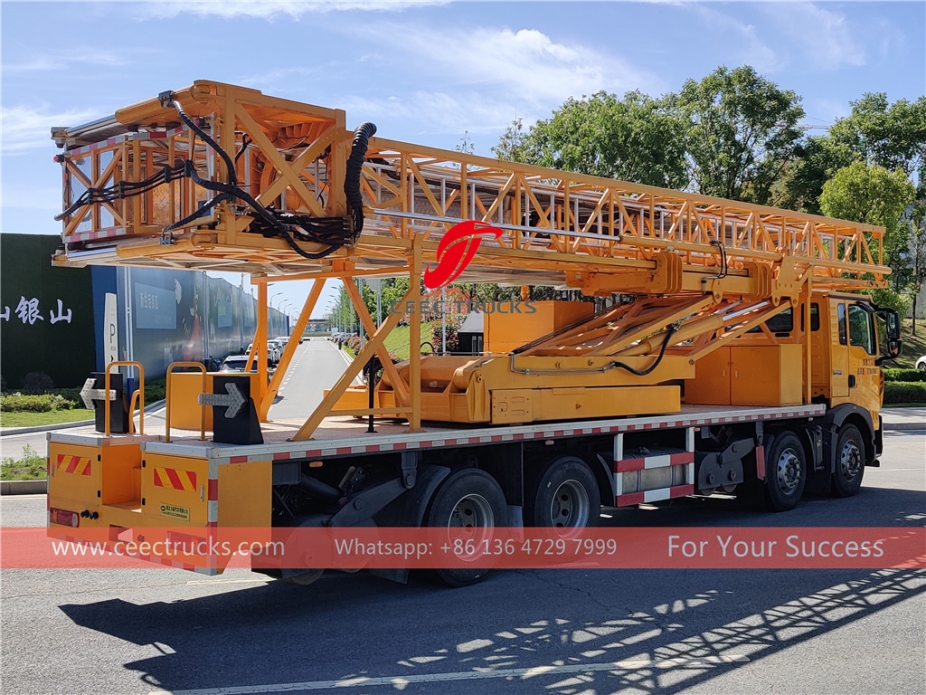

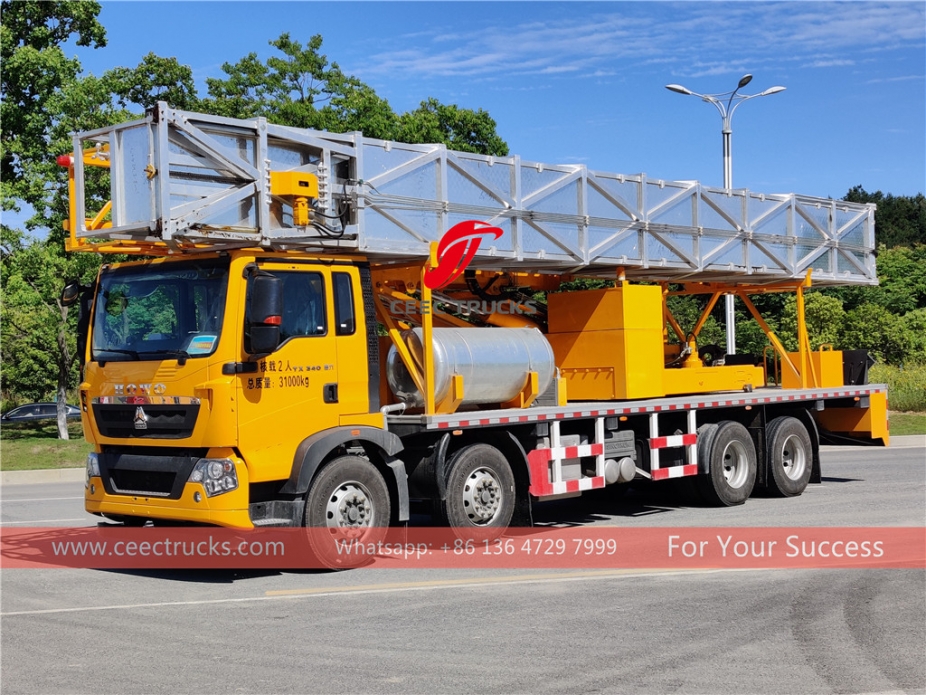

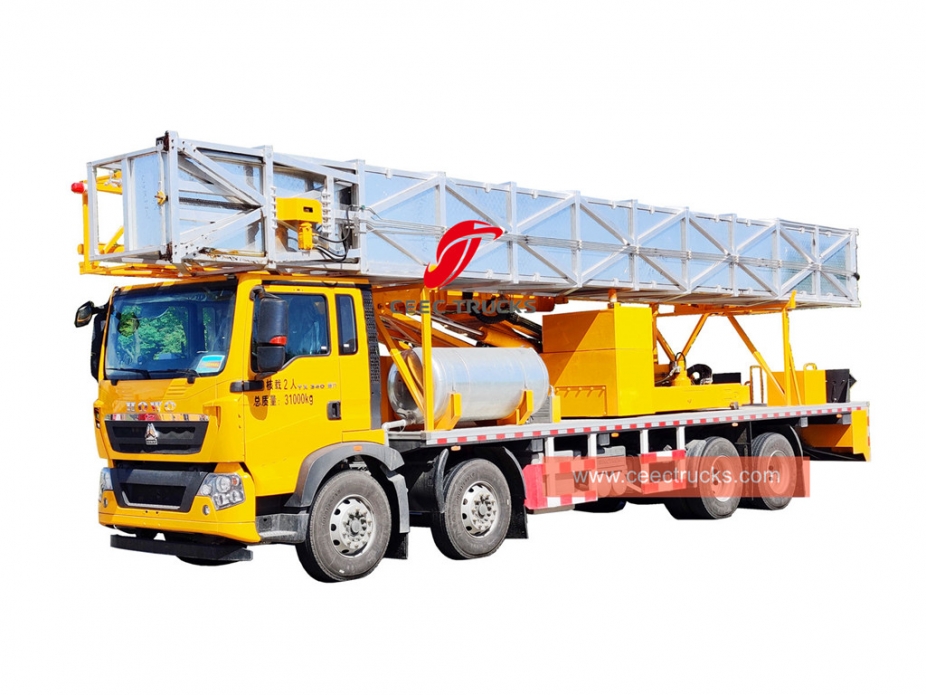

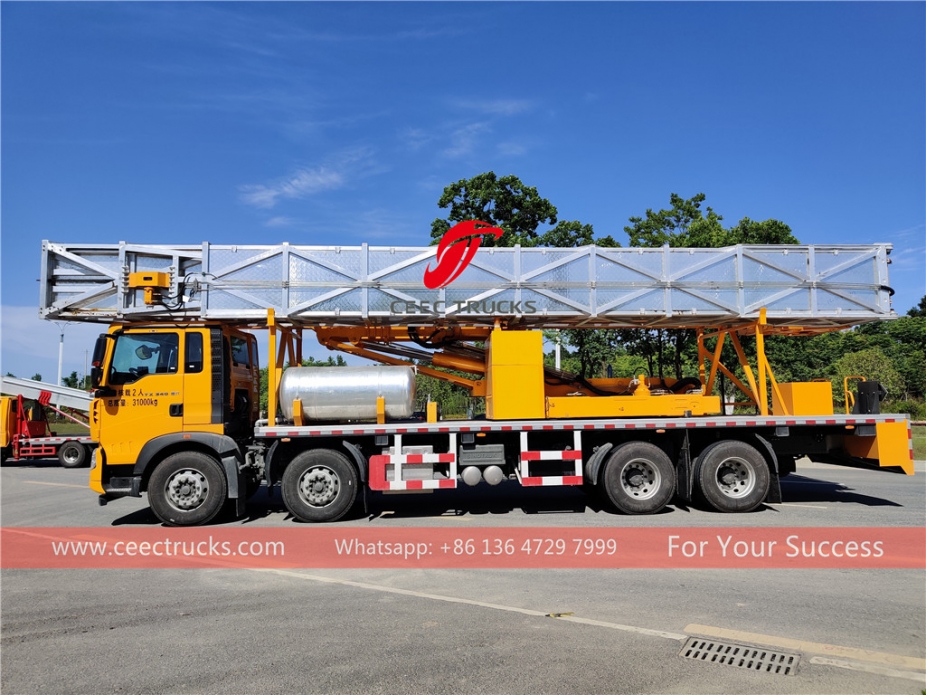

18m Bridge Inspection Truck HOWO

Top quality 18m bridge inspection truck export to South American. HOWO model 8x4 truck chassis, HW19710 model 10-shift manual gearbox, WEICHAI 380HP diesel engine, heavy duty long platform with hydraulic cylinder working, working height can be 18m, painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now

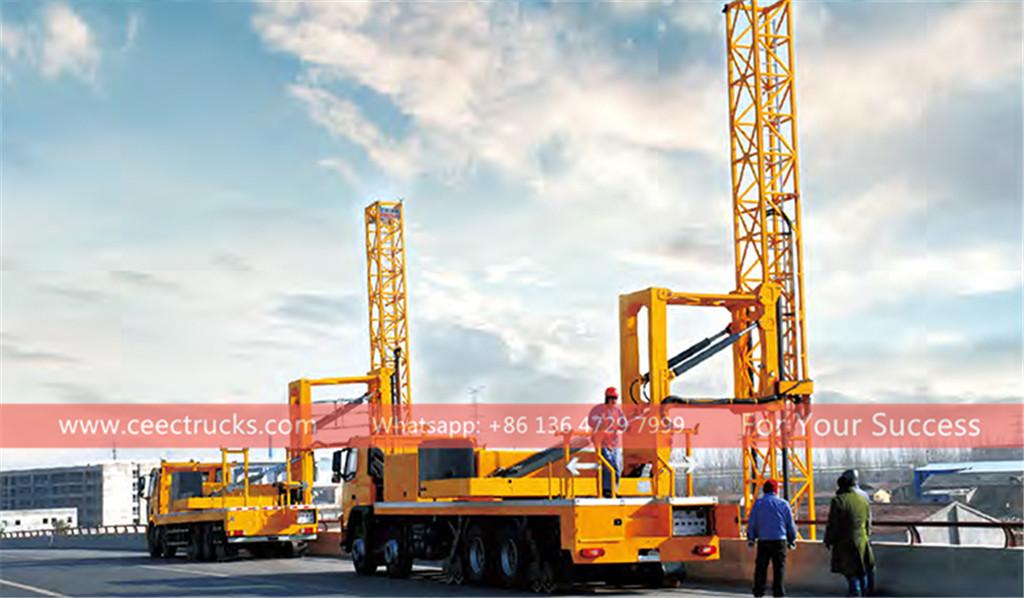

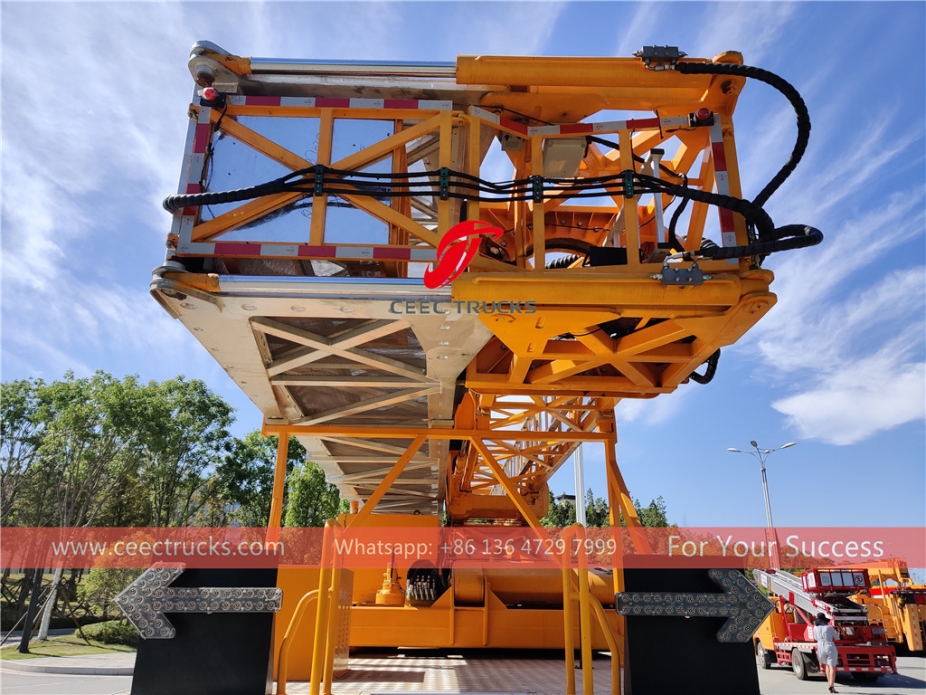

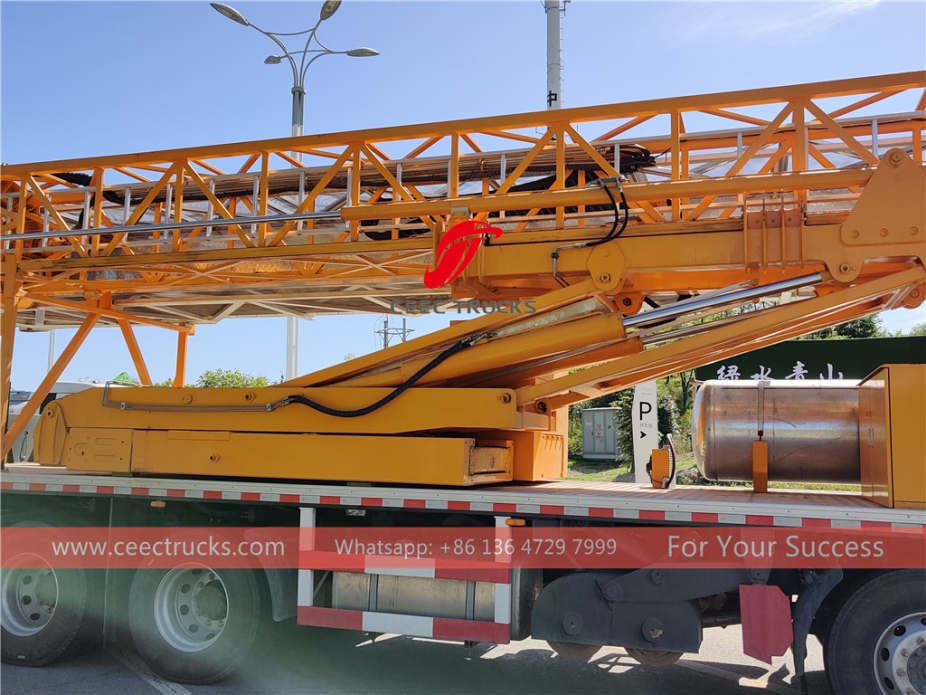

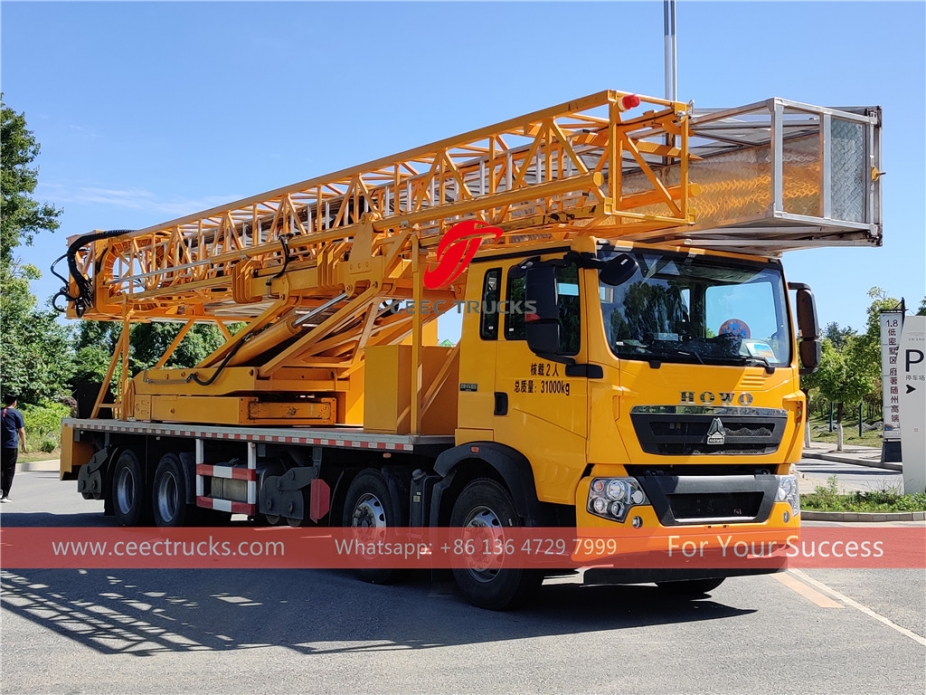

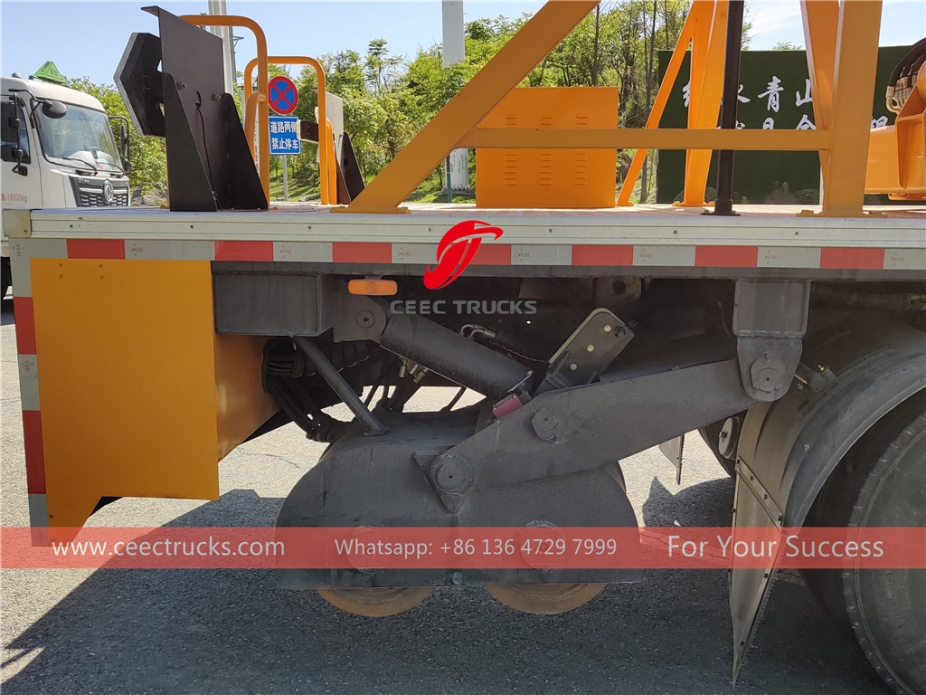

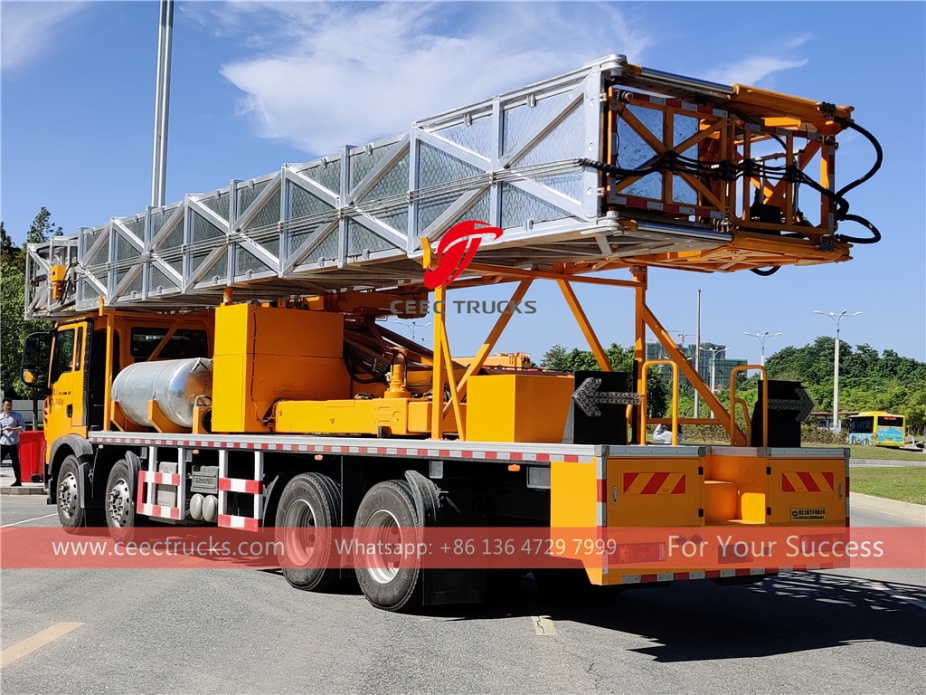

HOWO 8x4 bridge inspection truck export to South American

 Applications:



Bridge Inspction truck HOWO (also called Bridge checking truck, HOWO bridge truck, ISUZU bridge maintenance truck, ISUZU bridge inspection vehicle) is a special vehicle, which supply working platform for person on bridge inspection. It can be equipped with bridge detector, used for mobile inspection and maintenance work.



CEEC Trucks can supply bridge inspection trucks based on different chassis, ISUZU, HOWO, DONGFENG, FAW, SHACMAN, IVECO, etc.



 Key Features:



---- HOWO chassis, perfect performance

---- WEICHAI engine & gearbox, super powerful, no overhaul within 100,000 km.

---- Telescopic boom crane or Knuckle boom crane can be optional.

---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.


 Specifications:

South American Bridge Inspection Truck HOWO (18 m)

General

Vehicle Brand

CEEC

Chassis Brand

HOWO

Overall Dimension

12050 x 2500 x 3995 mm

GVW / Kerb Weight

31,000 kg / 18,800 kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

With air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI

Power

380Ps (280KW)

Displacement

9726 ml

Emission Standard

Euro 2/3

Chassis

Drive Type

8X4, left hand drive

Transmission

HW19710 10-forward, no overhaul within 500,000km

Wheelbase/No. of axle

1800+4500+1350 mm / 4

Tyre Specification

12.00-20

Tyre Number

12 tyres and 1 spare tyre

Max Speed

85 km/h

Paint

Metallic paint

Superstructure

Max. horizontal working range

16-20m

Max. overcoming barrier

2.3 m

Max. overbridging of sidewalk

2.5 m

Max. overcoming barrier of show car

2.3 m

 Max. overcoming barrier

2.0 / 2.4 m

Max. lowering depth

8 m

Max. crossing box girder

6.8 m



Max. payload of platform

1000/800 kg



Max. payload of platform front

500/400 kg



Max. platform width

1.50/1.02 m



Rotation range of 1st slewing organization

0~90°



Rotation range of 2nd slewing organization

0~180°



Walking speed

≥13 m/min

Equipment

Whole standard equipment


HW19710 model 10-shift manual gearbox, 10 forward & 2 reverse

Expert for producing HOWO bridge inspection truck over 10 years with good reputation

High strength Carbon steel material

12 months free fast moving spare parts

All English version control box, panel, and owner's manual, for easy understanding

Training service for HOWO, ISUZU bridge inspection and maintenance trucks

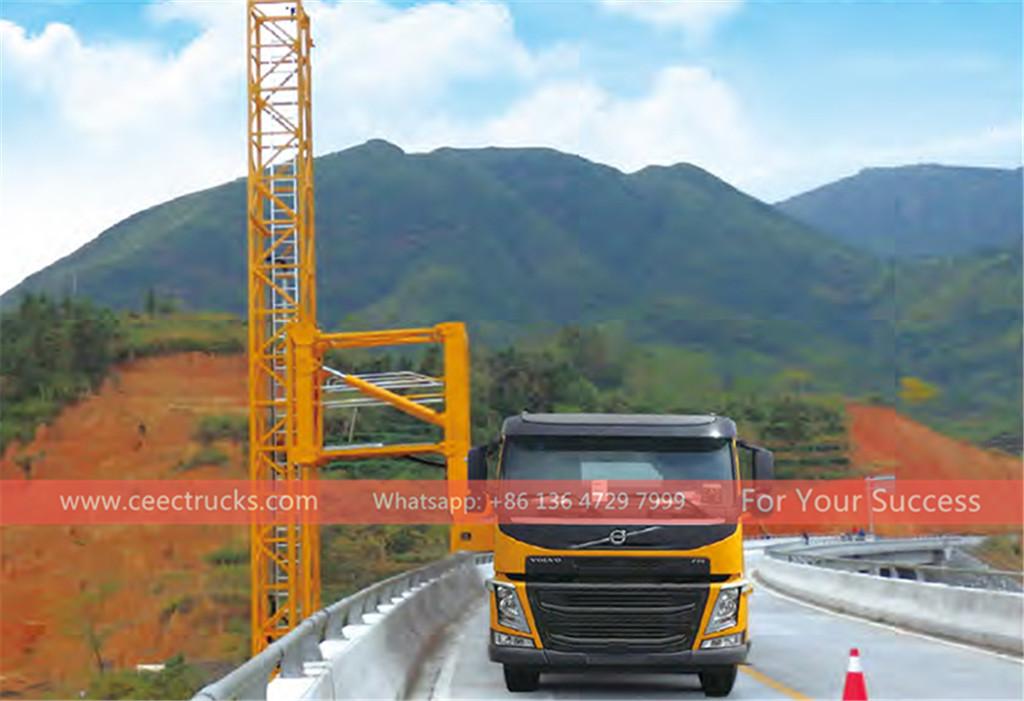

HOWO 8x4 bridge inspection truck export to South American

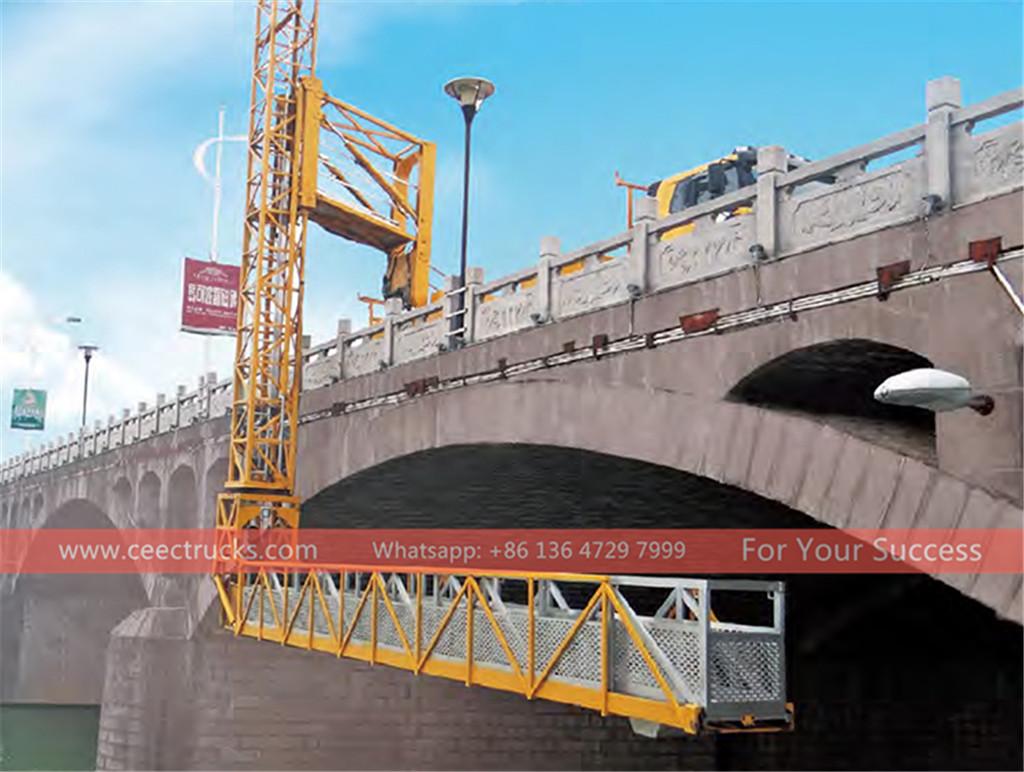

HOWO 8x4 bridge inspection truck export to South American
