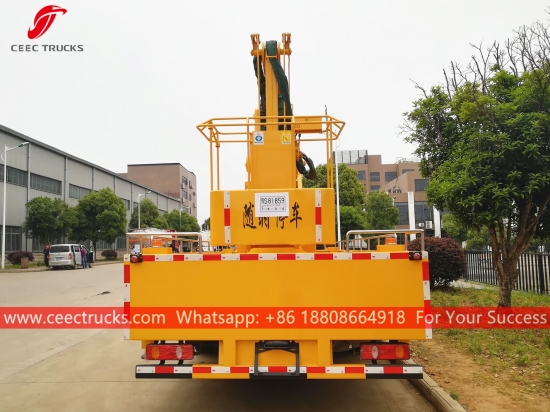

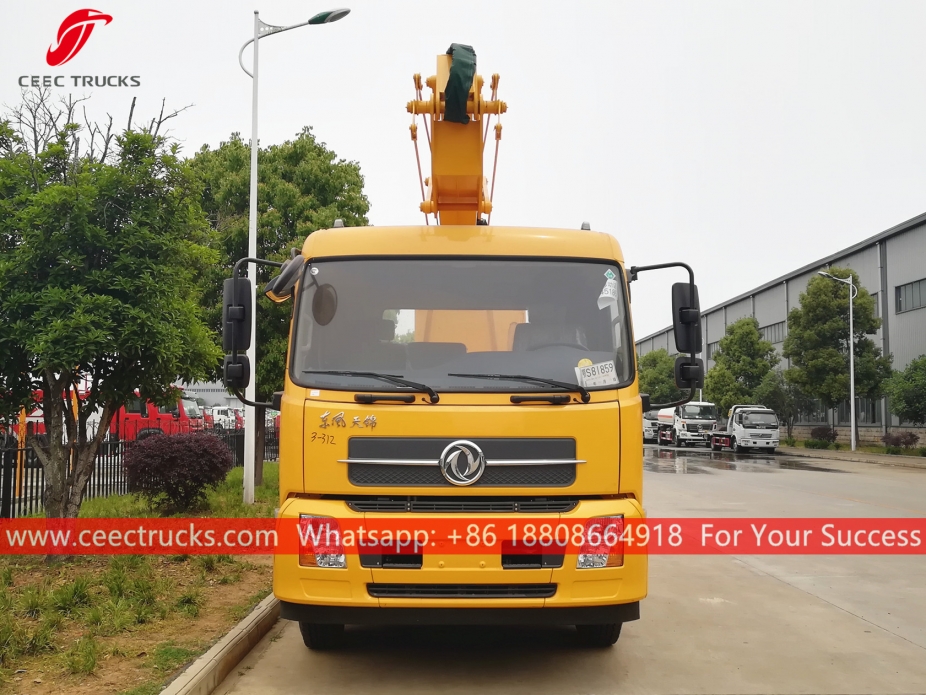

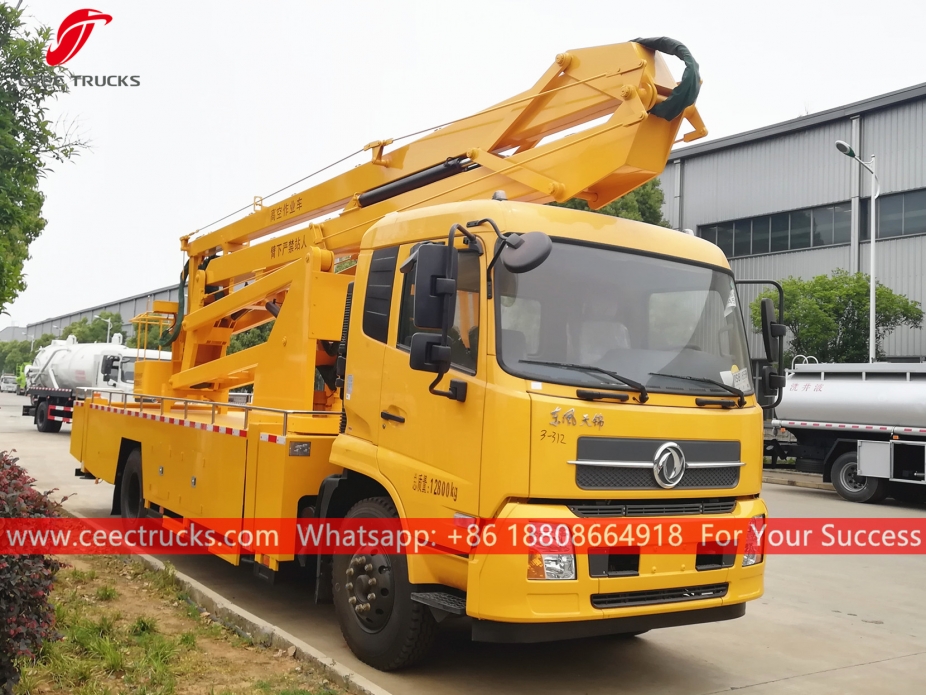

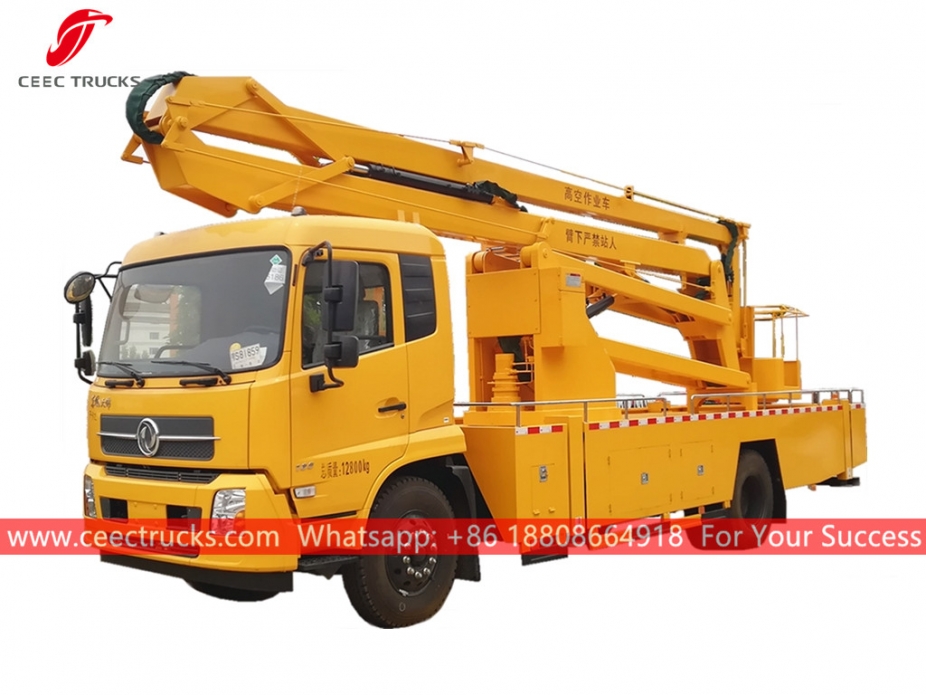

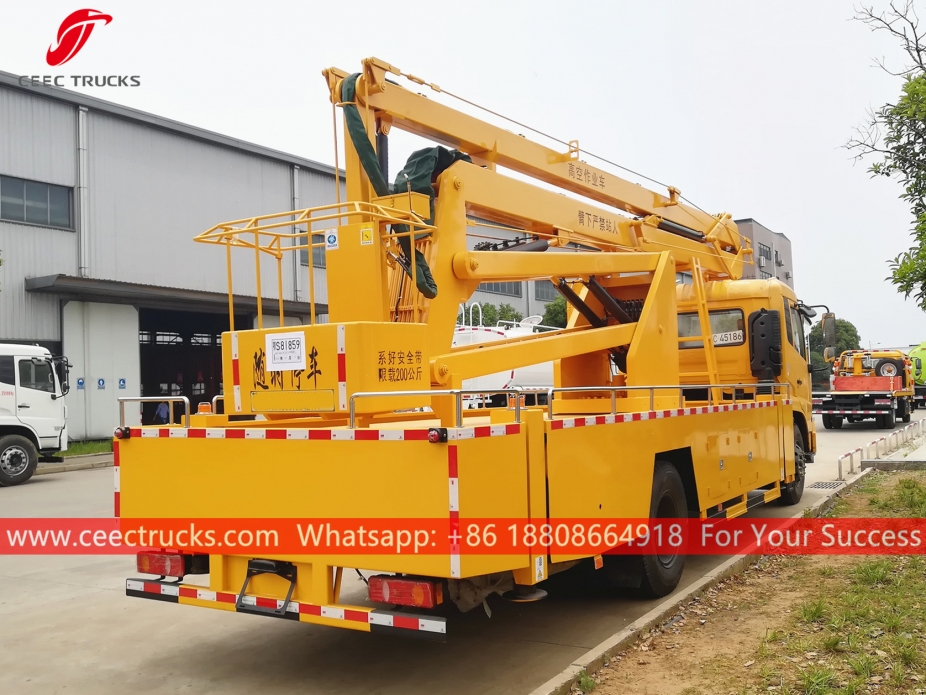

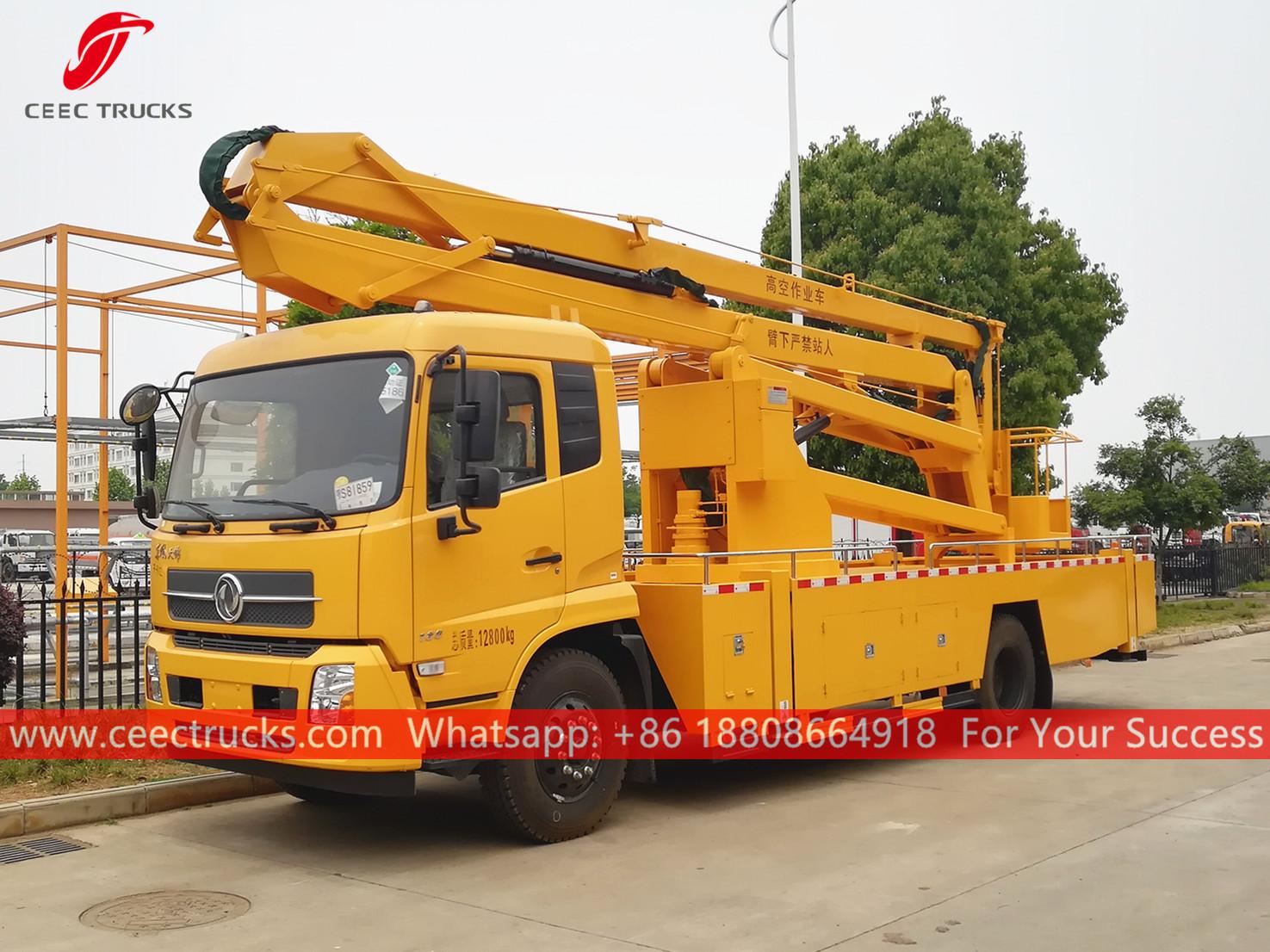

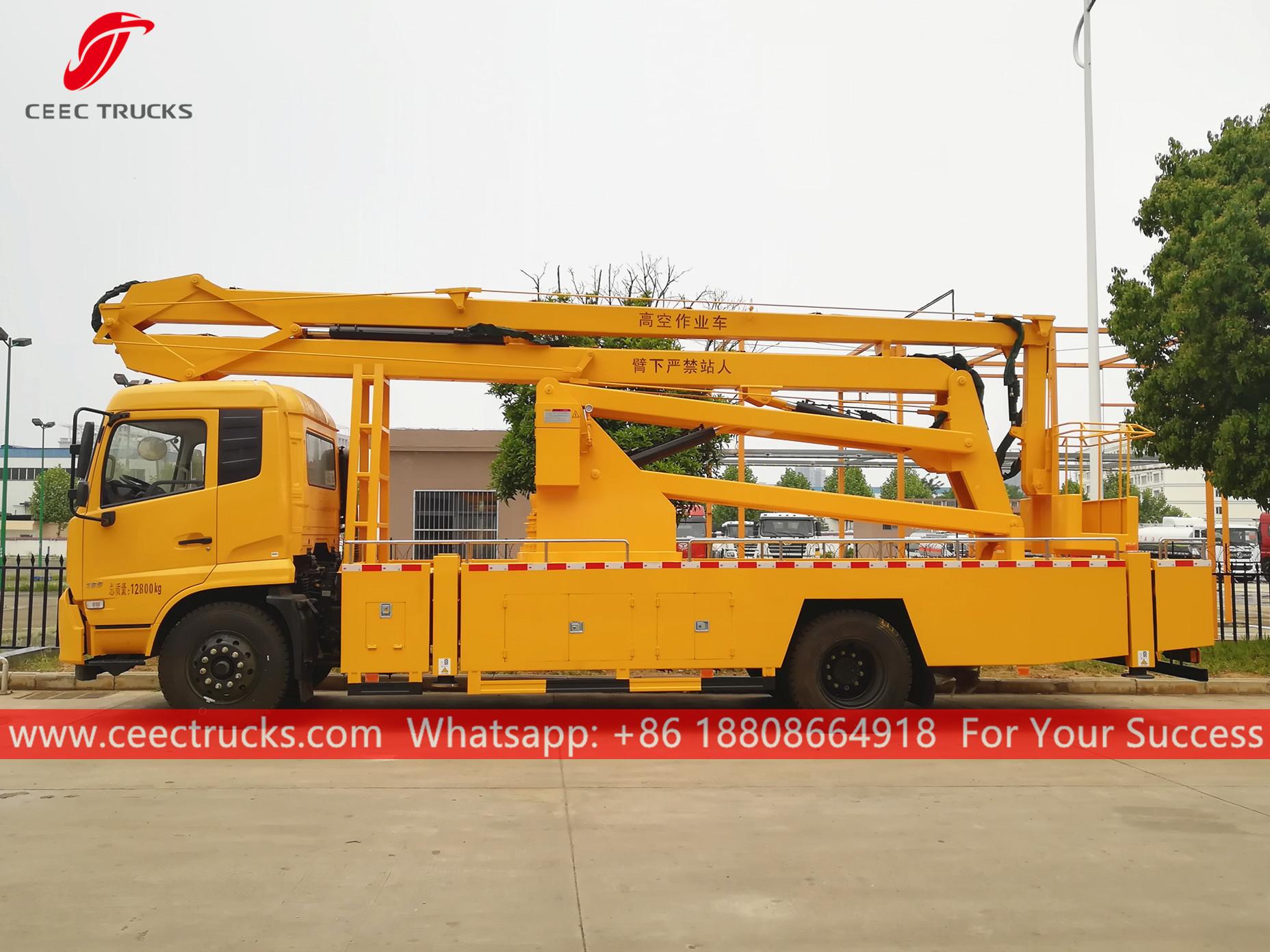

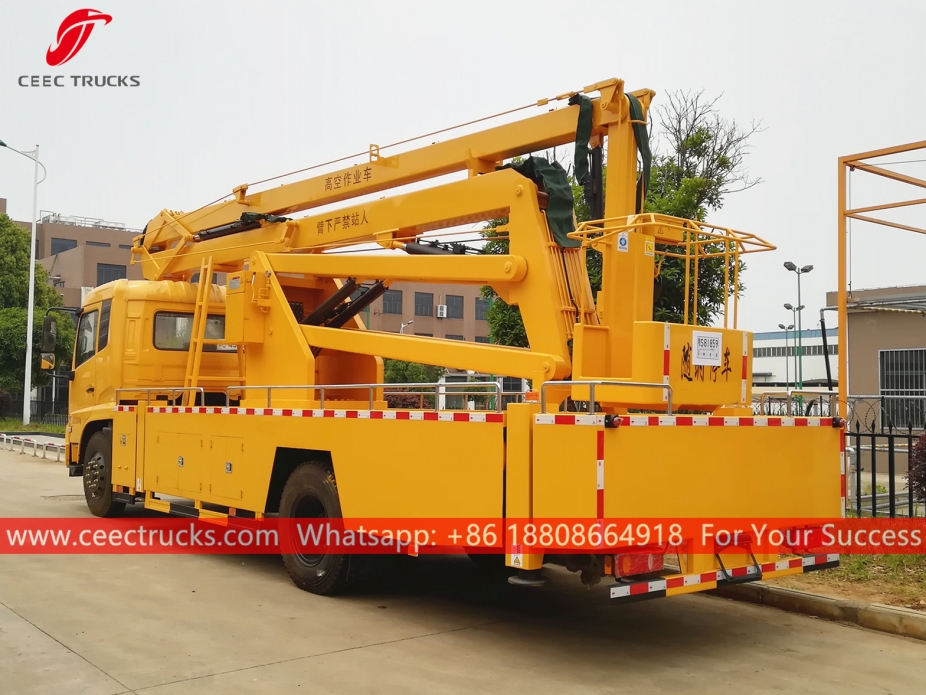

22m Aerial Working Platform Dongfeng

22m man lifting truck, Dongfeng brand model 4x2 chassis, 8-shift manual gearbox, CUMMINS 190HP diesel engine, painting and logos depend on requirement, Customer language control box.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now



 Applications:



22m Manlifter Truck Dongfeng (also called Aerial Working Platform Truck, Dongefng Aerial Platform Man Lift Truck, Dongfeng Truck mounted aerial work platform, mobile manlifter vehicle, Low price High Platform Operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.



CEEC TRUCKS can supply aerial platform truck from 6m-8m, 8m-12m, 14m-16m, 18m, 20-24m, 28m-32m.Insulated cage is optional.



 Key Features:



---- Dongfeng chassis, perfect performance

---- CUMMINS engine, super powerful, no overhaul within 100,000 km.

---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);

---- 4pcs outriggers and front support improve operation stability and safety;

---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;

---- Wireless remote control system is available.



 Specifications:



Aerial Platform Vehicle Dongfeng (22M)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Dongfeng

Overall Dimension

9425 x 2490 x 3900 mm

GVW / Kerb Weight

12,800 kg / 12,670 kg

Cab

Cab Capacity

2,3 persons allowed

Air Conditioner

With air conditioner

Engine

Fuel Type

Diesel

Engine Brand

CUMMINS engine

Power

190Ps (140 KW)

Displacement

6700 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

4X2, left hand drive

Transmission

Manual transmission, 8-forward gears & 1 reverse, no overhaul within 500,000km

Wheelbase/No. of axle

4500 mm / 2

Tyre Specification

10.00-20

Tyre Number

6 tyres and 1 spare tyre

Max Speed

98 km/h

Paint

Metallic paint

Superstructure

Cage Rated Capacity

200 kg

Working Height

22 m

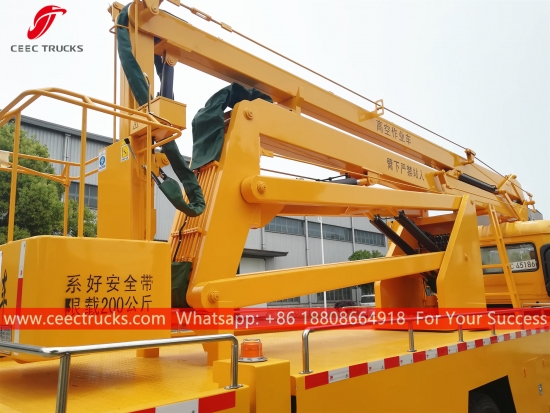

Beam

The beam is articulated & telescopic extension type, hydraulic actuated and controlled

Slewing

Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.

Control

Control both on the ground and remote control in cage

Safety Device

Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump

Leveling System

Hydraulic stabilizer to level the vehicle on uneven ground

Optional

Insulated cage; Wireless remote control system

CUMMINS engine, super powerful

Can be operated at both turret and platform with all English version control plate

12 months fast moving spare parts for FREE

Authorized Dongfeng aerial platform trucks exporter

Training service for Dongfeng high platform trucks



CEEC TRUCKS is a leading exporter of Aerial Platform Working trucks in China. We possess over 10-year export experience of high platform trucks. We can ensure the fast delivery time and 12 months guarantee for our sewage trucks. Our aerial platform vehicles are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
