The Howo 6x4 gully sucker vacuum truck is a specialized sanitation vehicle that integrates suction, storage, transportation, and discharge functions. It is primarily used for cleaning and transporting waste from urban sewers, septic tanks, sewage wells, and sludge pits.

The Howo gully sucker vacuum truck uses a vacuum pump to generate strong negative pressure, rapidly sucking liquid or semi-liquid impurities such as sewage, feces, and slurry into a sealed tank, ensuring leak-free and pollution-free operation. The vehicle boasts strong suction, large capacity, and high efficiency.

● China best gully sucker vacuum truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service

*Africa Howo 6x4 gully sucker vacuum truck

vacuum suction pump truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Product Features

1. Powerful Power and Adaptability

● Equipped with a WEICHAI 350hp WP8.350E61 engine and a 10-speed transmission, it offers high torque at low speeds, adapts to complex road conditions.

2. Convenient Operation and Safety Features

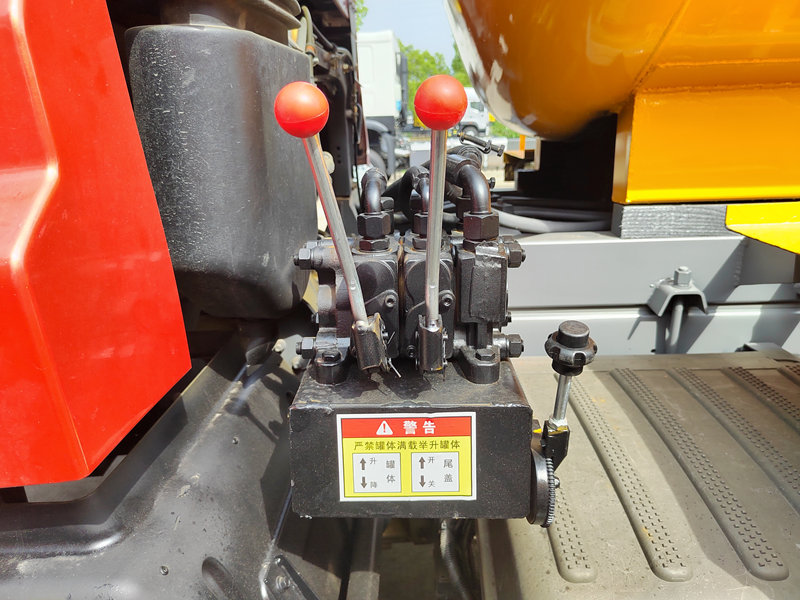

● Hydraulic control system (tank lift, tailgate discharge) ensures effortless and precise operation.

● Visual suction pipe allows for real-time monitoring of suction status to prevent blockage or overload.

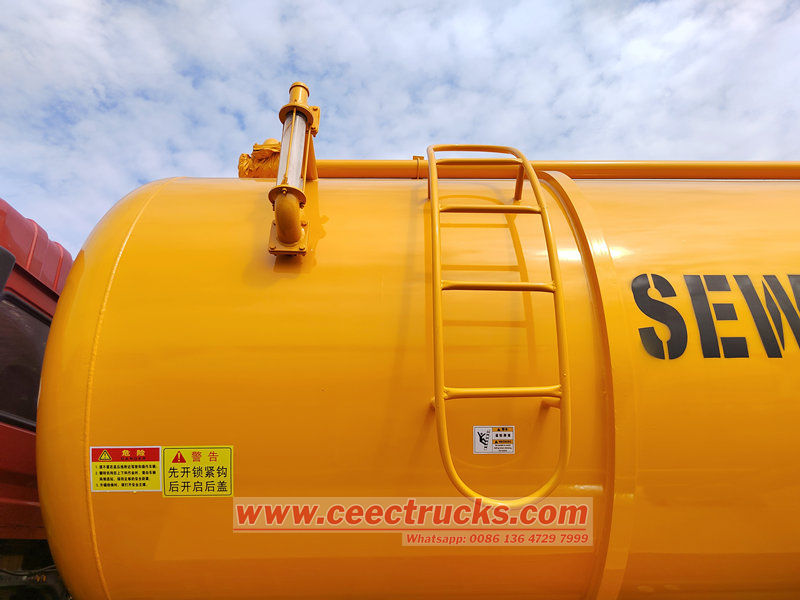

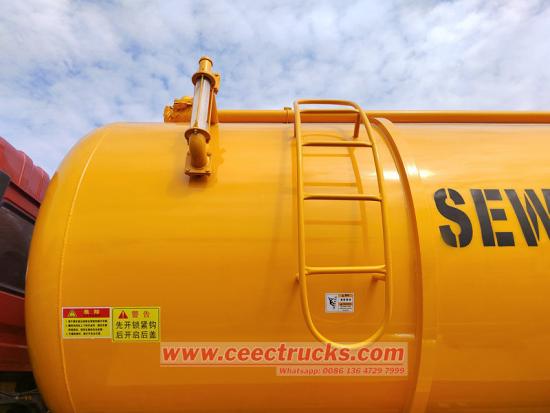

●Hydraulic ladder for easy access and maintenance

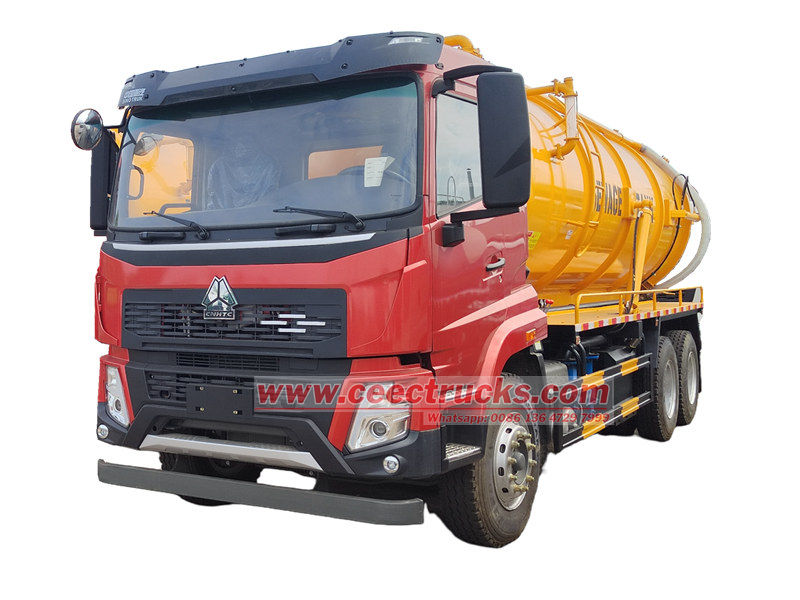

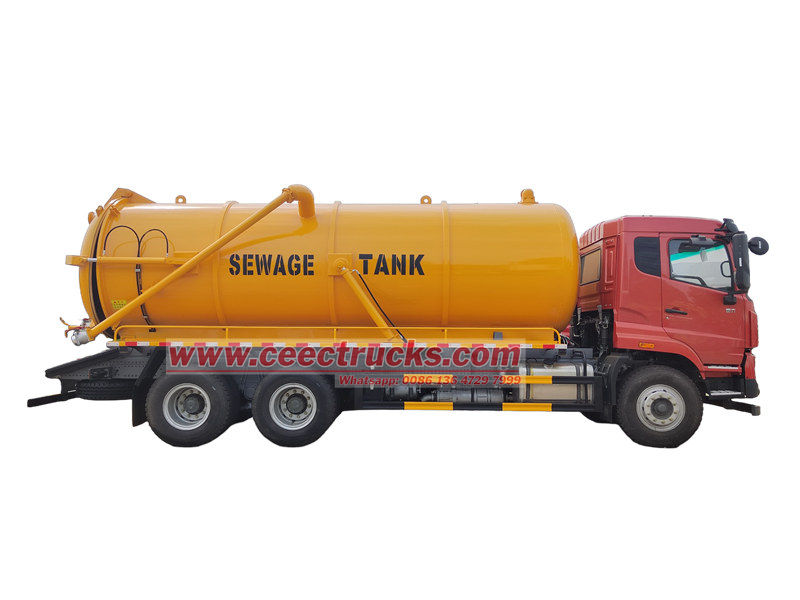

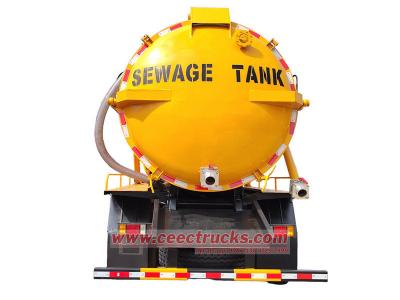

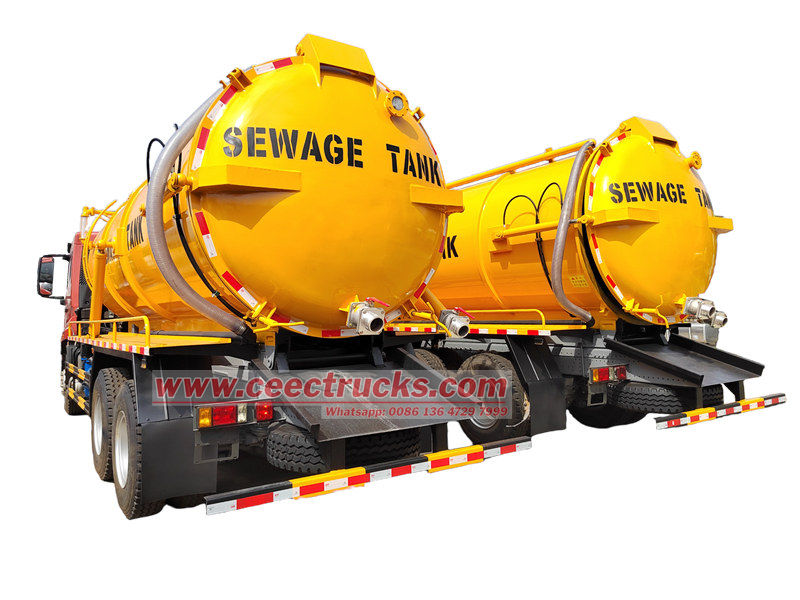

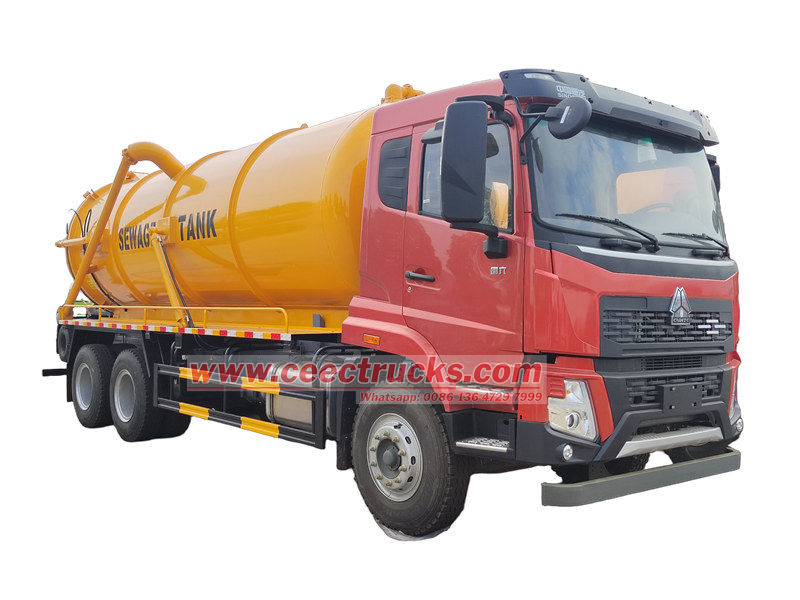

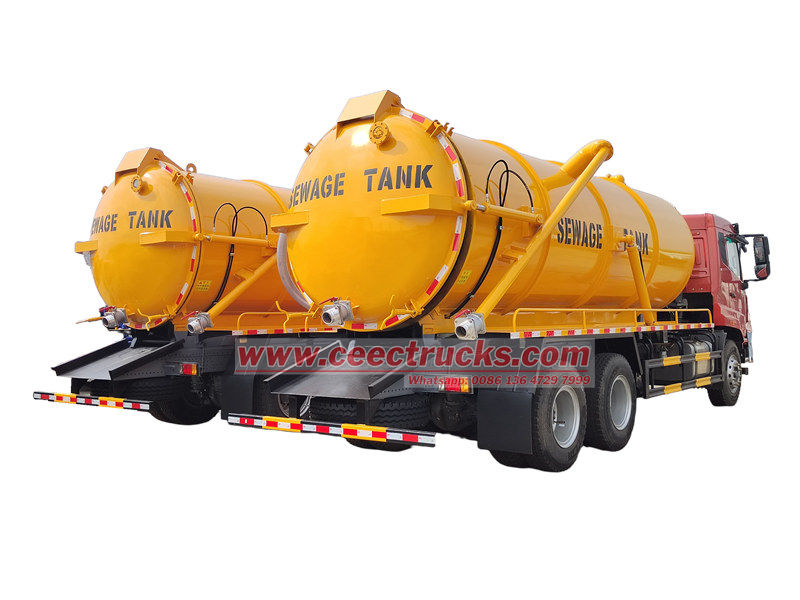

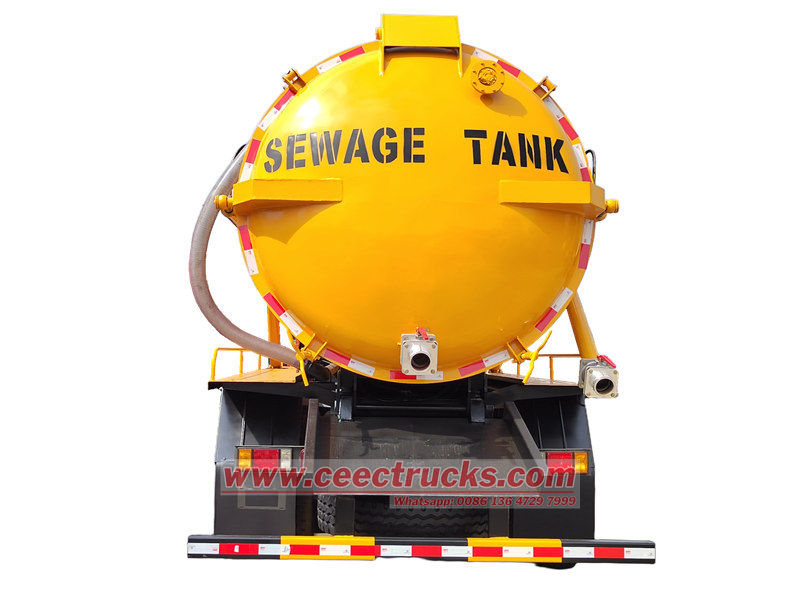

Africa Howo 6x4 gully sucker vacuum truck (also called Howo 20 cbm vacuum suction pump truck, Howo 6x4 vacuum sewage suction truck, Howo 20,000 liters vacuum tanker truck,Howo 10 wheels sewage disposal tanker, Howo 20 cbm septic tank pump truck,etc.)  is designed for collecting, transporting, and unloading various materials, including wastewater, sludge, septic waste, crude oil, as well as small solid debris like stones and bricks. This vehicle is especially suitable for cleaning sewers, cesspits, gullies, and similar environments.

1.The suction principle of the Howo gully sucker vacuum truck.

●The vehicle engine drives the power take-off (PTO), which in turn drives the vacuum pump. The vacuum pump creates a strong negative pressure within the sealed tank, lowering the internal pressure below the external atmospheric pressure, creating a pressure differential.

●When the suction nozzle contacts a medium such as sewage, feces, or slurry, the external pressure quickly pushes the medium into the tank, achieving efficient suction.

●Due to its vacuum-sealed design, the entire process prevents odor leakage and secondary contamination, ensuring a clean working environment.

2. Discharge and Transportation Principles.

●When the tank is filled with waste, the vehicle switches the vacuum pump's operating mode, converting the tank's internal pressure from negative to positive. Under this positive pressure, the waste is forcefully pushed out, completing the process of rapid discharge.

●This dual discharge method not only reduces labor input but also ensures thorough waste discharge, meeting the efficient needs of municipal sanitation and industrial cleanup.

» Ⅱ.Product Parameter for Howo 6x4 gully sucker vacuum truck：

Howo 6x4 gully sucker vacuum truck
Vehicle Dimensions, Weights & Capacities	Chassis brand	HOWO
	Overall dimension (LxWxH)	9270x2530x3650mm
	Wheelbase	4325+1350mm
	Curb weight	11,350 Kg
	Gross weight	32,000 Kg
Chassis	Drive mode	6x4
	Cabin type	Standard roof one bed
	Seats	2 seats
	Steering	LHD
	Tires	10+1 spare tire
	Tyre specification	295/80R22.5
	A/C	Air conditioning
Engine	Engine model	WP8.350E61
	Fuel and engine Type	Diesel, 6 cylinders in-line
	Horse power	350HP
	Displacement	7.8L
	Emission level	Euro 6
Tops Parameters	Loading Capacity Volume	20cbm ( can be customized )
	Tank Material	Strengthen high performance wear-resisting carbon steel with anti-corrosion treatment paint
	Colour	As demands
	Logo Paint	As demands
	Others	Standard, customized





» Ⅲ.Product Details & Advantages:

1. Durable tank material.

The Howo 6x4 gully sucker vacuum truck's tank is constructed from high-quality carbon steel and undergoes rigorous welding and anti-corrosion treatment to ensure excellent strength and sealing. The smooth interior of the tank resists dirt adhesion, making it easy to clean and maintain, while also extending its service life.

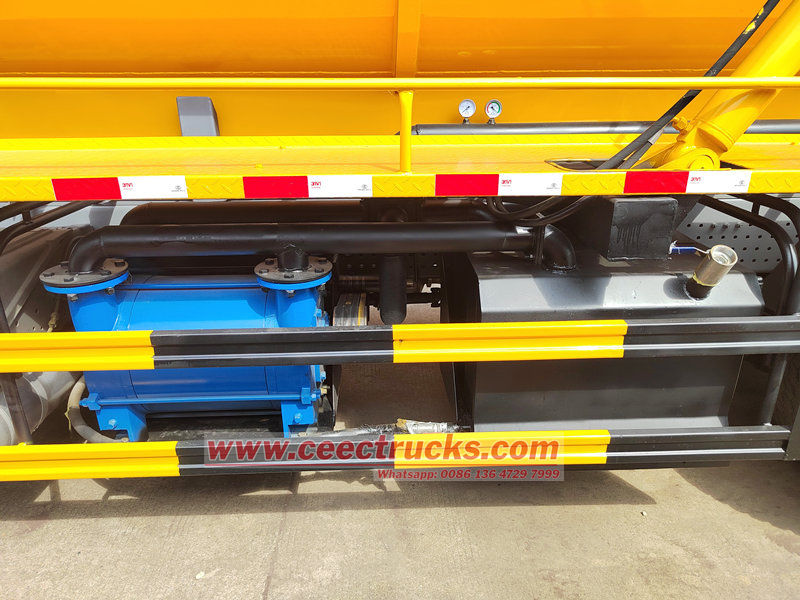

2. Equipped with a 2BE-204S water ring vacuum pump.

●This pump is the core component of the Howo 6x4 gully sucker vacuum truck, offering high suction efficiency, stable operation, and long service life.

●The 2BE-204S water ring vacuum pump generates a strong negative pressure, rapidly drawing waste into the tank, enabling continuous and extended operation.

●Its rational structural design offers low noise and vibration, high operational reliability, and adaptability to complex operating conditions.

●The water ring vacuum pump provides excellent cooling and lubrication during operation, effectively reducing wear and ensuring the truck maintains efficient performance even under high loads.



3. Wide range of applications, meeting diverse needs.

●The Howo 6x4 gully sucker vacuum truck is suitable for cleaning urban sewers, septic tanks, sewage wells, and sludge ponds. It can also be used for factory wastewater treatment, farm waste collection, and rural sanitation management.

●Its powerful suction capacity and sealed tank design prevent the leakage of sewage and odors, avoiding secondary pollution and ensuring a clean environment.

●Whether in daily municipal sanitation operations or in industrial and agricultural production, vacuum suction trucks demonstrate their efficiency, environmental friendliness, and practicality, providing reliable support for improving the living environment.



•

•

•
