Vacuum truck is a new type municipal vehicle that designed and produced for collecting, transporting sludge and sewage, and the full sealed round tanker body can efficientlly for loading and discharging, also avoid second pollution during transportation. Customized Beiben 10000L Septic Vacuum Truck is produced based on Beiben 1929 left hand drive truck chassis, mecedes BENZ technology axles with front axle capacity 7.5tons and rear axles 13tons. Equipped with WEICHAI euro 3 model diesel engine WP10.290E32, 290HP engine power and 9726ml emission standard, matched working with FAST brand 9 shift manual transmission gearbox 9JS150A, 9 shift move forward and 2 shift move back, all to guarantee the Beiben 1929 cesspit emptier truck fuel consumption reduce 30%.

The Beiben super sucker truck equipped with 10cbm round shape vacuum tanker body kit. Full hydraulic working device to make tanker body lifting up and falling down, also rear door hydraulic open and close. Beiben 1929 sewage truck equipped with Italy brand MORO vacuum pump, PM80A model working with vane blade, air flow rate can be efficiently as 12000L per minutes. Side of the tanker equipped with sewage level indicator for suction process notice, also inside equipped with sensor and warning alarm, when suction reach to the maximum, it will warning to stop suction. Also both negative pressure relief valve and positive pressure relief valve installed on the air way pipeline, so can efficiently avoid over suction for the problem of tanker. All the design is to make Beiben cesspool tanker truck efficiently to pick up and transfer anything from sludge, slurries or mud, to gravel and other solid waste.

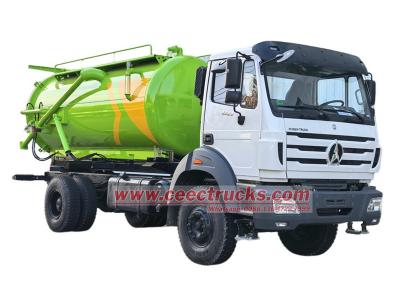

*Beiben 10,000 liters Cesspit Empptier truck

Beiben 1929 vacuum truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Beiben Vacuum Trucks Introduction:

Manufacturer: CEEC TRUCKS

Product Features:

☛ Beiben 4x2 truck chassis with stronger power WP10.290E32 model 290HP engine.

☛ Mercedes Benz technology axle for very tough road, reliable and durable.

☛ Italy MORO PM80A vacuum pump, airflow rate over 12000L/min, easy maintenance and service, matched with water gas separator.

☛ Q355 material round vacuum tanker body, thickness 6mm, internal and external with antirust, anticorrossion painting.

☛ Mutilple safety device: Overflow device, Positive and Negative pressure relief valve, Rear door safety lock, etc.

☛ Hydraulic operated working for vacuum tanker lifting up and falling down, rear door open and close.

» Ⅱ.Technical Parameter for Beiben 1929 NG80B 10CBM sewage truck：

BEIBEN 1929 Septie Pump Vacuum Truck Technical Specification
Cab		Beiben NG80B classical truck cab without sleeper, with power steering. Electronic flameout, with A/C, air suppession seat
Driving Type		Left hand drive (LHD)
Max Speed (km/h)		90
GVW( kg)		19000
Wheelbase(mm)		4800
Tire		12.00R24
Clutch		Single-plate dry diaphragm spring clutch
Steering		Hydraulic steering with power assistance
Gear box		9-speed
Bridge	Front axle	7.5T
	Rear axle	13T
Engine	Model	WP10.290E32
	Horse power	290HP with emission 9726cc standard
Braking  system	Service Brake	Compressed air brake
	Park Brake	Spring energy
Eletric system		24v
Upper-Body specification
Volume of tank	10cbm / 10000Liters / 2600 gallons
Color	Painted in the corporation's color with logo on both front doors as specified by the client
Material of tanker	6mm Carbon steel Q355 material
Special function	Suction height	≥6.5 (m)
	Suction time	250(S)
	Maximum Inclination Angle	≥45°
	maximum vacuum	≥11 MPa
	Lifting time	≤45 S
	The cover opening angle	≥75°
	The cover opening time	≤25 S
	Suction pipe	10m length DN100 type
Hose Racks	Fitted on both sides of tank, to accommodate a minimum of seven hoses each
Accoessories	Rear Wheel arches complete with Mudguards
	Rear drip tray
	Heavy-duty rear bumper
Fittings	Four-way change valve fitted to pump Drain separator Fully opening rear door  Sight glasses at top and bottom of tank Ladder: For access to top of tank complete with cat walk on top of tank
Brief introduction of function	It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system.





» Ⅲ.Beiben 10CBM Septic Pumper Truck Details & Advantages:

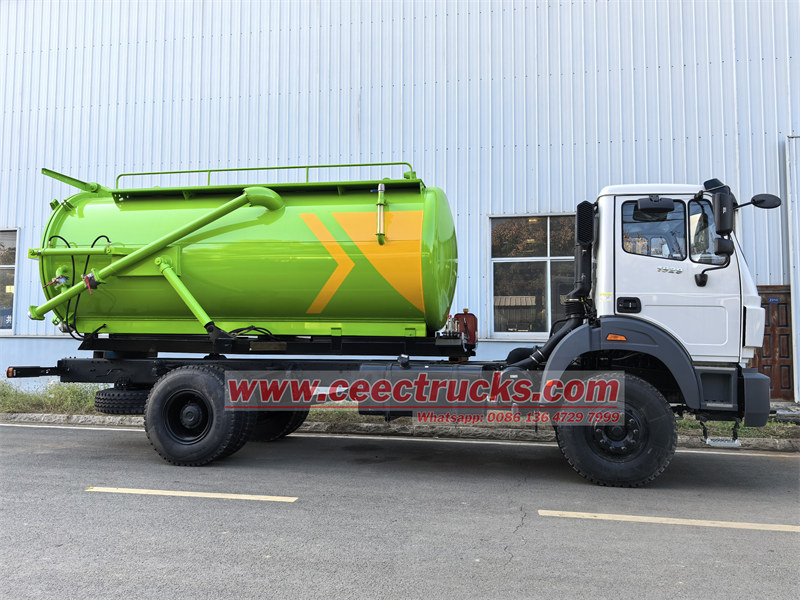

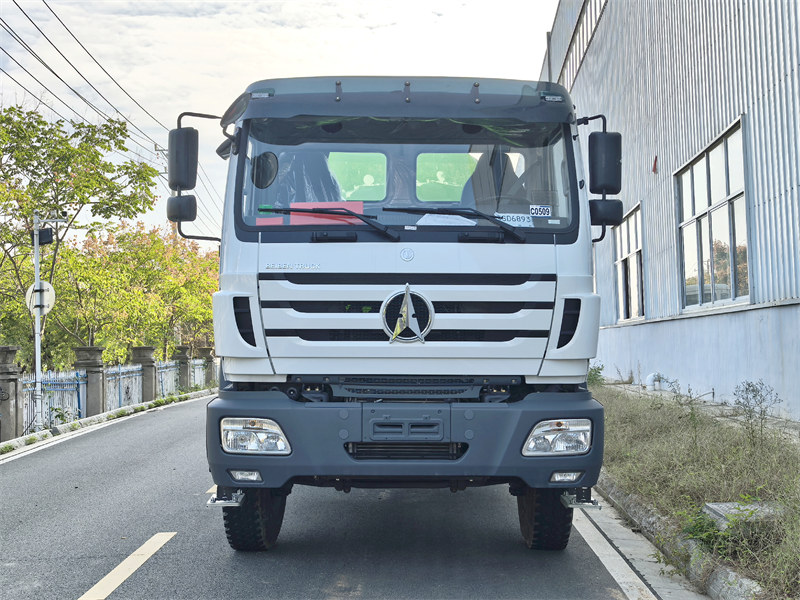

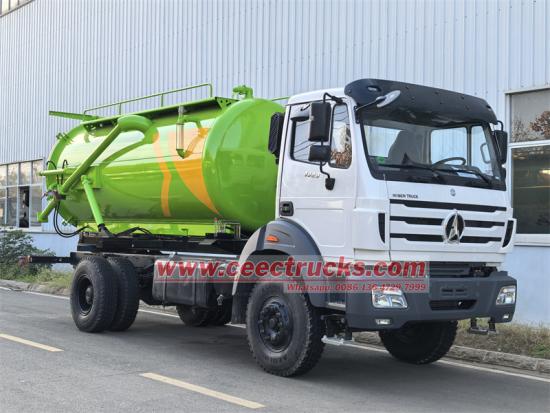

Sewage tanker mounted BEIBEN truck

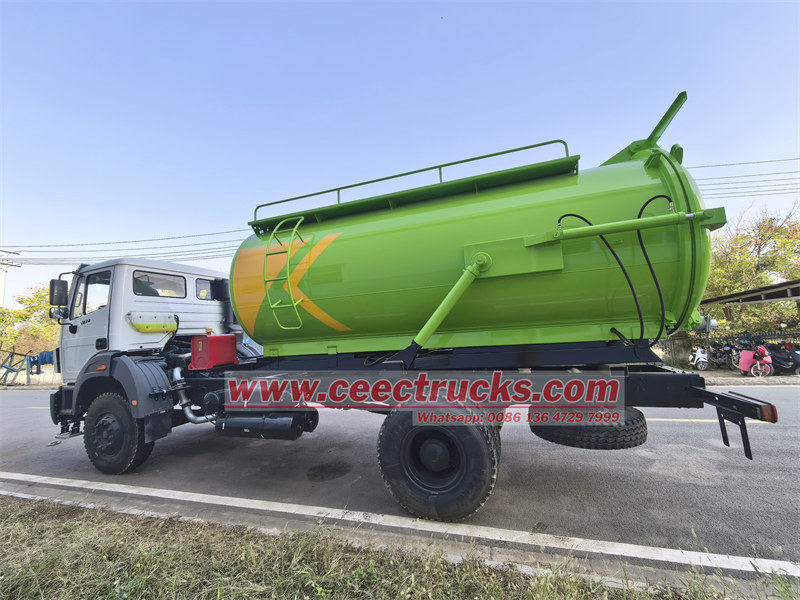

10000liter vacuum tanker superstructure body kit mounted on Beiben 1929 truck chassis, based on classical NG80B single type cabin, without sleeper. Left hand drive model suitable for daily driving, full mirror to make truck no blind spots in vision.

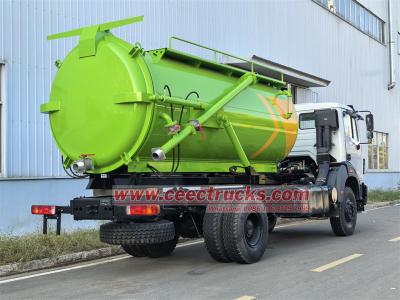

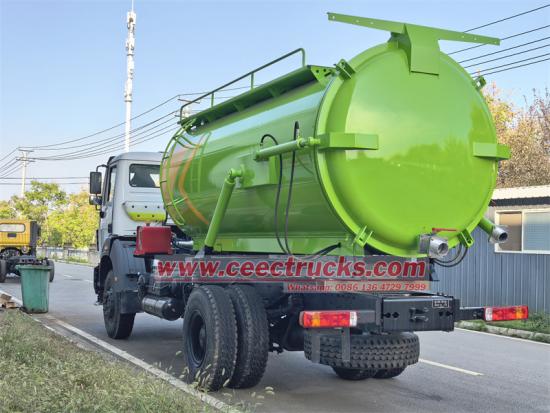

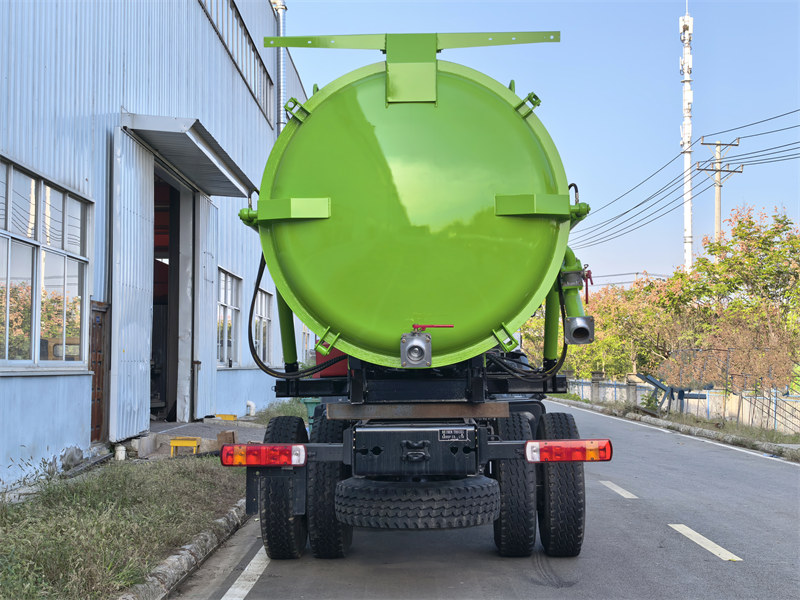

Beiben cesspit emptier rear view

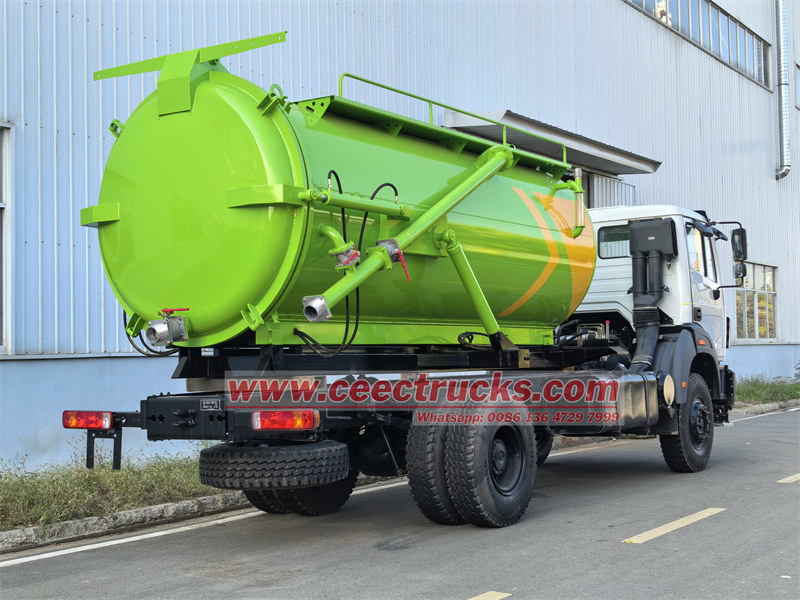

Customized 10000Liters capacity vacuum sewage tanker body, based on Q355 material with thickness 6mm, round shape with inner baffles for safety support. Sewage tanker can be hydraulic lifting up and falling down, and Rear door can be hydraulic open and closed. The inlet valve installed at side of the tanker with size DN100, and rear tanker door equipped with DN150,



•

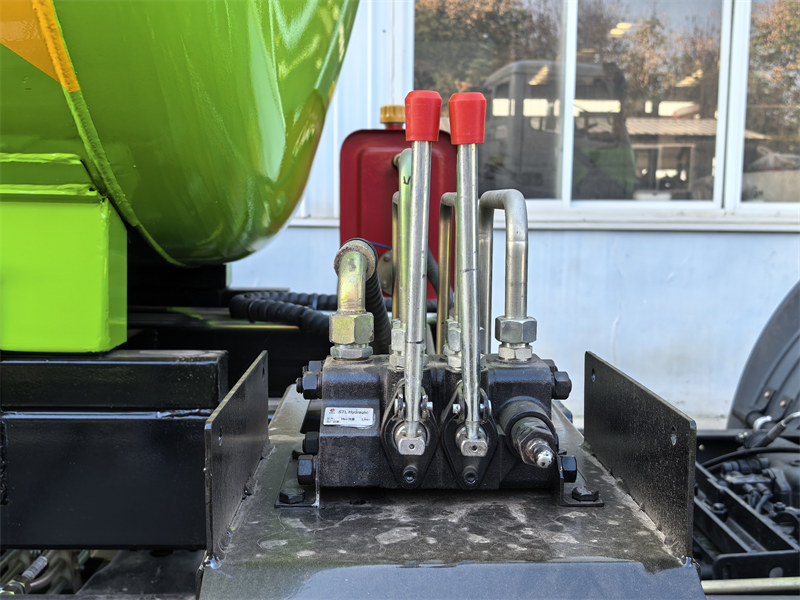

  CE Certify hydraulic control level
•

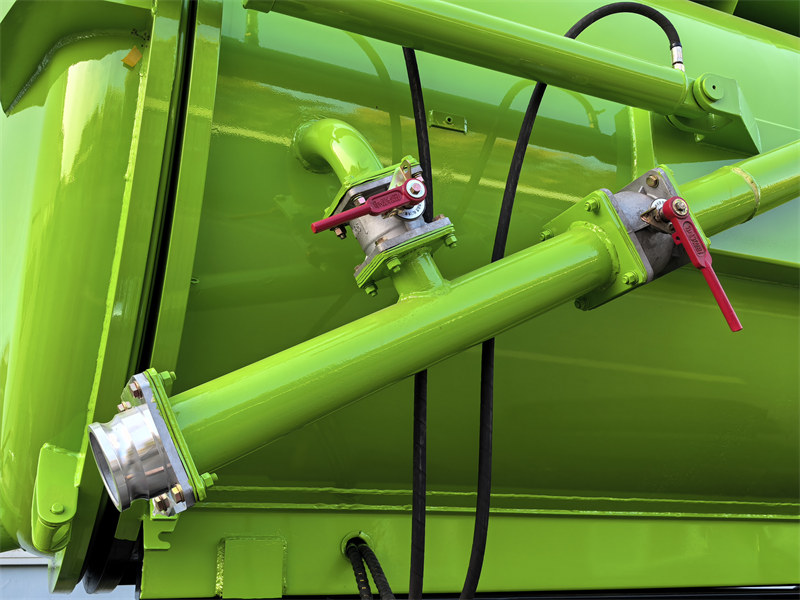

  honeysuckers septic tanks pipaline and valve
•

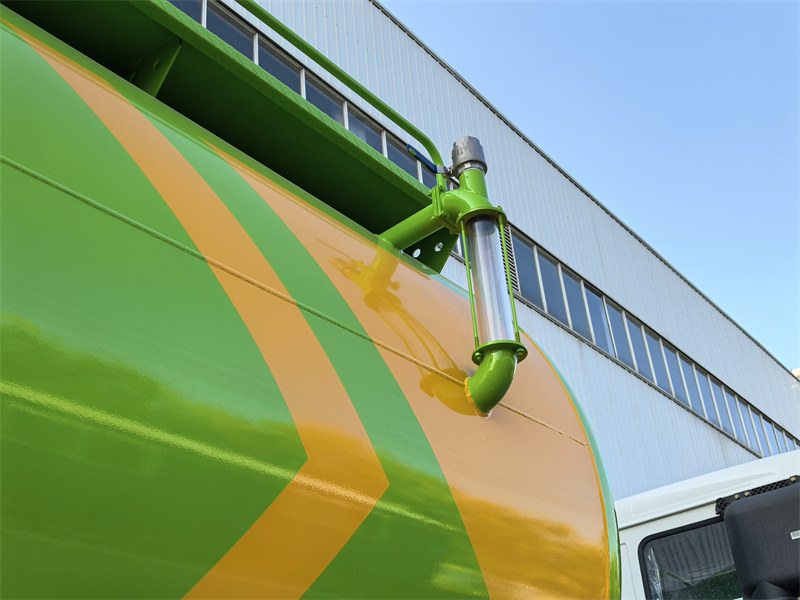

  Septic pumper truck leval indicator

•

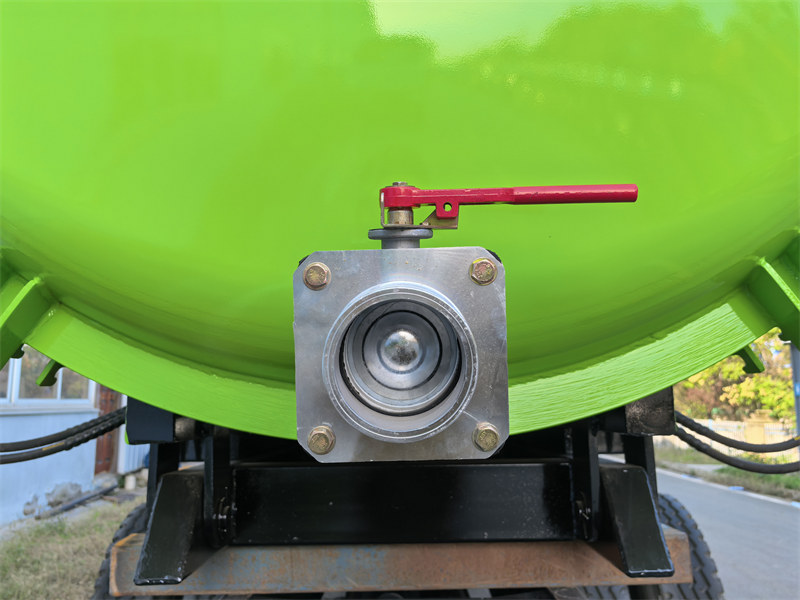

  Vacuum truck rear discharge valve
•

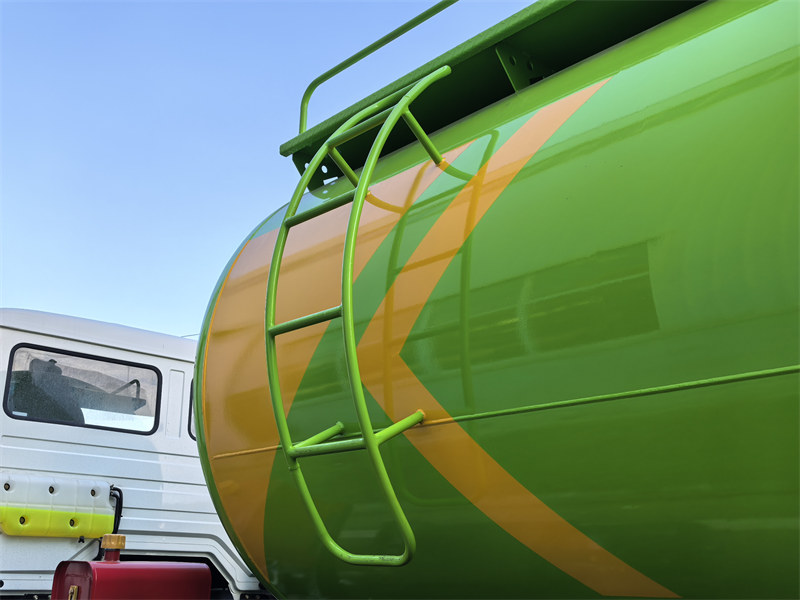

  Vacuum tanker rear climbing ladder
•

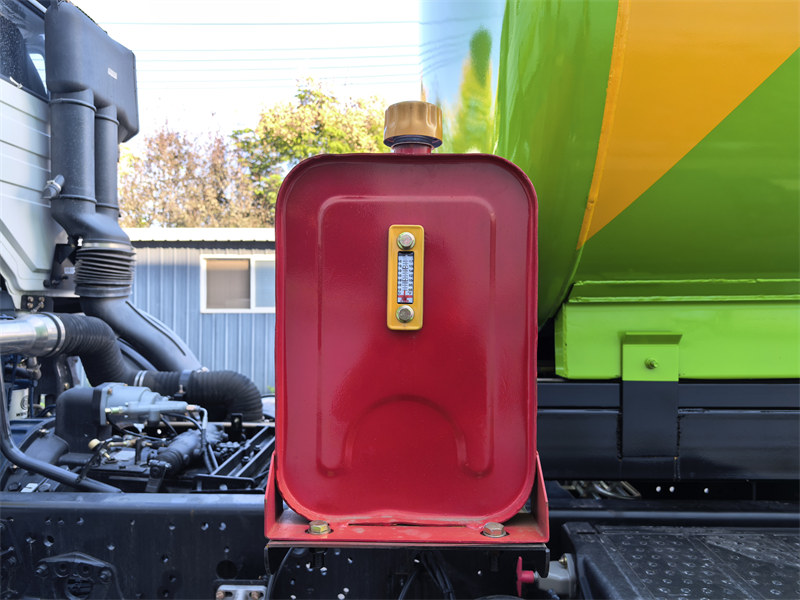

  Beiben vacuum truck hydraulic oil tanker



Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.



CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



» Ⅳ.Beiben Sewage Truck with MORO PM80A vacuum pump:

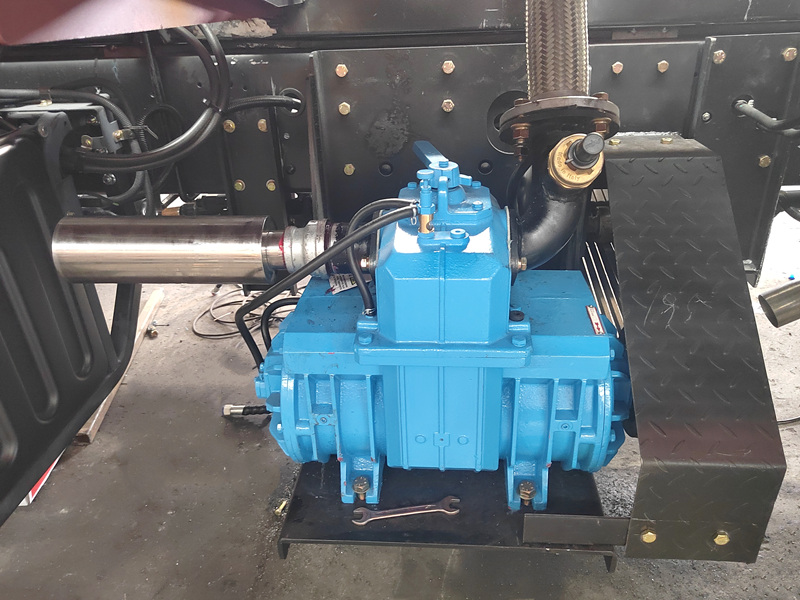

PM80A MORO vacuum pump

Pump Brand: PM80A
Dimension Pump: 651*354*526 mm
Free Flow Rate: 12000Lt/min
Continuous Duty Vacuum: 80% (23.6” Hg)
Power Required at Maximum Vacuum: 14KW
Power Required at Maximum Pressure Vacuum: 34KW
Oil Consumption: 220 gr/h
Noise Level: 76 dB-A
Max. Drained Power: 34KW
Max. Vacuum: 95%
Max. Absolute Pressure: 3 bar
Max. Speed Version “M”: 540RPM
Max. Speed Version “AP-AH”: 1200RPM
Weight of AP version: 162KG
Number of Blades: 6 pcs
Dimension of Blades: 450*69*7.5 mm
Driven by truck power take off (PTO)



MORO PM80A vacuum pump is suitable for BEIBEN 1929 cesspit emptier truck and can make working efficiency increase 30% with below additional accessories:

Suction filter, Oil-Gas separator, Water-Gas separator all standard vacuum suction system equipped as standard.
Vacuum pump set-up by MORO standard.
Equipped with MORO Vacuum Pump and Matchable MORO pressure relief valve for safety.

Below showing regular maintenance parts for MORO vacuum pumps:

•

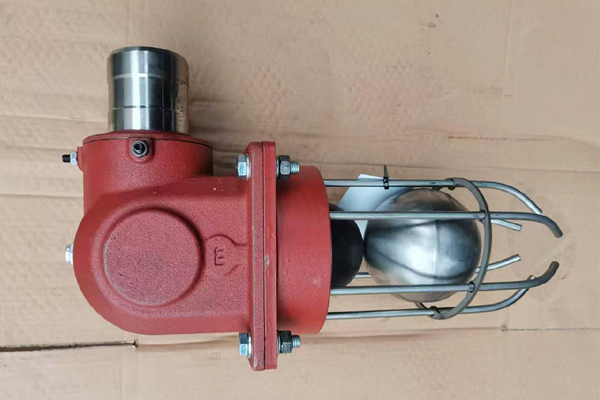

  MORO pump part primary overflow valve
•

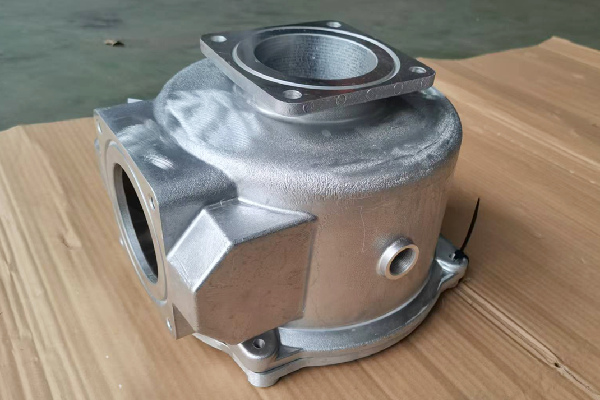

  MORO pump part safety filter
•

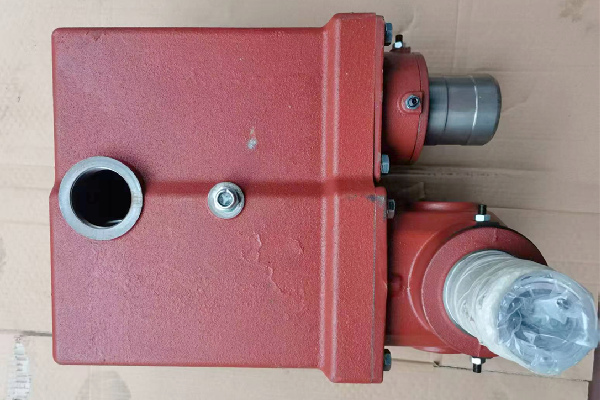

  MORO pump part secondary overflow valve
•

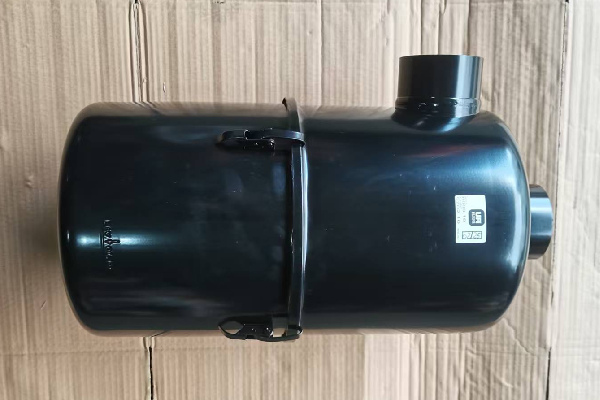

  MORO pump parts Gas water separator with silencer
•

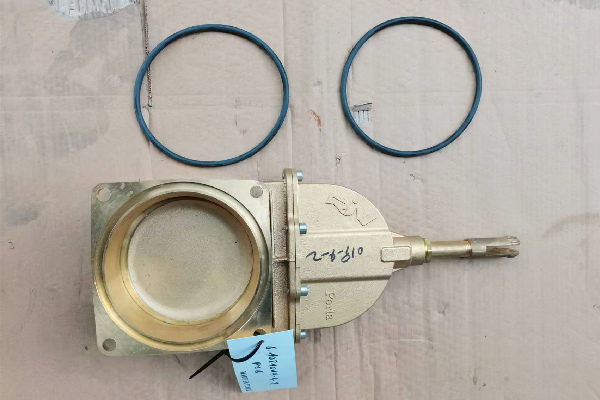

  MORO pump parts block valve
