Beiben 380HP Dump truck chassis

Beiben 12 wheeler truck

Beiben 3138 heavy duty truck, Beiben 8x4 chassis, FAST 12-shift manual gearbox, famous Chinese brand WEICHAI 380HP diesel engine, high strength steel tipper body, with HYVA or domestic hydraulic lifter optional. All painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now

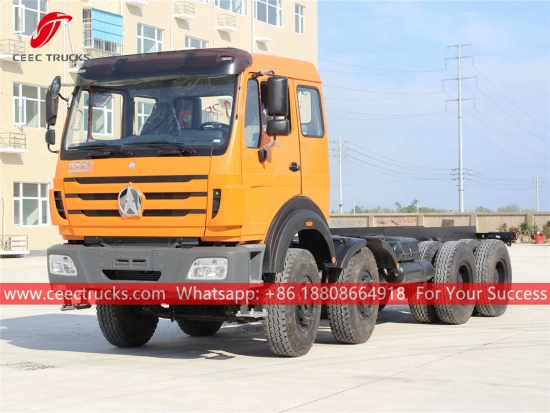

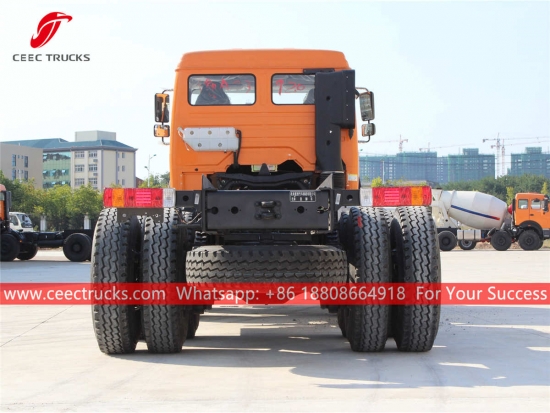

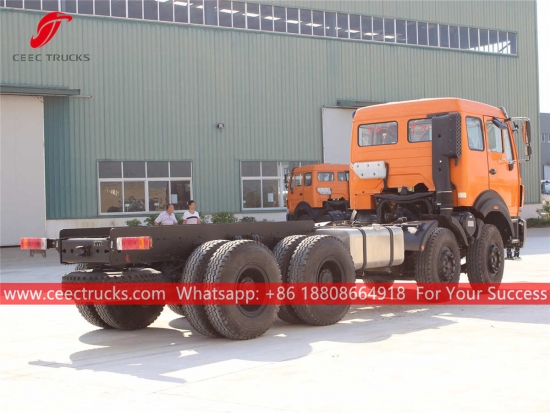

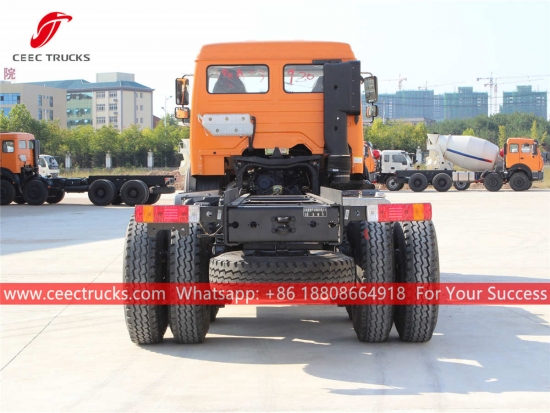

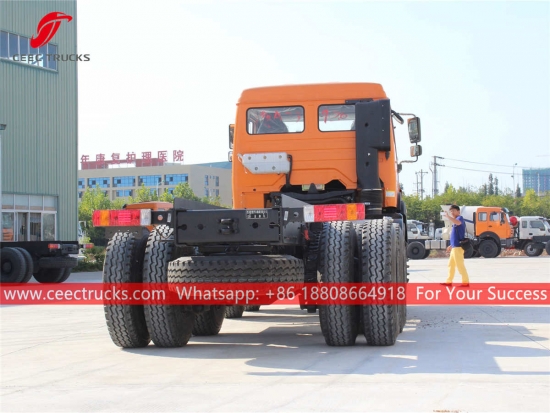

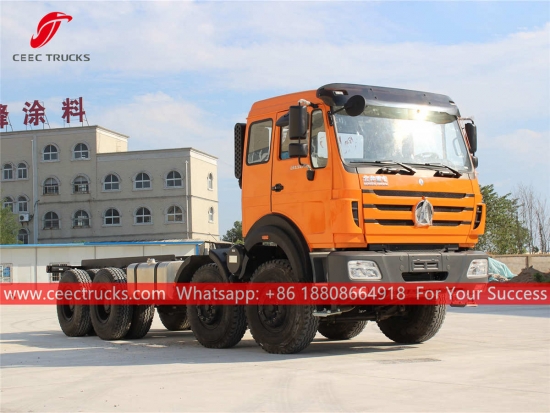

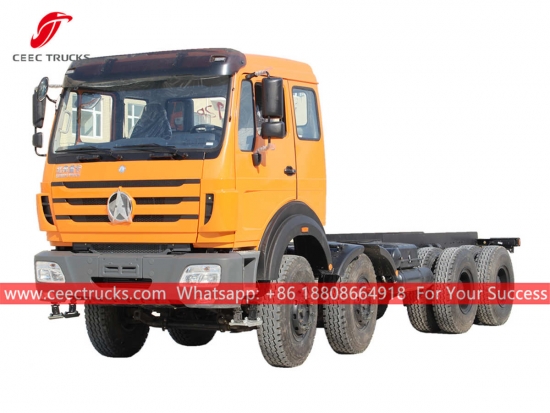

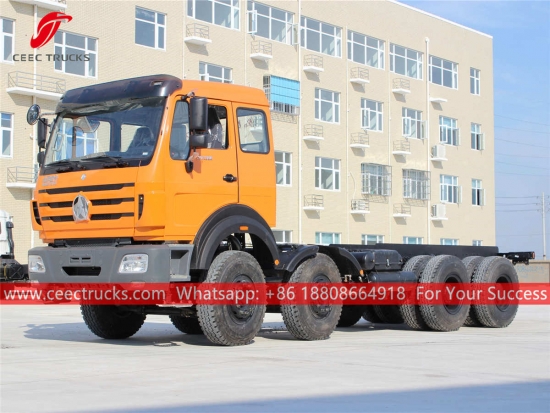

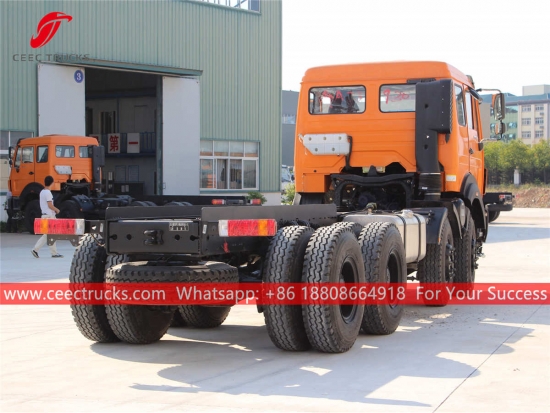

Beiben 3138 cargo truck chassis



 Applications:

North benz 12 wheeler truck (also called Beiben heavy duty vehicle, Beiben 8×4 dump truck chassis, Beiben Euro 3 trucks, North benz 3138 trucks, Beiben cargo truck chassis, cheap price Beiben 380HP trucks, high quality Beiben tipper truck) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.



CEEC TRUCKS dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.



 Key Features:

---- Beiben heavy duty chassis, perfect performance
---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.

---- Various types of tipper body are available.



 Specifications:



Beiben 12 wheeler tipper truck (50 tons)

General

Vehicle Brand

CEEC

Chassis Brand

Beiben

Overall Dimension

10800 * 2500 * 3500 mm

GVW / Kerb Weight

31,000kg / 14,000kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI diesel engine

Power

380 HP (280 KW)

Displacement

11906 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

8X4 (LHD or RHD)

Transmission

FAST  12 speed levers with 2 reverse

Wheelbase/No. of axle

1500+4150+1450 mm / 4

Tire Specification

12.00R20

Tire Number

12 tires and 1 spare tire

Max Speed

80 km/h

Paint

Metallic paint

Superstructure

Pay loading capacity

50 Tons

Cargo body

6800*2300*1500

Thickness of cargo body

Option 1: Bottom 8mm, Side 6mm

Option 2: Bottom 10mm, Side 8mm

Cylinder type

T Type or Domestic 180 or HYVA 150

Lifting system

Middle or Front

Control

in the cabin

Color & LOGO

According to wish

All standard accessories: All steel body with drop sides. Auto release removable tailgate.

Ladder, warning lights, PTO

 fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Other tipper body can be choose.

** Other material and plate thickness can be choose.



Beiben 8x4 heavy duty trucks for Africa

(Factory price Beiben 3138 trucks for sale)

Key words: Beiben 12 wheeler trucks, Beiben 380HP chassis, high quality Beiben vehicles

 FAST 12-shift manual gearbox, 12 forward & 2 reverse

Expert for producing Beiben trucks over 10 years with good reputation

Carbon steel material

12 months free fast moving spare parts

All English version control box, panel, and owner's manual, for easy understanding

Training service for North benz vehicles


Beiben cargo truck chassis


Beiben 12 wheeler trucks for Africa

CEEC TRUCKS is the best supplier of Beiben heavy-duty trucks in China. Our Beiben vehicles are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



---- Professional guidance on your importing documents.

---- Maximize save your sea freight.

---- Safty, Quickly, Timely.

CEEC garbage compactor truck factory review


---- Service more than 60 countries.

---- Professional guidance on your importing documents.

---- CO, FORM E, FORM P, Pre-shipping Inspection....


 export documents



Successful Cases
inquiry now

    Please feel free to inquiry trucks from us; our experience sale manager will give the quotation within 12 hours
