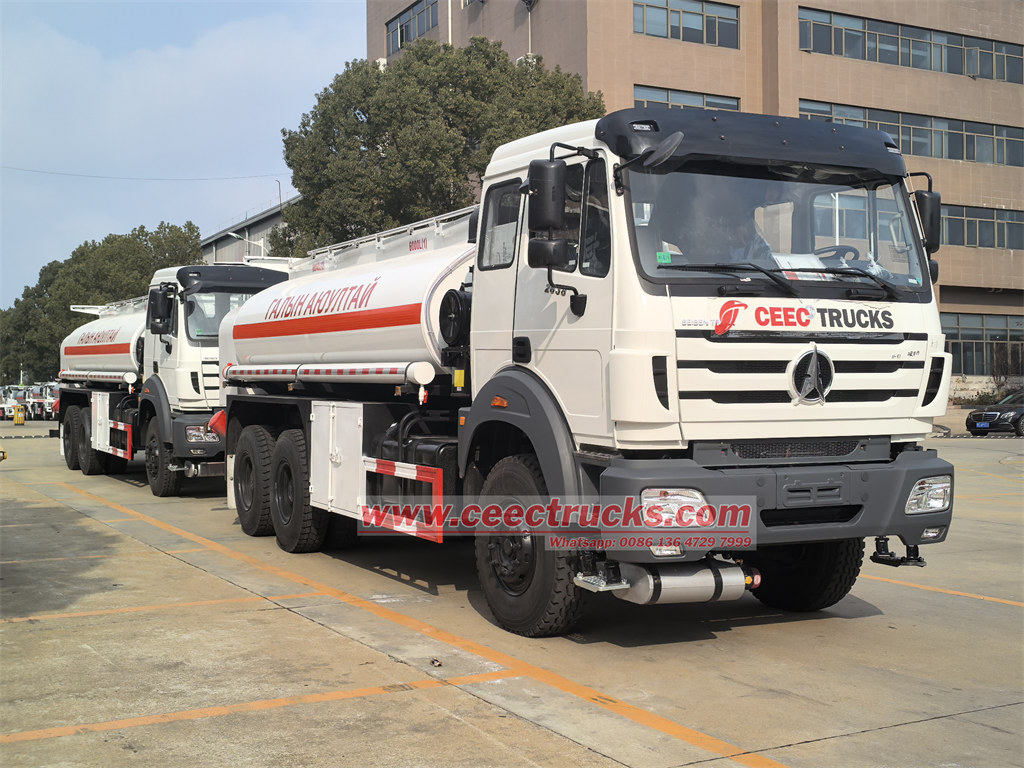

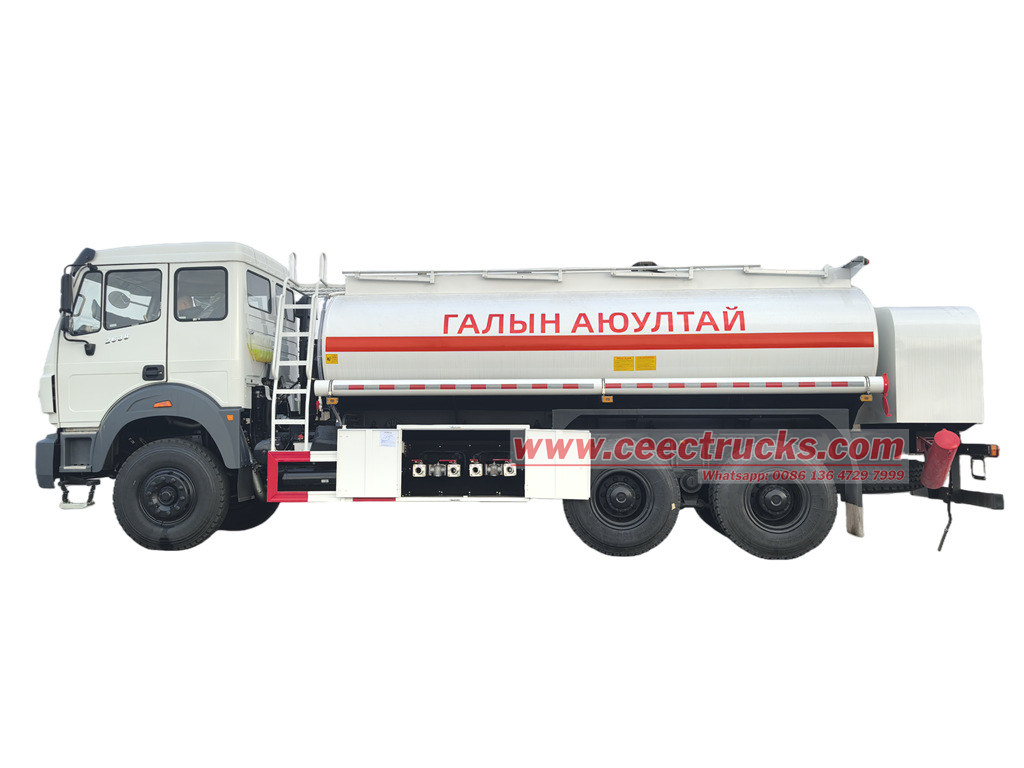

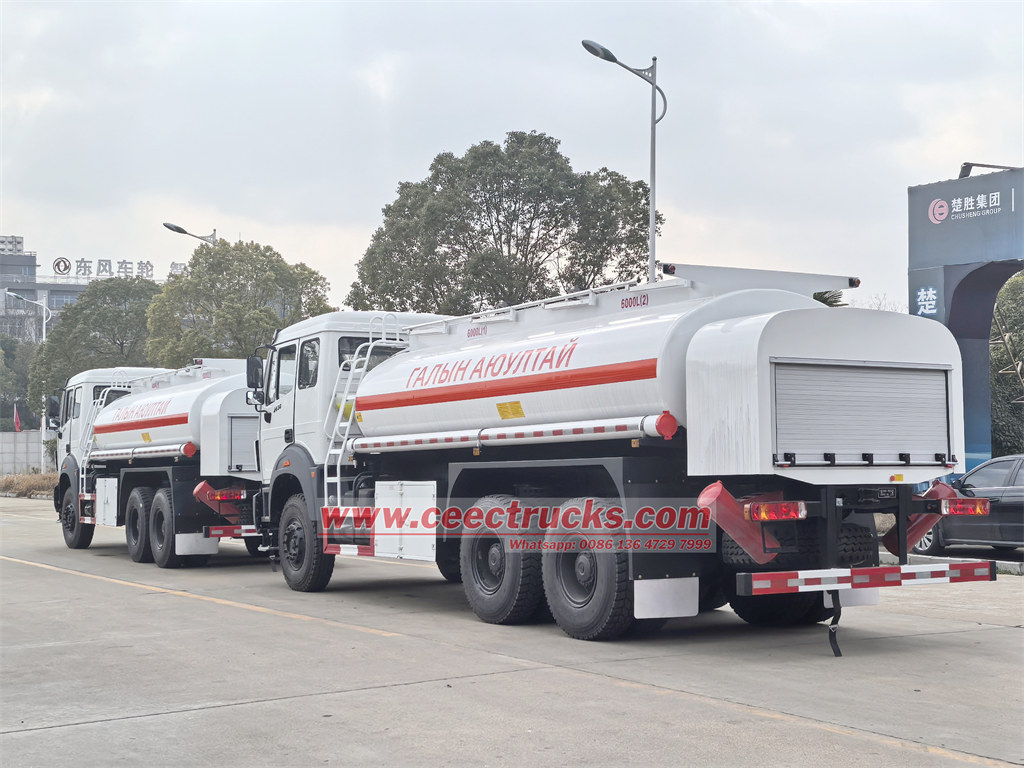

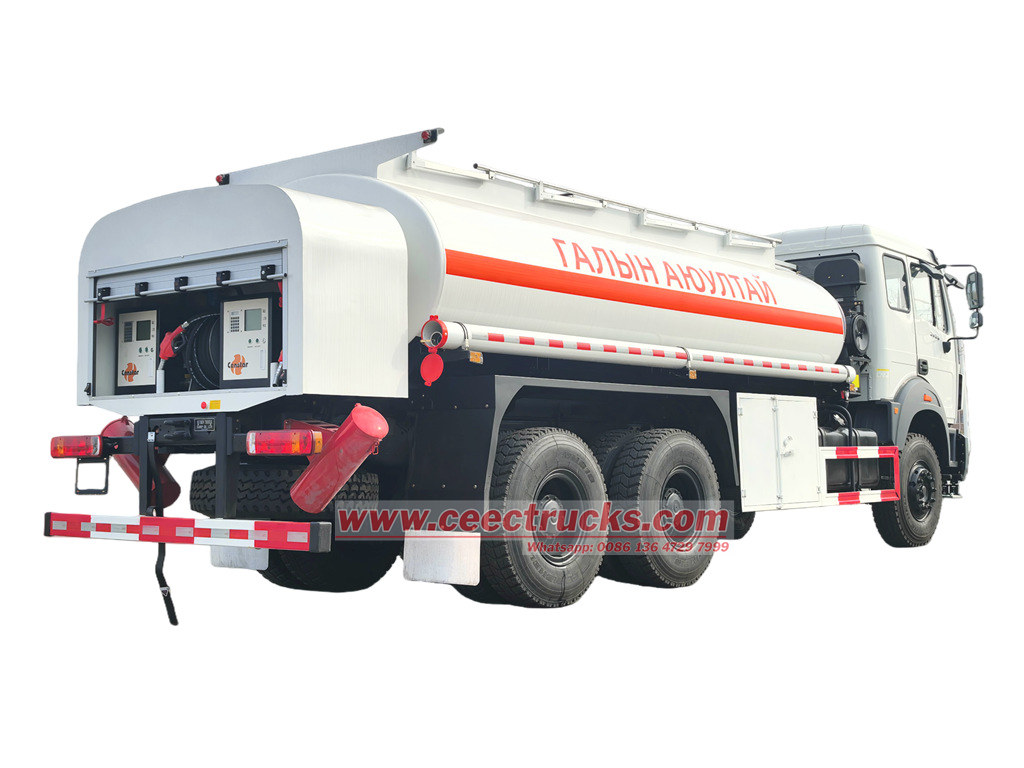

Mongolia OT Company purchased 2 units Beiben 12000L mobile refuel tanker truck from CEEC TRUCKS. Which use world famous Mercedes Benz technology BEIBEN 2638 truck chassis, all equipped with a 6UZ1 model 6 cylinder in-line water-cooled turbocharged intercooled diesel engine with a maximum output of 380HP. The gearbox is FAST brand with 12 front speeds and 2 rear speed, equipped with a reinforced diaphragm clutch. The China Benz fuel tanker truck has strong power and good controllability, and the actual volume of the oil tank is 12,000 liters, based on international Q235 / ST52 carbon steel material, with a thickness of not less than 5 mm, equipped with Chinese famous brand fuel pump, valves and pipes, as well as a set of fuel dispensers. and an ideal refueling truck service for Oyu Tolgoi company mining trucks refueling mission.

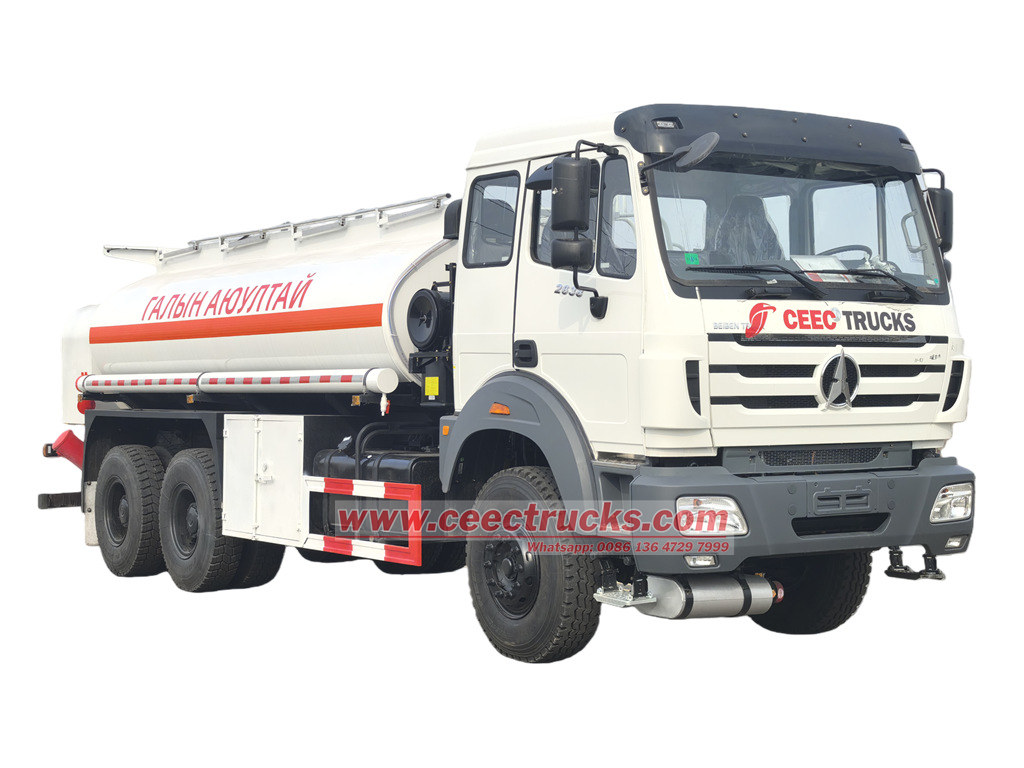

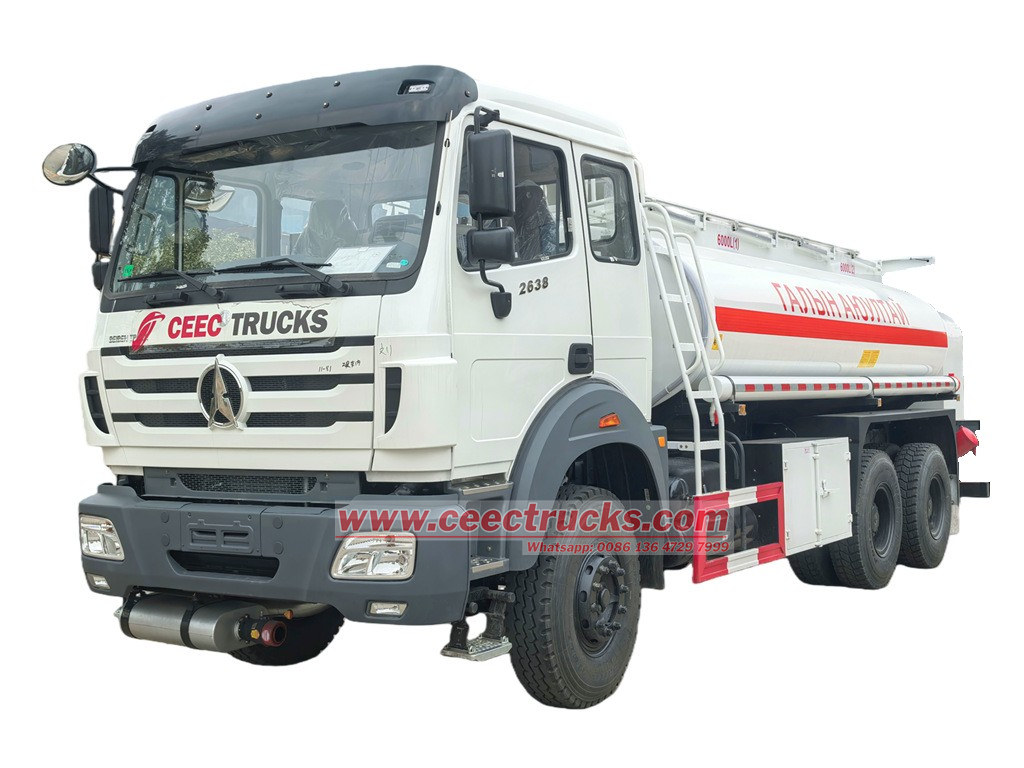

*China North Benz heavy 12000L oil bowser truck

Beiben 6x4 Refueling Tanker Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦Product Defination and Introduction « « «

Manufacturer: CEEC TRUCKS

Product Features

1. Truck Chassis: Beiben 2638 truck chassis,6x4, 6x6 model

                               WEICHAI WP10.380E32 model with 380HP, Euro 3

2. Tank material: 6mm thick high-quality ST52 steel for prolonged service lier
                              carbon steel, aluminum alloy or stainless steel can be choose.

3. Professional Compartment：The tank is divided into 2 compartments, each 6000L, combined fuel pump assembly

                                                      matched with fuel dispenser and 20m 1" hose reel with gun

                                                      equipped with 15m 2" hose reel with gun and flowmeter for record.

✦How to choose most suitable Beiben Truck

Choose China North Benz 2638 truck chassis to build the 12000Liters fuel tanker truck, whith originally equipped with NG80B cabinet, similar as Mercedes Benz cabin, very comfortable and suitable for long driving. Benz technology axles and double reduction rear axles, and equipped with 4 sets bolts for strong delivery. Customized wildland tires 12.00R20, 12.00R24 or 14.00R20 are all very suitable for long time driving. The customized 12cbm fuel tanker body kit are build based on this type Beiben 2638 truck chassis, suitable and reliable for long life service.

•

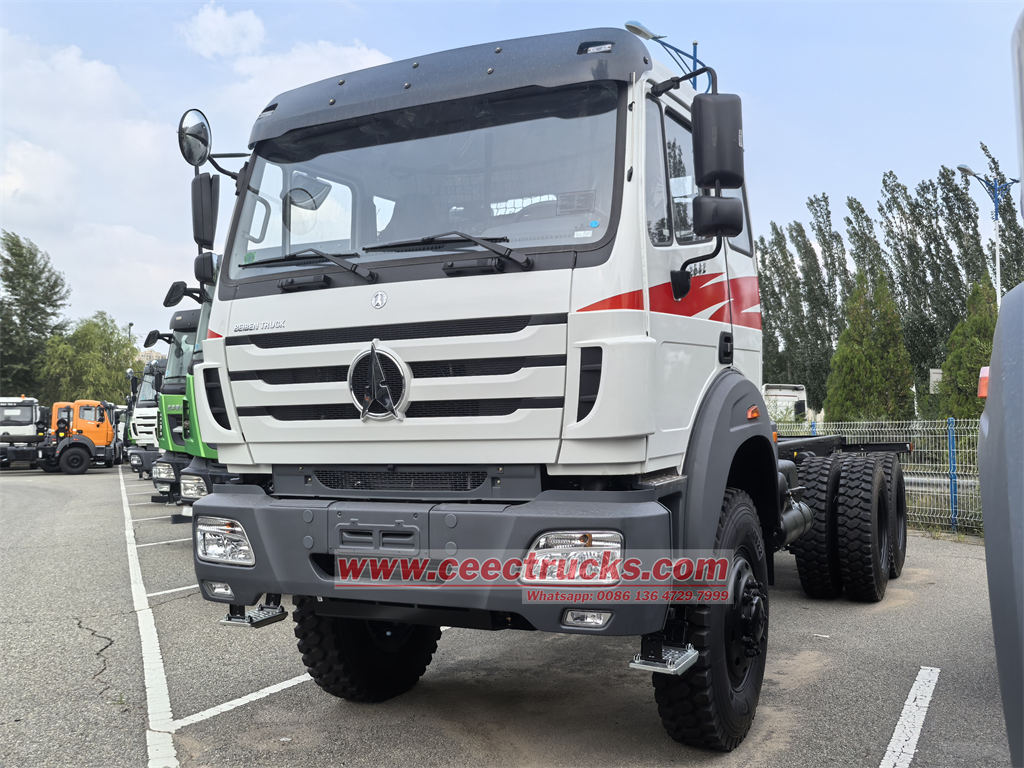

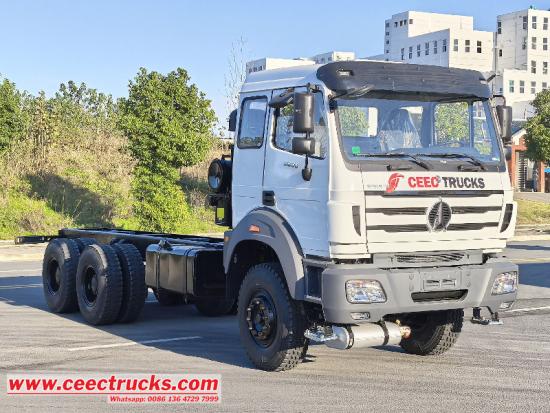

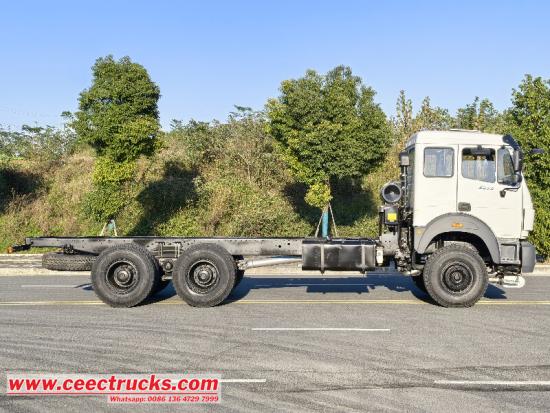

  BEIBEN 2638 truck chassis with NG80B cabinet
•

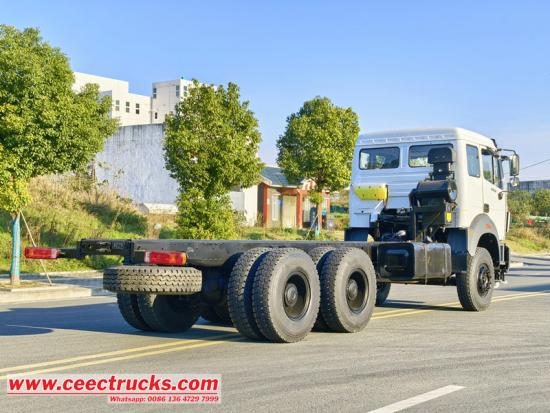

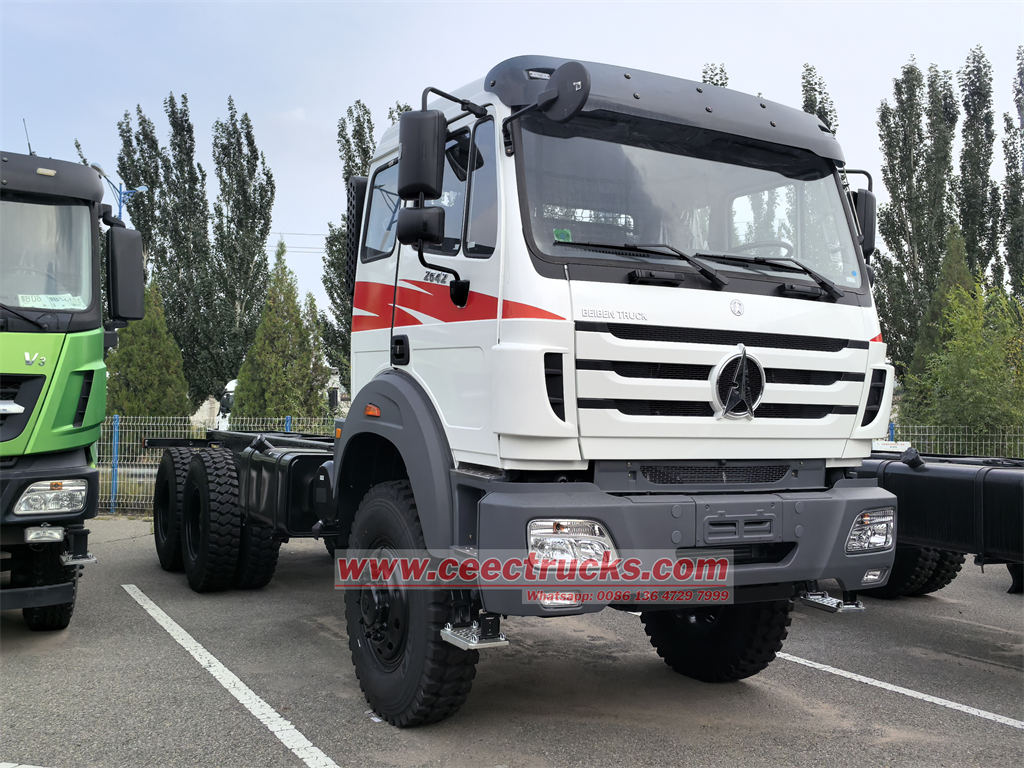

  Beiben 6x4 cargo truck chassis with 10 wheeler 12.00R20 tires
•

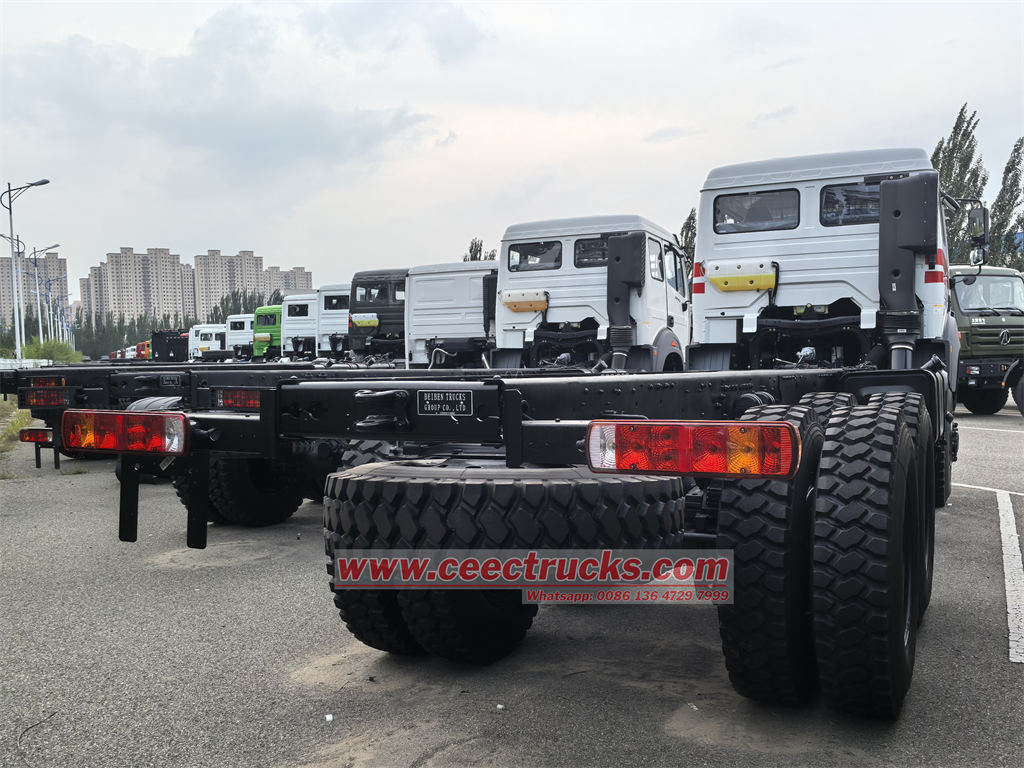

  Mercedes Benz technology double reduction axles

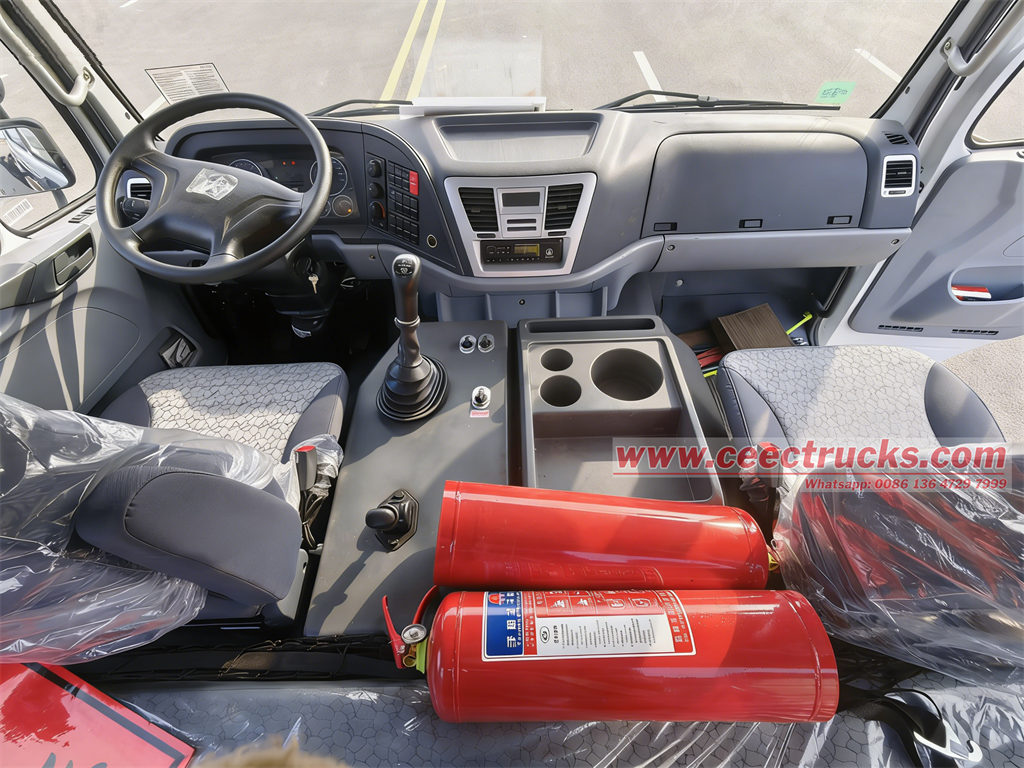

Mercedes Benz technology NG80B cabinet with both LHD and RHD optional, multiple function dashboard to show all necessary data, also necessary buttons for usage control. The FAST 12 shift manual gearbox with 12 forward and 2 reverse are making operation more easy, and with lower fuel consumption. NG80 long cabin with sleeper at rear for safety and comfortable rest.





✦Product Parameter for China Benz 12CBM Fuel Tank Truck « « «

✦Beiben 12cbm Refueling Tanker Features « « «

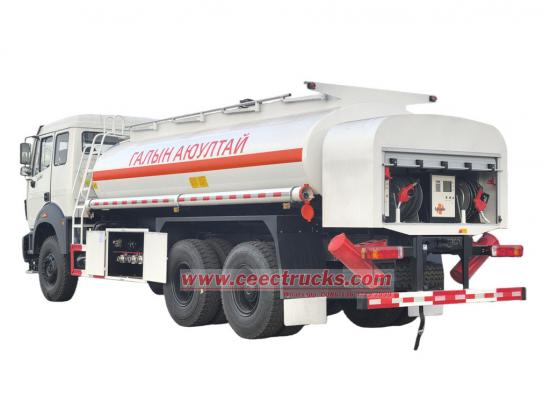

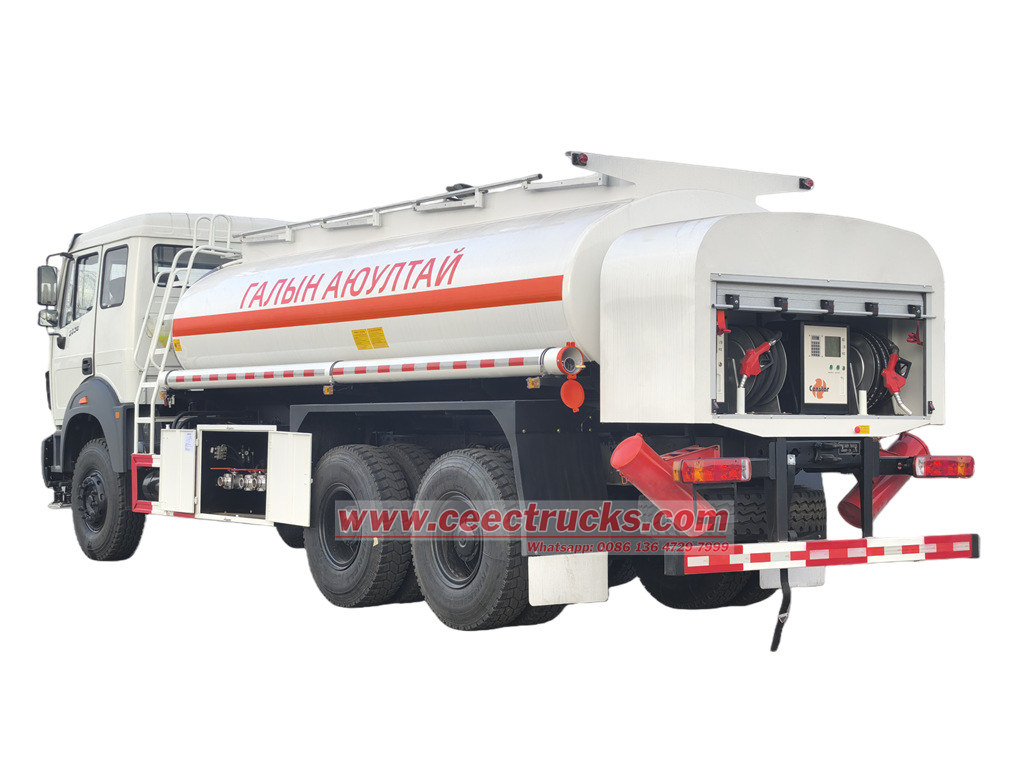

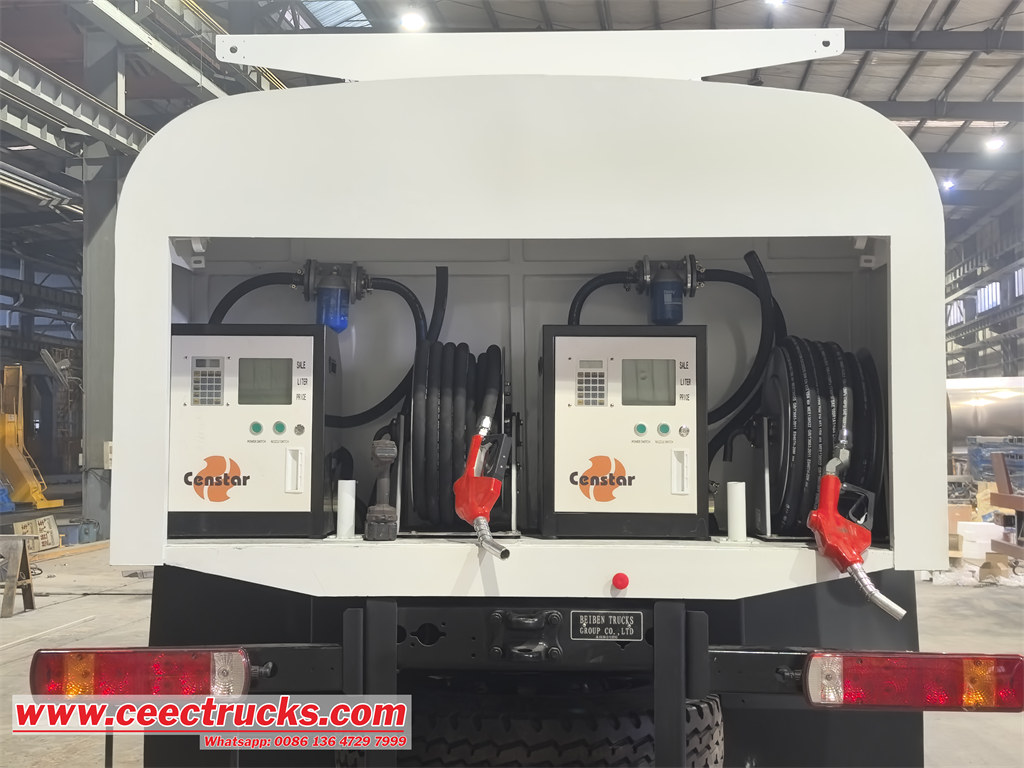

♦ Combined fuel pump system matched working with 2 sets fuel dispenser. Tanker body kit totally 12000Liters, which divided into 2 compartment and each compartment 600Liters. 2 sets fuel dispenser matched with 20m 1" hose reel and refueling gun, each fuel dispenser set working with one compartment of fuel tanker.

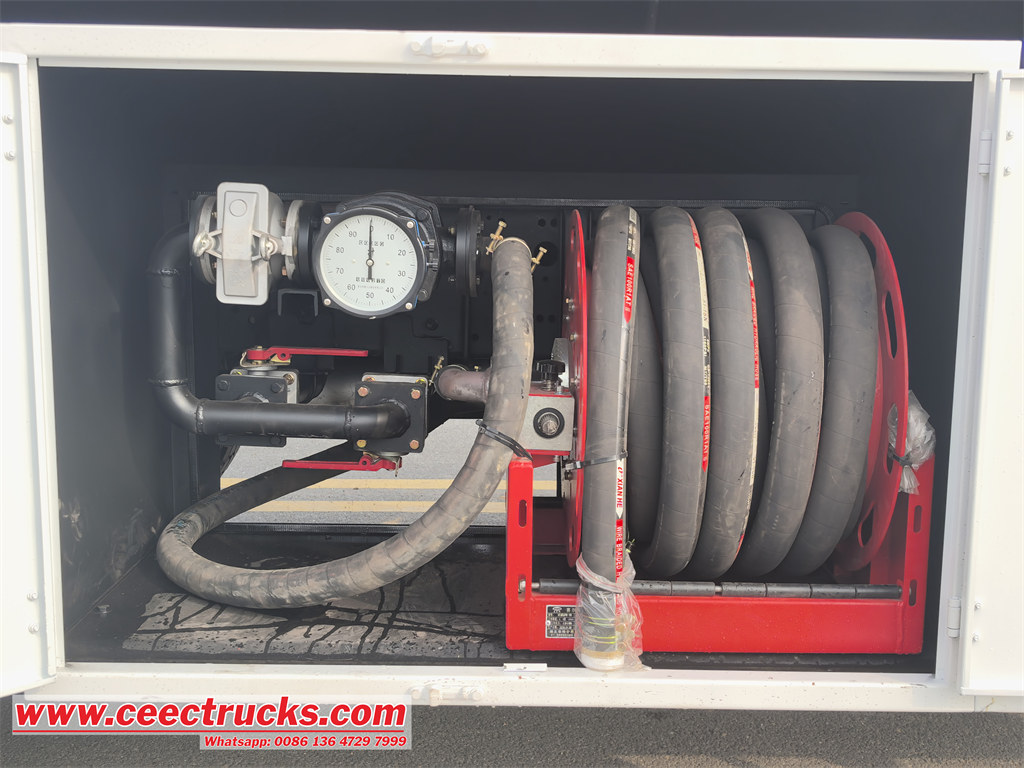

♦ Customized 15m 2" hose reel with refueling gun, also with flow meter and Aluminum alloy material valve for independent operation and usage.

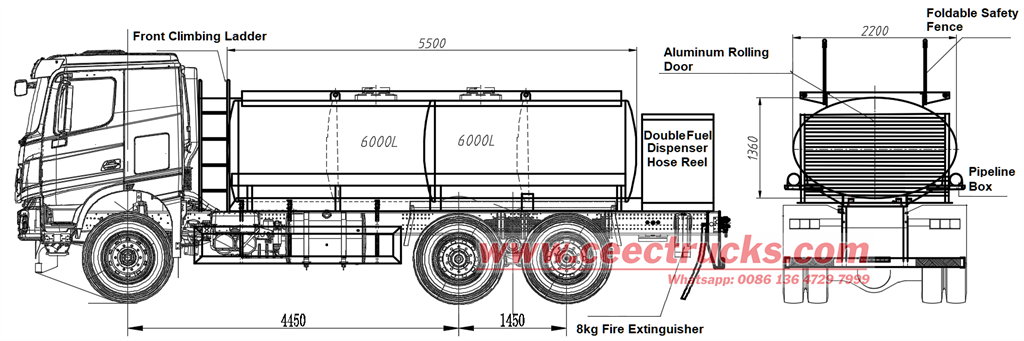

✦Beiben 12cbm Fuel Tank Truck Details and working drawing « « «

♦ The oil pump is driven by the engine power, output through the power take-off (PTO), and then via a drive shaft.

♦ The oil pump is connected to the chassis via a pump mounting bracket.



♦ Depending on the specific application of the tanker truck, centrifugal pumps, gear pumps, stainless steel pumps, and high-polymer nylon pumps can be selected.

♦ Customers can also choose other models of self-priming pumps, and we can design and manufacture according to specific customer requirements.

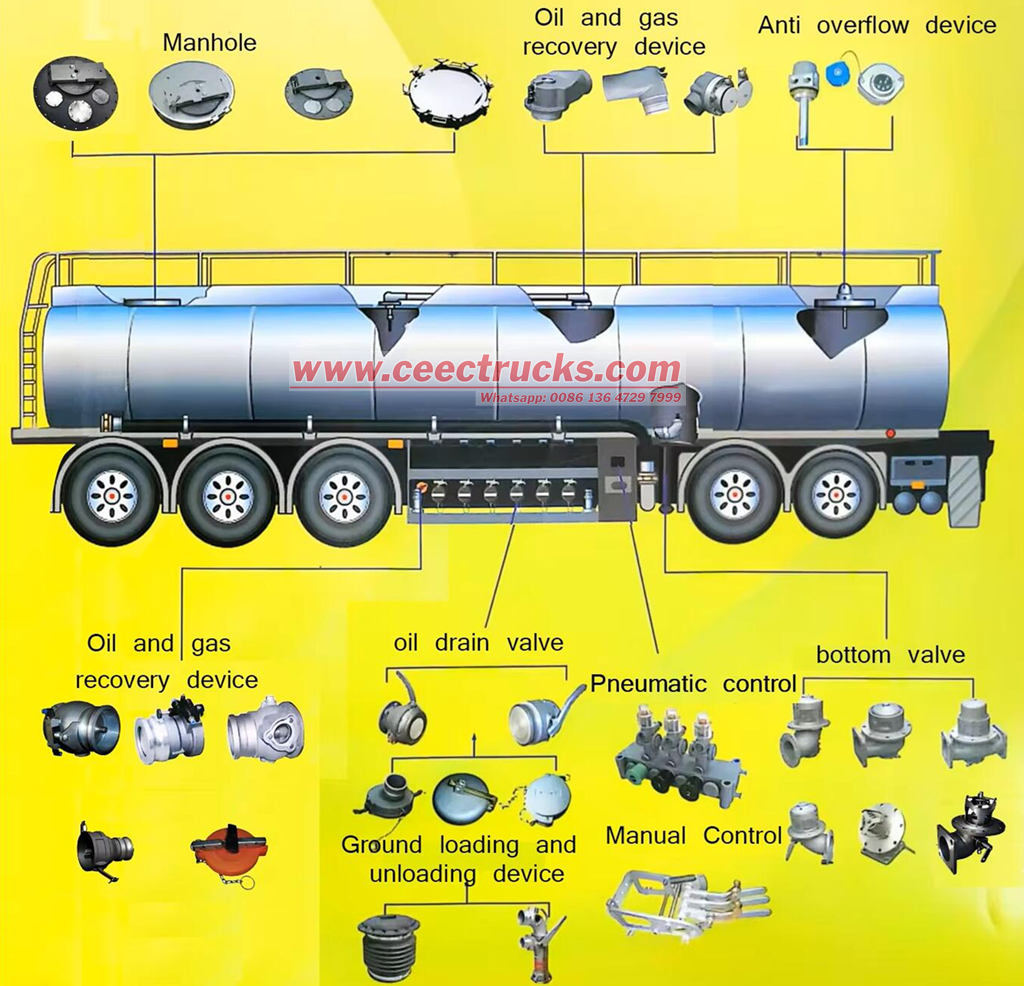

✦Beiben 2638 Refuel Bowser Truck Safety Protection Devices « « «

♦ The bottom of the oil tank is equipped with anti-static grounding tape to ensure a good static electricity discharge path between the vehicle and the ground during vehicle operation.

♦ A copper plate anti-static grounding terminal is welded to each side of the top or lower part of the oil tank. This terminal connects to the grounding device when the oil truck is loading or unloading, creating a static electricity discharge path between the tank and the ground.

♦ To prevent damage to the oil tank due to excessively high or low pressure, a vent valve is installed on the manhole at the top of the tank.

♦ Fire extinguishers are provided on both sides of the oil tank.
