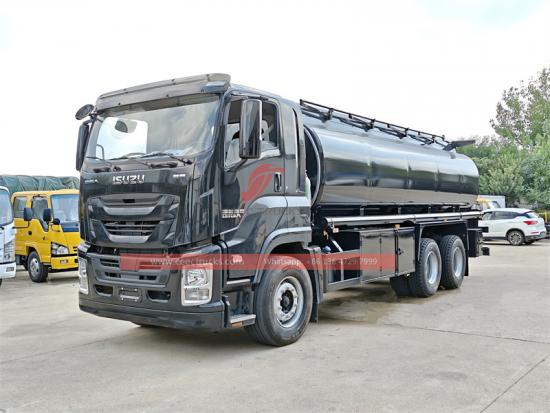

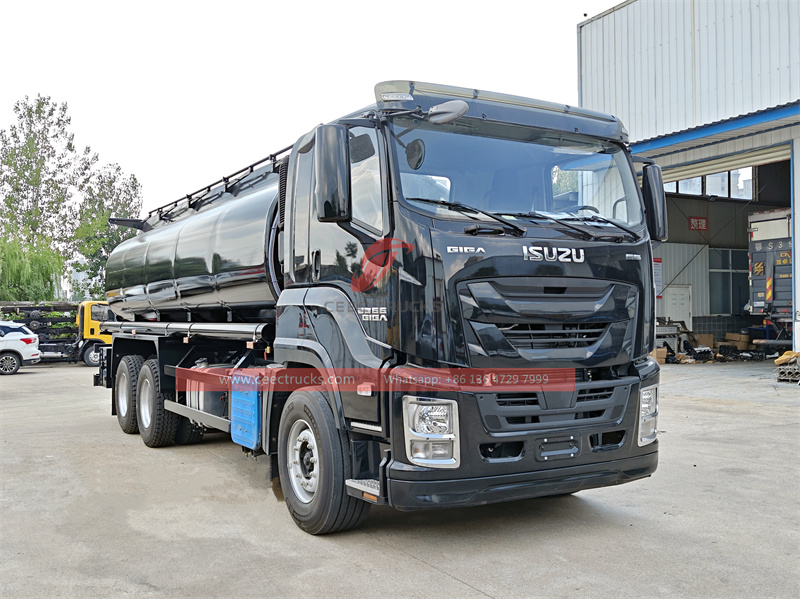

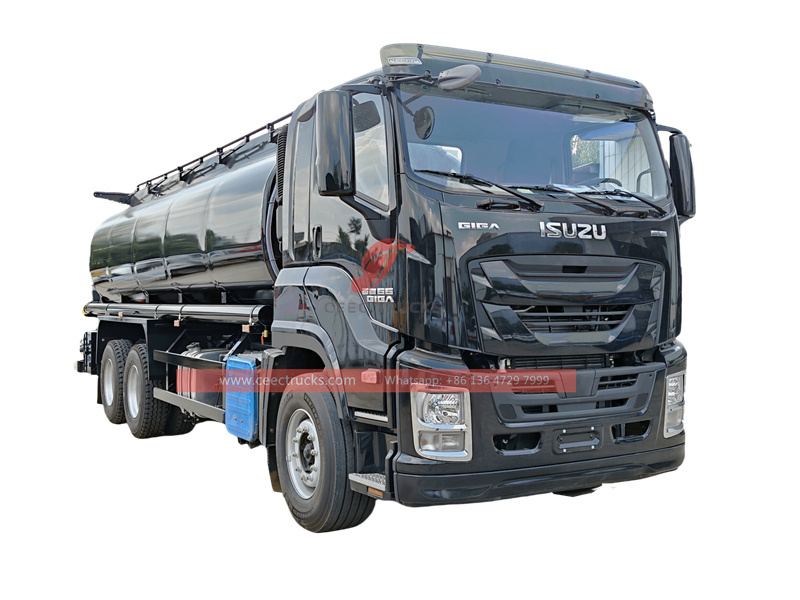

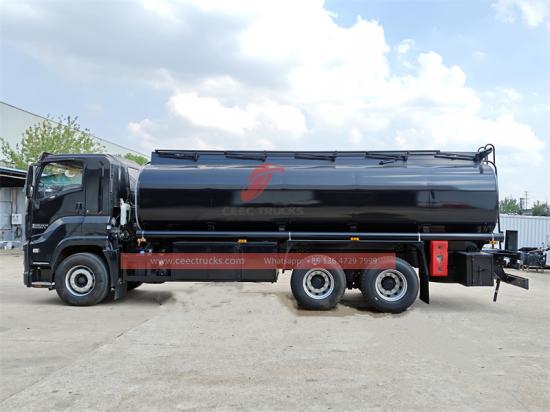

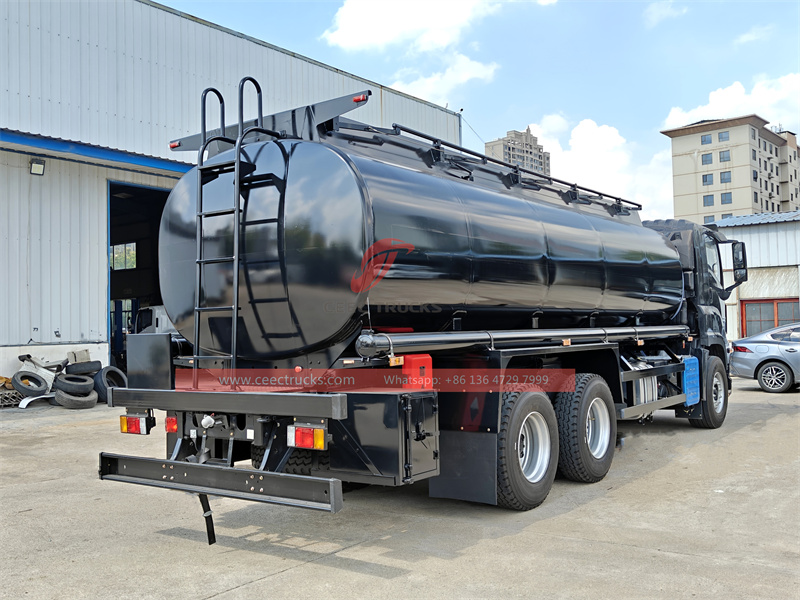

The Isuzu GIGA 20000L mobile fuel bowser is the city special refueling tank truck. The Isuzu fuel tanker equipped with a 6UZ1 model 6 cylinder in-line water-cooled turbocharged intercooled diesel engine with a maximum output of 380HP. The gearbox is 12 front speeds and 2 rear speed, equipped with a reinforced diaphragm clutch. The Isuzu fuel tanker has strong power and good controllability, suitable for various road conditions oil transportation work.

The actual volume of the oil tank is 25,000 liters.The Q235 carbon steel is used as the protective material. The tank body is made of carbon steel with a thickness of not less than 5 mm. The Isuzu fuel tank truck is equipped with Chinese famous brand pumps, valves and pipes, as well as a set of fuel distributors. The oil tank is equipped with a ladder for easy operation, and can be designed into multiple compartments according to needs.

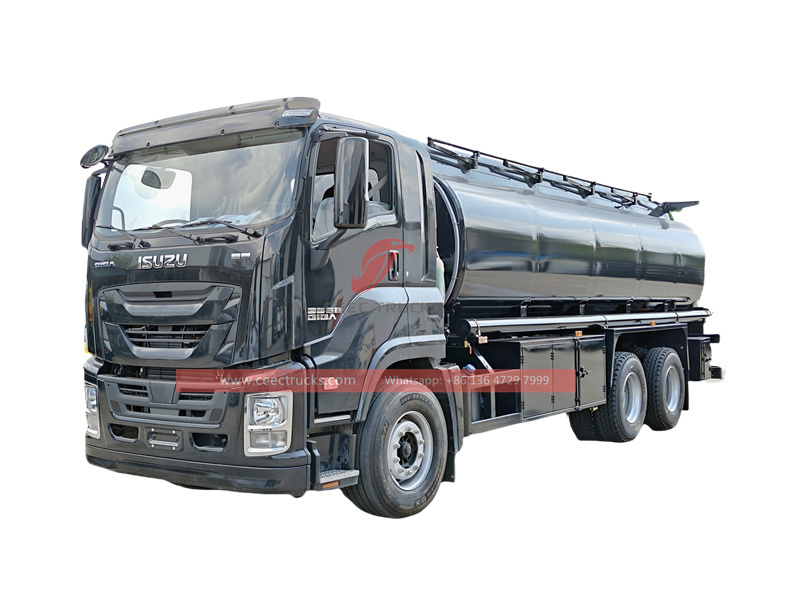

*Isuzu heavy 20000L fuel tank truck

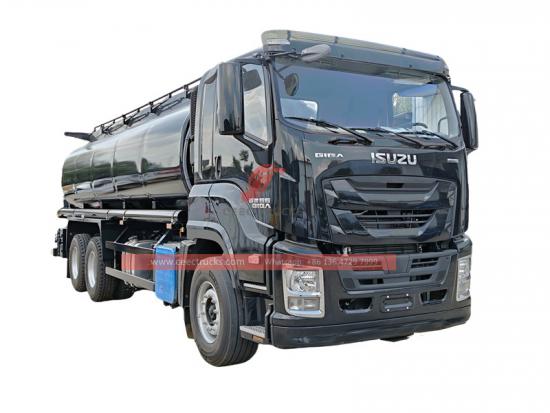

Isuzu 6x4 GIGA diesel bowser truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦Product Defination and Introduction « « «

Manufacturer: CEEC TRUCKS

Product Features

1. Truck Chassis: Isuzu GIGA truck chassis,6x4, 6x6 model

                               6UZ1, 6WG1 model with 350HP,380HP,420HP,460HP... Euro 6

2. Tank material: 6mm thick high-quality steel for prolonged service lier
                              carbon steel, aluminum alloy or stainless steel can be choose.

3. Professional Compartment：The tank is divided into 6 compartments, which can simultaneously load oils of different grades or categories to avoid cross contamination and meet the transportation needs of multiple categories.

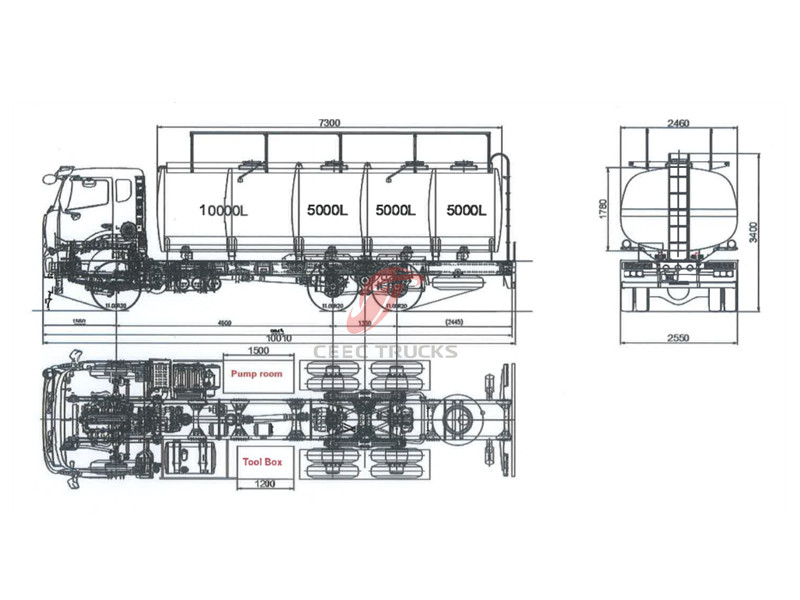

✦Product Parameter for Isuzu 20CBM Fuel Tank Truck « « «

✦Isuzu GIGA Fuel Tanker Features « « «

♦ The tank body shape can be customized to meet different customer needs, including round, oval, rectangular, and trapezoidal shapes.

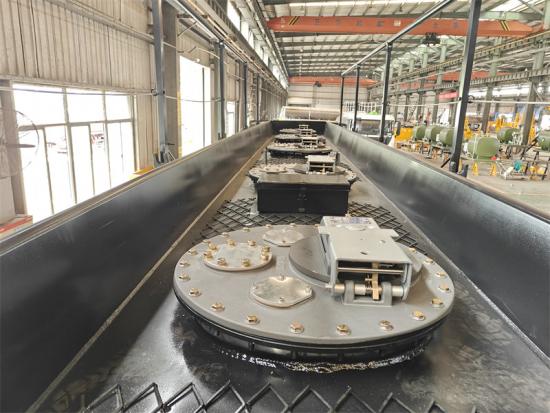

♦ The top of the tank is equipped with a manhole cover, breather valve, oil vapor recovery system, and guardrail.

♦ The bottom of the tank has a sedimentation tank, and the rear has a drain valve.

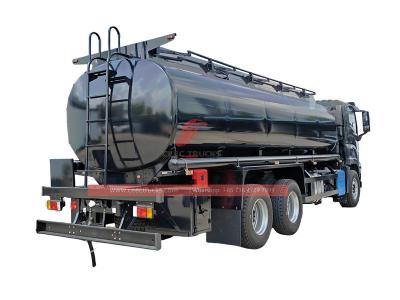

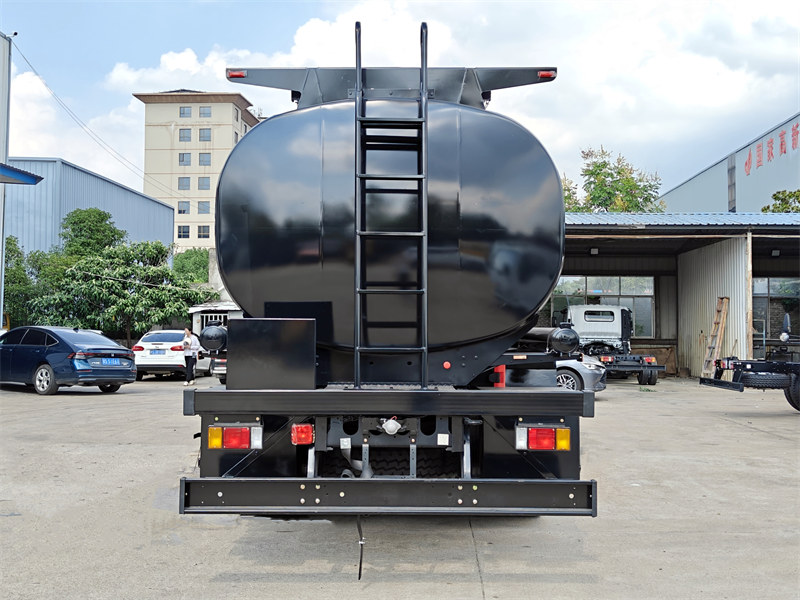

♦ The tank body is equipped with ladders and walkways for accessing the upper and lower tanks.

♦ The interior of the tank has horizontal and vertical baffles to reduce fluctuations in the liquid inside the tank during vehicle acceleration and deceleration.

♦ The top mainly consists of the tank opening, breather valve, and oil vapor recovery system.

♦ The tank opening is a φ500 diameter hole for maintenance and repair.

✦Howo 25cbm Fuel Tank Truck Details « « «

♦ The oil pump is driven by the engine power, output through the power take-off (PTO), and then via a drive shaft.

♦ The oil pump is connected to the chassis via a pump mounting bracket.



♦ Depending on the specific application of the tanker truck, centrifugal pumps, gear pumps, stainless steel pumps, and high-polymer nylon pumps can be selected.

♦ Customers can also choose other models of self-priming pumps, and we can design and manufacture according to specific customer requirements.

✦Isuzu Fuel Truck Pipeline Operation Diagram « « «

♦ Pump out:

(1) Turn the four-position three-way ball valve mark point to the direction of forward B);

Note: four-position three-way Ball Valve marks the direction of the direction of the valve closed, the other two sides for each other

(2)Open two-way Ball Valve 1to pump oil;

(3)If using a refueling machine,close the two-way Ball Valve 1 and open the small copper valve,according to the specification of the tefueling machine set procedures can be achieved refueling refueling machine.

♦ Pump in:

(1) Connecting the two-way Ball Valve 2 with an oil pipeline and an oil source;

(2) After turning the mark point of the four-position three-way ball valve to(c).the other valves are closed to realize self-priming.

(3) Other functions:The user can adjust and realize various functions according to the oll circult principle.

✦Isuzu Fuel Truck Safety Protection Devices « « «

♦ The bottom of the oil tank is equipped with anti-static grounding tape to ensure a good static electricity discharge path between the vehicle and the ground during vehicle operation.

♦ A copper plate anti-static grounding terminal is welded to each side of the top or lower part of the oil tank. This terminal connects to the grounding device when the oil truck is loading or unloading, creating a static electricity discharge path between the tank and the ground.

♦ To prevent damage to the oil tank due to excessively high or low pressure, a vent valve is installed on the manhole at the top of the tank.

♦ Fire extinguishers are provided on both sides of the oil tank.
