Beiben 2638 all wheel drive truck

The Beiben 6x6 all-wheel drive chassis uses the Beiben NG80 2638AP model cab, is all-wheel drive, has a wheelbase of 4450+1450mm, is equipped with a Weichai WP10.380E32 engine, a Fast 9-speed gearbox, a 7-ton front axle, an 18-ton rear dual axle, 12.00R20 tires, and a maximum speed of 90km/h.

Work capacity:
20tons
Dimension ( mm ):
9390×2495×3150mm
Wheelbase ( mm ):
4450+1450mm
Engine power:
380HP/ 280kW
Engine type:
WEICHAI WP10.380E32
Axle drive:
6x6
Gear box:
FAST 9JS165T transmission,manual
Remarks:
Available for various special vehicle modifications

Inquiry now

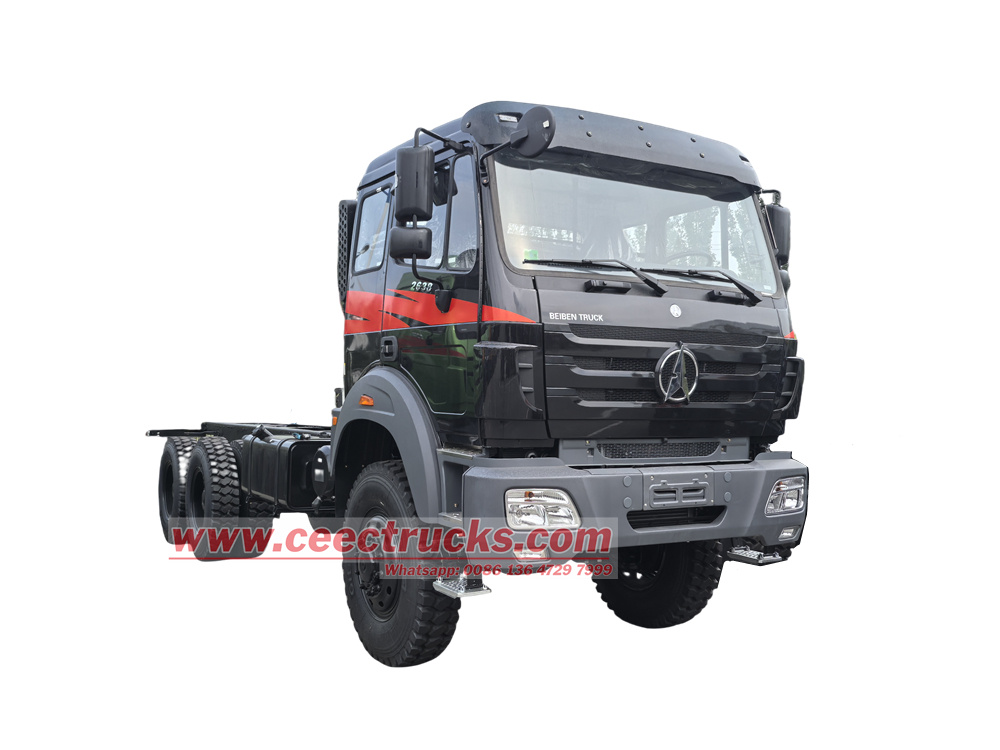

Beiben 2638 all wheel drive truck

As a leading enterprise in the field of special-purpose vehicles, the Beiben 2638 all wheel drive truck is widely applied in complex scenarios such as engineering emergency rescue, military transportation, and mineral exploitation. It adopts a power combination of a Weichai 380-horsepower engine and a Fast 9-speed transmission, delivering robust low-end torque to effortlessly handle heavy-load and complex road conditions. The chassis is equipped with front 7-ton and rear 18-ton heavy-duty axles, and combined with all-wheel drive, it offers excellent off-road passability.

Beiben 2638 all wheel drive truck

Product Parameters:

Beiben 2638 all wheel drive truck
Vehicle Dimensions and Parameters	Overall Dimension(L x W x H)	9390×2495×3150mm
	Wheelbase:	4450+1450mm
	Front Wheel Distance:	2065mm
	Rear Wheel Distance:	1990/1800mm
	Front/Rear Suspension	1435/1940mm
	Approach/Departure Angle	33°/26°
Weights and Capacities	Curb Weight:	9800Kg
	GVW:	25000Kg
	Front axle ( Benz Technology)	7Ton Double-shoe pneumatic brake, driving axle
	Rear axle ( Benz Technology)	18Ton Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle, ratio: 5.263
Engine	Engine Model:	WEICHAI WP10.380E32
	Horsepower:	380HP/ 280kW
	Displacement:	9.726L
	Type:	Inline six-cylinder, water-cooled, four-stroke, with exhaust valve braking, direct injection, turbocharged and intercooled.
	Rated speed	2200rpm
	Max torque	1600N.m
	Max torque speed	1500-1800rpm
	Emission standard	Euro 3
Cabin	Number of Seats:	2 seats,one bed
Cabin	Cabin type	NG80B Long cab with single sleeper, Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly;
Chassis	Drive Type:	6x6
	Tires:	11(Including Spare Tire）
	Steering system	ZF8098 hydraulic steering with power assistance
	Frame	Fish belly shape, variable width, variable sections Based on Germany Benz Technology
	Clutch	GFX430 Single dry frictional disc Hydraulic boosting
	Fuel tank	400L Iron Tank
	Electrics	Operating voltage: 24V,negative grounded
Gearbox	FAST 9JS165T transmission,manual
Tire	12.00R20 tube, Optional: 12.00R24/315/80R22.5
Max speed	90Km/h
Configurations	1	Power Steering System
	2	Air Conditioning
	3	ABS
	4	Tubeless Tire
	5	Retro-Reflective Marking
	6	Free Maintenance Battery
	7	Central Lock
	8	Power Window
	9	Driving Data Recorder
	10	Widened Bumper

Product Details:

★ Chassis

• Cab: NG80B long-body single-sleeper cab, 4450mm + 1450mm wheelbase, overall dimensions (L×W×H): 9390 × 2495 × 3150mm, 6x6 all-wheel drive, adaptable to unpaved roads such as mud, sand, and snow.

• Axle Configuration: 7-ton front axle, 18-ton dual rear axles, meeting the needs of heavy equipment transportation.

• Tire Specifications: 12.00R20 off-road tires, thickened sidewalls, tread depth ≥18mm, providing excellent grip and puncture resistance.

• Braking System: The entire vehicle uses dual-shoe pneumatic brakes to enhance safety during heavy-duty transportation.

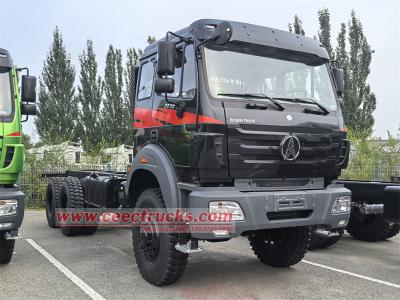

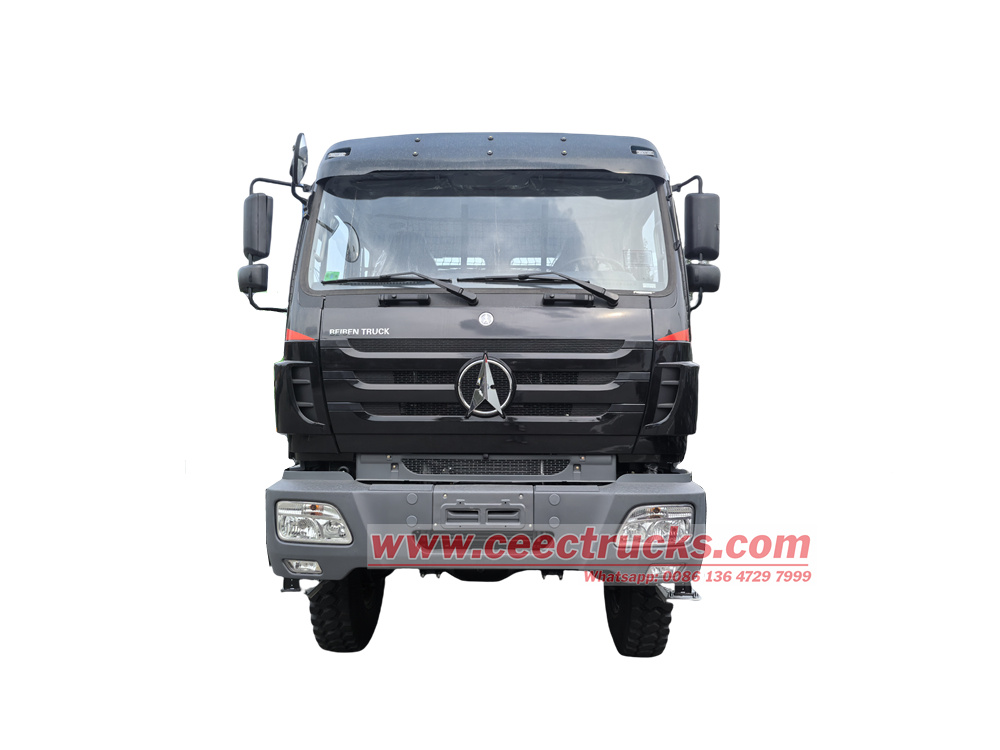

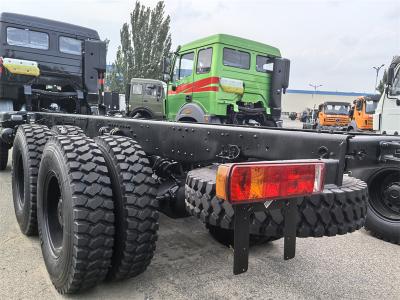

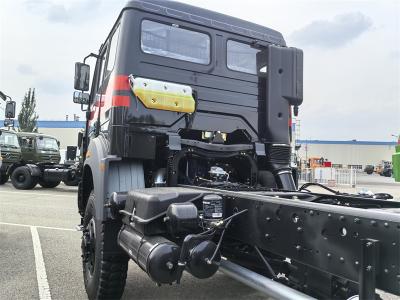

BEIBEN 2638 6x6 off road chassis truck

★ Powertrain and Transmission Matching

• Weichai WP10.380E32 Engine: Equipped with a Weichai WP10.380E32 inline six-cylinder diesel engine, with a displacement of 9.726L, a maximum power of 380 hp (280kW), and a peak torque of 1500 N·m (1200-1600rpm). Its low-speed, high-torque characteristics make it ideal for heavy-load starts and complex road conditions.

• Fast 9JS165T Transmission: Featuring an overdrive design and a large first gear ratio, enhancing low-speed climbing ability.

• Transfer Case: The all-wheel-drive system is equipped with a low-speed torque amplification gear, providing superior traction in extreme road conditions.

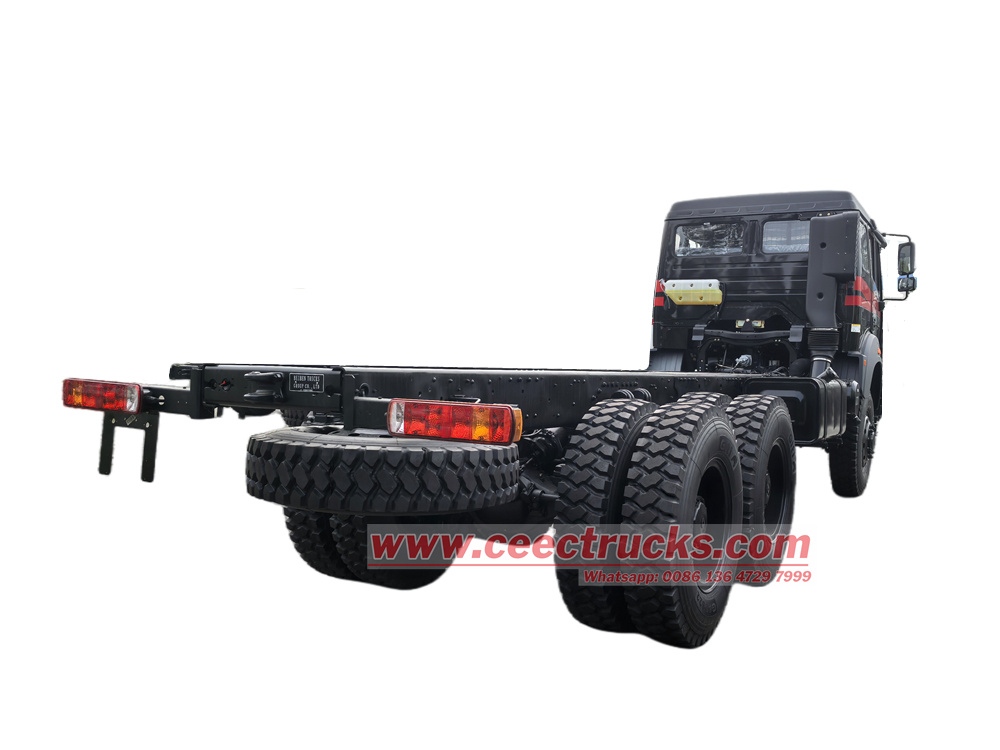

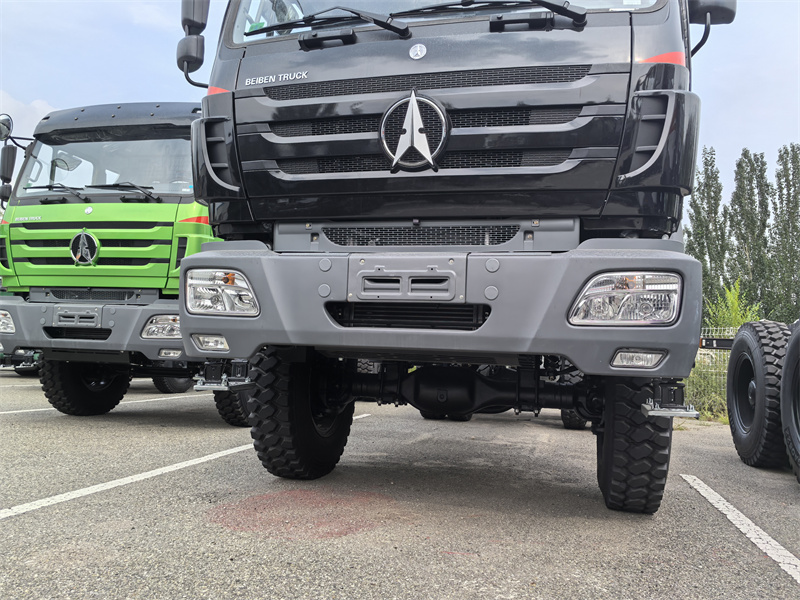

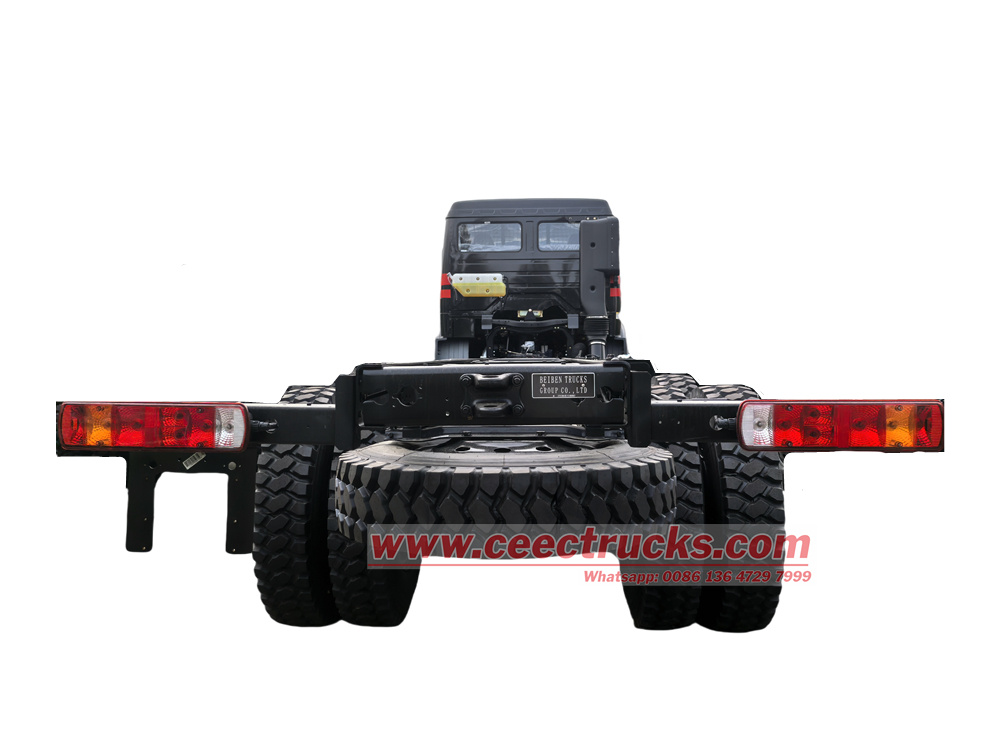

BEIBEN NG80 6X6 heavy duty chassis Beiben 2638AP all wheel cargo truck chassis Application Scenarios:

• Engineering: Oil pipeline laying, mining equipment transportation, power emergency repair vehicle chassis

• Military Use: Light armored vehicle transport platform, field supply vehicle, communication command vehicle

• Heavy engineering vehicles, sanitation vehicles: Modifications suitable for dump trucks, concrete mixer trucks, garbage trucks, etc.

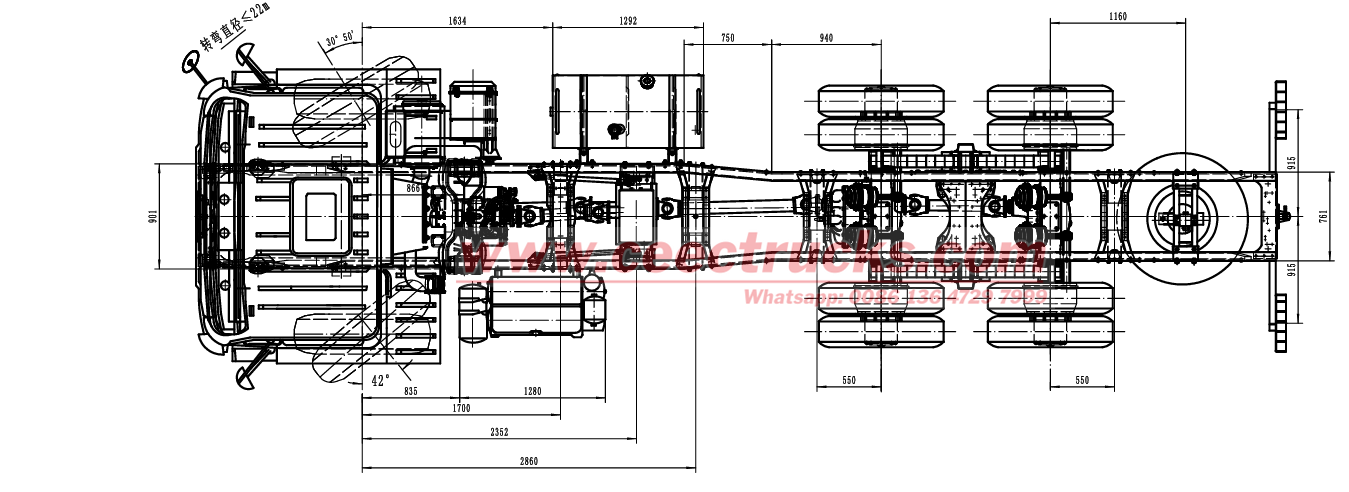

Technical drawing of Beiben All Wheel Driving 6x6 Cargo Truck Chassis

★ Weichai WP10.380E32 Euro 3 engine, super powerful

★ Fast Manual 9-shift mechanical transmission gearbox

★ 12 months fast moving spare parts for FREE

★ Authorized beiben 2638 all wheel drive truck

★ Training service for beiben 6x6 NG80 chassis

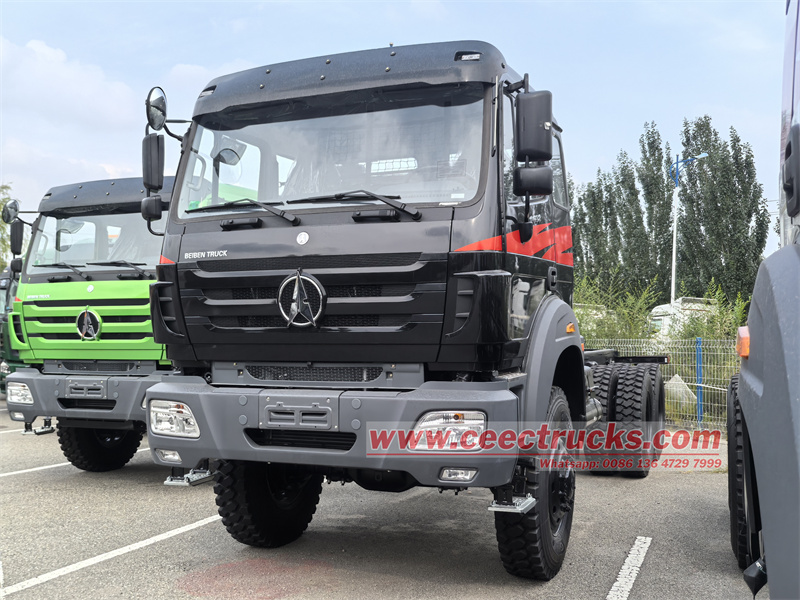

Beiben All Wheel Driving 6x6 Cargo Truck Chassis

China professional fire truck supplier and exporter, we supply high quality beiben chassis truck. We can ensure the fast delivery time and 12 months guarantee for our beiben truck. Our beiben truck are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
