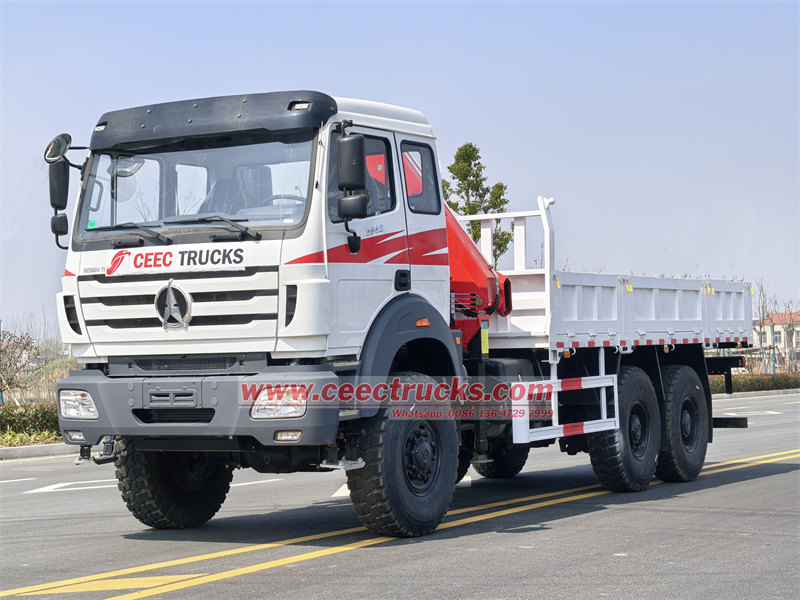

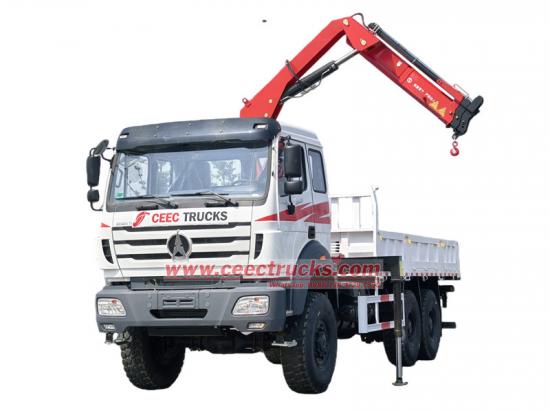

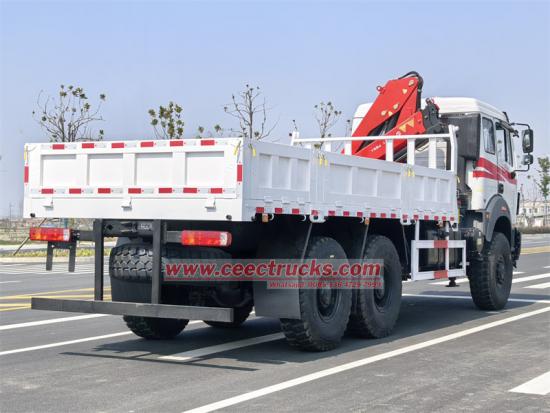

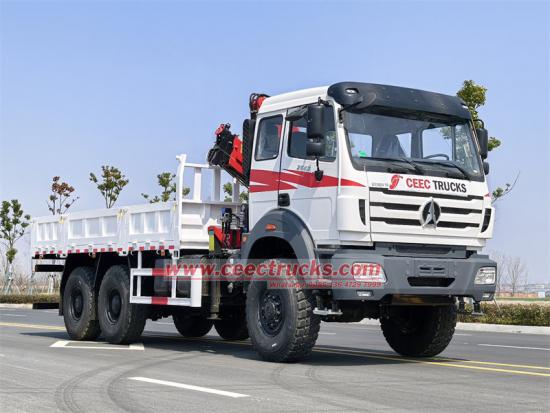

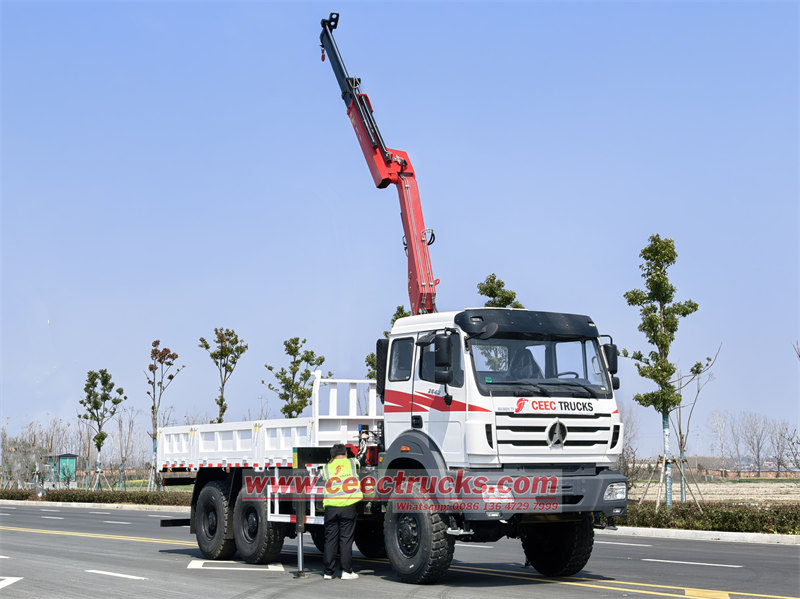

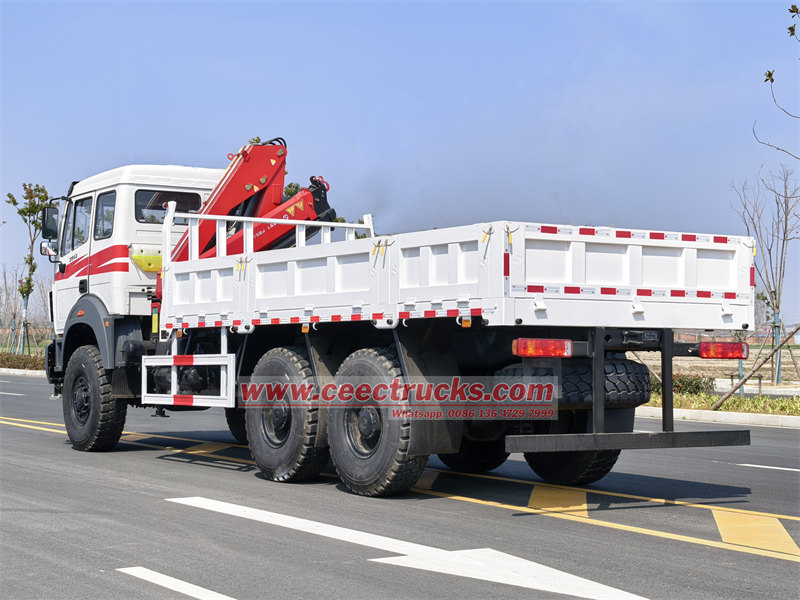

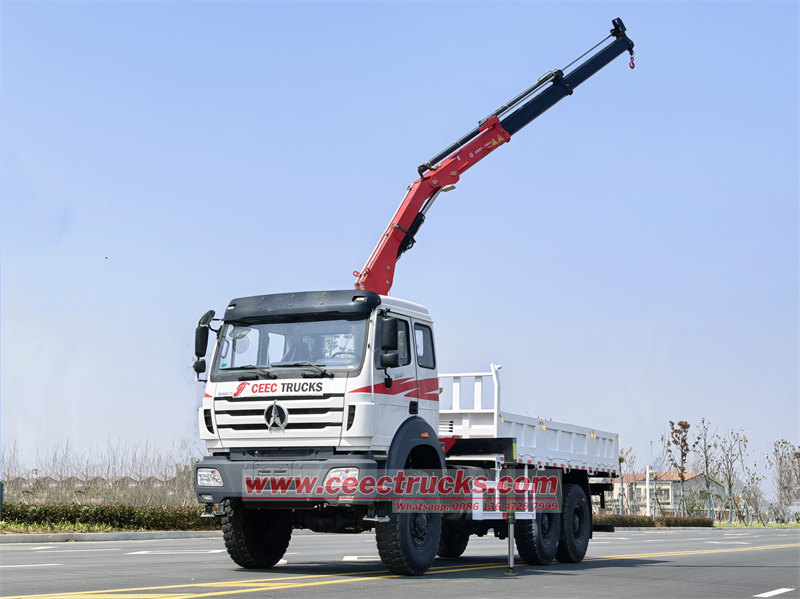

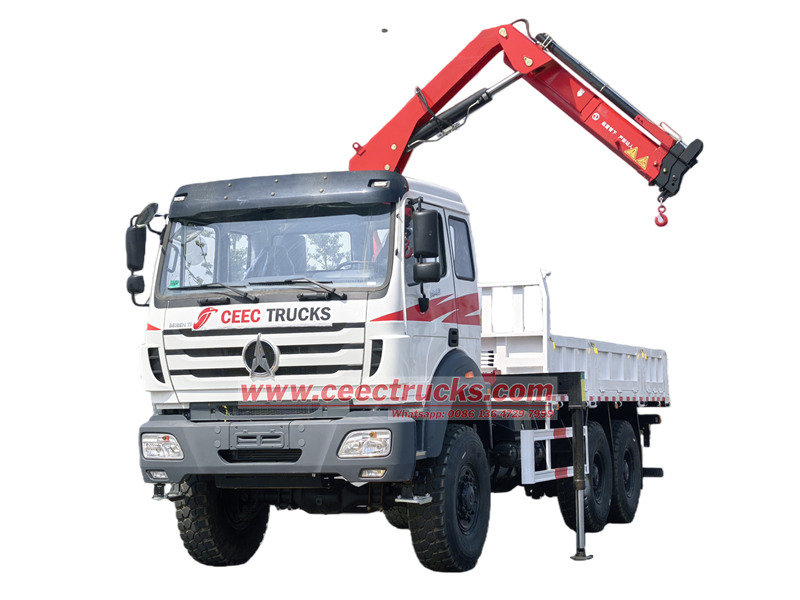

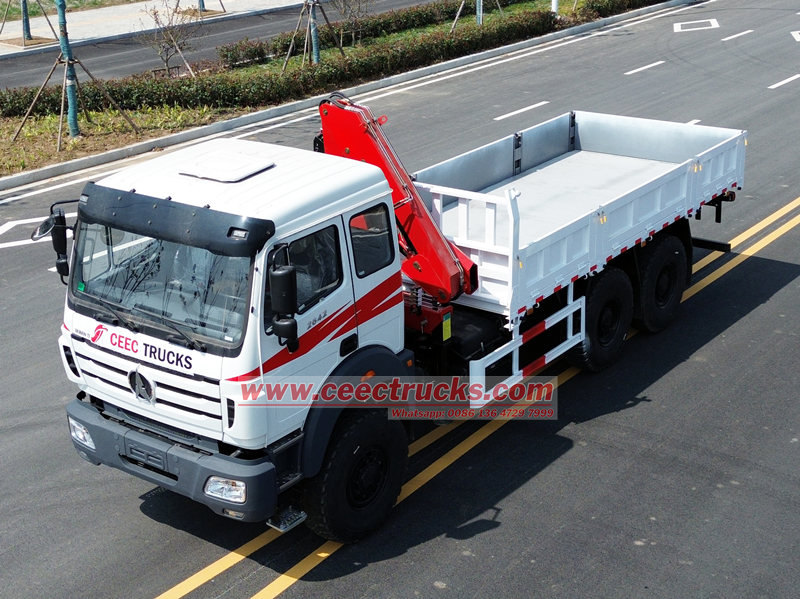

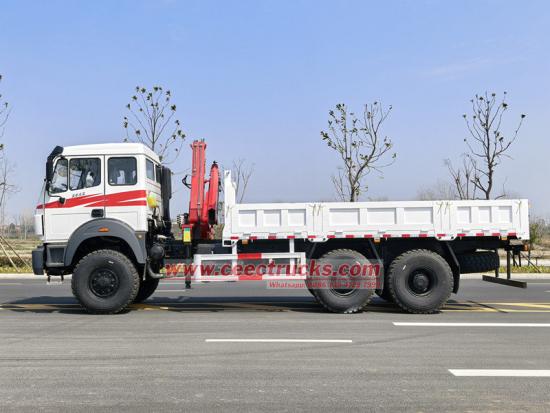

The Beiben 6×6 off-road knuckle boom truck is a high-efficiency special-purpose vehicle integrating lifting and transportation functions. It is equipped with a Weichai WP12.420E32 420hp engine and a 12JS200T transmission, with a gross vehicle weight of 26 tons and a load capacity exceeding 20 tons. The chassis features a 6×6 all-wheel drive configuration and a 4-ton knuckle boom crane, with a maximum working radius of 6.2 meters. It is suitable for complex working conditions such as construction sites, logistics transportation, municipal maintenance, and landscaping.
Work capacity:
4 tonsDimension ( mm ):
9350×2550×3530Wheelbase ( mm ):
4450+1450Engine power:
420HPEngine type:
WP12.420E32Axle drive:
6×6Gear box:
FAST 12-shift manual transmissionRemarks:

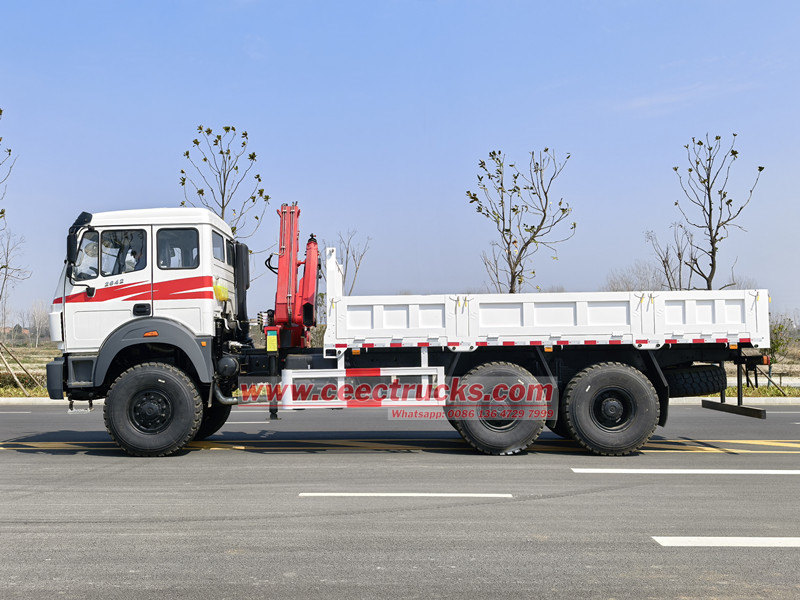

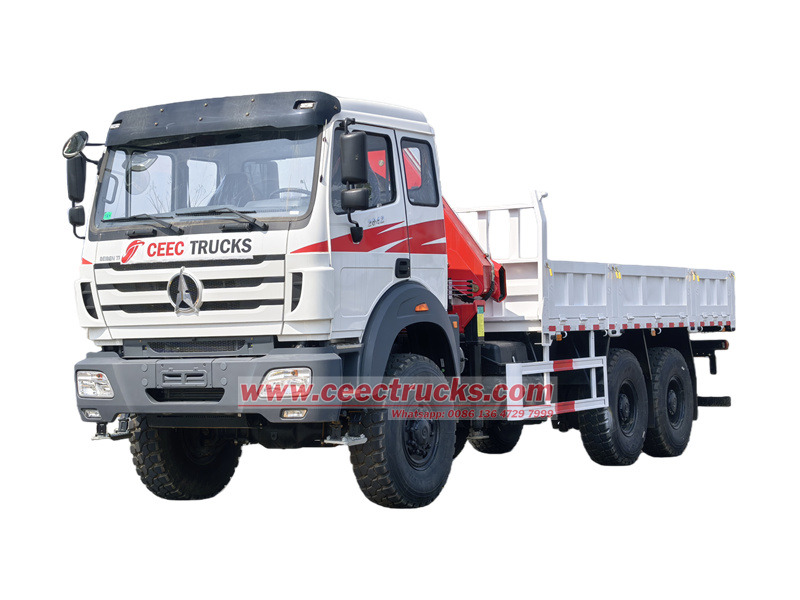

14.00R24 tires, 6+1 pcsThe Beiben 6x6 knuckle crane truck is a highly efficient special-purpose vehicle integrating lifting and transportation functions. Based on the Beiben 6x6 all-wheel drive chassis, it is equipped with a Weichai 420hp engine, a FAST 12-speed transmission, a total vehicle weight of 26 tons, and an actual load capacity exceeding 20 tons. It features a 4-ton knuckle boom crane with a working radius of 6.2 meters, capable of 360-degree continuous rotation, and flexible and precise loading and unloading. With its excellent chassis passability, powerful engine, and flexible crane configuration, this Beiben 6×6 truck mounted knuckle crane is widely used in construction sites, logistics transportation, municipal maintenance, and landscaping, and is particularly suitable for complex road conditions in field operations and emergency rescue scenarios.
Manufacturer: CEEC Trucks Group
Features:
1. Durable Chassis: Beiben 6×6 all-wheel drive chassis, with reinforced frames and suspension, robust reliability under long-term harsh working conditions.

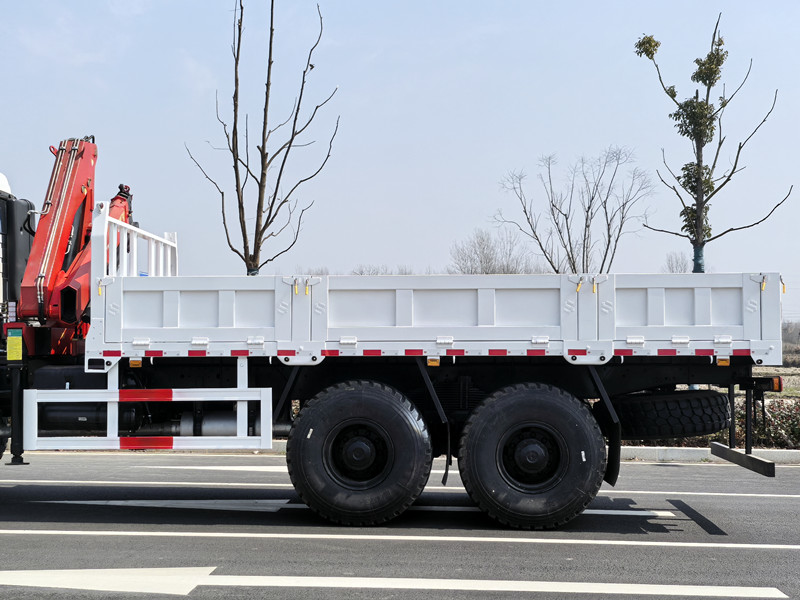

2. Excellent Cargo Box Craftsmanship: The cargo box is made of high-strength steel with precision welding, with a flat structure, impact resistance, and corrosion resistance.
3. Reliable Vehicle Quality: The complete vehicle undergoes strict testing and matching optimization, with key components from well-known brands, ensuring high operational availability and low failure rate.
4. Easy Crane Operation: The crane is equipped with an intuitive hydraulic control system and multi-way valve, enabling flexible, precise, and fast loading and unloading operations.
|
BEIBEN 6x6 off-road 4-ton knuckle crane truck specifications |
|
||
|
Emission Standard |
EUR 3 |
|
|
|
Chassis type |
Cargo truck type |
|
|
|
Chassis model |
ND2260FD |
|
|
|
Driving Type |
6×6 |
|
|
|
Dimensions |
|
||
|
Wheelbase(mm) |
4450+1450 |
|
|
|
Overall Dimension(mm) |
9350×2550×3530 |
|
|
|
Cargo box dimension(mm) |
6000x2550x550 |
|
|
|
Weight parameters |
|
||
|
GVW(kg) |
26,000kgs |
|
|
|
Curb weight(kg) |
13,500kgs |
|
|
|
Real load weight(kg) |
More than 20,000kgs |
|
|
|
Chassis parameter |
|
||
|

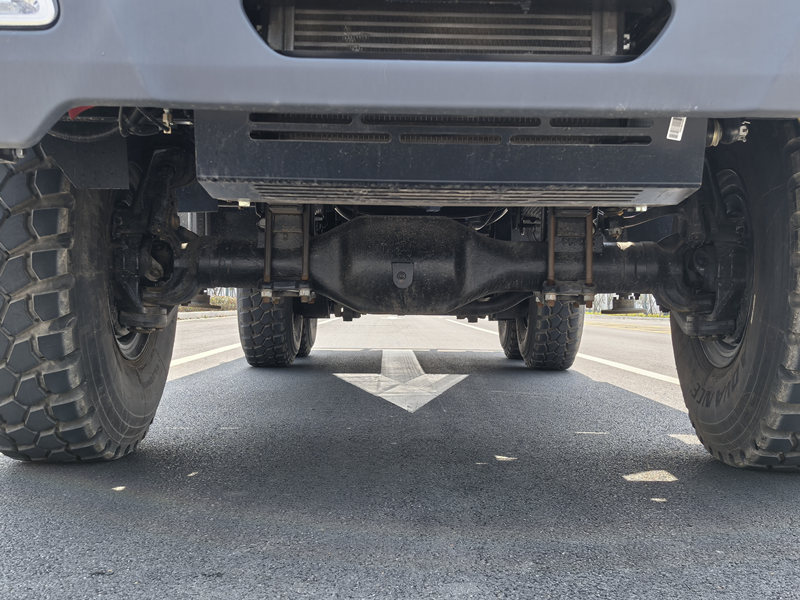

Front axle |
7 Ton Beiben drive axle |
|
|
|
Rear axle |
13 Ton×2, Beiben double reduction axle |
|
|
|
Front wheel track (mm) |
2070 |
|
|
|
Rear wheel track (mm) |
2040/2040 mm |
|
|
|
Front/rear overhang(mm) |
1410/1310 |
|
|
|
Approach angle(°) |
29 |
|
|
|
Departure angle(°) |
52 |
|
|
|
Max speed(km/h) |
90 |
|
|
|
Suspension |
Leaf spring suspension, 10/13 pcs |
|
|
|
Engine performance |
|
||
|
Engine brand |
WEICHAI |
|
|
|
Engine model |
WP12.420E32 |
|
|
|
Engine type |
Straight in-line, 6 cylinders, 4 strokes, water-cooling, Turbo charge with inter-cooling, diesel engine |
|
|
|
Displacement(L) |
11.596 L |
|
|
|
Max. output (KW) |
309kw (420hp) |
|
|
|
Fuel type |
Diesel |
|
|
|
Max. output (kw/Ps/rpm) |
309kw(420ps)/2100 rpm |
|
|
|
Max torque/Speed (N.m/rpm) |
1750 N.m/1200-1500rpm |
|
|
|
Tire specification |
14.00R20, total 6 units tire+1 spare tire |
|
|
|
Drive Line |
|
||
|
Clutch description |
¢430, dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance |
|
|
|
Transmission |
FAST 12JS200T, 12 forwarder, 2 reverse gear, synchronous meshing by manual |
|
|
|
Braking system |
Service brake: Brake gap can be adjusted automatically double circulation air brake system |
|
|
|
Suspension system |
|
||
|
Front axle |
Semi-elliptic leaf springs shock absorbers |
|
|
|
Rear axle |
Torsion bar semi-elliptic leaf springs |
|
|
|
Electrical Equipment |
|
||
|
Voltage |
24V |
|
|
|
Batteries |
2X12V/135Ah |
|
|
|
Generator |
28V-70A |
|
|
|
Starter |
5.58Kw/24V |
|
|
|
Cab description |
|
||
|

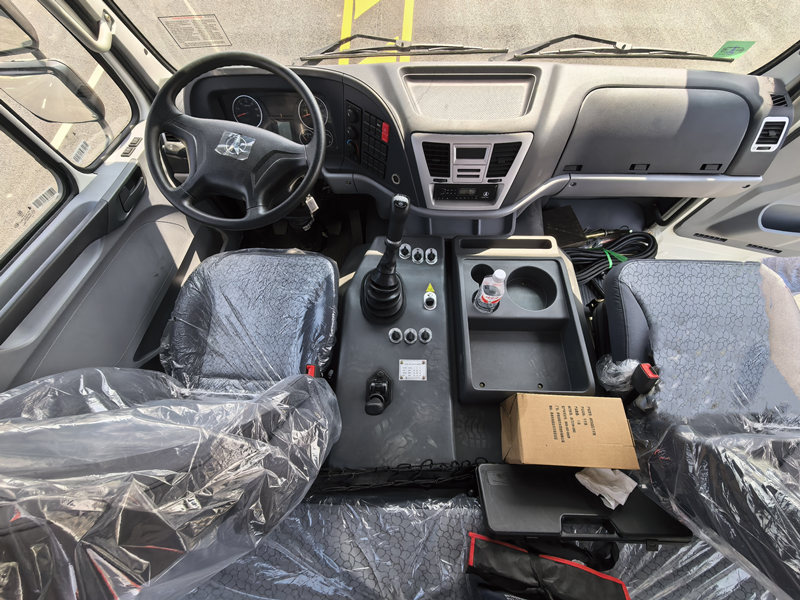

NG80 long cab, 2 seats and one sleeper bed, cool and heating air-conditioner, air suspension driver's seat, steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument, electric window lifter |
|
||
|

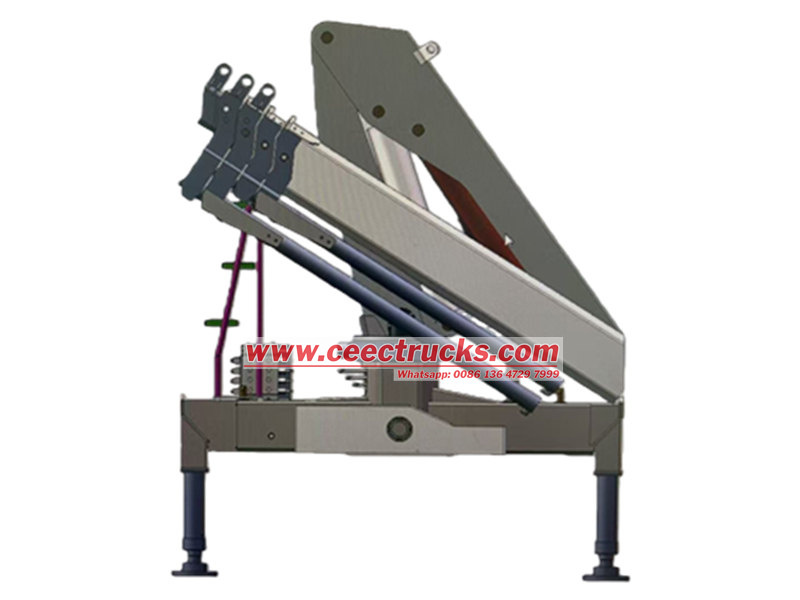

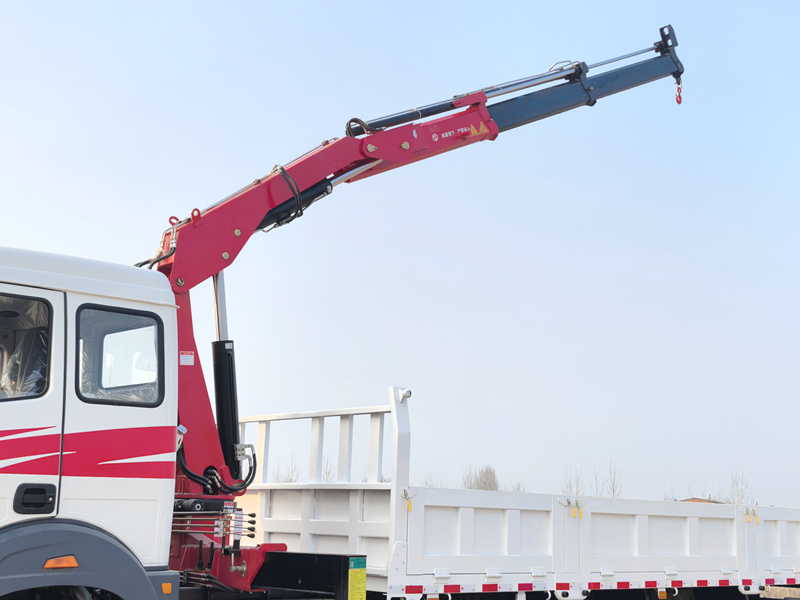

Crane specifications |
|
||
|
Crane model |
SQZ80-3 |
Unit |
|
|
Max lifting capacity |
4,000 |
kg |
|
|
Max lifting moment |
80 |
kN.m |
|
|
Max. outreach |
6.25 |
m |
|
|
Max. lifting height |
8.6 |
m |
|
|
Crane working radius |
6.2 |
m |
|
|
Rated Flow of Hydraulic system |
32 |
L/min |
|
|
Hydraulic oil tank capacity |
60 |
L |
|
|
Rated pressure of hydraulic system |
20 |
Mpa |
|
|
Slewing angle |
360 |
° |
|
|
Outrigger span |
3457 |
mm |
|
|
Crane weight |
1500 |
kg |
|
|
Item |
Unit |
SQZ80-3(4T) |
|
Max. lifting moment |
kN ∙ m |
80 |
|
Max. lifting capacity |
kg |
4000 |
|
Max. outreach |
m |
6.25 |
|
Max. lifting height |
m |
8.6 |
|
Rated Flow of Hydraulic System |
L/min |
32 |
|
Oil tank capacity |
L |
60 |
|
Rated Pressure of Hydraulic System |
MPa |
20 |
|
Recommended Power |
kw |
15 |
|
Installation space |
mm |
715 |
|
Slewing angle |
° |
360° |
|
Crane Weight |
kg |
1500 |
|
Outrigger Span |
mm |
3457 |

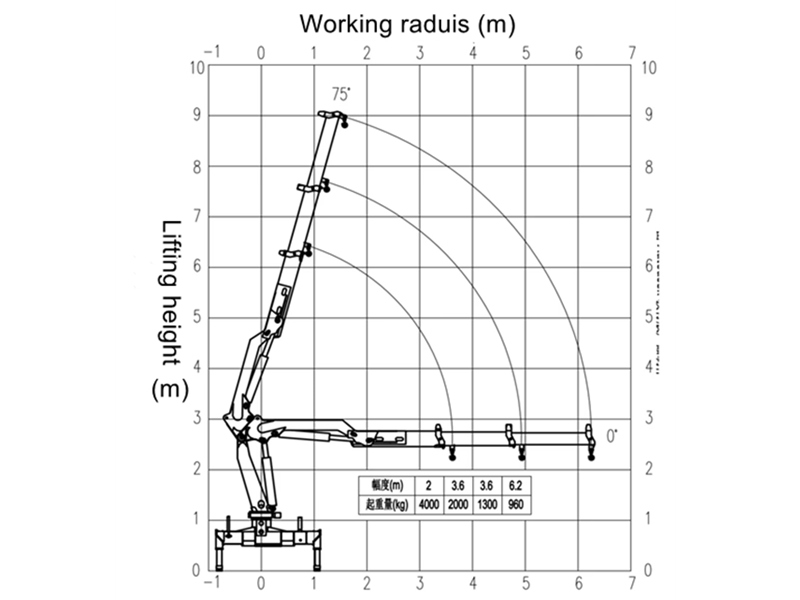

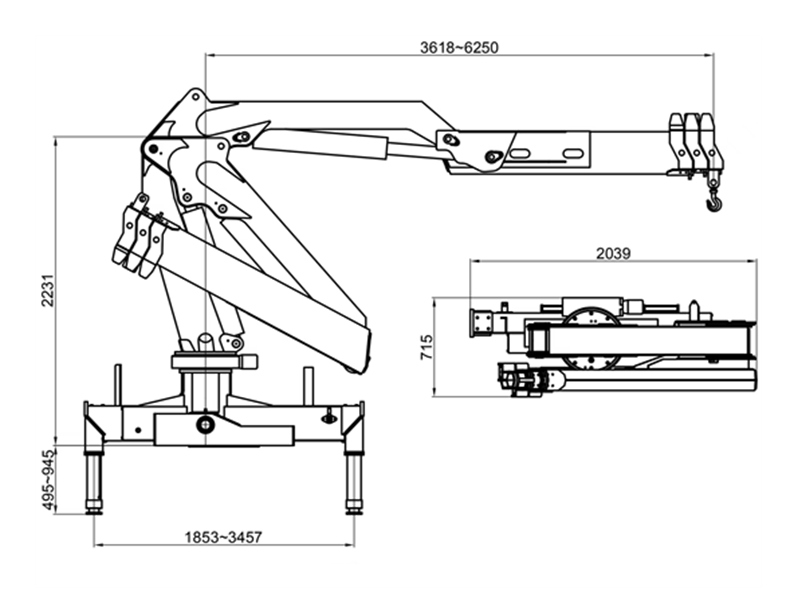

Crane drawing:
 |
 |
▶ Logistics & Transportation: In scenarios such as ports and warehouses, the Beiben 6×6 articulated crane truck can quickly complete the loading and unloading of containers or large goods.
▶ Construction & Engineering: Suitable for construction sites, bridge construction, and other scenarios, it can lift heavy items such as rebar and concrete components.
▶ Municipal Maintenance: Used for operations such as streetlight installation and billboard replacement.
▶ Emergency Rescue: At natural disaster or accident sites, it can rapidly lift and transport obstacles or rescue equipment.
★ Beiben 6×6 chassis, 14.00R20 tires, excellent passibility
★ Weichai 420HP diesel engine, super powerful
★ FAST 12-speed gearbox, high transmission efficiency
★ Authorized Beiben boom crane truck exporter
★ Training service for Beiben truck mounted crane
China professional boom crane truck supplier and exporter, we supply high quality boom crane truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our crane trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
