This Isuzu FTR boom truck telescopic crane is a special truck with powerful and well-designed transport and loading functions. It is equipped with ISUZU brand 4HK1 engine with a powerful power of 205HP, which can meet various work needs, such as mountain road transportation, climbing, and long-term loading and lifting operations. The classic FTR cab with sleeper and equipped with air conditioning provides a comfortable environment for the driver to transport and work over long distances. The upper part of the Isuzu FTR cargo crane truck is equipped with a telescopic boom produced by CEEC Factory, with a maximum lifting capacity of 5000kg and a full rotation of 360°. The control panel can be selected in English or other languages, which is convenient for customers in different countries. The Isuzu FTR cargo mounted crane truck also provides a variety of optional configurations, such as folding boom, hydraulic dump box, customized box thickness and height according to needs, and optional remote control box.

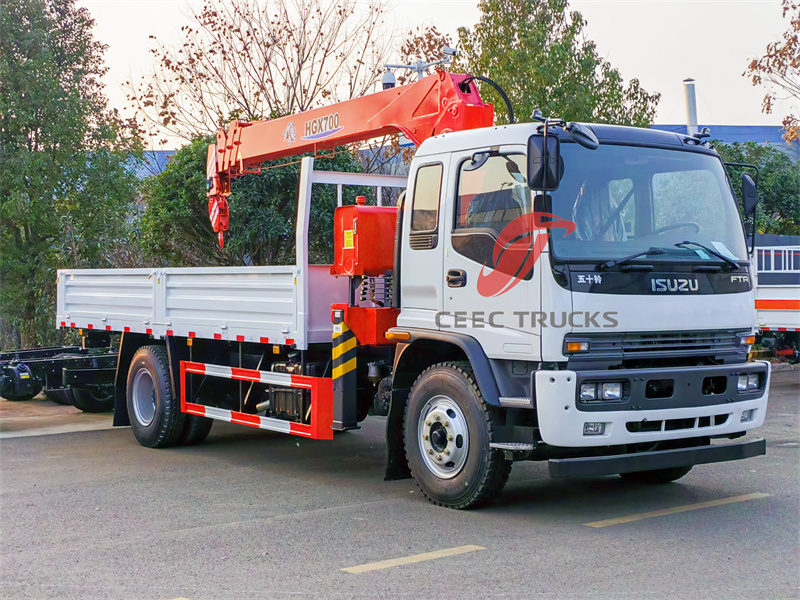

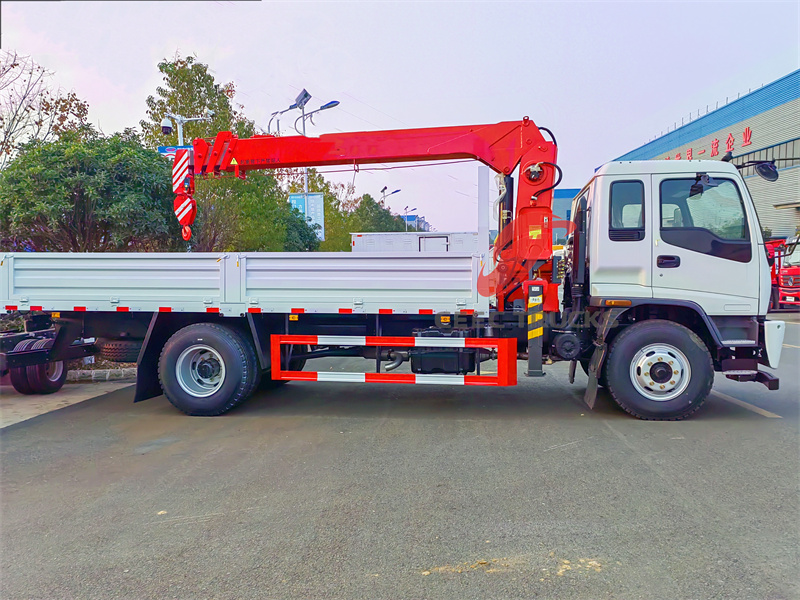

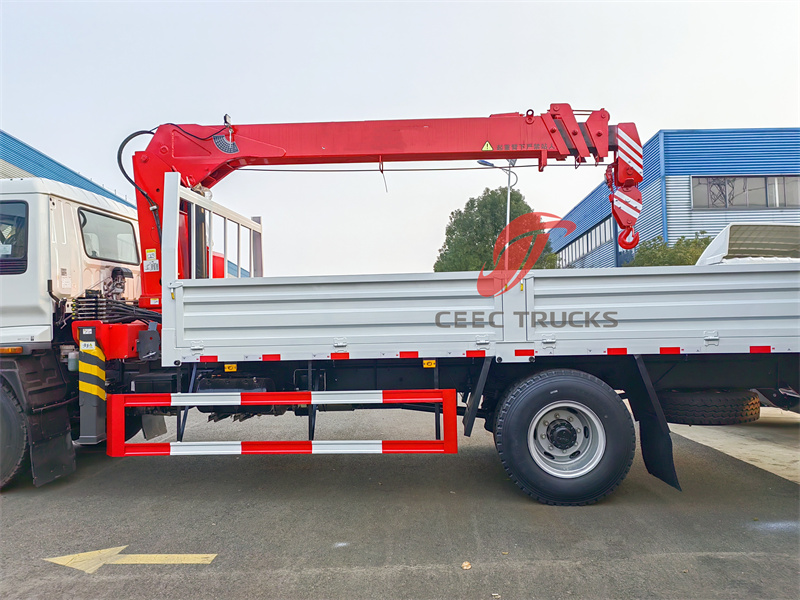

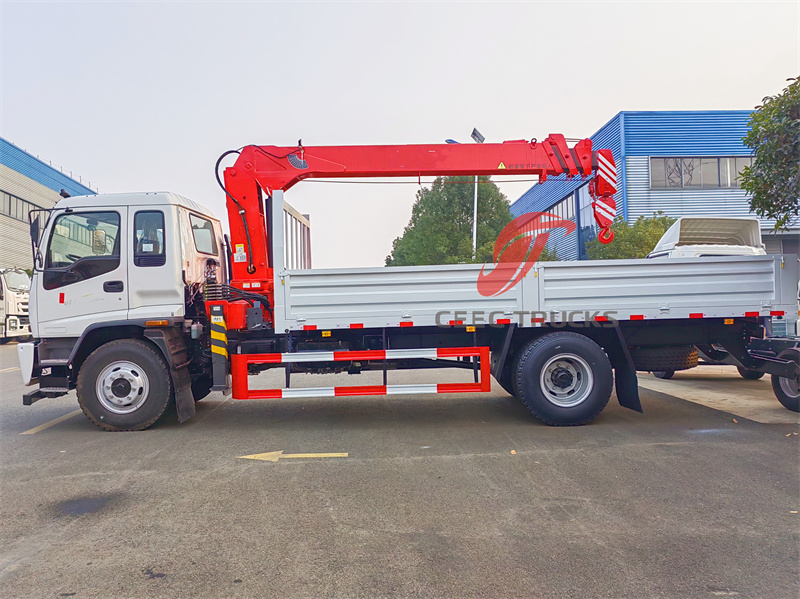

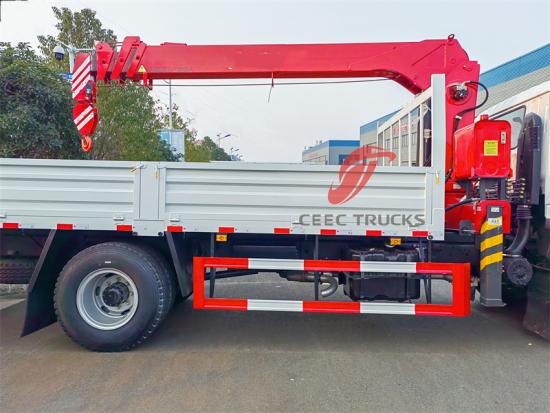

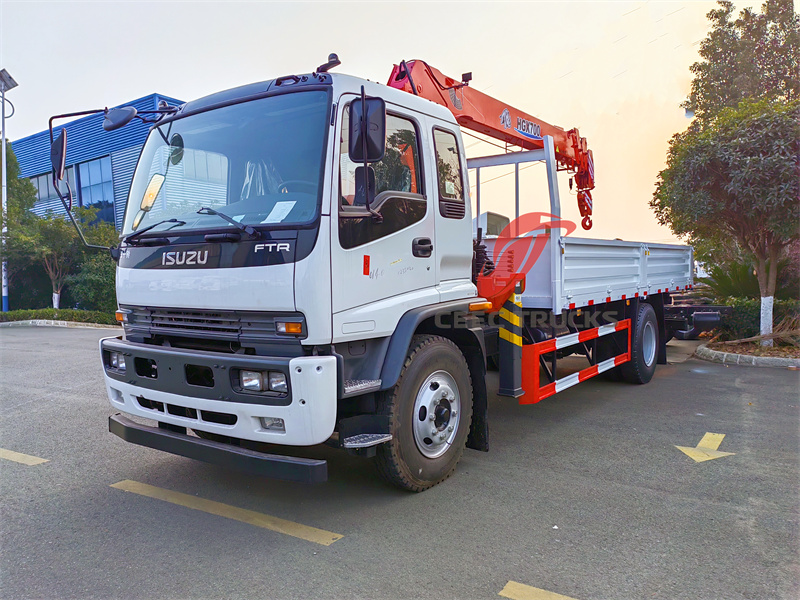

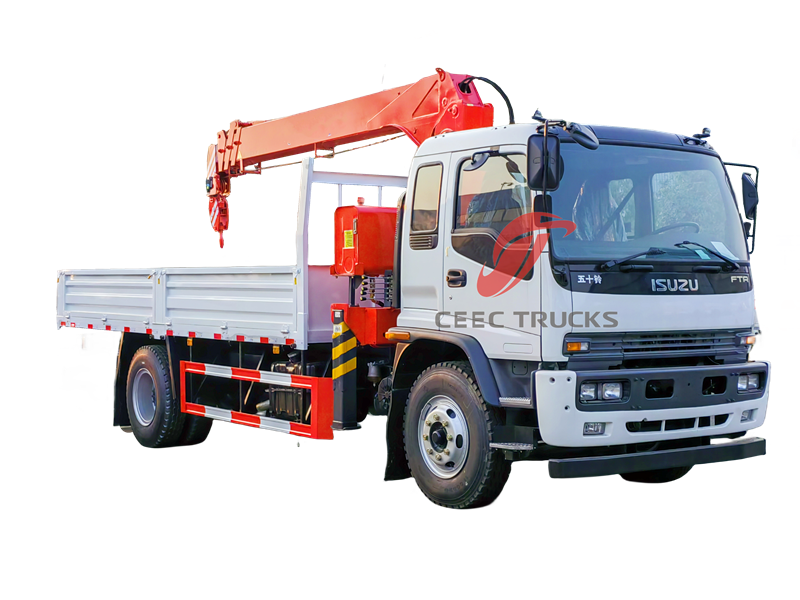

*ISUZU FTR Lorry truck With 5 Tons Crane

ISUZU FTR 205HP Telescopic Boom Crane Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

1. Truck Chassis: ISUZU FTR truck chassis, 4x2,4X4 model

                              4KH1 model with 205HP and emission 5199cc

2. Cargo material: 4mm thick high-quality steel for prolonged service lier
                                  carbon steel, aluminum alloy or stainless steel can be choose

3. Crane: Customized for lift up and load down, with high-quality hydraulic cylinder

4.  Optional design: such as telescopic boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.





The manufacturing process of Isuzu FTR truck mounted boom crane strictly adheres to CEEC high standards of quality control and process flow. From the beginning of material selection, we pay attention to selecting high-strength and corrosion-resistant materials to ensure that the vehicle can maintain stable performance even in harsh working environments. In welding, assembly and other aspects, advanced processes and equipment are used to ensure the accuracy and reliability of each component.







The Isuzu FTR 5tons truck-mounted crane has excellent performance in terms of power, control and safety. First of all, it is equipped with a powerful ISUZU diesel engine, providing strong power of 205HP, ensuring that it can easily cope with various work scenarios. Secondly, the crane special truck is equipped with a six-speed gearbox and precise control system, making driving easier and more comfortable.





The Isuzu FTR truck telescopic crane is a versatile truck suitable for a variety of lifting and transportation tasks. The design of its telescopic boom crane allows it to carry out hoisting operations at construction sites, warehouses, docks and other places, easily coping with various complex hoisting needs. At the same time, the vehicle’s spacious cargo box can also be used to transport various goods to meet the transportation needs of different industries. In addition, the crane special truck also provides a variety of optional configurations, such as hydraulic dump boxes, remote control boxes, etc.So that it can be customized according to specific needs to meet the personalized needs of users.



» Ⅱ.Product Parameter for Isuzu NPR 5tons service boom truck







ISUZU FTR cargo truck with telescopic crane
Overall dimensions	7300×2450×3250(mm)	Cargo box dimensions	5600x2300x450(mm)
Gross vehicle weight	18,000 kg	Rated Load capacity	6300 kg
Chassis specifications
Chassis Brand	ISUZU	Color	White or optional
Engine	Fuel Type	Diesel
	Model	4HK1-TCG61
	Horse power	205 HP
	Displacement	5197ml
	Engine Type	4 cylinders in line, water cooling, intercooled, turbocharged
	Emission Standard	Euro 6
Wheel Base(mm)	4500	Driving type	4x2
Type & Size of Tyre	235/80R22.5 (6+1pcs)	Air Conditional	Heating and cooling air conditioning
Cab	Single-row tilted cab	Gear Box	ISUZU MLD 6 speed forward with 1 reverse, manual
Brake	Air brake	Steering Wheel	Left Hand Drive with power-assisted
Crane specifications
Crane brand	CEEC	Crane weight	1396 kg
Max. lifting weight	5000 kg	Max. working height	13 m
Max oil flow of hydraulic system	25 L/min	Rated pressure of hydraulic system	20 Mpa
Oil tank capacity	60 L	Installation space	850 mm
Max. working radius	10.5 m	Max lifting Moment	10 T.M
Rotation angle	360°, all rotation	Boom	4 sections
Others
Cargo body	High-quality steel	Payload	6 tons
Operation Type	Manually operated hydraulic valve	Type	Mechanical



----- Cargo Material: Carbon steel, stainless steel, aluminum alloy

-----Crane: Lift up and load down, with high-quality hydraulic cylinder angle, CEEC brand (Top China)

-----Optional: Telescopic boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.



» Ⅲ.Product Details & Advantages:



1.  Power and high load-bearing performance

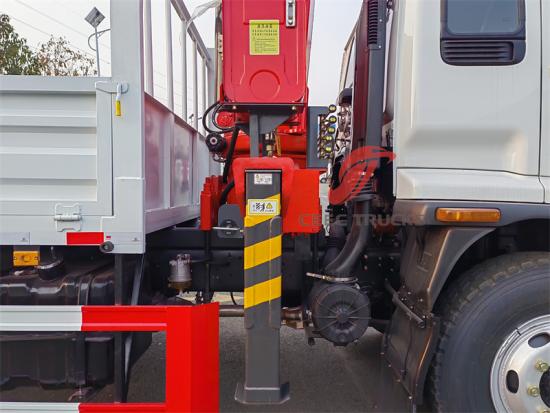

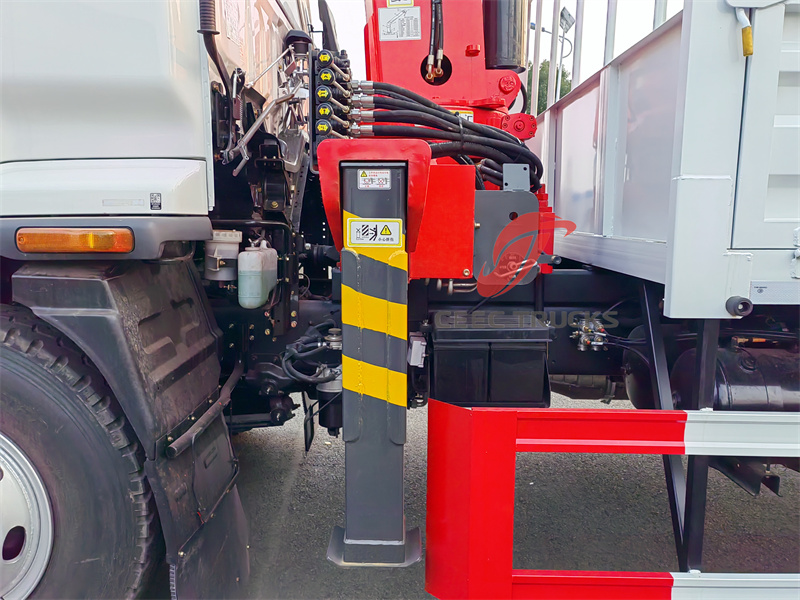

The Isuzu service truck cranes are equipped with Isuzu 4HK1 series high-pressure common rail diesel engines, 205HP, stable power output, low speed and high torque characteristics suitable for heavy-load starting and complex working conditions. The Isuzu FTR model chassis adopts high-strength steel reinforcement design, and the torsional rigidity is improved to ensure the stability of the chassis during lifting operations. Reasonable matching of front and rear axle loads takes into account driving safety and balance during crane operation. Equipped with hydraulic H-type outriggers, the support span is large and can be automatically leveled to adapt to uneven soft and hard ground and reduce the risk of overturning.



2. Technical highlights of straight boom crane



The Isuzu FTR mobile crane truck has a straight boom structure with a reach of 14-18 meters, covering a wider operating range, suitable for high-altitude installation (such as street lights, billboards) or long-distance lifting. The electro-hydraulic proportional valve + load-sensing system enables micro-manipulation of boom extension and luffing, suitable for precision lifting. The maximum lifting capacity of 5 tons (short range) and the mid- and long-distance lifting capacity are graded and adapted. For example, it can still maintain a lifting capacity of 2-3 tons at a radius of 10 meters, and can flexibly respond to diverse needs.



3.Scenario adaptability and multifunctional expansion



The Isuzu FTR service truck 5 tons crane has a moderate body width (about 2.3 meters), a small turning radius, and a strong ability to pass through narrow lanes or height-restricted sections, making it suitable for operations in logistics parks and old urban areas. The hook can be replaced with a grab, clamp, aerial work platform and its application can be expanded to scenarios such as wood handling, scrap metal processing, and high-altitude maintenance. The cargo box is 4-6 meters long and has a cargo capacity of 3-5 tons, realizing "lifting and transportation combined" and reducing equipment scheduling costs.
