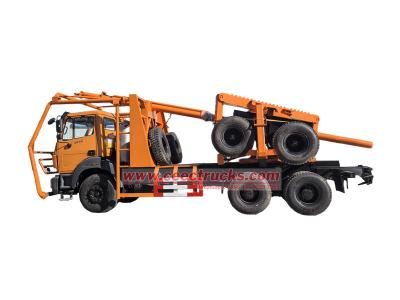

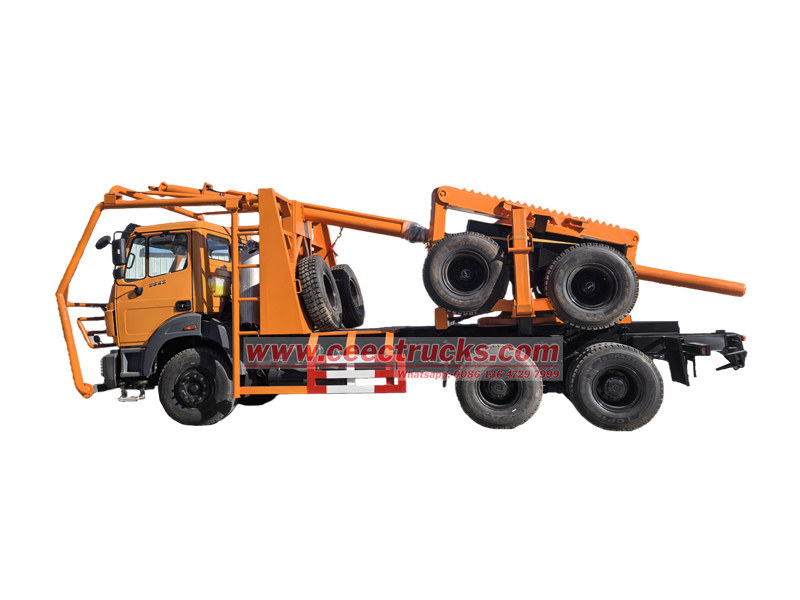

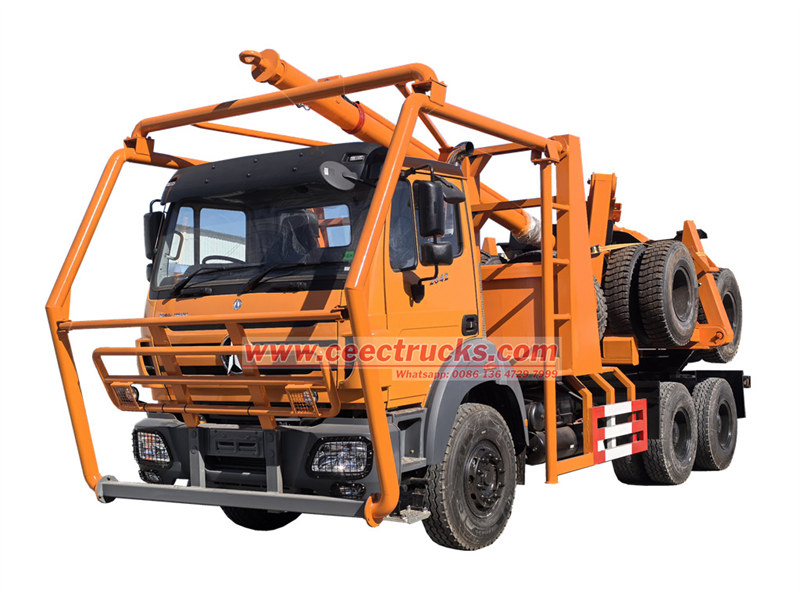

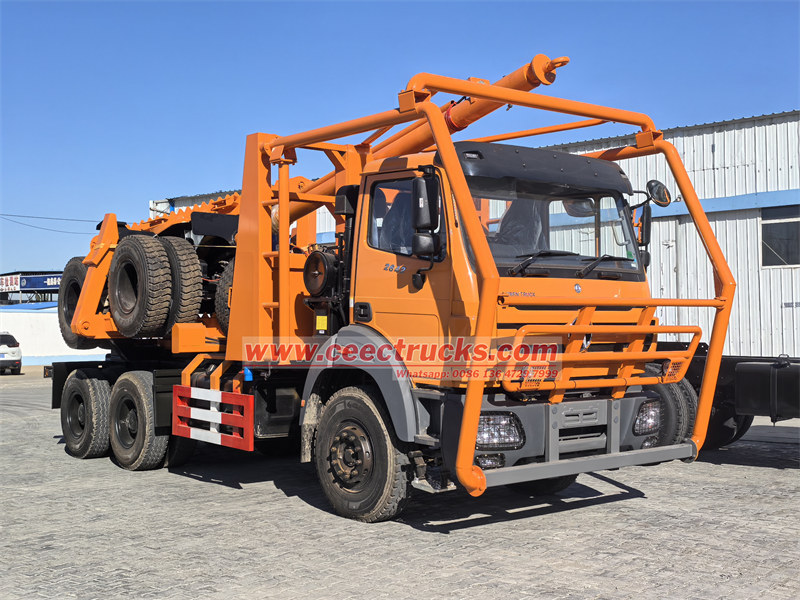

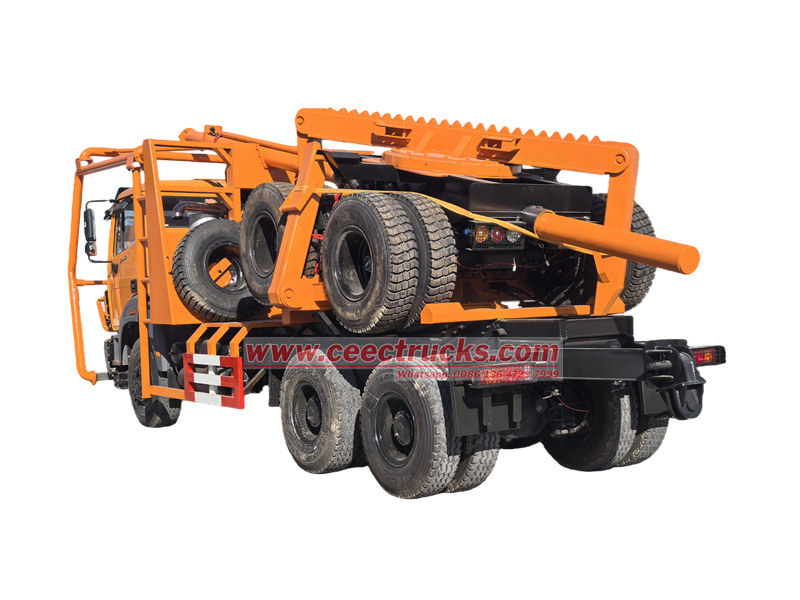

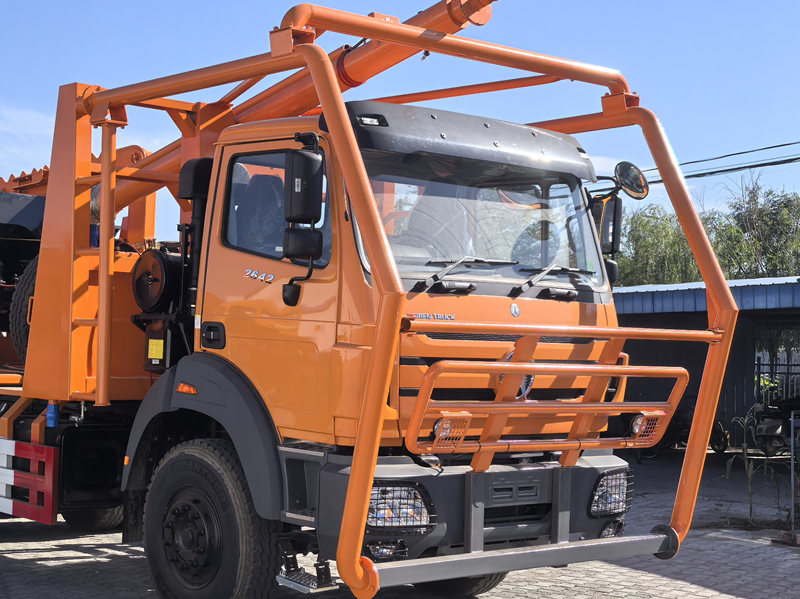

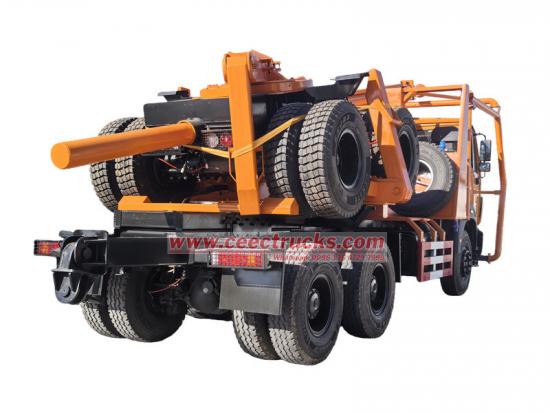

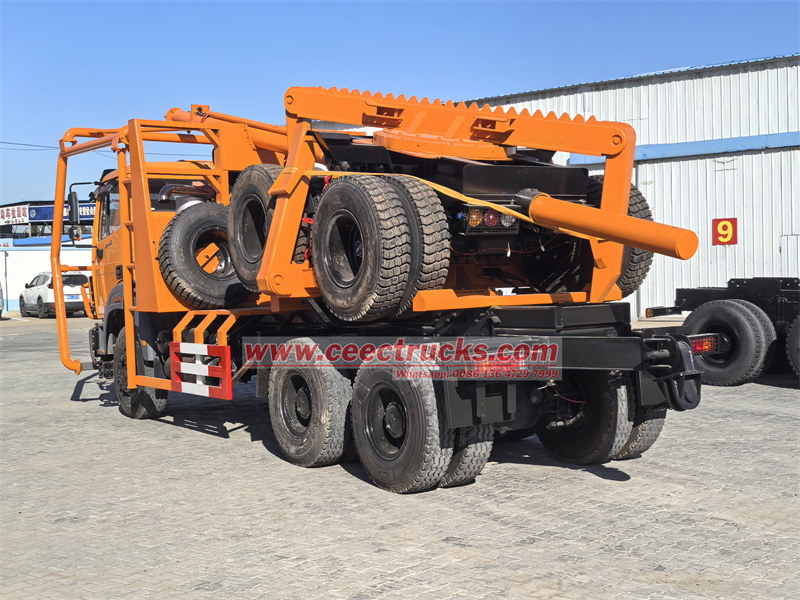

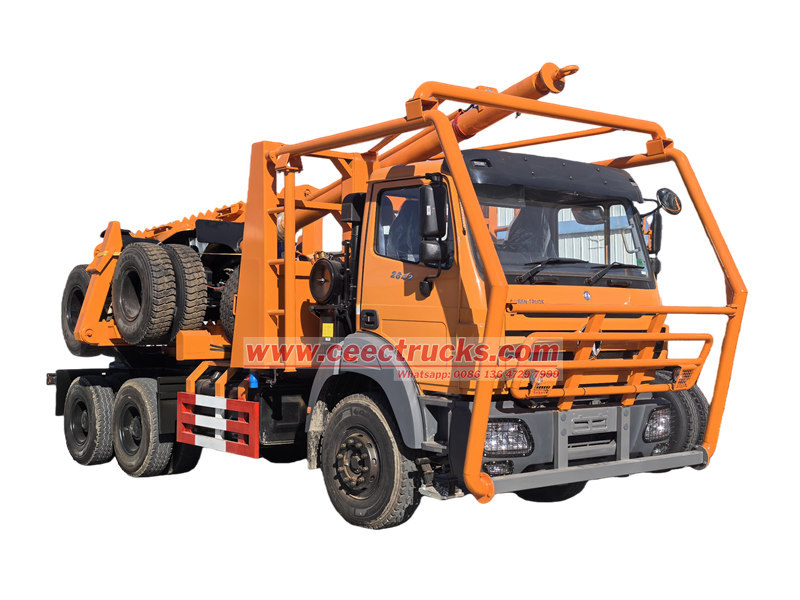

Beiben 6×6 RHD logging transport truck is specifically designed for the tropical forest regions of Malaysia. It features a Beiben 2642 all-wheel-drive chassis, a 420 HP engine, and a 12-speed manual transmission, offering strong off-road and climbing capabilities. Equipped with dedicated securing frames and anti-slip mats, it has a maximum load capacity of 60 tons, ensuring stable and safe log transport even on wet, muddy roads.
Work capacity:
60 tonsDimension ( mm ):
9300×3350×3800Wheelbase ( mm ):
4100+1450Engine power:
420HPEngine type:
WP12.420E32Axle drive:
6×6Gear box:
FAST 12-shift manual transmissionRemarks:
12.00R24 tires, 10+1 pcsA logging truck is a special-purpose vehicle used for transporting logs. It is typically equipped with dedicated securing devices and load-bearing structures, and is mainly used in forest areas and timber yards.
The Beiben 6×6 logging transport truck is specifically designed for log transport operations in Malaysia. It uses a Beiben 6×6 all-wheel-drive heavy-duty chassis, providing strong off-road capability to handle the complex road conditions of forest areas. The vehicle is equipped with a WP12.420E32 diesel engine, delivering up to 420 HP, paired with a 12-speed manual transmission, ensuring solid performance in climbing and heavy-load starts. With log securing frames and anti-slip pads, it effectively prevents logs from sliding or falling off during transport.
Manufacturer: CEEC Trucks Group
Features:
● Chassis/Body Structure: Adopts a Beiben 6×6 heavy-duty chassis and reinforced frame
● Securing Device: Equipped with a dedicated lashing system and anti-slip device
● Load Capacity: Maximum load capacity of 60 tons of logs
|
Beiben 6×6 RHD Logging Transport Truck |
||
|
Chassis specifications |
||
|
Model |
Beiben 2642 |
|
|
Wheelbase (mm) |
4100+1450 |
|
|
Curb weight (kg) |
11800 |
|
|
Drive type |
6×6, RHD |
|
|
Engine |
Model |
WP12.420E32, water-cooled, four strokes, 6 cylinders straight in line, turbocharged, |
|
Fuel type |
Diesel |
|
|
Engine Power |
420HP |
|
|
Rated Power / rotating |
309Kw/2200rpm |
|
|
Emission standard |
EURO 3 |
|
|
Displacement(ml) |
11596 |
|
|
Clutch |
Model |
Φ430, Single dry frictional disc,Hydraulic boosting |
|
Gearbox |
Model |
12JS200T, mechanical type, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
ZF8098, whole circulation in ball type, hydraulic boosting |
|
Frame |
Fish belly shape, variable width, variable sections |
|
|
Front axle |
7-ton, driving axle |
|
|
Middle and Rear axle (Use Mercedes Benz Technology) |
13-ton, double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
|
|
Tire |
12.00R24 Radial |
|
|
Qty of tire |
11 |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4Kw/24V |
|
|
Cab |

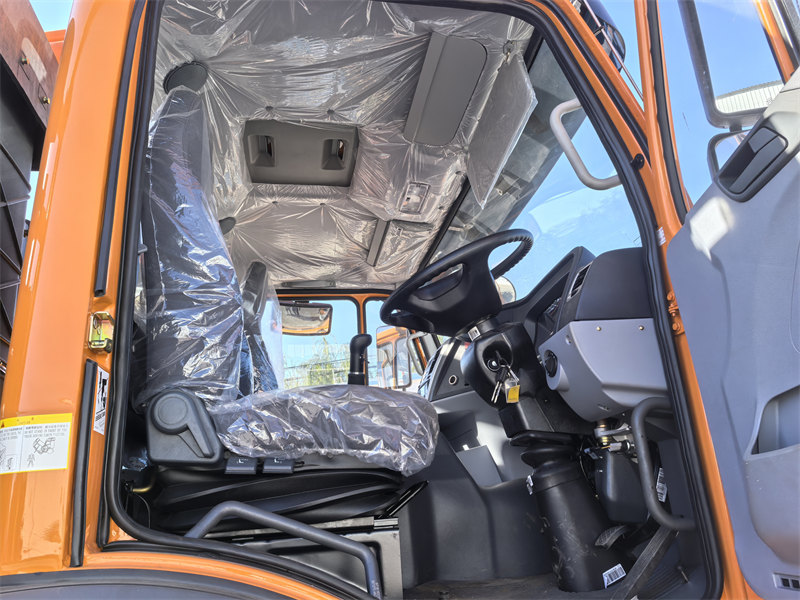

Type: NG80B short cab, no sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; |
|
|
Interior trimming: |
||
|

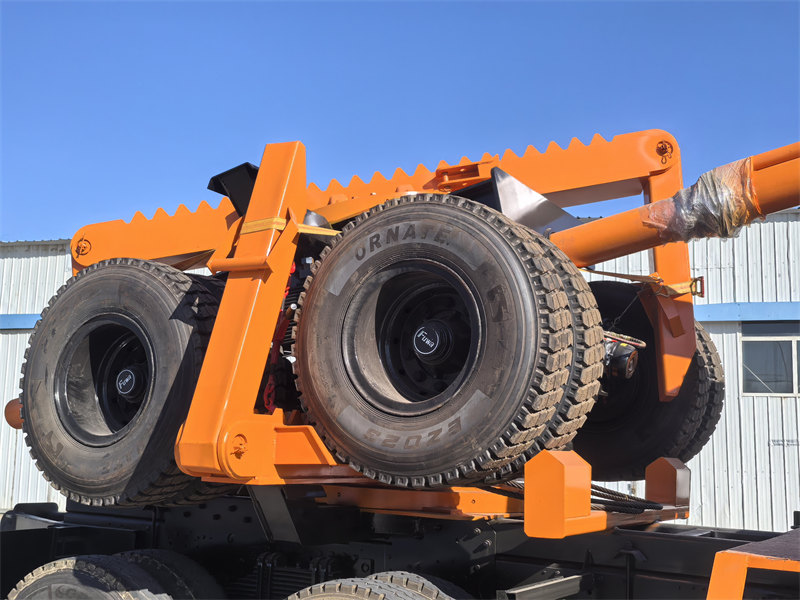

Log Trailer Specifications |
||
|
Max.axle load weight |
2x16,000(kg), FUWA |
|
|
Tire |
12.00-24 |
|
|
Loading Weight（kg) |
60000kg |
|
|
Connecting bar length |
9660mm |
|
|
Color |
Orange |
|
|
Bearing beam |
Diameter: 270mm; thickness: 12mm |
|
★ Beiben 6×6 chassis, excellent passibility
★ Weichai 420HP diesel engine, super powerful
★ FAST 12-speed gearbox, high transmission efficiency
★ Authorized Beiben logging truck exporter
★ Training service for Beiben log transport truck
China professional logging truck supplier and exporter, we supply high quality timber truck. We can ensure the fast delivery time and 12 months guarantee for our logging transport trucks. Our Beiben trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
