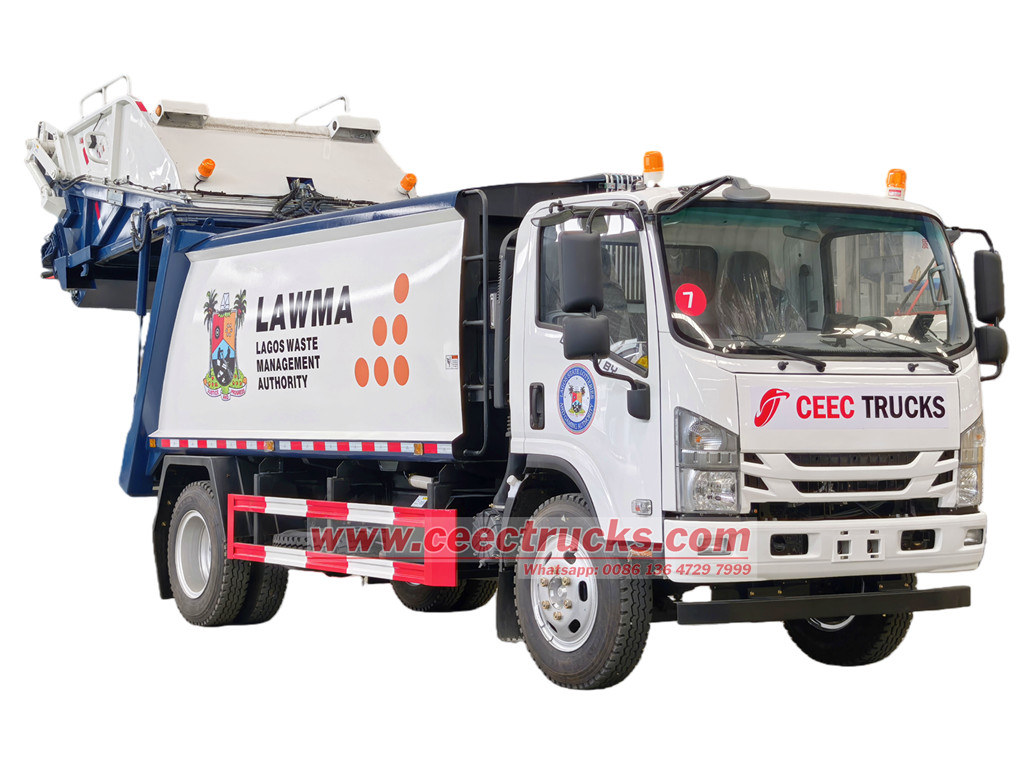

Rear Loader garbage compactor trucks are world known that produced and export from CEEC TRUCKS. Which build based on multiple type truck chassis ISUZU, HOWO, FAW, DONGFENG, etc. Fully consider the product's convenience and reliability, also the chassis technology features. The garbage compactor body material is international standard high strength steel T420, both internal and external with anti-rust painting, which can effective to avoid rusting. The Garbage Compactor Truck equipped with new designed CAN control system, multi-function garbage compression system, side climbing ladder, Electric control boxes in cabin and rear of hopper, rear part installed foot pedal, which is customized to collect garbage from different area, two units waste water collection tank can efficiently prevent second pollution during transportation. Cab for the single-row Comfortable seat, nice driving feeling. Therefore, the vehicle is an ideal Waste Management Truck mainly for garbage transportation & refueling function.
| Model | ISUZU NPR 12cbm rear loader truck |
| Driving | 4x2 LHD |
| Engine | 4HK1-TCG61, 190HP with 5193cc |
| Gearbox | MLD 6 shift transmission, 6F and 1R |
| Tire | 8.25R20 |
| Wheelbase | 4175mm |
| Compactor Body | 12CBM |
| Material | T420 |
| Control |
Electric: CAN BUS Electric Control Hydraulic: Hydraulic Valve Control |
| Painting | Painting and Logos 100% customized |
Fast Moving Maintenance Spare Parts List as below >>>
|
S/N |
Model |
Specification/Model |
Unit |
QTY |
|
1 |

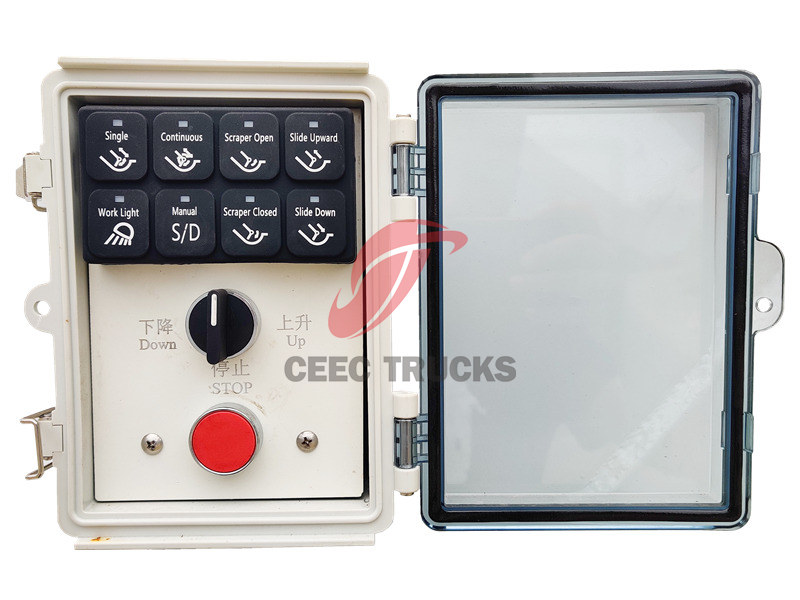

Rear control box assembly |
CAN-BUS |
Set |
1 |
|
1-1 |

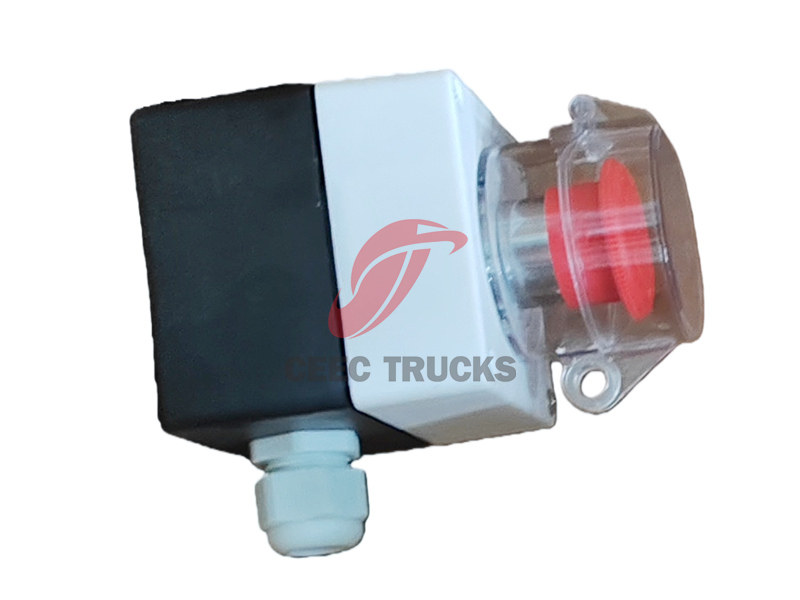

Emergency stop button |
CAN-BUS |
set |
1 |
|
1-2 |

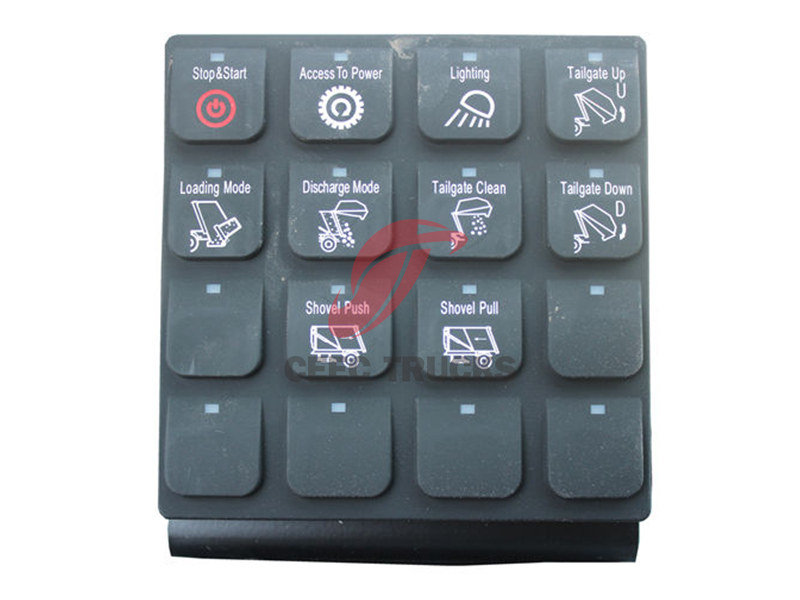

Main control box in cabin |
CAN-BUS |
set |
1 |
|
2 |

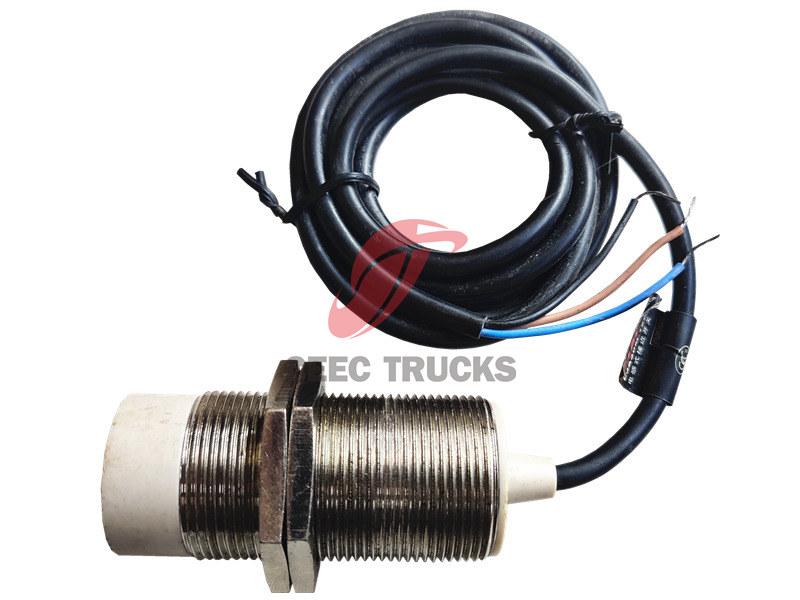

Photoelectric switch sensor |
9-30V |
set |
6 |
|
3 |

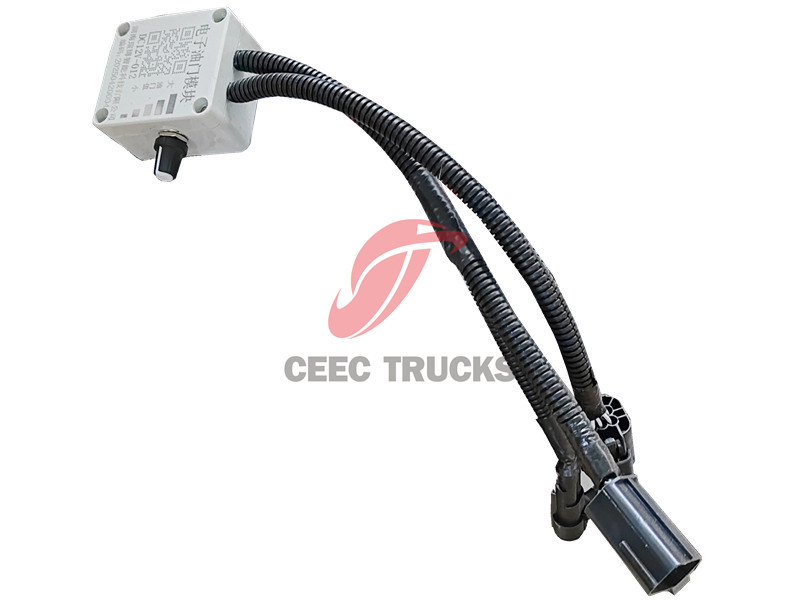

Electronic throttle module |
12V / 24V |
unit |
1 |
|
4 |

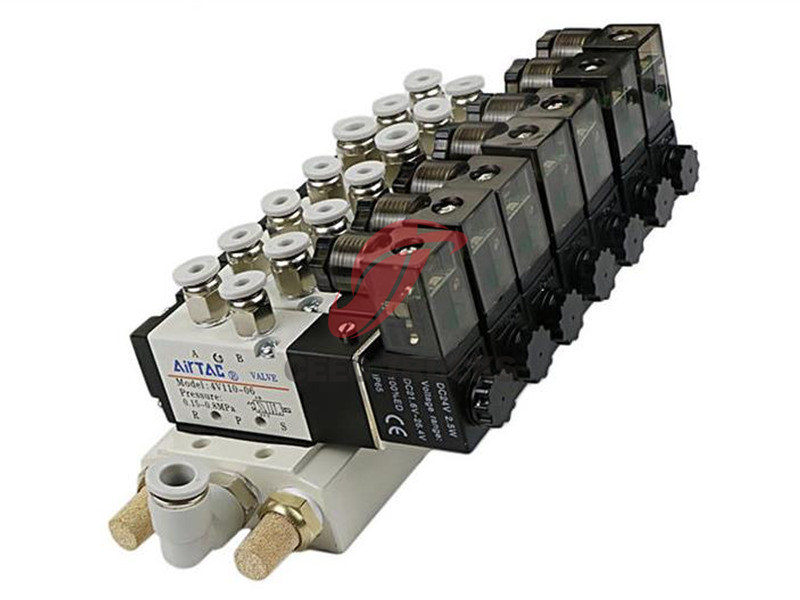

Electropneumatic valve |
12V / 24V |
set |
1 |
|
5 |

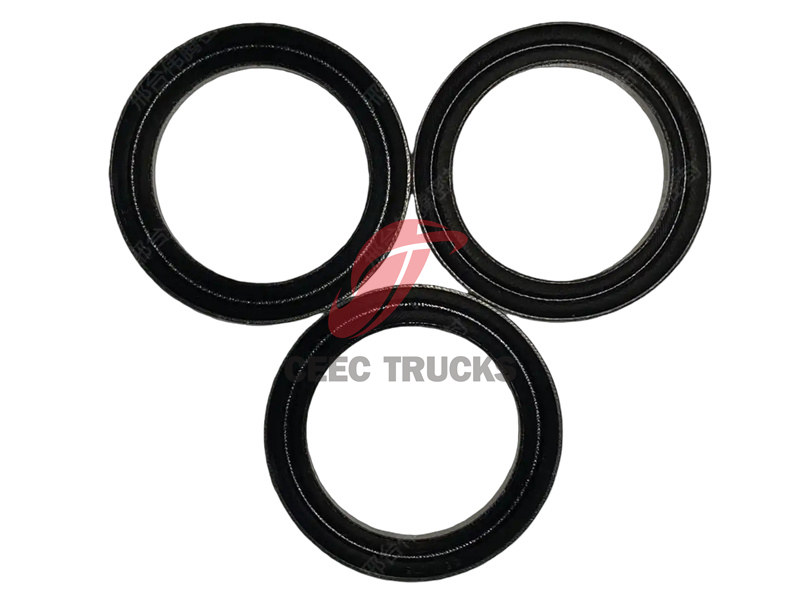

Oil inlet / outlet seal ring |
32.5*3.1 46.2*3.1 |
pcs |
4 |
|
6 |

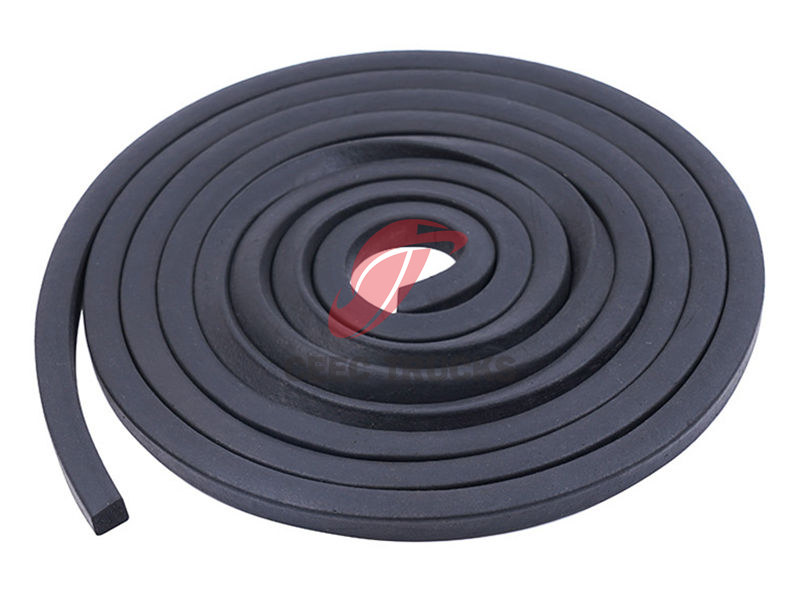

Rear hopper seal strip |
|
m |
20 |
|
7 |

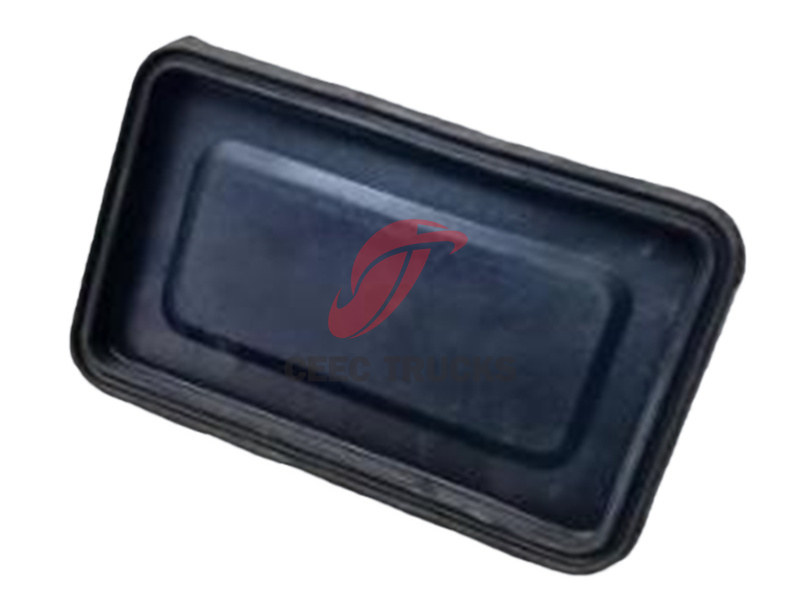

Sewage water tank cover seal |
With cover |
unit |
1 |
|
8 |

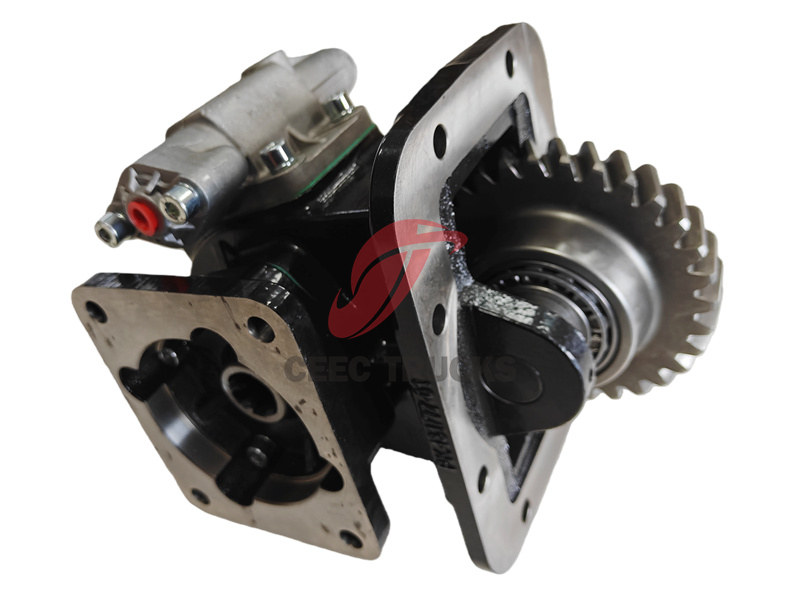

PTO assembly |
HWP35/62CHQ HWP31/77TQ FST18:34 (Flange) |
set |
1 |
|
9 |

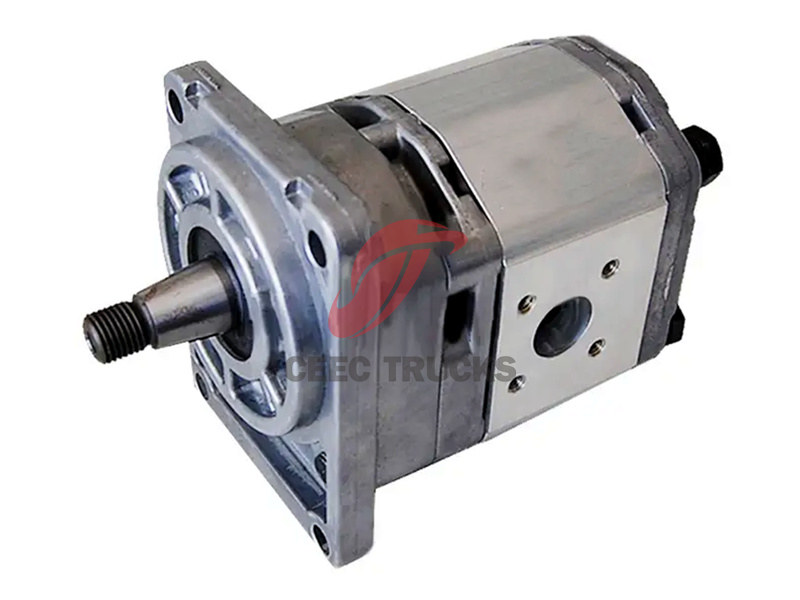

Hydraulic oil pump |
1010106 |
set |
1 |
|
10 |

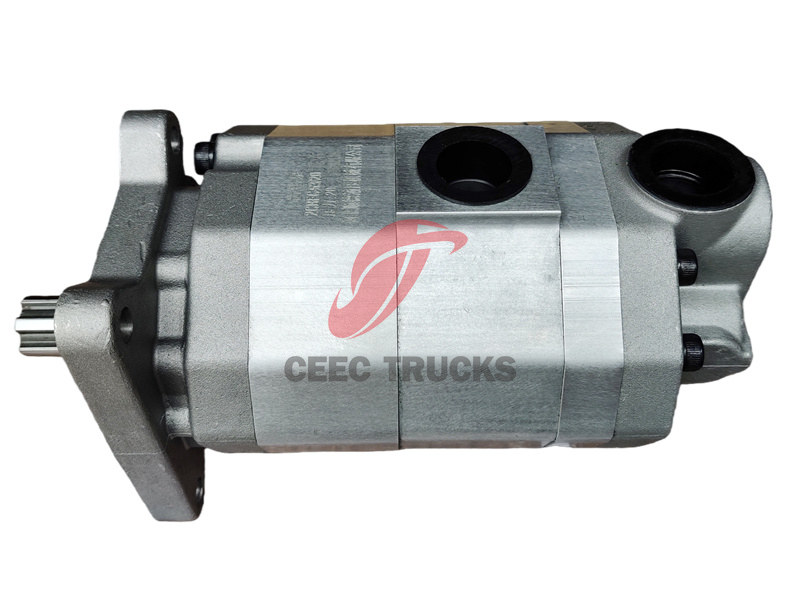

Combined hydraulic oil pump |
F532/F416 F563/F420 |
set |
1 |
|
11 |

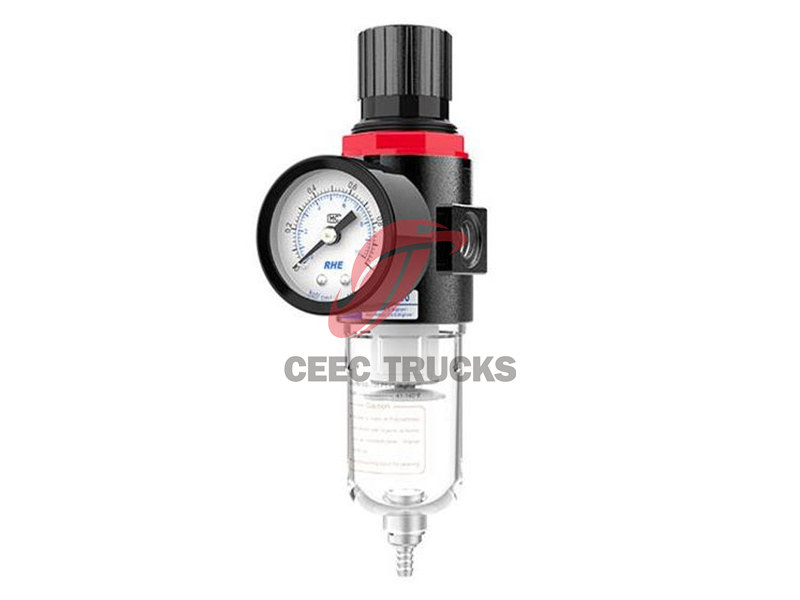

Air pipeline filter |
BMW2000 |
set |
1 |
|
12 |

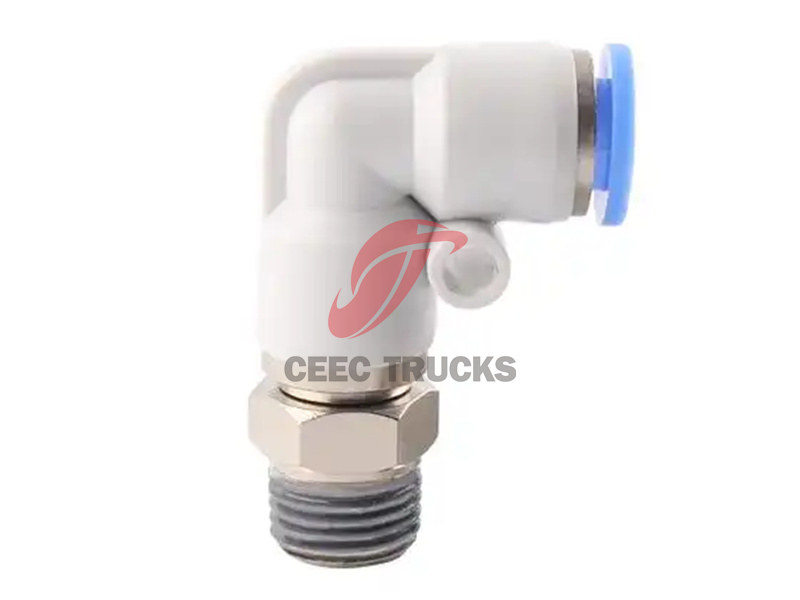

Air pipeline connector |
PL6-01 PL6/02 |
pc |
10 |
|
13 |

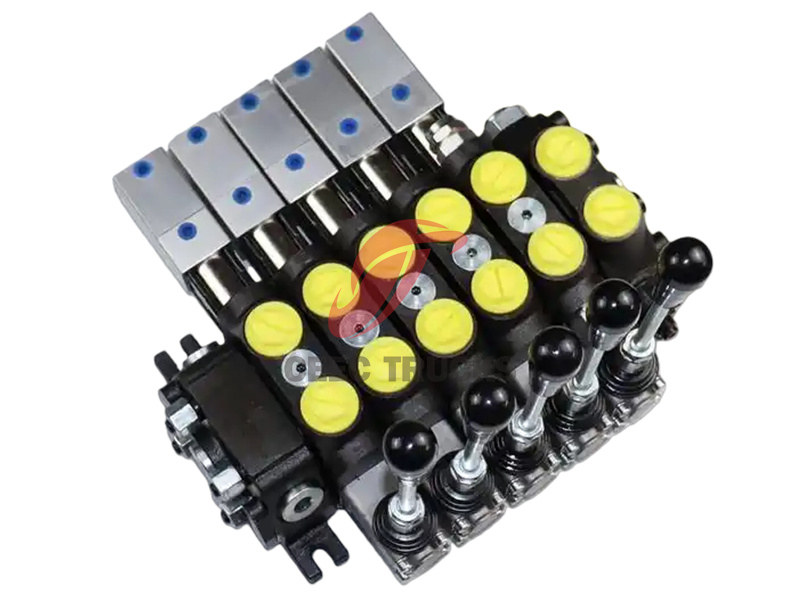

Hydraulic control valve |
QZM80M |
set |
1 |
|
14 |

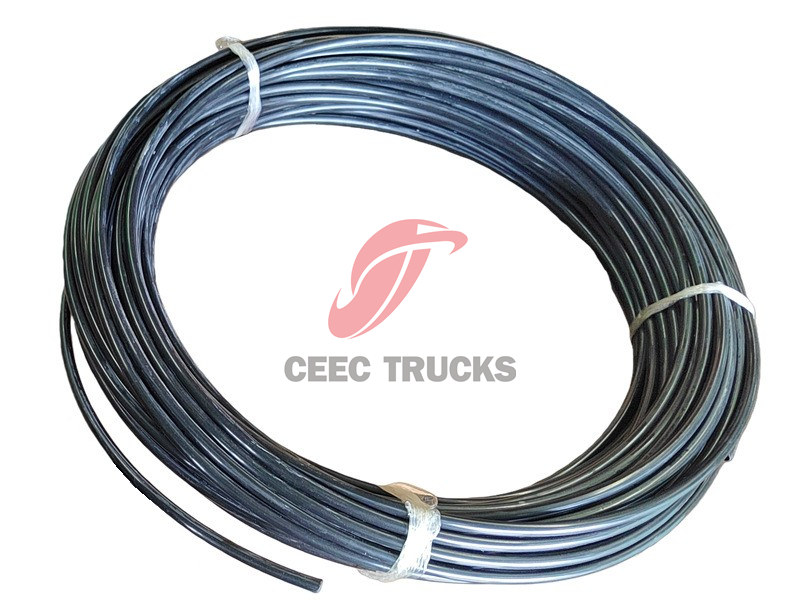

Air pipeline φ6 and φ8 |
φ6 / φ8 |
m |
20 |
|
15 |

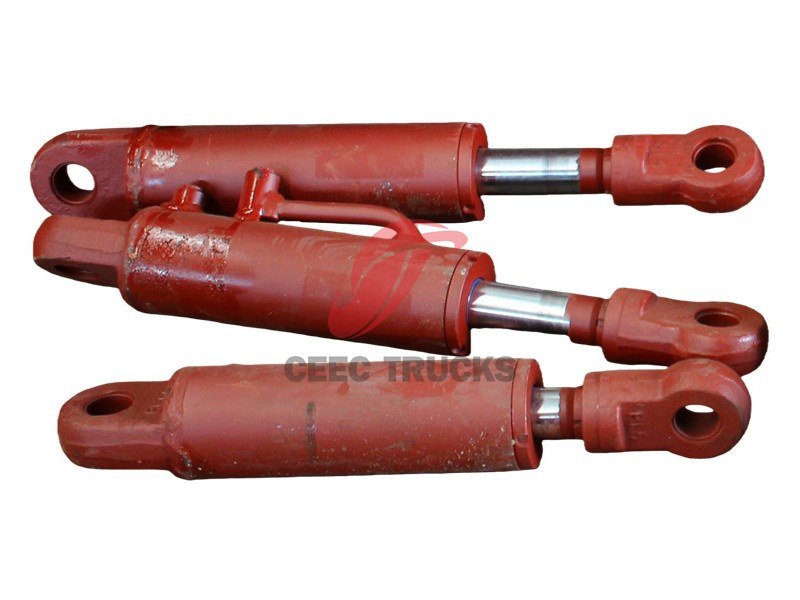

Rear tilting device hydraulic cylinder |
HYS6-14 |
Unit |
2 |
|
16 |

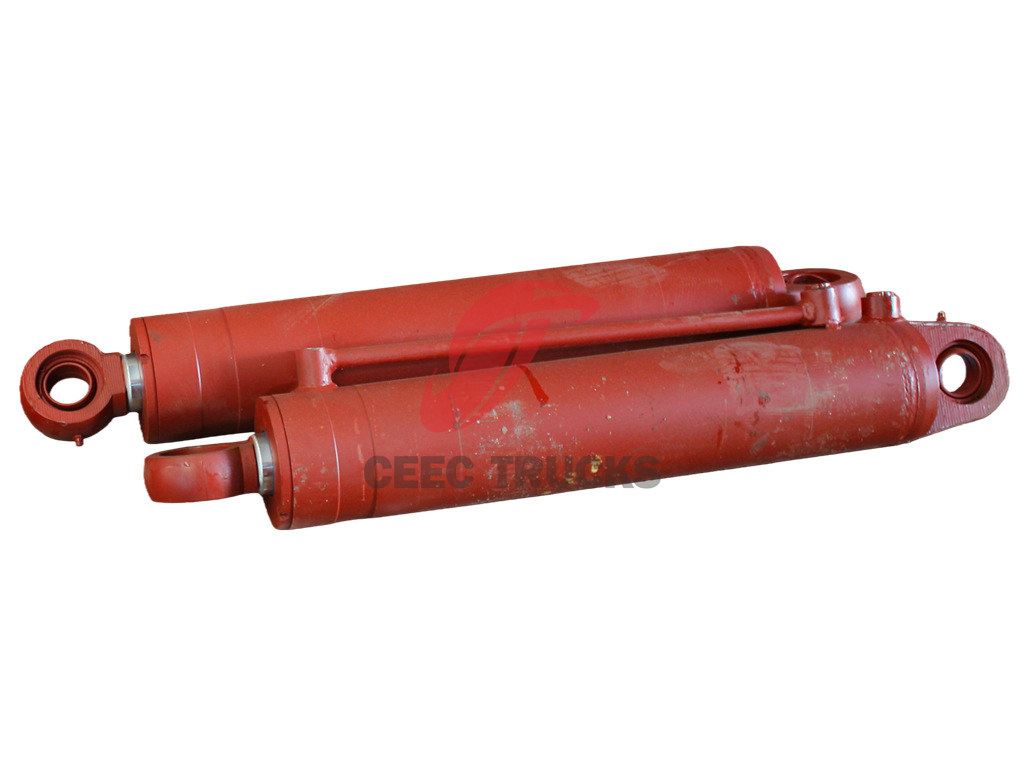

Scraper hydraulic cylinder |
HYS6-9 |
Unit |
2 |
|
17 |

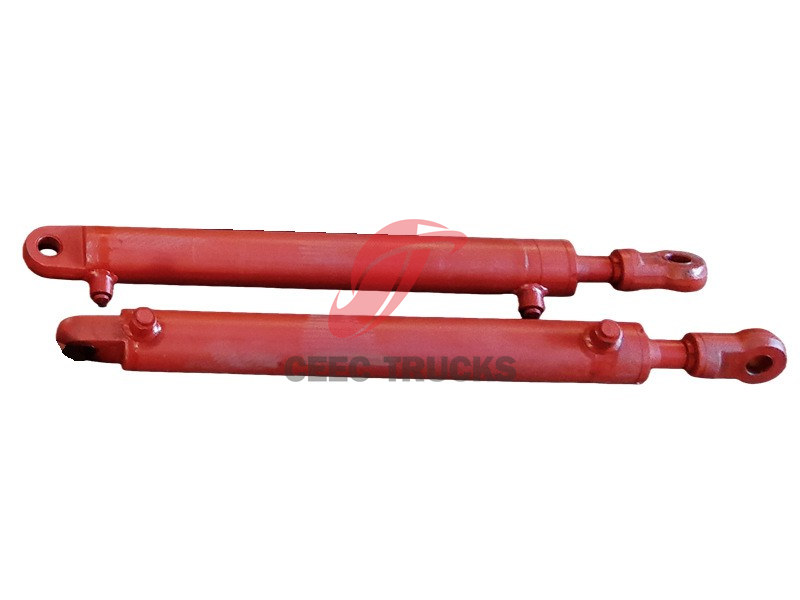

Slide plate hydraulic cylinder |
HYS6-9 |
Unit |
2 |
|
18 |

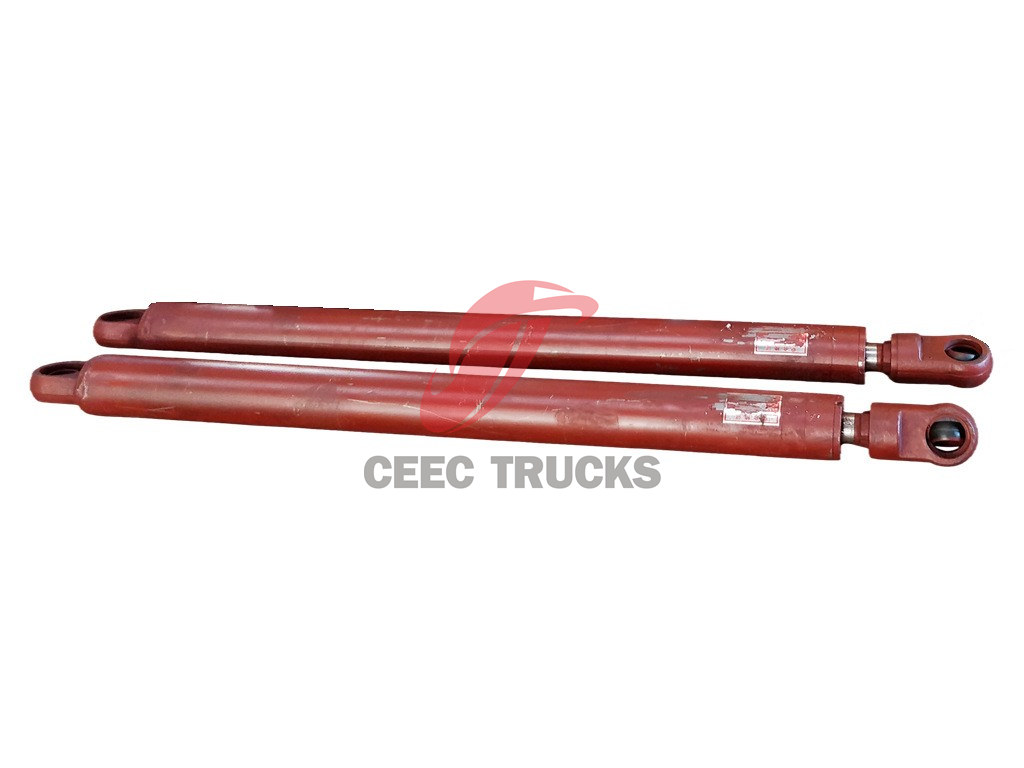

Rear hopper hydraulic cylinder |
HYS6 |
Unit |
2 |
|
19 |

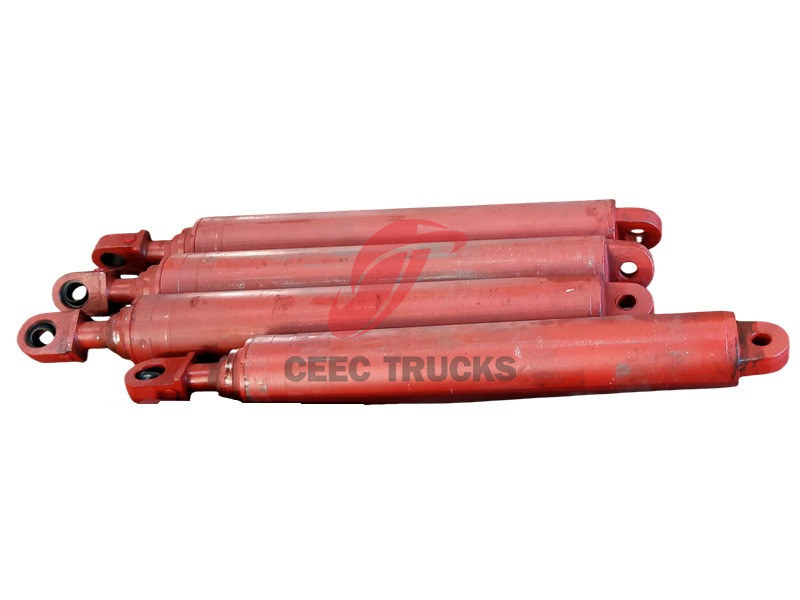

Push plate hydraulic cylinder |
HYS6 |
Unit |
1 |
|
20 |

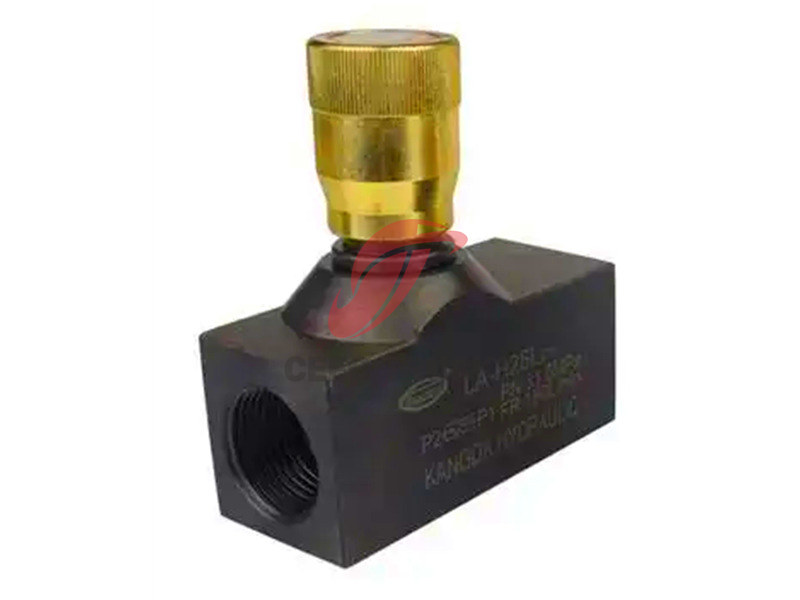

Throttle valve |
40L |
Unit |
1 |
|
21 |

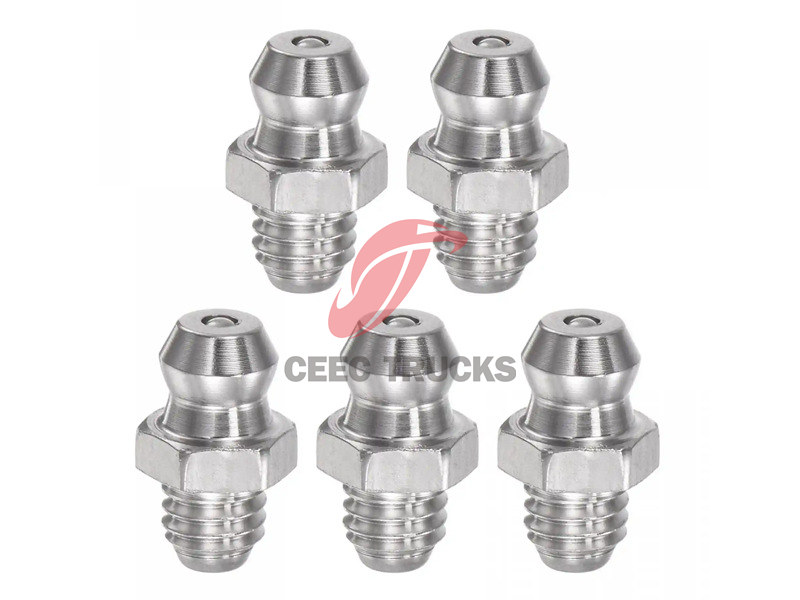

Grease fitting nozzle |
M8 / M10 |
pc |
10 |
|
22 |

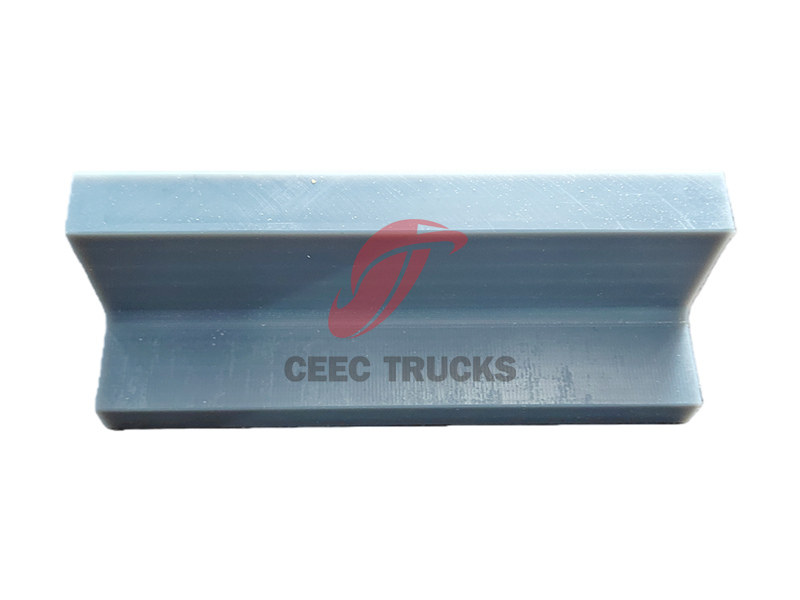

Push plate nylon slider |
|
unit |
2 |
|
23 |

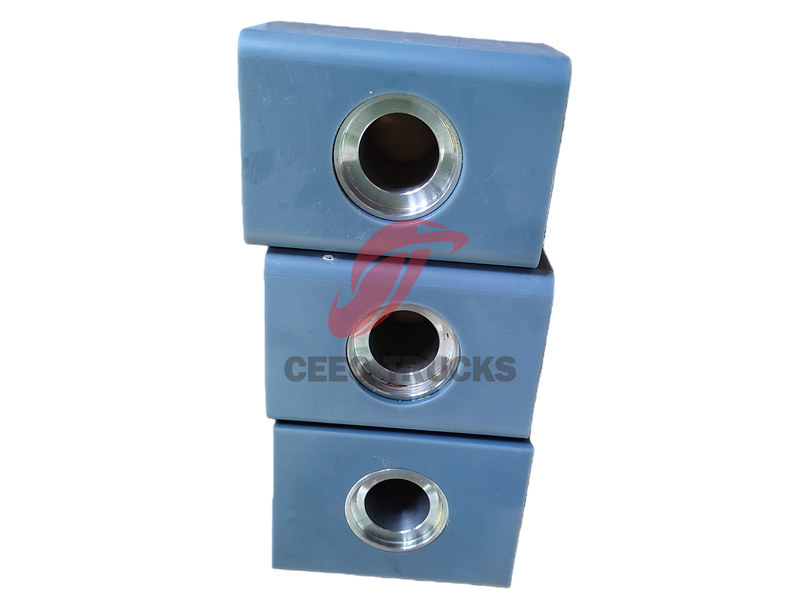

Upper smaller nylon slider |
|
unit |
2 |
|
24 |

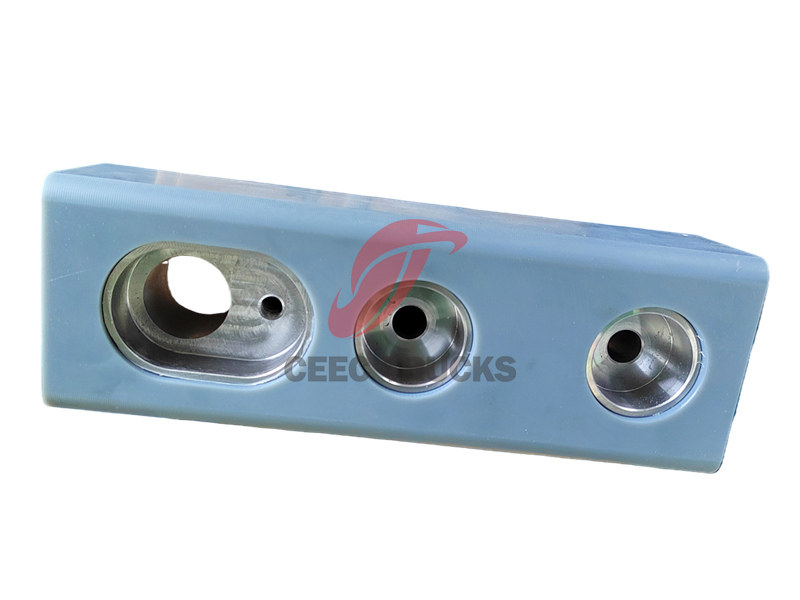

Lower big nylon slider |
|
unit |
2 |
|
25 |

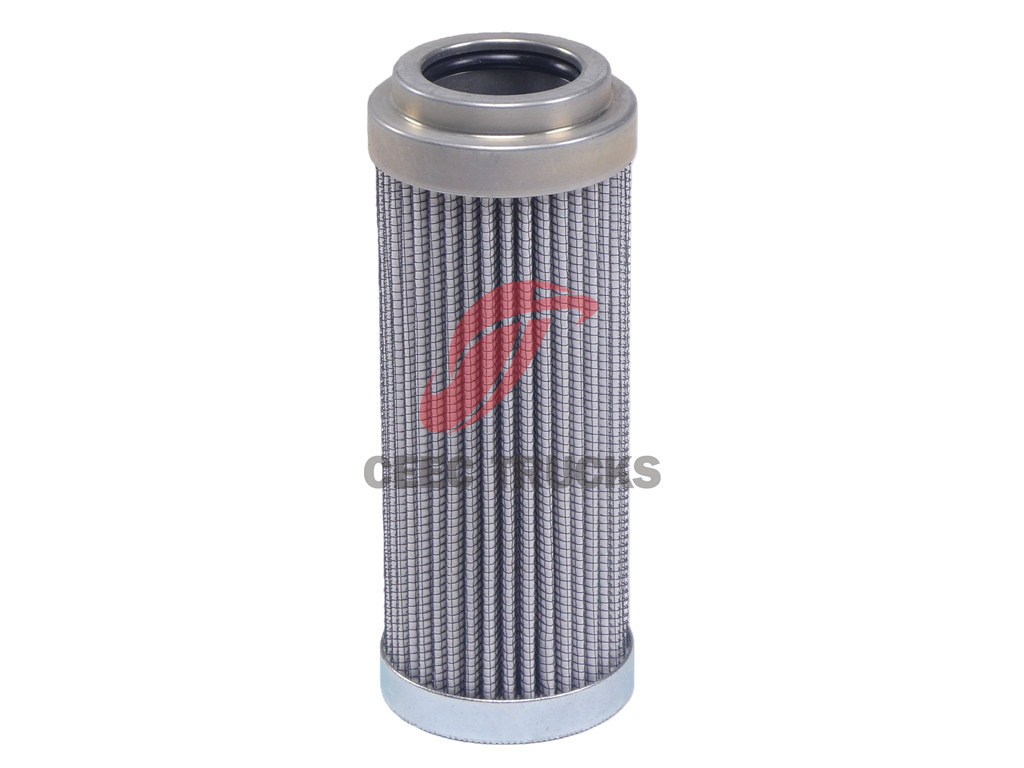

Hydraulic oil filter |
|
unit |
1 |
|
26 |

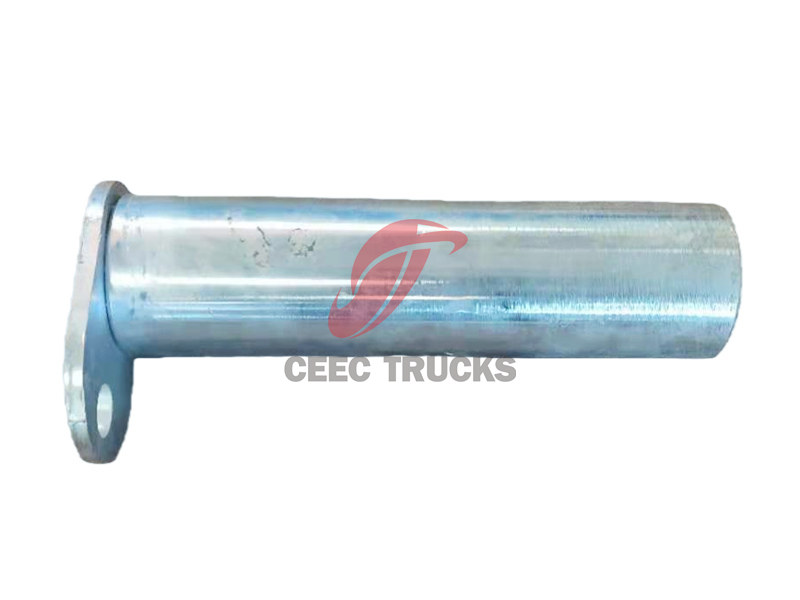

Hydraulic cylinder pin assembly |
|
pc |
9 |
