10 Tons Palfinger crane truck

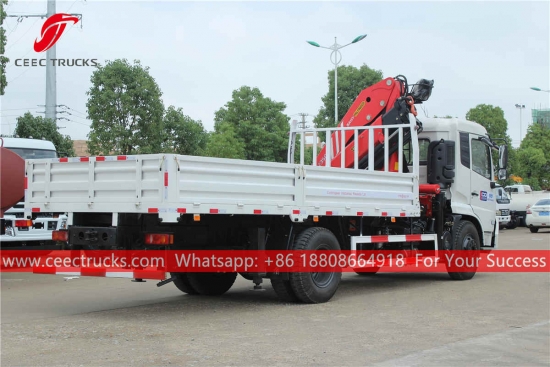

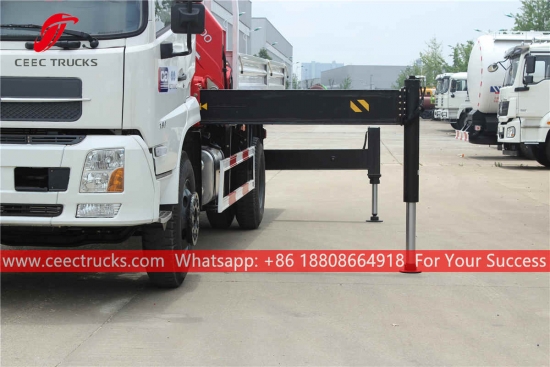

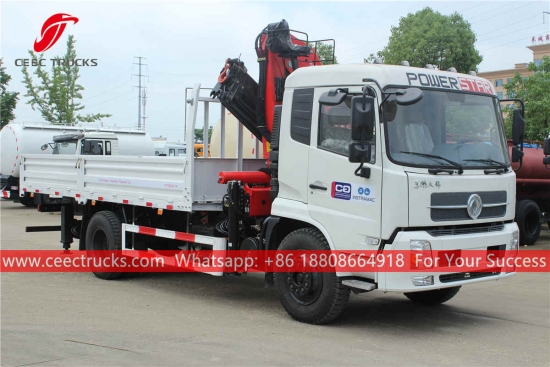

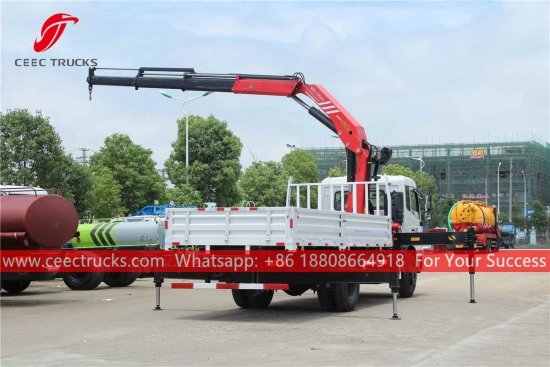

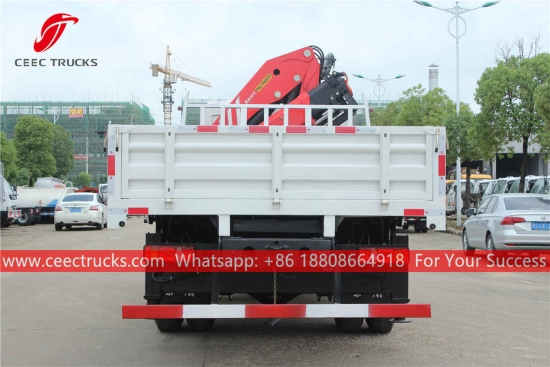

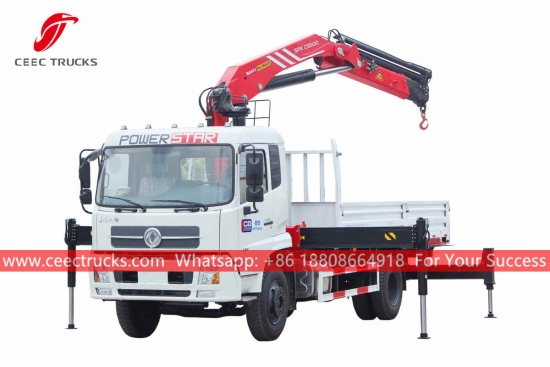

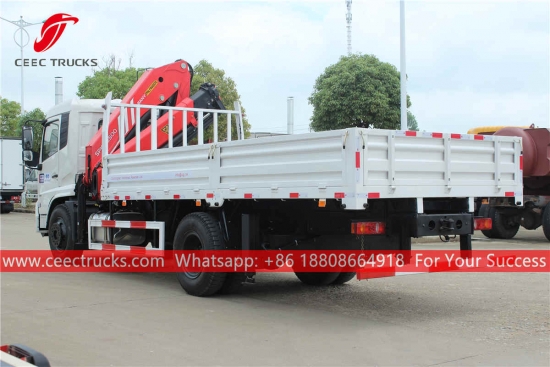

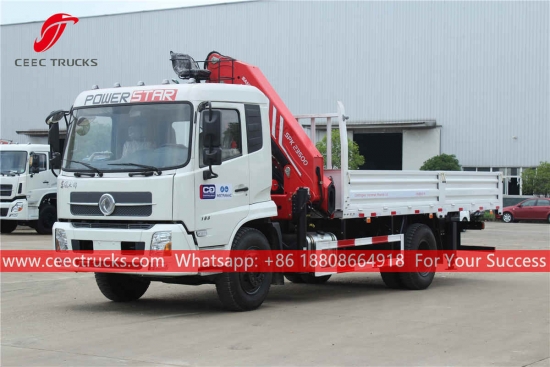

Dongfeng 10Tons Truck Mounted Crane Palfinger

10tons Boom crane cargo truck, Dongfeng 4×2 chassis, FAST 8-shift manual gearbox, CUMMINS 190HP diesel engine, cargo body dimension as optional, painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now

Palfinger knuckle boom crane



 Applications:



Dongfeng Truck Mounted Palfinger Crane (also called Palfinger boom crane, Dongfeng cargo truck with crane, Palfinger SPK23500 crane truck, truck mounted knuckle crane, Palfinger 10 tons crane truck, truck cargo with loader, Palfinger crane on truck chassis, 4×2 truck mounted crane, UNIC crane) is used to lift the cargo, load, transport and unload heavy stuff.



There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T



CEEC TRUCKS Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.



 Key Features:



---- Dongfeng chassis ensures perfect performance on driving

---- CUMMINS engine, super powerful, no overhaul within 100,000 km.

---- High strength cargo body, nice shape and rational structure.

---- Easy operation and easy maintenance.

---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.



Crane Features:

---- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.

---- Advanced development means make sure that the design is very reliable.

---- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.

---- Compact hinge point design take up smaller space

---- The work is more safety after fitted over-winds alarm equipment.

---- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.

---- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.

---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.

---- Anti-slewing impulse equipment that make vehicle running safely



 Specifications:



Palfinger 10 tons crane truck (Palfinger SPK 23500)

General

Vehicle Brand

CEEC

Chassis Brand

Dongfeng

Overall Dimension

9000 * 2500 * 3500 mm

GVW / Kerb Weight

16,000kg / 8,900kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI

Power

270 HP (198 KW)

Displacement

5900 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

4X2

Transmission

FAST 8 speed levers with 1 reverse

Wheelbase/No. of axle

5000 mm / 2

Tire Specification

10.00-20

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Cargo Box Dimension

7600*2300*600 mm

Crane Type

Palfinger 10 tons knuckle boom crane

Max Lifting Capacity

10000 kg

Slewing Angle

360° All rotation

Crane Weight

2506 kg

Installation Space

1150 mm

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual……

Optional

** Knuckle boom crane.

** Hydraulic tipper box.

** Box thickness according to requirement.

** Box height could be nominated
** Remote Control Box optional









Euro 3 or 4 type, CUMMINS engine, fuel consumption save 20%

FAST 8-shift manual mechanical transmission gearbox

12 months fast moving spare parts for FREE

Authorized crane trucks exporter

Training service for truck mounted crane.

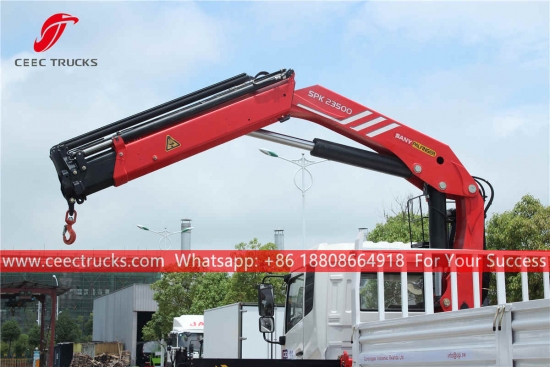

Palfinger SPK 23500 crane


Boom crane truck Dongfeng


China best truck mounted crane supplier and exporter, we supply the best quality Palfinger crane trucks. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our knuckle boom crane trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.


---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely
