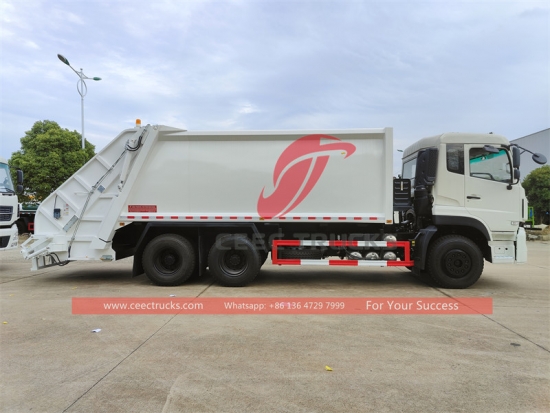

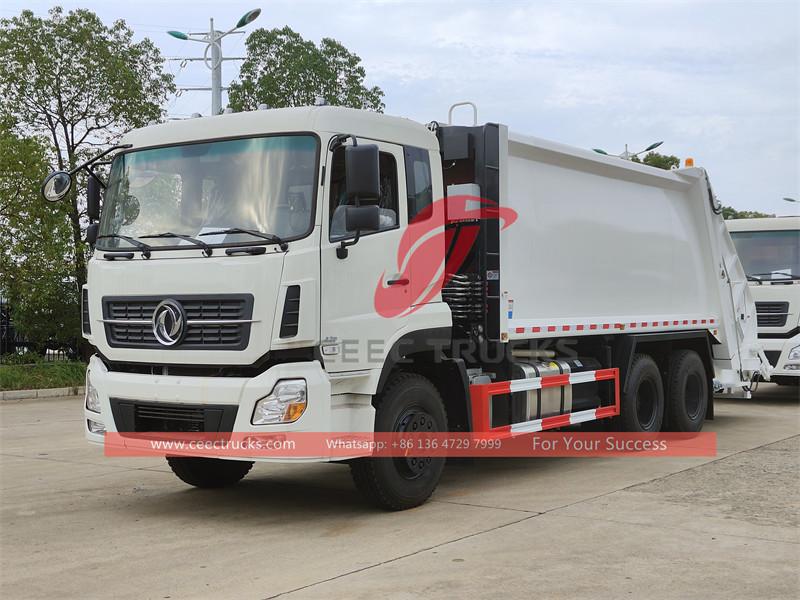

Dongfeng 6×4 25 cubic meter compressed garbage truck is a kind of municipal solid waste transfer vehicle. The vehicle has a reasonably designed appearance, strong power, large capacity, and advanced compression technology to achieve effective compression, separation, and transfer of garbage.
Product Origin:
China CEECShipping Port:
China Main PortLead Time:
20 DaysPayment:
T/T, West Union
Applications:

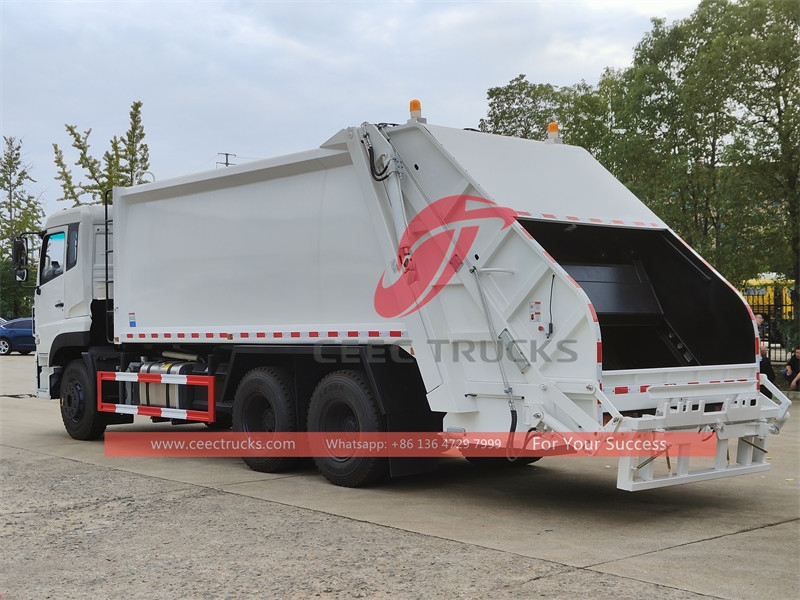

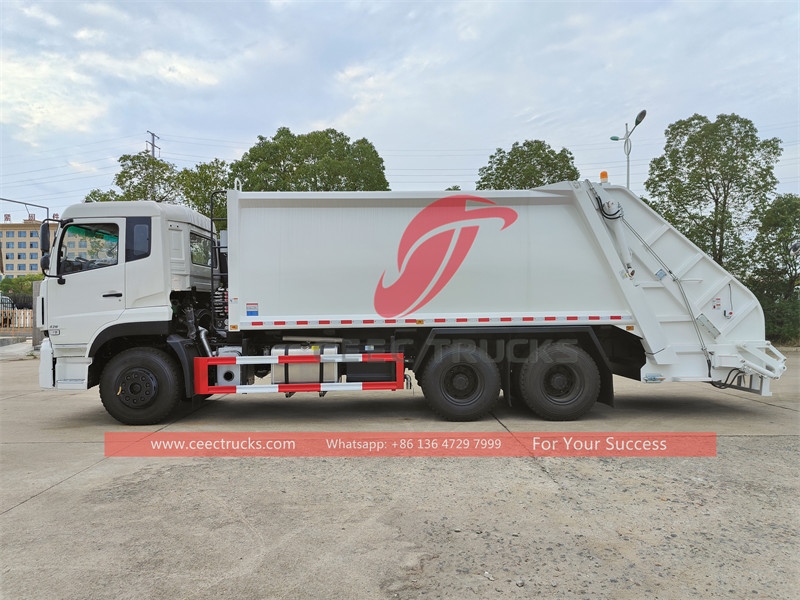

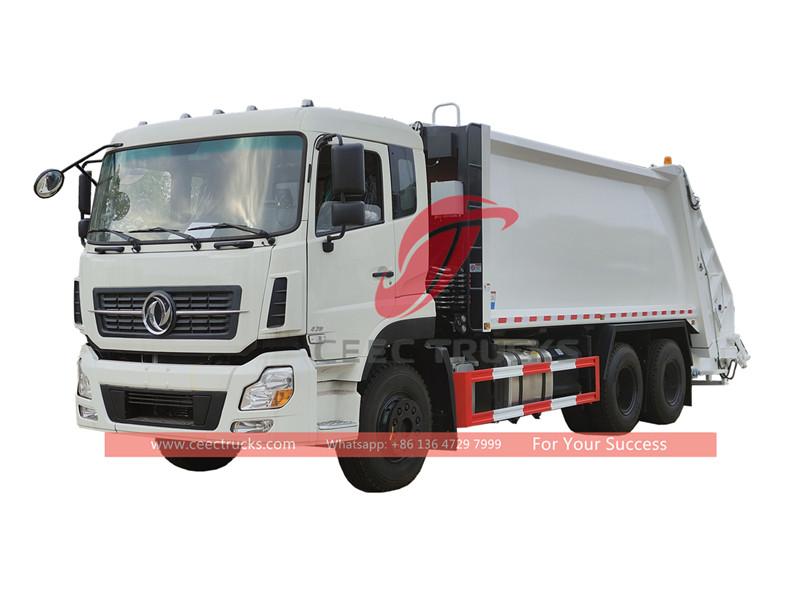

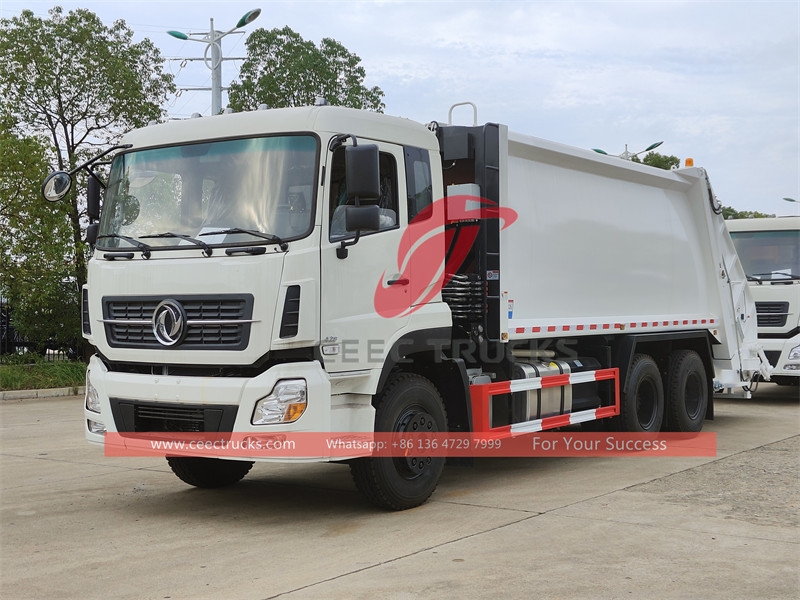

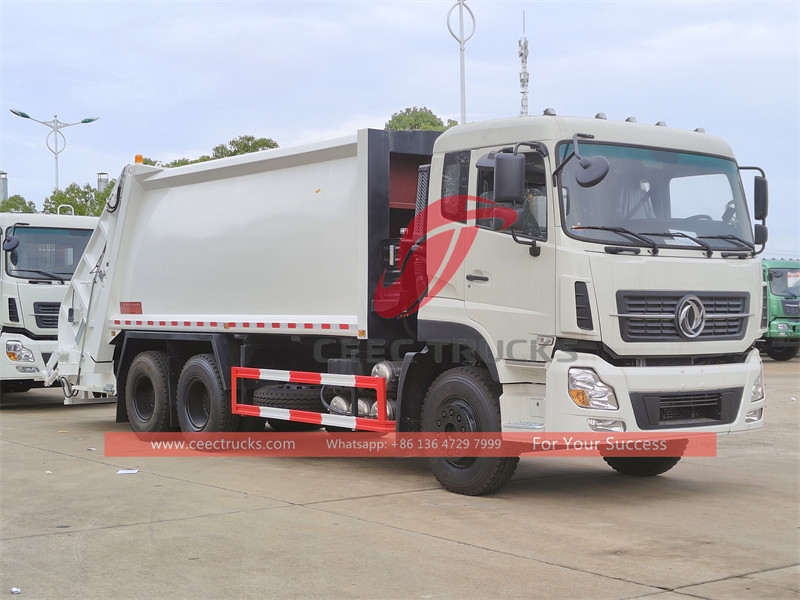

Dongfeng 25CBM rear loading garbage truck is built on Dongfeng Tianlong heavy duty chassis, is equipped with a 420-horsepower engine, and is equipped with a 25 cubic meter garbage compactor. The vehicle's curb weight is 14 tons, the gross weight is 25 tons, the maximum design speed is 90km/h, the minimum ground clearance is 250mm, the wheelbase is 4350+1350mm, and the overall vehicle dimensions are 10200×2500×3250mm.

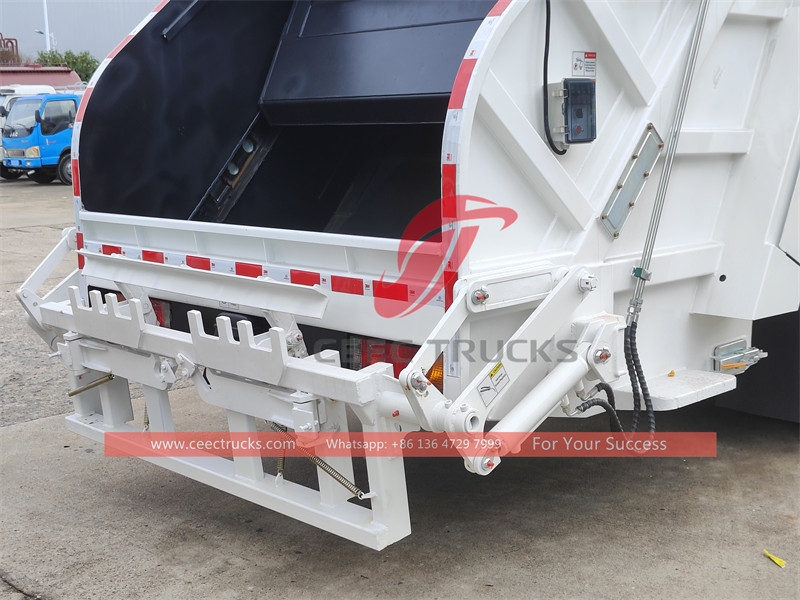

The Dongfeng refuse compression truck adopts an advanced design structure, and the body and chassis are made of high-strength steel, which has good stability and load-bearing capacity. The vehicle's compression device and storage device are located at the rear of the body. Its compact design makes the vehicle more flexible and able to adapt to various complex working conditions and road conditions.
Technical Specifications:
Product Name |
Dongfeng 25CBM Rear Load Garbage Truck |
Condition |
Brand New |
Steering |
Left/Right Hand Drive |
Drive Type |
6x4 |
Brand Name |
Dongfeng |
Engine Brand |
YUCHAI |
Engine Model |
YC6MK420-33 |
Horsepower |
420 hp |
Emission Standard |
Euro 3 |
Fuel Type |
Diesel |
Engine Capacity |
10.3 L |
Cylinders |
6 |
Maximum Torque(Nm) |
1900Nm |
Gear Box Brand |
FAST |
Gear Box Model |
10JSD120 |
Transmission Type |
Manual |
Forward Shift Number |
10 |
Reverse Shift Number |
2 |
Size |
10200*2500*3250mm |
Gross Vehicle Weight |
25000 kg |
Fuel Tank Material |
Aluminium alloy |
Fuel Tank Capacity |
400L |
Approach Angle |
30° |
Departure Angle |
28° |
Driving Cab Roof |
Flat |
Passengers |
3 |
Driver's Seat |
Standard |
ABS(Antilock Braking System) |
Yes |
Sunroof |
Standard |
Seats Material |
Fabric |
CD+MP3+Bluetooth |
Yes |
Window |
Automatic |
Air Conditioner |
Automatic |
Tire Number |
11 |
Front axle |
6500 KG |
Drive axle |
13000 KG×2 |
Tire |
11.00R20 |
Compactor body volume |
25 CBM |
Compactor body shape |
Arc-shaped |
Body material |
T420 high strength special steel |
Compression ratio |
≥2.5 |
Control system |
CAN-bus |
(Best price Dongfeng back loading refuse collection truck 25CBM)
Dongfeng 10 wheeler 25CBM waste compactor truck has extensive application value in garbage removal and processing work due to its advantages in appearance design, excellent vehicle performance, storage capacity, compression device, ease of operation, safety and environmental protection. It can not only improve work efficiency and reduce transportation costs, but also reduce environmental pollution and contribute to urban waste disposal.

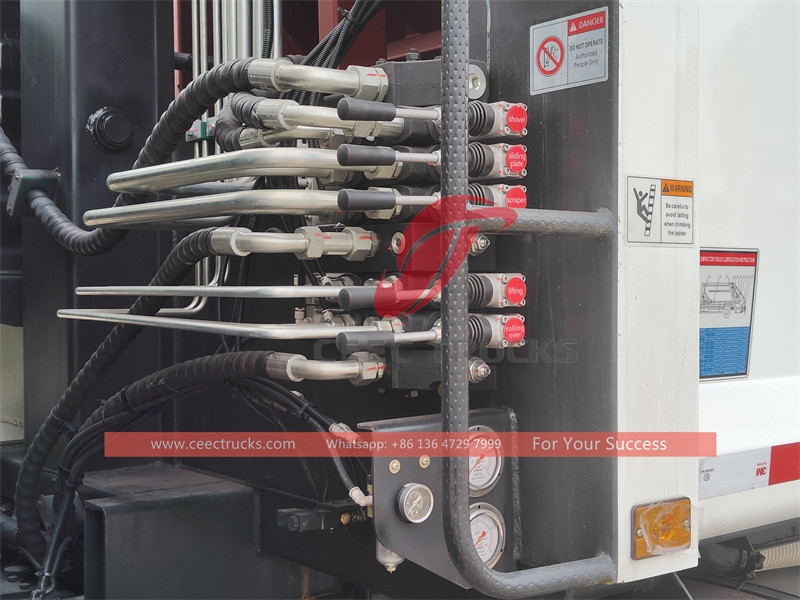

The main performance features of the vehicle include compression device, compression device and control system. The vehicle is equipped with an efficient compression device that can effectively compress garbage. Through this compression technology, the volume of garbage can be reduced to about 1/3 of its original size, thereby increasing the load-carrying capacity of the garbage, reducing the number of transportation times, and saving time and costs.
