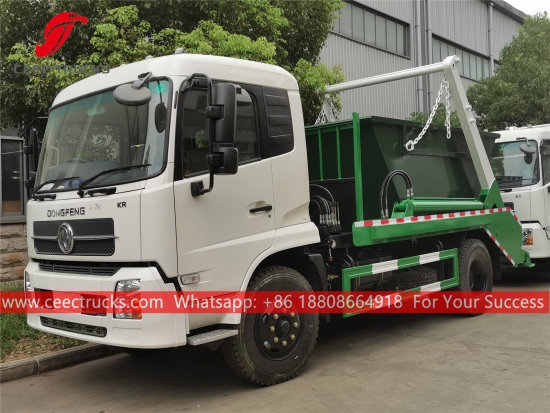

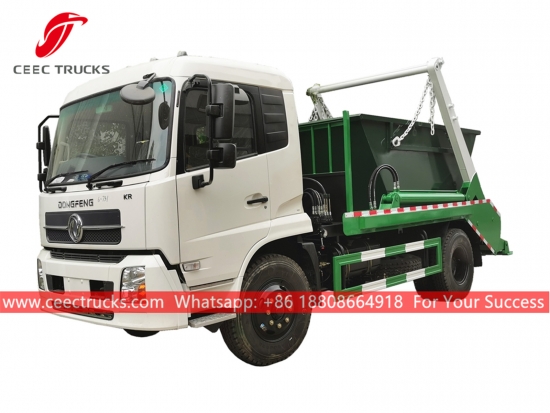

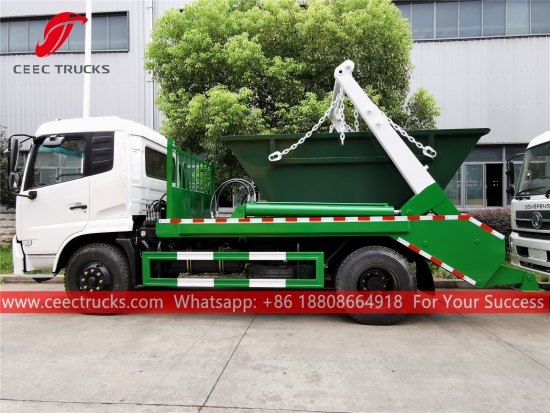

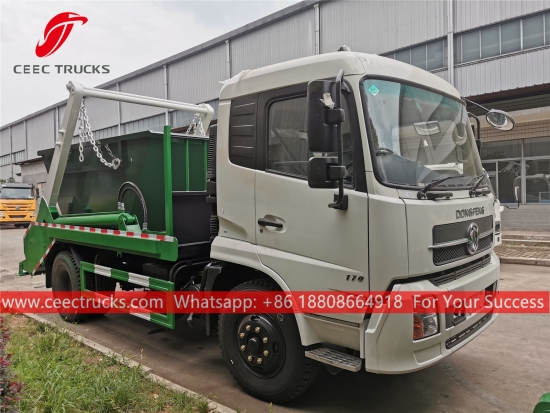

Dongfeng RHD Swing arm refuse truck

Dongfeng 8cbm skip loader garbage collection truck, 4x2 RHD chassis, manual 6-shift manual gearbox, CUMMINS 180HP diesel engine, high strength steel swing arm system, Hydraulic control device and Electric control box optional. All painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $17,000-26,000
contact now



 Applications:



Dongfeng RHD Skip loader garbage truck  (als called RHD skip loader, Dongfeng swing arm garbage collector truck, hydraulic swing arm waste truck with container, RHD arm roll garbage truck, garbage collection truck, Dongfeng skip bin loader) is widely used in sanitation & municipal, industrial enterprises and residential area. The truck has several garbage tanks to avoid pollution during transporting process. The modified part can be separated from chassis, so it is easy to maintain and the mobility & readability of the truck are kept. If you have special demand of garbage truck, please contact with us. We may design and modify it for you. We also can add power steering and A/C for you



CEEC TRUCKS Swing arm garbage truck is a garbage truck with detachable body container, which could enable one truck with several garbage containers for recycle use.



 Key Features:



---- Dongfeng chassis, perfect performance

---- CUMMINS engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Garbage container capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Various types of refuse container lifter are available.



 Specifications:



Dongfeng RHD Skip loader refuse truck (8 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Dongfeng

Overall Dimension

8200 * 2500 * 3350 mm

GVW / Kerb Weight

15,800kg / 6,905kg

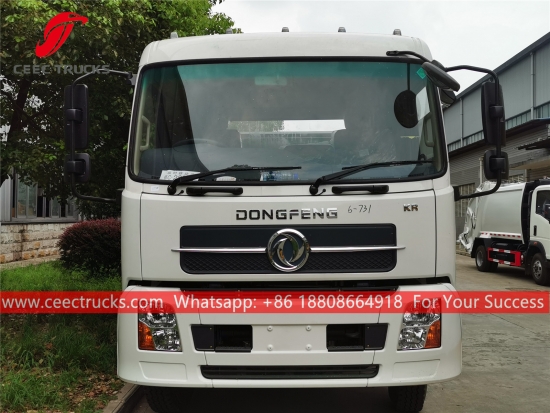

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

CUMMINS

Power

180 HP (132 KW)

Displacement

4500 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

4X2, (right  hand drive)

Transmission

Manual 6 speed levers with 1 reverse

Wheelbase/No. of axle

4500 mm / 2

Tire Specification

9.00R20

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

8 cbm

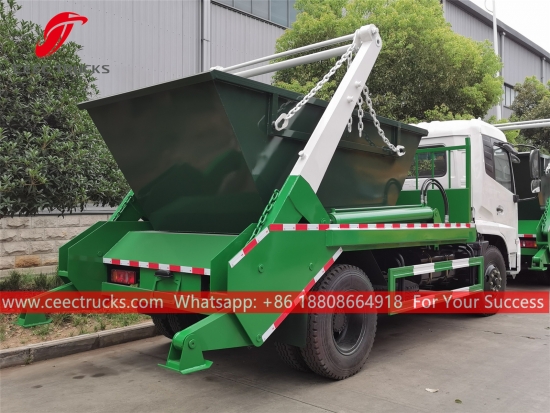

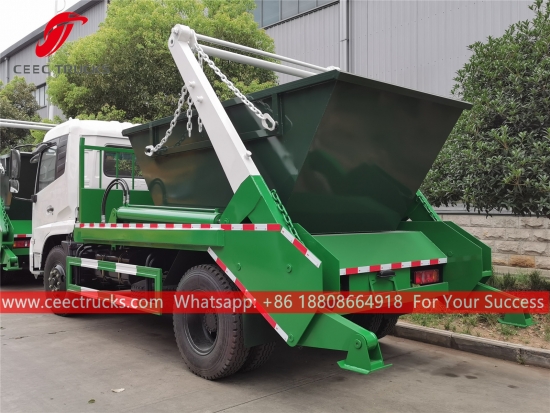

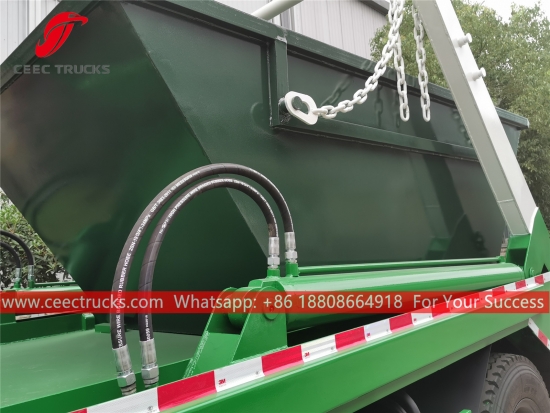

Lifting device

Two swing arm lifting system

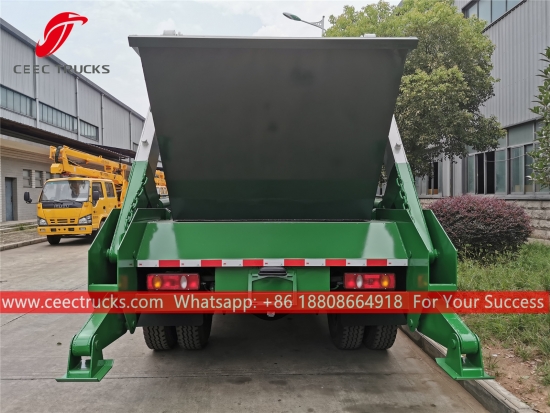

Rear legs

Two hydraulic rear legs for support

Lifting cycle time

 20~25 s

Match model

One truck match with several containers

Control system

Electrically Hydraulic control

Manual hydraulic control

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual……

Optional

** Container material could be stainless steel.

** A sealed cover for the container.

** A truck with several containers.



20 units RHD swing arm refuse trucks for Tanzania

(20 units roll off trash trucks are ready to ship to Tanzania)


Key words: Roll off Container Garbage Truck, skip truck for garbage collection, arm roll refuse truck

Dongfeng chassis, perfect performance

Euro 3 or 4 type, CUMMINS engine, super powerful

Garbage container capacity from 3 to 20 Cublic Meter.

12 months fast moving spare parts for FREE

Authorized Dongfeng skip loader garbage trucks exporter

Training service for Dongfeng swing arm refuse collection trucks



CEEC TRUCKS is a leading exporter of Dongfeng arm roll garbage trucks in China. We possess over 10-year export experience of swing arm waste collection trucks. We can ensure the fast delivery time and 12 months guarantee for our garbage trucks. Our skip loader refuse vehicles are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
