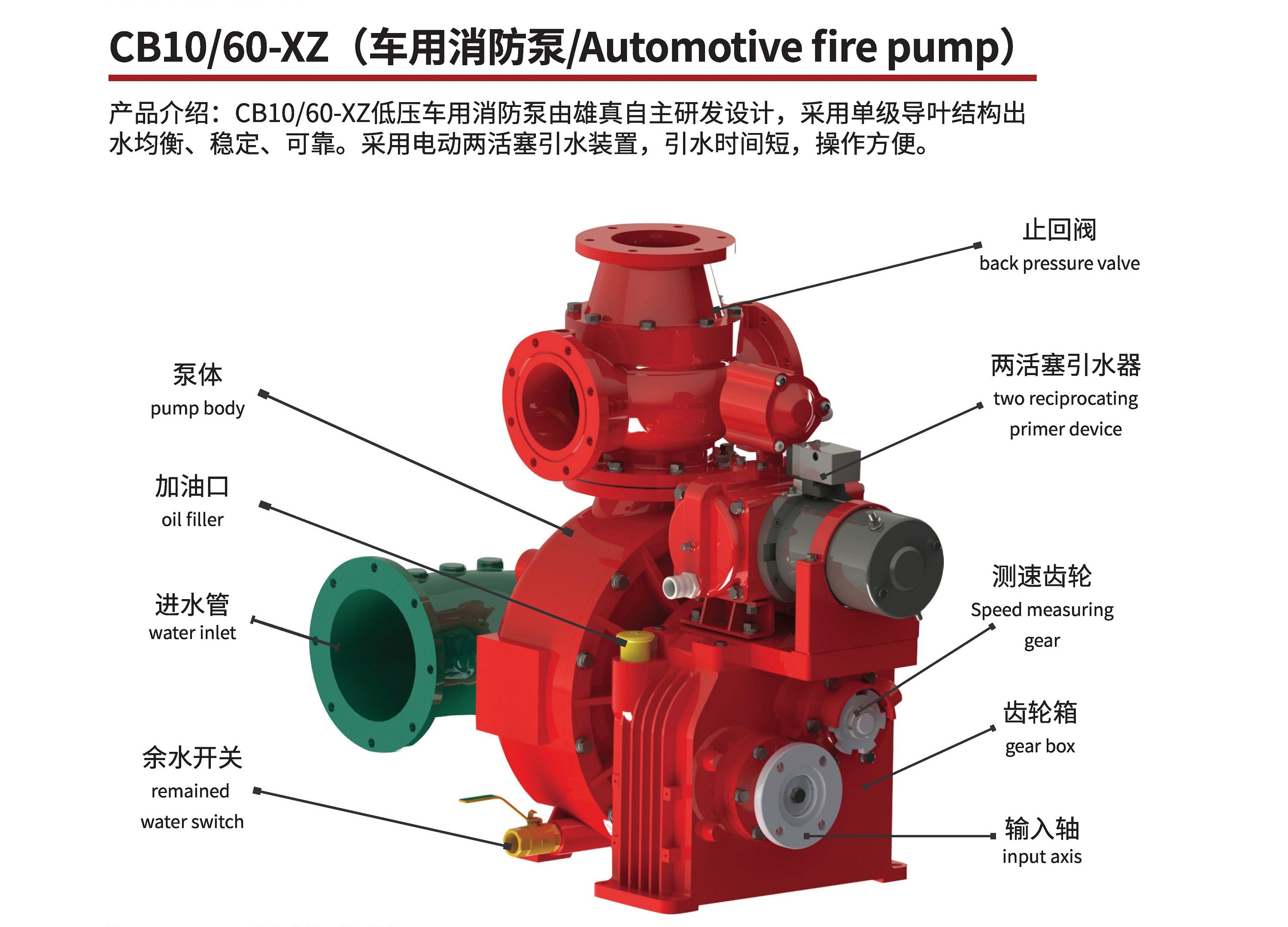

Fire Fighting Truck Fire pump CB10/60-XZ is a low-pressure vehicle-mounted fire pump produced by CEEC TRUCKS, specifically designed to meet various types of fire trucks. It is primarily used for urban and rural fire suppression, emergency water supply, and rescue operations, compatible with main urban fire trucks, industrial park fire trucks, warehouse, and high-rise building water supply fire trucks. The pump efficiently delivers clean water and foam mixtures, meeting a high flow rate of 60L/s and a rated pressure of 1.0MPa, enabling long-distance water delivery and high-rise pressure boosting. It covers applications in building fires, oil fires, municipal emergency response, and wilderness rescue.
PDF Download: Fire Fighting Truck Fire pump CB10/60-XZ Owner manual
|
Parameter Item
|
Specification
|
|---|---|
|
Model
|
CB10/60-XZ
|
|
Type
|
Low-pressure vehicle-mounted fire pump
|
|
Manufacturer
|
CEEC TRUCKS
|
|
Rated Flow
|
60L/s
|
|
Rated Pressure
|
1.0MPa
|
|
Suction Depth
|
Up to 3m
|
|
Structure
|
Single-stage centrifugal/guide vane structure
|
|
Pump Body Material
|
Aluminum alloy
|
|
Impeller Material
|
Stainless steel or copper
|
|
Weight
|
About 111kg
|
|
Priming Device
|
Double-piston oil-free priming device (automatically disconnectable)
|
|
Mechanical Seal Pressure
|
0–4.0MPa
|
|
Compliance Standard
|
GB6245 (passed type inspection)
|
|
Parameter Model |
Inlet (mm） |
Outlet （mm） |
Maximum vacuum （KPa） |
Vacuum rate within 1 min （KPa） |
7m suction time （S） |
|||||
|
Low pressure |
Medium pressure |
|||||||||
|
Low pressure Fire Pump |
CB10/20-XZ |
φ100 |
φ65 |
|
≥85 |
＜2.6 |
25 |
|||
|
CB10/30-XZ |
φ100 |
φ80 |
|
≥85 |
＜2.6 |
25 |
||||
|
CB10/40-XZ |
φ125 |
φ80 |
|
≥85 |
＜2.6 |
25 |
||||
|
CB10/60-XZ |
φ150 |
φ100 |
|
≥85 |
＜2.6 |
43.6 |
||||
|
CB10/80-XZ |
φ150 |
φ100 |
|
≥85 |
＜2.6 |
45 |
||||
|
Name |
Model |
Work |
Flow rate (L/S) |
Outlet pressure (Mpa) |
Rated speed (r/min) |
Power (KW) |
Suction depth (m) |
|
Low pressure fire pump |
CB10/20- XZ |
1 |
20 |
1.00 |
3070±50 |
34.29 |
3 |
|
2 |
14 |
1.30 |
3380±50 |
35.36 |
3 |
||
|
3 |
10 |
1.00 |
3115±50 |
27.42 |
7 |
||
|
Low pressure fire pump |
CB10/30- XZ |
1 |
30 |
1.00 |
3010±50 |
50.00 |
3 |
|
2 |
21 |
1.30 |
3340±50 |
55.20 |
3 |
||
|
3 |
15 |
1.00 |
3000±50 |
38.60 |
7 |

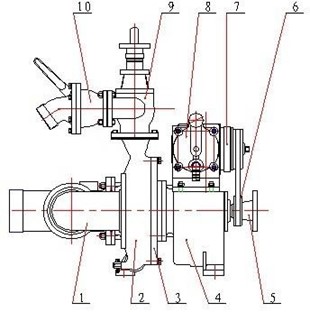

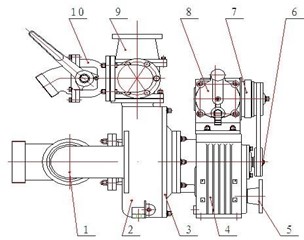

Picture 1 Low pressure fire pump outside drawing
1 Inlet three-way Valve
2 Shell
3 Rear cover
4 Gearbox
5 Shaft coupling flange
6 belt wheel
7 Electromagnetic clutch
8 Piston primer pump
9 Back-pressure valve
10 Outlet ball valve
|
Low pressure fire pump |
CB10/40-XZ |
1 |
40 |
1.00 |
3080±50 |
62.92 |
3 |
|
2 |
28 |
1.30 |
3360±50 |
63.92 |
3 |
||
|
3 |
20 |
1.00 |
2990±50 |
41.95 |
7 |
||
|
Low pressure fire pump |
CB10/60-XZ （1:1.346） |
1 |
60 |
1.00 |
3200±50 |
97.72 |
3 |
|
2 |
42 |
1.30 |
3475±50 |
105.76 |
3 |
||
|
3 |
30 |
1.00 |
3130±50 |
72.75 |
7 |
||
|
Low pressure fire pump |
CB10/80-XZ (1:1.44) |
1 |
80 |
1.00 |
3400±50 |
137.60 |
3 |
|
2 |
56 |
1.30 |
3500±50 |
127.11 |
3 |
||
|
3 |
40 |
1.00 |
3130±50 |
83.75 |
7 |
