Foton Auman 20,000 liters water hauling tanker is an important equipment for urban water supply and emergency rescue. Its core function is to transport water from one place to another efficiently and safely. It is equipped with a large-capacity sealed tank body, which can effectively prevent water from leaking or being contaminated during transportation. Foton Auman water hauling tanker has a flexible design and can be equipped with a spraying device according to needs. It is suitable for a variety of scenarios such as urban cleaning, green irrigation, construction site dust reduction, agricultural drought resistance and emergency water supply.

● China best water hauling tanker factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service

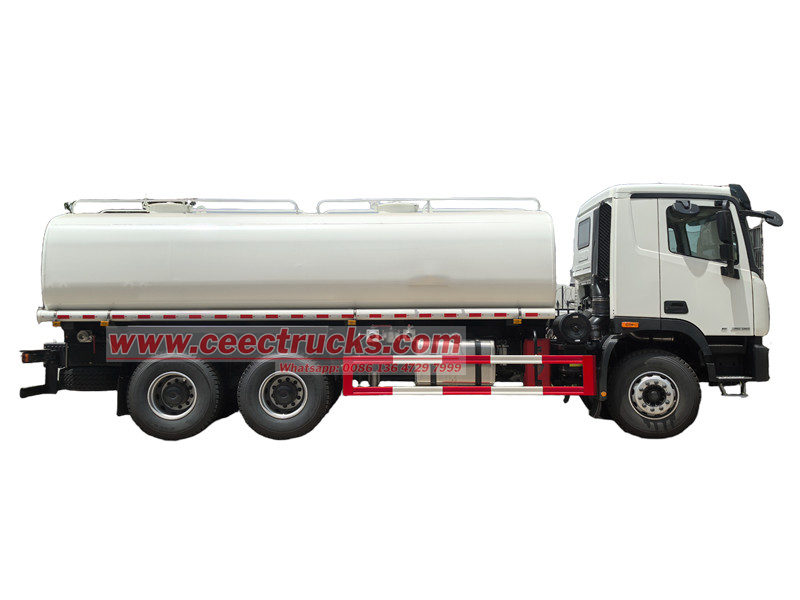

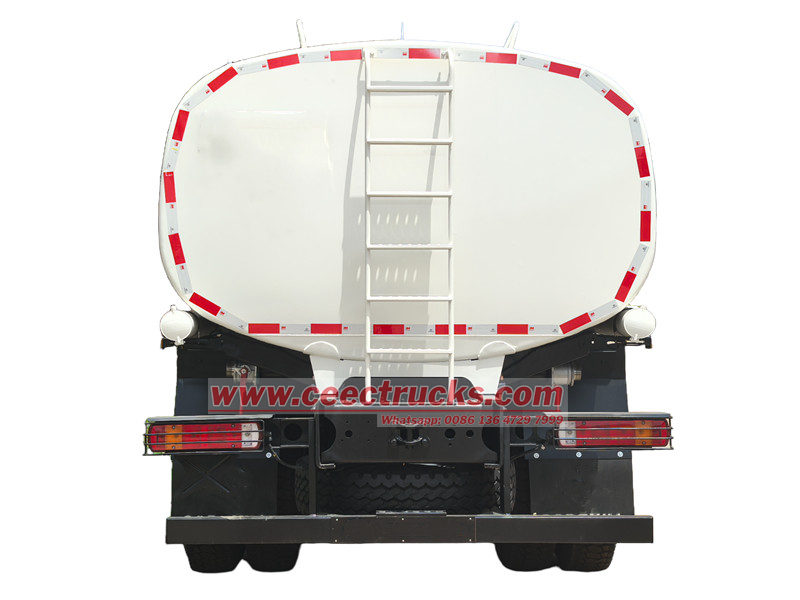

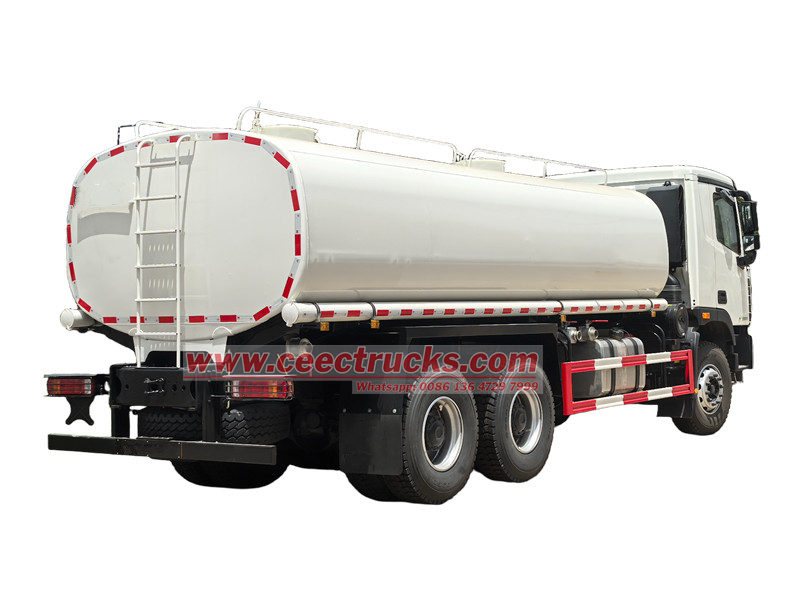

*Foton Auman 20,000 liters water hauling tanker

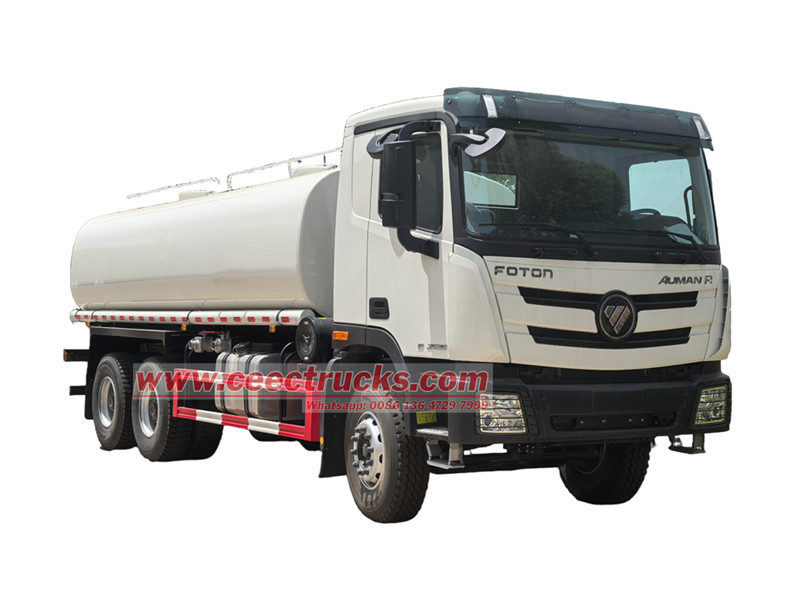

    FOTON 6x4 potable water truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

Truck Chassis: Foton Auman truck chassis, 6x4,  8x4 model

                          ISGe3-350 model with 350HP and emission 10500cc.

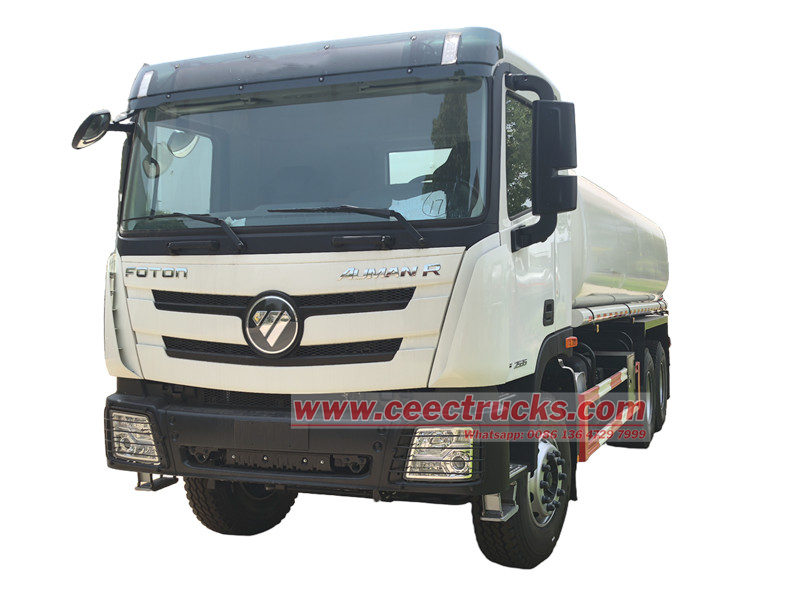

Foton Auman 20,000 liters water hauling tanker (also called Foton potable water truck, Foton water tanker truck, Foton drinking water transport truck, Foton water carrying truck) is used to transport and supply water, whatever industrial or agriculture water. With non-toxic treatment inside tank or tank made of stainless steel.

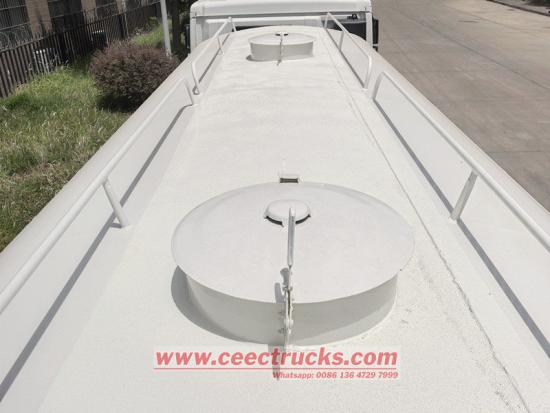

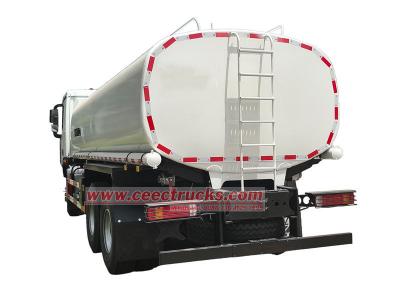

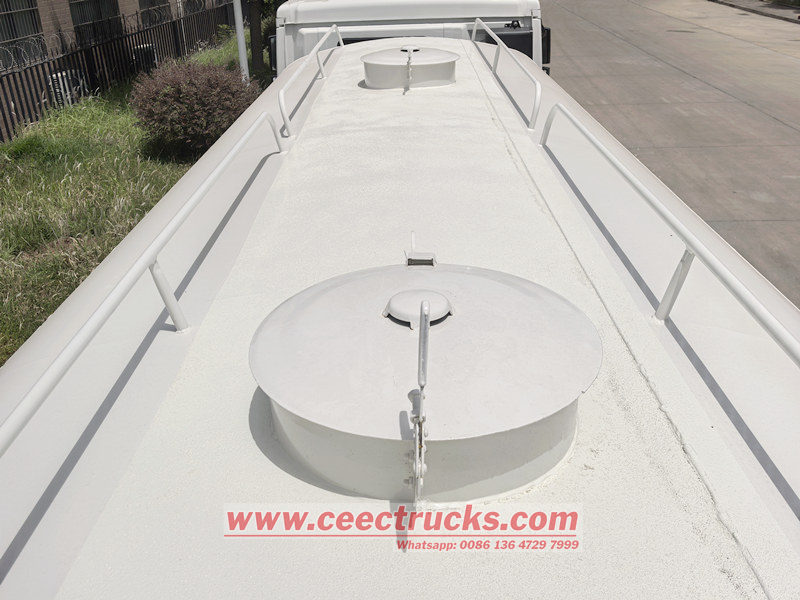

The upper body is an ellipse carbon steel water tank with a capacity of 20cbm, equipped with a WEILONG 80QZF-60/90S pump, pipeline storage boxes on both sides.In addition, the vehicle also has three optional spraying modes: front water nozzle, rear water nozzle, and water cannon spray monitoring, which can meet various watering operation needs.

When the Foton Auman 20,000 liters water hauling tanker is working, it relies on the car engine to provide power, and transmits the power to the water pump through the power take-off.

●When filling water, the water pump runs to generate suction, and the water inlet valve of the tank is opened, and water is sucked into the tank from the external water source through the pipeline, and the liquid level sensor feedbacks the water level in real time.

●During transportation, the tank is sealed to prevent water leakage.

●When unloading water, the water pump is started again, and the water outlet valve is opened. Under the pressure of the pump, the water is transported from the tank to the spraying device or the designated location through the pipeline. By adjusting the water pump speed and valve opening, the water flow size and spraying range can also be controlled to meet different operation requirements.

» Ⅱ.Product Parameter for Foton Auman 20,000 liters water hauling tanker：





Foton Auman 20,000 liters water hauling tanker
Driving Type	6×4,left hand drive
Color	White,blue,color can choose
Engine
Engine model	ISGe3-350
Horsepower	350HP
Max. output (kw)	257Kw
Displacement(L)	10.5L
Drive Line
Transmission	HW19710 10-speed gearbox, manual operation
Steering	Power steering
Brake	Air brake
Tire specification
Tire specification	12.00R20 standard tire,10 tires+1 spare tire
Water truck
Tank volume	20cbm
Water tanker material	High quality carbon steel, Ellipse tank, Optional stainless steel
Introduction	1. Suction≥7m

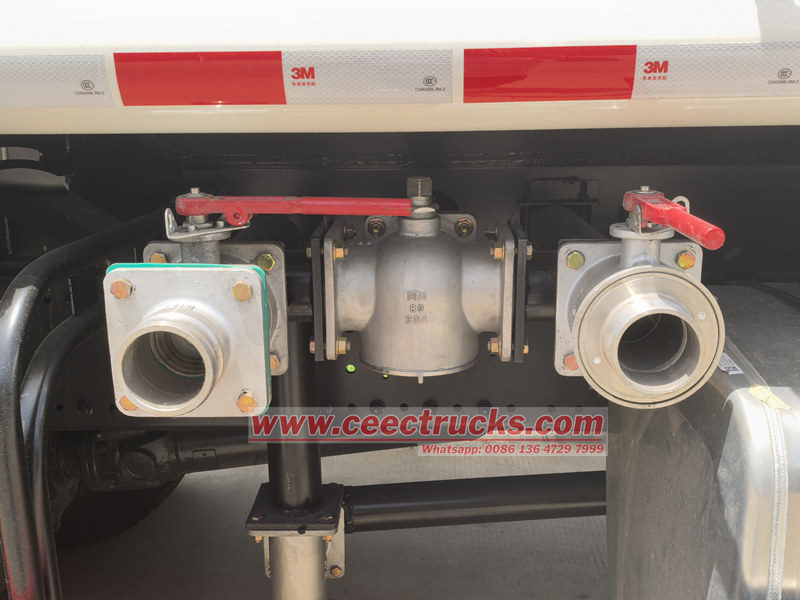

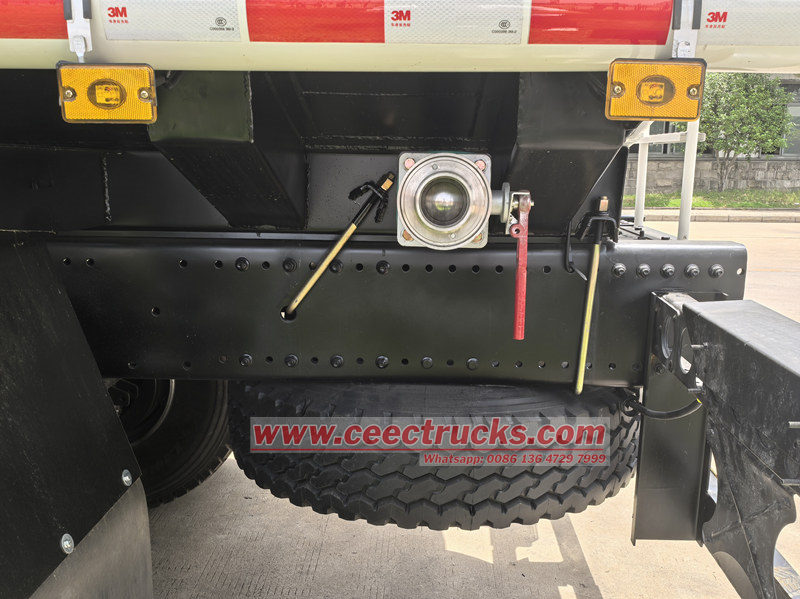

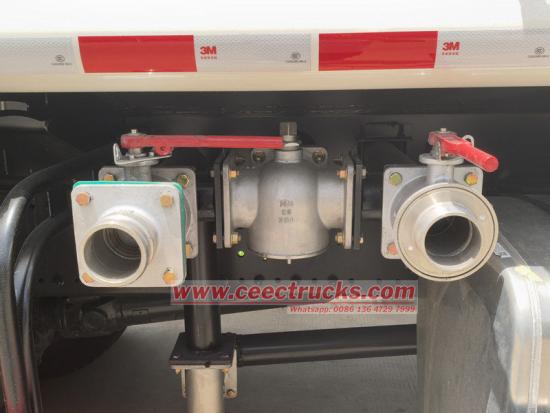

	2.Water Inlet & Outlet control valves
	3. Equipped with pipeline storage box at the side of tank
Horse reels	Two hose pipes on each side of the tank
Stainless steel water pump	Model	60/90 water pump
	Type	Single stage centrifugal pump
	Starting method	Electric start/hand start



» Ⅲ.Product Details & Advantages:

1. Detailed introduction

Foton Auman 20,000 liters water hauling tanker is a special vehicle designed for liquid water transportation. Its core components include a sturdy and durable tank body, an efficient and reliable pumping system, and a flexible and changeable control device. The tank body is made of high-quality steel or environmentally friendly anti-corrosion materials. It not only has a large capacity, but also has excellent sealing performance, which can effectively prevent water leakage and external pollution during transportation.



2. High efficiency, energy saving and environmental protection

Foton Auman water hauling tanker focuses on high efficiency, energy saving and environmental protection in design. Advanced pumping technology and optimized body structure make the vehicle consume less energy during transportation and reduce operating costs. At the same time, the environmental protection of the tank material also ensures that the water quality is not polluted and meets the relevant national environmental protection standards. These features enable the water truck to meet the water demand while also contributing to environmental protection.



3. Diverse application scenarios

The advantage of Foton Auman 20,000 liters water hauling tanker lies in its wide range of application scenarios.

In the field of urban sanitation, it can be used for road cleaning, dust reduction in public areas, and keeping the urban environment clean;

In the agricultural field, water trucks can timely irrigate farmland, alleviate drought, and ensure crop growth;

On construction sites, it can effectively control dust and improve the construction environment.

In natural disasters or emergencies, water trucks can also quickly provide emergency water supply, demonstrating their indispensable social value.



•

•



•




Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.



CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
