The Howo 10,000-liter automatic bitumen distributor truck is a key piece of equipment in road construction, integrating storage, heating, and spraying functions. Its insulated tank and built-in thermal oil circulation system effectively maintain the asphalt's high temperature to prevent solidification. An intelligent spraying device at the rear of the truck uses a computer-controlled system to precisely adjust the spreading width (adjustable from 2 to 6 meters) and the spreading volume (0.3 to 3 liters/㎡) to ensure uniform coverage. While the Howo automatic bitumen distributor truck is in motion, asphalt is pumped to the spray boom via a high-pressure pump and sprayed in a mist form through a fan-shaped nozzle, making it suitable for penetrating, tackifying, and sealing coat applications.

● China best automatic bitumen distributor truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service

*Shacman X3000 bitumen distributor tanker truck

    SHACMAN Bitumen Sprayer Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

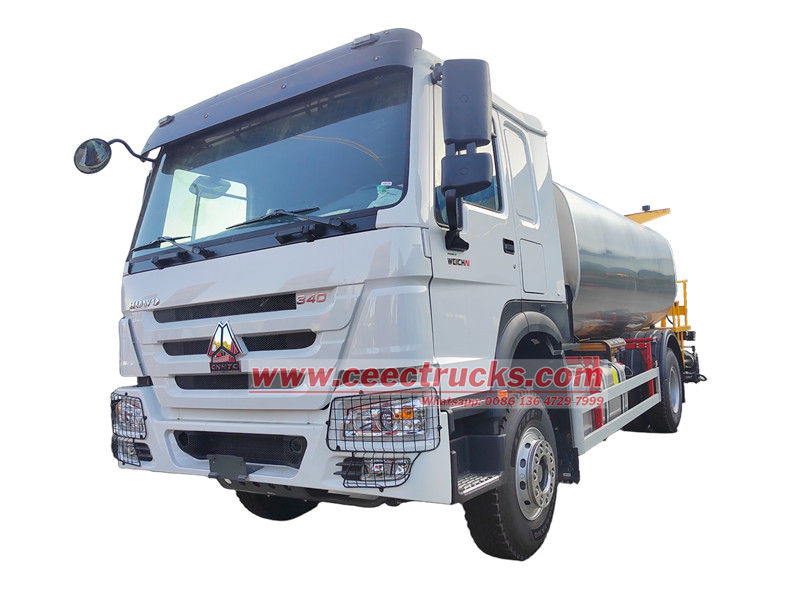

Truck Chassis: Sinotruk HOWO truck chassis, 4x2, 4X4 model

                           WP10.340E22 model with 340HP and emission 9726cc.

Howo 10,000 liters automatic bitumen distributor truck also called Howo 4x2 Automatic Asphalt Distributor, Howo 340hp Asphalt Spreader truck, Howo Automatic Intelligent Asphalt Truck, Howo 4x2  Bitumen Sprayer Truck.etc.

Equipped with an intelligent control system, it can achieve uniform spreading by adjusting the nozzle angle, pressure and driving speed. The spreading width and amount can be flexibly adjusted to meet the needs of different road surfaces.

How the Howo automatic bitumen distributor truck works:

● Asphalt Storage Tank: The Howo Asphalt Spreader truck is equipped with a large-capacity asphalt storage tank for storing asphalt. Asphalt is a viscous, oily substance obtained through petroleum processing.

● Oil Pump System: The Howo 4x2 Asphalt Spreader truck is equipped with an oil pump system to pump asphalt from the storage tank and transfer it to the spraying system. The pump system is hydraulically driven, ensuring stability and reliability.

● Spraying System: The spraying system consists of a series of nozzles and nozzles that evenly distribute the asphalt on the road surface. The spraying system can be adjusted as needed to control the thickness and width of the asphalt. The spraying system is hydraulically driven to ensure uniform and precise spraying.

● Temperature Control System: The Howo Asphalt Spreader truck is also equipped with a temperature control system to control the temperature of the asphalt. Asphalt must be heated to a certain temperature before application to ensure adhesion and fluidity. The temperature control system heats and insulates the asphalt, ensuring it remains at the appropriate temperature during application.

● Drive System: The Howo automatic bitumen distributor truck's drive system consists of an engine and transmission, providing power and controlling the vehicle's movement. By controlling the drive system, the operator can steer the distributor along the road and adjust the spraying system as needed.

» Ⅱ.Product Parameter for Howo 10,000 liters automatic bitumen distributor truck：

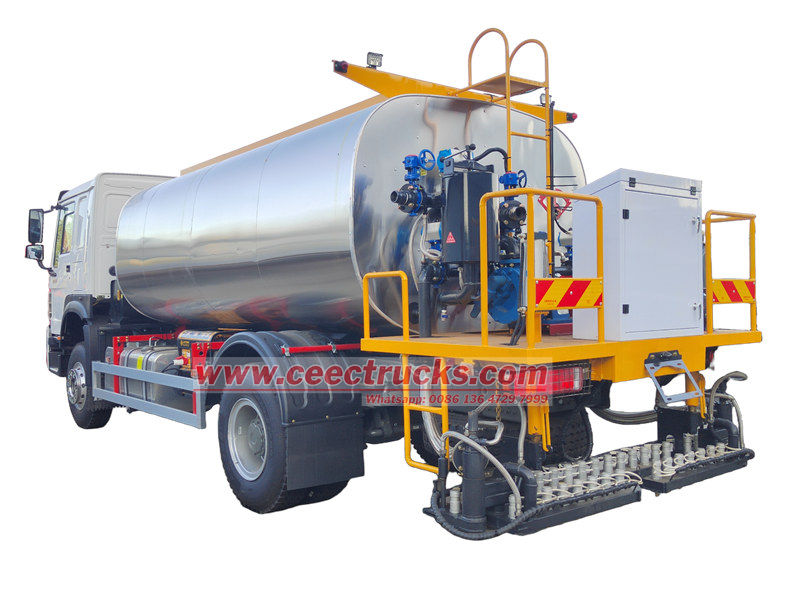

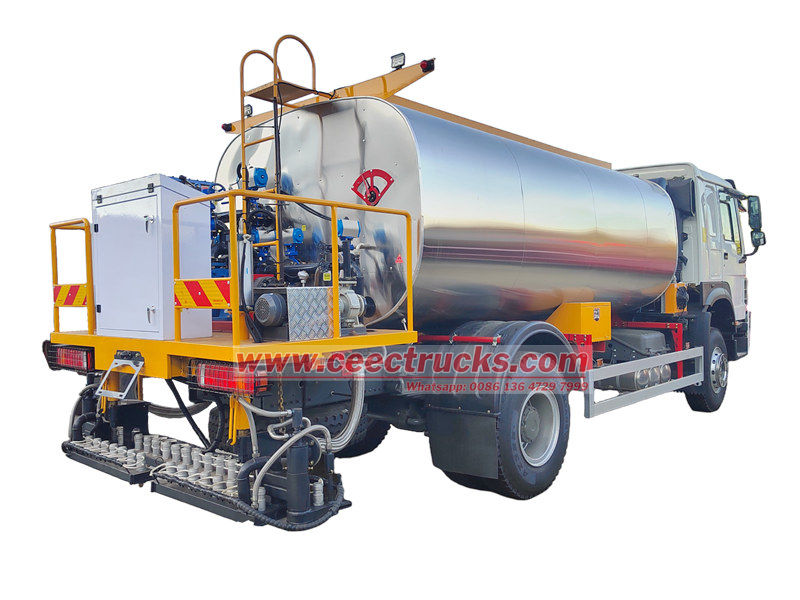

Howo 10,000 liters automatic bitumen distributor truck
General	Dimension (L×W×H)	7650×2380×2780 mm
	Drive Type	4×2,LHD
Engine	Engine Type	6 cylinders in line, 4-stroke, water-cooled, in-line
	Engine model	WP10.340E22
	Horse power	340HP / 250kw
	Fuel Type	Diesel
	Emission Standard	Euro 3
	Displacement	9.726L
Chassis	Chassis Brand	HOWO
	Wheelbase	4600mm
	Tire model	295/80R22.5
	Tire No.	6+1
	Steering Wheel	With power-assisted
	Gear Box	HW13710
	Brake	Air brake
Tank	material	Stainless steel/carbon steel
	capacity	10,000L
	Asphalt Pump	China brand
Spray	Width	4500 mm
	Volume	0.2-3 kg/㎡
	Precision	1.5%
	Medium	Modified asphalt, hot asphalt, emulsified asphalt and other asphalt media
Apply	road paving,etc
Asphalt Heating Method	Thermal oil heating (with automatic temperature control)
Equipment	The intelligent asphalt spreader truck consists of a car chassis, an asphalt tank, an asphalt pumping and spraying system, a thermal oil heating system, a hydraulic system, a combustion system, a control system, a pneumatic system, and an operating platform.



» Ⅲ.Product Details & Advantages:

1. Efficient Heat Storage and Intelligent Temperature Control System

The Howo automatic bitumen distributor truck features a large-capacity insulated tank with a double-layer stainless steel structure and a high-density insulation material filling the middle, effectively reducing heat loss. A built-in thermal oil circulation heating system, using either a diesel burner or a gas heater, rapidly heats the asphalt, ensuring it remains fluid and avoiding construction interruptions. Temperature sensors and an intelligent control system within the tank monitor and automatically adjust heating power in real time, keeping temperature fluctuations within ±3°C and ensuring stable asphalt performance.



2. Precision Spraying and Multi-Mode Operation Capabilities

The vehicle's rear is equipped with a retractable spray boom (adjustable length from 2 to 6 meters) equipped with a high-pressure centrifugal pump and fan-shaped nozzle. The spray width and flow rate can be infinitely adjusted (0.3 to 3 L/m2) via the onboard computer to meet the requirements of different processes such as penetration coating, tack coating, and seal coating.

The boom features a hydraulic lift design with adjustable ground clearance to accommodate uneven surfaces. Furthermore, the vehicle supports both manual and automatic operation modes. Manual mode allows for spot repairs, while automatic mode allows for constant speed travel along a pre-set route. Spray uniformity exceeds 95%, significantly improving construction efficiency.



3. Safety, Durability, and User-Friendly Design

The Howo automatic bitumen distributor truck utilizes a Sinotruk HOWO chassis, making it suitable for operations in complex road conditions. A breather valve and overflow prevention device are installed on the top of the tank to prevent the risk of overpressure and asphalt spills. The built-in touchscreen display in the cab provides real-time information on temperature, pressure, spray volume, and other parameters, and supports fault diagnosis and remote monitoring. The vehicle is also equipped with an asphalt recycling system to quickly drain residual asphalt from the pipeline after application, preventing solidification and blockage.



•

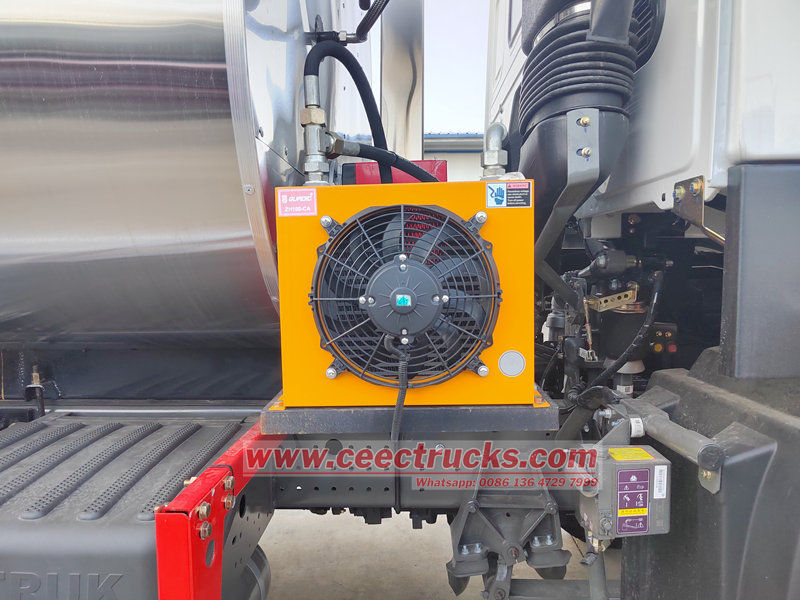

  heat sink


•

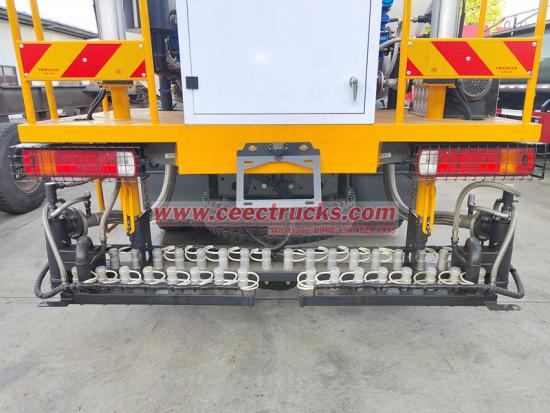

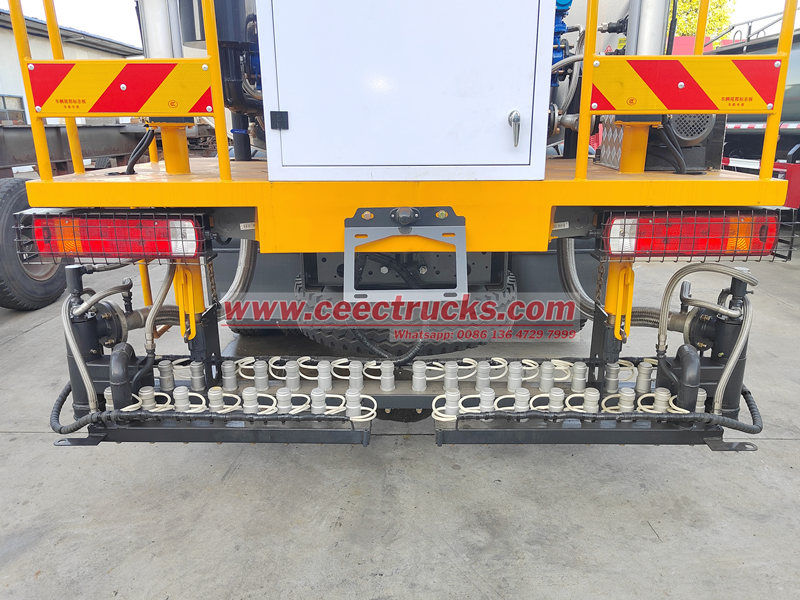

  Spraying device
•

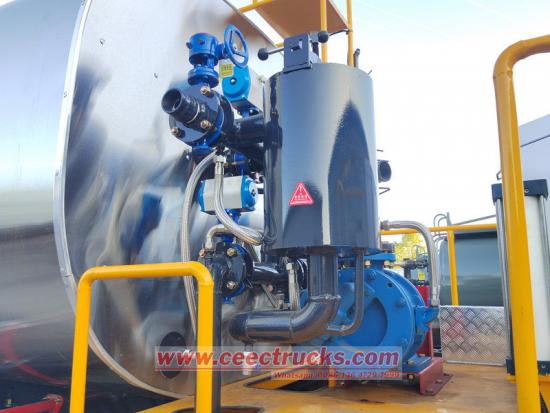

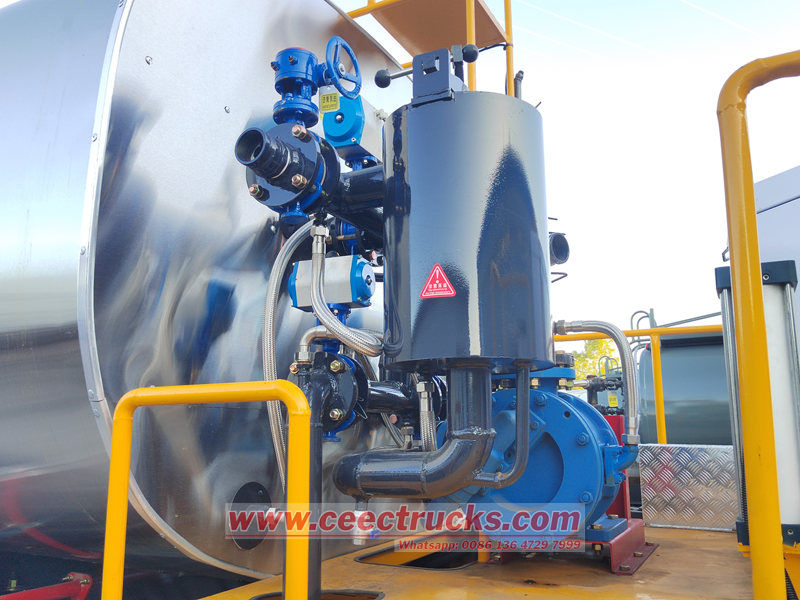

  Thermal insulation asphalt pump
