Howo 22m bucket lift truck

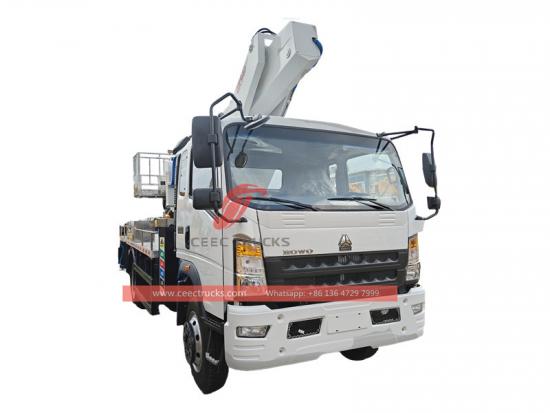

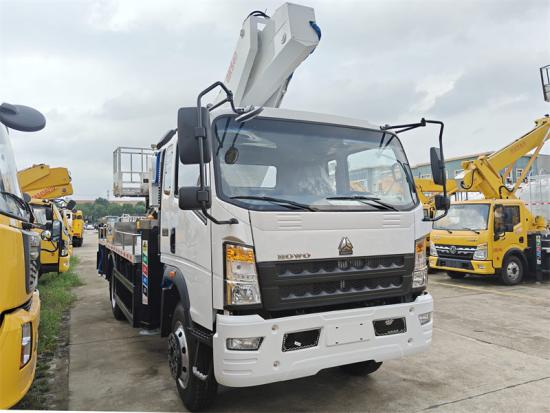

The HOWO 22m aerial platform truck is a specialized engineering truck that integrates superior technical performance and safety design. Built on the Howo all-drive chassis, the truck is equipped with an ISF3.8S3154 engine with a maximum output of 154 horsepower and a gross vehicle mass of 10,000 kg, providing flexible and powerful handling.The Howo light duty aerial platform truck has a maximum working height of 22 meters and a maximum operating radius of 12 meters.

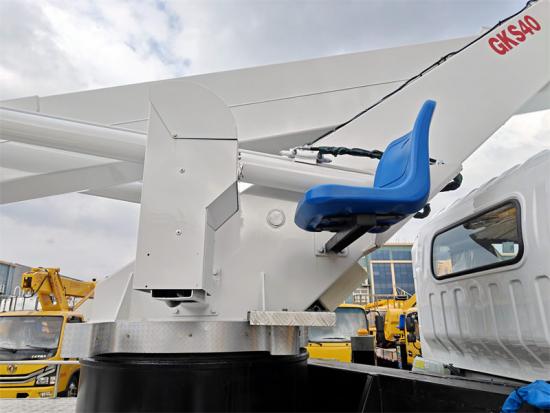

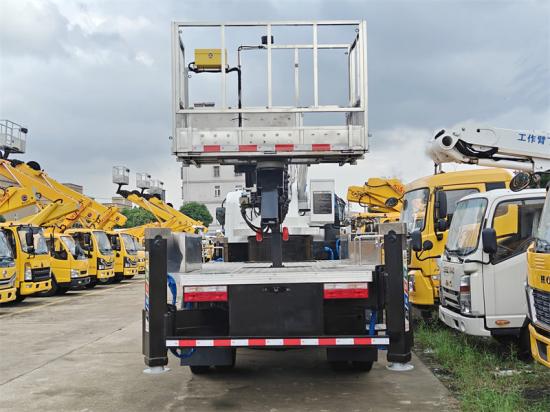

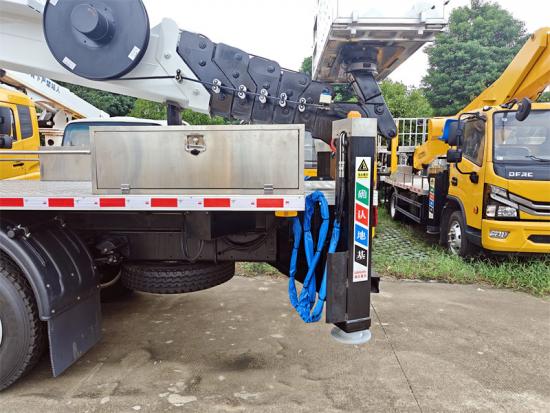

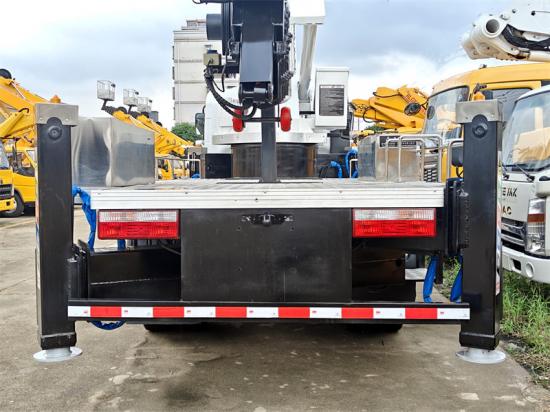

It utilizes a hydraulic static balancing system to ensure stability. Its unique H-shaped hydraulic outrigger design with a bidirectional hydraulic locking mechanism ensures stability during operation. The Howo light manlift truck also features dual manual and wireless remote control systems. The platform has a rated load capacity of 200 kg, 360° hydraulic rotation, and multiple built-in safety features, including automatic out-of-bounds control, an emergency stop, and a leakage protection device.

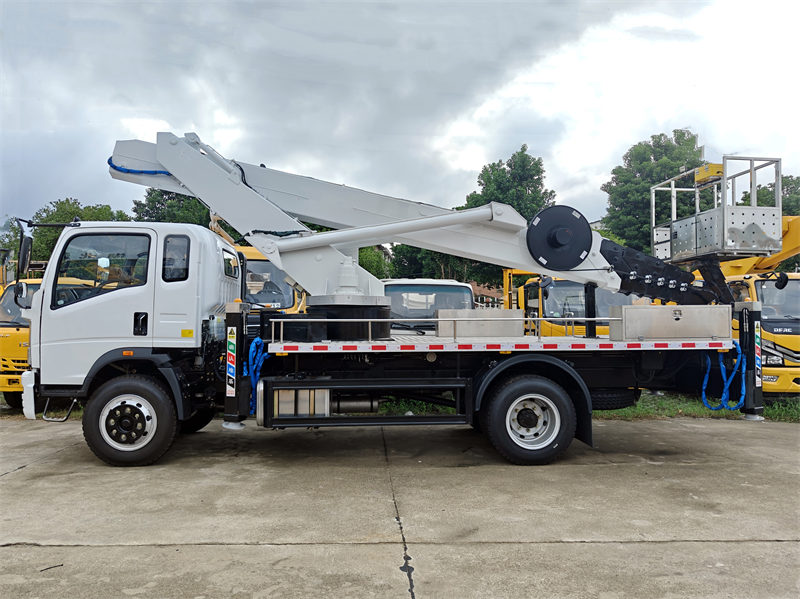

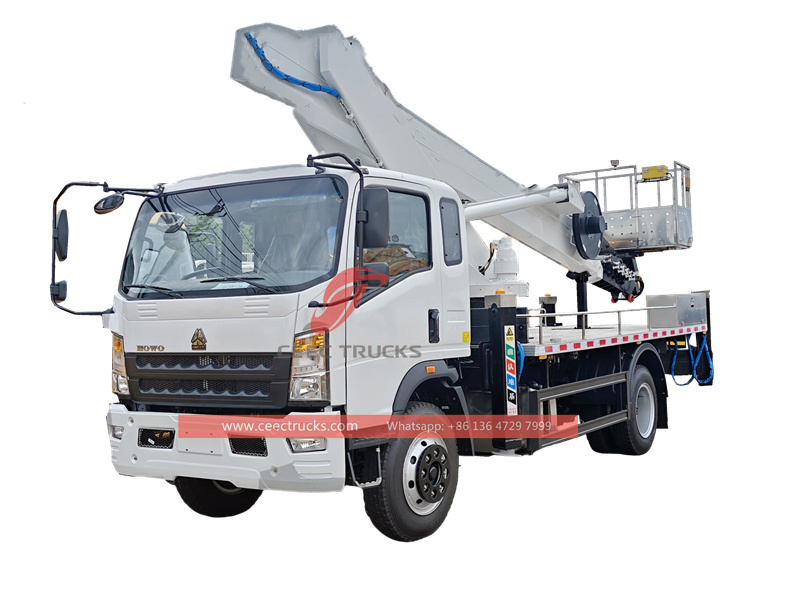

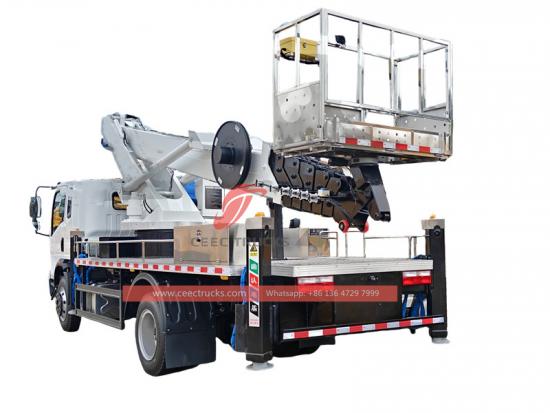

*HOWO Light 22m Aerial Platform Truck *

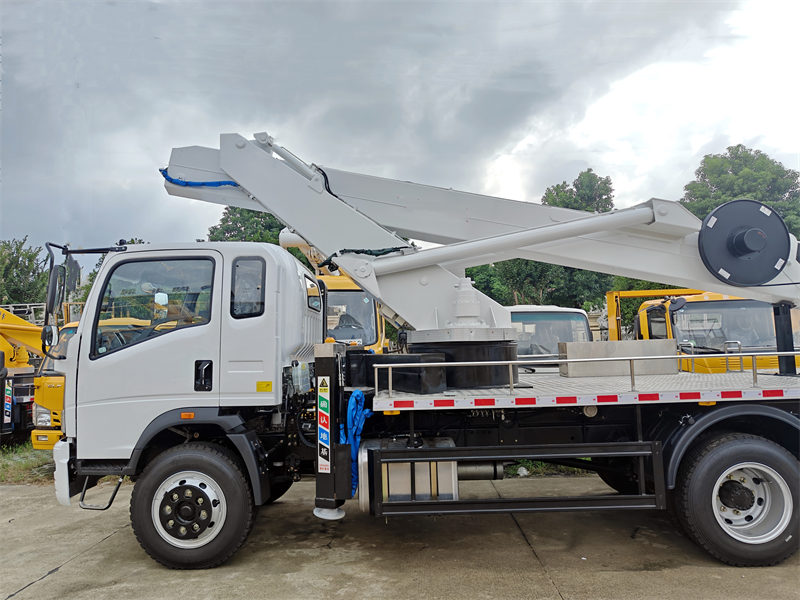

*HOWO 22m High Altitude Work Vehicle *

------------------------------------------------------------------

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC Trucks Group

Features:

1. Truck Chassis: Sinotruk Howo truck chassis, 4X2,4x4 model

                              Cummins model with 154HP and Euro 2,3,4

2. Upper Body material: 6mm thick high-quality steel for prolonged service lier
                                         carbon steel or stainless steel can be choose.

3. Capacity: maximum lifting height of 22 meters,

                     maximum lifting capacity of 250kg (within the operating radius)

                     360° slewing capability

4.  Options Equipment: High quality hydraulic part, single-level telescopic lifting arm, two units of hydraulic winch 12ton , tool case, two outriggers, manual operation device, two floodlight, one alarm lamp and basic accessories

» Ⅱ.Product Parameter for Howo manlift truck truck

Ⅲ.Safety Testing of Howo 22m High Manlift Truck

⇒  Before leaving the factory, the equipment undergoes a dynamic load test with a coefficient of 1.25 times the rated load and a static load test with a coefficient of 1.5 times the rated load.

⇒ All key structural components undergo tens of thousands of fatigue cycles and destructive testing to ensure the equipment's safety and reliability.





⇒ Comprehensive safety devices are included, including cylinder and outrigger retraction devices, access interlocks, emergency stop devices, soft leg protection devices, extreme deceleration, and emergency manual override systems.



⇒ Key structural components are all welded from low-alloy, high-strength steel for high strength and light weight. These components have been thoroughly verified through numerous tests to ensure precise matching of the structural, electrical, and hydraulic systems.



» Ⅳ.Advantage of the Howo aerial platform truck



1. Technical indicators of key subsystems

♦ Hydraulic power system：Use load-sensitive proportional valve group, pressure fluctuation is controlled within ±0.5MPa, dual pump confluence system needs to meet 0-100% flow stepless adjustment, minimum starting pressure ≤1.2MPa.

♦ Intelligent control system：The CAN bus architecture needs to meet ASIL-B safety level, equipped with millimeter wave radar + visual fusion anti-collision system, detection distance ≥15 meters.

♦ Emergency safety device：The response time of the dual redundant braking system is less than 100ms, the fall protection device needs to meet the EN12159 standard, and the stopping distance is less than 0.5 meters.



2. Advanced manufacturing process requirements

♦ Welding process control:  The arm welding adopts narrow gap submerged arc welding, and the weld flaw detection meet the highest standard of ISO 5817-B grade welds. The overall stress relief treatment after welding, the residual stress ≤15% of the material yield strength.

♦ Assembly precision management: The arm section matching clearance is less than 0.05mm/m, the straightness error is less than 1/2000, and the slewing bearing assembly clearance is controlled in the range of 0.03-0.08mm.

♦ Surface treatment process: The composite coating system (hot spray zinc + polyurethane) is salt spray resistant >2000h, the key friction pair surface is laser cladding treated, and the hardness reaches HRC58-62.

-------------------------------------------------------------------------------------------------------



● China best Howo aerial platform truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sale service



⇒ Products--100% Customized Level One!

⇒ Transportation--100% Safety, Convenience, Efficient!

⇒ Services--7days + 24hours Safetify Service!



»»» CEEC trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
