Howo 4 cbm small cement mixer truck is an indispensable "mobile cement factory" on construction sites. It has a huge cylindrical mixing drum that rotates continuously during driving to ensure that the concrete is even and does not solidify. The body is sturdy and equipped with a powerful power system, which can easily cope with complex road conditions and deliver concrete to various construction sites on time. It is easy to operate and the driver can accurately adjust the mixing speed and discharge volume through the control panel. Howo cement mixer truck with its high efficiency and flexibility, provides a stable supply of concrete for the construction of high-rise buildings, bridges and roads, and is a powerful assistant in the modern construction industry.

● China best cement mixer truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service

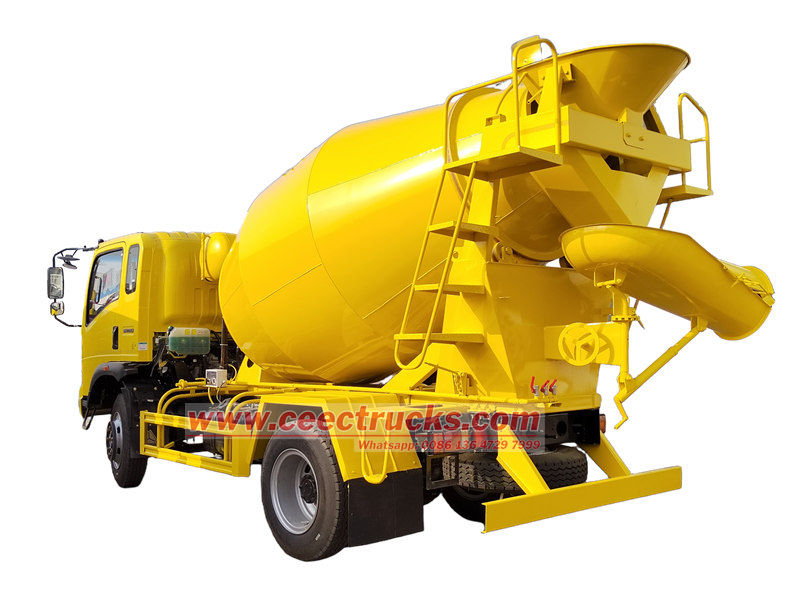

*Howo 4 cbm small cement mixer truck

    Howo 4x2 cement concrete mixer truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

Truck Chassis: Sinotruk Howo chassis, 4x4,  6x4 model

                           YC4D130-33 model with 130HP and emission 4214cc.

Howo 4 cbm small cement mixer truck also called Howo concrete mixer truck, Howo 4X2 4cbm cement drum dump truck, Howo cement concrete mixer truck, Howo 4cbm cement mixing truck , Howo cement tanker truck.etc.It is widely used in construction, highways, bridges, water conservancy and other construction sites, and is one of the indispensable transportation equipment in the process of modernization.

Howo 4 cbm small cement mixer truck consists of a mixing drum, a feeding and discharging device, a water supply system and a hydraulic transmission system.

The main function of the mixing drum is to mix concrete. It is installed on the rear half of the vehicle frame and is mainly composed of a drum, a connecting flange, a raceway and mixing blades.

The concrete storage tank is made of high-quality wear-resistant thin steel plates. In order to be able to load and unload concrete automatically, its inner wall is welded with a special shape of spiral blades.

When the concrete storage tank rotates forward, the concrete can fill the tank and will not solidify quickly due to continuous stirring; when it rotates in the reverse direction, the concrete will be automatically discharged from the discharge port.

Howo concrete mixer truck structure:

●Mixer tank: The core component is cylindrical, pear-shaped, and equipped with spiral blades. The front end of the tank is connected to the frame through a reducer, and the rear end is supported by a supporting wheel to ensure smooth rotation. The mixer tank rotates continuously during transportation to prevent the concrete from segregating and solidifying.

●Hydraulic transmission system: It consists of a power take-off, a hydraulic pump, a hydraulic motor, and a reducer. The power take-off is used to obtain power from the engine to drive the hydraulic pump to generate hydraulic energy, which is then converted into mechanical energy by the hydraulic motor, and finally drives the mixer tank to rotate through the reducer.

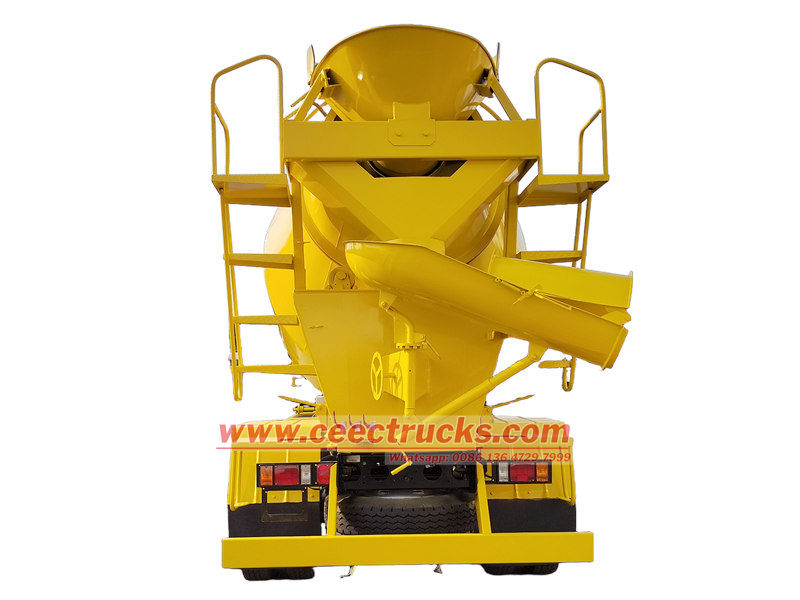

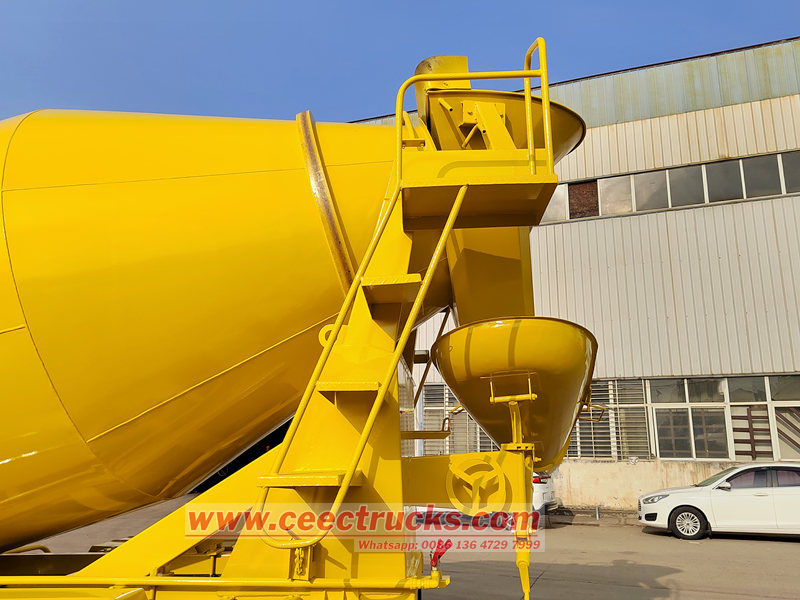

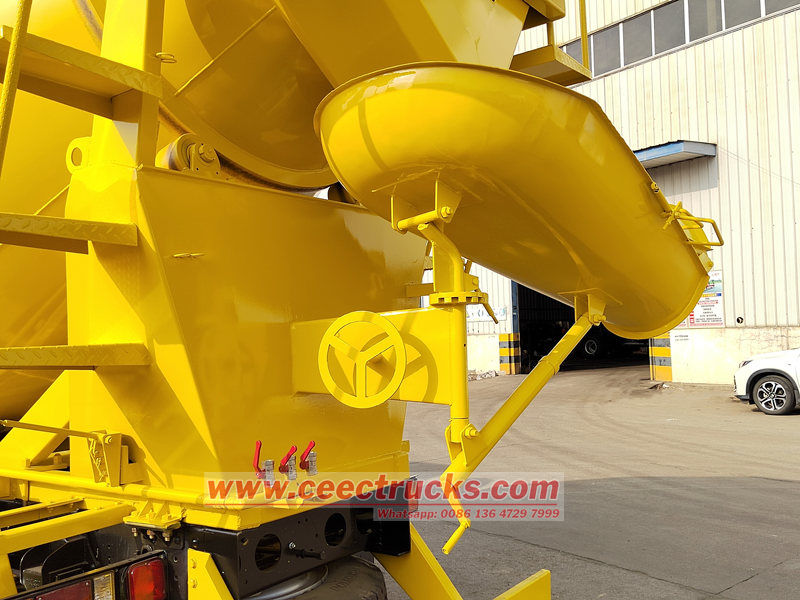

●Feeding and discharging system: The feeding system includes a feed hopper and a bracket to facilitate the rapid loading of concrete into the tank; the discharging system consists of a main discharge trough, an auxiliary discharge trough, and a locking rod. The auxiliary discharge trough can extend the length of the main discharge trough to ensure smooth discharge of concrete.

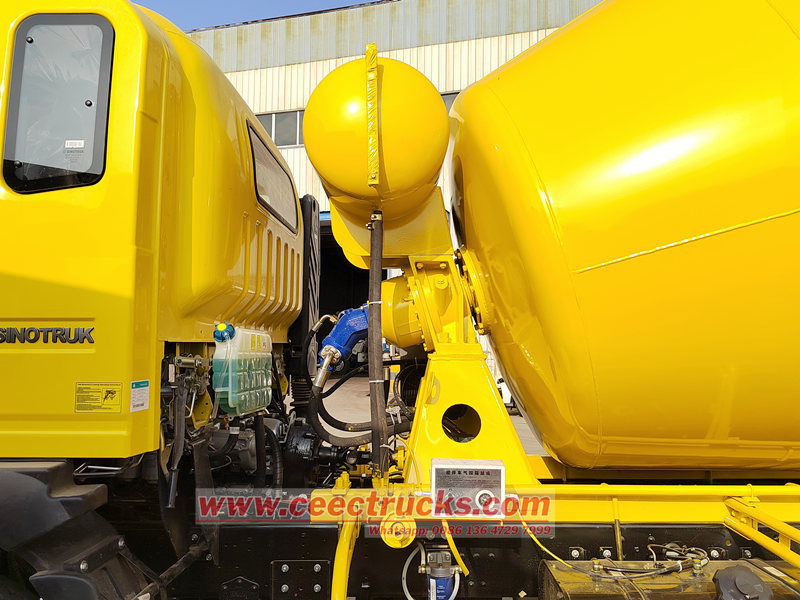

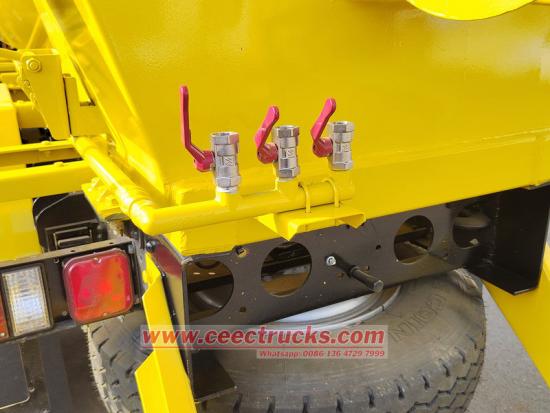

●The cleaning system is equipped with a pressure water tank, water nozzle, and water pipes, using pneumatic water supply. It cleans the feed hopper, discharge hopper, and mixing tank after loading and unloading to prevent concrete from sticking and keep the equipment clean.

●The control system consists of a controller, linkage shaft, flexible shaft, and connecting rod mechanism. A joystick at the rear controls the forward and reverse rotation and speed of the mixing tank, enabling loading, unloading, and mixing.

●The roller system is located at the rear of the mixing tank, where it connects to the subframe. It supports the roller body and ensures stable and reliable rotation of the mixing tank.

●The subframe, consisting of the main beam, front support frame, and rear support frame, is the primary load-bearing component. Loads during operation are transferred to the chassis through the subframe, mitigating impact loads caused by road bumps and deceleration.

●The electrical system includes the vehicle's taillights, side marker lights, corridor lights, and cooling fan motor, ensuring electrical safety during driving and operation.

» Ⅱ.Product Parameter for Howo 4 cbm small cement mixer truck：





Howo 4 cbm small cement mixer truck
Overall dimension	7300x2500x2850mm
GVW	12500kg
Curb weight	5200kg
Chassis parameter
Chassis Brand	Howo
Wheelbase	3800 mm
Driving type	4x2, Right-hand drive (RHD)
Engine parameter
Engine model	YC4D130-33
Rated power (HP)	130HP / 96kw
Rated speed	2800 rpm
Max·torque	420 N·M
Displacement	4214 ml
Emission standard	Euro 3
Fuel type	Diesel
Transmission(Gear box)	WLY6TS55 6-speed,manual
Tyre	9.00R20 (6+1)
Mixing Drum parameter
Mixing drum material	High quality wear-resistance steel
	Model:Q345
	Drum body thickness: 5mm, End cover thickness:6mm
Agitating capacity	4M3
Charging rate	≥3 m3/min
Top feed hopper dimension	≥650 mm
Discharging rate	≥1.2 m3/min
Residual rate	≤0.5%
Water supply	Baric water supply system
Water tank capacity	400L
Mixer drum rotation speed(rpm) 0~12	Mixer drum rotation speed(rpm) 0~12
Air pressure water supply	Air pressure water supply
Operating system Model:linkage operation	Operating system Model:linkage operation
Accessory	Tool box



» Ⅲ.Product Details & Advantages:

1. Efficient transportation and mixing

Howo 4 cbm small cement mixer truck integrates transportation and mixing functions. Its core component is a rotatable mixing tank with a specially designed spiral blade structure. During transportation, the mixing tank rotates continuously to ensure that the cement, sand and water in the concrete are fully mixed, effectively preventing segregation and solidification, and ensuring uniform concrete quality. This design enables the mixer truck to complete the mixing and delivery tasks of concrete in one transportation, greatly improving construction efficiency, especially suitable for long-distance transportation and large-scale construction scenarios.



2. Flexible Control and Excellent Safety Performance

The Howo cement concrete mixer truck is equipped with an advanced hydraulic transmission system and control device. The operator can easily adjust the speed and rotation direction of the mixing drum via the control panel, achieving precise control of material loading, unloading, and mixing. The vehicle's chassis offers excellent stability and load-bearing capacity, enabling safe operation in complex road conditions. Furthermore, the mixing drum's inlet and outlet are rationally designed and feature excellent sealing performance, effectively preventing concrete leakage and dust pollution, ensuring the safety of the construction environment and personnel.

3. Durable, reliable and easy to maintain

The mixing tank and key components of Howo 4 cbm small cement mixer truck are made of high-strength wear-resistant materials. After special process treatment, they have excellent corrosion resistance and wear resistance, and can withstand the test of long-term high-intensity operation. The vehicle structure is reasonably designed and easy to repair and maintain. Key components such as hydraulic pumps, motors and reducers are all well-known brand products with reliable quality and long service life.

•

•



•
